TYPE MFG PART NUMBER
F12
F13 X X2
CAR2-D-PL-ASM04-5-35-HW-120/277-10'-CON-0-10V
NIOB-2RNDC35X-HZMPW/HL/NHIOICD-415-LE4
NX-815-LED-R-C-A NX-815-LED-R-2M-A
DESIGNED AND MADE IN CALIFORNIA

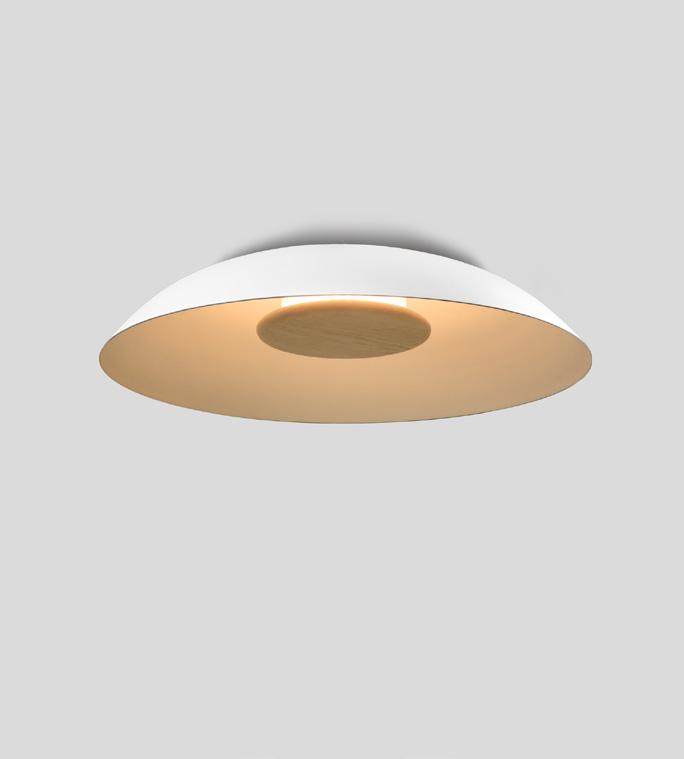

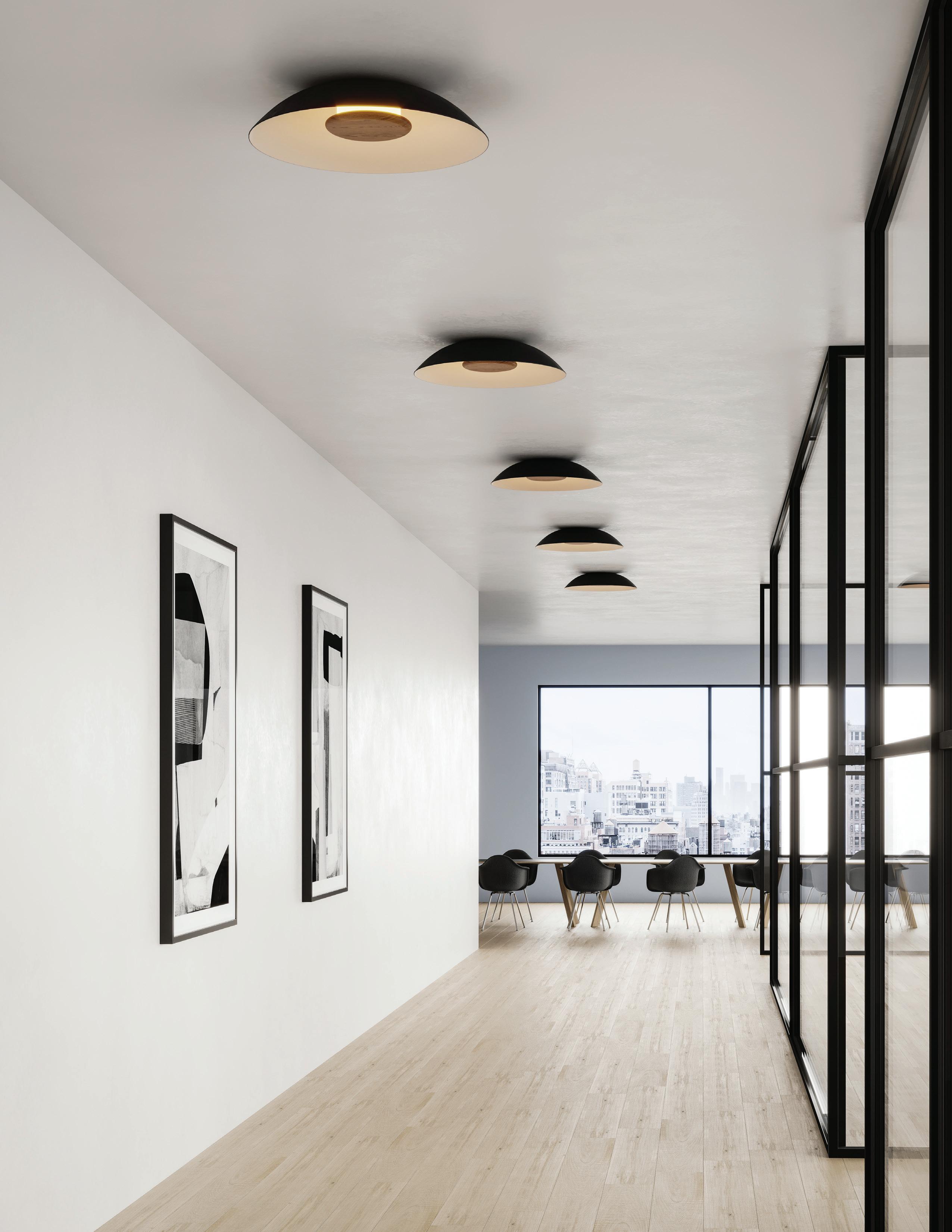

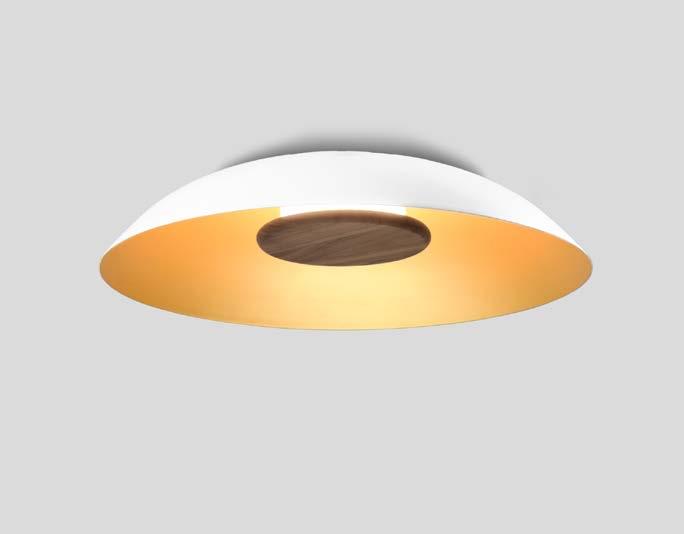

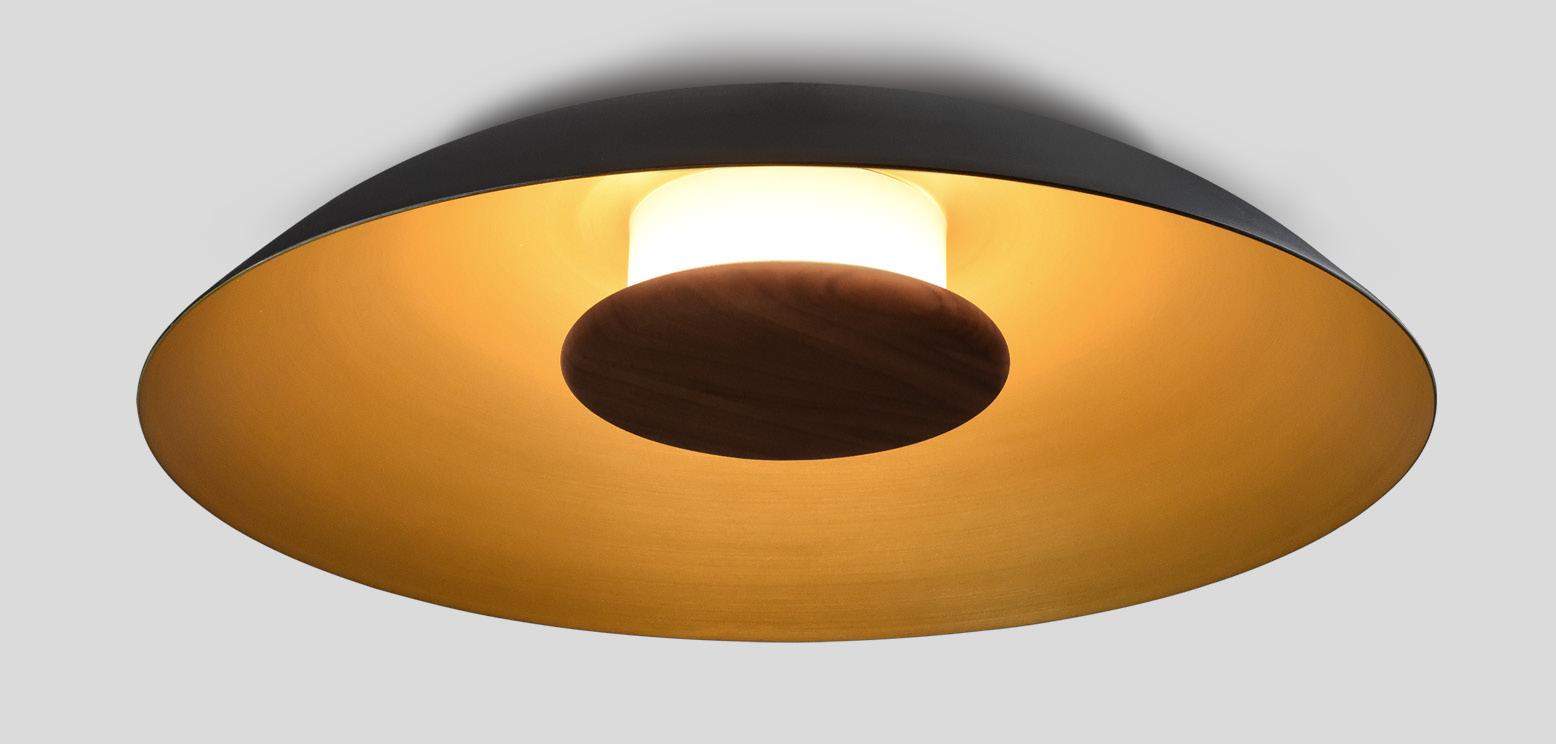

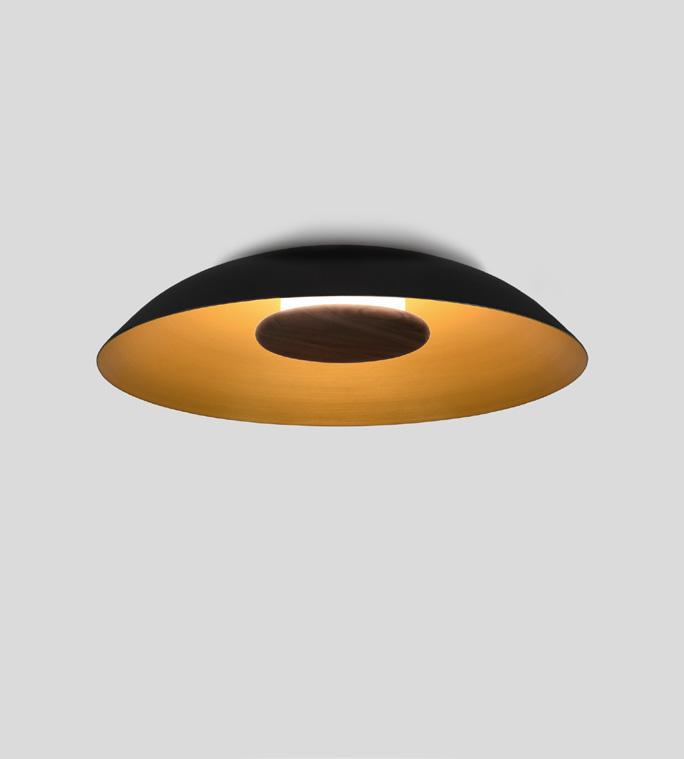

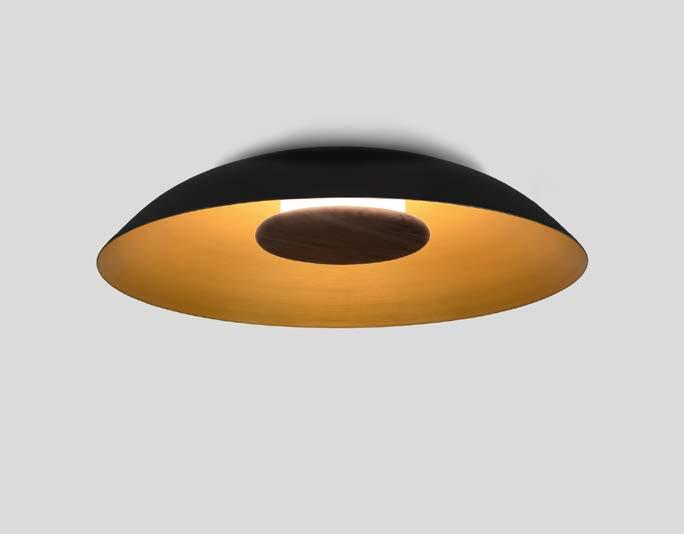

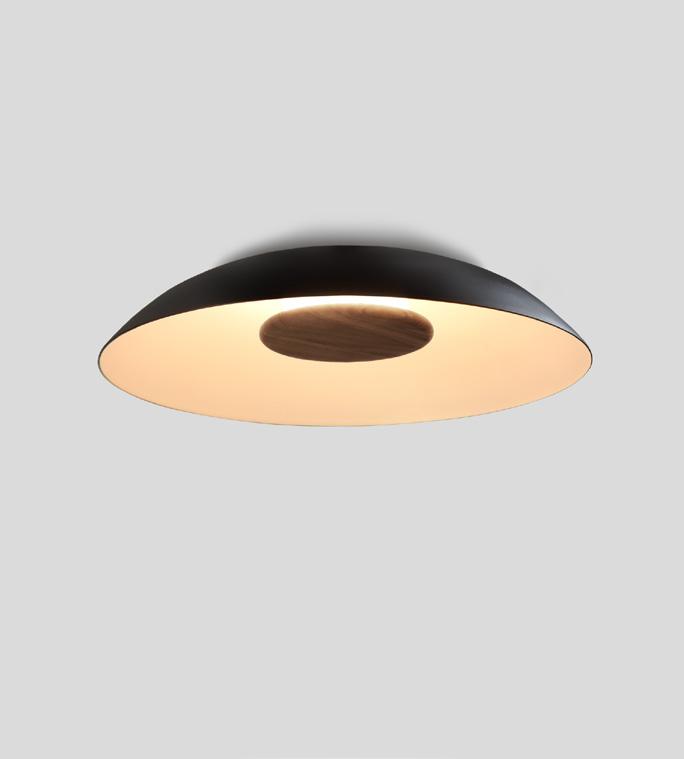

Volo Flush Mount
The handcrafted Volo flush mount is a celebration of natural materials. The solid hardwood, brass finish, and aluminum showcase the purposeful design that went into each detail. The indirect LED light source emits light of beautiful quality.

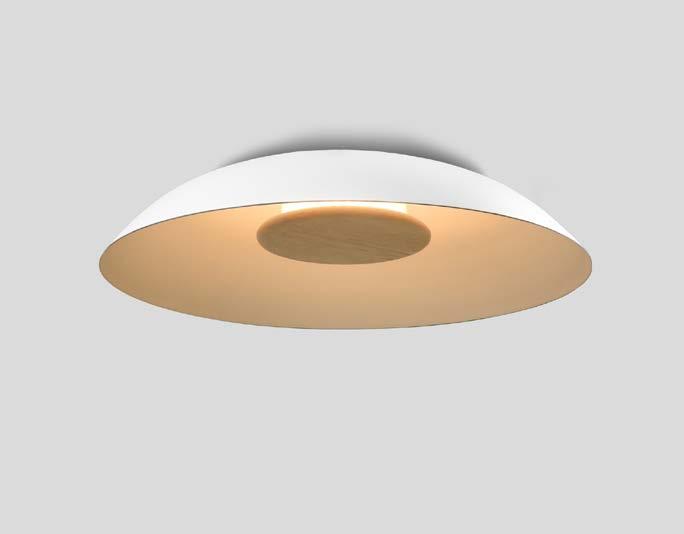

Volo flush mount
Dimensions: 24” dia., 5"
Product weight: 7 lb
Light source: integrated LED
Light output: 2625 Lumens (source)
Output based on white shade interior
Alternate finishes will reduce lumen output
Light color: 2700 K, 3000 K, 3500 K, or 4000 K
Color accuracy: 90+ CRI
Power usage: 27 W
Dimmable (see power options below)
Wood grain will vary
Specifications subject to change
For expanded offering see Specification Sheet.
noir detail
noir
black ext., brass int., brass accents, black leather, dark stained walnut disc
cava
ext., brushed brass int. brass accents, brown leather, walnut disc
white int., black accents, brown leather, walnut disc
& int., brass accents, tan leather, white washed oak disc
1001 WATER STREET TYPE
The handcrafted Volo flush mount is a celebration of natural materials. The solid hardwood, brass finish, and aluminum showcase the purposeful design that went into each detail. The indirect LED light source emits light of beautiful quality
Volo flush mount part of the Volo collection
Dimensions: 24” dia., 5"
Product weight: 7 lb
Light source: integrated LED
Light output: 2625 Lumens (source)
Output based on white shade interior
Alternate finishes will reduce lumen output
Light color: 2700 K, 3000 K, 3500 K, or 4000 K
Color accuracy: 90+ CRI
Power usage: 26 W
Driver location: must be housed in J-box
Driver dimensions: 3.38” x 1.63” x 1.08”
Dimmable (see driver option)
Wood grain will vary
Specifications subject to change
MATERIAL & FINISH OPTIONS
For
noir black exterior, brass interior, brass metal accents, black leather, and dark stained walnut disc
cava white exterior, brushed brass interior, brass metail accents, brown leather, and walnut disc

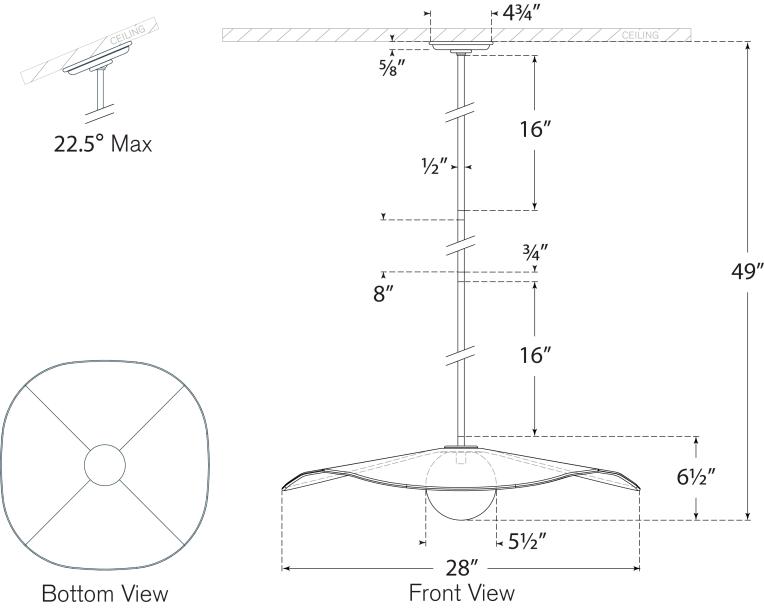

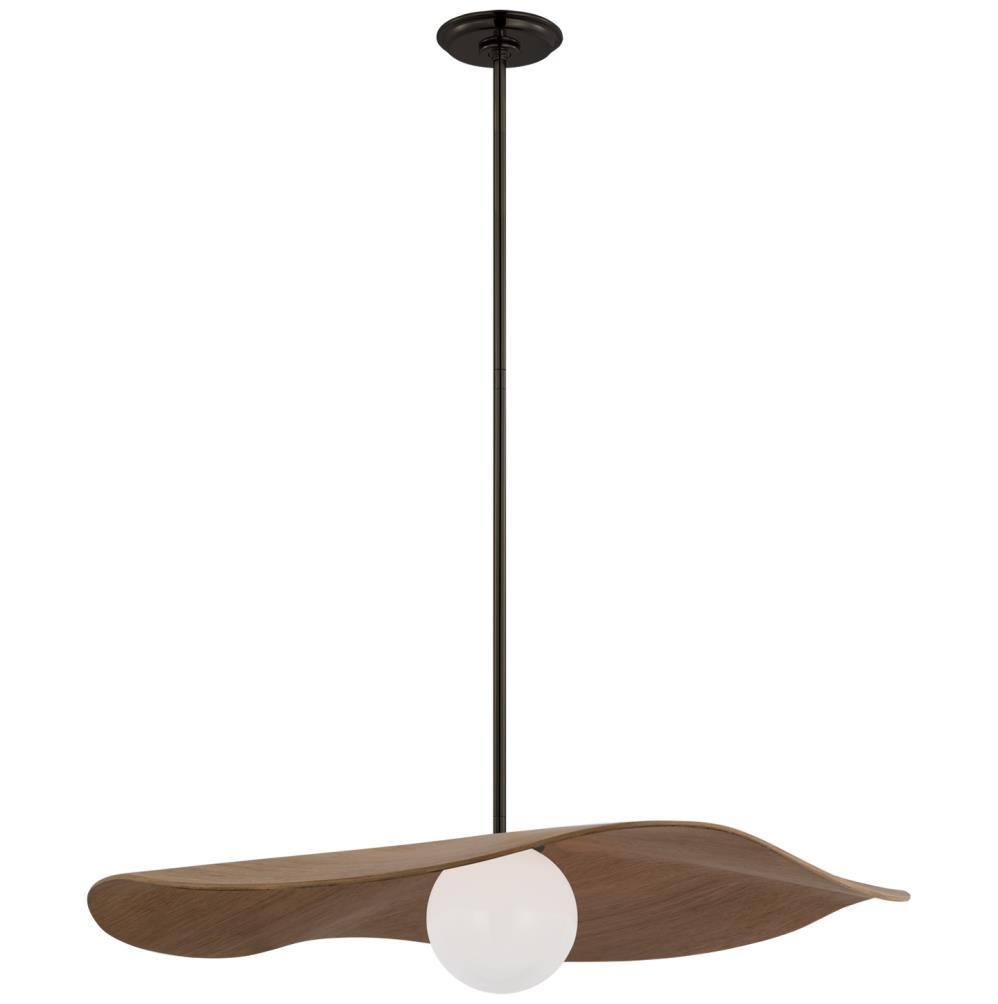

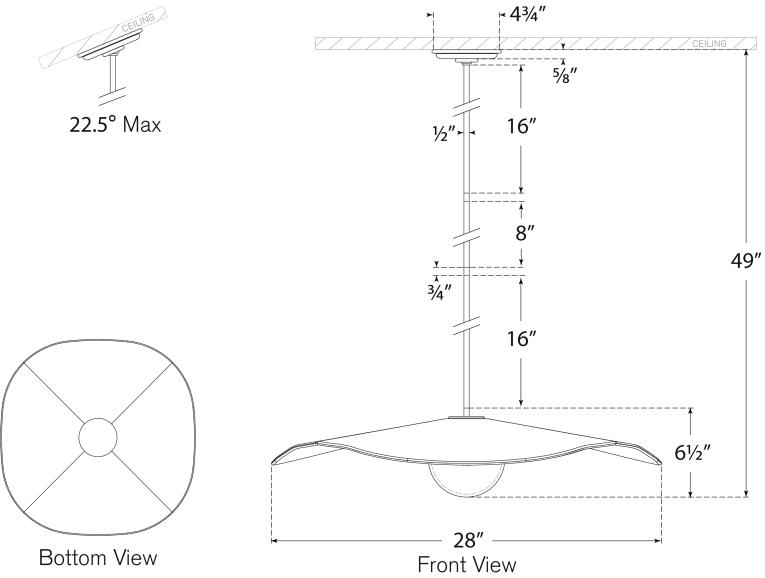

Mahalo 28" Pendant
Item # WS 5040BZ-NO
Designer: Windsor Smith
O/A Height: 49"
Fixture Height: 6.5"
Min. Custom Height: 15.5"
Width: 28"
Canopy: 4.75" Round
Finishes: BZ, HAB, PN
Glass Options: WG
Lightsource: Dedicated LED
Wattage: 6w (700lm)
Note: UL Only | Custom Height Available
1001 WATER STREET
Mahalo 28" Pendant
Item # WS 5040BZ-NO
Designer: Windsor Smith
O/A Height: 49"
Fixture Height: 6.5"
Min. Custom Height: 15.5"
Width: 28"
Canopy: 4.75" Round
Finishes: BZ, HAB, PN
Glass Options: WG
Lightsource: Dedicated LED
Wattage: 6w (700lm)
Weight: 8 Pounds
Note: Custom Height Available
TYPE DF3 SPEC 1001 WATER STREET

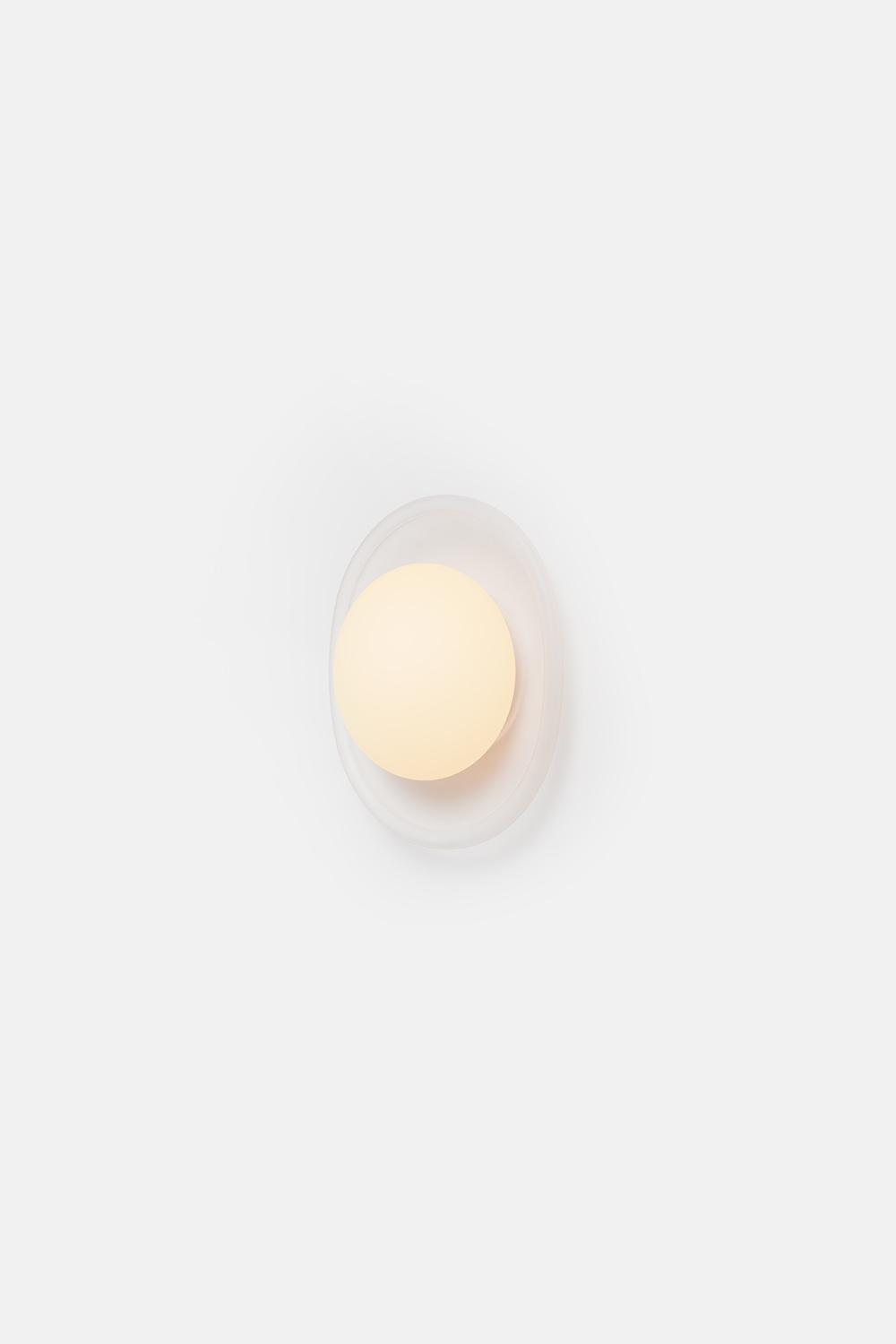

Crepe Sconce
Sconces
YOUR PRODUCT CODE
CRP-WS-9-S22-27-1_10V_UNV-IP20
DESCRIPTION
Crafted entirely from glass, the Crepe collection creates a mesmerizing depth of light and form with a layered diffuser and shade. This collection is created in collaboration with Little Wing Lee of Studio & Projects.
MATERIALS
Cast solid glass, aluminum
COLLECTION NOTES
Crepe Small 9" & Medium 15" are ADA compliant, while Large 19" is not. Each form of cast glass is unique. We review each to ensure they conform to ASTM standards, which includes the presence of small air bubbles within the glass.

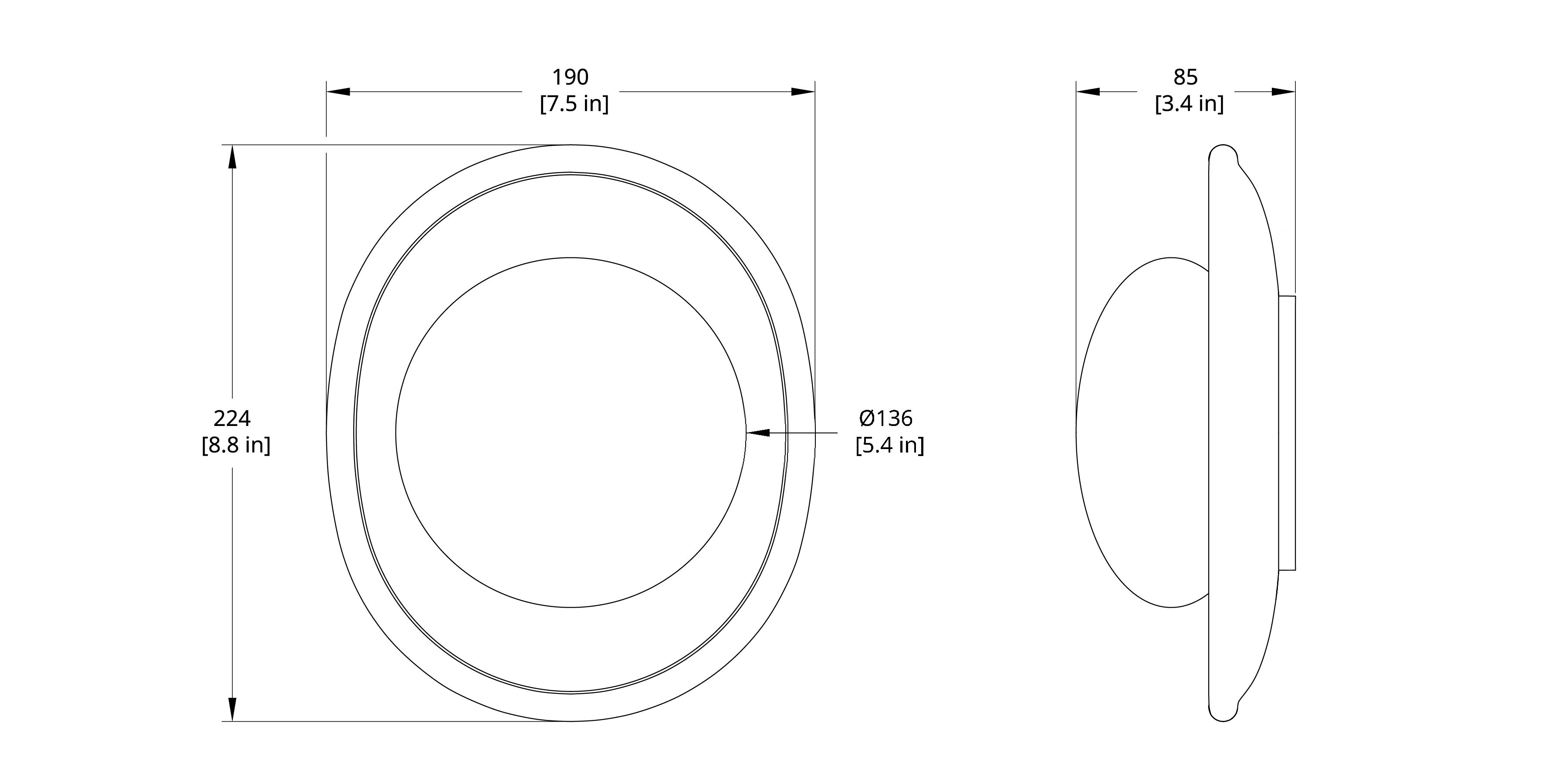

PRODUCT DIMENSIONS
Small: 7.5 in W x 8.8 in H x 3.4 in D | Medium: 12.6 in W x 14.9 in H x 3.4 in D | Large: 15.7 in W x 18.6 in H x 4.9 in D
PRODUCT WEIGHT
Small 9": 3.5lbs | Medium 15": 4.9lbs | Large 19": 7.2lbs
Above stats are based on small globes on Frosted glass plate (applicable for Crepe Small 9" & Crepe Medium 15") in 2700K Full detail in photometry summary
Crafted entirely from glass, the Crepe collection creates a mesmerizing depth of light and form with a layered diffuser and shade. This collection is created in collaboration with Little Wing Lee of Studio & Projects.
PERFORMANCE
Delivered Lumens 623.1 lm (DC) | 486.3 lm (AC)
Power Consumption 7.1W (DC) | 8W (AC)
Luminous Efficacy 87.8 lm/W (DC) | 61.1 lm/W (AC)
90+ CRI
Above stats are based on small globes on Frosted glass plate (applicable for Crepe Small 9" & Crepe Medium 15") in 2700K Full detail in photometry summary

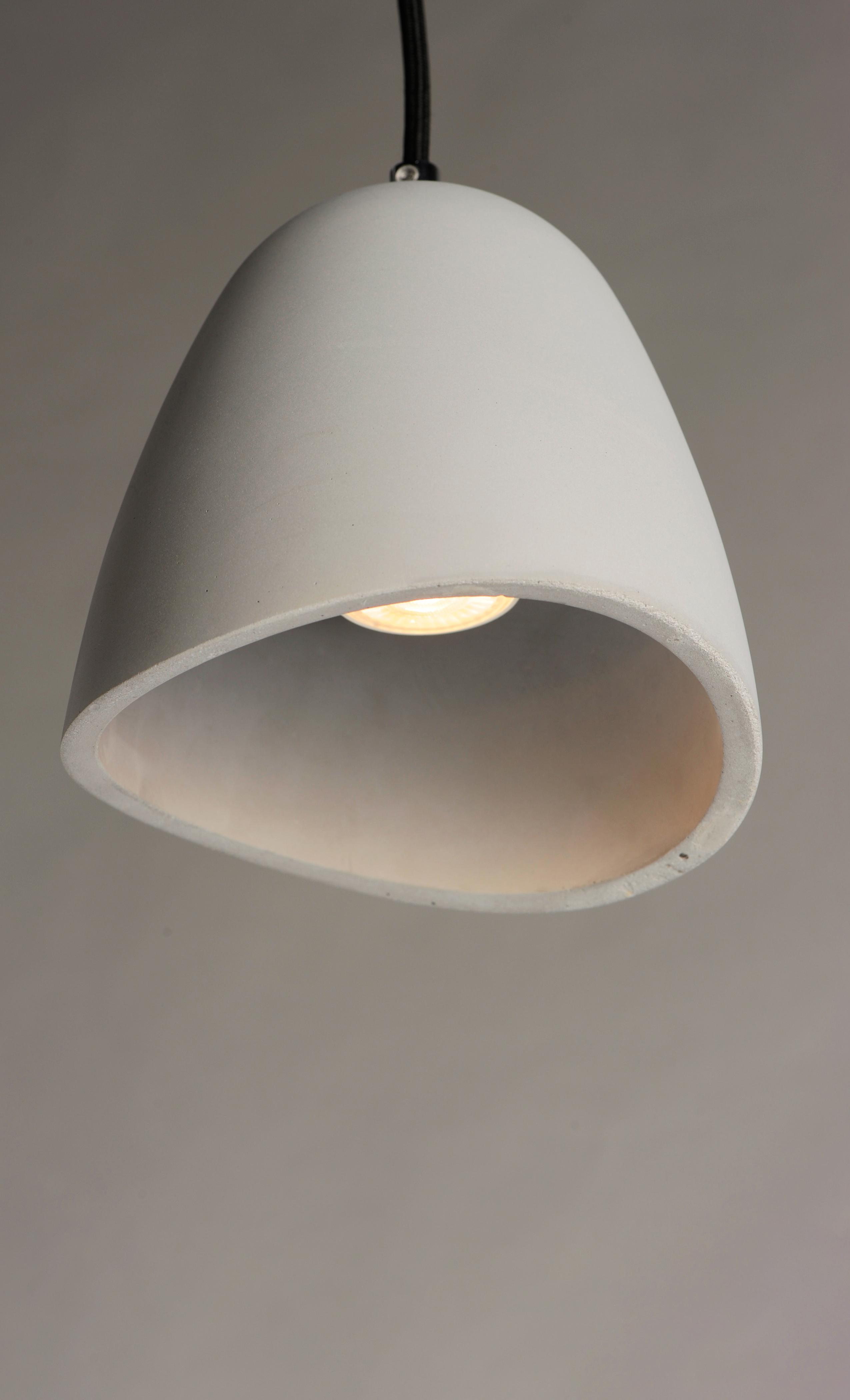

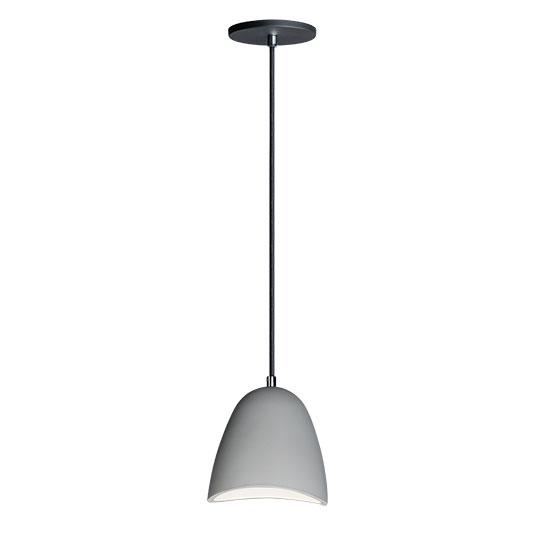

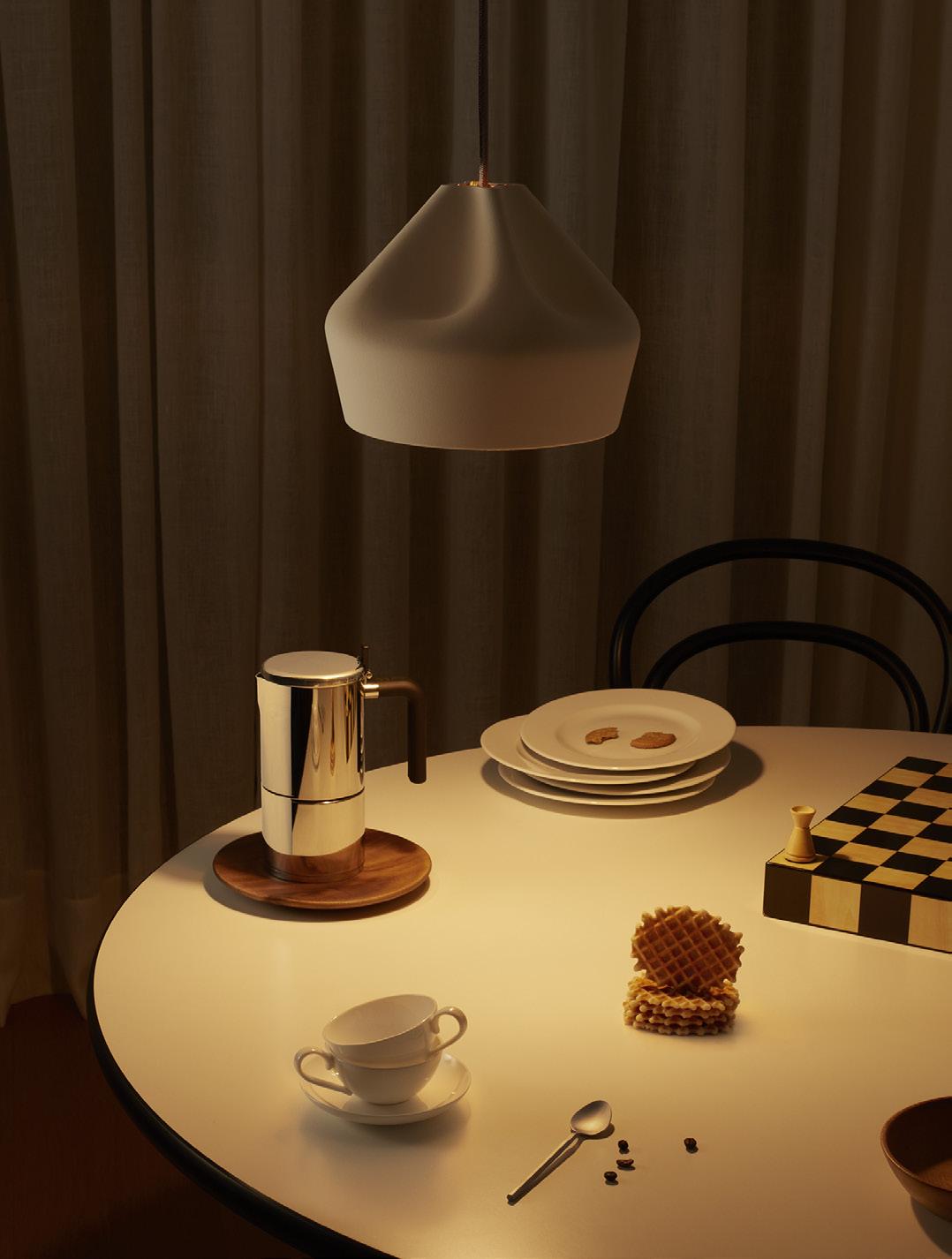

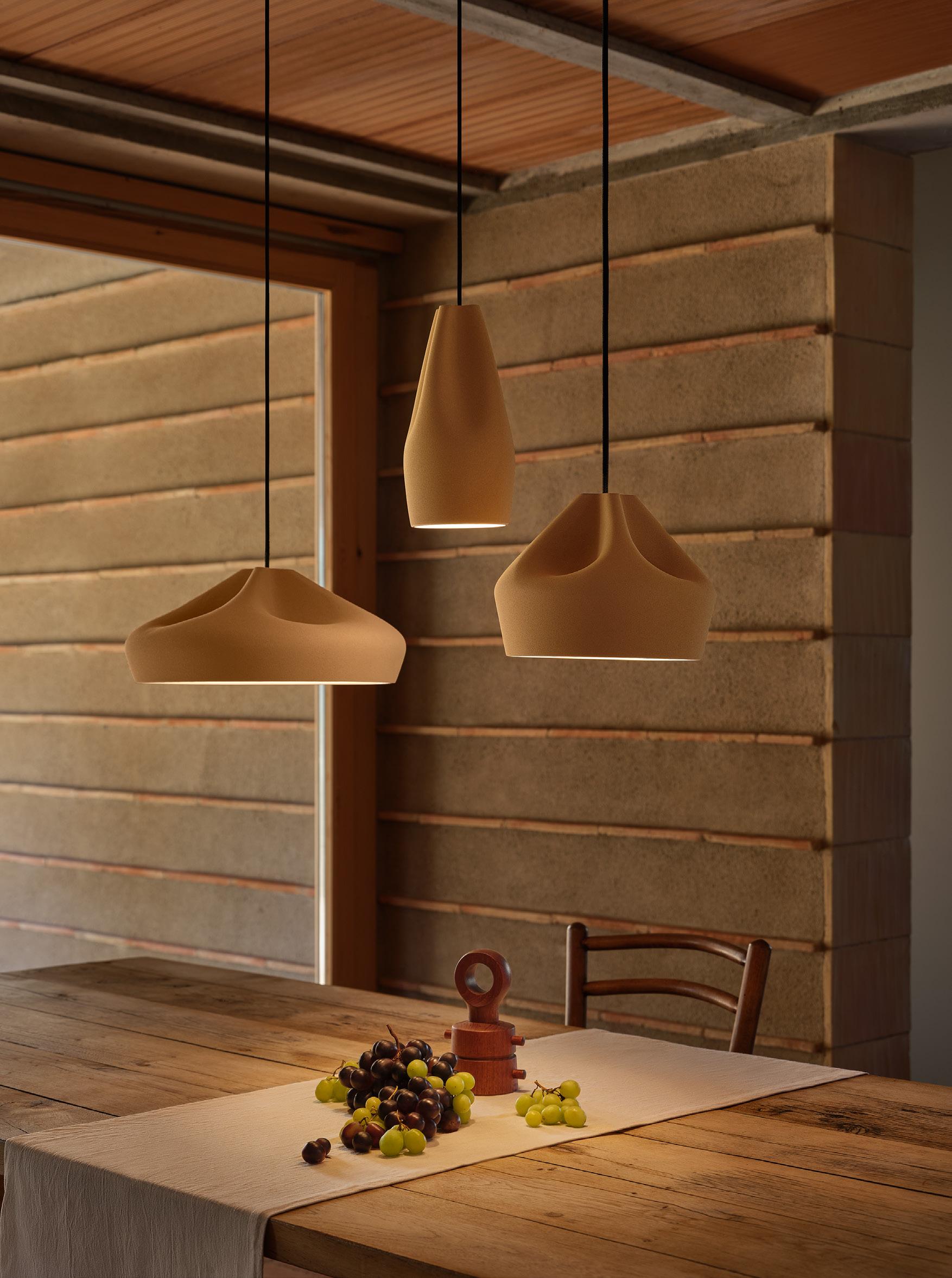

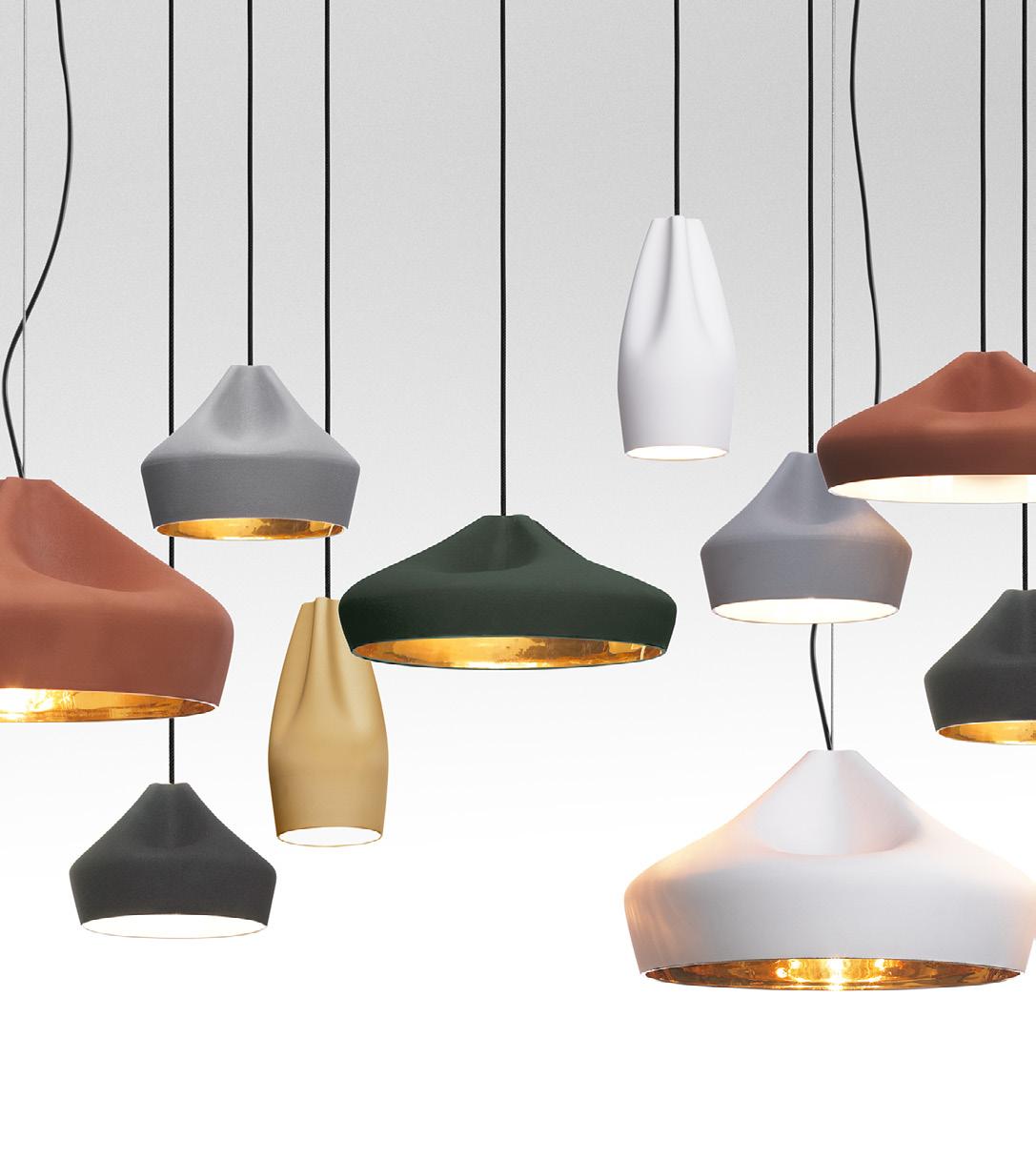

The idea behind the Pleat Box is a sophisticated combination between a digitally designed crease in a piece of cloth and a silhouette that is applied to a ceramic base.
The alchemy of the craft process leaves unpredictable traces, small marks in the metal
tiny cracks in the polish… little flaws that mark the unique personality of every
Code
A636-408-3535
A636-408-3549
A636-408-3835
A636-408-4135
A636-408-3949
A636-408-4235
A636-408-4535
A636-408-4549
Finish White - White White - Gold Grey - White Terracotta - White Black - Gold Ocher - White Dark Green - White Dark Green - Gold
Dimmable: Based on specified lamping
Integrated dimmer: No
Dimming protocols: Based on specified lamping
Supply voltage: 120V
Materials
Shade: Ceramic with the inner part in brilliant white enamel or gold
A 35" site-adjustable stem is included with purchase. The aluminum stem will come in matching metal finish. Custom stem lengths are available at an additional cost.
OPTIONS AVAILABLE
PROJECT INFORMATION
33 West Beaver Creek Road Richmond Hill, Ontario Canada L4B 1L8

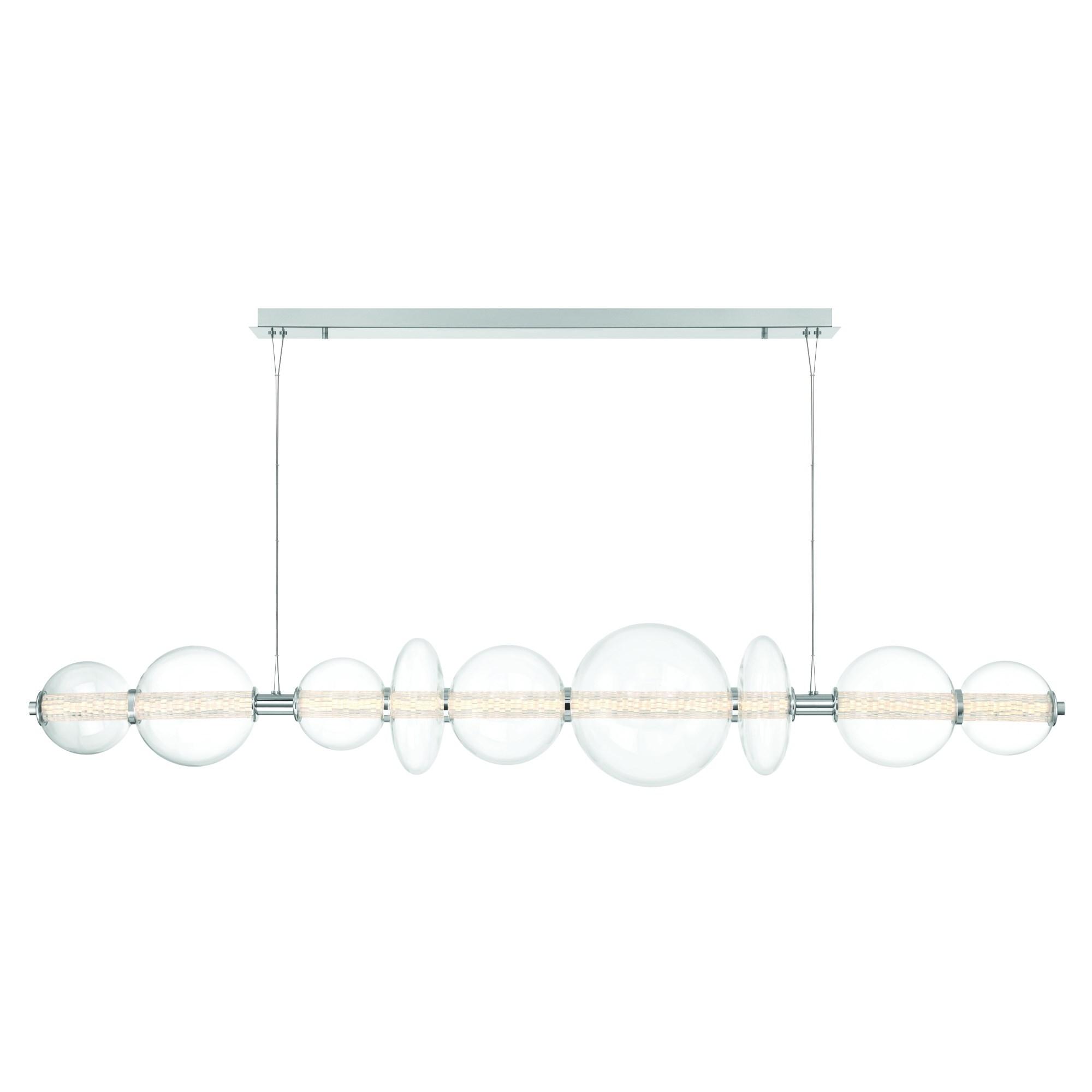

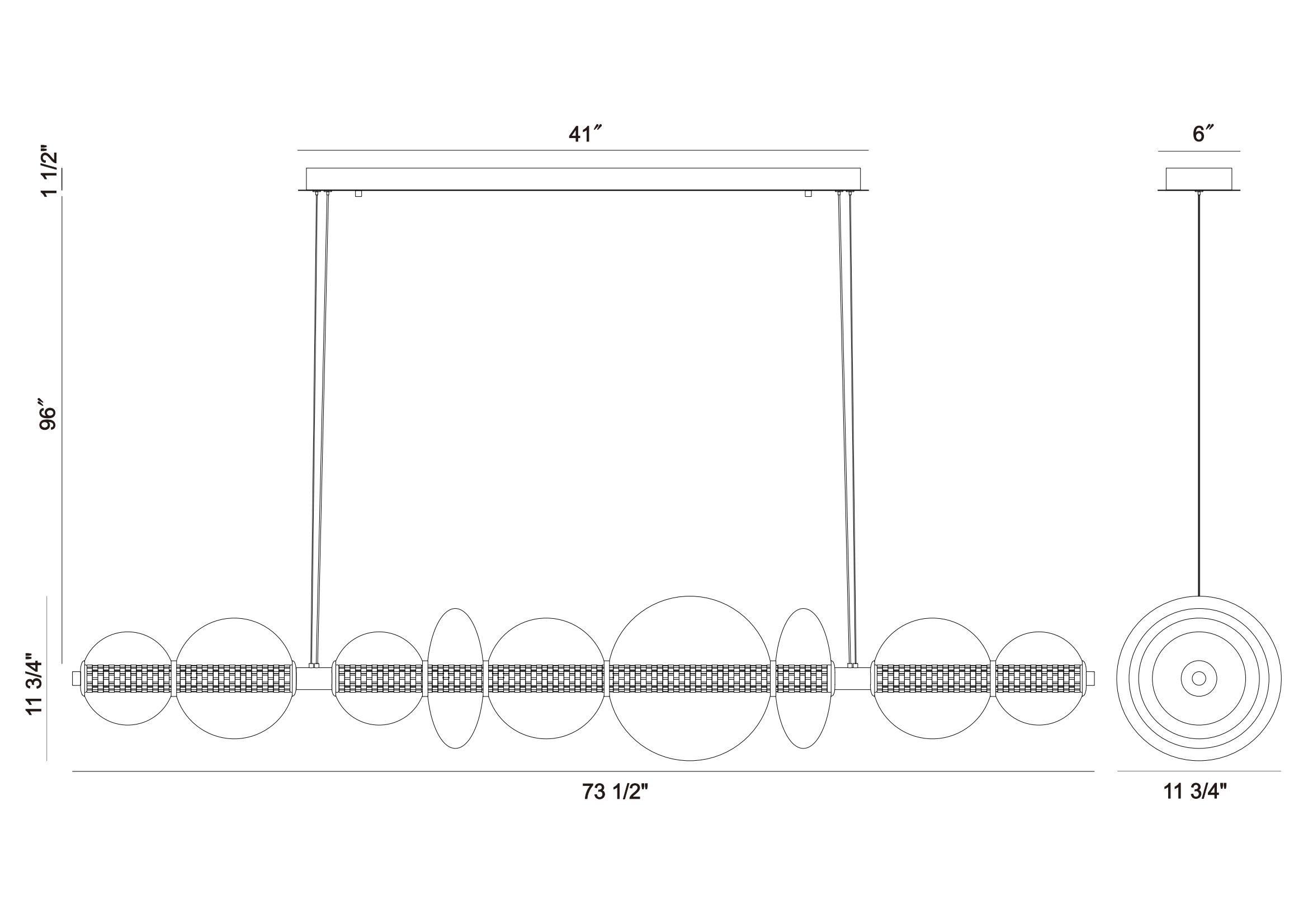

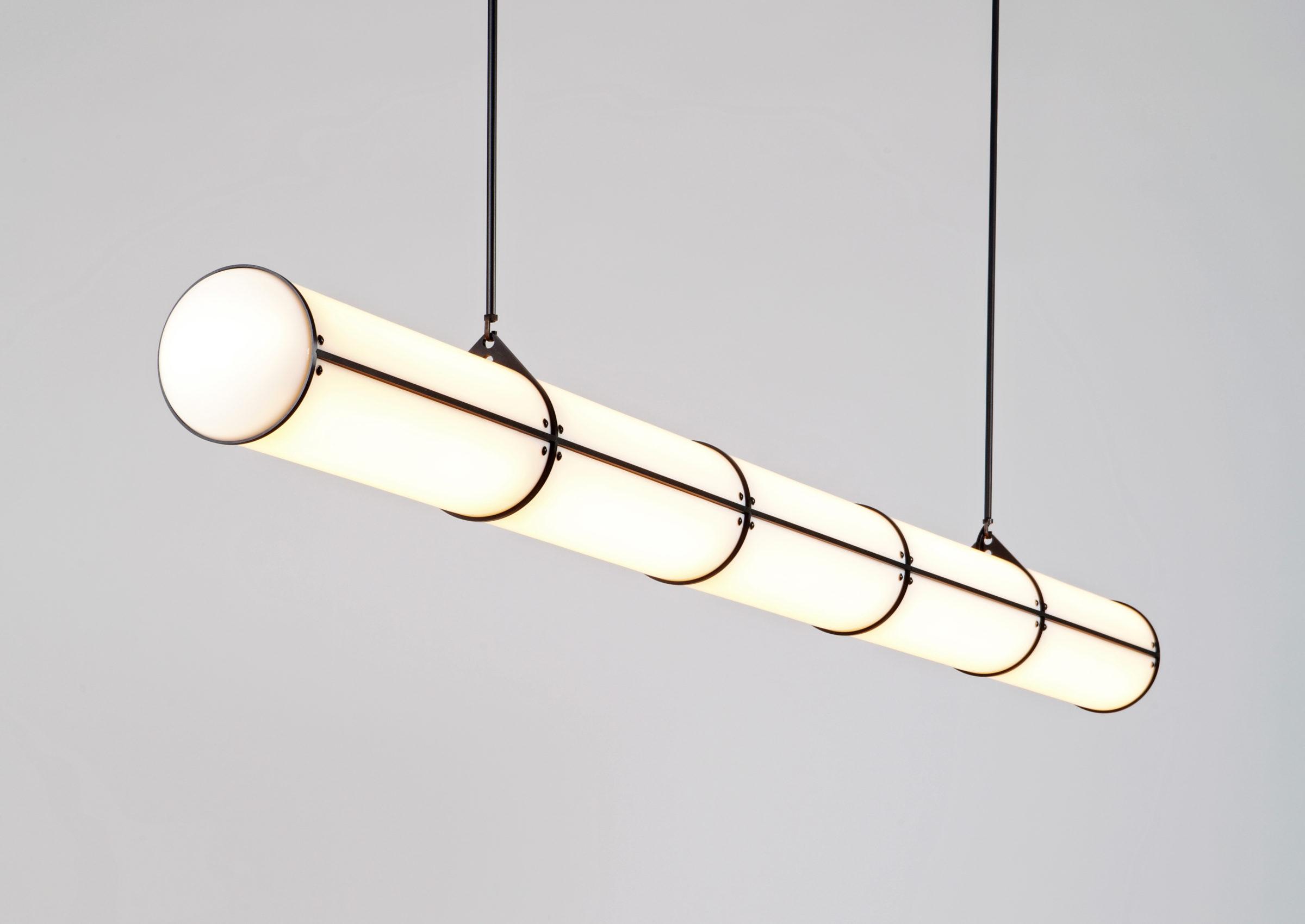

PRODUCT DETAILS
No. : 47257030
Product Color : CHROME
Shade / Accent Colour : CLEAR
Shade / Accent Material : GLASS
Length : 73.5"
Diameter : 12"
Weight : 21.4LBS
Shade Diameter : 12"
LIGHT SOURCE DETAILS
Number of Bulbs :1
Light Source : LED
Light Source Type : INTEGRATED LED
Bulb Voltage : 36V
Wattage : 1 X 50W
Total Wattage : 50W
Delivered Lumens : 5731LM
Kelvin : 3000K
CRI : 90
Bulb Included : YES
Dimmable : YES
TECHNICAL DETAILS
Hanging Support Type : AIRCRAFT CABLE
Canopy / Backplate Length : 41"
Canopy / Backplate Height : 1.5"
Canopy / Backplate Width : 6"
IP Rating : IP22
Beam Angle : 360
Job Name: Date: Type:
Comments:
AERA 3" DOWNLIGHT
ROUND RECESSED
NEW CONSTRUCTION & REMODEL
Bevel Trimless Drywall Mudplate
Bevel Flanged Trim Pinhole Flanged Trim Pinhole Trimless Drywall Mudplate
Aera recessed downlights are true to size, encased in minimalist housing, and suitable additions to any interior space where outstanding optical performance, maximal eye comfort, and/or an industryleading wall wash are required.
14 A remote driver box is provided, see page 5 for details.
15 Available with 120V only.
16 On-site commissioning is required.
17 For emergency battery, code will be like the following example: RD1+EB
DUO RDMX 16 - DMX
RDDA 16 - DALI DT6
RDDA8 16 - DALI DT8
RDD1 - Dual 0-10V input for CCT/intensity
RLD2 16 - Lutron DALI-2 digital
BLANK
AERA 3" DOWNLIGHT
ROUND RECESSED
NEW CONSTRUCTION & REMODEL
Bevel Trimless Drywall Mudplate
Bevel Flanged Trim Pinhole Flanged Trim Pinhole Trimless Drywall Mudplate
Aera recessed downlights are true to size, encased in minimalist housing, and suitable additions to any interior space where outstanding optical performance, maximal eye comfort, and/or an industryleading wall wash are required.
2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm or 1000lm LED packages
Comfort Dim (warm dimming) also available in 800lm only 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
ELECTRICAL
Lumens / Wattage: 800lm / 14W, 1000lm / 14W
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per trimless downlight.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
14 A remote driver box is provided, see page 5 for details.
15 Available with 120V only.
16 On-site commissioning is required.
17 For emergency battery, code will be like the following example: RD1+EB
DUO RDMX 16 - DMX
RDDA 16 - DALI DT6
RDDA8 16 - DALI DT8
RDD1 - Dual 0-10V input for CCT/intensity
RLD2 16 - Lutron DALI-2 digital
BLANK
AERA 3" DOWNLIGHT
ROUND RECESSED
NEW CONSTRUCTION & REMODEL
Flanged Trim Pinhole Trimless Drywall Mudplate Bevel Trimless Drywall Mudplate
Flanged Trim
Aera recessed downlights are true to size, encased in minimalist housing, and suitable additions to any interior space where outstanding optical performance, maximal eye comfort, and/or an industryleading wall wash are required.
2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm or 1000lm LED packages
Comfort Dim (warm dimming) also available in 800lm only 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
ELECTRICAL
Lumens / Wattage: 800lm / 14W, 1000lm / 14W
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per trimless downlight.
LABELS AND LISTINGS
· cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
14 A remote driver box is provided, see page 5 for details.
15 Available with 120V only.
16 On-site commissioning is required.
17 For emergency battery, code will be like the following example: RD1+EB
DUO RDMX 16 - DMX
RDDA 16 - DALI DT6
RDDA8 16 - DALI DT8
RDD1 - Dual 0-10V input for CCT/intensity
RLD2 16 - Lutron DALI-2 digital
PETITE 1" DOWNLIGHT ROUNDRECESSED
Angles
The Petite family strikes that perfect balance of compact size, streamlined aesthetics, and high performance. Through their 1" lens apertures, these meticulously engineered downlight, cylinder, and multi-aperture luminaires breathe light into spaces with a quiet, straightforward sophistication.
Plenum Clearance
low as 1 3/4"
Flush Flanged Trim
Trimless Glow Ring
Flanged Trim
TYPE F3 SPEC 1001 WATER STREET
PETITE 1" DOWNLIGHT ROUND RECESSED
Order Guide
2
30K18K -
- 10 W output, up to 387 lm
- 14 W
Driver Box
PEQ0 15 - Lutron Hi-lume Premier 0.1% EcoSystem
13 PoE (Power-over-Ethernet) compatible.
14 Available with 120V only.
15 On-site commissioning is required.
SD1 - Single 0-10V
SELV 14 - ELV 120V STRI 14 - TRIAC 120V REMOTE
DO NOT SPECIFY FOR REMOTE. SEE "REMOTE DRIVER BOX" SECTION BELOW.
www.lumenwerx.com
90CRI - 90 CRI
BLANK
TYPE F4 SPEC 1001 WATER STREET

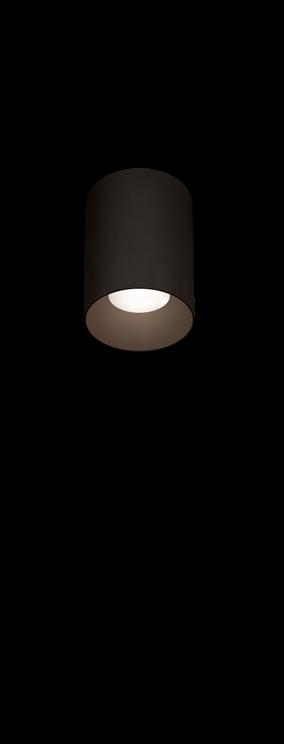

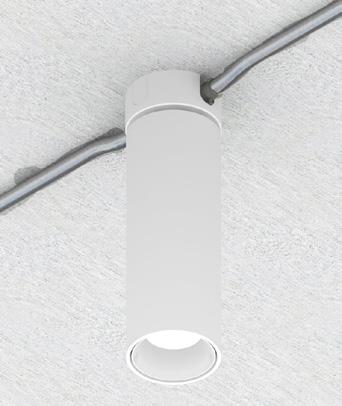

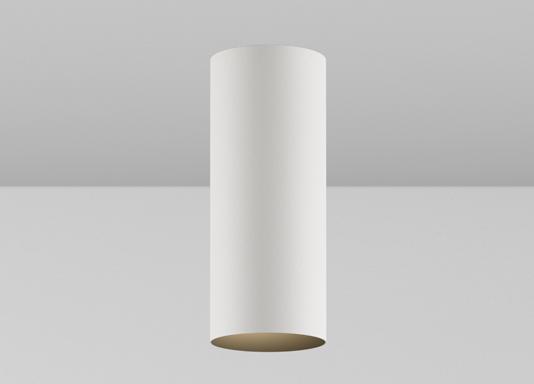

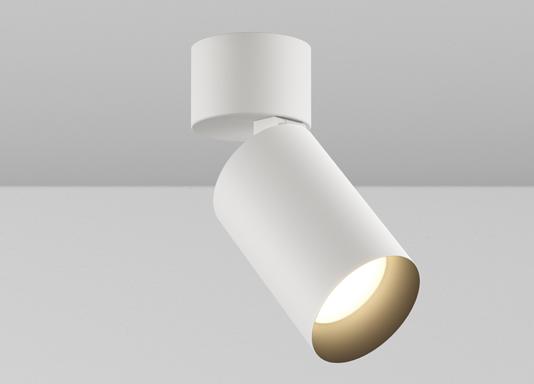

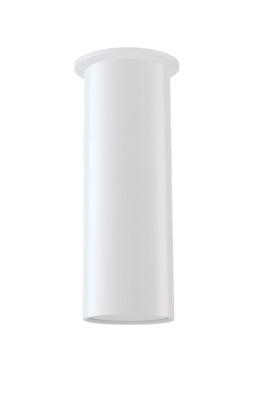

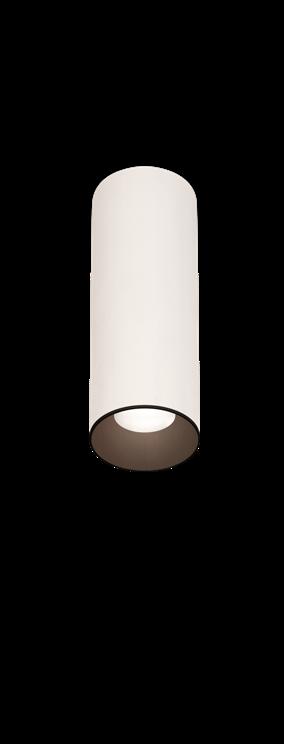

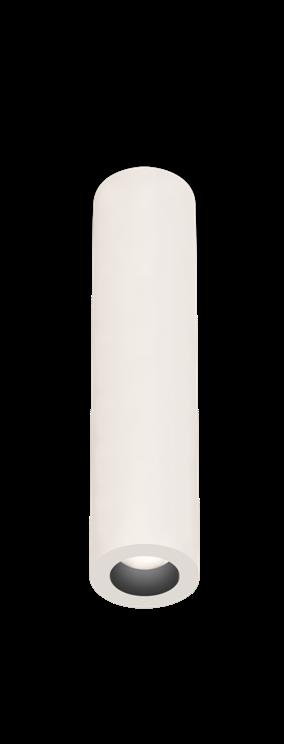

CYLINDER 2 SURFACE MOUNT
Our best-selling cylinders keep getting better. Adjustable, fixed, and wallwash are all offered in a broad range of sizes, with lumens from 500 to almost 5000lm, standard 90˚ tilt, and more than a dozen finish options. Now, there’s a fixture for anywhere you need to illuminate anything.
TC8-TN1R straight cord 8’, Global GES 1cir/H-Style, 120V
TC8-TEKR straight cord 8’, Global TEK 2cir/2neut, 120V
TC8-TN3R straight cord 8’, Global XTS 3cir, 120V
TC8-TN2R straight cord 8’, Global HTEK 2cir/2neut, 277V
TC8-CTR straight cord 8’, J-Style, 120V
TC8-LOLR straight cord 8’, L-Style 1cir, 120V
R Not available for use with remote driver. Consult factory for conduit mounting pricing. Cord and Stem mounts are field cuttable. For custom lengths, consult factory.
5 Voltage 6 Trim Finish 7 Beam Spread (not applicable on RK350RLW)
30 3000K-83 309 3000K-90+ 3CLA 3K Class A HILUME-H-ECO Lutron LDE1 Hi-lume® 1% Soft-On/Fade-to-Black
35 3500K-83 359 3500K-90+
40 4000K-83 409 4000K-90+
† Not available for 18W RD model
TYPE F4-P SPEC

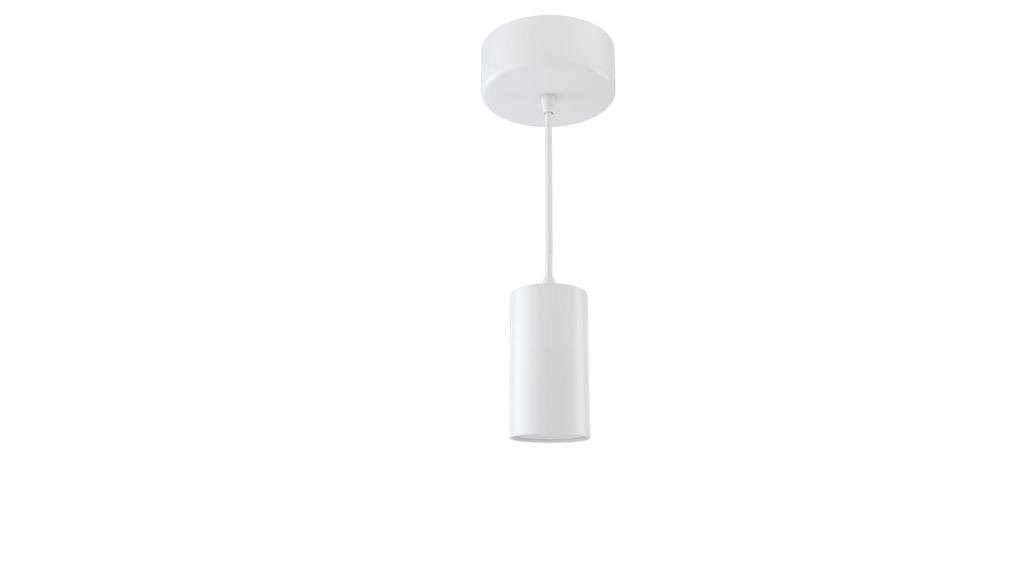

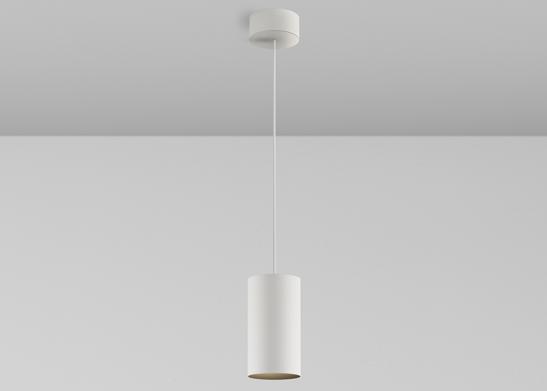

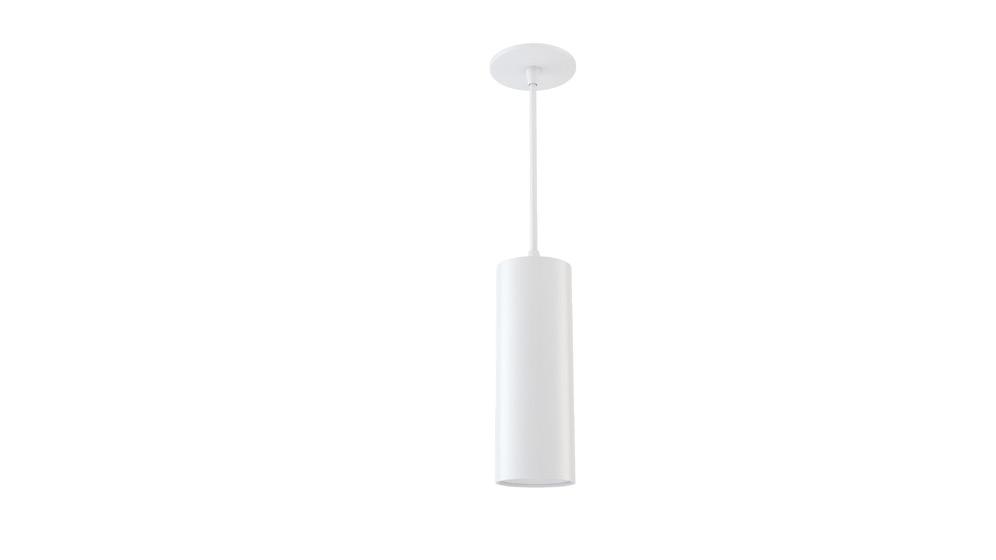

CYLINDER 2 SUSPENDED CABLE
Our best-selling cylinders keep getting better. Suspended cylinders are offered in a broad range of sizes and more than a dozen finish options, with field-cuttable cables and lumens from 800 to almost 4000lm.
POWDERCOAT FINISHES
WH White
AU Cashmere Gold AB Architectural Bronze BB Burnt Bronze BK Black CF Custom Finish* *(Consult Factory) ALUMINA FINISHES 01 Brushed Obsidian
*(Includes Node. Extended lead time, consult factory. UADR/UCDR includes shunt.)
1001 WATER STREET TYPE
PROJECT:
Features
TYPE:
High style, yet also versatile. Spare and modern, yet warm and welcoming. This striking Rook 350 re-imagines the Hornet HP Downlight line in a popular new pendant form. It’s a fabulous solution for open ceilings, with the same aperture and drivers as Hornet HP Downlights–and yet its own distinctive style shines through. Rook 350 Pendant. Simply stunning.

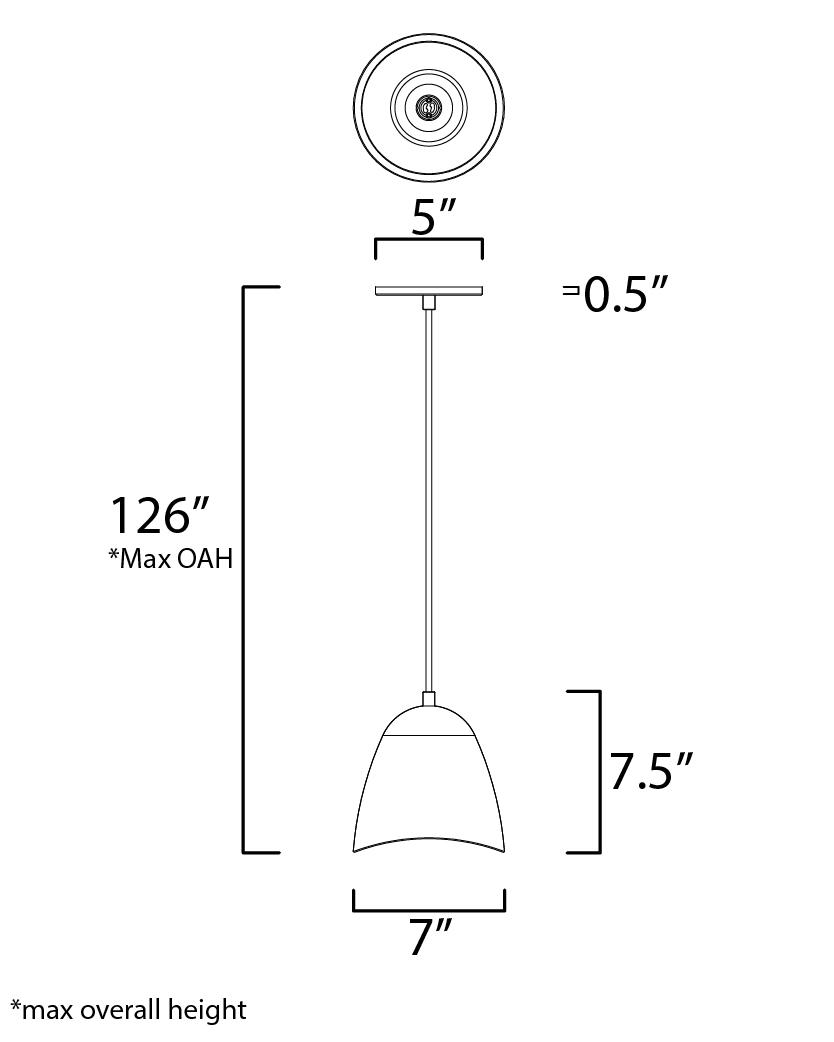

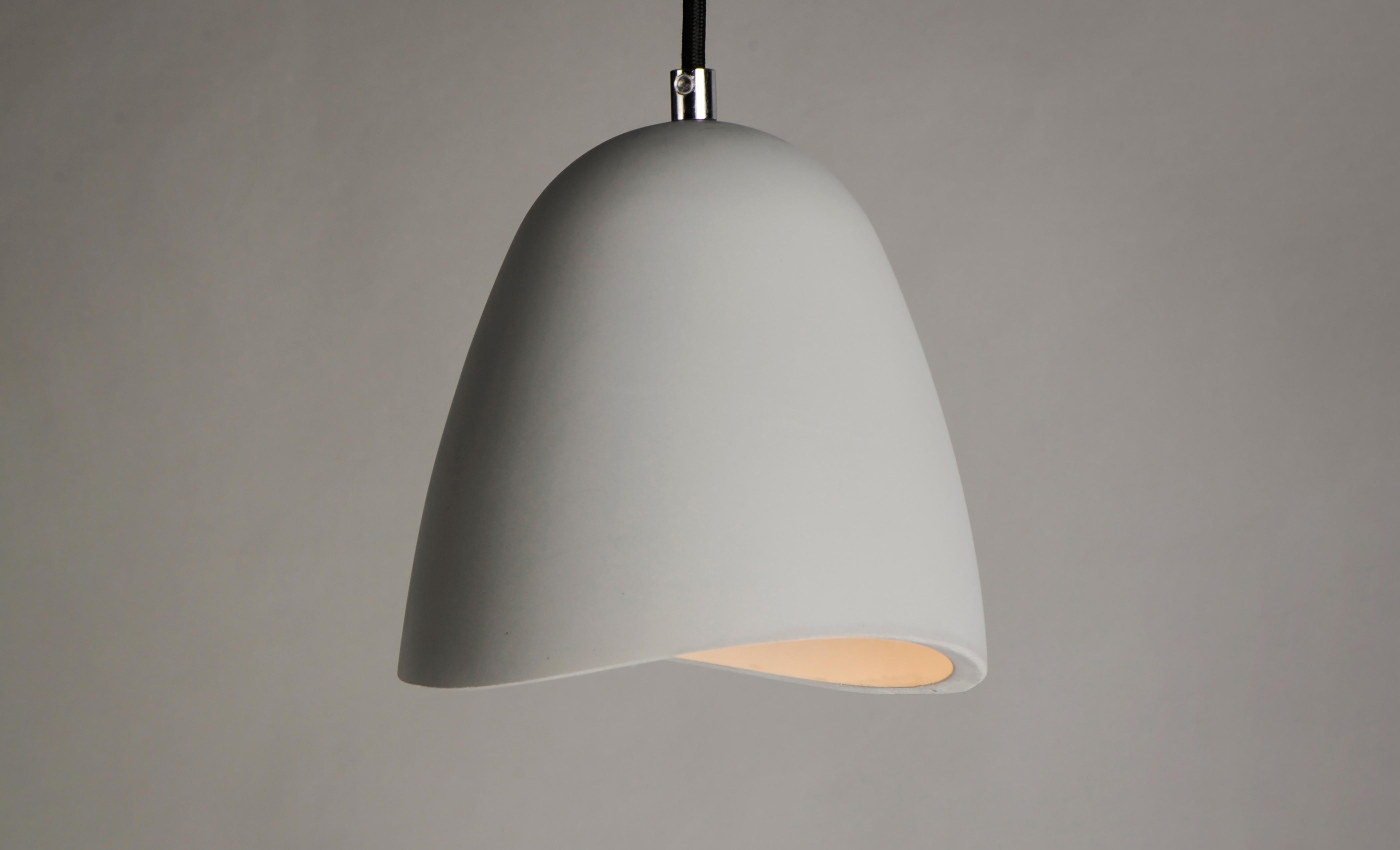

Product Overview
Type: Round Pendant
Wattage: RD: 11W, 16W, 18W
RLD/RLW: 14W, 21W
Color Temp: 2200K, 2700K, 3000K, 3500K, 4000K
CRI: 83 typ. (2700K, 3000K, 3500K, 4000K) 90+ typ. (2200K, 2700K, 3000K, 3500K, 4000K) CrispWhite & Class A LEDs available
TC8-TN1R straight cord 8’, Global GES 1cir/H-Style, 120V
TC8-TEKR straight cord 8’, Global TEK 2cir/2neut, 120V
TC8-TN3R straight cord 8’, Global XTS 3cir, 120V
TC8-TN2R straight cord 8’, Global HTEK 2cir/2neut, 277V
TC8-CTR straight cord 8’, J-Style, 120V
TC8-LOLR straight cord 8’, L-Style 1cir, 120V
R Not available for use with remote driver. Consult factory for conduit mounting pricing. Cord and Stem mounts are field cuttable. For custom lengths, consult factory.
5 Voltage 6 Trim Finish 7 Beam Spread (not applicable on RK350RLW)
30 3000K-83 309 3000K-90+ 3CLA 3K Class A HILUME-H-ECO Lutron LDE1 Hi-lume® 1% Soft-On/Fade-to-Black
35 3500K-83 359 3500K-90+
40 4000K-83 409 4000K-90+
† Not available for 18W RD model
TYPE F5 SPEC 1001 WATER STREET
Myka Surface - Static White
Technical Information
*Ambient Operating Temperature Range to maintain L70 of 50k+ hours in normal mounting conditions for the fixture. Exceeding Ambient Operating Temperature Range may result in decreased life/output. Consult Technical Support for specific inquiries.
96949790
969510189
989710191
0.74 979610191
1.00 979510497
93969662
92909958
92899957
92899960
1.02 92869471

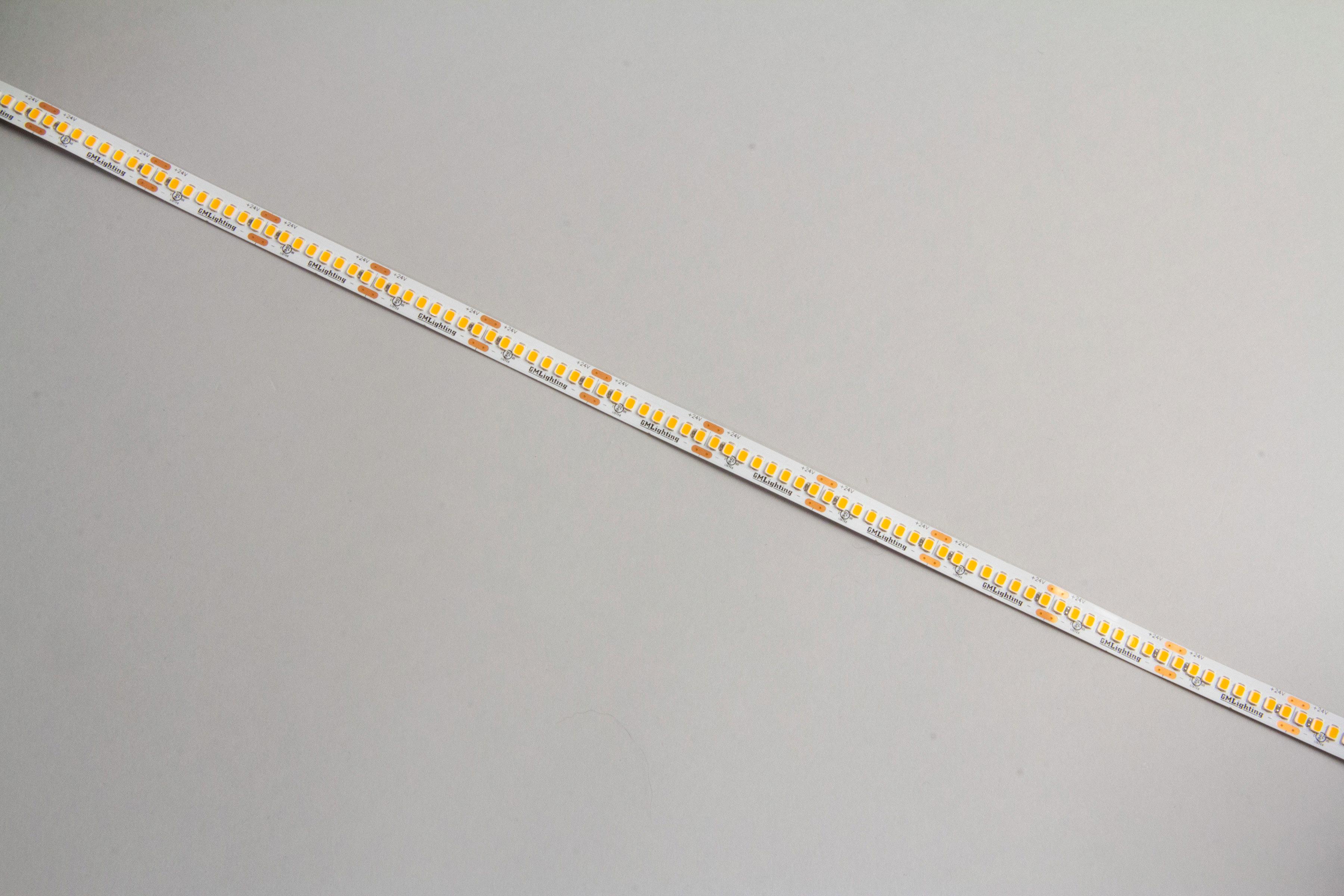

LTR-S Specification Series
2.5W / 5.8W, 24VDC
LED Tape Specification Sheet
PRODUCT OVERVIEW
Our Specification Series provides the ultimate architectural-grade option. Incorporating features that defines the Spec Series as truly state of the art linear LED tape for applications that not only require, but demand the best optics in the industry.
FEATURES
• Available in multiple color temps
• 280 LED’s/meter
• 10mm PCB width
• Cuttable every 1”
• Remote control with GM’s LUXcontrol™ App and controllers
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 32’-8”
• Includes Sure-Tite connectors
SPECIFICATIONS
ELECTRICAL
•24V
OPTICS
•95+ CRI
Note: For proper thermal management, use mounting channel to mount the 5.8W product.
CERTIFICATION
•UL
•2.5W or 5.8 watts per foot WARRANTY
•Title 24 compliant when used with used with specific drivers. Consult factory.
•Class 2
•Closet Rated. Compliant with NFPA 70, NEC
•5-year warranty when paired with GM power supply
BLANK
1001 WATER STREET
LTR-S-24V-5.8W-27K-16
LTR-S-24V-5.8W-30K-16
LTR-S-24V-5.8W-40K-16
LTR-S-24V-5.8W-35K-100
/
/
/
/
/
Kelvin temperature (color) ±100K. 16’-4” and 100’ reel includes 24” lead affixed to tape. 16’-4” reel includes (3) ESTW-60 Sure-Tite connectors. 100’ reel includes (10) ESTW-60 Sure-Tite connectors
DIMENSION
16’-4” (5M reel)
98’-6” (30M reel)
.16” (4mm)
.39” (10mm)
.039” (1mm)
Cuttable every 1” (25mm)
Even line of light
Diode-Free Imaging From High Density Placement
BLANK
1001 WATER STREET
EST SERIES CONNECTORS
RECOMMENDED DRIVERS
NOTE: Please see our website for
BLANK
1001 WATER STREET

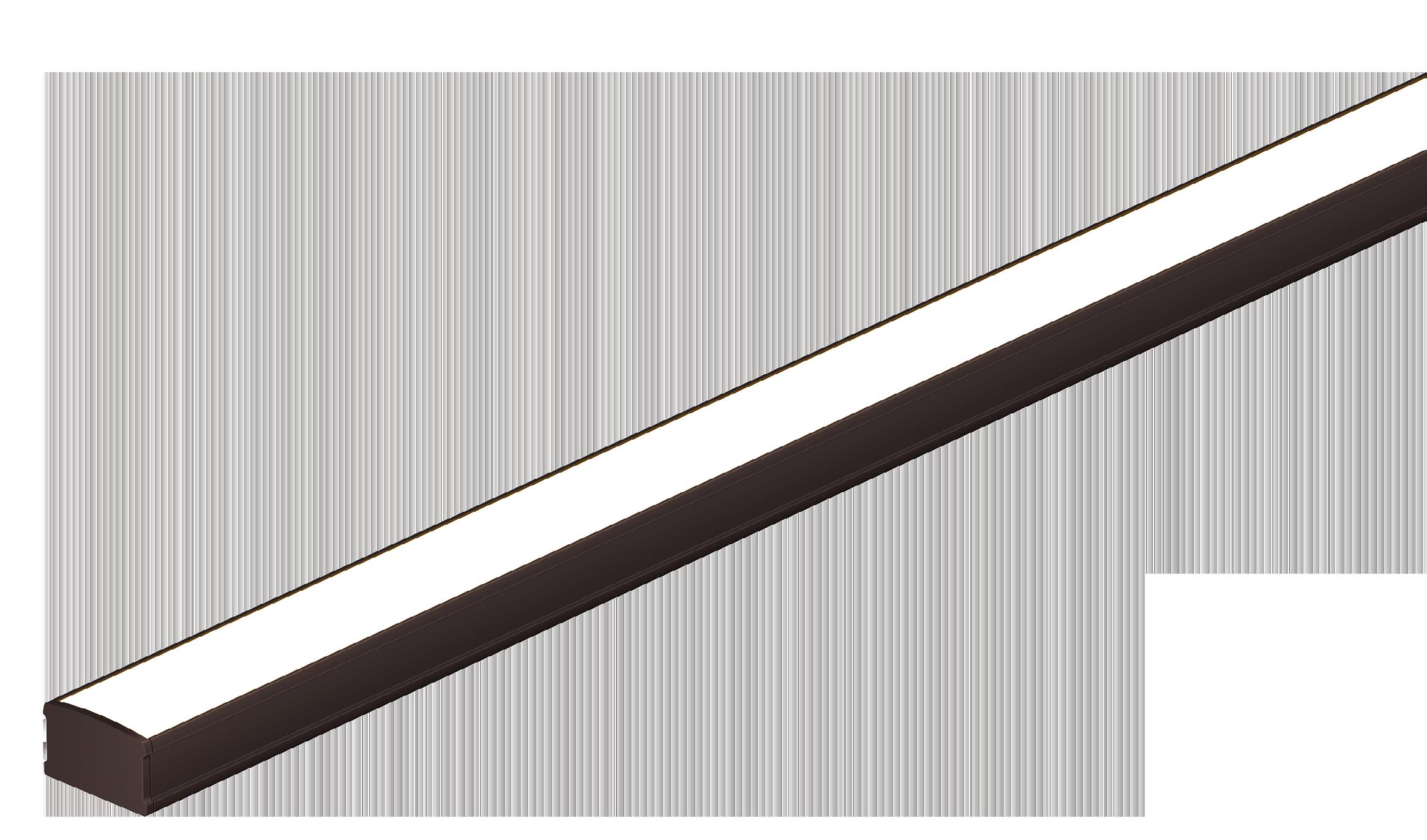

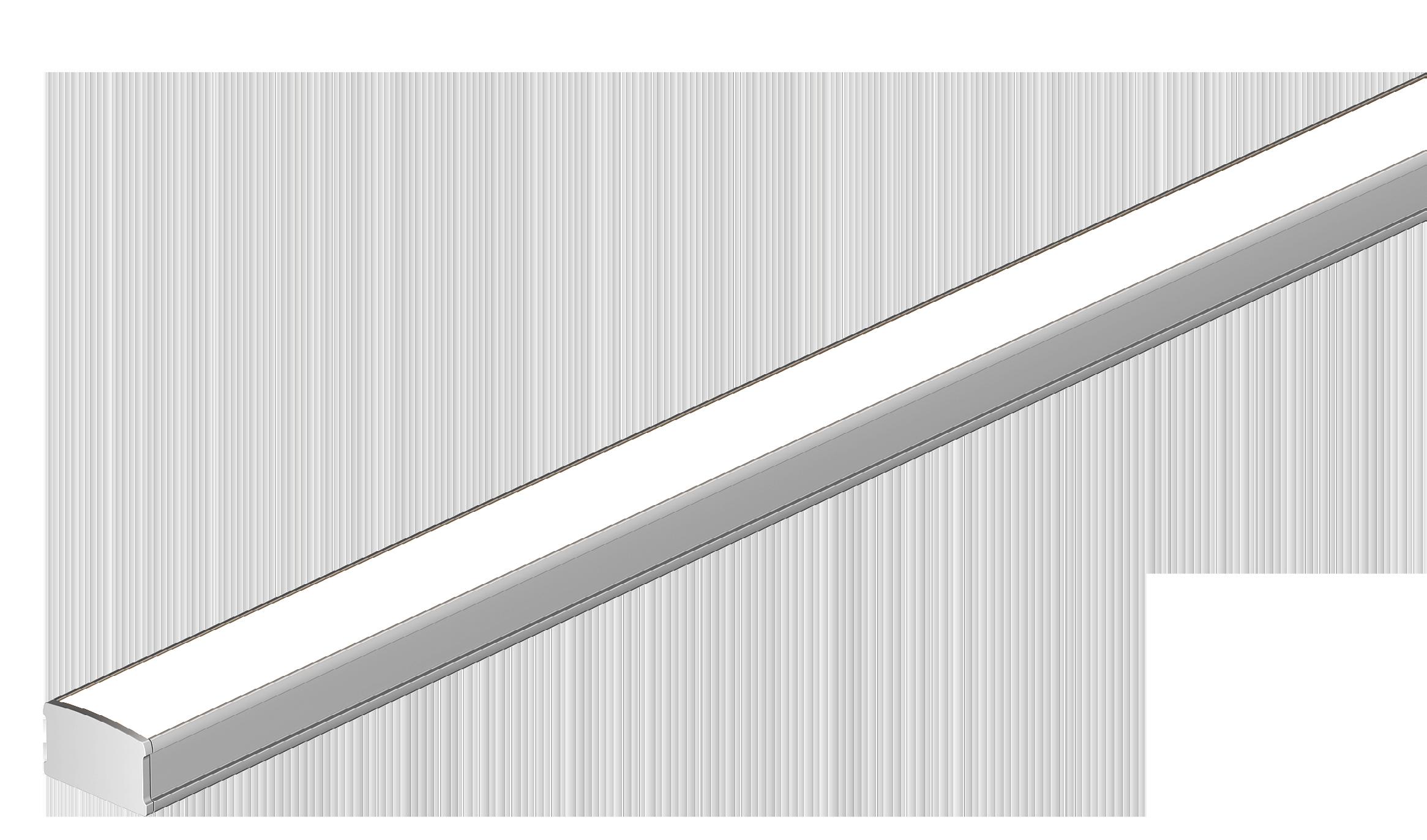

COMPATIBLE CHANNELS - SOLDERED LEADS ONLY
Catalog
LED-CHL
LED-CHL-6
Extruded channel. Includes snap-on frosted lens with mounting clips and screws. 4’
Extruded channel. Includes snap-on frosted lens with mounting clips and screws. 6’
LED-CHL-AMC (2) Adjustable mounting brackets for LED-CHL N/A
LED-CHL-EC (2) End caps for LED-CHL - one solid, one with hole. N/A
LED-CHL-MC (2) Additional mounting clips for LED-CHL N/A
45º MINI ANGLE MOUNT
LED-CHL-45-MINI
LED-CHL-45-MINI-B
Extruded angled (45°) silver channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
Extruded angled (45°) black channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI: light gray, one solid, one with hole N/A
LED-CHL-45-MINI-EC-B (2) End caps for LED-CHL-MINI-B: black, one solid, one with hole N/A
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI N/A
LED-CHL-45-M-LENS-BK Lens in black for LED-CHL-45-MINI 4'

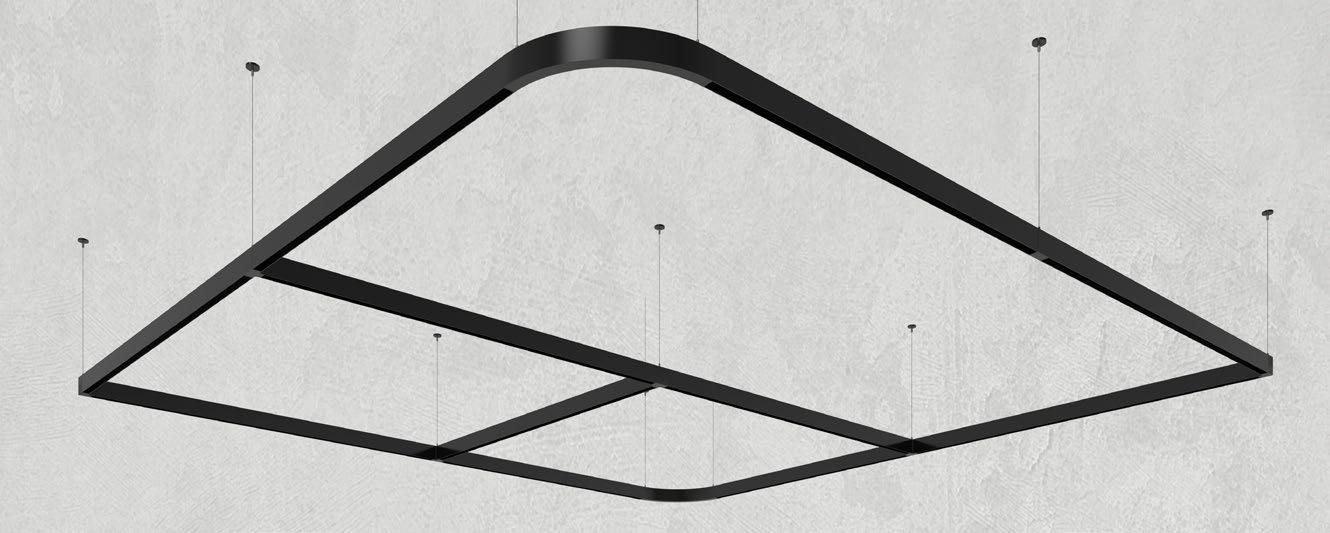

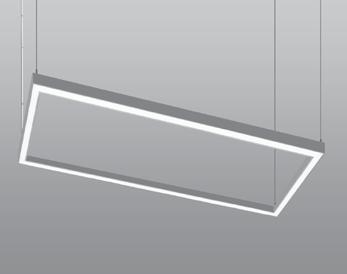

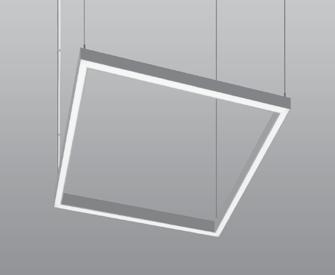

StencilFlex® TYPE F6 SPEC 1001 WATER STREET
Pendant Patterns Framework and Controls
A configuration drawing is required. Please note that unspecified segments will be covered with applicable blank covers
Factory is available for assistance
See page 2 for example of how to specify
Project
Type
Notes
Ordering Guide
SFF StencilFlex® L total length
Framework
Forms and Linear*
L90(#) L Hub (90º)
+X120(#) X Hub (120º)
+T90(#) T Hub (90º) +H120(#) Hex Hub (120º)
+X90(#) X Hub (90º) +YN60(#) Negative Y Hub (60º/120º)
paint* Pendant System
+Y120(#) Y Hub (120º) +YP60(#) Positive Y Hub (120º/60º)
+I180(#) Inline Hub (180º) +LC90(#) L Curve 90° Segment Blank
+EC(#) End Cap Hub +LC901ST55(#) L Curve 90° Segment with 1 Spotlight Mount*
+TR60(#) Triangle Hub (60º) +LC902ST55(#) L Curve 90° Segment with 2 Spotlight Mounts*
IMWD Integral Modular Wiring for DALI 2.0 DA DALI individually addressable control*
1001 WATER STREET

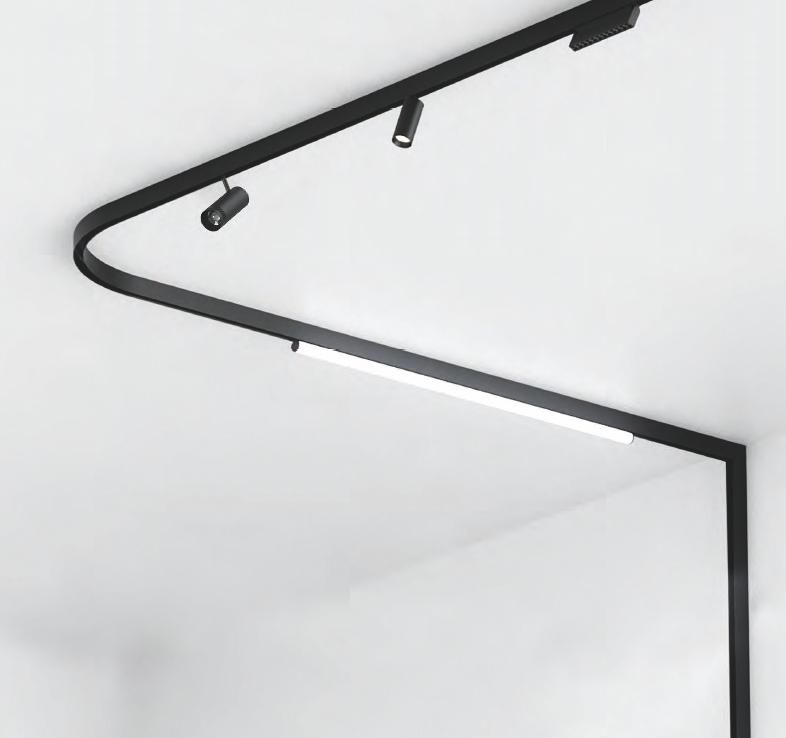

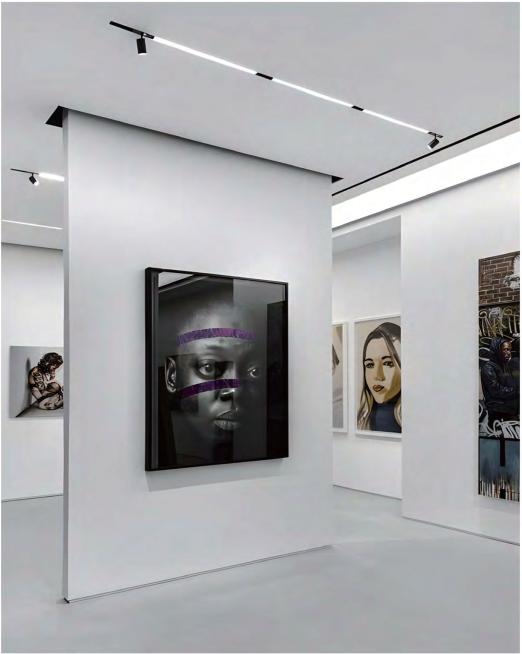

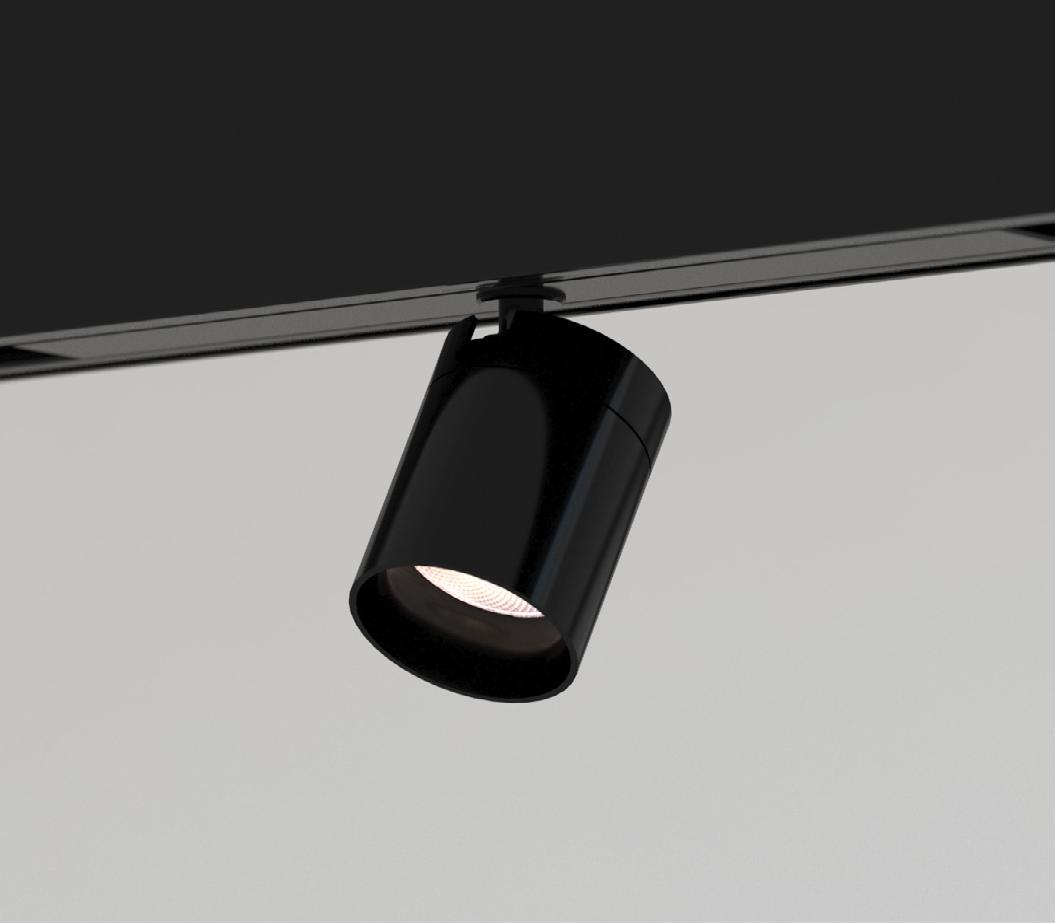

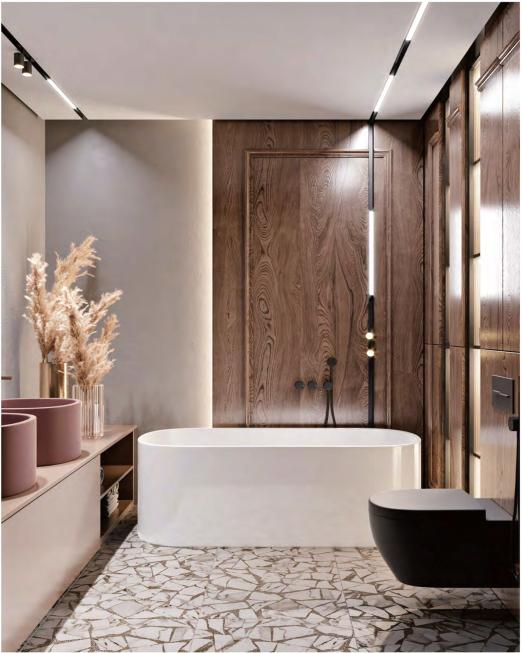

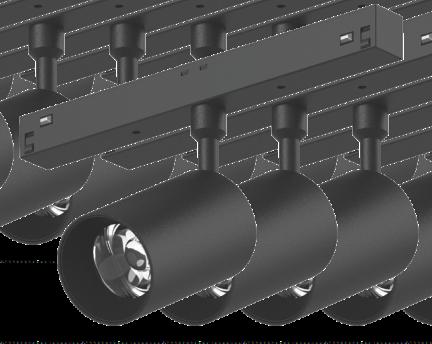

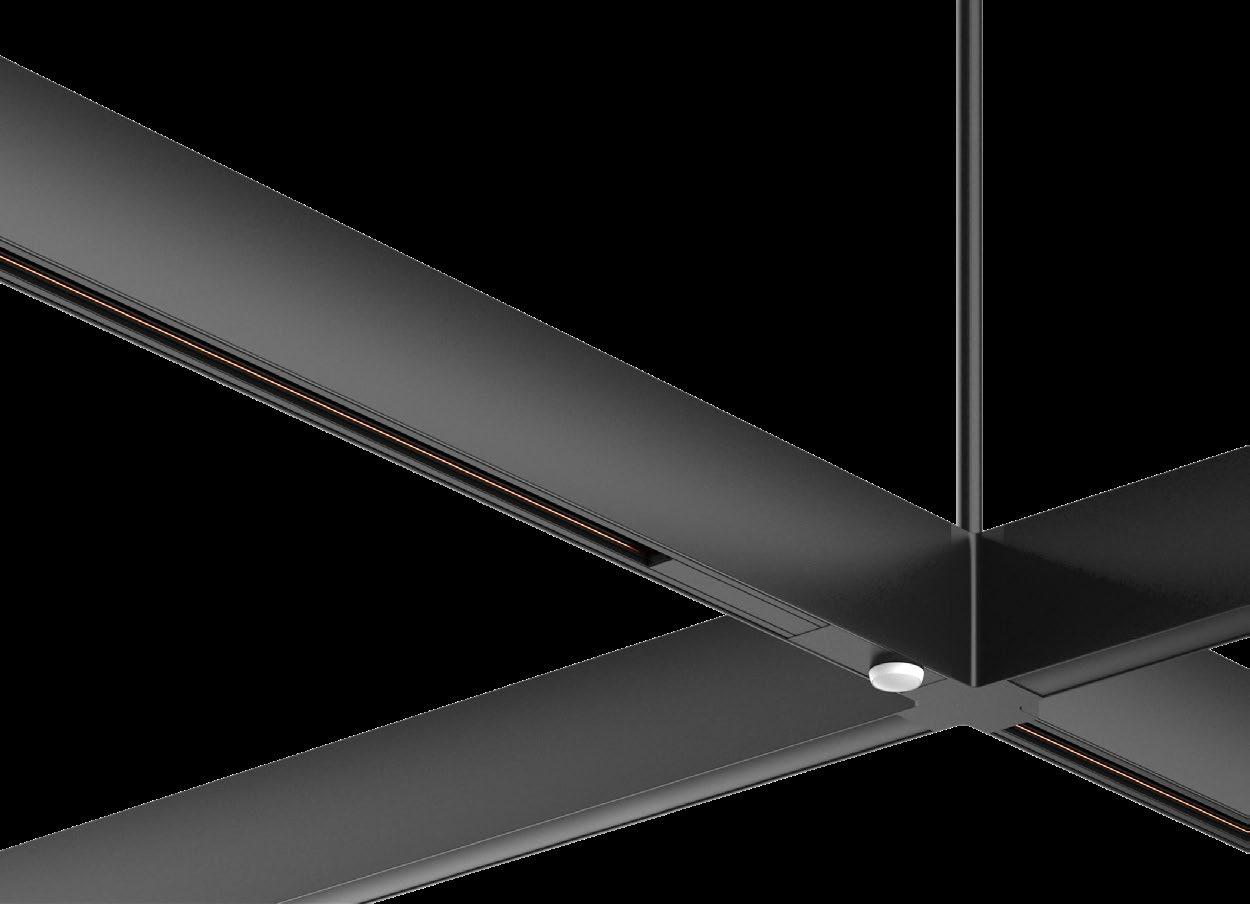

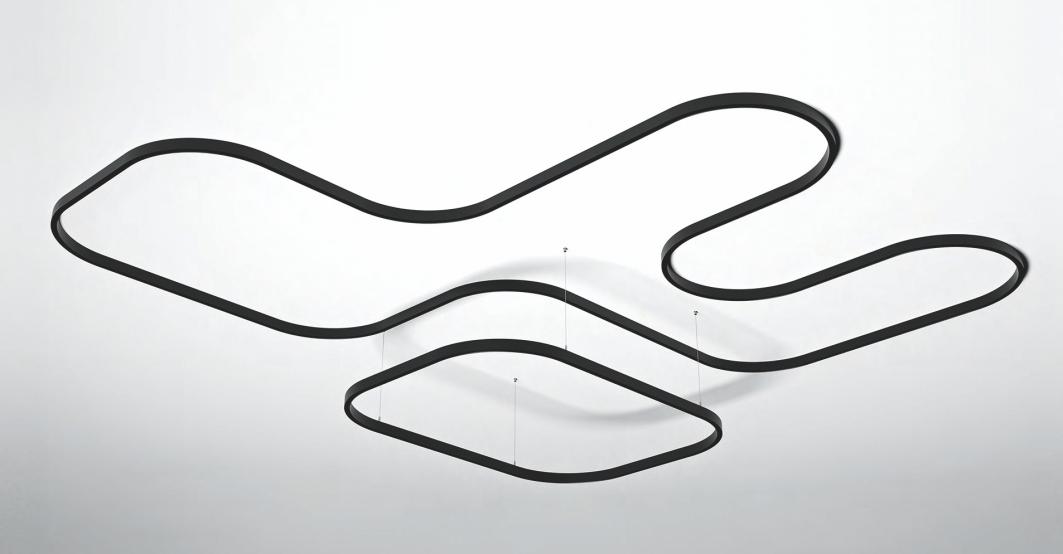

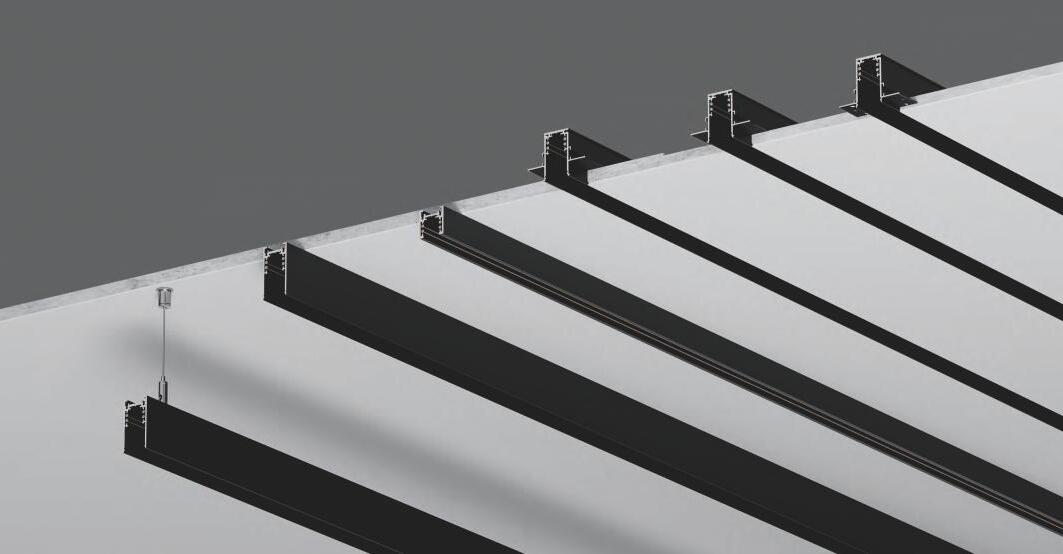

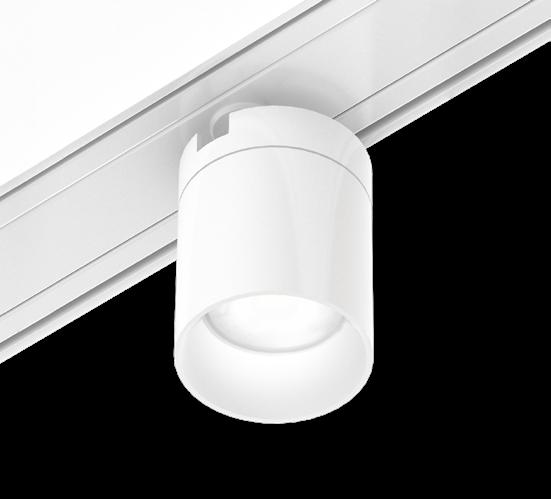

JTLS-MT20 SERIES
MAGNETIC TRACKS
PRODUCT DESCRIPTION
JTLS-MT20 Magne c Track is a DC24V-48V magne c track system of 20mm width. Its magne c design offers great DIY convenience for flexibly combining linear luminaires, spotlights, pendant lights and decora ve neon flex in one system, achieving all your ligh ng demands, such as basic flood ligh ng, accent ligh ng or decora ve ligh ng, suitable for residen al villas, hotel clubs, entertainment venues,commercialexhibi ons,etc.
TRACKS TYPES
CURVED
LINKS FOR PAGES: STRAIGHT TRACKS & CURVED TRACKS / ACCESSORIES
0-10 DIM (Group dimming) / With DALI & CASAMBI Individually Addressible
PRODUCT DETAILS & DIMENSIONS
BLANK
1001 WATER STREET
PHOTOMETRY
3 CCT tunable(Dial switch)
TYPE F6B SPEC 1001 WATER STREET
StencilFlex® Direct
Please specify location of inserts on system configuration drawing
Ordering Guide
See Cofigurations on page 3.
SECTION VIEW
Project
Type
Notes

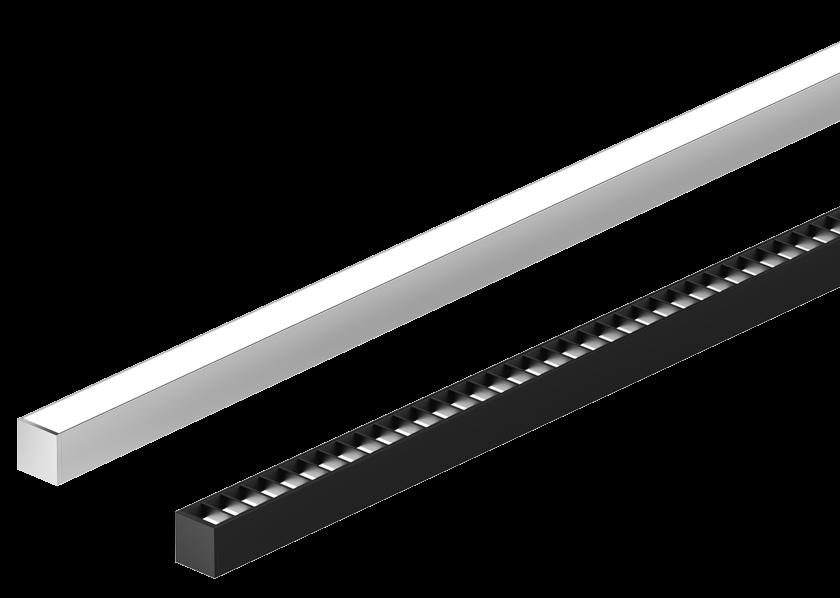

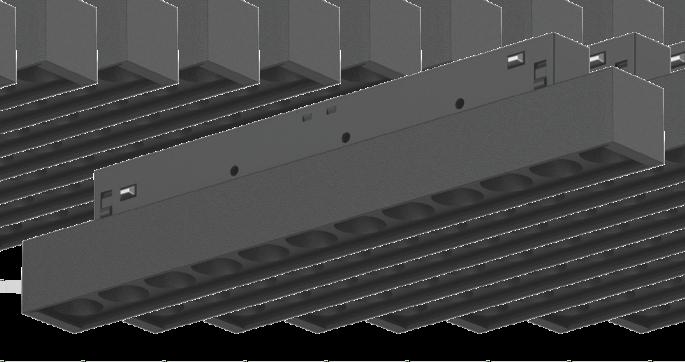

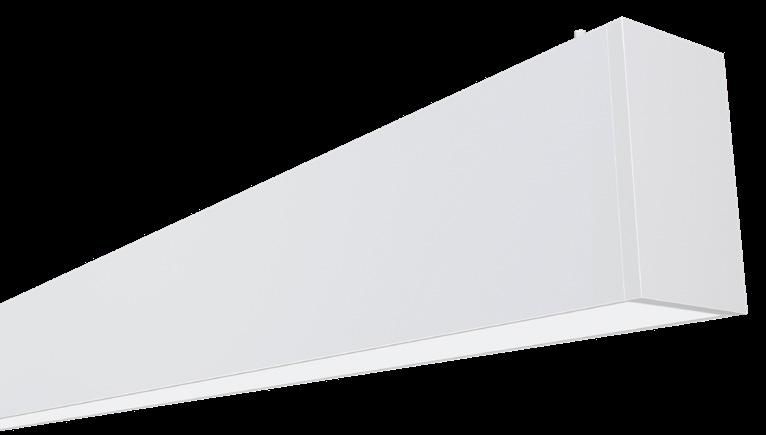

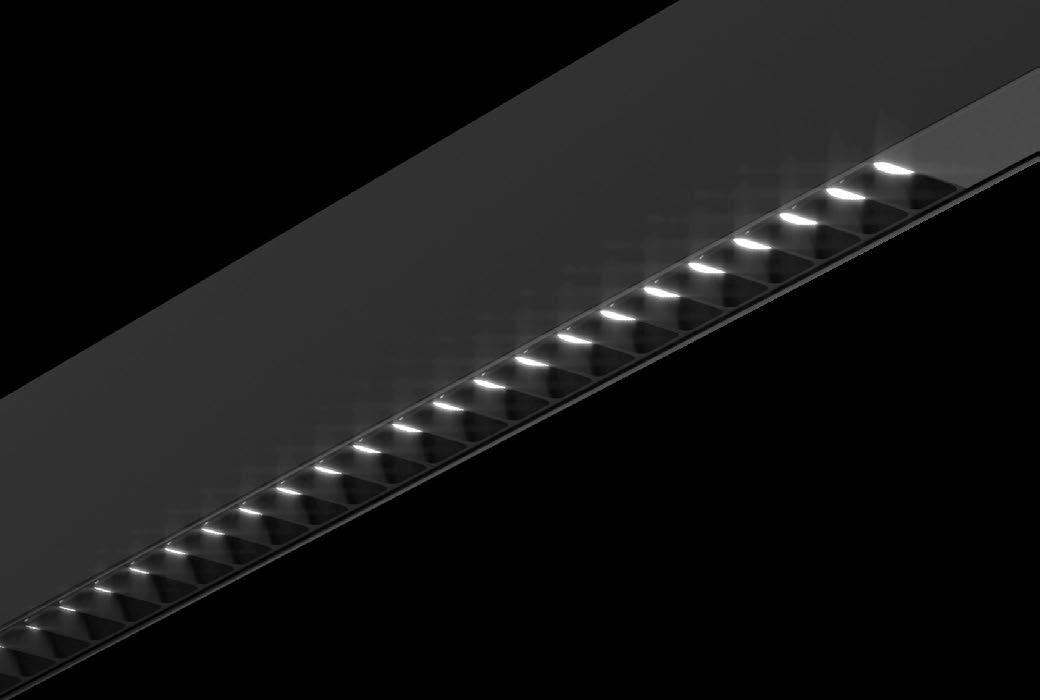

JMT20G -Linear Luminaire
PRODUCT OVERVIEW
Material: AL6063-T5, spraying surface
Coating: Black (RAL9005)/White (RAL9003)
Length:
110mm,220mm,440mm (4.33”, 8.66”, 17.32”)
IP grade: IP20
CCT: 2700K,3000K,4000K optional
CRI: 90
SDCM: <3 Step (ANSI)
Beam angle: 30°,55°
Light efficiency:
Input voltage: DC24V-48V,DC48V
Lighting direction:
Dimming options:
Application: Indoor
Warranty: 5 years 73 LM/W,68 LM/W
Downward Non-dimming, DALI-2, CASAMBI
0-10 DIM (Group dimming) / With DALI & CASAMBI Individually Addressible
PRODUCT DETAILS & DIMENSIONS
172mm (6.77")
End caps:2.5mm (0.10")
Quotations: quotes@jademar.com To place an order: orders@jademar.com Tel: (305) 640.0465 ǀ Fax: (305) 640.0468 WWW.JADEMAR.COM
110mm,220mm,440mm (4.33”, 8.66”, 17.32”)
1001 WATER STREET TYPE
TYPE F7 SPEC 1001 WATER STREET
AERA 3" DOWNLIGHT
ROUND RECESSED WALL WASH
NEW CONSTRUCTION & REMODEL
Wall Wash Flanged Trim
Wall Wash Trimless Drywall Mudplate
Aera recessed downlights are true to size, encased in minimalist housing, and suitable additions to any interior space where outstanding optical performance, maximal eye comfort, and/or an industryleading wall wash are required.
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
14 A remote driver box is provided, see page 5 for details.
15 Available with 120V only.
16 On-site commissioning is required.
17 For emergency battery, code will be like the following example: RD1+EB
RSD1 - Single 0-10V
RSELV 15 - ELV 120V
RSTRI 15 - TRIAC 120V
DUO RDMX 16 - DMX
RDDA 16 - DALI DT6
RDDA8 16 - DALI DT8
RDD1 - Dual 0-10V input for CCT/intensity
RLD2 16 - Lutron DALI-2 digital
BLANK
AERA 3" CYLINDER
SURFACE, SURFACE ASYMMETRIC
Height Bevel
True-to-size with a versatile minimalist esthetic, Aera Cylinder luminaires are high-performance fixtures, delivering visually comfortable lighting suitable for a wide range of applications.
High style, yet also versatile. Spare and modern, yet warm and welcoming. This striking Rook 350 re-imagines the Hornet HP Downlight line in a popular new pendant form. It’s a fabulous solution for open ceilings, with the same aperture and drivers as Hornet HP Downlights–and yet its own distinctive style shines through. Rook 350 Pendant. Simply stunning.
TC8-TN1R straight cord 8’, Global GES 1cir/H-Style, 120V
TC8-TEKR straight cord 8’, Global TEK 2cir/2neut, 120V
TC8-TN3R straight cord 8’, Global XTS 3cir, 120V
TC8-TN2R straight cord 8’, Global HTEK 2cir/2neut, 277V
TC8-CTR straight cord 8’, J-Style, 120V
TC8-LOLR straight cord 8’, L-Style 1cir, 120V
R Not available for use with remote driver. Consult factory for conduit mounting pricing. Cord and Stem mounts are field cuttable. For custom lengths, consult factory.
5 Voltage 6 Trim Finish 7 Beam Spread (not applicable on RK350RLW)
30 3000K-83 309 3000K-90+ 3CLA 3K Class A HILUME-H-ECO Lutron LDE1 Hi-lume® 1% Soft-On/Fade-to-Black
35 3500K-83 359 3500K-90+
40 4000K-83 409 4000K-90+
† Not available for 18W RD model
TYPE F9 SPEC 1001 WATER STREET
CYLINDER 2 SURFACE MOUNT
Our best-selling cylinders keep getting better. Adjustable, fixed, and wallwash are all offered in a broad range of sizes, with lumens from 500 to almost 5000lm, standard 90˚ tilt, and more than a dozen finish options. Now, there’s a fixture for anywhere you need to illuminate anything.
*(Includes Node. Extended lead time, consult factory. UADR/UCDR includes shunt.)
1001 WATER STREET TYPE
PROJECT:
Features
TYPE:
High style, yet also versatile. Spare and modern, yet warm and welcoming. This striking Rook 350 re-imagines the Hornet HP Downlight line in a popular new pendant form. It’s a fabulous solution for open ceilings, with the same aperture and drivers as Hornet HP Downlights–and yet its own distinctive style shines through. Rook 350 Pendant. Simply stunning.
Product Overview
Type: Round Pendant
Wattage: RD: 11W, 16W, 18W
RLD/RLW: 14W, 21W
Color Temp: 2200K, 2700K, 3000K, 3500K, 4000K
CRI: 83 typ. (2700K, 3000K, 3500K, 4000K) 90+ typ. (2200K, 2700K, 3000K, 3500K, 4000K) CrispWhite & Class A LEDs available
Data is based on 3000K-83 120V IES files available on website. See pages 6-8 for data on other
BLANK

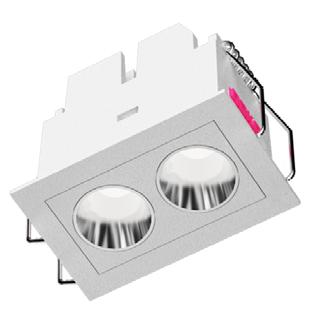

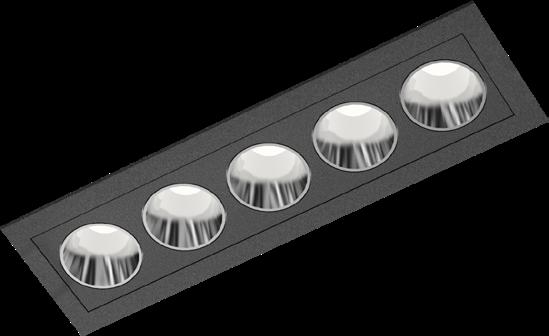

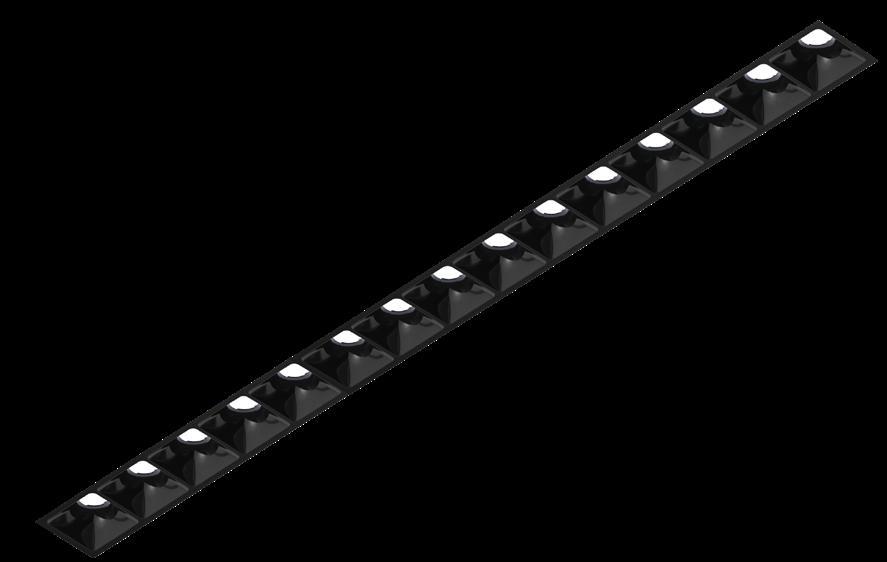

TYPE D10 SPEC 1001 WATER STREET
DESCRIPTION

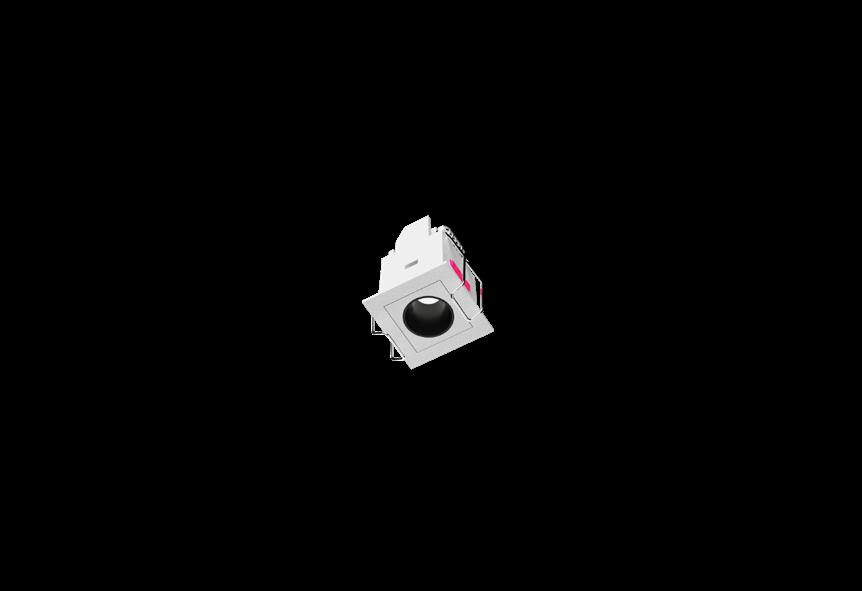

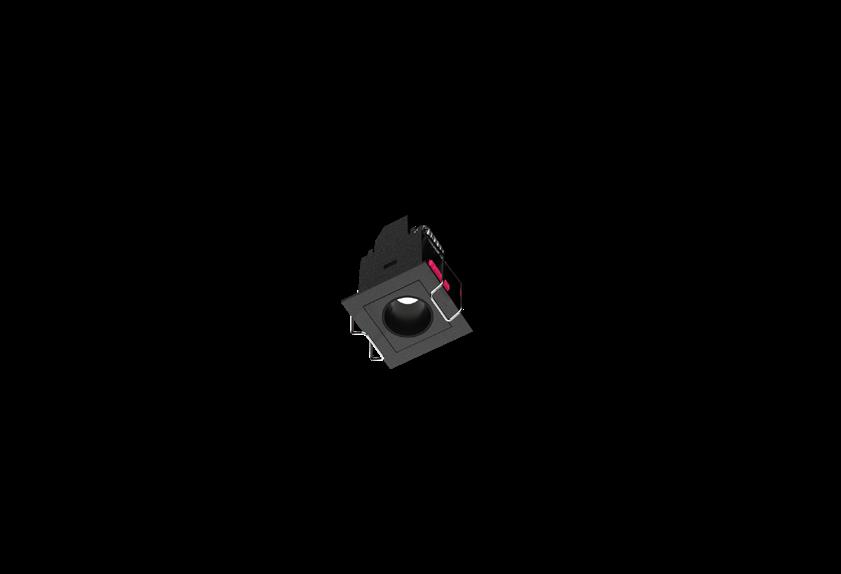

Cluster is the precise, and scalable family of downlights, wall washers, and adjustables, available in both linear and planar configurations and for recessed, pendant, and surface mounting. Based on a fundamental 1.2" square cell, Cluster delivers lighting that is optically sophisticated and aesthetically refined. Cluster recessed linear downlights range from a single point to a 15 cell luminaire, all with a choice of precision optics, beam spreads and subtle louver treatments. Nominal light output is 200 lumens per cell.
All recessed Cluster can install in a variety of ceiling types and materials, with either an integral driver or a remote driver that is capable of powering multiple luminaires.

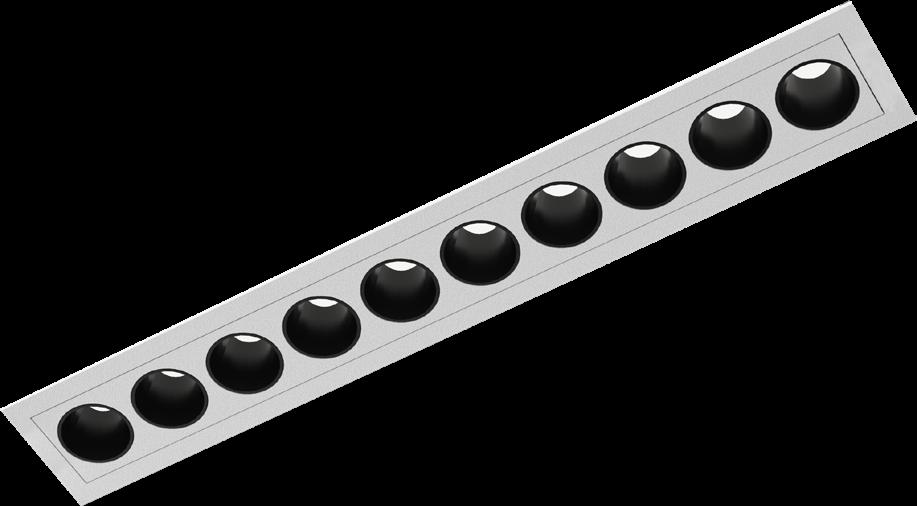

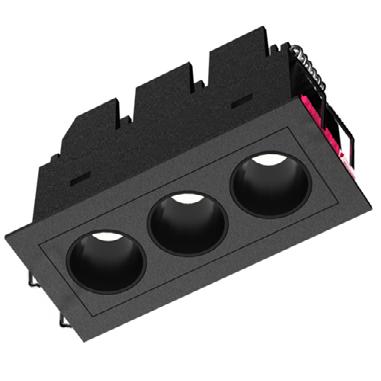

1001 WATER STREET TYPE F

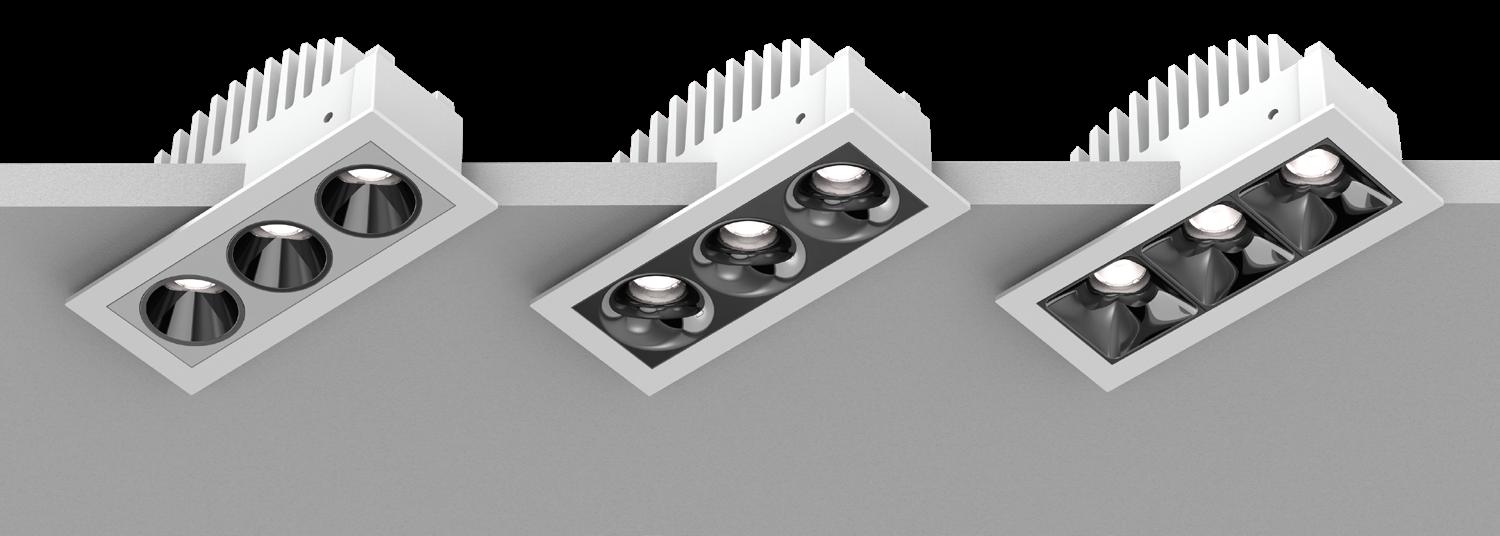

FUSION
Fixed Downlight
provides a low glare option for highlighting hallways, desks and other horizontal surfaces within commercial, hospitality and retail environments. It is easy to install and blends into existing ceiling architecture seamlessly.
FEATURES
• Flangeless fixture installation provides a modern minimalist design concept
Mix and match with other FUSION light fixtures for even more design options
• Wet location listing are avilable in 3 light, 5 light and 10 light fixture sizes
GOOD TO KNOW
• Flangeless installation available in 5 light and 10 light sizes
Produces a round beam pattern from a linear form factor fixture
• Small light apertures deliver “quiet ceiling” lighting with minimal glare.
SPECIFICATIONS
OPTICAL
Beam Angle
MECHANICAL
Finish Specular Matte Black Custom Finish
ELECTRICAL 24° Narrow Flood
Die cast fixture body
• End mounted mouse trap style springs
Available in self-flanged or flangeless trim versions
Install in ceilings between ½” and 1”
Available in matte black, matte white or custom finish
THERMAL
Die cast aluminum heat sink
• Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
HOUSING
• New construction steel frame supplied with universal bar hangers and butterfly brackets
Bar hangers are adjustable from 13-1/4” to 24-1/2
Fixture and driver are serviceable from below the ceiling
COMPLIANCE
• ETL listed for Damp locations Optional Wet location rated trim
Universal 120-277V, 50/60Hz, 0-10V or 120V, 60Hz Triac/ELV dimming driver available Drivers connect to LED modules using plenum rated, quick connect cable
Bio-dimming™ 100%-81% with BIOS* 2x10 2'x10'* TW(#) tunable white drivers* 2x12 2'x12'* POE(#) POE drivers* 4x4 4'x4'* *Available as kit; See page 3 for more details; Sculpt accommodates any length; Metric lengths also available, please consult factory. For other patterns refer to Corners & Patterns Spec Sheet.
See Mounting kit guide for full specification code. Specify length
*For stem option, please consult factory.
DS(#) daylight sensor* C custom
OS(#) occupancy sensor*
DOS(#)
WC(#) wireless control
Carisma® 2”
PROJECT: TYPE:
Features
Carisma® Pendant is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma®’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . A tailored end cap design and Amerlux’s trusted catch-andlatch mechanism prevents all light leakage.
The Carisma® Pendant offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma® can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounting options, providing designers with the versatility to light up a space with their Carisma®.
Product Overview
Type: Direct distributrion with Pendant, Surface or Wall Mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
1 Lengths less than 4' may have restrictions based upon wattage, lengths, drivers or other options.
AERA 3" DOWNLIGHT
ROUND RECESSED ADJUSTABLE
NEW CONSTRUCTION & REMODEL
Flanged Trim Pinhole Flanged Trim Pinhole Trimless Drywall Mudplate Bevel Trimless Drywall Mudplate
Aera recessed downlights are true to size, encased in minimalist housing, and suitable additions to any interior space where outstanding optical performance, maximal eye comfort, and/or an industryleading wall wash are required.
10 PoE (Power-over-Ethernet) compatible. Consult factory for details.
11 Available with 120V only.
12 Not available with RM installation type.
13 On-site commissioning is required.
14 Available with OF installation type only.
RD1 - 1% 0-10V
RELV 16 - ELV 120V
RTRI 16 - TRIAC 120V
RLDE1 17 - Lutron Hi-lume 1% Eco
RDA 17 - DALI
RELD1 - eldoLED 1% ECOdrive 0-10V
RELD0 - eldoLED 0.1% SOLOdrive 0-10V
RPEQ0 17 - Lutron Hi-lume Premier 0.1% EcoSystem
+EB 18 - Emergency battery
15 A remote driver box is provided, see page 5 for details.
16 Available with 120V only.
17 On-site commissioning is required.
18 For emergency battery, code will be like the following example: RD1+EB
DUO
RDMX 17 - DMX
RDDA 17 - DALI DT6
RDDA8 17 - DALI DT8
RDD1 - Dual 0-10V input for CCT/intensity RLD2 17 - Lutron DALI-2 digital
BUILDING STANDARD
NO SPEC
BUILDING STANDARD
NO SPEC
1001 WATER STREET TYPE X2 ALT

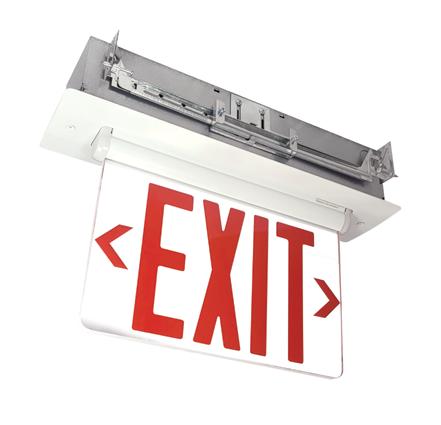

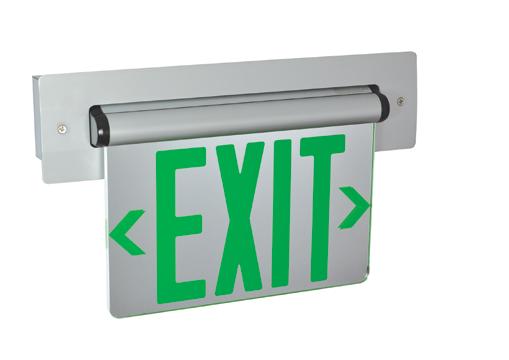

NX-813-LED / NX-814-LED / NX-815-LED
Recessed Adjustable LED Edge-Lit Exit Sign
Source: 5W LED
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: 3W normal / 5W emergency operation
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-815-LED): Replaceable NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS UL Listed
State & Municipal
5-Year Limited Warranty
Certified to the energy efficiency standards of California Title 20
