Electrical and pneumatic equipment of the service truck main structure
Kp 624 service
- Generall inspection report

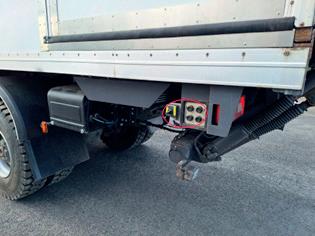

Shore power connection point and indicator lights.
Main power switch of the main structure. Located on the driver’s side behind the cab.
3-way valve to select pressure for the pneumatic pumps from either the truck or the compressor.
Waste Oil Tank. Waste oil collection is carried out with a pneumatic pump located in the vehicle’s service area. A hose connected to the pump is attached to reels, allowing the oil to be drawn into the tank. Waste oil can be drained using a discharge tap located at the bottom of the tank.
Hose reels on the side of the truck. Coolant refill, waste oil, four oil filling meters.
The pneumatic pumps can get air either from the truck or from the compressor inside the truck.
Tailgate control panel and switch for crane and tailgate operation.
Switch for crane and tailgate operation.
The switch for the steps is in the circled box. The door must be opened and locked against the wall before lowering the steps.
Steps control switch and emergency stop.
Main power switch for the crane and tailgate. Note! If you turn off the main power from the truck, you do not need to use this switch.
Auxiliary Battery Charger. Charging is possible when the truck is connected to power, or the generator is in use.
Main power switch for auxiliary batteries and forklift plug. Auxiliary power cables can be found inside the truck.
Auxiliary batteries.
Switches for the exterior work lights.
Oil tanks and their pneumatic pumps.
The fuses for the main structure are located inside the truck.
Generator control switch and main power.
Engine oil inspection and addition.
