CONCEPT STATEMENT

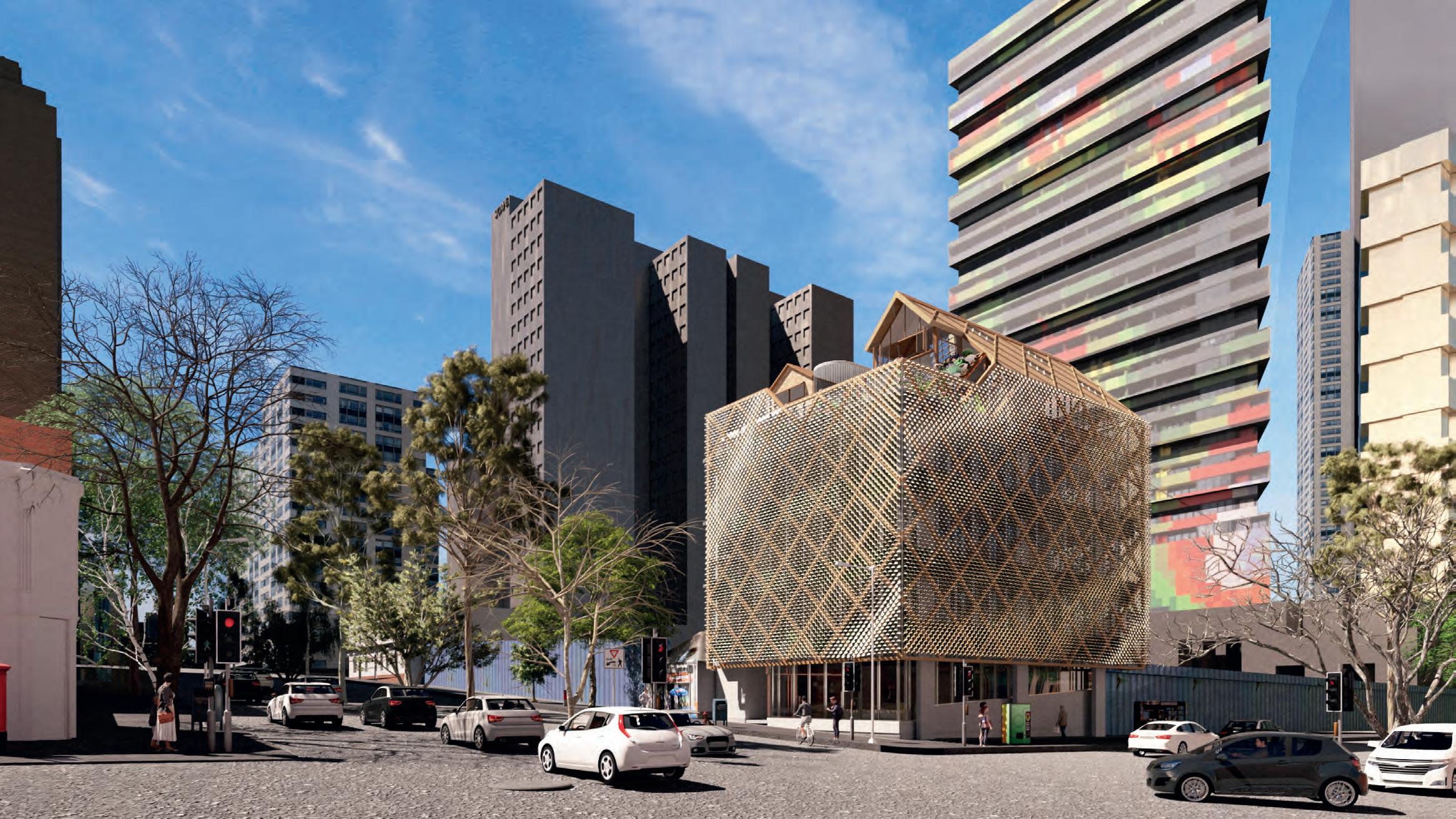

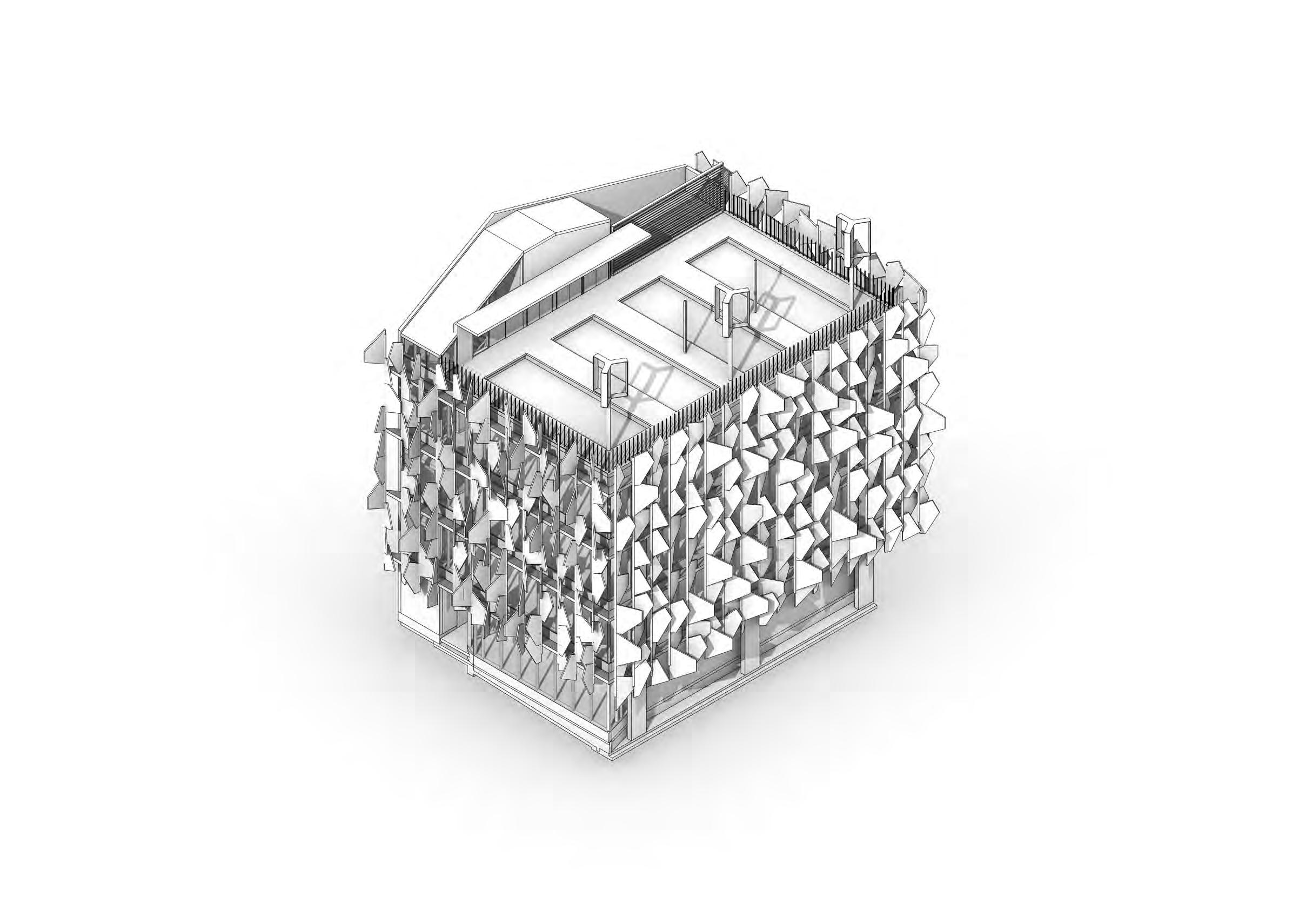

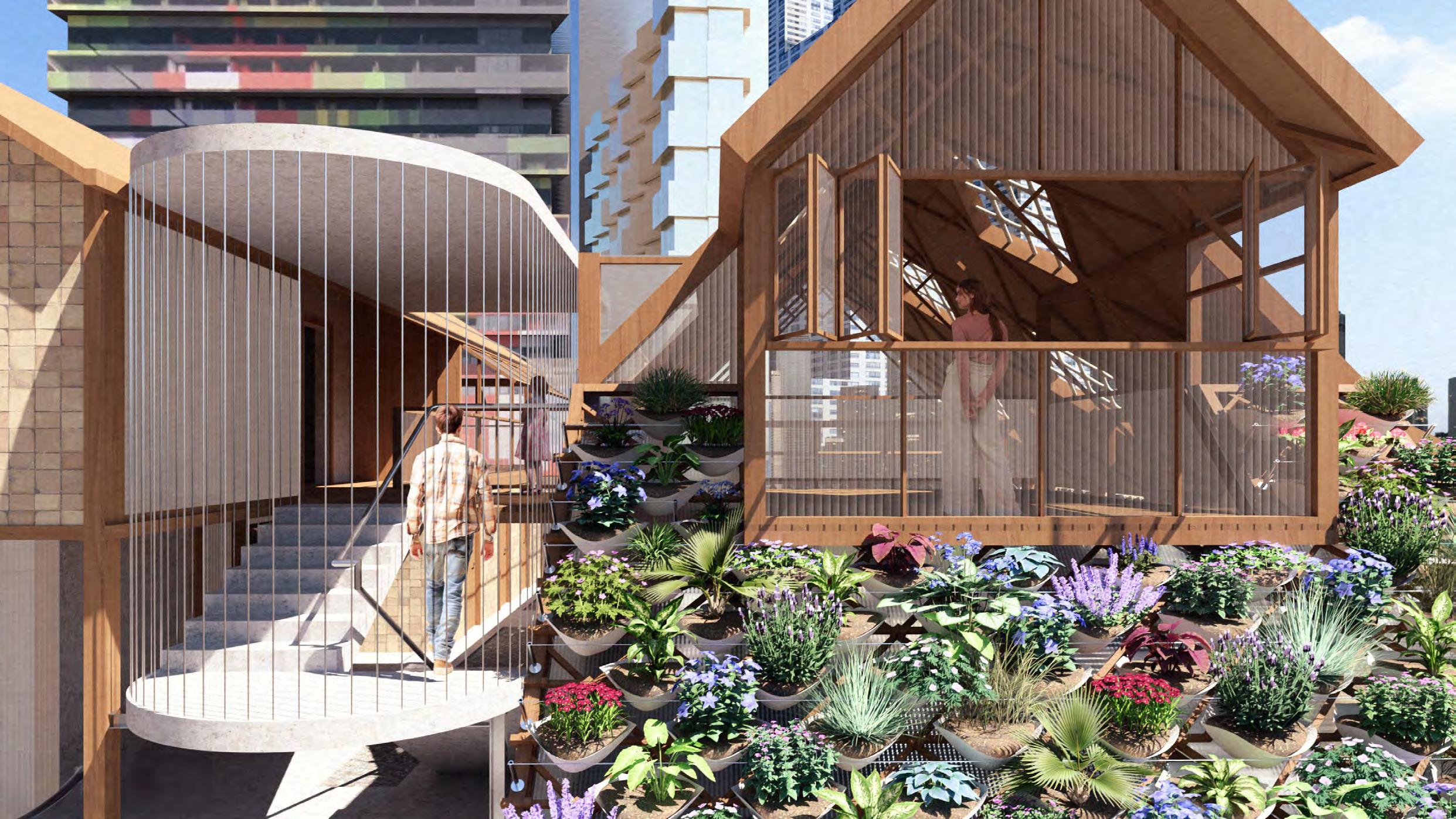

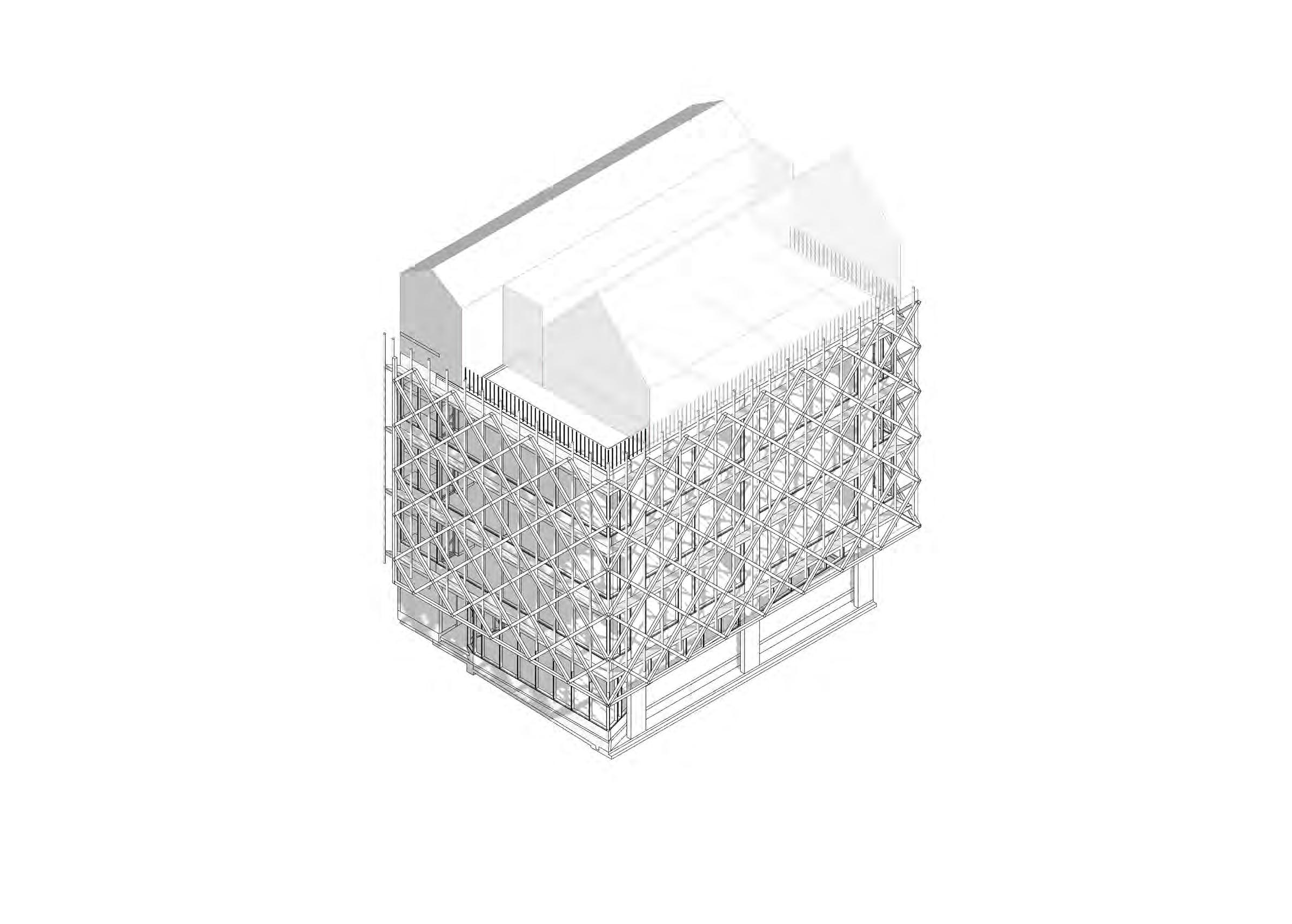

This rooftop addition redefines the Pixel Building with a bio-integrated design that merges wellness with material innovation. At its core, the project explores the architectural potential of mycelium, forming a new petal-shaped façade system that shades, ventilates, and expresses regenerative design values.

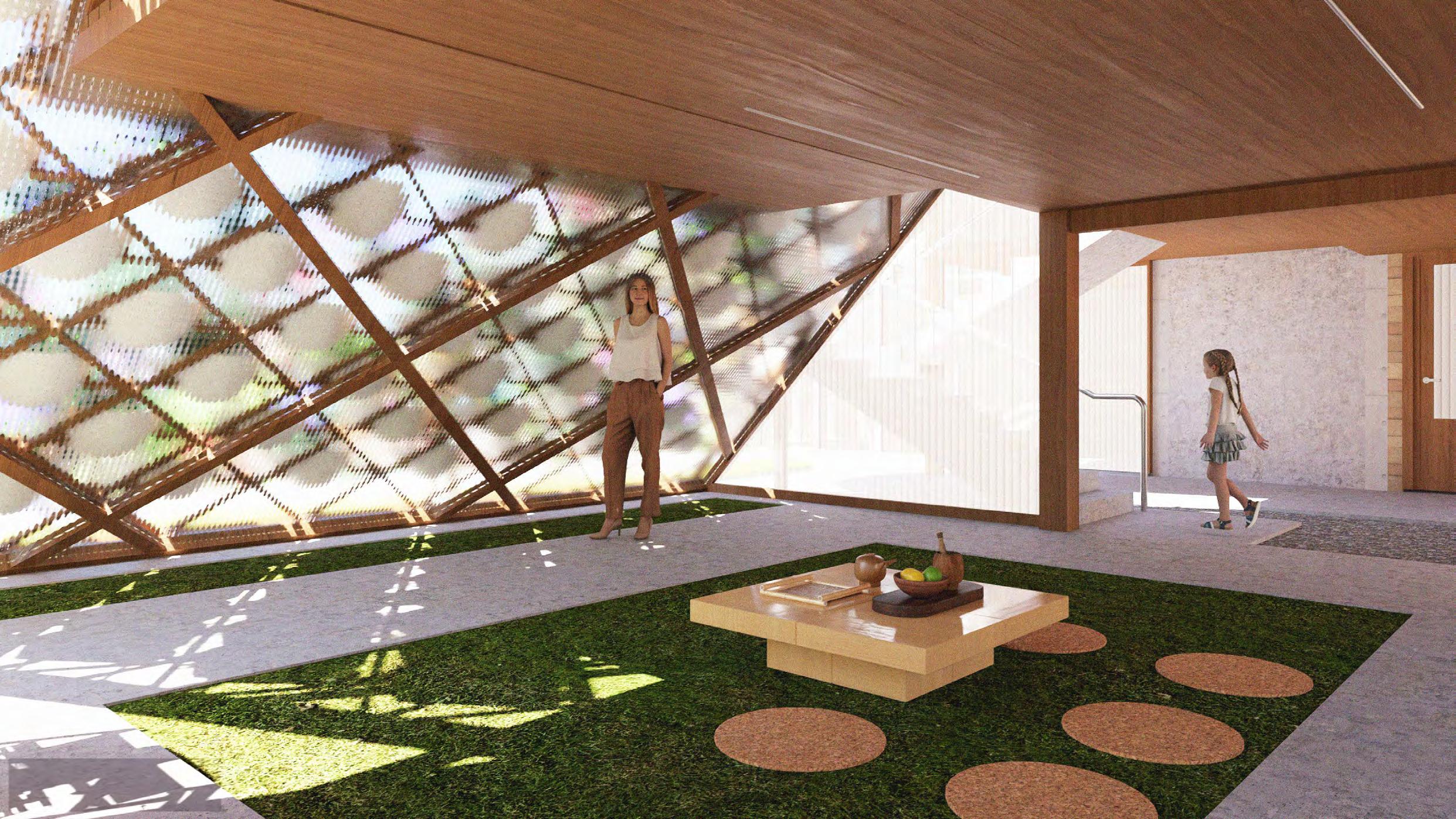

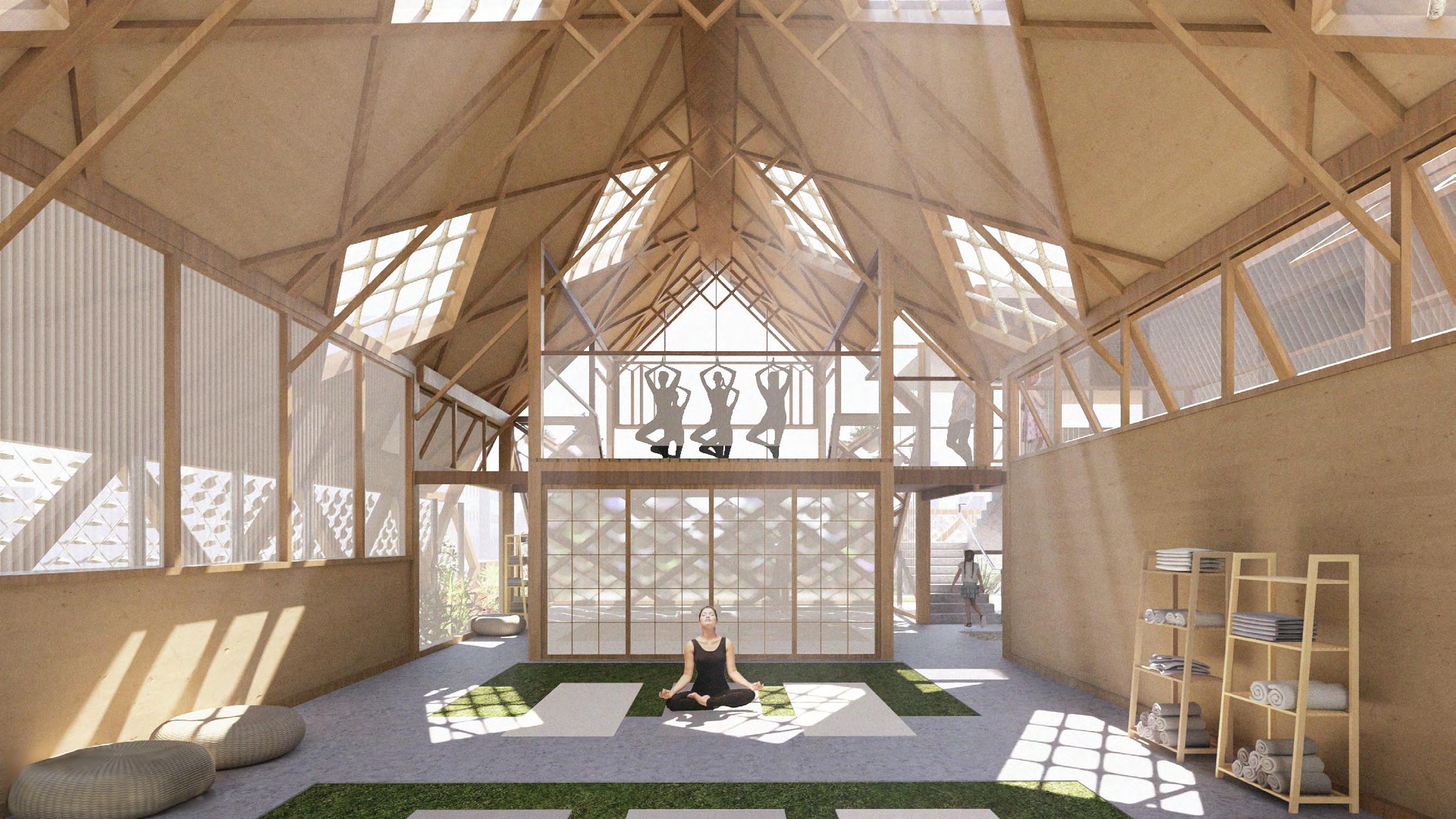

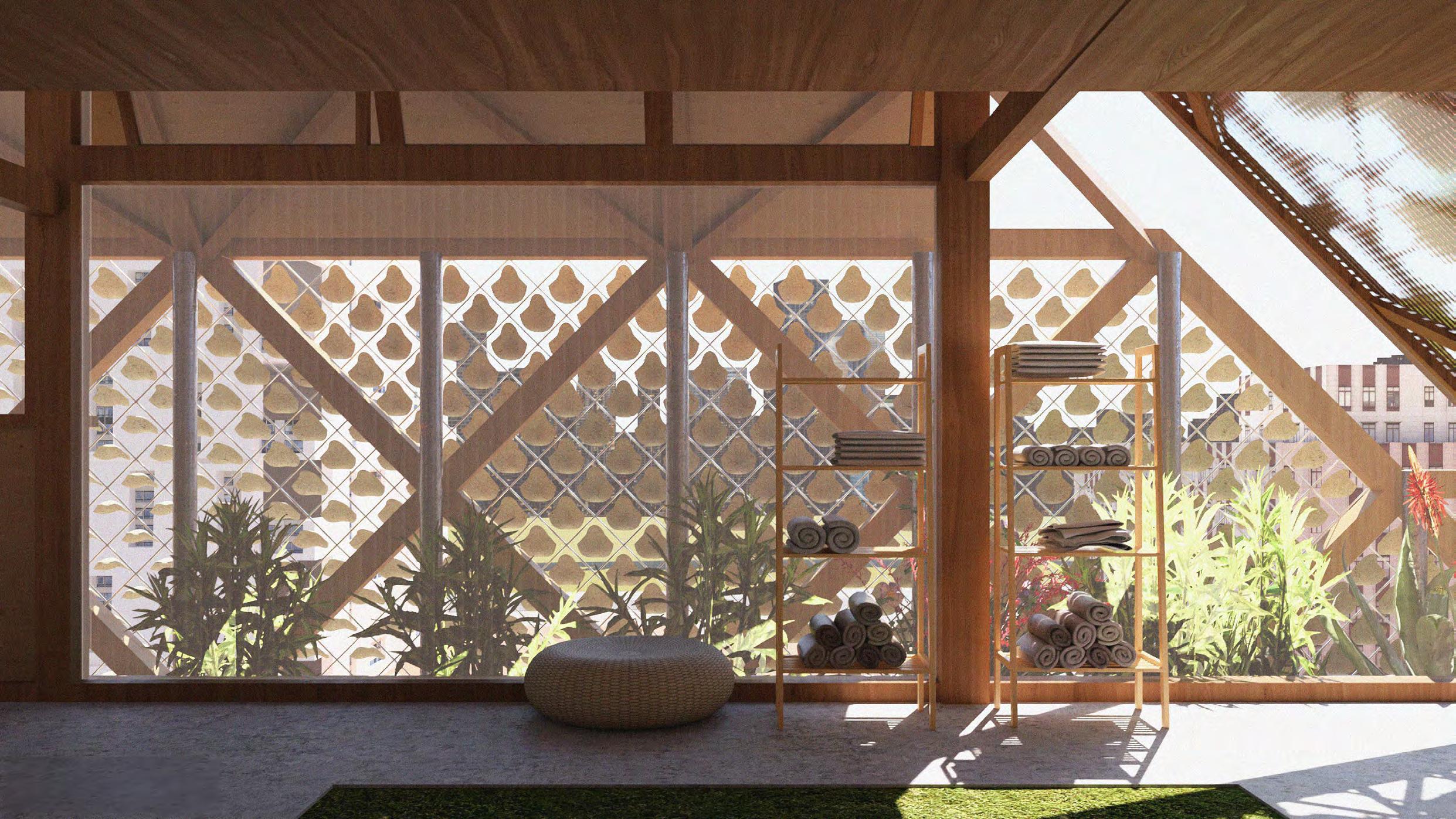

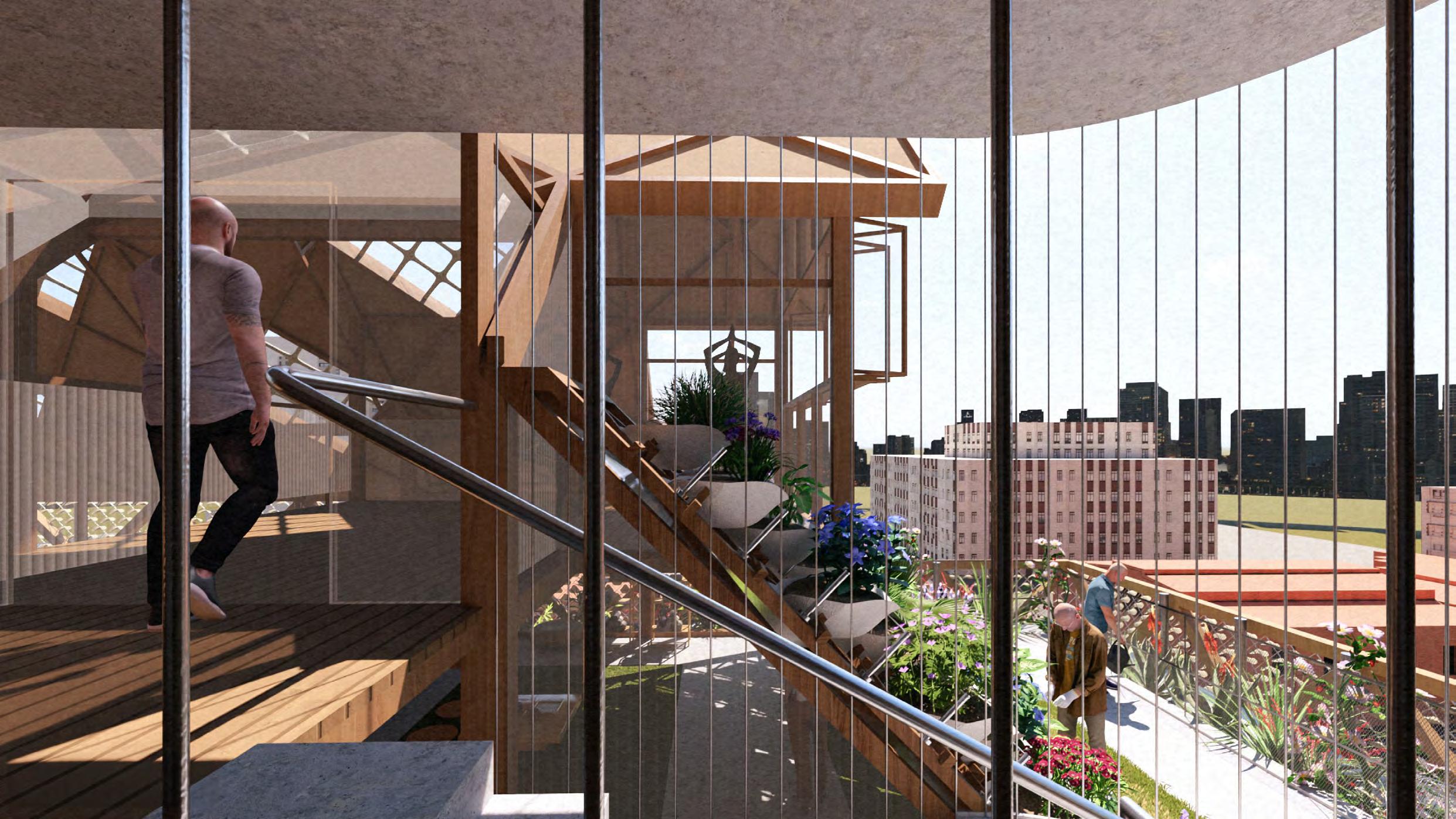

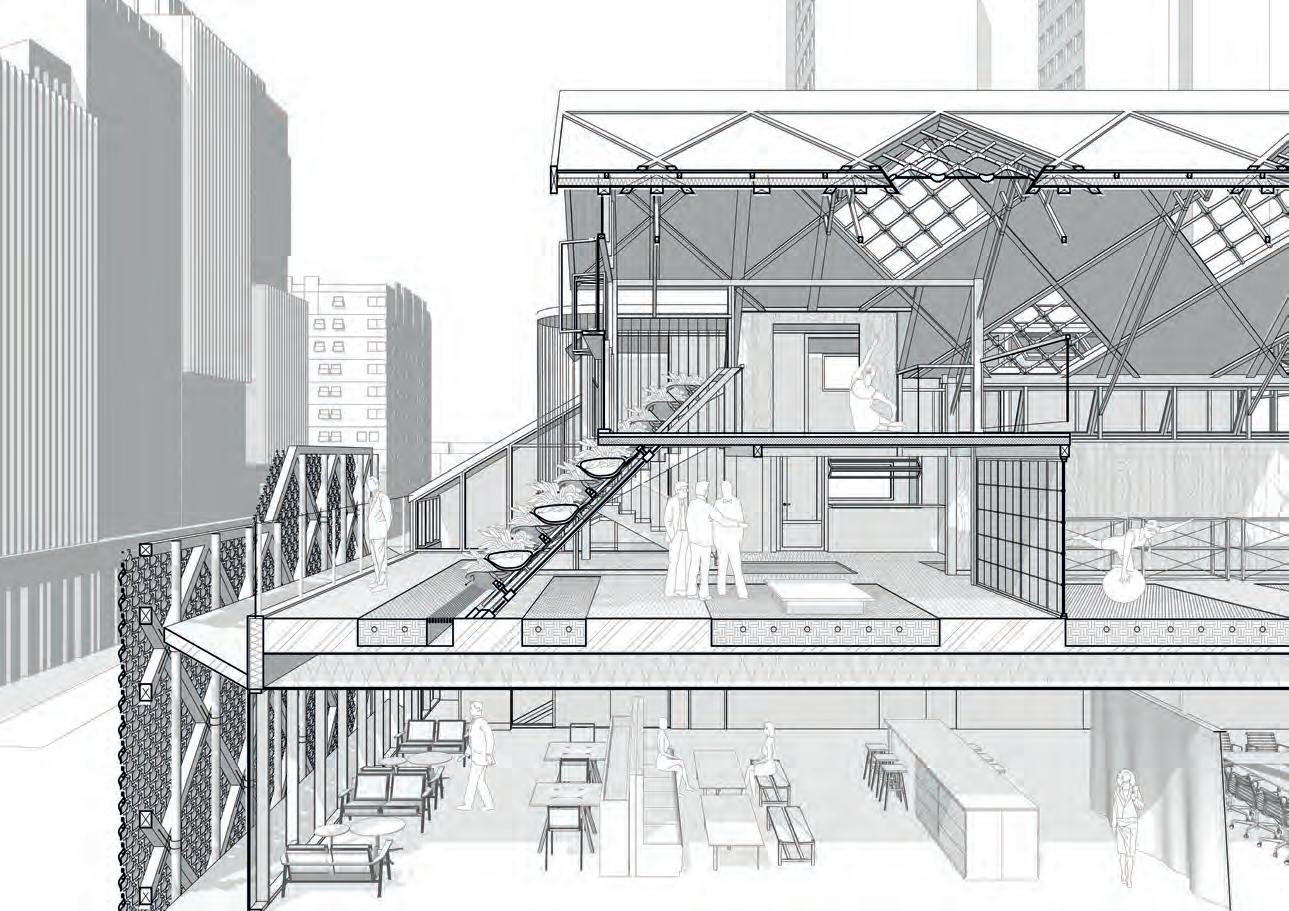

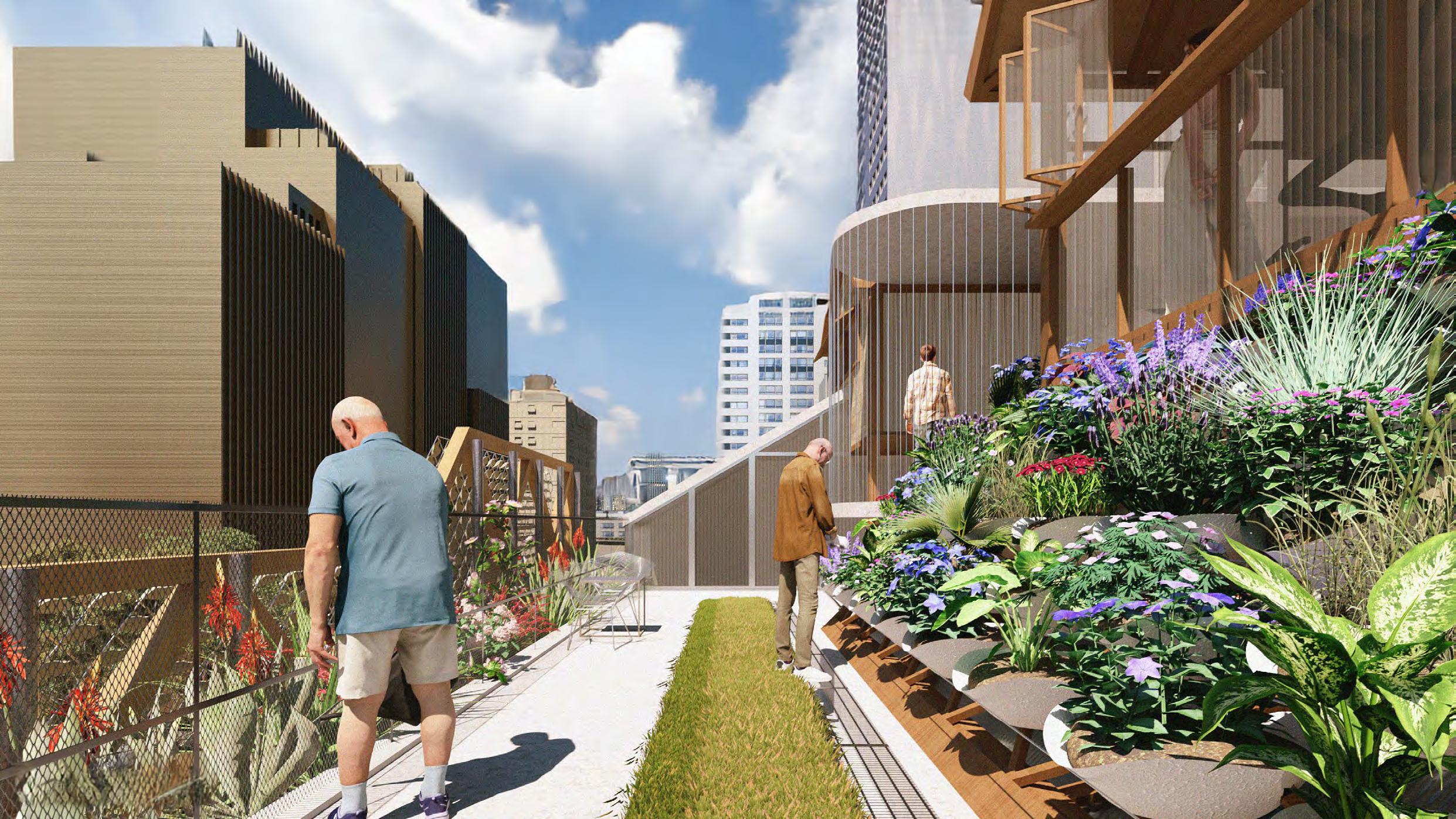

The roof evolves from these mycelium modules into an enclosed timber structure crowned with scaled-up petals green wall, allowing filtered light and natural airflow. This green-integrated roof shelters meditation, movement, and therapy spaces - offering a sustainable, healing retreat in Melbourne’s urban skyline.
video ai

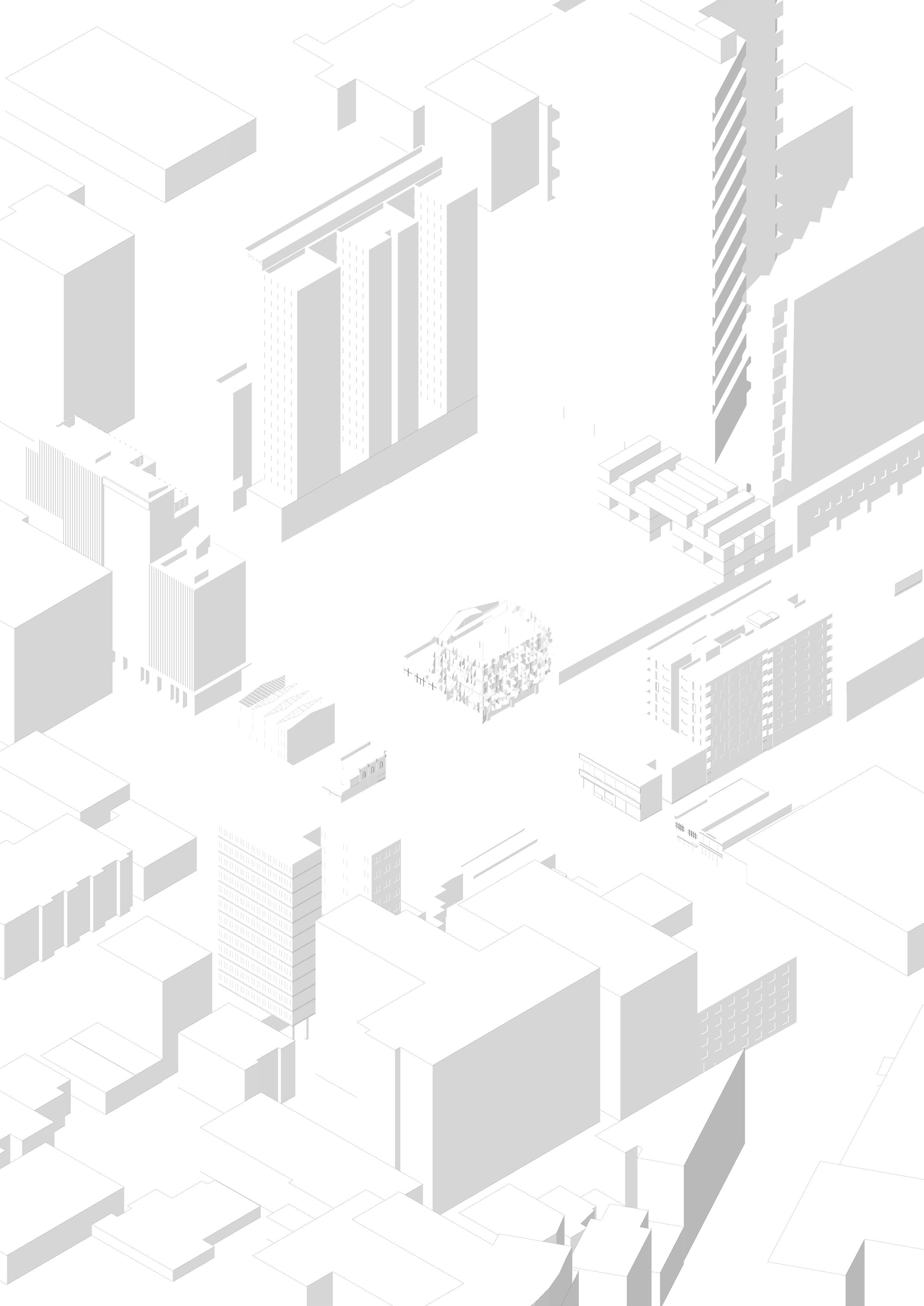

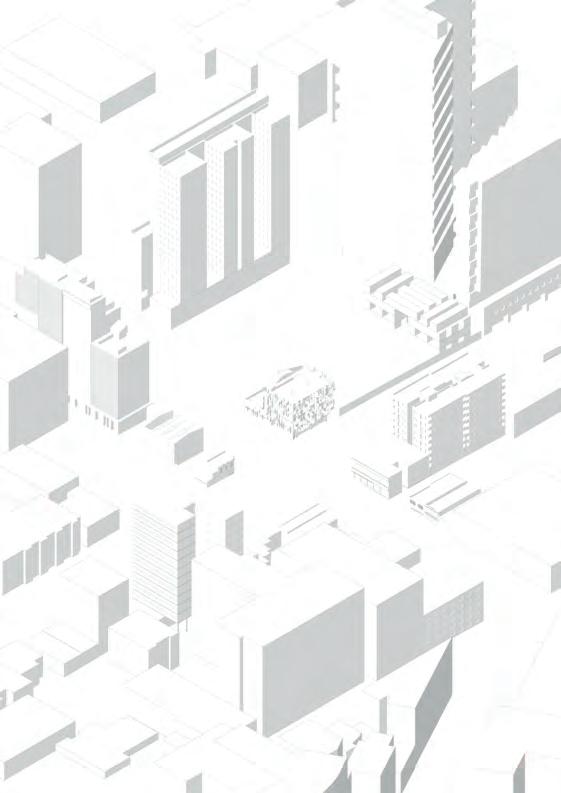

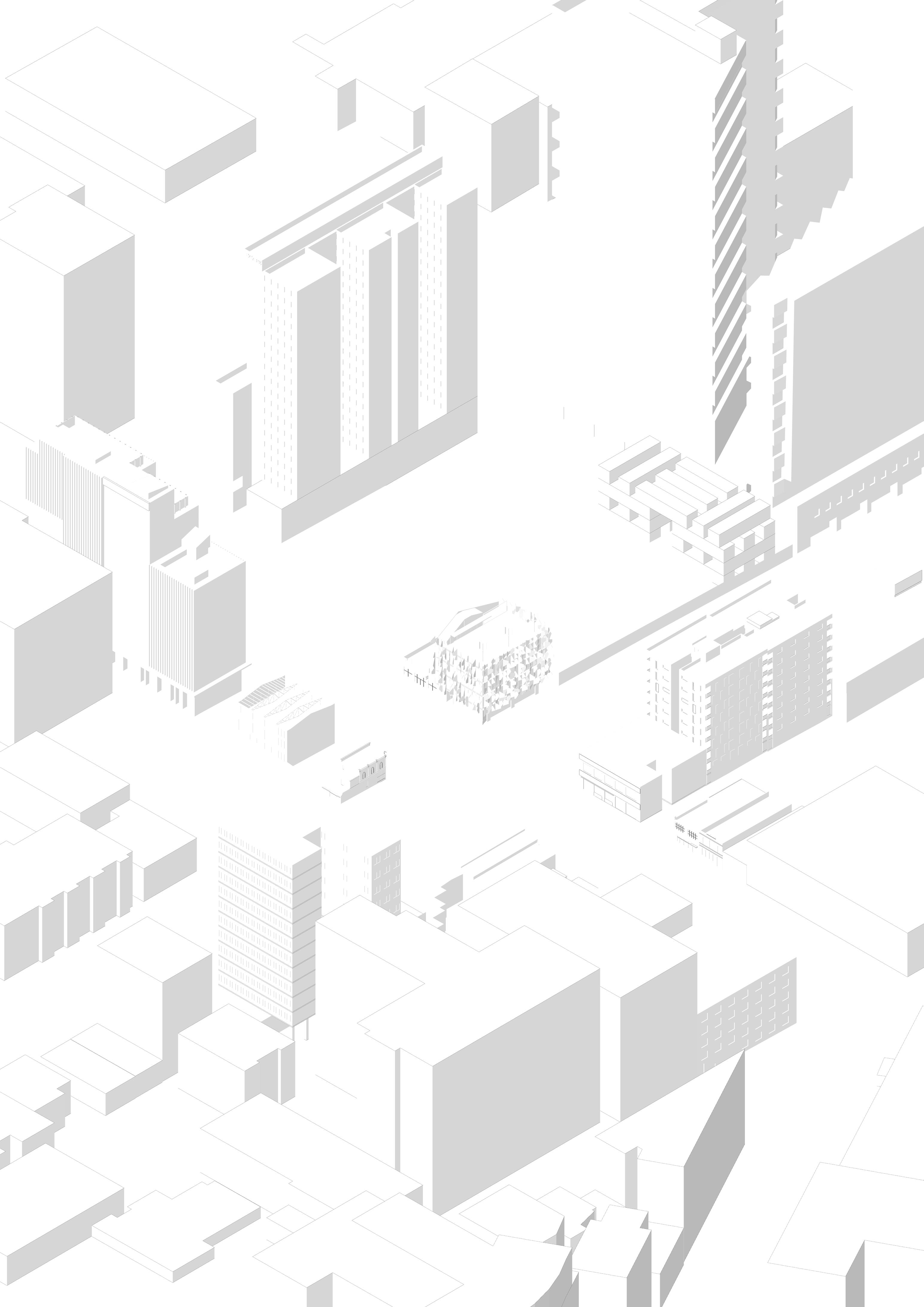

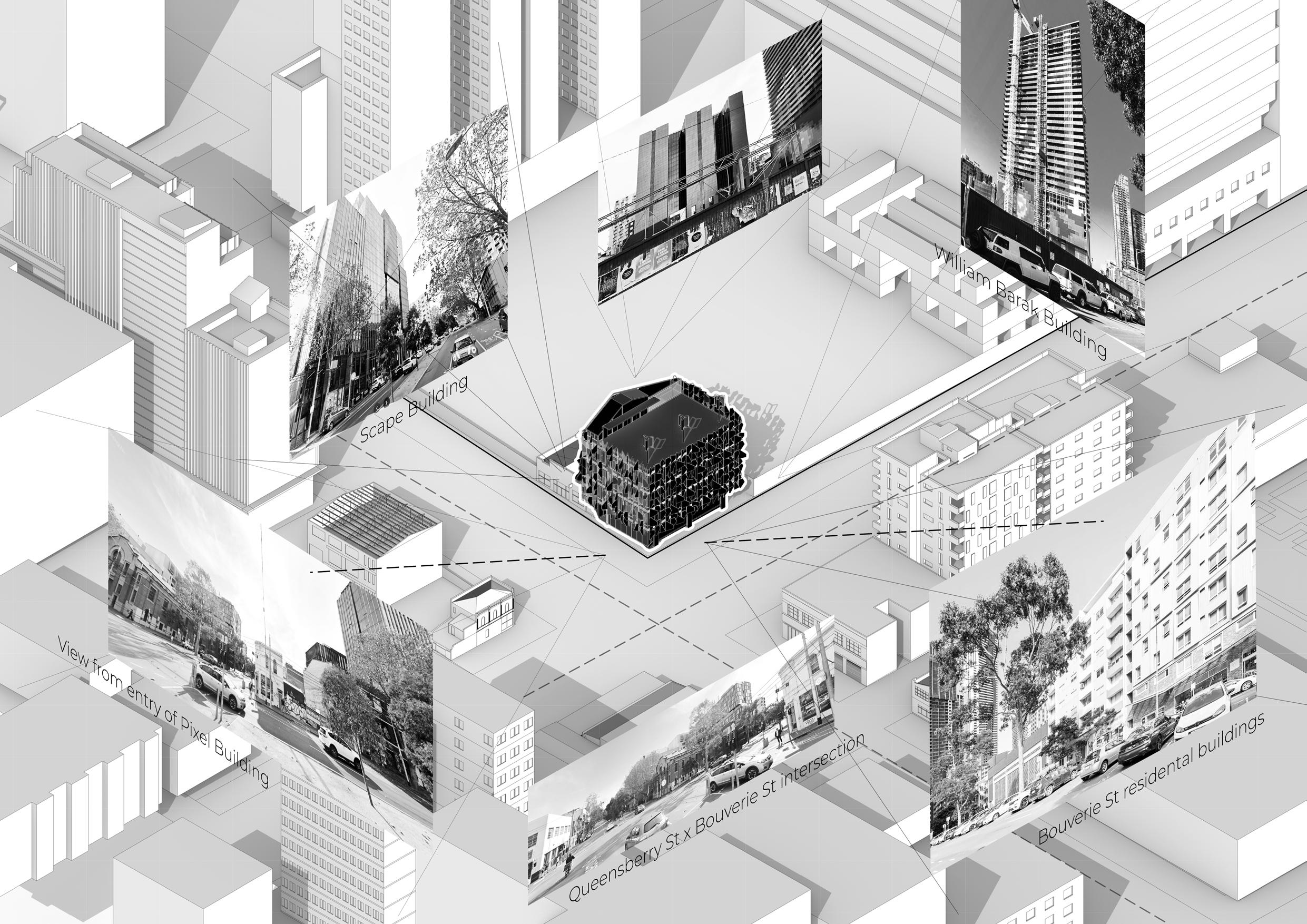

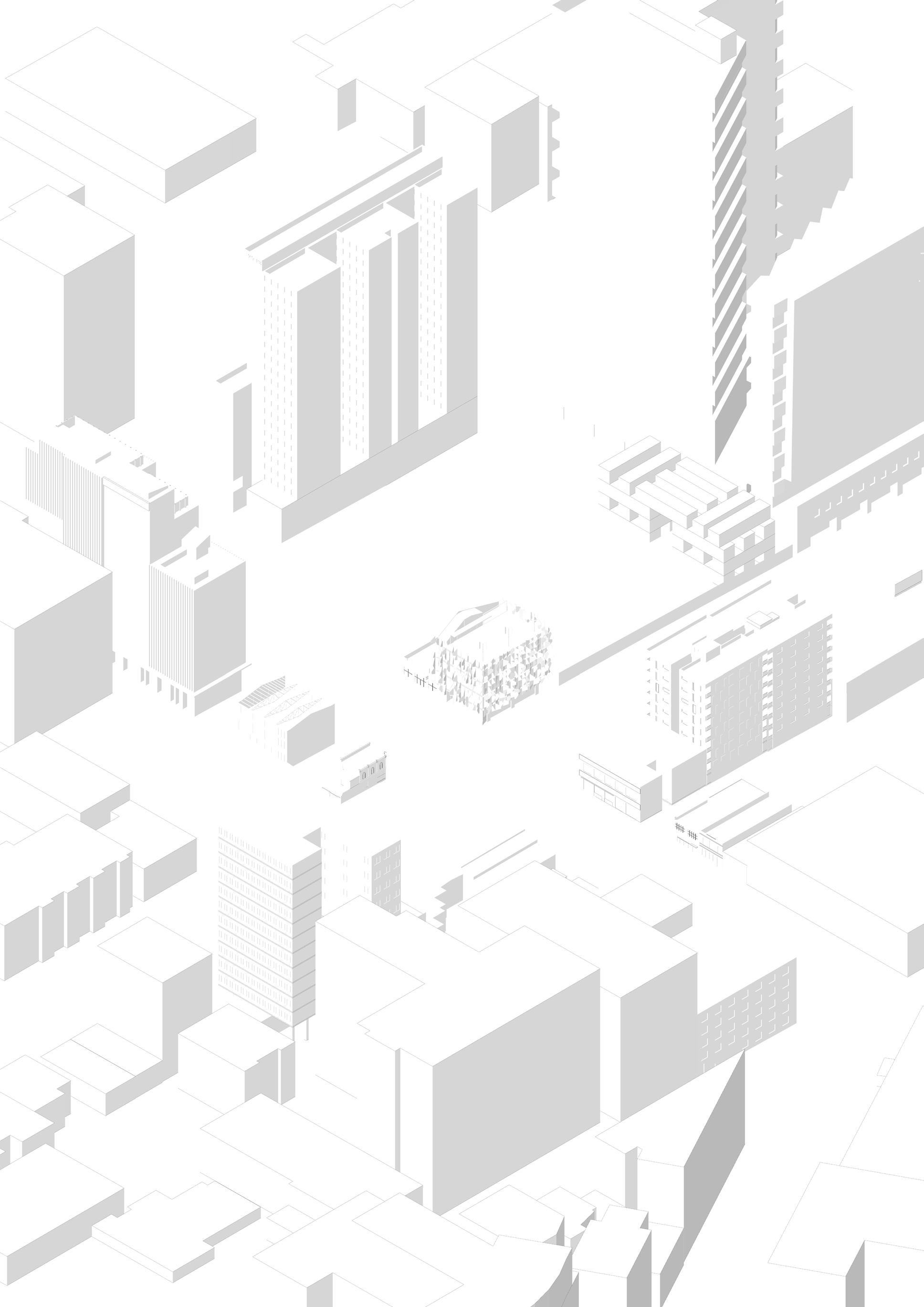

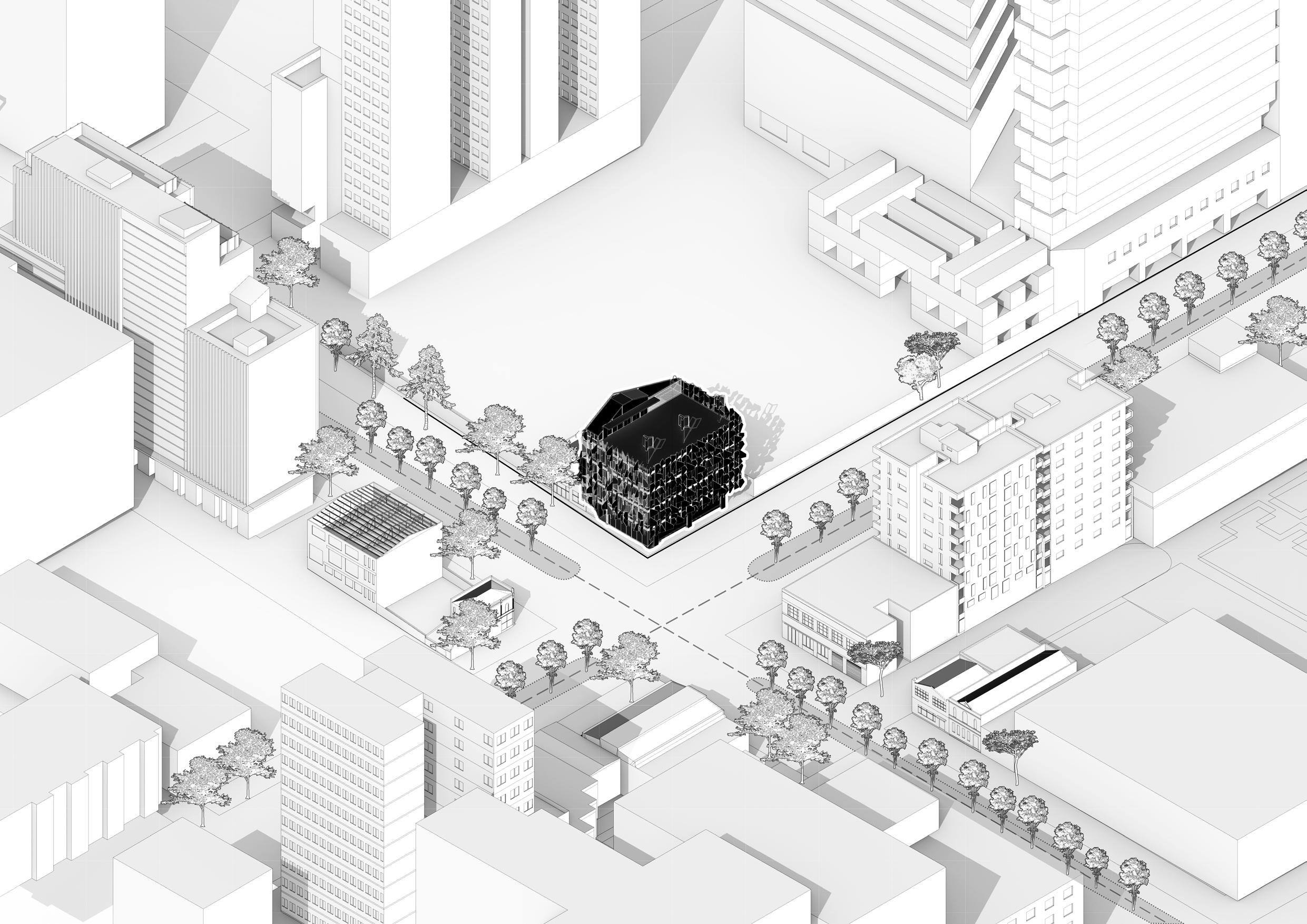

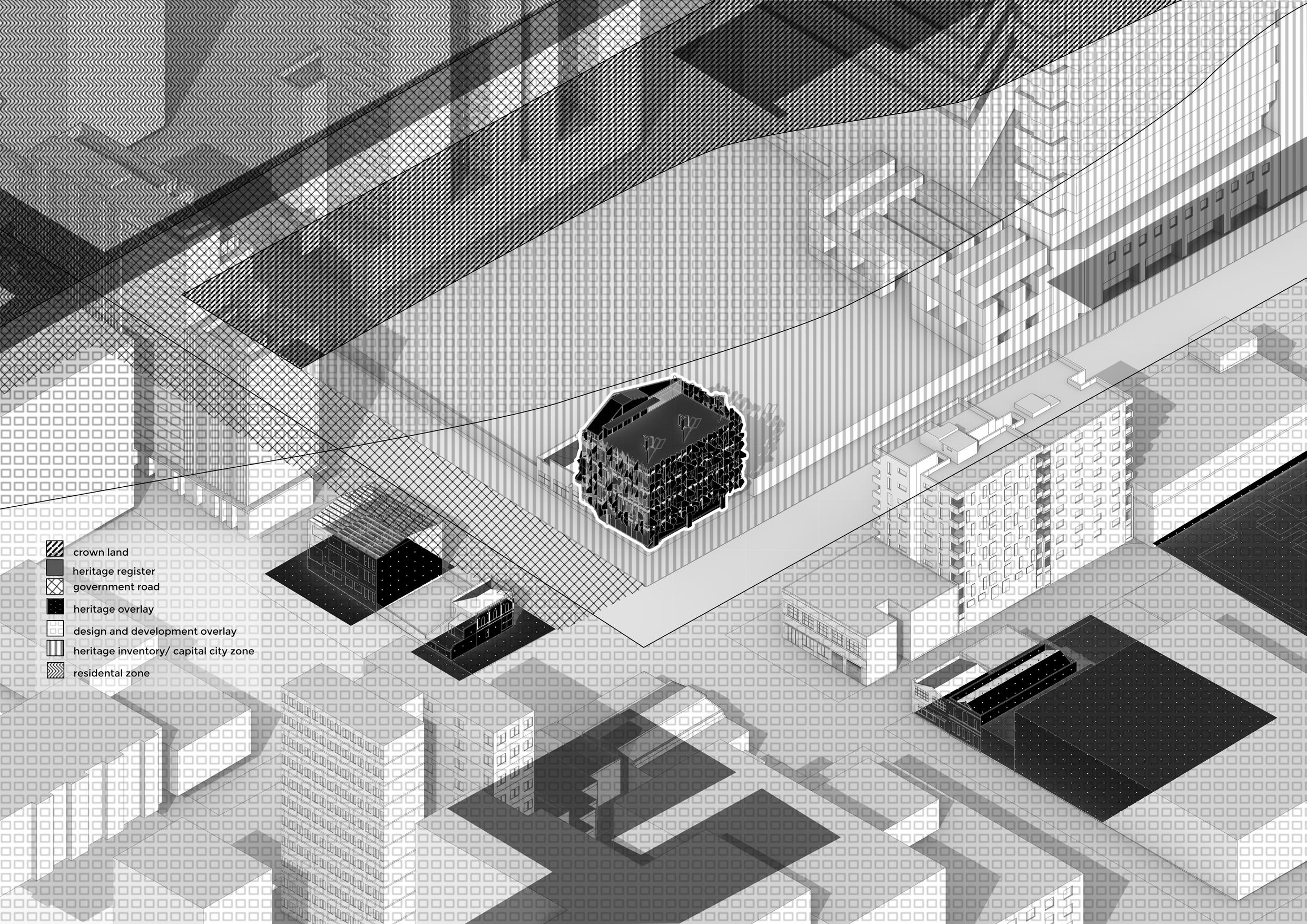

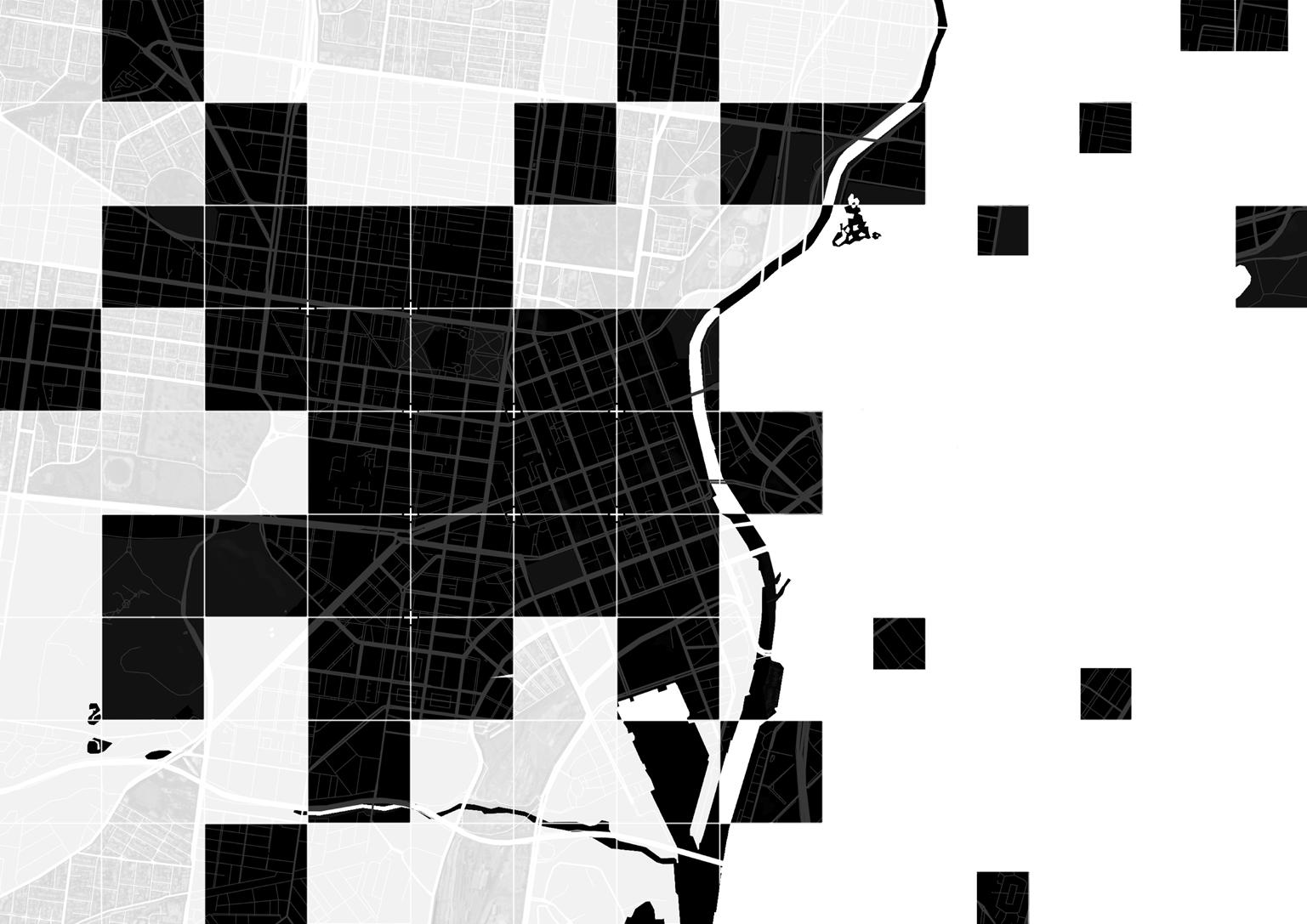

SITE ANALYSIS

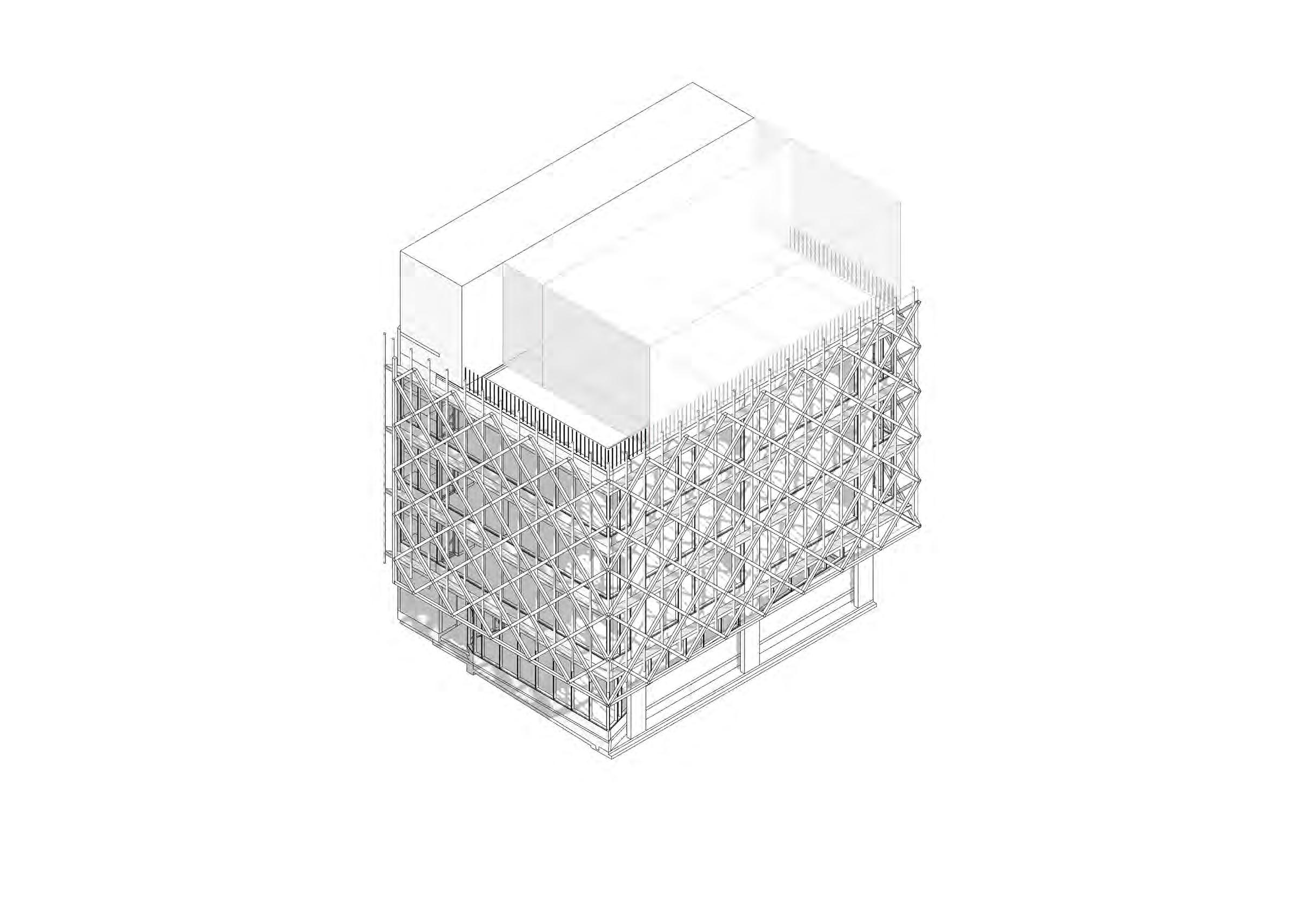

Pixel Building
Architects: Studio505, BLP Architects (current)
Year: July 2010
Location: Carlton, Melbourne

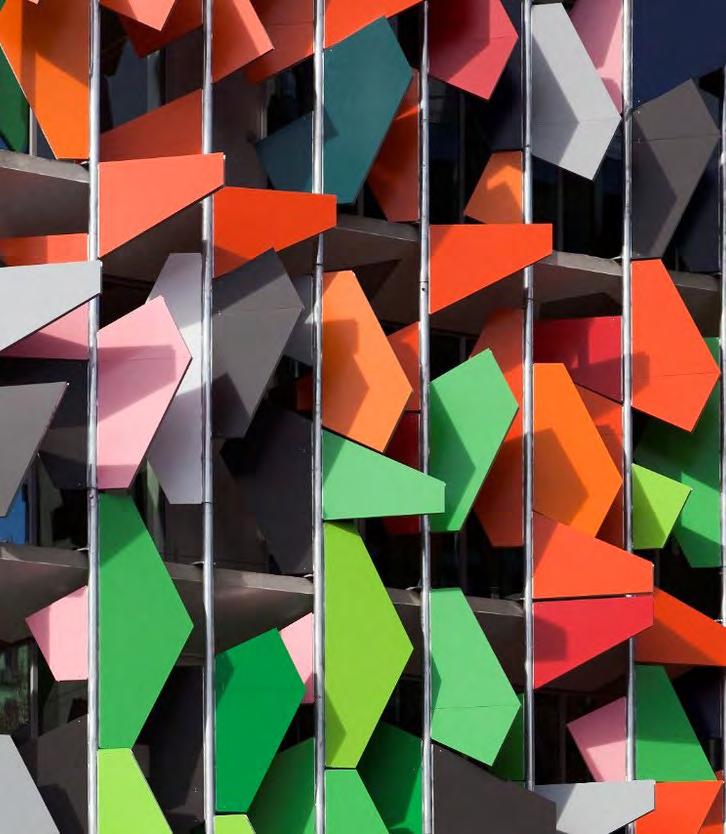

The Pixel Building in Melbourne is a pioneering carbon-neutral office known for its vibrant pixelated façade and cutting-edge sustainable technologies. It features on-site energy and water generation, smart environmental systems, and achieved perfect Green Star and LEED ratings, setting a global benchmark for green architecture.
New Breif: Refurbish the Pixel building into Victorian Collaborative Centre for Mental Health and Well being.
Jolimont-MCG
Pixel Building Rooftop Wind Analysis
The prevailing wind on site primarily comes from the north and southwest, which together account for nearly half of the total wind direction occurrences. The average wind speed is around 4 m/s, providing a gentle breeze without causing discomfort. On occasion, wind speeds can reach up to 9 m/s, but such instances are relatively rare. Overall, the wind conditions on site are moderate and not considered particularly strong.
The average wind from the north is gentle and unlikely to cause discomfort. It poses little risk to lightweight rooftop structures, allowing for open & relaxed use of the space.
Occasional strong wind from the north may impact comfort levels and have the potential to disturb light structures like canopies or temporary shading.

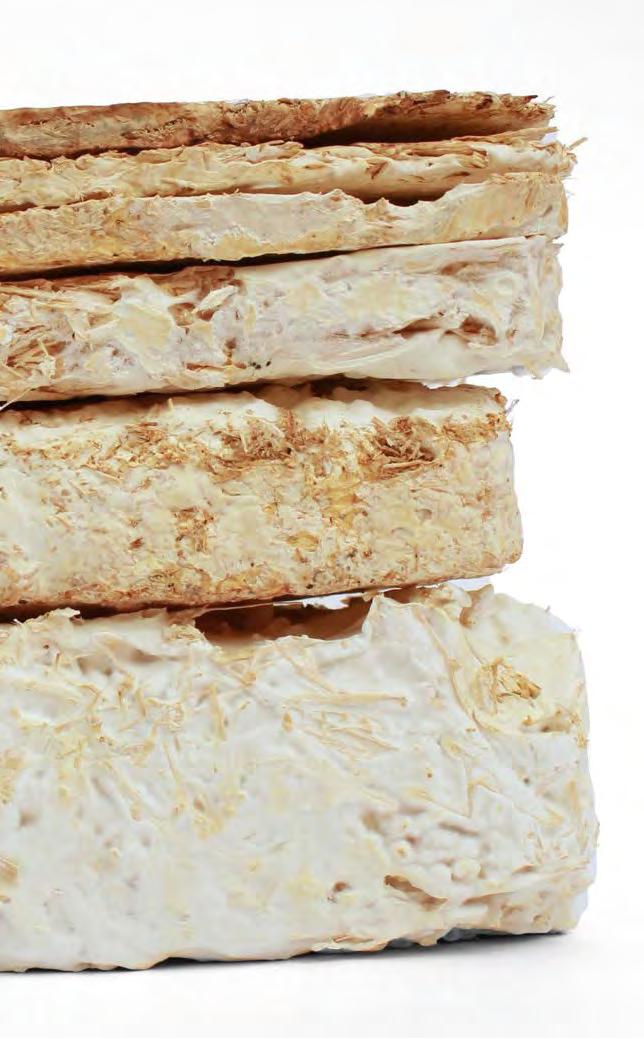

Mycelium
Properties:
• Mycelium composites are lighter weight materials
• Good thermal and acoustic insulation properties
• Fully compostable and eco-friendly
• Can be molded into complex forms
Challenges:
• Vulnerable to water damage and degradation if not properly sealed or treated
• The use of mycelium in large-scale architectural projects is still under development
• Not suitable as a load-bearing material in large-scale architecture; usually used for insulation or cladding

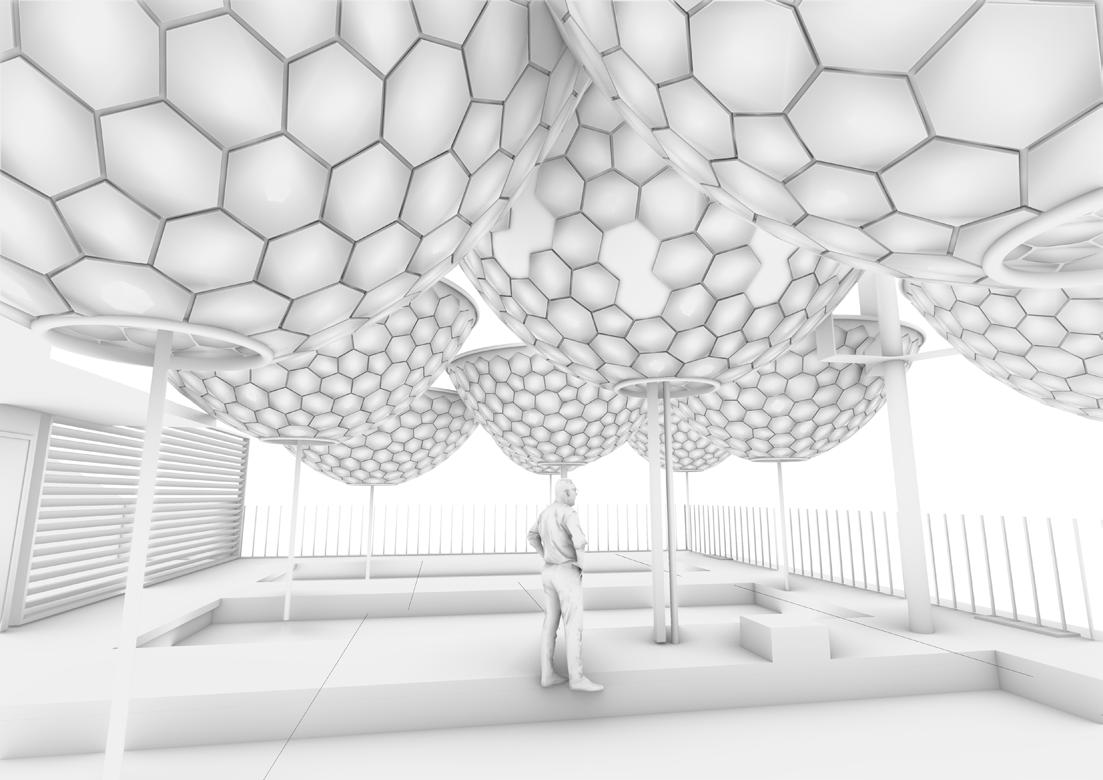

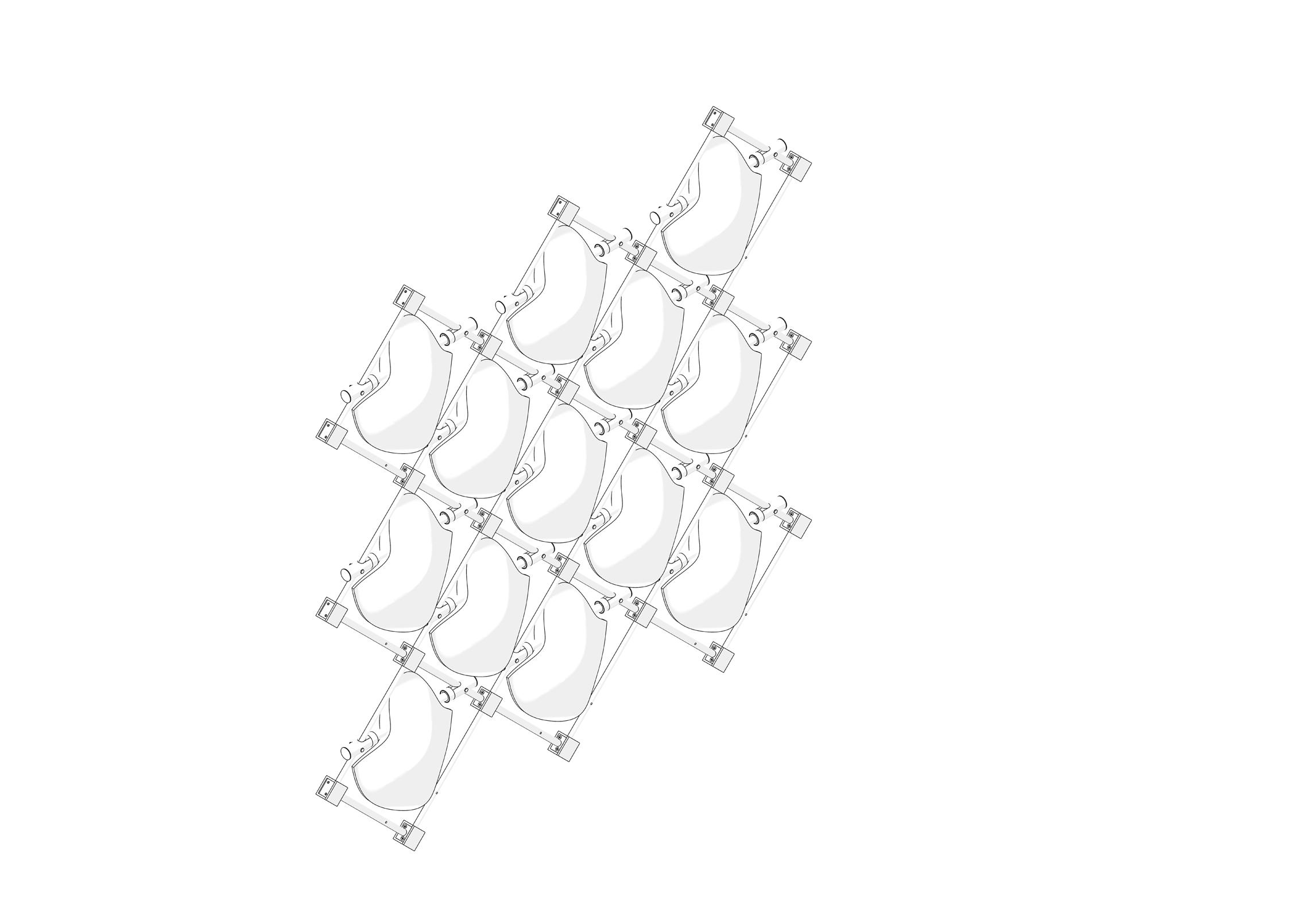

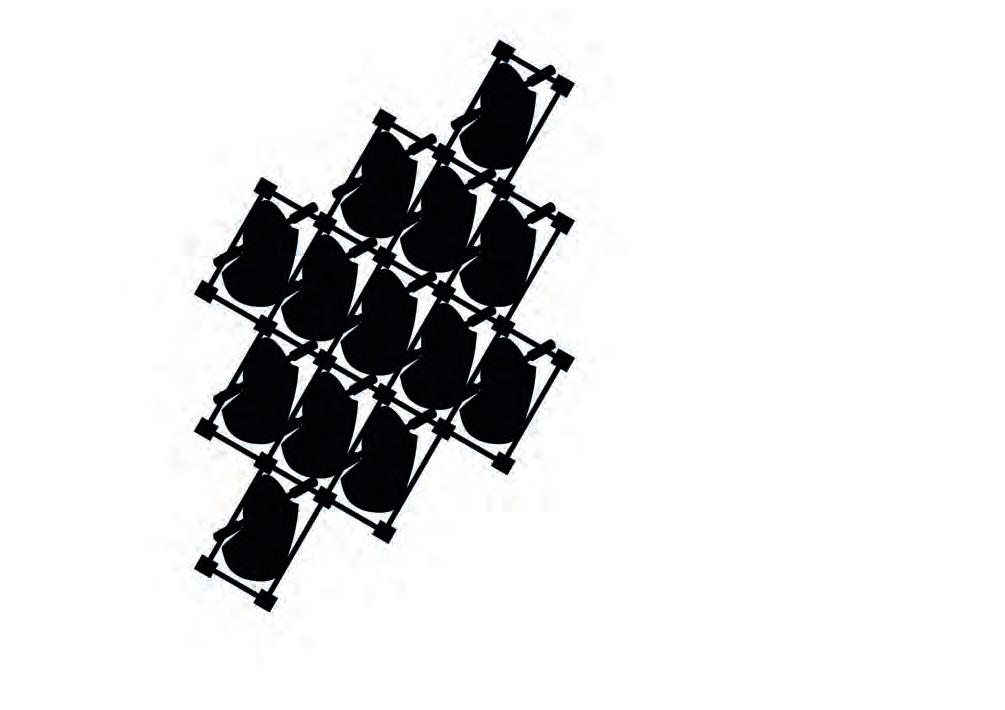

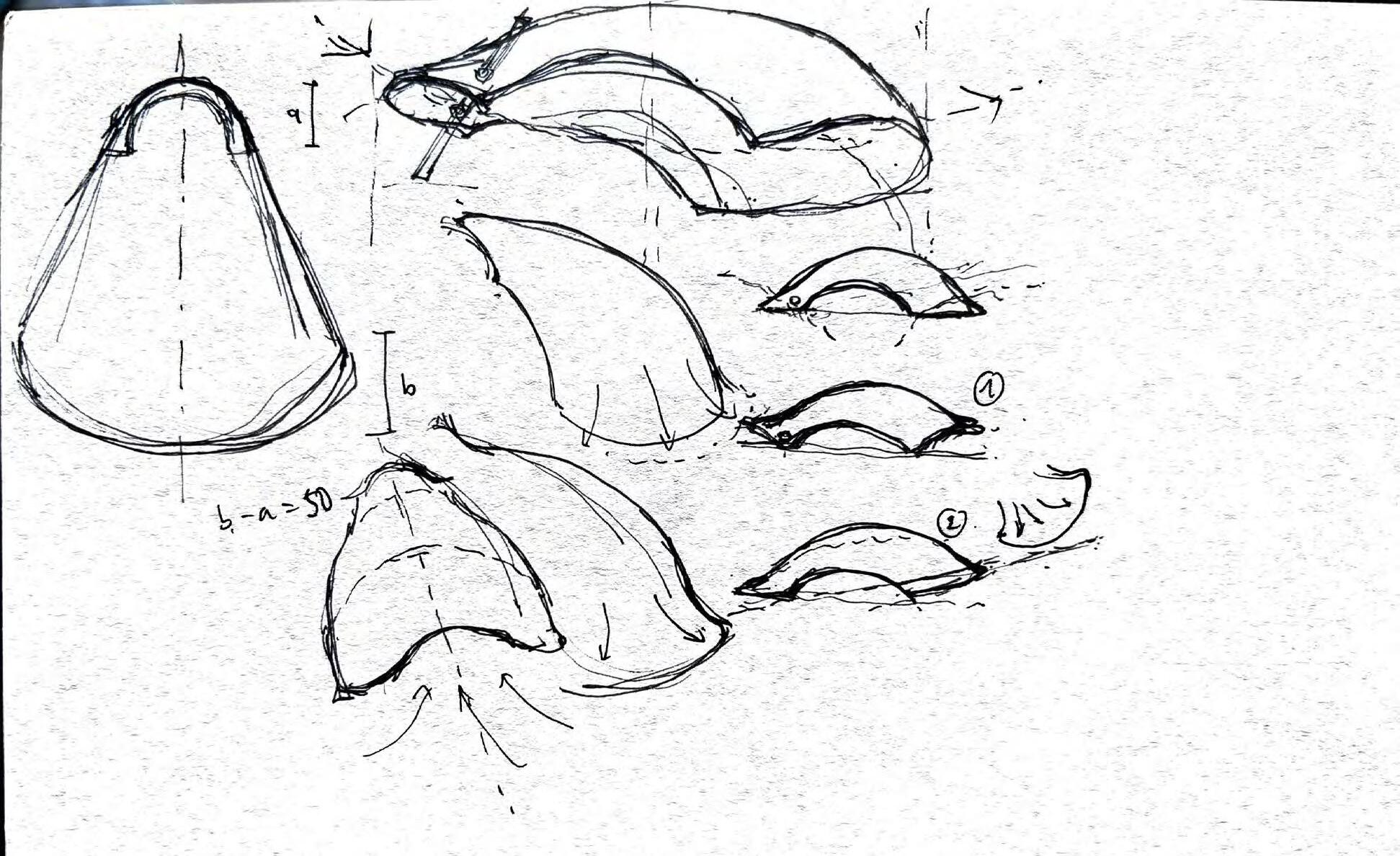

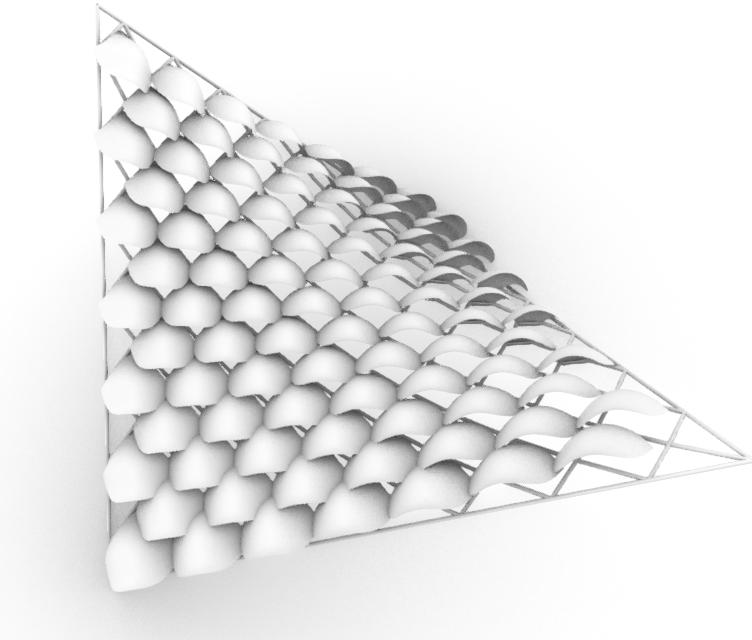

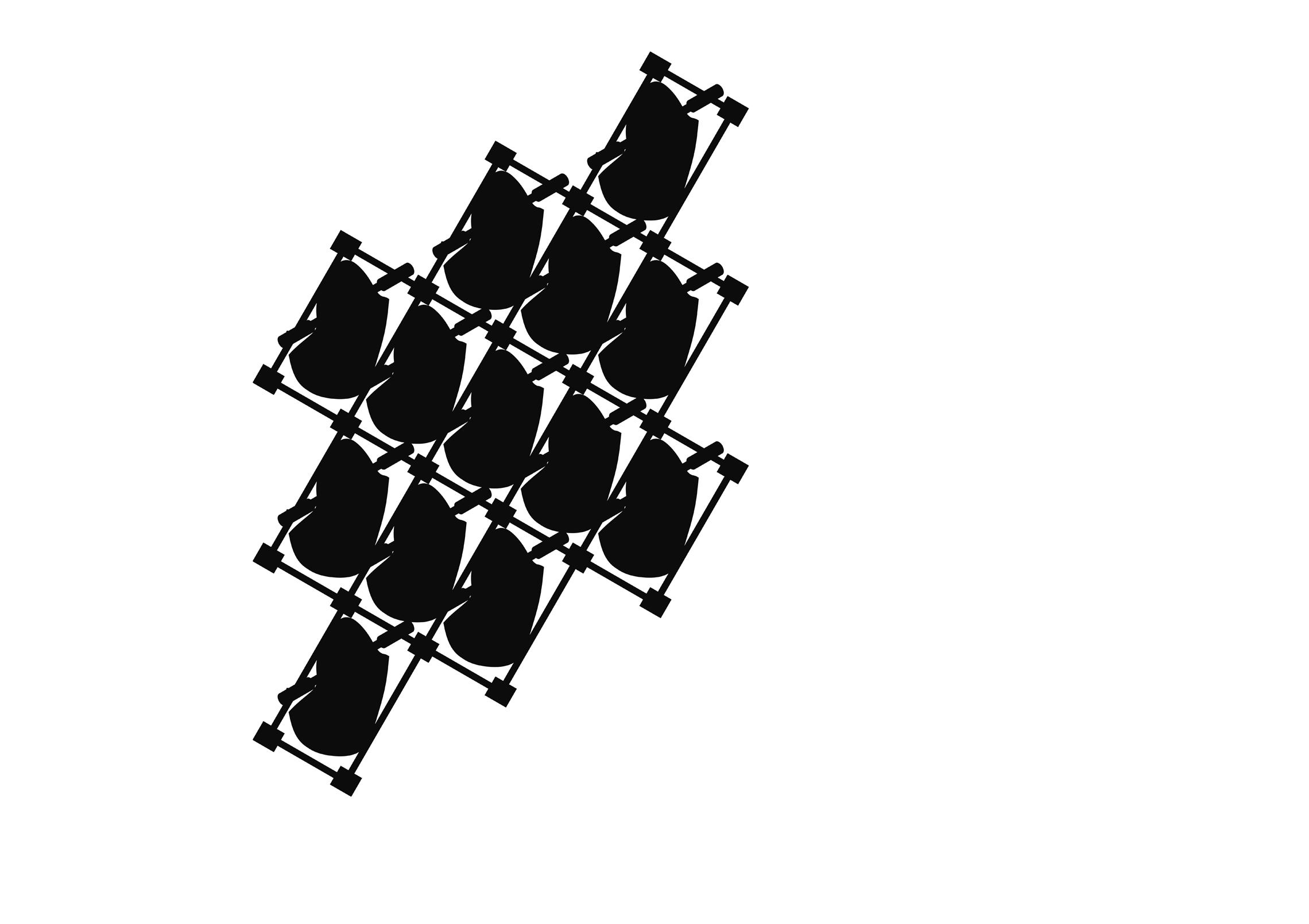

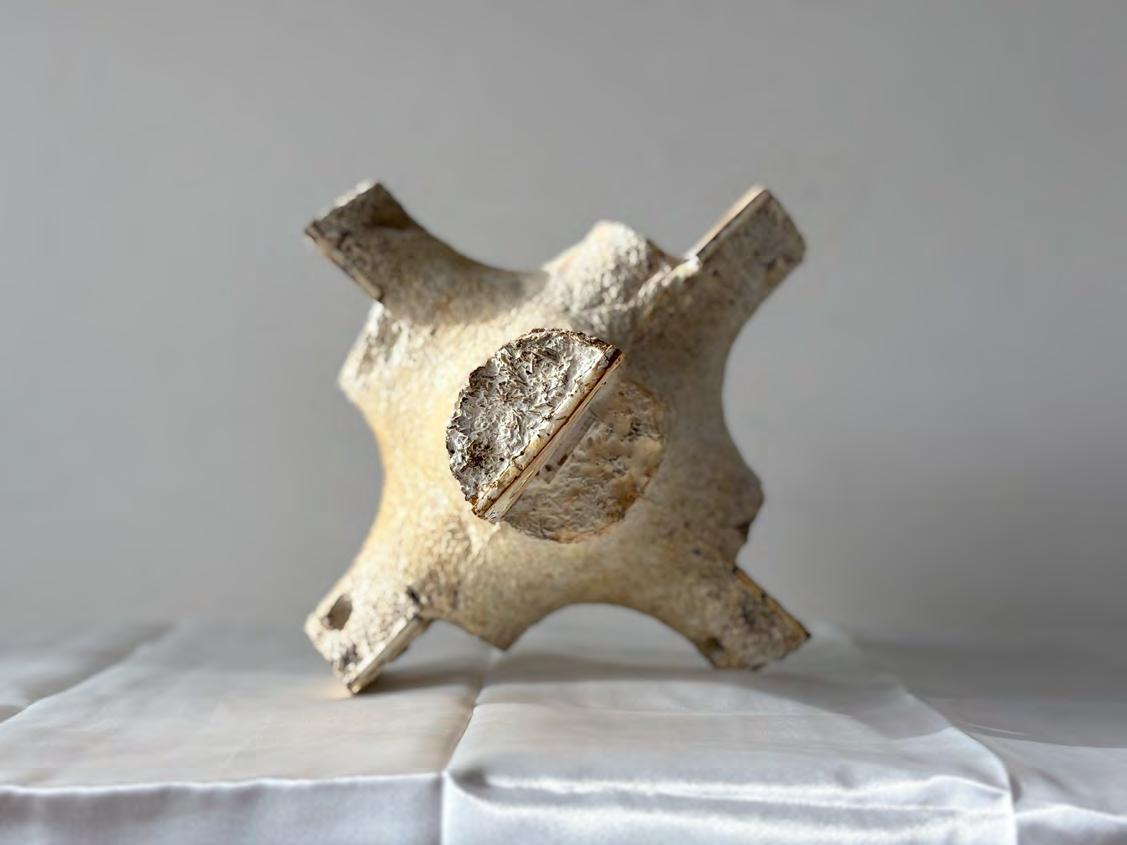

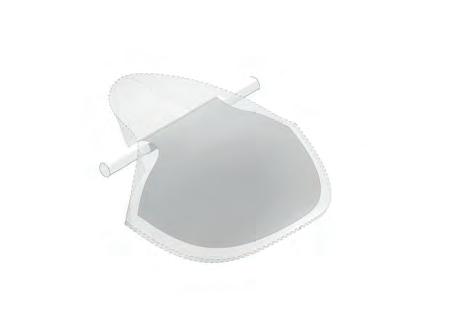

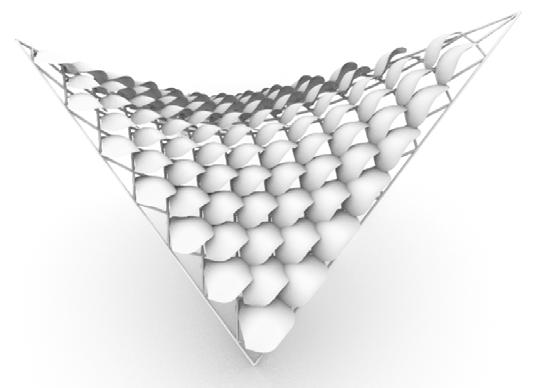

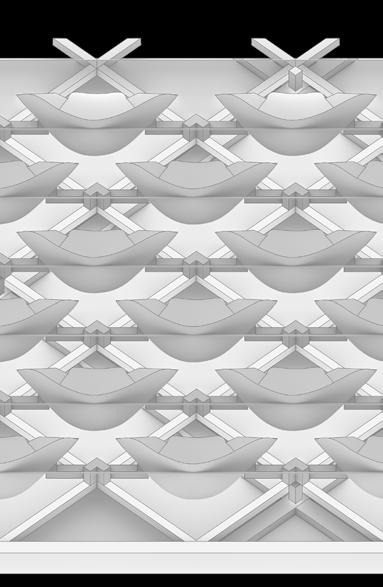

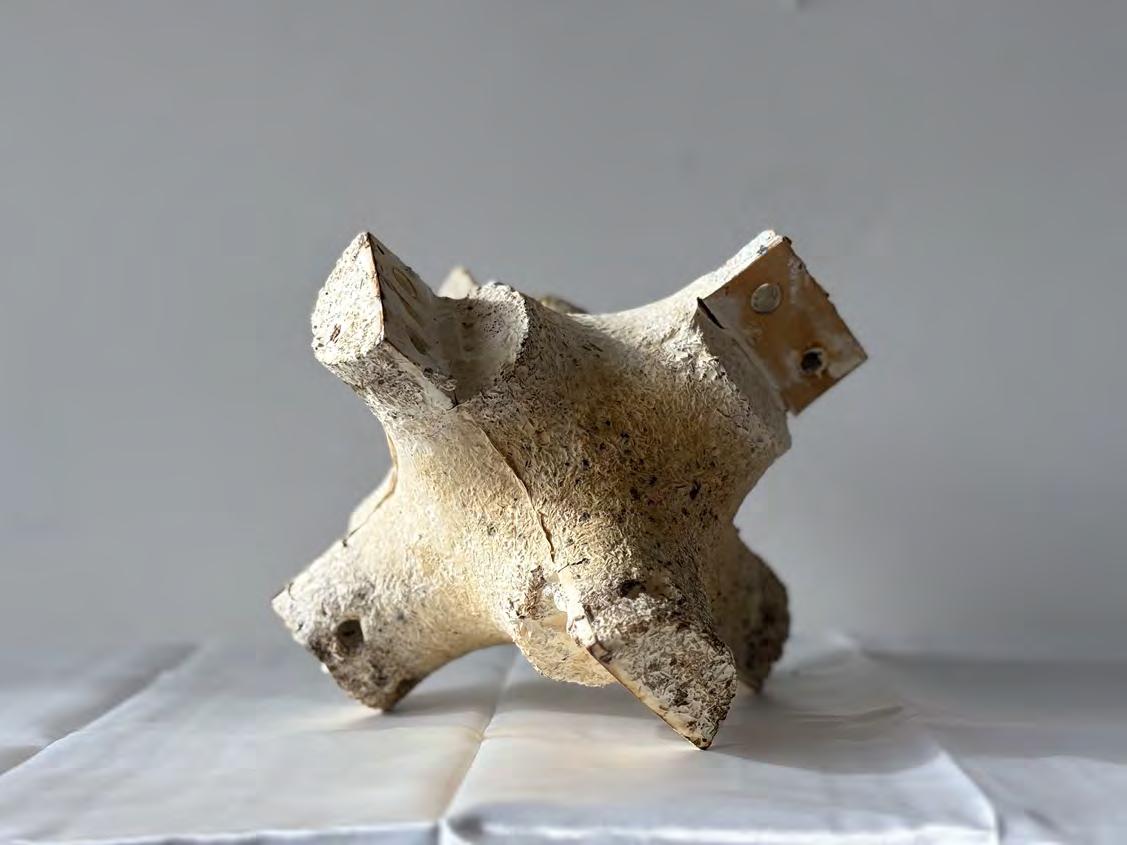

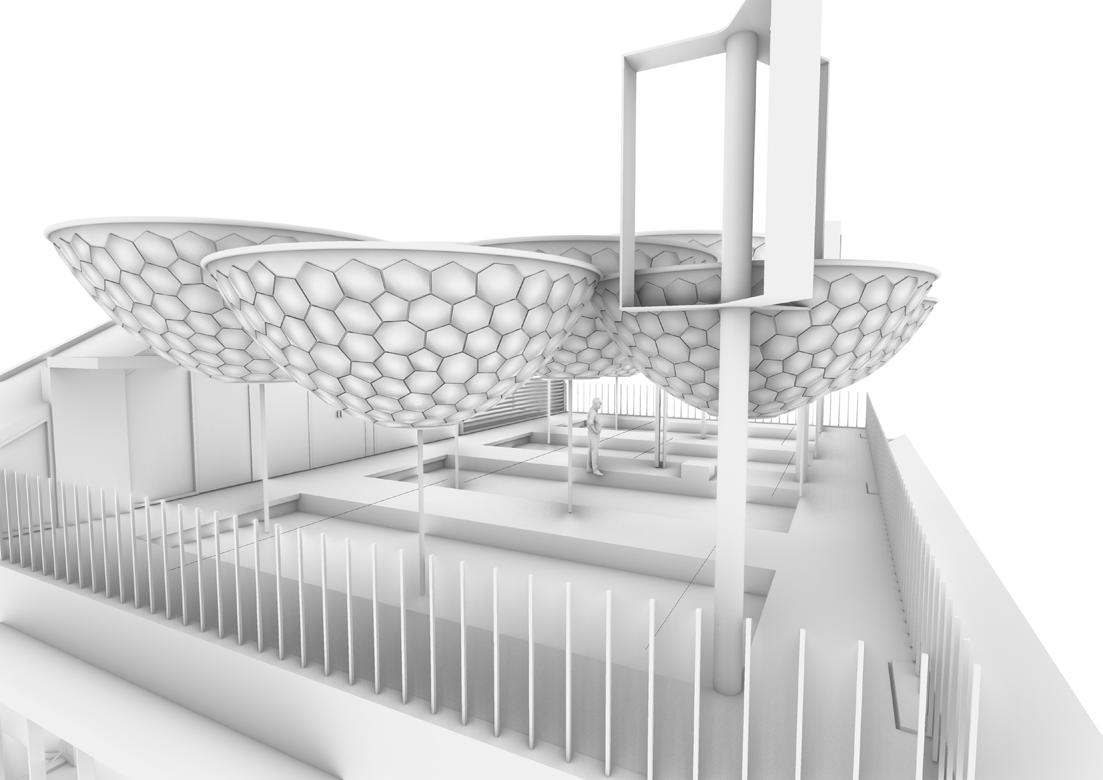

MYCELIUM FLOWER PETAL MODULES

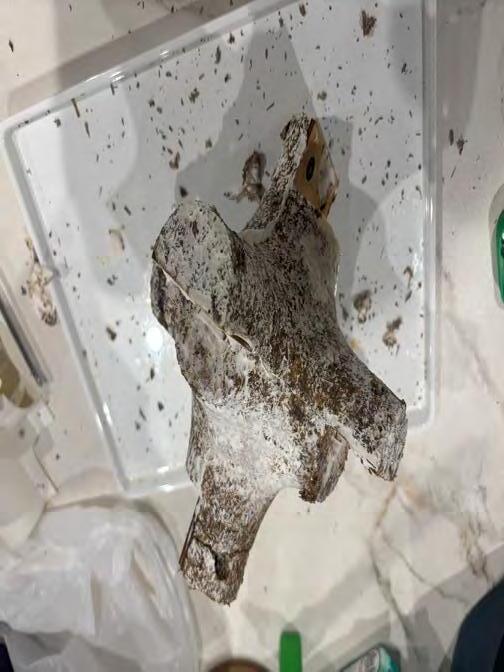

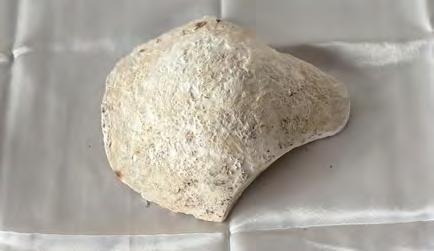

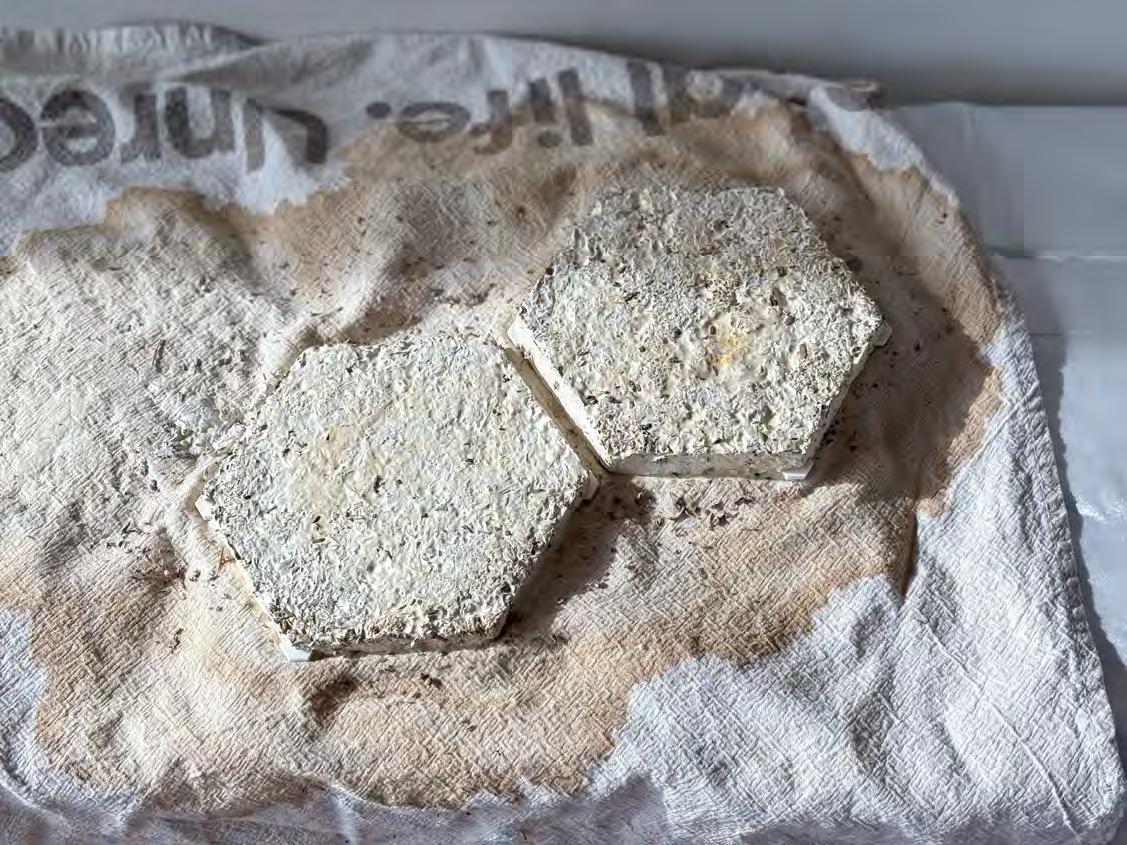

LENA’S TESTING

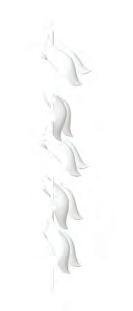

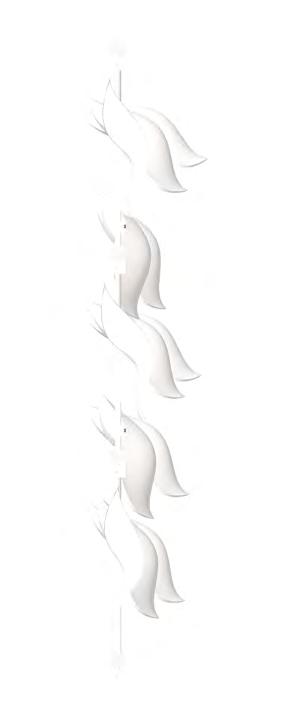

Making use of strong wind on rooftop level, the canopy modules can move up and down, creating a fluttering petal effect.

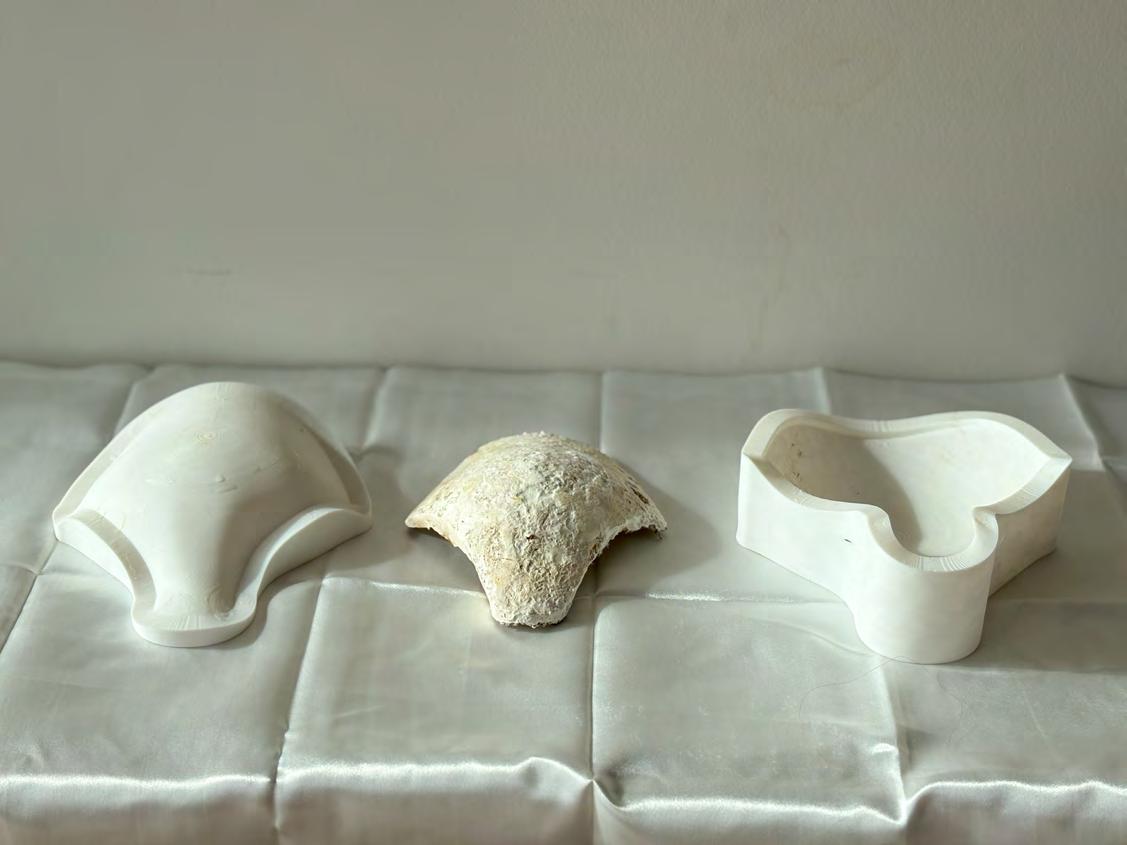

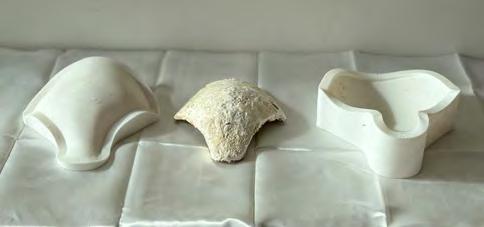

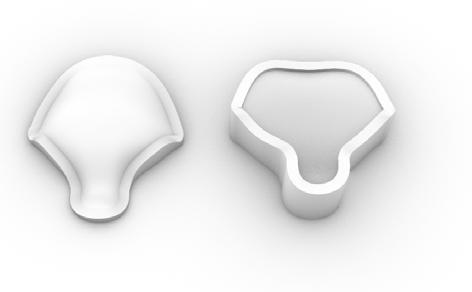

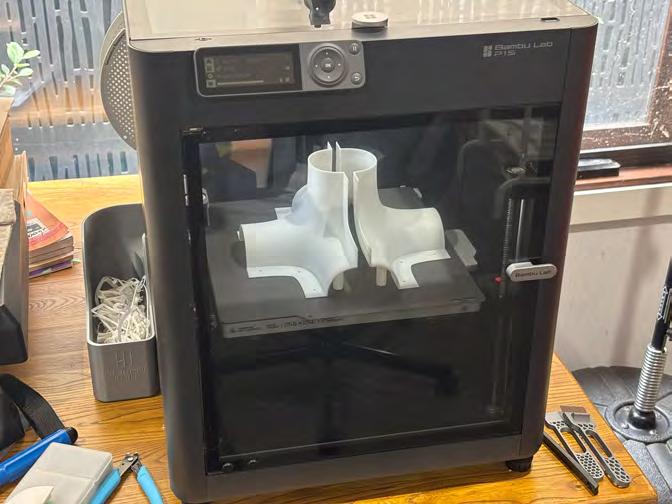

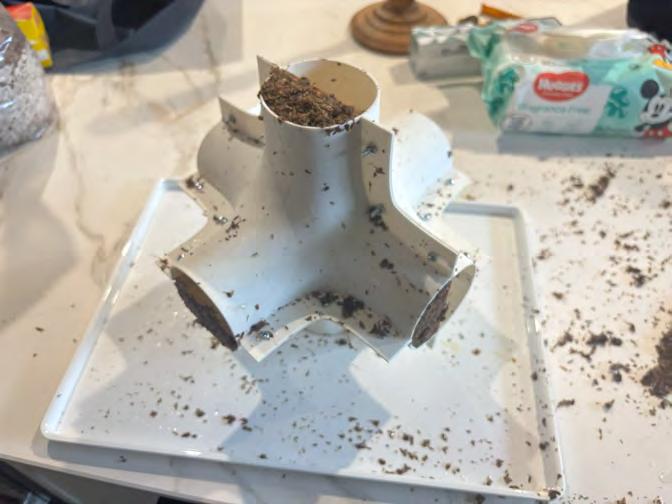

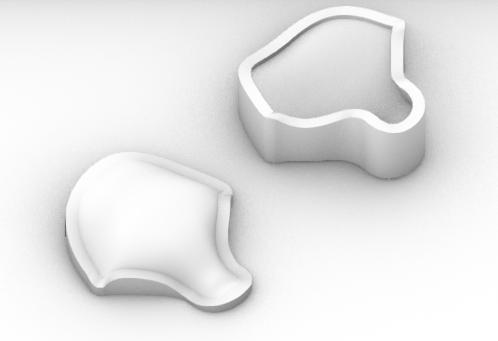

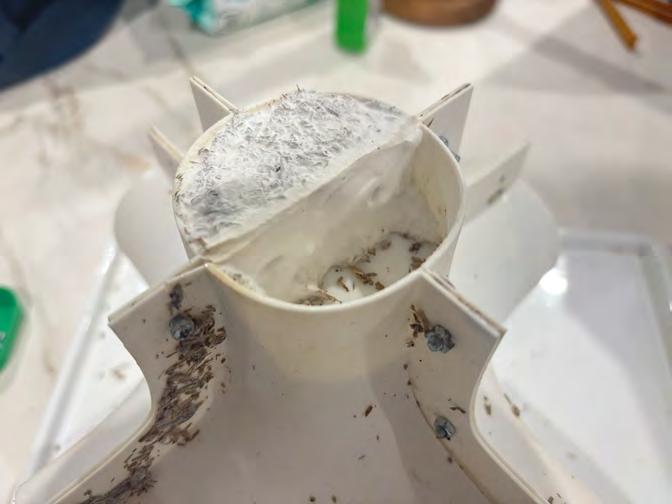

1. Create Mold
2. Fill up Mycelium composite
3. Allow grow for 4 to 5 days
4. Remove from mold

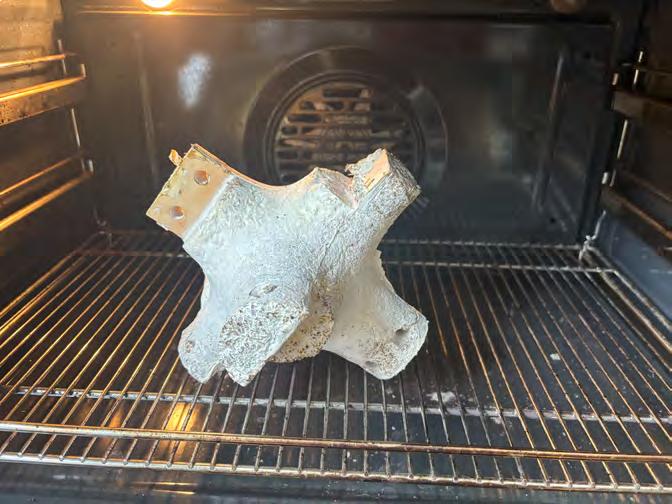

5. Bake & Dry

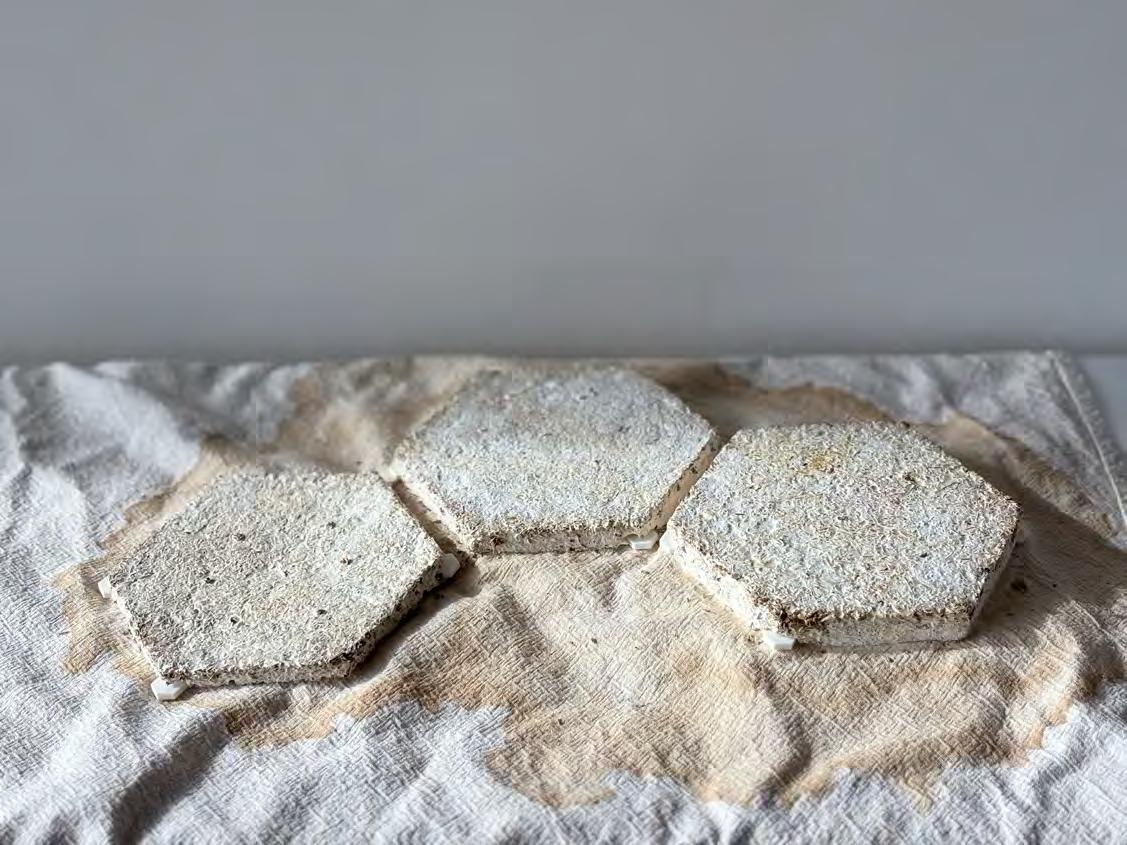

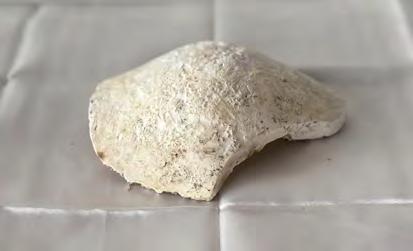

6. Final Product
physical health
neurochemistrymetabolic disorders
genetic vulnerability
peer group workschool
drug effects
diet/ life style
BIOLOGICAL MENTAL HEALTH
comorbidity
immune/stress respone
response to reward
emotions
self-esteem
attitudes/beliefs
PSYCHOLOGICAL SOCIAL &
ENVIRONMENTAL
socio-economic status
culture
family circumstances
interpersonal relationships trauma grief
perceptionscoping skills
temperament
social skills
The bio-psycho-socio-environmental model for mental health (Exploring the Relationship Between Anxiety and Depression, n.d.)
Arrive at work line of stress
STRESS IDENTIFICATION
Providing shade
Wind protection
Rain resistance
FUNTIONALITY
Emotional
Lack of private spaces
Depart from work
Sound absorbing quality of mycelium
Quiet, private spaces
Flexible use
Shelter & Comfort
Reduce ambient noise
Zoning & Privacy
Biophilic integration Low maintenance
Non-slip flooring
Secure boundaries
POTENTIAL SOLUTIONS
Limited break Long periods without breaks
Exhaustion
Despression
AESTHETIC
Natural Material Palette
Filtered Light
Soft, Organic Forms
earthy tones and textures mycelium, timber, brick, greenery
calming visual experience
Interactive & Tactile Elements
Scent and Sound Curation
Signature Design Identity
reduce mental fatigue touch, observe calming scents, soft natural sounds (fountain, wind chimes)
iconic and memorable
From Research to Design: Materialising Mental Health
Understanding mental health goes beyond clinical care—it involves designing spaces that nurture the senses, restore emotional balance, and reconnect people to nature.
This project responds to that need by translating research into spatial experience through the integration of mycelium, a living material whose softness, breathability, and circular lifecycle reflect the very principles of healing.
The design moves from theory to practice—crafting a rooftop sanctuary where material effect becomes therapeutic agency.
“From light-touch canopy to life-centred architecture ...”
insert mycelium staerr
MycoBloom
Pixel Building Retrofit
Mycelium

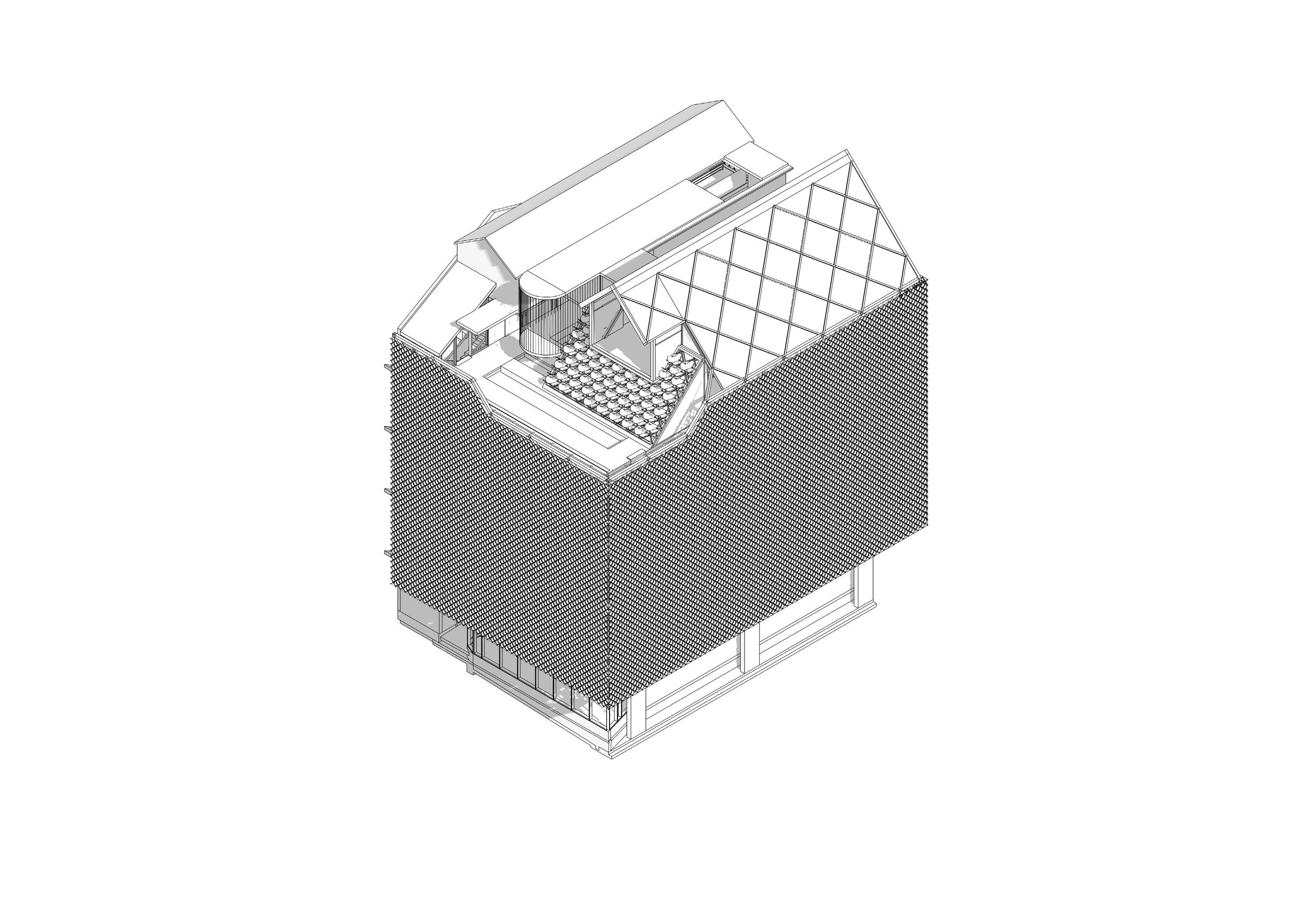

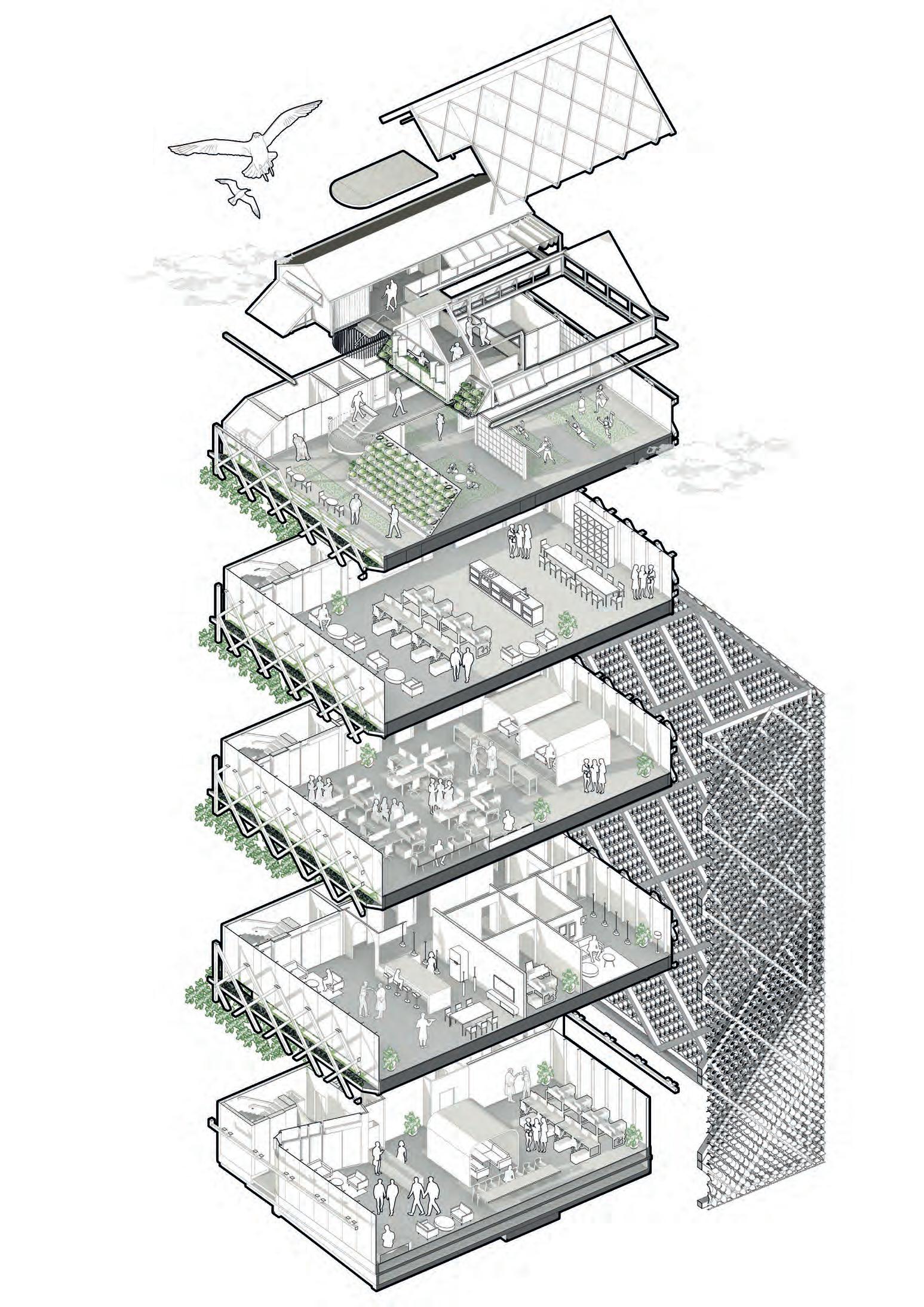

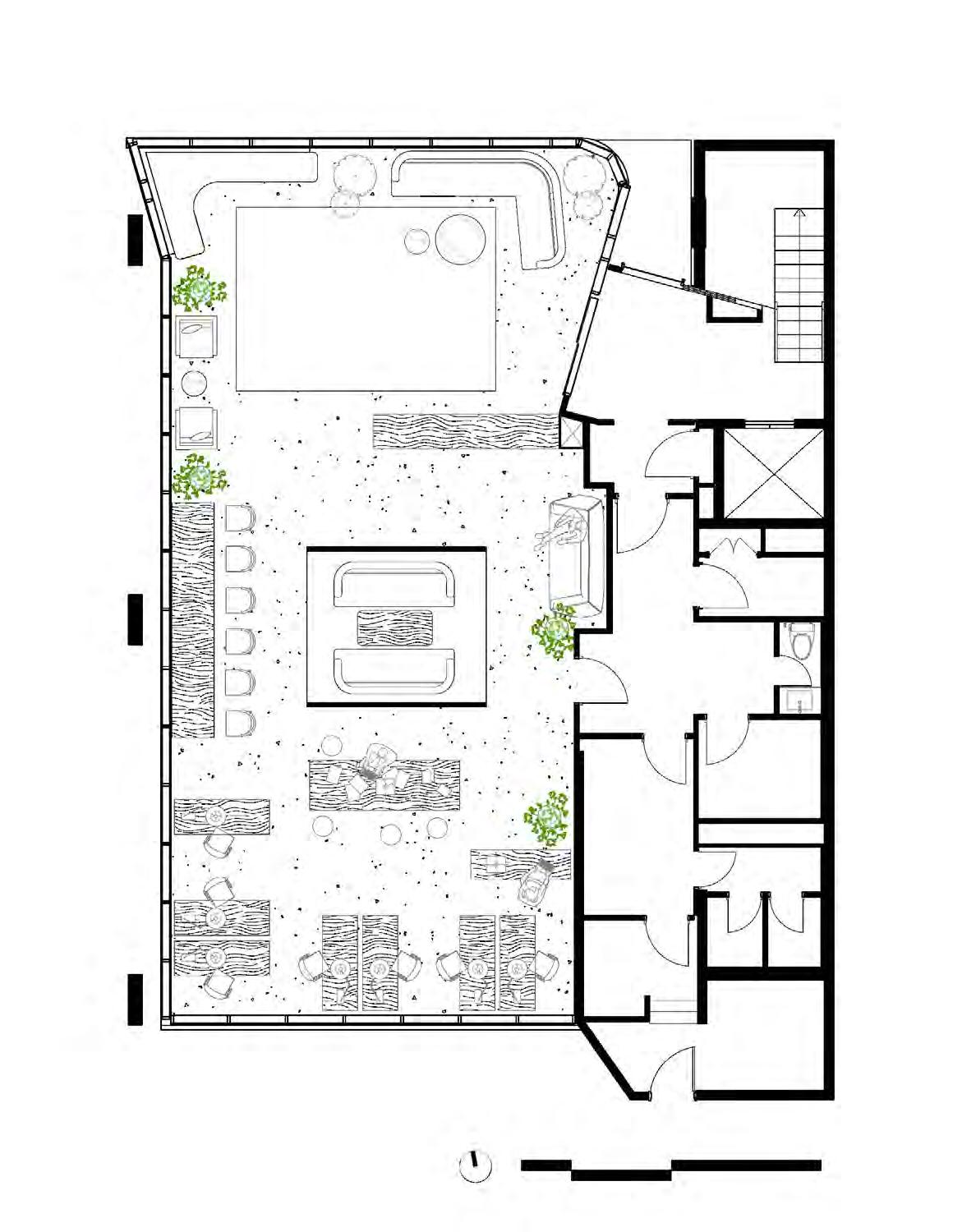

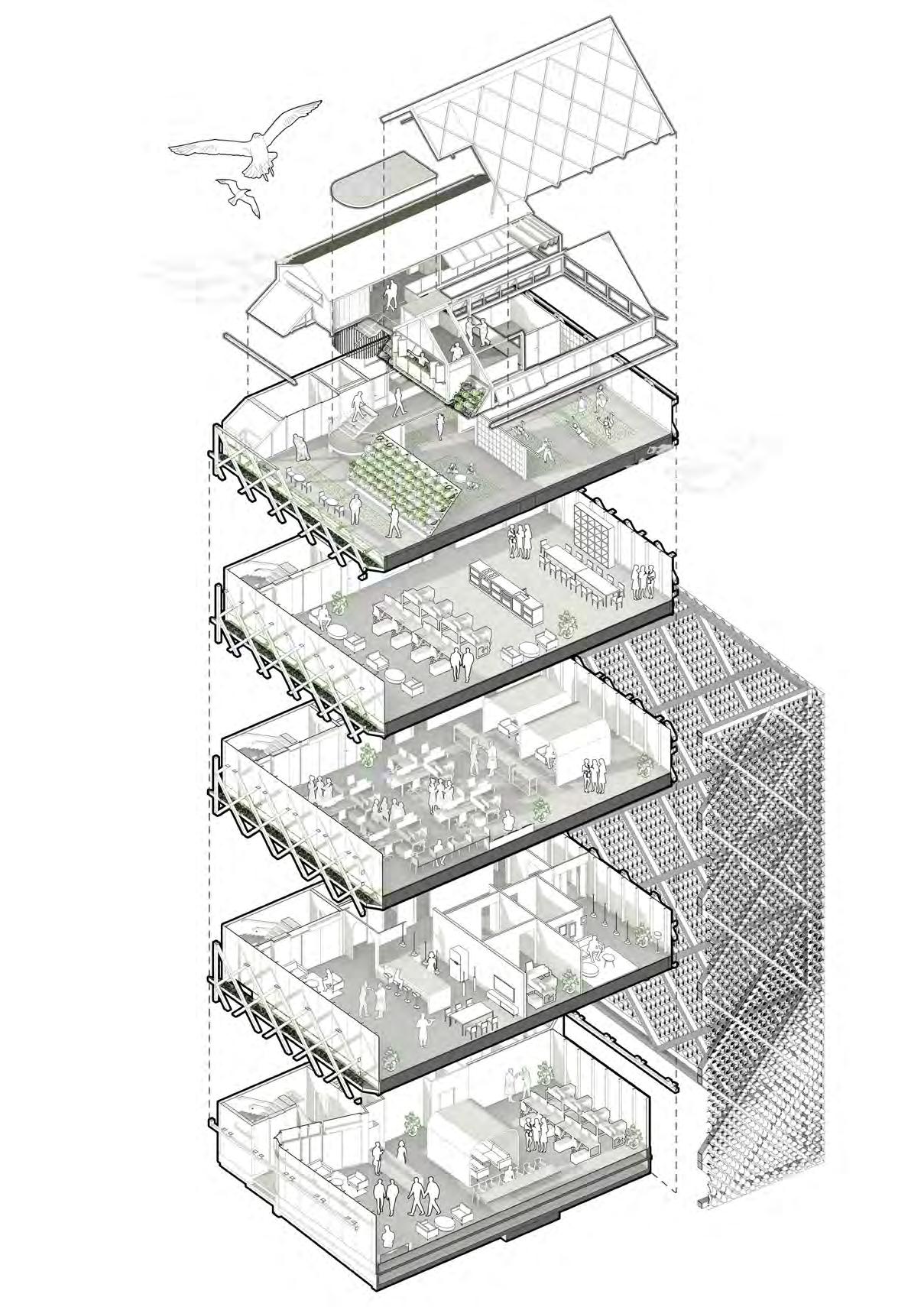

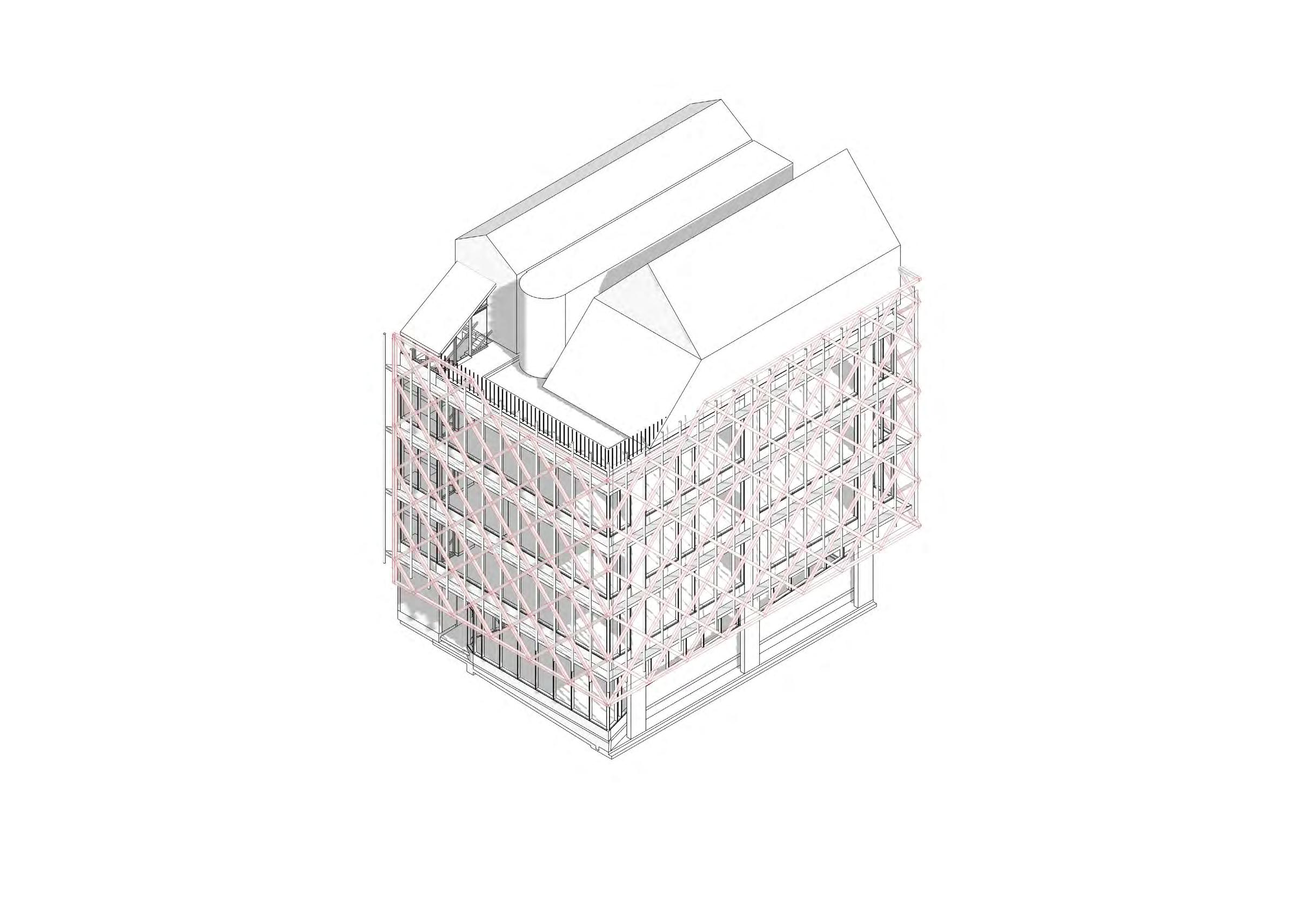

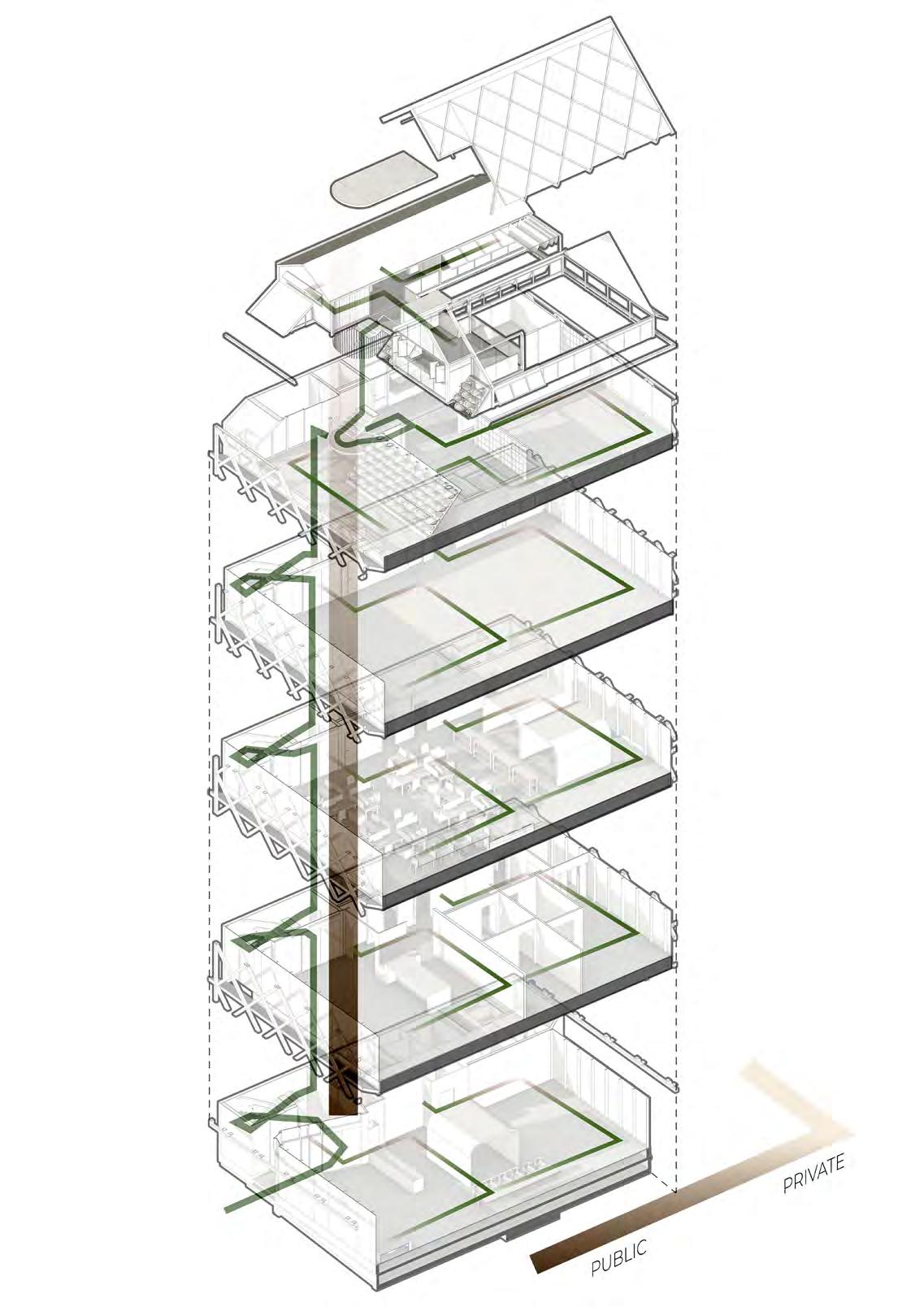

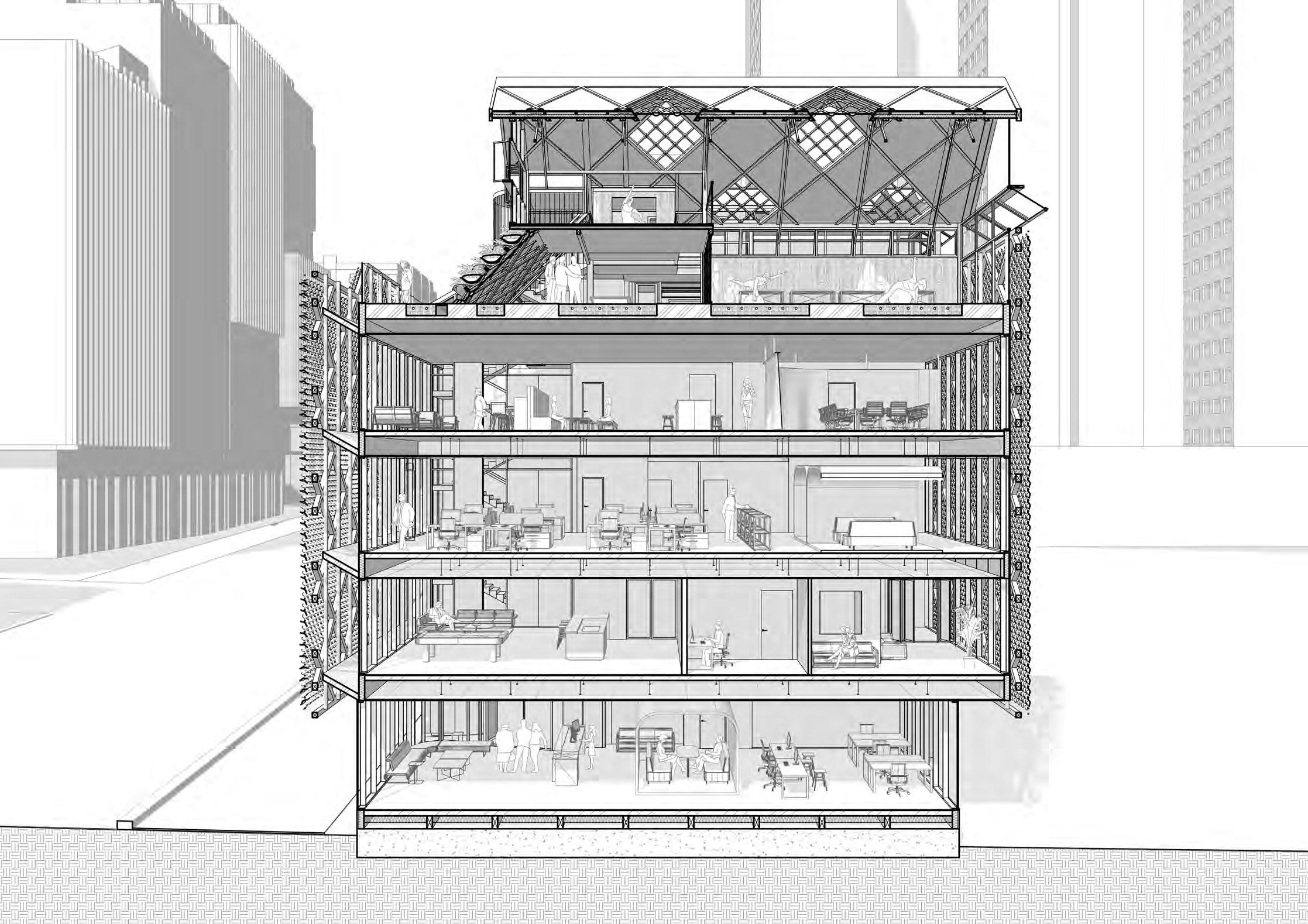

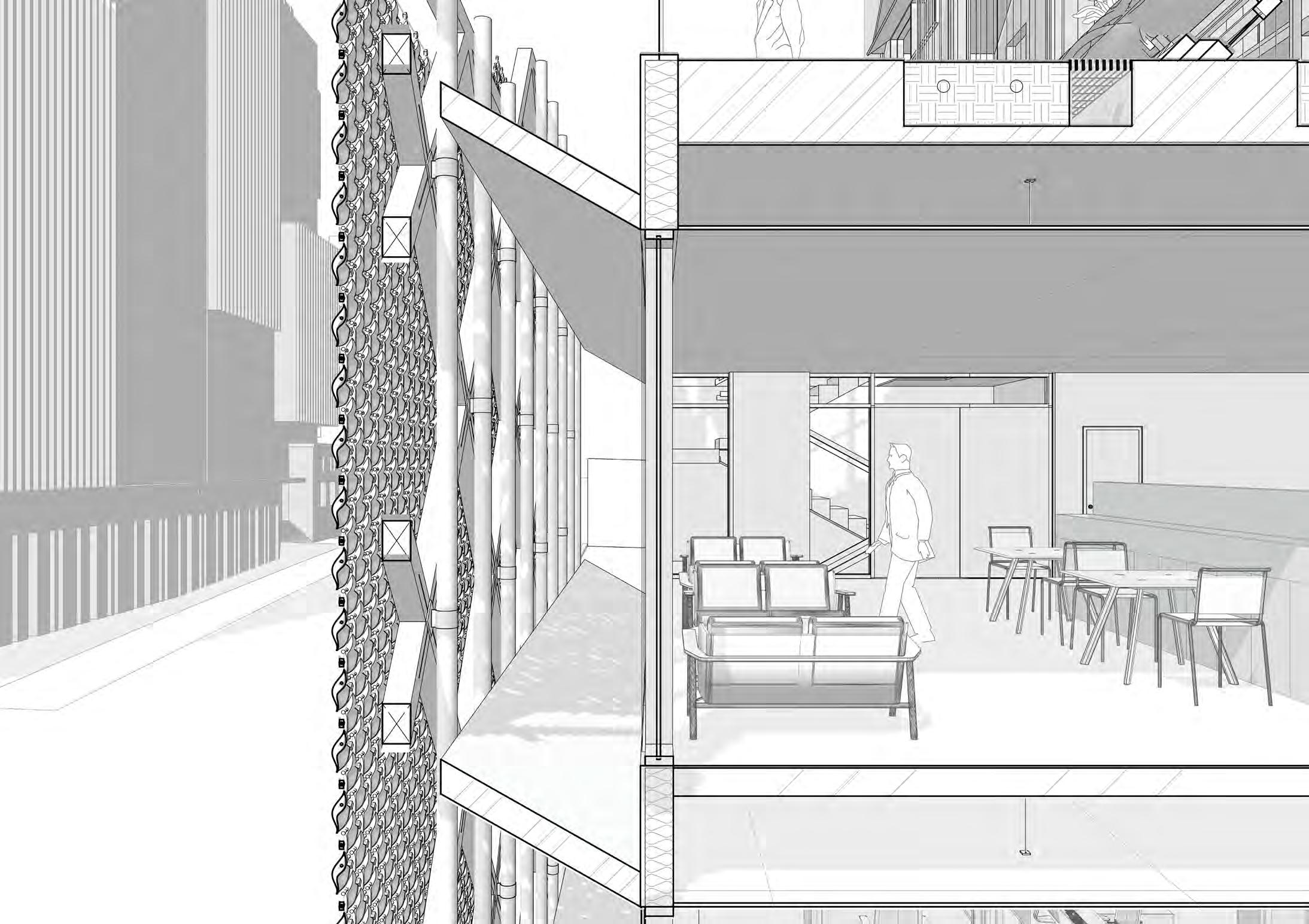

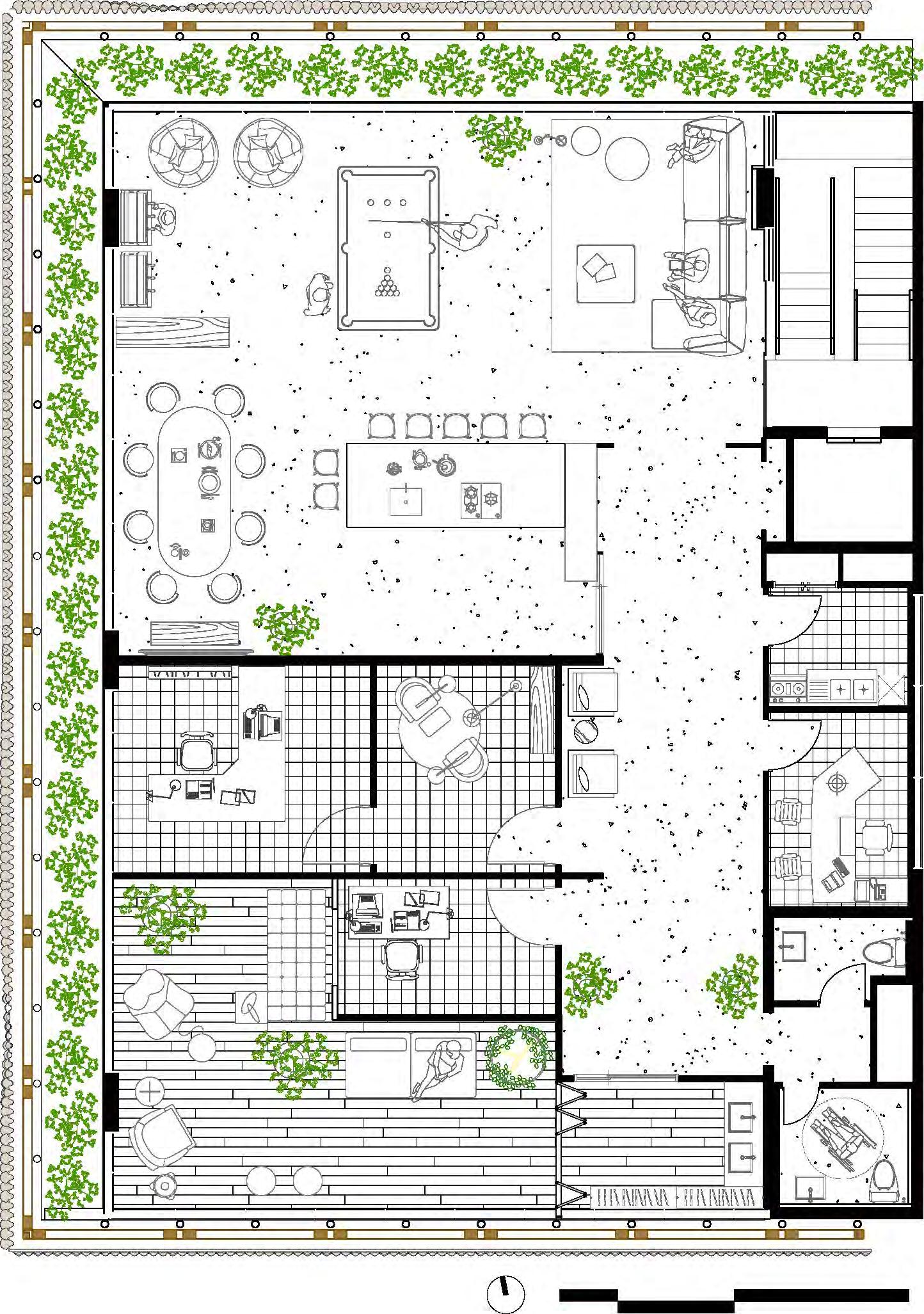

GROUND FLOOR
2
3

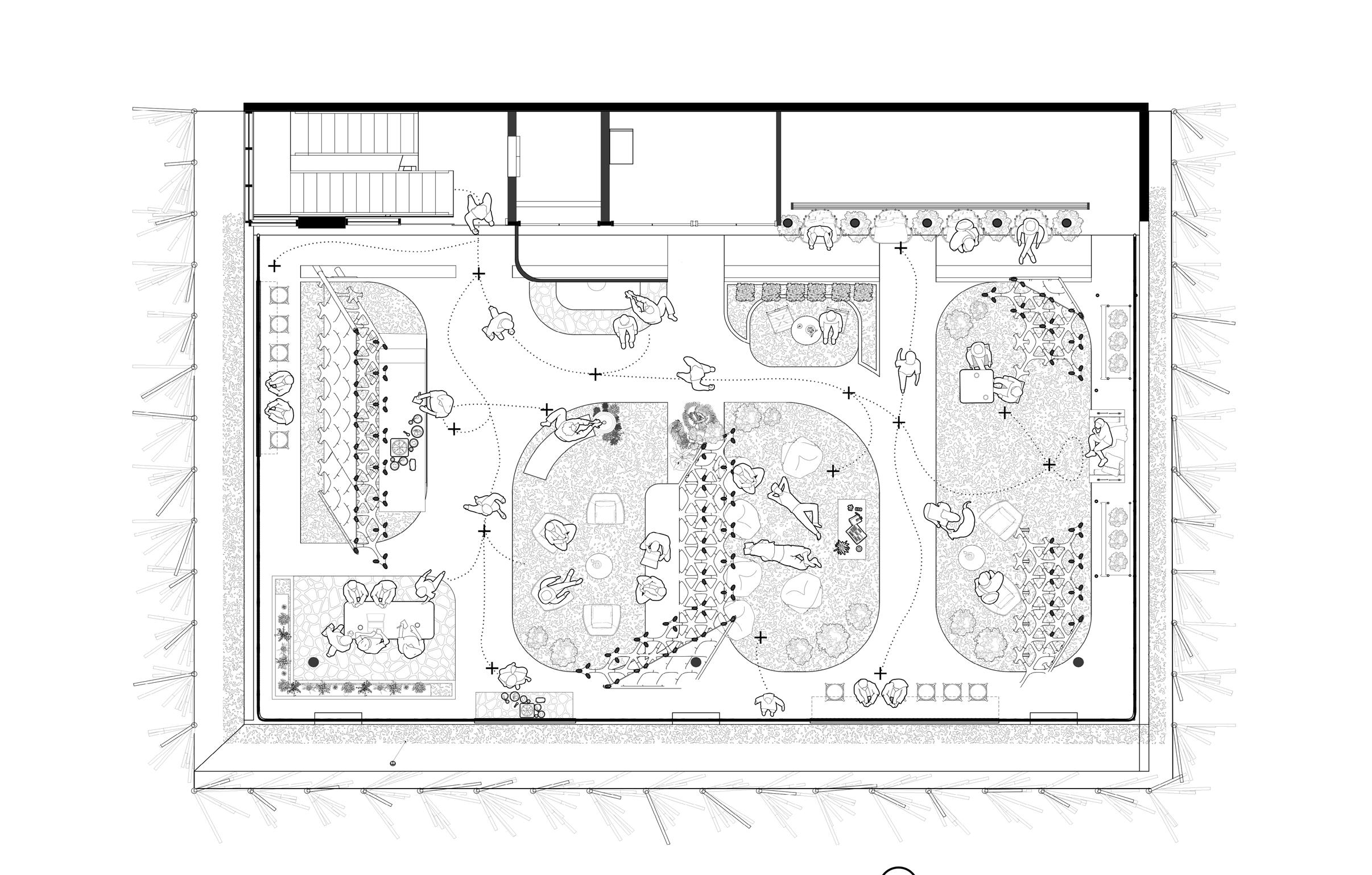

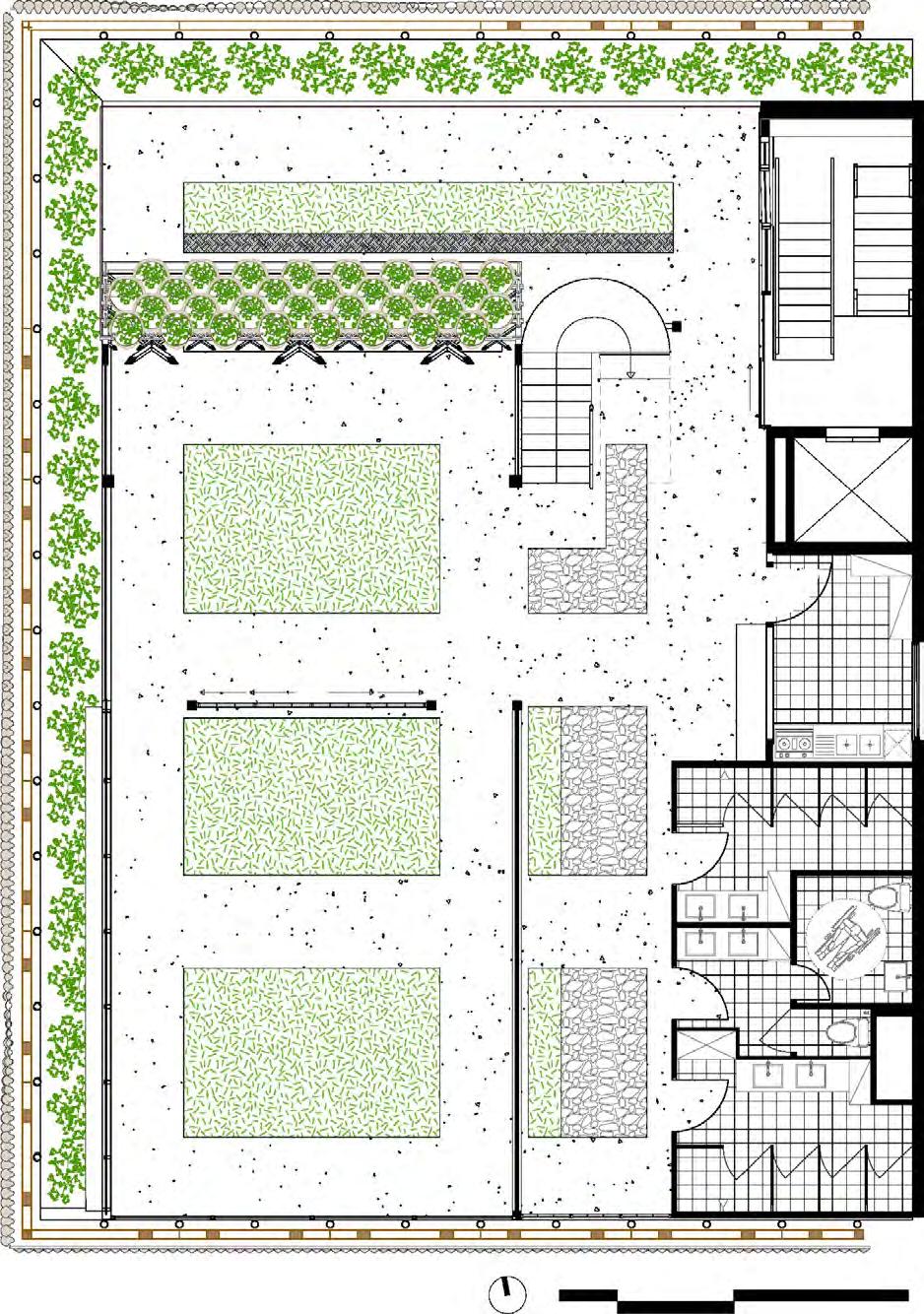

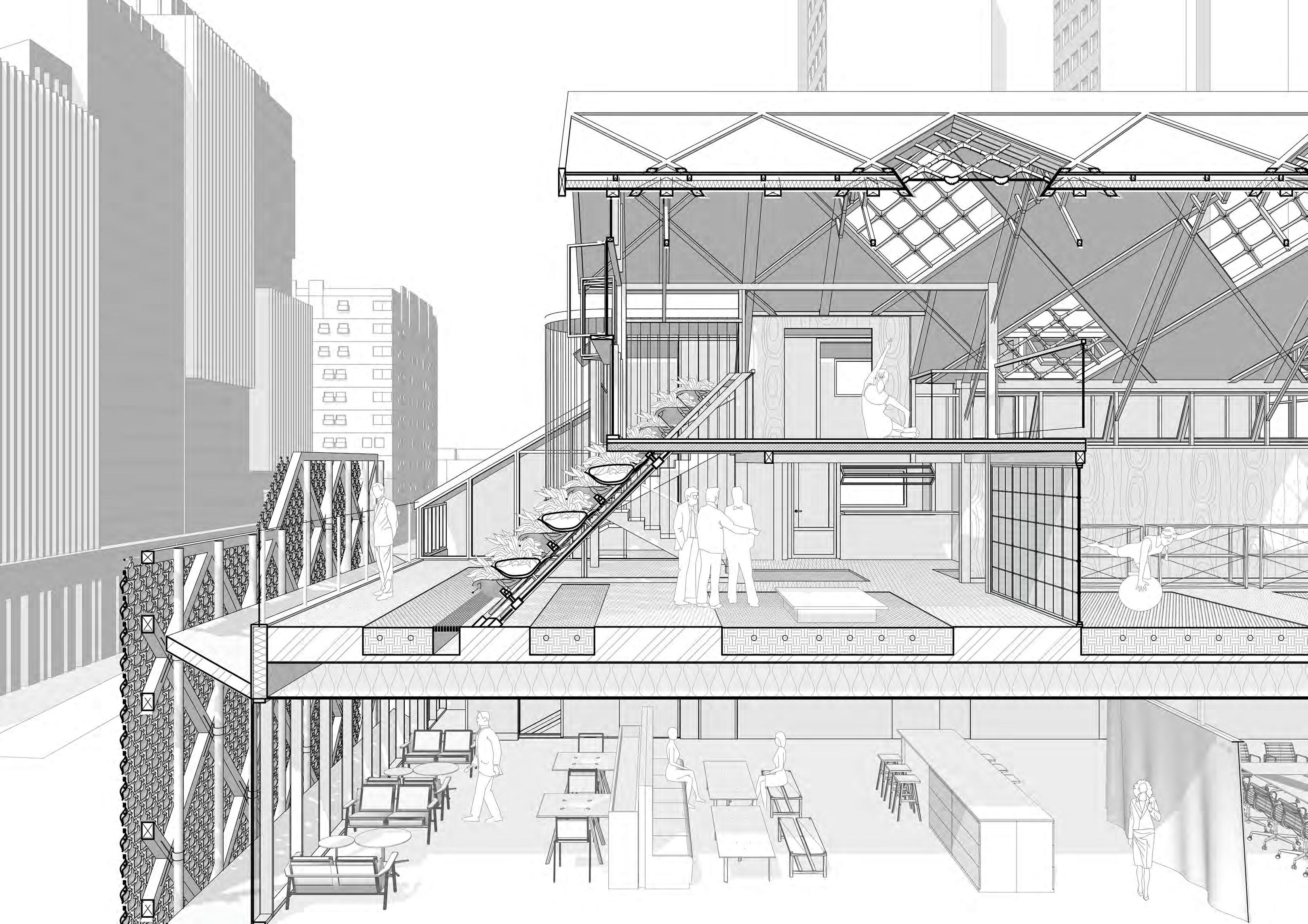

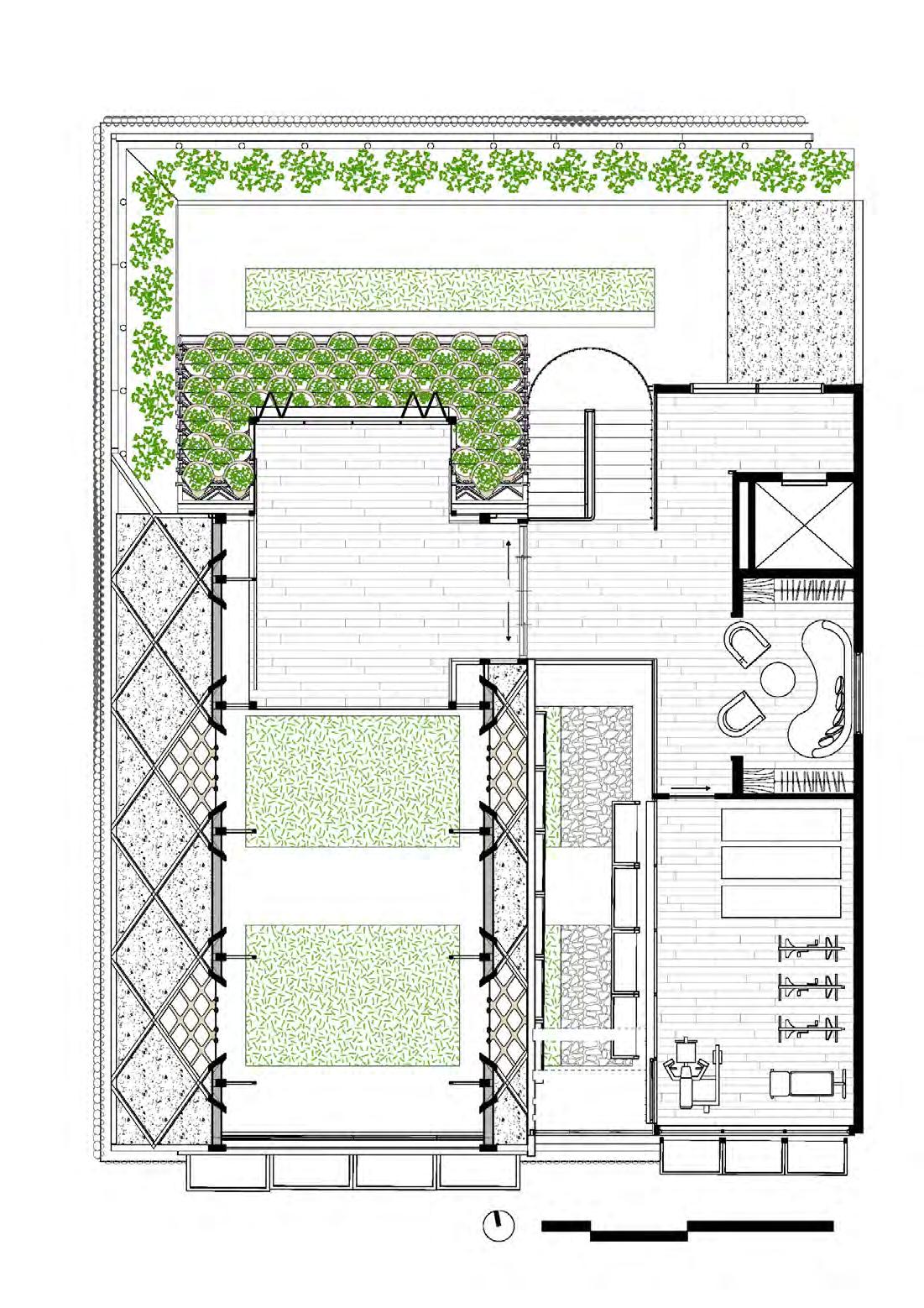

LEVEL 4 - a (NEW LEVEL)
LEVEL 4 - b

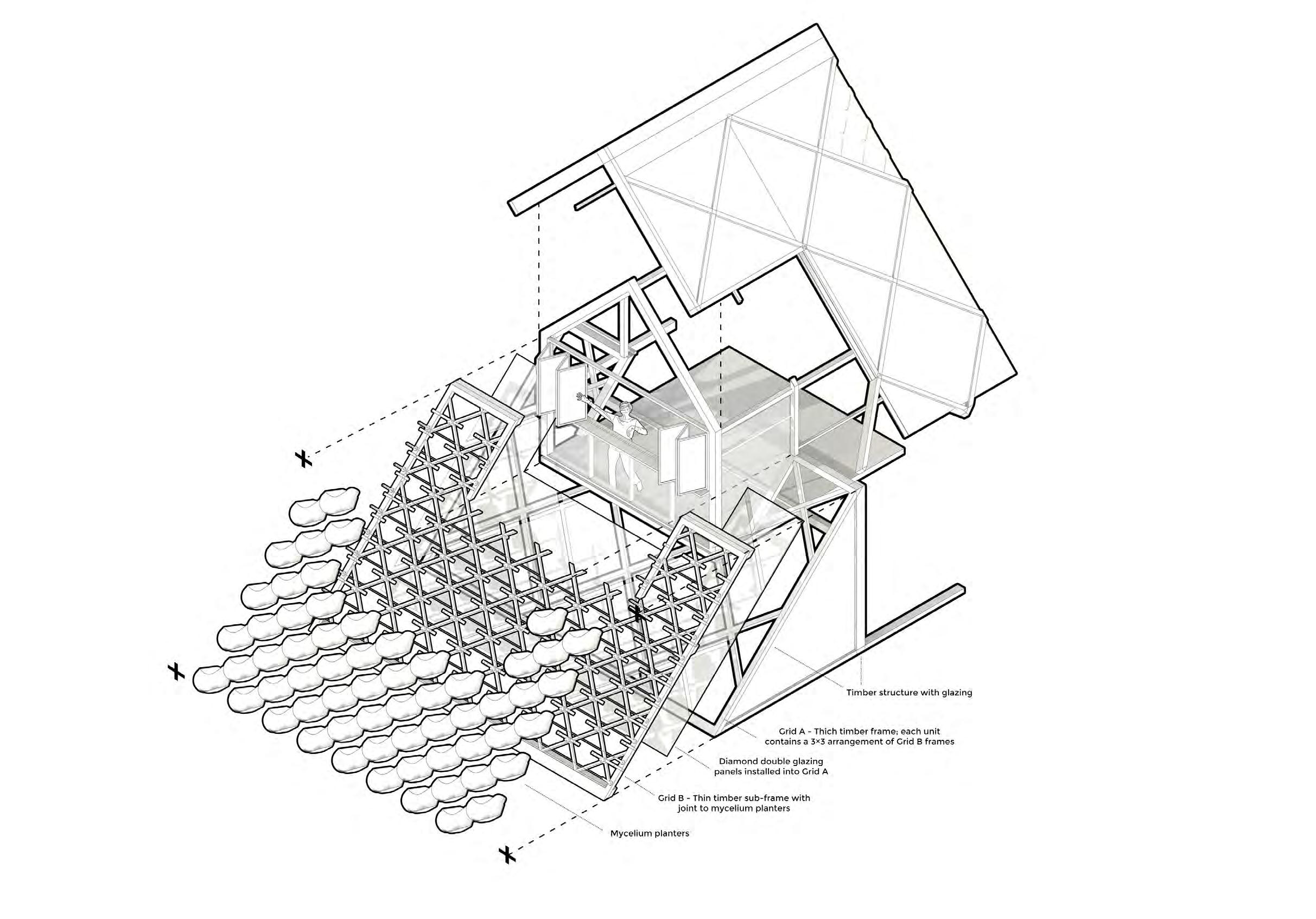

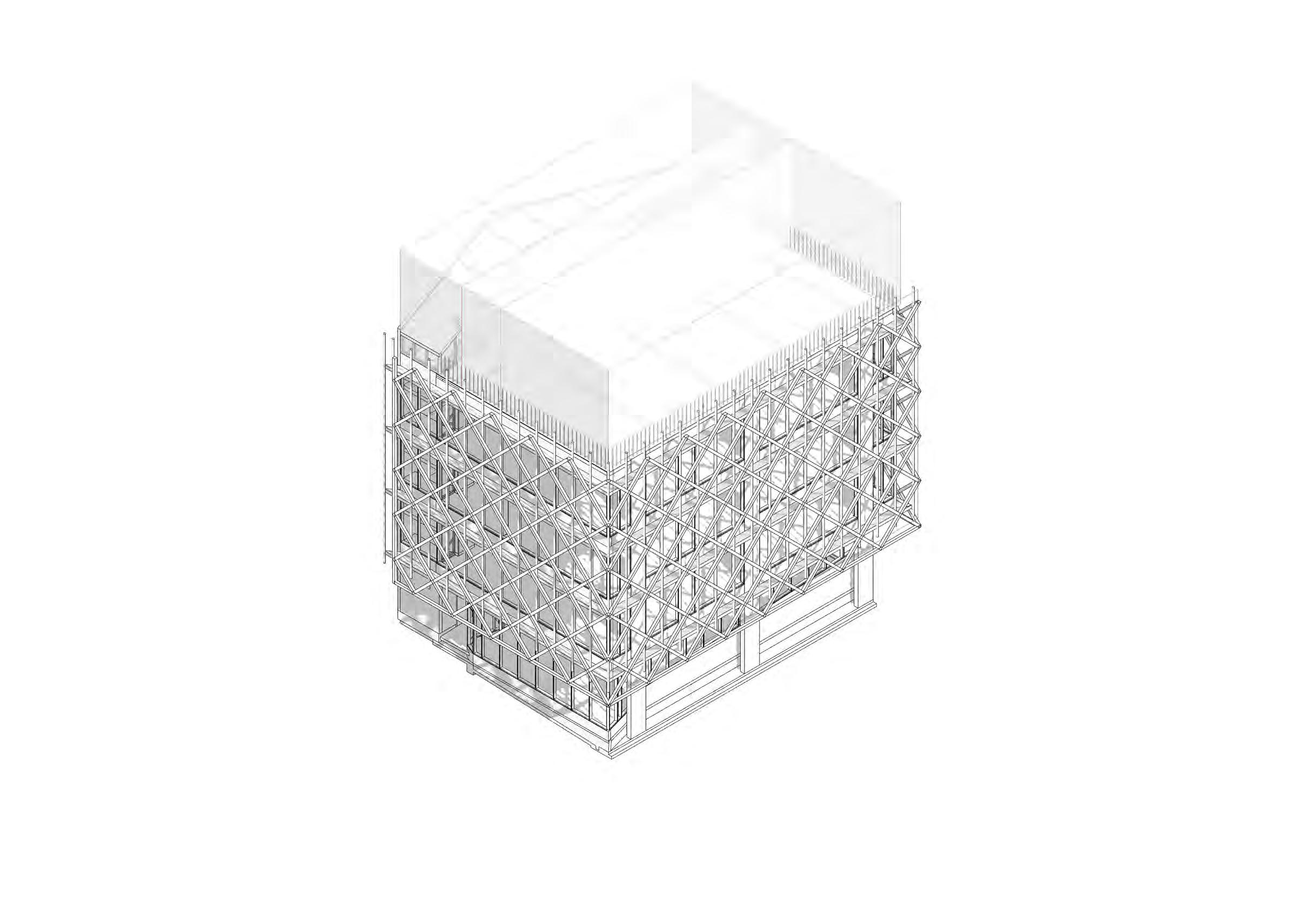

1.timber roof frame
2.roof panels

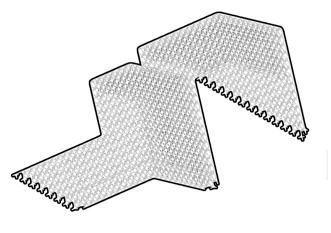

3.mycelium grid frame
4. metal roofing
5.timber rafters
6.concrete structural wall
7.ceiling panels
8.mycelium planter frame
9.mycelium planter
10.rooftop planter
11.Structural column
12.facade steel pipe
13.timber frame anchor
14.timber frame
15.aluminum facade frame

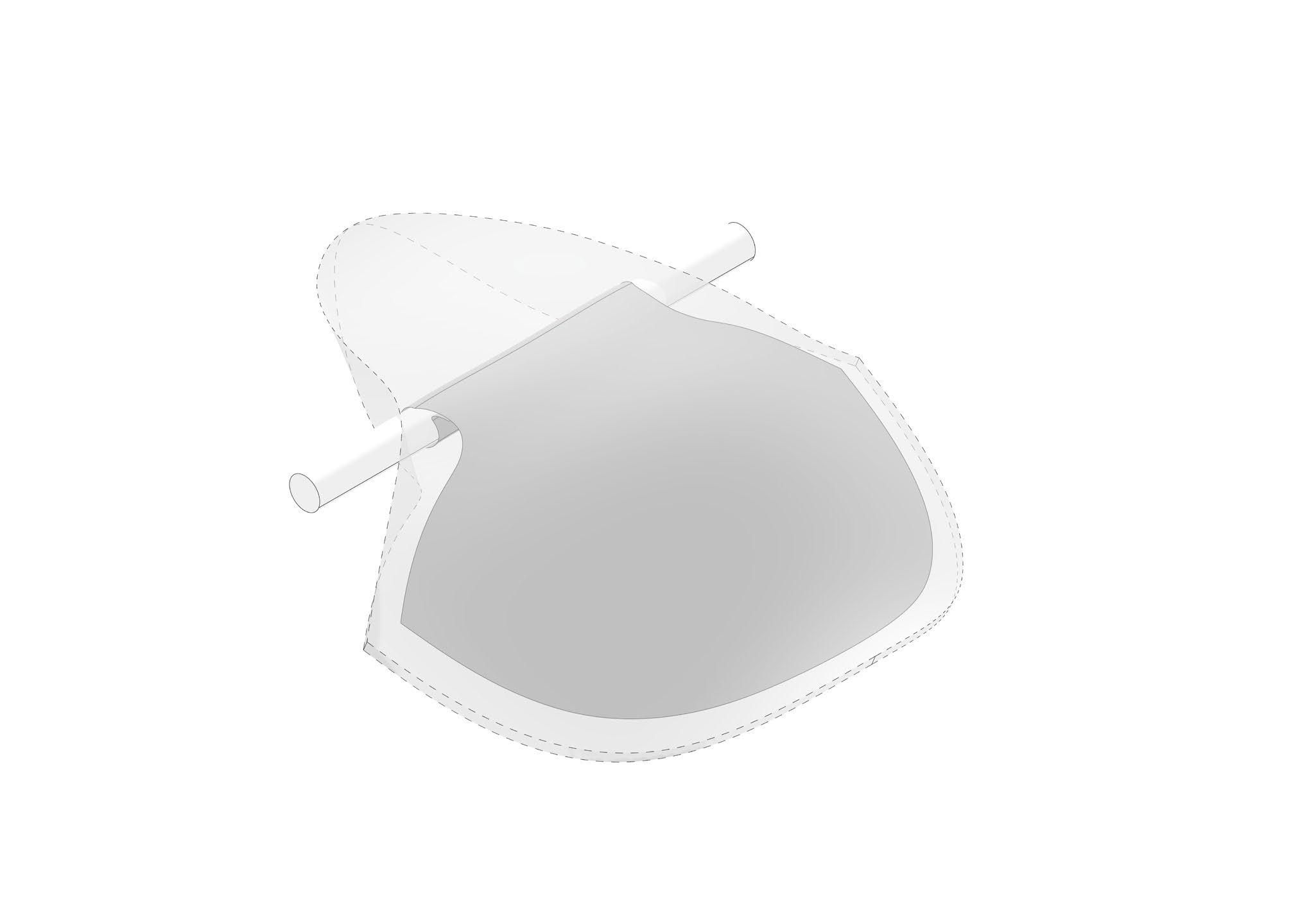

16.mycelium petal
17. suspend planters
18.glazing

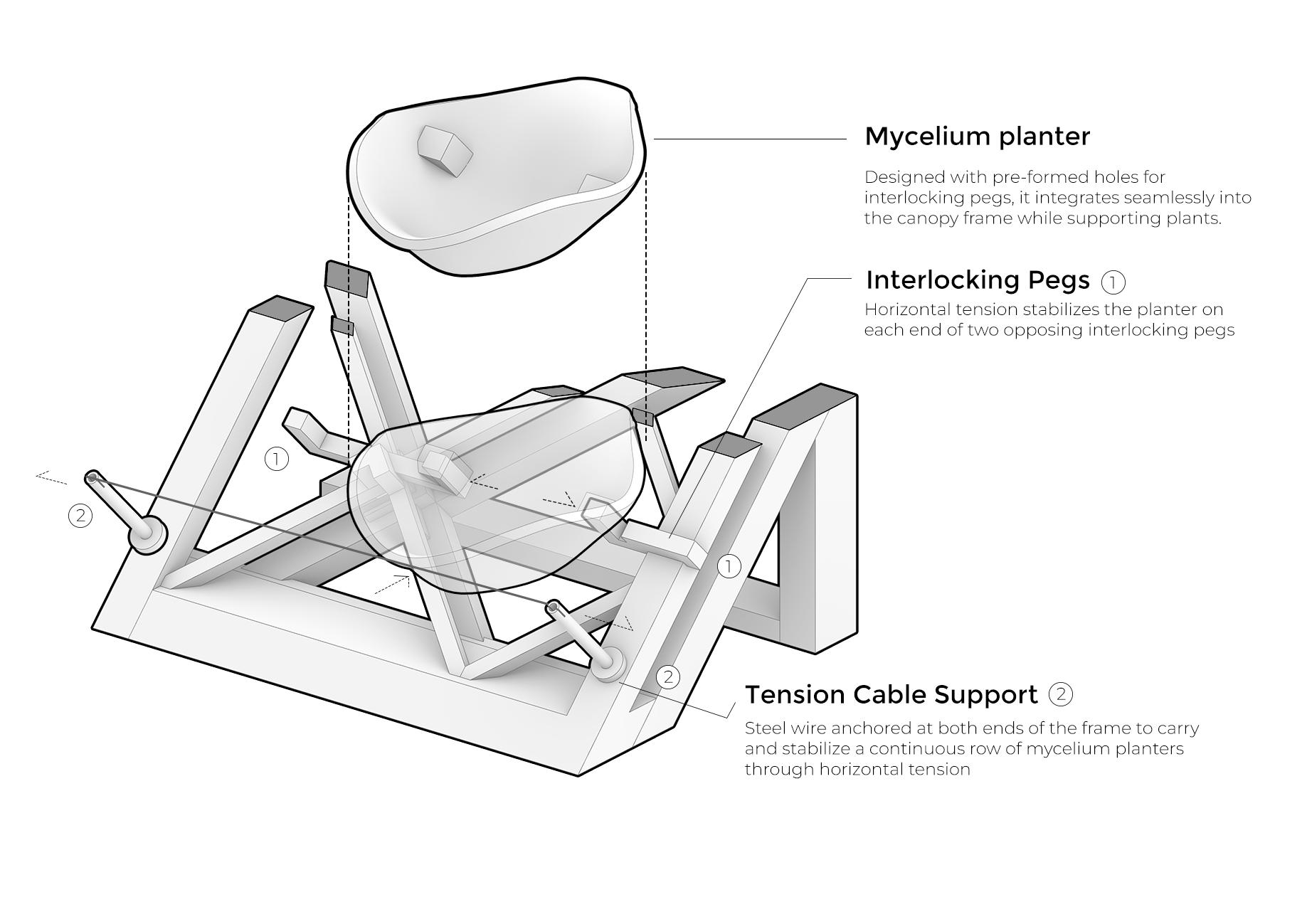

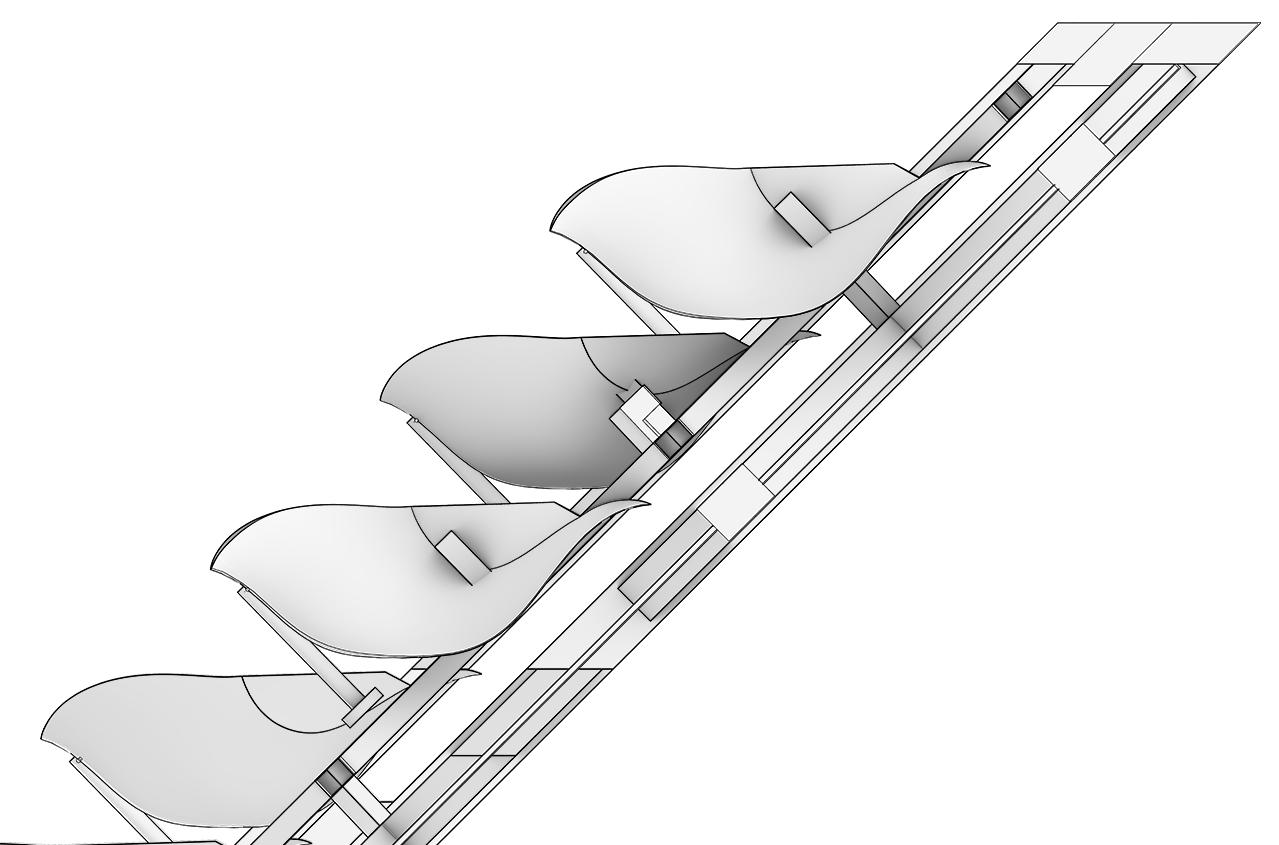

IRRIGATION - STEP PLANTER SYSTEM

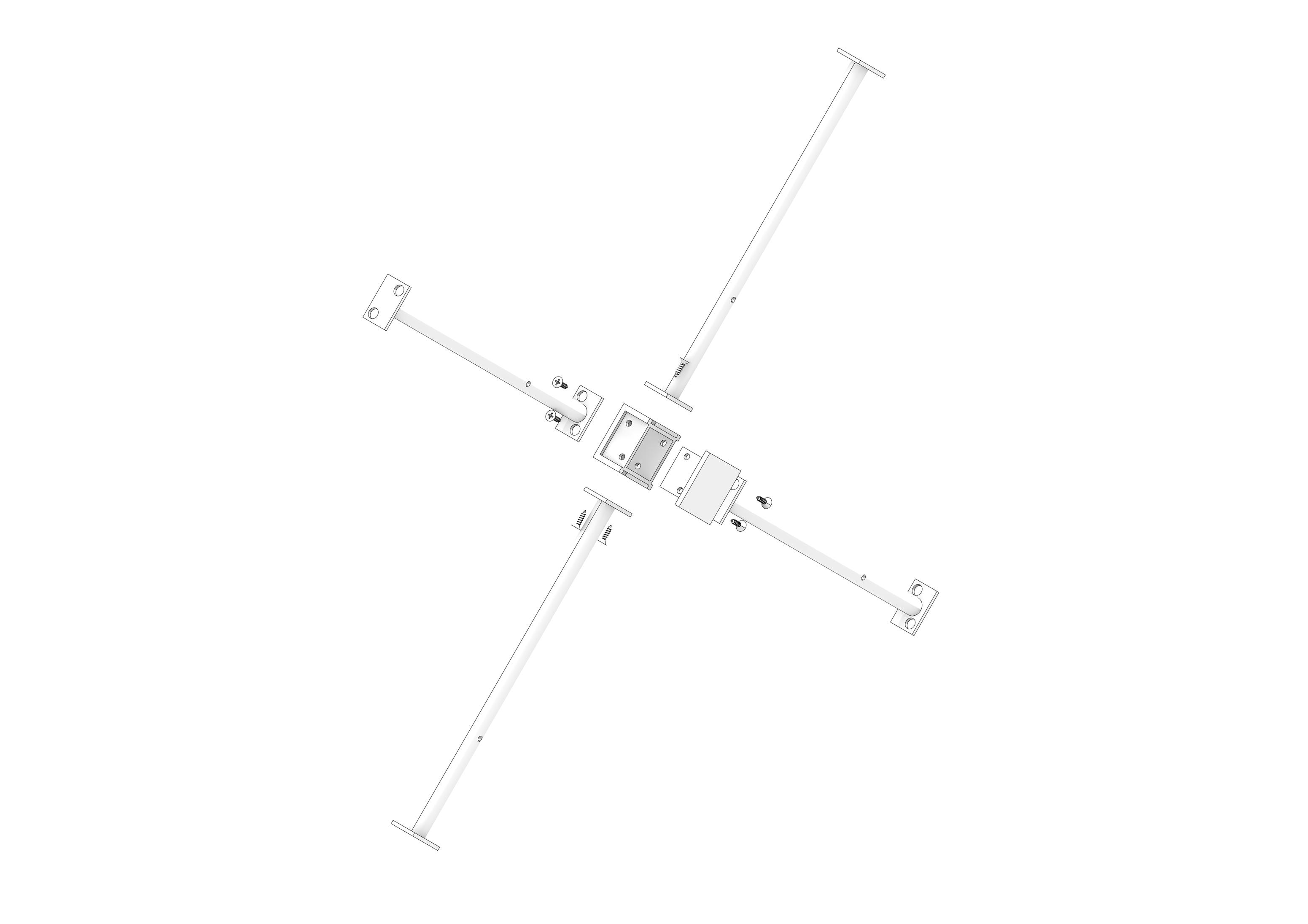

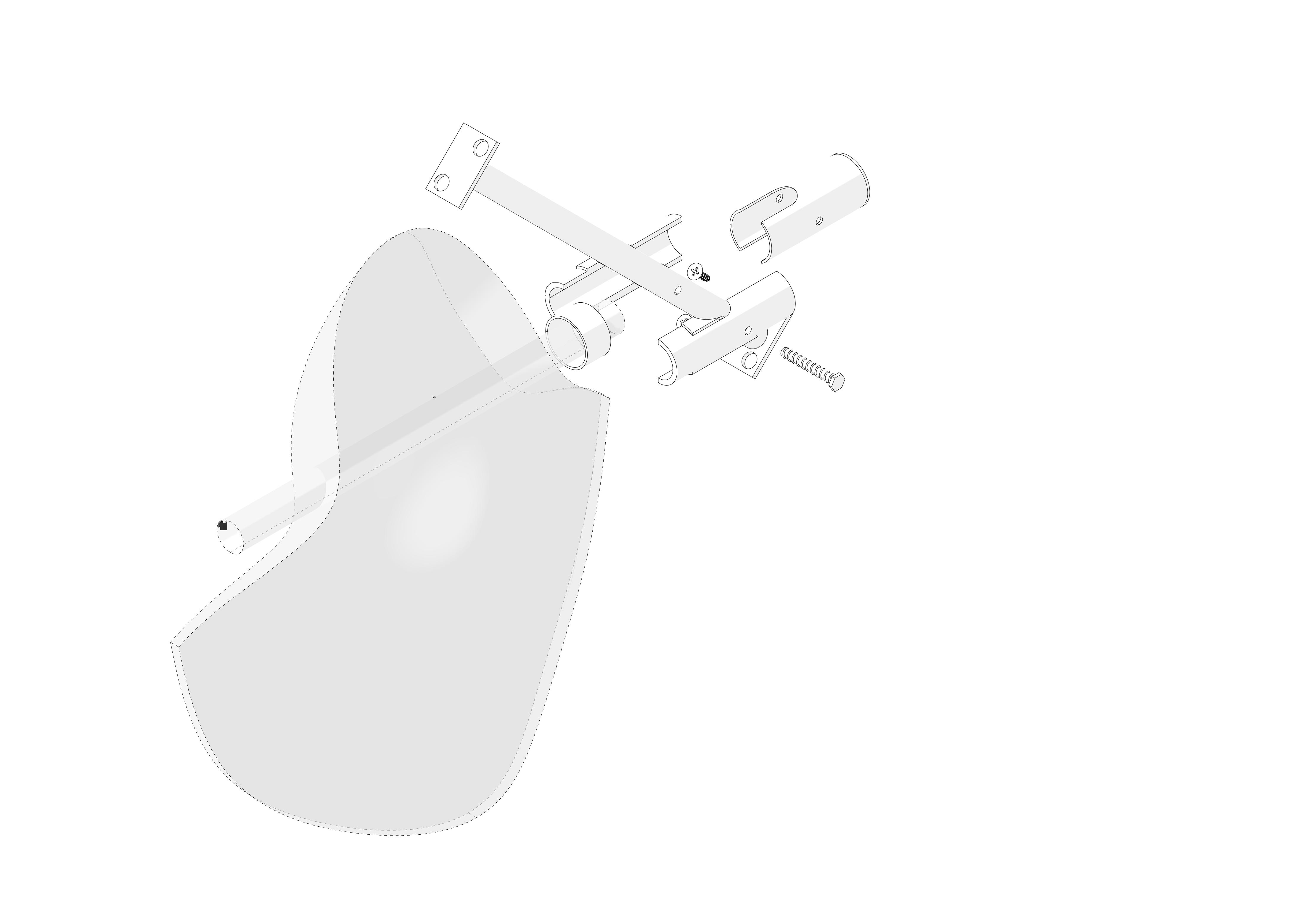

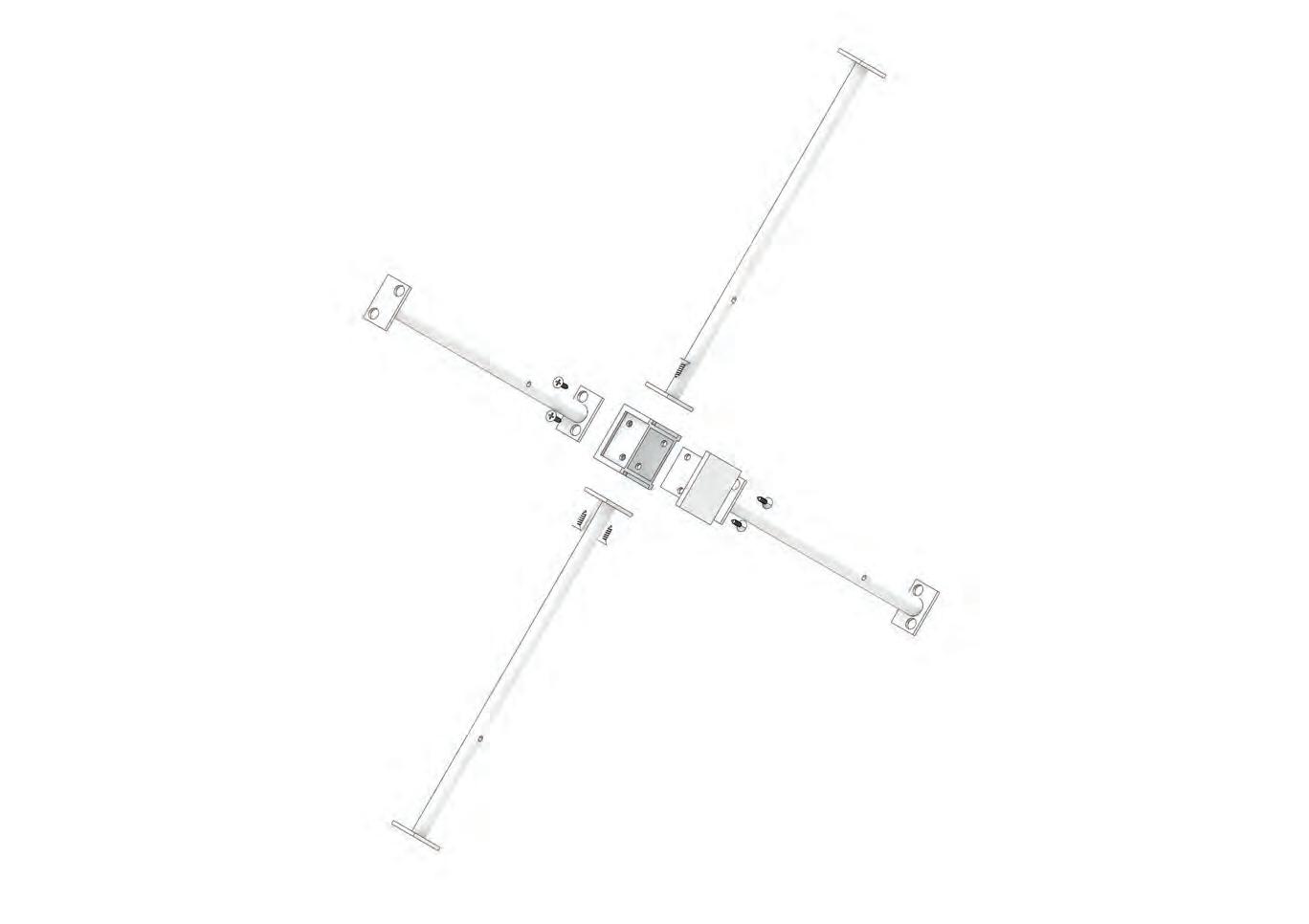

aluminum rod
Rotational Joint
timber rod secure ring

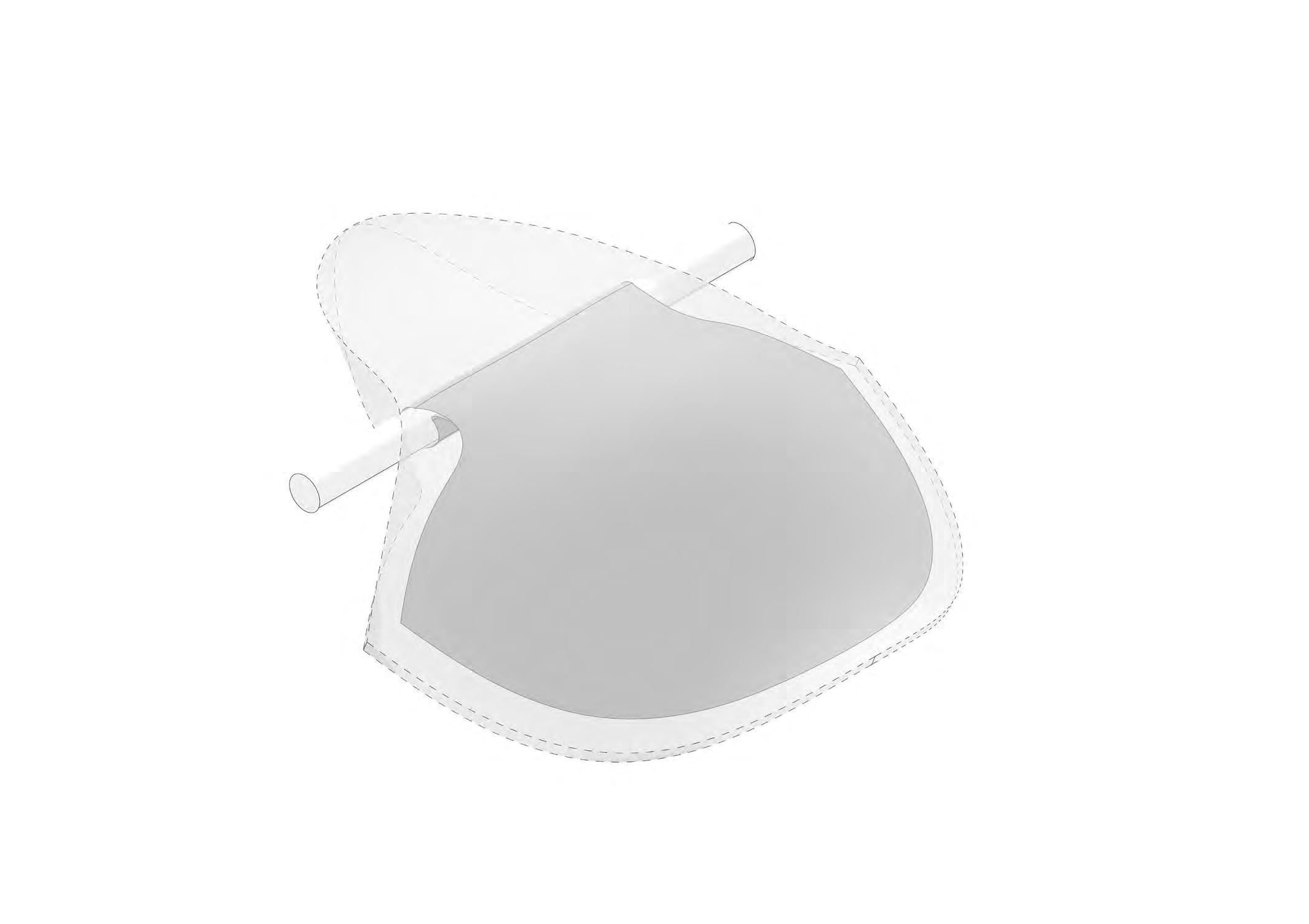

mycelium petal
screw
rotational sleeve
hex bolt
sleeve housing
rotational sleeve
diamond joint cap
aluminum rod
screw screw aluminum rod
diamond joint body
aluminum rod
screw screw
aluminum rod
Light wind on the day recorded
