Alaris Cojot S-Band Antennas Product Profile

Page 1


S-BAND ANTENNAS PRODUCT PROFILE

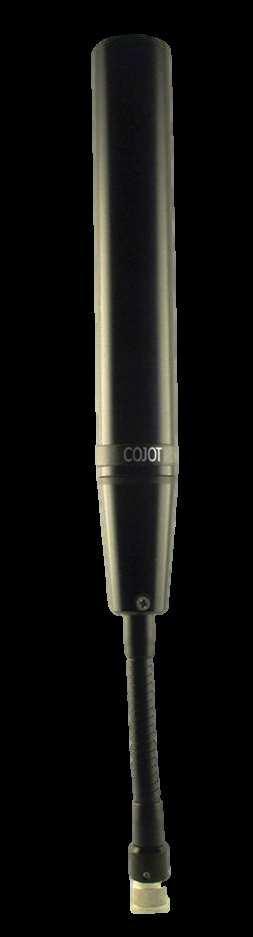

Wideband UHF Manpack Antenna WB525G-GE

The WB525G-GE is a high performance manpack antenna that is particularly suited for applications where a quick adjustment of the antenna’s angle is needed.

• Effective coverage of the complete 480 - 2800 MHz frequency range

• Flexible gooseneck for perfect operation, even in extreme positions Product

Frequency range

Matching Passive

Polarization

Antenna type

Radiation pattern

Gain

Nominally vertical

Wideband dipole

Omnidirectional

Measured patterns on request

VSWR < 3.0

Nominal Impedance

Power rating

50 Ω

40 W (RMS)

Standard color Black

Radiator

Radome protected

Height 570 mm

Weight

RF connection

Mounting

*Specific adjustments on request

620 g (incl. 220 mm gooseneck)

Installation*

Male N-type connector

Directly to a matching connector

as described above

Instructions for use: To avoid the connector from being damaged, do not rotate the antenna when the gooseneck is in a bent position. Always straighten the gooseneck first, before changing the bending direction. The maximum bending angle of 90⁰ shall not be exceeded.

V1.0w

Date 27.01.2023 Page 1/1

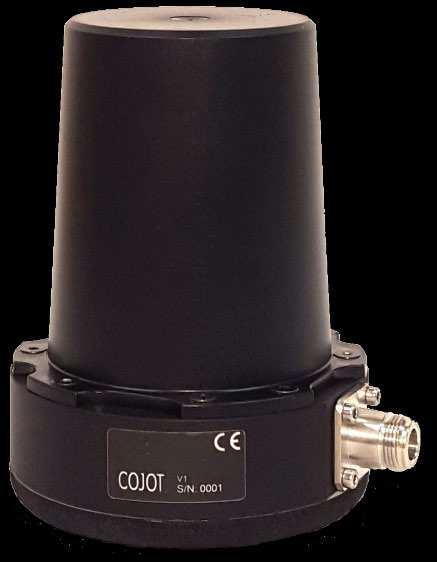

Wideband UHF/SHF Magnetic Mount Antenna WB480W

The WB480W is an extremely wideband and compact magnetic mount antenna of low profile that supports multiple applications. The antenna is ideally suited for applications where a quick setup and removal is required or where a permanent installation of the antenna on a vehicle is not possible.

• Ideal operation in the UHF/SHF bands up to 8 GHz

• High performance, 200 W at 100% duty cycle

• Compact magnetic mount for easy-to-setup temporary installations

MHz: 160 W

MHz: 130 W

MHz: 60 W Standard color

Safety Warning: Great care should be taken when handling strong magnetic products. Magnetic mounts may cause painful pinching injuries. When using a magnetically mounted device on a moving vehicle the device may lift off from the vehicle even at moderate speeds in case of collision. Therefore a secondary retention system should always be used to prevent unintentional detachment or loss of the device (the properly tightened feeder cable could possibly be used for this purpose). For maximum grip the surface of the vehicle and the bottom of the magnet should be dry and clean of dirt, snow and ice prior to attaching the device.

V0.1w

Date 05.04.2023

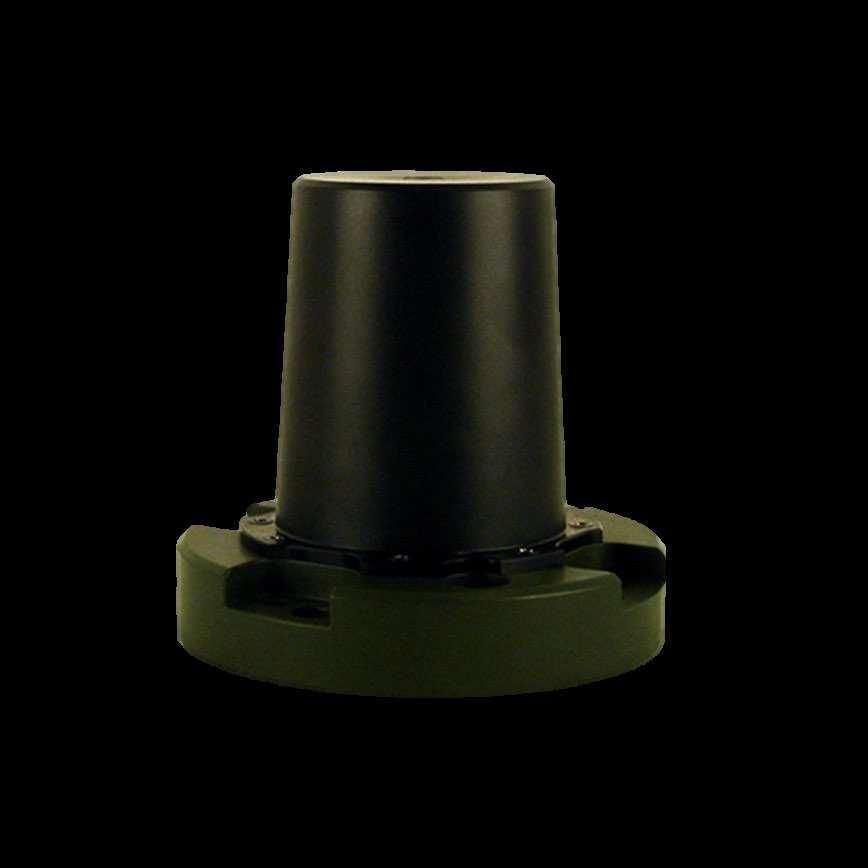

Wideband UHF/SHF Vehicle Antenna WB525M

profile vehicle antenna that is well suited for and jamming applications within the 500 – 6000 MHz frequency range.

Frequency range

Polarization

Radiation pattern

Gain

Ideal operation in the UHF/SHF bands up to 6 GHz

High performance, 200 W at 100% duty cycle

Product details*

800 - 6000 MHz (without a ground plane)

500 – 6000 MHz on a ground plane (≥ 0.5 x 0.5 m2)

Nominally vertical

Omnidirectional (max. ± 1.5 dB ripple)

Measured patterns on request

VSWR ≤ 3.0

Nominal Impedance 50 Ω

Power rating

Standard color

Radiator

200 W (RMS)

Black/olive green

Radome protected

Height 130 mm

Weight 1.0 kg

Installation*

RF connection

Mounting

*Specific adjustments on request

Female N-type

4-hole US and 3/6-hole NATO pattern mount

V2.4w

Date 11.01.2023

Page 1/1

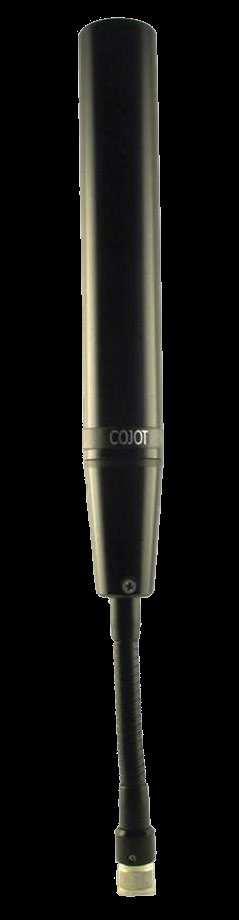

Wideband UHF Manpack Antenna WB525G

The WB525G is a high performance manpack antenna that is particularly suited for applications where a quick adjustment of the antenna’s angle is needed.

• Effective coverage of the complete 480 - 2800 MHz frequency range

• Flexible gooseneck for perfect operation, even in extreme positions

Frequency range

Polarization

Antenna type

Radiation pattern

Gain

Nominally vertical

Wideband dipole

Omnidirectional

Measured patterns on request

VSWR < 3.0

Nominal Impedance

Power rating

50 Ω

40 W (RMS)

Standard color Black

Radiator

Height

Weight

Mounting

*Specific adjustments on request

Radome protected

465 mm

500 g (incl. 12 cm gooseneck)

Installation*

Directly to a matching connector

- 58 - 000 - 1015

as described above

Instructions for use: To avoid the connector from being damaged, do not rotate the antenna when the gooseneck is in a bent position. Always straighten the gooseneck first, before changing the bending direction. The maximum bending angle of 60⁰ shall not be exceeded.

V2.1w

Date 22.05.2019

1/1

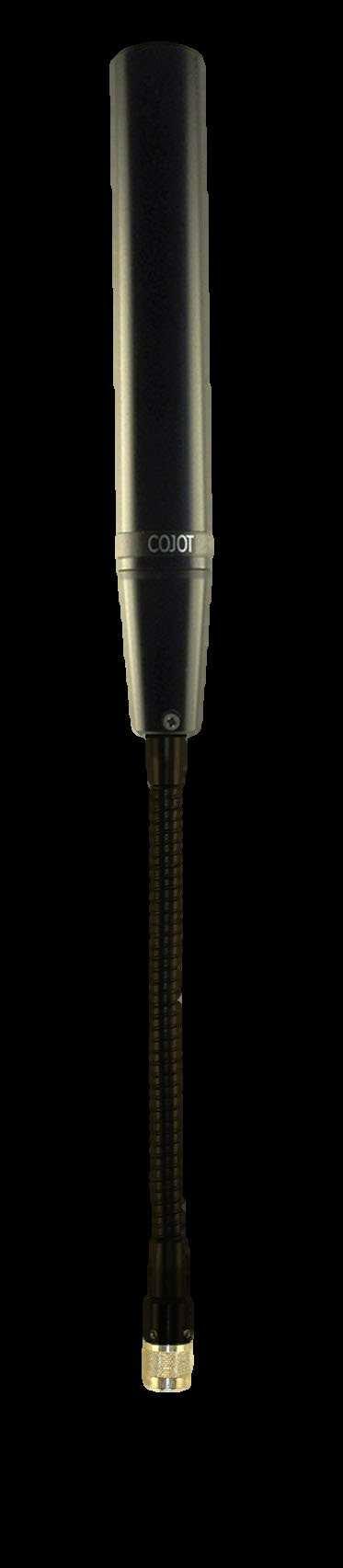

Wideband UHF Manpack Antenna WB525G-E

The WB525G-E is a high performance manpack antenna that has been designed to cover an extended frequency range of up to 6 GHz. The antenna is particularly suited for applications where a quick adjustment of the antenna’s angle is needed.

• Effective coverage of the complete 480 - 6000 MHz frequency range

• Flexible gooseneck for perfect operation, even in extreme positions

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

Product details*

480 - 6000 MHz

Passive

Nominally vertical

Wideband dipole

Omnidirectional

Measured patterns on request

VSWR ≤ 3.0 (except ≤ 3.7 at 930-1070 MHz)

Nominal Impedance

Power rating

Standard color

50 Ω

35 W (RMS)

Black

Radiator Radome protected

Height

Weight

RF connection

Mounting

*Specific adjustments on request

Order number

WB525G-E

465 mm

540 g (incl. 12 cm gooseneck)

Installation*

Male N-type connector

Directly to a matching connector

Product

Antenna as described above

Instructions for use: To avoid the connector from being damaged, do not rotate the antenna when the gooseneck is in a bent position. Always straighten the gooseneck first, before changing the bending direction. The maximum bending angle of 60⁰ shall not be exceeded.

V2.0w

Date 29.03.2017

1/1

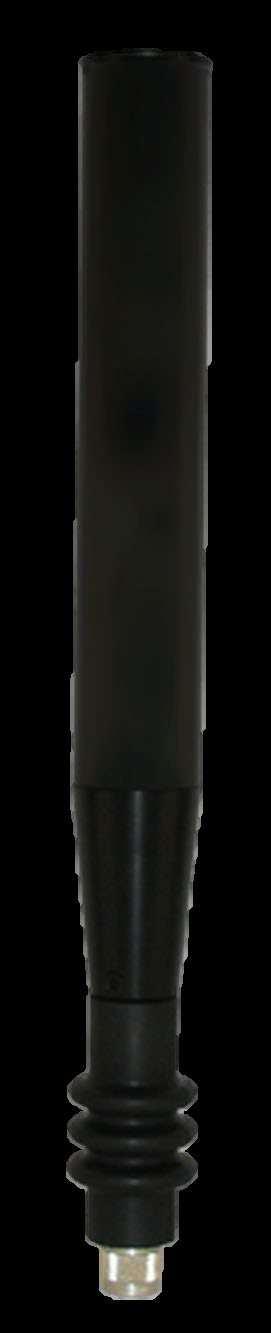

Wideband UHF Manpack Antenna WB525Q

The WB525Q is a rugged, high performance manpack antenna that is particularly suited for portable communication and jamming applications.

• Effective coverage of the complete 480 - 2800 MHz frequency range

• Rugged antenna construction with shock absorption spring

vertical

type

pattern

on request VSWR

Nominal Impedance

3.0

(RMS)

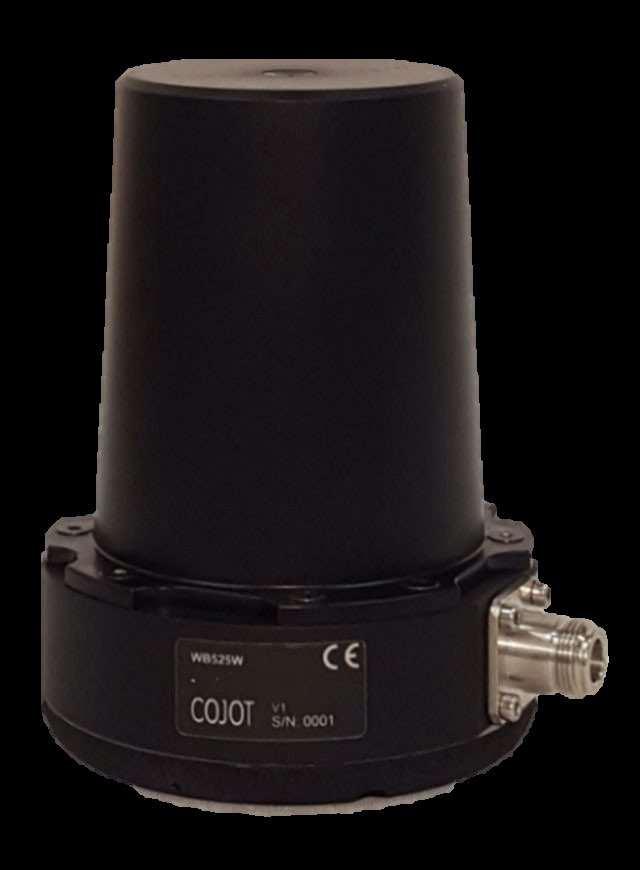

Wideband UHF/SHF Magnetic Mount Antenna WB525W

The WB525W is a a compact, low-profile magnetic mount antenna for applications where a quick setup and removal of the antenna is required or where a permanent installation of the antenna on a vehicle is not possible.

• Ideal operation in the UHF/SHF bands up to 6 GHz

• High performance, 200 W at 100% duty cycle

• Compact magnetic mount for easy-to-setup temporary installations

Gain Measured patterns on request

Nominal Impedance

Power rating (CW) 500-2500 MHz: 200 W

2500-4000 MHz: 160 W 4000-6000 MHz: 130 W

Standard color Black

Radiator Radome protected Footprint Ø 88 mm

kg

RF connection

Installation*

Female N-type

Mounting Ø 88 mm magnet (vertical holding force typically 280 N when mounted on 0.8 mm steel sheet)

Surface protection

*Specific adjustments on request

WB525W

Rubber coating

Order number

Antenna as described above

Safety Warning: Great care should be taken when handling strong magnetic products. Magnetic mounts may cause painful pinching injuries. When using a magnetically mounted device on a moving vehicle the device may lift off from the vehicle even at moderate speeds in case of collision. Therefore a secondary retention system should always be used to prevent unintentional detachment or loss of the device (the properly tightened feeder cable could possibly be used for this purpose). For maximum grip the surface of the vehicle and the bottom of the magnet should be dry and clean of dirt, snow and ice prior to attaching the device.

V2.1w

Date 11.01.2023 Page 1/1
