Astro Tool Selection Guide for M39029 Contacts

Tool Selection Guide

M39029 Contacts

Astro provides Tool Selection Guides to assist operators in quickly identifying the correct tooling for connector assembly. These charts are offered as a supplemental guide and are not designed to replace any official manuals or specs. Please check official sources for the most up-to-date information.

Part Number Guide

Reading a BIN Code

M39029 machined contacts are tagged with a basic identification number (BIN) composed of three stripes. Each stripe indicates a number that ensures operators are using the correct contact during connector assembly. BIN codes can be stamped onto the shoulder or wire barrel (size 16 and larger). BIN codes should be read from left to right, starting from the wire barrel end.

MIL-DTL-22992

• ClassL

• Heavy Duty, Circular, Front Release Contacts

CONNECTOR PART

MS90555 WALL

MS90557 IN-LINE RECEPTACLE MS90558 WALL MOUNT PLUG

M39029/48-321 321 PIN4N*44AMT23004DA (DIE) and AMT23012L (LOCATOR)

M39029/48-322 322 PIN4G**44AMT23004DA (DIE) and AMT23012L (LOCATOR)

M39029/49-332 332 SOCKET4G**44AMT23004DA (DIE) and AMT23012L (LOCATOR)

M39029/48-323 323 PIN1/011AMT23005DA (DIE) and AMT23014L (LOCATOR)

M39029/49-333 333 SOCKET1/011AMT23005DA (DIE) and AMT23014L (LOCATOR)

M39029/48-324 32 4 PIN1/0N*11AMT23005DA (DIE) and AMT23014L (LOCATOR)

M39029/48-325 325 PIN2/02/02/0AMT23006DA (DIE) and AMT23015L (LOCATOR)

M39029/49-334 33 4 SOCKET2/02/02/0AMT23006DA (DIE) and AMT23015L (LOCATOR)

M39029/48-326 326 PIN2/0N*2/02/0AMT23006DA (DIE) and AMT23015L (LOCATOR)

M39029/48-327 327 PIN4/04/04/0AMT23007DA (DIE) and AMT23016L (LOCATOR)

M39029/49-335 335 SOCKET4/04/04/0AMT23007DA (DIE) and AMT23016L (LOCATOR)

M39029/48-328 32 8 PIN4/0N*4/04/0AMT23007DA (DIE) and AMT23016L (LOCATOR)

• D-Subminiature, Rack and Panel, Rectangular, Rear Release Contacts

CONNECTOR

M24305/6POLARIZED SHELL SOCKET (NON-MAGNETIC)

M24308/8POLARIZED SHELL PIN (NON-MAGNETIC)

*N indicates neutral pin. **G indicates grounding pin. Refer to the “Coax/Shielded/Thermocouple Contact Tool Selection Guide” on pages 43 to 49 for further information on contact types. Visit https://qpldocs.dla.mil/ for a current list of qualified suppliers of connectors, terminals, and splices.

MIL-DTL-26482

• Series 1

• Bayonet Coupling, Circular, Front Release Contacts

MIL-DTL-26482

• Series 2

• Bayonet Coupling, Circular, Rear Release Contacts

• Threaded Or Bayonet Coupling, Circular, Front Release Contacts

MIL-DTL-26518

• Class R (Inactive, Refer to MIL-DTL-83733)

• Rectangular, Front Release Contacts

• Rack and Panel, Rectangular

CONNECTOR

M28748/3

M28748/4

M28748/9

CONNECTOR

M28748/10

M28748/13

M28748/14

• Series 2

• Low Silhouette, Bayonet Coupling, Circular, Rear Release Contacts

Refer to the “Coax/Shielded/Thermocouple Contact Tool Selection Guide” on pages 43 to 49 for further information on contact types. Please visit https://qpldocs.dla.mil/ for a current list of qualified suppliers of connectors, terminals, and splices.

Series 3 • Tri-Start Coupling, Circular, Rear Release Contacts

CONNECTOR

D38999/20 WALL MOUNT FLANGE RECEPTACLE

D38999/24 JAM NUT MOUNT RECEPTACLE

D38999/26 STRAIGHT PLUG

D38999/29 LANYARD RELEASE PLUG (PIN CONTACTS ONLY)

D38999/30 LANYARD RELEASE PLUG (SOCKET CONTACTS ONLY)

D38999/31 LANYARD RELEASE PLUG (PIN CONTACTS ONLY)

D38999/34 JAM NUT RECEPTACLE (SOCKET CONTACTS ONLY)

D38999/35 WALL MOUNT RECEPTACLE (SOCKET CONTACTS ONLY)

Refer to the “Coax/Shielded/Thermocouple Contact Tool Selection Guide” on pages 43 to 49 for further information on contact types. Please visit https://qpldocs.dla.mil/ for a current list of qualified suppliers of connectors, terminals, and splices.

SAE-AS50151

• (Formerly SAE-AS50151) - Series 3400

• Threaded Coupling, Circular, Front Release Contacts

CONNECTOR PART NUMBER

DESCRIPTION

MS3400 (SAE-AS34001) WALL MOUNT RECEPTACLE

MS3401 (SAE-AS34011) CABLE CONNECTING RECEPTACLE

MS3402 (SAE-AS34021) BOX MOUNT RECEPTACLE

MS3404 (SAE-AS34041) JAM NUT MOUNT RECEPTACLE

CONNECTOR PART NUMBER

MS3406 (SAE-AS34061) STRAIGHT PLUG

MS3408 (SAE-AS34081) PLUG 90°

MS3409 (SAE-AS34091) PLUG 45°

MS3412 (SAE-AS34121) WALL MOUNT RECEPTACLE (AN TYPE)

SAE-AS50151

• (Formerly SAE-AS50151) - Series 3400

• Threaded Coupling, Circular, Rear Release Contacts

Refer to the “Coax/Shielded/Thermocouple Contact Tool Selection Guide” on pages 43 to 49 for further information on contact types. Please visit https://qpldocs.dla.mil/ for a current list of qualified suppliers of connectors, terminals, and splices.

SAE-AS81511

• Series 1

• Scoop Proof, Bayonet Coupling, Circular, Front Release Contacts

*Scoop-proof when pins are installed in the receptacle, but not when pins are installed in the plug.

Refer to the “Coax/Shielded/Thermocouple Contact Tool Selection Guide” on pages 43 to 49 for further

Please visit https://qpldocs.dla.mil/ for a current list of qualified suppliers of connectors, terminals, and splices.

SAE-AS81511

• Series 2

• 50% Scoop Proof, Bayonet Coupling, Circular, Front Release Contacts

*Scoop-proof when pins are installed in the receptacle, but not when pins are installed in the plug.

Refer to the “Coax/Shielded/Thermocouple Contact Tool Selection Guide” on pages 43 to 49 for further information on contact types.

SAE-AS81511

• Series 3

• Class A/F/W, Scoop Proof, Circular, Rear Release Contacts

*Scoop-proof when pins are installed in either the plug or the receptacle. Plugs contain the grounding spring members.

Refer to the “Coax/Shielded/Thermocouple Contact Tool Selection Guide” on pages 43

SAE-AS81511

• Series 4

• Class A/F/W, Scoop Proof, Circular, Rear Release Contacts

contact types.

*Scoop-proof when pins are installed in either the plug or the receptacle. Plugs contain the grounding spring members.

Refer to the “Coax/Shielded/Thermocouple Contact

SAE-AS81659

• Series 2 (ARINC 404)

• Rectangular, Rear Release Contacts

CONNECTOR

M81659/29 THRU M81659/72

SAE-AS81703

•

Refer to the “Coax/Shielded/Thermocouple Contact Tool Selection Guide” on pages 43 to 49 for further information on contact types. Please visit https://qpldocs.dla.mil/ for a current list of qualified suppliers of connectors, terminals, and splices.

SAE-AS81714

• Series 1

• Terminal Junctions Pin Contacts

CONNECTOR PART NUMBER

DESCRIPTION

M81714/1BUSSING MODULES, FEEDBACK TYPE, SIZE 22

M81714/2BUSSING MODULES, FEEDBACK TYPE, SIZE 20

M81714/3BUSSING MODULES, FEEDBACK TYPE, SIZE 16

M81714/4BUSSING MODULES, FEEDBACK TYPE, SIZE 12

M81714/6BUSSING MODULES, FEED THRU TYPE, SIZE 22

M81714 /7BUSSING MODULES, FEED THRU TYPE, SIZE 20

M81714/8BUSSING MODULES, FEED THRU TYPE, SIZE 16

M81714/9BUSSING MODULES, FEED THRU TYPE, SIZE 12

M81714/11 WIRE IN-LINE JUNCTIONS, SINGLE

M81714/12 WIRE IN-LINE JUNCTIONS, DOUBLE

Please visit https://qpldocs.dla.mil/

SAE-AS81714

• Series 2

• Terminal Junctions Socket Contacts

CONNECTOR

PART NUMBER

DESCRIPTION

M81714/60 FEEDBACK TYPE, BUSSING MODULE

M81714/61 FEEDBACK TYPE, BUSSING MODULES

M81714/63 STUD/FLANGE MOUNTED, SECTIONAL, GROUNDING MODULES

CONNECTOR

PART NUMBER

M81714/15

DESCRIPTION

GROUNDING STUD

M81714/17BUSSING MODULES, FEEDBACK TYPE, SIZE 22D

M81714/21 ELECTRONIC, IN-LINE JUNCTIONS

M81714/22 ELECTRONIC, IN-LINE JUNCTIONS

M81714/23 ELECTRONIC, IN-LINE JUNCTIONS

M81714/24ELECTRONIC, IN-LINE JUNCTIONS, DOUBLE

M81714/25 ELECTRONIC, FEEDBACK TYPE, SIZE 20

M81714/26ELECTRONIC, DIODE, FEEDBACK TYPE, SIZE 20

M81714/27 GROUNDING MODULES, STUD

M81714/28GROUNDING MODULE, INTEGRAL BRACKET

MIL-DTL-83527

• ARINC 600

• Rack and Panel, Rectangular, Rear Release Contacts

MIL-DTL-83723

CONNECTOR

M83723/17

(Superseded by SAE-AS34511)

M83723/18 (Superseded by SAE-AS34511)

M83723/19

(Superseded by SAE-AS34501) WALL MOUNT RECEPTACLE SOCKET

M83723/20

(Superseded by SAE-AS34501)

WALL MOUNT RECEPTACLE PIN

M83723/21

(Superseded by SAE-AS34521)

M83723/22

(Superseded by SAE-AS34521)

M83723/23

and splices.

SOCKET

MOUNT RECEPTACLE PIN CONTACTS

(Superseded by SAE-AS34561) PLUG SOCKET CONTACTS

M83723/24

Superseded by SAE-AS34561) PLUG PIN CONTACTS

Refer to the “Coax/Shielded/Thermocouple Contact Tool Selection Guide” on pages 43 to 49 for further information on contact types.

MIL-DTL-83723

• Series 3

• Bayonet and Threaded Coupling, Circular, Rear Release Contacts

CONNECTOR

M83723/71, /72 BAYONET, WALL MOUNT RECEPTACLE

M83723/73, 74 BAYONET, JAM NUT RECEPTACLE

M83723/75, 76, /77, /78 BAYONET, STRAIGHT PLUG

MIL-DTL-83733

• Rack and Panel, Rectangular, Rear Release Contacts

CONNECTOR

M83733/1 STANDARD HOLE MOUNT

M83733/2 GUIDE PINS AND SPRING MOUNT

M83733/3 GUIDE SOCKETS

M83733/4 CAPTIVE SPRINGS

M83733/5 BUSHING MOUNT

M83733/6 CLINCH NUT MOUNT

Refer to the “Coax/Shielded/Thermocouple

CONNECTOR PART NUMBER

DESCRIPTION

M83723/82, /83 THREADED, WALL MOUNT RECEPTACLE

M83723/84, /85 THREADED, JAM NUT RECEPTACLE

M83723/86, /87, /91, /92, /95, /96 THREADED, STRAIGHT PLUG

CONNECTOR PART NUMBER

DESCRIPTION

M83733/7 GUIDE SOCKETS AND SPRING MOUNT

M83733/8 GUIDE PINS

M83733/9 STAGGERED STANDARD HOLE MOUNT

M83733/10 STAGGERED BUSHING MOUNT

M83733/11 STAGGERED CLINCH NUT MOUNT

M83733/12 STAGGERED SPRING MOUNT

SAE-AS95234

• Reverse Bayonet, Circular, Front Release

CONNECTOR PART NUMBER CONTACTS

Contacts

AS95234/1 RECEPTACLE, BAYONET COUPLING, IN LINE

AS95234/2 RECEPTACLE, SQUARE FLANGE, BOX MOUNT, FRONT

AS95234/3 RECEPTACLE, SQUARE FLANGE, BOX MOUNT, REAR

AS95234/4 RECEPTACLE, SQUARE FLANGE, PANEL MOUNT, FRONT

CONNECTOR PART NUMBER

AS95234/5 RECEPTACLE, SQUARE FLANGE, PANEL MOUNT,

AS95234/6 PLUG, REVERSE BAYONET COUPLING

AS95234/7 RECEPTACLE, JAM NUT

AS95234/8 RECEPTACLE, JAM NUT

AS95234/9 PLUG, GROUNDING

Please visit https://qpldocs.dla.mil/ for a current list of qualified suppliers of connectors, terminals, and splices.

Micro Connectors - Glenair “Mighty Mouse” & Amphenol 2m Micro38999

801 GLENAIR, MIGHTY MOUSE SERIES 801, RUGGED DOUBLE-START ACME THREADS

GLENAIR, MIGHTY MOUSE SERIES 803, BAYONET COUPLING

804

805

GLENAIR, MIGHTY MOUSE SERIES 804, PUSH-PULL

GLENAIR, MIGHTY MOUSE SERIES 805, TRIPLE-START ACME THREADS

M39029/58-363850-002-20-363

2M803

2M804

2M805

MICRO38999 SERIES 2M801, DUAL-START

AMPHENOL, MICRO38999 SERIES 2M803, BAYONET

AMPHENOL, MICRO38999 SERIES 2M804, PUSH-PULL

AMPHENOL, MICRO38999 SERIES 2M805, TRISTART

M39029 Coax, Shielded, & Thermocouple Contacts

FOR CONNECTORS: SAE-AS81511 (SERIES 4)

FOR CONNECTORS: MIL-DTL-26482 (SERIES 1)

CONNECTORS:

M39029 Coax, Shielded, & Thermocouple Contacts

CONNECTORS: MIL-DTL-38999 (SERIES 1-4)

Please visit https://qpldocs.dla.mil/ for a current list of qualified suppliers of connectors, terminals, and splices.

M39029 Coax, Shielded,

& Thermocouple Contacts

M39029 Coax, Shielded, & Thermocouple Contacts

Tool Selection Guide

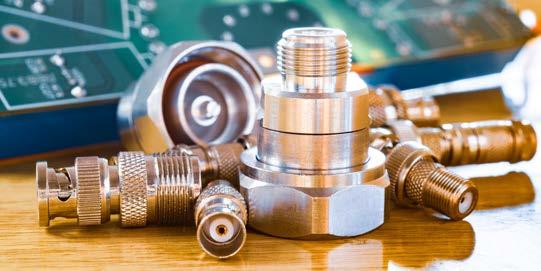

RF Connectors

Astro provides Tool Selection Guides to assist operators in quickly identifying the correct tooling for connector assembly. These charts are offered as a supplemental guide and are not designed to replace any official manuals or specs. Please check official sources for the most up-to-date information.

Part Number Guide

01-0501PLUG

16-0501PLUG

26-0501PLUG

26-0503PLUG

Please visit https://qpldocs.dla.mil/ for a current list of qualified suppliers of connectors, terminals, and splices.

35-0501PLUG

55-3502PLUG

Please visit https://qpldocs.dla.mil/ for a current list of qualified suppliers of connectors, terminals, and splices.

Tool Selection Guide

Terminals and Splices

Astro provides Tool Selection Guides to assist operators in quickly identifying the correct tooling for connector assembly. These charts are offered as a supplemental guide and are not designed to replace any official manuals or specs. Please check official sources for the most up-to-date information.

Part Number Guide

Terminal and Splice Identification

Insulated terminals and splices can be color coded in red, blue, clear, or yellow wire size indicator. These colors represent the wire sizes compatible with the chosen terminal or splice. The tables below indicates the correct color code and wire combination per the SAE-AS25036 and SAE-AS7928 spec.

Components shown are for reference only.

• Class 1 Insulated Terminals for Wire 26-10 AWG TERMINAL PART NUMBER

620175 SERIES DIE MIL-APPROVED (MULTI CAVITY)

M7928/1-126YELLOW W/ BLACK STRIPE 620617 (WHITE)

M7928/1-226YELLOW W/ BLACK STRIPE 620617 (WHITE)

M7928/1-326YELLOW W/ BLACK STRIPE 620617 (WHITE)

M7928/1-426YELLOW W/ BLACK STRIPE 620617 (WHITE)

M7928/1-526YELLOW W/ BLACK STRIPE 620617 (WHITE)

M7928/1-624YELLOW W/ BLUE STRIPE 620617 (WHITE)

M7928/1-724YELLOW W/ BLUE STRIPE 620617 (WHITE)

M7928/1-824YELLOW W/ BLUE STRIPE 620617 (WHITE)

M7928/1-924YELLOW W/ BLUE STRIPE 620617 (WHITE)

M7928/1-1024YELLOW W/ BLUE STRIPE 620617 (WHITE) -

M7928/1-11 22 RED W/ GREEN STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-12 22 RED W/ GREEN STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-13 22 RED W/ GREEN STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-14 22 RED W/ GREEN STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-15 22 RED W/ GREEN STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-16 22 RED W/ GREEN STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-17 22 RED W/ GREEN STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-18 22 RED W/ GREEN STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-19 22 RED W/ GREEN STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-20 20 RED W/ RED STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-21 20 RED W/ RED STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-22 20 RED W/ RED STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-23 20 RED W/ RED STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-24 20 RED W/ RED STRIPE

620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-25 20 RED W/ RED STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-26 20 RED W/ RED STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-27 20 RED W/ RED STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-28 20 RED W/ RED STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-29 18 RED W/ WHITE STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-30 18 RED W/ WHITE STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-31 18 RED W/ WHITE STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-32 18 RED W/ WHITE STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-33 18 RED W/ WHITE STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-34 18 RED W/ WHITE STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-35 18 RED W/ WHITE STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-36 18 RED W/ WHITE STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/1-37 18 RED W/ WHITE STRIPE 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

*Mil-approved die set not listed on AS7928/1 spec. Wire ranges and pictures are for reference only. Please visit https://qpldocs.dla.mil/ for a current list of qualified suppliers of connectors, terminals, and splices.

SAE-AS7928/1

• Class 1 Insulated Terminals for Wire 26-10 AWG

TERMINAL PART NUMBER WIRE (AWG)

M7928/1-3816

M7928/1-3916

M7928/1-4016

M7928/1-4116

M7928/1-4216

M7928/1-4316

M7928/1-4416

M7928/1-4516

M7928/1-4616

M7928/1-4714

M7928/1-4814

M7928/1-4914

M7928/1-5014

M7928/1-5114

M7928/1-5214

M7928/1-5314

COLOR 620175 SERIES DIE MIL-APPROVED (MULTI CAVITY) COMPLETE TOOL MIL-APPROVED

BLUE W/ BLUE STRIPE

BLUE W/ GREEN STRIPE

620617* (WHITE)AMT4001 (M22520/40-01) (BLUE)

BLUE W/ GREEN STRIPE 620617* (WHITE)AMT4001 (M22520/40-01) (BLUE)

BLUE W/ GREEN STRIPE

620617* (WHITE)AMT4001 (M22520/40-01) (BLUE)

BLUE W/ GREEN STRIPE 620617* (WHITE)AMT4001 (M22520/40-01) (BLUE)

M7928/1-5414 BLUE W/ GREEN STRIPE 620617* (WHITE)AMT4001 (M22520/40-01) (BLUE)

M7928/1-5514 BLUE W/ GREEN STRIPE

620617* (WHITE)AMT4001 (M22520/40-01) (BLUE)

M7928/1-5612 YELLOW W/ YELLOW STRIPE 620617 (YELLOW) -

M7928/1-5712 YELLOW W/ YELLOW STRIPE 620617 (YELLOW)

M7928/1-5812 YELLOW W/ YELLOW STRIPE 620617 (YELLOW)

M7928/1-5912 YELLOW W/ YELLOW STRIPE 620617 (YELLOW)

M7928/1-6012 YELLOW W/ YELLOW STRIPE 620617 (YELLOW)

M7928/1-6112 YELLOW W/ YELLOW STRIPE 620617 (YELLOW)

M7928/1-6212 YELLOW W/ YELLOW STRIPE 620617 (YELLOW)

M7928/1-63 10 YELLOW W/ BROWN STRIPE

620617 (YELLOW)

M7928/1-64 10 YELLOW W/ BROWN STRIPE 620617 (YELLOW)

M7928/1-65 10 YELLOW W/ BROWN STRIPE

M7928/1-66 10 YELLOW W/ BROWN STRIPE

M7928/1-67 10 YELLOW W/ BROWN STRIPE

M7928/1-68 10 YELLOW W/ BROWN STRIPE

M7928/1-69 10 YELLOW W/ BROWN STRIPE

*Mil-approved die set not listed on AS7928/1 spec. Wire ranges and pictures are for reference only.

620617 (YELLOW)

SAE-AS7928/4

• Class 1 Insulated Terminals for Wire 26-10 AWG

TERMINAL PART NUMBER WIRE (AWG) STRIPE COLOR

M7928/4-14326-24YELLOW

M7928/4-14426-24YELLOW

620175 SERIES DIE MIL-APPROVED (MULTI CAVITY)

COMPLETE TOOL MIL-APPROVED

620617 (WHITE) -

M7928/4-14526-24YELLOW 620617 (WHITE) -

M7928/4-14626-24YELLOW

M7928/4-14726-24YELLOW

M7928/4-10122-18RED

M7928/4-10222-18RED

M7928/4-10322-18RED

M7928/4-10422-18RED

M7928/4-10522-18RED

M7928/4-14822-18RED

M7928/4-14922-18RED

M7928/4-15022-18RED

M7928/4-15122-18RED

M7928/4-15922-18RED

M7928/4-10616-14BLUE

M7928/4-10716-14BLUE

M7928/4-10816-14BLUE

M7928/4-10916-14BLUE

M7928/4-11016-14BLUE

M7928/4-15216-14BLUE

M7928/4-15316-14BLUE

M7928/4-15416-14BLUE

M7928/4-15516-14BLUE

M7928/4-11112-10YELLOW

M7928/4-11212-10YELLOW

M7928/4-11312-10YELLOW

M7928/4-11412-10YELLOW

M7928/4-15612-10YELLOW

M7928/4-15712-10YELLOW

M7928/4-15812-10YELLOW

620617 (WHITE) -

620617 (WHITE)

620617* (WHITE)

AMT4001 (M22520/40-01) (RED)

AMT4001 (M22520/40-01) (BLUE)

620617 (YELLOW) -

*Mil-approved die set not listed on AS7928/4 spec. Wire ranges and pictures are for reference only. Please visit https://qpldocs.dla.mil/ for a current list of qualified suppliers of connectors, terminals, and splices.

SAE-AS7928/5

• Class 1 Insulated Splices for Wire 26-10 AWG

M7928/5-1 26-24

M7928/5-2 24-20

620617 (WHITE) OR 620618 (WIRE SIZE 22-20 ONLY)

M7928/5-4 16-14 BLUE 620617 (WHITE)

M7928/5-5 12-10 YELLOW 620617 (WHITE)

SAE-AS7928/6

• Class 1 Insulated Splices for Wire 26-10 AWG

M7928/6-2

M7928/6-3 22-18

M7928/6-4

620618 (WIRE SIZE 22-20 ONLY)

SAE-AS7928/13

• Class 1 Insulated Terminals for Wire 26-10 AWG

M7928/13-143 26-24 YELLOW 620617 (WHITE)

M7928/13-144 26-24 YELLOW 620617 (WHITE) -

M7928/13-145 26-24 YELLOW 620617 (WHITE)

M7928/13-146 26-24 YELLOW 620617 (WHITE)

M7928/13-147 26-24 YELLOW 620617 (WHITE) -

M7928/13-101 22-18 RED 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/13-102 22-18 RED 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/13-103 22-18 RED 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/13-104 22-18 RED 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/13-105 22-18 RED 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/13-148 22-18 RED 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/13-149 22-18 RED 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

M7928/13-150 22-18 RED 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

*Mil-approved die set not listed on AS7928/13 spec. Wire ranges and pictures are for reference only.

SAE-AS7928/13

Continued

• Class 1 Insulated Terminals for Wire 26-10 AWG

M7928/13-151 22-18 RED

M7928/13-159 22-18 RED

M7928/13-106 16-14 BLUE

M7928/13-107 16-14 BLUE

M7928/13-108 16-14 BLUE

M7928/13-109 16-14 BLUE

620617* (WHITE) AMT4001 (M22520/40-01) (RED)

620617* (WHITE) AMT4001 (M22520/40-01) (BLUE)

M7928/13-110 16-14 BLUE 620617* (WHITE) AMT4001 (M22520/40-01) (BLUE)

M7928/13-152 16-14 BLUE 620617* (WHITE) AMT4001 (M22520/40-01) (BLUE)

M7928/13-153 16-14 BLUE 620617* (WHITE) AMT4001 (M22520/40-01) (BLUE)

M7928/13-154 16-14 BLUE 620617* (WHITE) AMT4001 (M22520/40-01) (BLUE)

M7928/13-155 16-14 BLUE 620617* (WHITE) AMT4001 (M22520/40-01) (BLUE)

M7928/13-111 12-10 YELLOW 620617 (YELLOW) -

M7928/13-112 12-10 YELLOW 620617 (YELLOW)

M7928/13-113 12-10 YELLOW 620617 (YELLOW) -

M7928/13-114 12-10 YELLOW 620617 (YELLOW)

M7928/13-156 12-10 YELLOW 620617 (YELLOW)

M7928/13-157 12-10 YELLOW 620617 (YELLOW)

M7928/13-158 12-10 YELLOW 620617 (YELLOW)

SAE-AS17143

• Class 1 Insulated Terminals, Rectangular Tongue for Wire Size 22-10 AWG

TERMINAL PART NUMBER WIRE AWG

COLOR

SERIES DIE MIL APPROVED (MULTI

MS17143-122-18RED 620617* (WHITE)

(M22520/40-01) RED

MS17143-216-14BLUE 620617* (WHITE) AMT4001 (M22520/40-01) (BLUE)

MS17143-312-10YELLOW620617 (YELLOW) -

MS17143-422-18RED 620617* (WHITE)

AMT4001 (M22520/40-01) (RED)

MS17143-516-14BLUE 620617* (WHITE) AMT4001 (M22520/40-01) (BLUE)

MS17143-612-10YELLOW620617 (YELLOW) -

MS17143-722-18RED 620617* (WHITE)

MS17143-816-14BLUE 620617* (WHITE)

AMT4001 (M22520/40-01) (RED)

AMT4001 (M22520/40-01) (BLUE)

MS17143-912-10YELLOW620617 (YELLOW) -

MS17143-1022-18RED 620617* (WHITE)

MS17143-1116-14BLUE 620617* (WHITE)

AMT4001 (M22520/40-01) (RED)

AMT4001 (M22520/40-01) (BLUE)

MS17143-1212-10YELLOW620617 (YELLOW) -

MS17143-1322-18RED 620617* (WHITE)

MS17143-1416-14BLUE 620617* (WHITE)

AMT4001 (M22520/40-01) (RED)

AMT4001 (M22520/40-01) (BLUE)

MS17143-1512-10YELLOW620617 (YELLOW) -

*Mil-approved die set not listed on AS7928/13 spec. Wire ranges and pictures are for reference only.

SAE-AS17143

Continued

• Class 1 Insulated Terminals, Rectangular Tongue for Wire Size 22-10 AWG

MS17143-16 22-18

MS17143-17 16-14

620617* (WHITE) AMT4001 (M22520/40-01) (RED)

620617* (WHITE)AMT4001 (M22520/40-01) (BLUE)

MS17143-18 12-10 YELLOW 620617 (YELLOW) -

MS17143-19 22-18 RED 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

MS17143-20 16-14 BLUE 620617* (WHITE)AMT4001 (M22520/40-01) (BLUE)

MS17143-21 12-10 YELLOW 620617 (YELLOW) -

MS17143-22 22-18 RED 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

MS17143-23 22-18 RED 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

MS17143-24 22-18

MS17143-25 22-18

SAE-AS25036

• Class 1 Insulated Terminals for Wire Size 26-24 AWG TERMINAL

620617* (WHITE) AMT4001 (M22520/40-01) (RED)

MS25036-143 26-24 YELLOW 620617 (WHITE)

MS25036-144 26-24 YELLOW 620617 (WHITE)

MS25036-145 26-24 YELLOW 620617 (WHITE)

MS25036-146 26-24 YELLOW 620617 (WHITE)

MS25036-147 26-24 YELLOW 620617 (WHITE)

*Mil-approved set not listed on AS17143 spec. Wire ranges and pictures are for reference only.

Please visit https://qpldocs.dla.mil/ for a current list of qualified suppliers of connectors, terminals, and splices.

SAE-AS25036

• Class 1 Insulated Terminals for Wire Size 22-18 AWG

MS25036-102 22-18 RED 620617* (WHITE)

MS25036-103 22-18 RED 620617* (WHITE)

(M22520/40-01) (RED)

MS25036-104 22-18 RED 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

MS25036-105 22-18 RED 620617* (WHITE)

(M22520/40-01) (RED)

MS25036-148 22-18 RED 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

MS25036-149 22-18 RED 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

MS25036-150 22-18 RED 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

MS25036-151 22-18 RED 620617* (WHITE)

(M22520/40-01) (RED)

MS25036-159 22-18 RED 620617* (WHITE) AMT4001 (M22520/40-01) (RED)

SAE-AS25036

• Class 1 Insulated Terminals for Wire Size 16-14 AWG

MS25036-106 16-14

MS25036-108 16-14

MS25036-109 16-14

MS25036-110 16-14

(WHITE)

MS25036-152 16-14 BLUE 620617* (WHITE)

(M22520/40-01) (BLUE)

(M22520/40-01) (BLUE) MS25036-153 16-14

SAE-AS25036

• Class 1 Insulated Terminals for Wire Size 12-10 AWG TERMINAL PART NUMBER

620175 SERIES DIE MIL APPROVED (MULTI CAVITY)

MS25036-111 12-10 YELLOW 620617 (YELLOW)

MS25036-112 12-10 YELLOW 620617 (YELLOW)

MS25036-113 12-10 YELLOW 620617 (YELLOW)

MS25036-114 12-10 YELLOW 620617 (YELLOW)

MS25036-156 12-10 YELLOW 620617 (YELLOW)

MS25036-157 12-10 YELLOW 620617 (YELLOW)

MS25036-158 12-10 YELLOW 620617 (YELLOW)

*MIL approved tool/die set. Tool/die set not listed on AS25036 spec. Wire ranges and pictures are for reference only.

Tool Selection Guide

Harting D and E Connectors

Astro provides Tool Selection Guides to assist operators in quickly identifying the correct tooling for connector assembly. These charts are offered as a supplemental guide and are not designed to replace any official manuals or specs. Please check official sources for the most up-to-date information.

Turn static files into dynamic content formats.

Create a flipbook
