Polyphaser Power & Signal Integrity for Military & Government Networks

Mission Critical Communications

Power and Signal Integrity for Military and Government Networks

For Information Contact ROJONE, PTY LTD. Tel: 02 9829 1555 E: sales@rojone.com.au www.rojone.com.au

Core Competencies – Electromagnetic Environmental Effects (E3) As providers of electronic application-specific components and subsystems, Transtector and PolyPhaser’s innovative solutions enable our customers to achieve ultimate systems performance. We design and manufacture specialized electronic and radio frequency products that connect, protect and control critical systems.

Application

Network Component

Surge Protection Required (Type)

Satellite Communications

Lightning/EMP for ground-based cables

AC, DC, Data, RF, EMP/EMI

C4 Missile Defense

Multiple protocol data, RF, DC power, fire and control

AC, DC, Data, RF, EMP/EMI

Ground-Based Radar

Communication lines

AC, DC, Data, RF, EMP/EMI

Air-Based Radar

Power and communications

AC, DC, Data, RF, EMP/EMI

UAV

Command and control

AC, DC, Data, RF, EMP/EMI

Naval Vessels

Command and control ship board

AC, DC, Data, RF, EMP/EMI

Radio Communications

Field-deployable broadband

AC, DC, Data, RF, EMP/EMI

AC Surge Protection

OP8

APEX IMAX

DC Surge Protection

SL-120

RMP 615A

DRDC

3DC48-20

I2R SA48-40

DCOD

Minimize Threats with Innovative Filter Technologies

OEM Design, Engineering, Prototyping, and Protection

Transtector and PolyPhaser’s high-performance filter technologies protect communication, satellite and electrical power systems from all major power quality threats.

• HEMP (High-Altitude Electromagnetic Pulse)

In cooperation with the Department of Defense, the Department of Homeland Security, the Federal Aviation Administration and other government agencies, PolyPhaser and Transtector Systems work to ensure mission-critical electronics are protected from all threats, through use of military standards.

• NEMP (Nuclear Electromagnetic Pulse)

• MIL-STD- 2169 C

• SREMP (Source-Region Electromagnetic Pulse)

• MIL-STD-188-125-1

• SGEMP (System-Generated Electromagnetic Pulse)

• MIL-STD-188-125-2

• Geomagnetic Disturbances

• MIL-STD-461

• EMI (Electromagnetic Interference)

• MIL-STD-464

• TEMPEST

• MIL-STD-3023

• Lightning Induced Transients

• RTCA DO-160

• EMP (Electromagnetic Pulse)

For Information Contact ROJONE, PTY LTD. Tel: 02 9829 1555 E: sales@rojone.com.au www.rojone.com.au

Superior Protection. Patented Technology.

Guaranteed Performance.

MIL-STD 188-125 HEMP Waveforms*

EMP Filters

HEMP Waveforms*

E1

10/550 nanosecond waveform

E2

1.5/5000 microsecond waveform (closely resembles lightning)

E3

0.2/25 second waveform

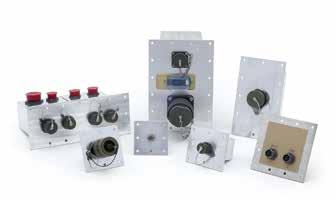

E3PM Solution Samples

Transient Protection Filter Modules - RF, AC, DC and Data Line power quality solutions to assure the reliability of your critical electronics.

*Simplified representation

RF Surge Protection

TUSXVHF50

ISB50

IS-NEMP

TSX

Data Line Surge Protection

Power Distribution

TSJ

AC Edge

FSP

CPX

DC Edge III

Committed to Service Meeting our customers’ needs is at the core of our business objectives. As industry leaders, PolyPhaser and Transtector support our partners with extensive experience simulating, analysing and designing transient protection modules to mitigate EMI, EMP and lightning threats in order to provide complete systems protection.

• Core Competencies – E3 surge protection solutions engineered and designed to Military standards.

• Tier 1 Supplier – Approved supplier to Tier 1 primes.

• Engineering Expertise – Reliable, proven technical partner for electrical, mechanical and environmental requirements on C4 platforms.

• Non-Recurring Engineering – More than a decade of NRE experience that supports primes technical requirements and timelines.

• Customer Service – Dedicated EMI engineering, sales and program management team.

• Made in the USA – Technology platform engineered, manufactured and serviced in the USA • Custom Off-the-Shelf – Full line of COTS surge protection products that use silicon avalanche diode technology, thus providing fast reaction within five nanoseconds to protect against an E1 pulse.

For Information Contact ROJONE, PTY LTD. Tel: 02 9829 1555 E: sales@rojone.com.au www.rojone.com.au

For Information Contact ROJONE, PTY LTD. Tel: 02 9829 1555 E: sales@rojone.com.au www.rojone.com.au

Contact Us: +1.800.882.9110 | 1.208.772.8515 | www.polyphaser.com | www.transtector.com
