World Pipelines February 2023

Page 1

A MEMBER OF WINN & COALES INTERNATIONAL ® Volume 23 Number 2 - February 2023

The leading innovator supplying cutting-edge integrity solutions. Together we can ensure sustainable decision-making. Our combination of advanced inspection systems and expert consultants delivers a comprehensive understanding of asset safety, lifetime, and performance.

Comprehensive Asset Integrity Management


03. Editor's comment

05. Pipeline news

Updates on H2Med pipeline, EACOP and the Ruby pipeline acquisition.


10. Projects in the pipeline

New pipeline systems for CO2 sequestration and green hydrogen products offer significant opportunities to midstream companies in the coming decade, suggests Gordon Cope.


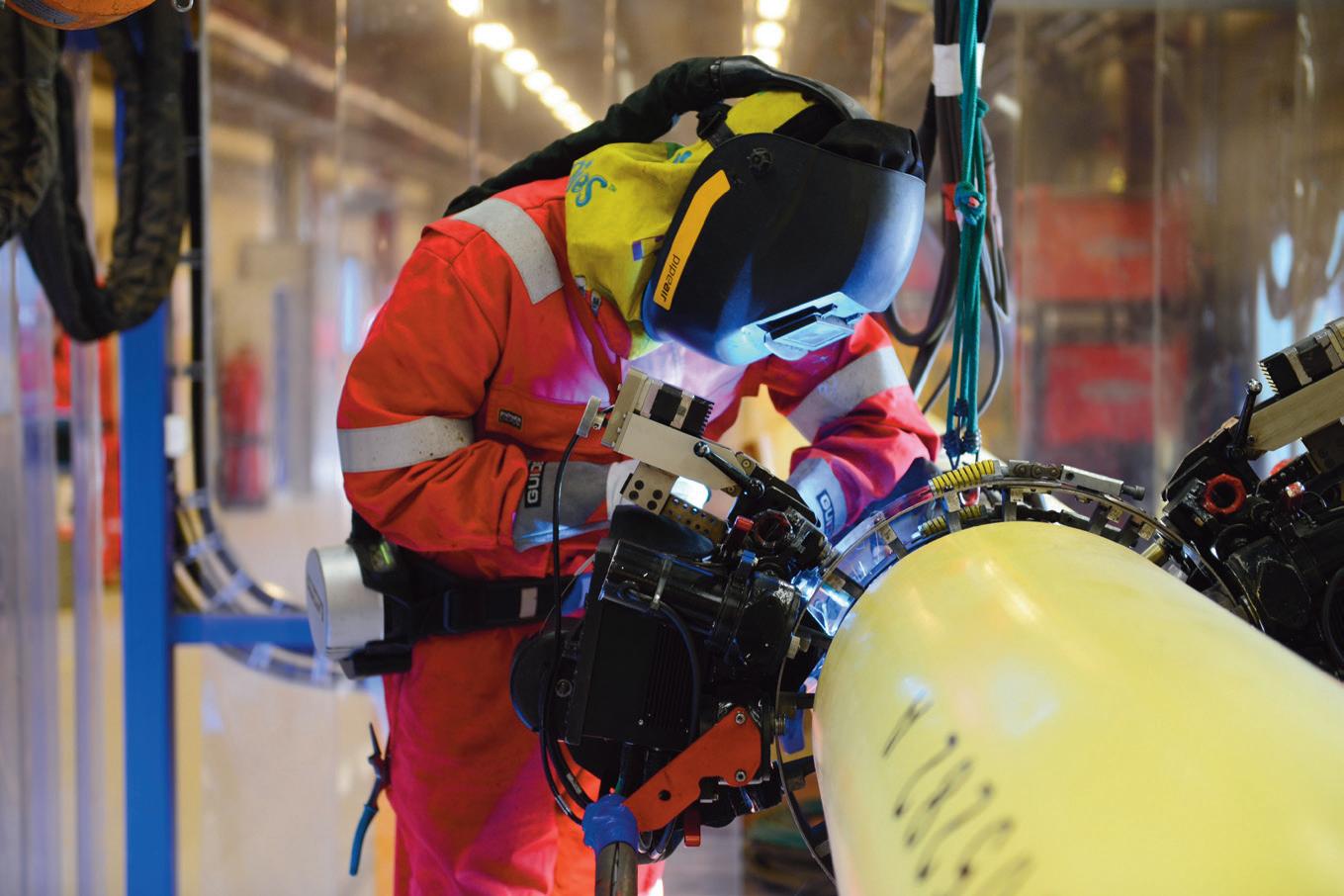

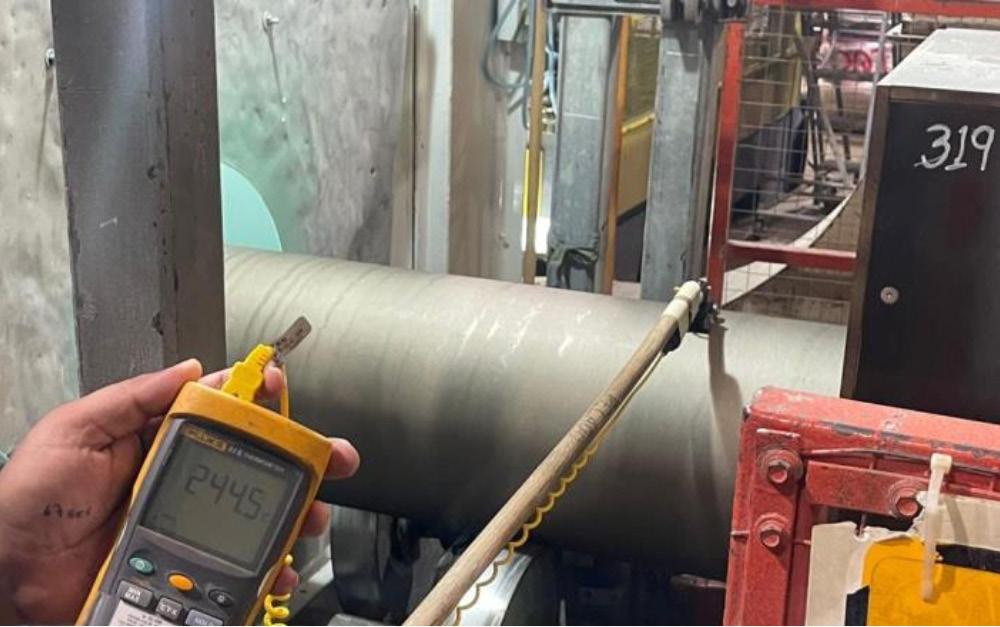

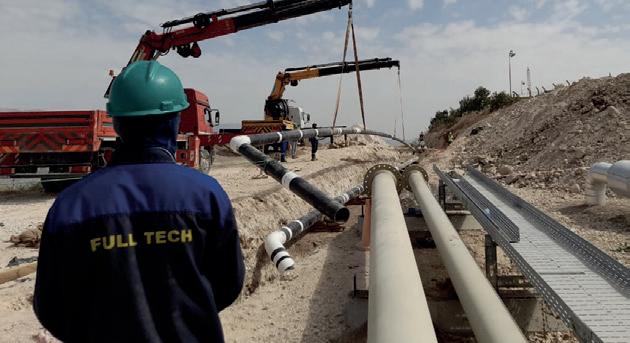

39. Down to the last detail

Andro Jimenez, Coordination Manager and Edwin Carbajal, Senior QC Coordinator, Fulkrum, USA.


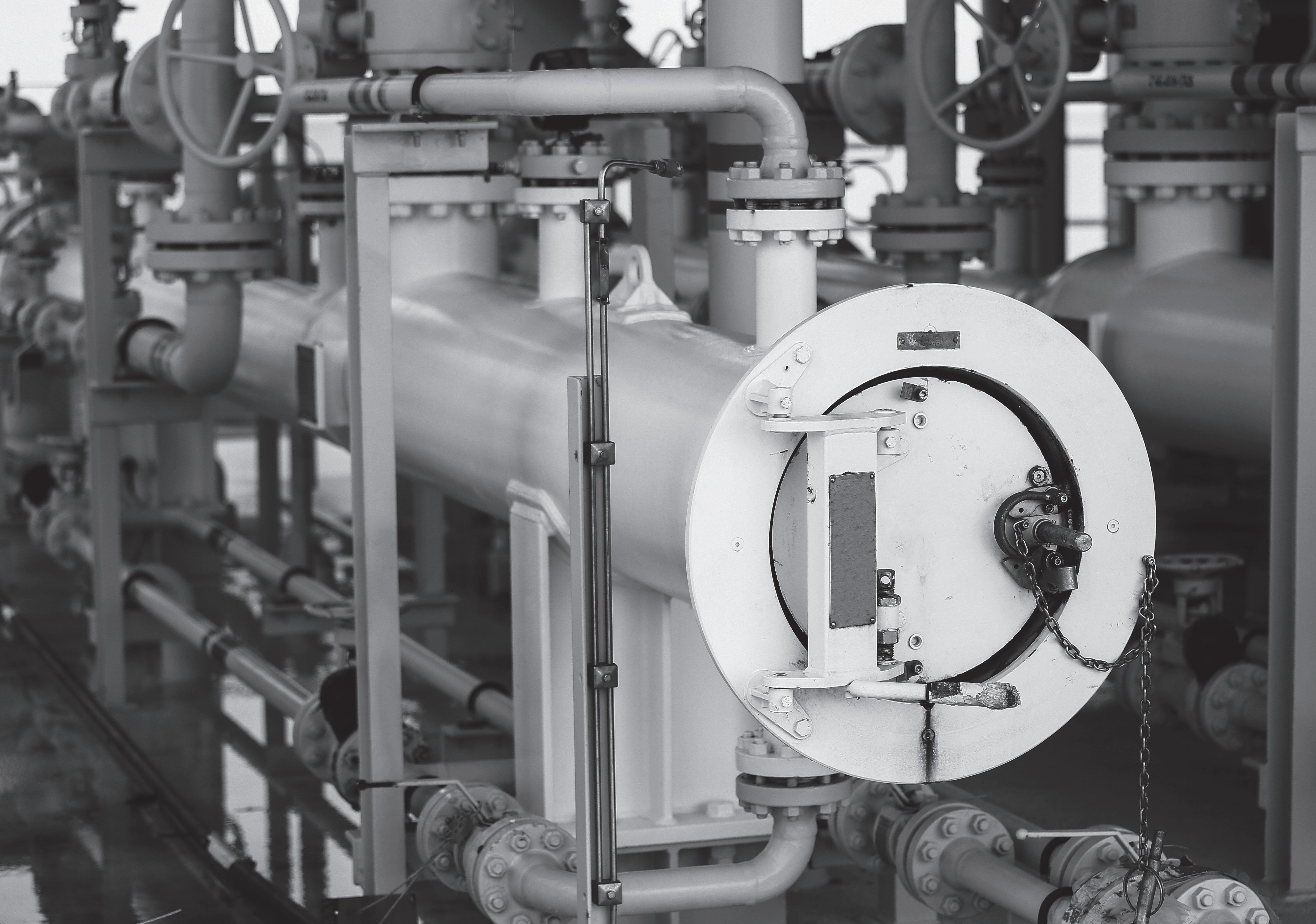

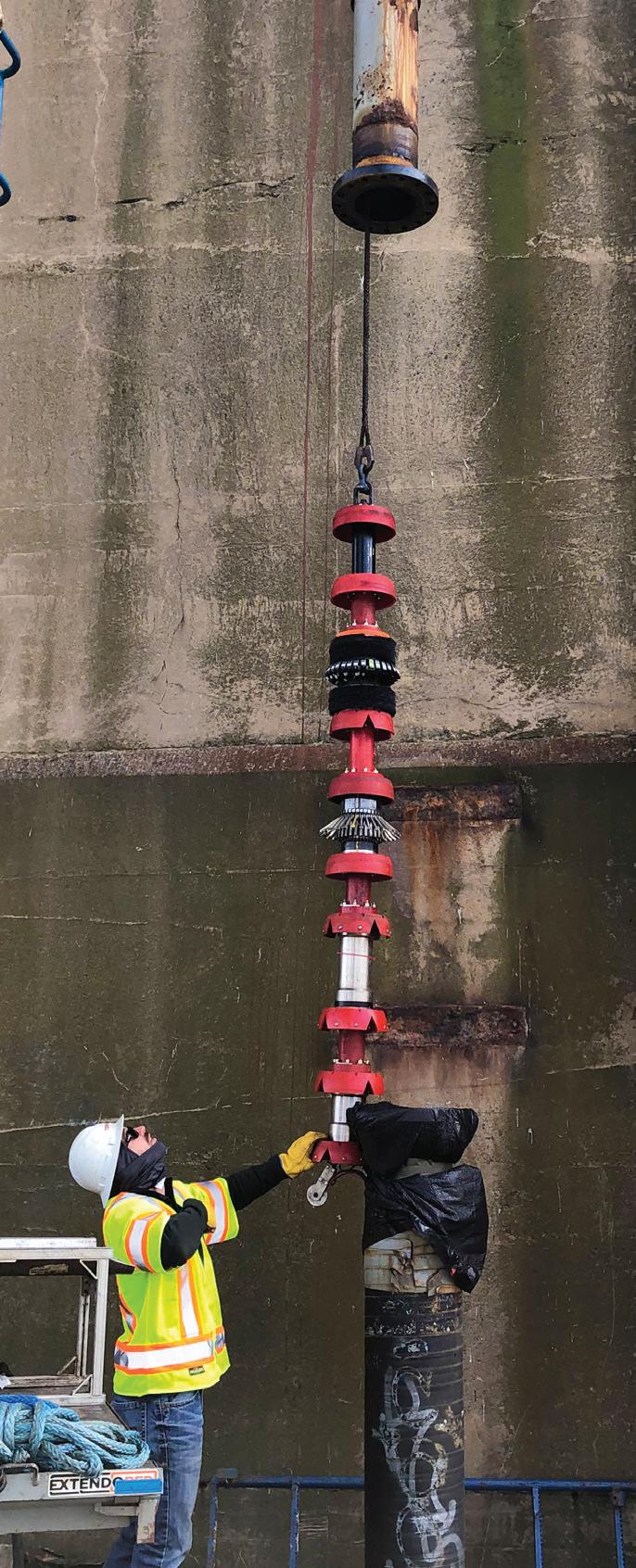

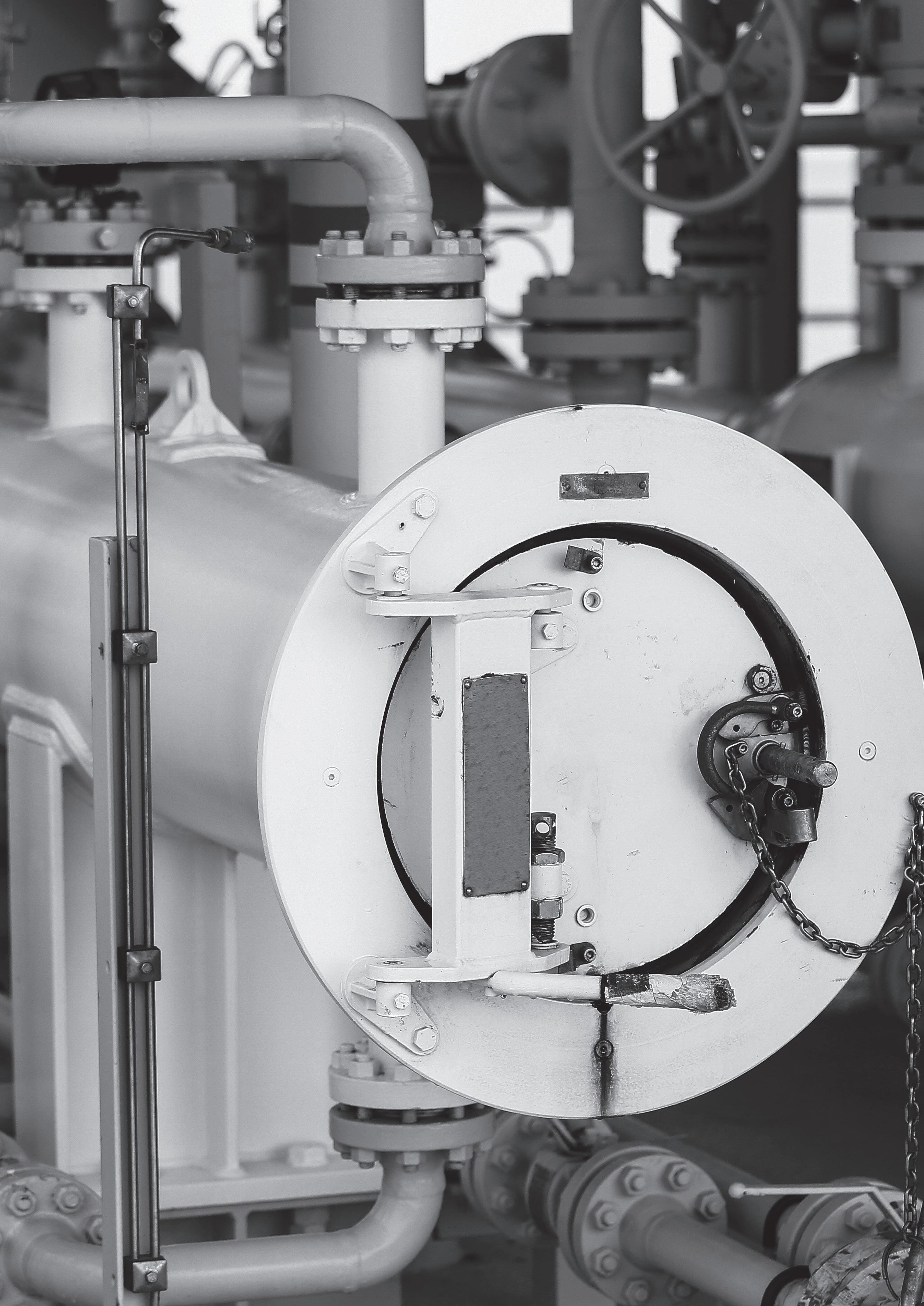

43. Featuring Italmatch Chemicals

We ask Adam Brown, Technical Sales Manager, Italmatch Chemicals, UK, about pipeline pigging.


45. The rise and rise of IoT Adam Weinberg, CTO and Co-Founder, FirstPoint Mobile Guard, Israel.

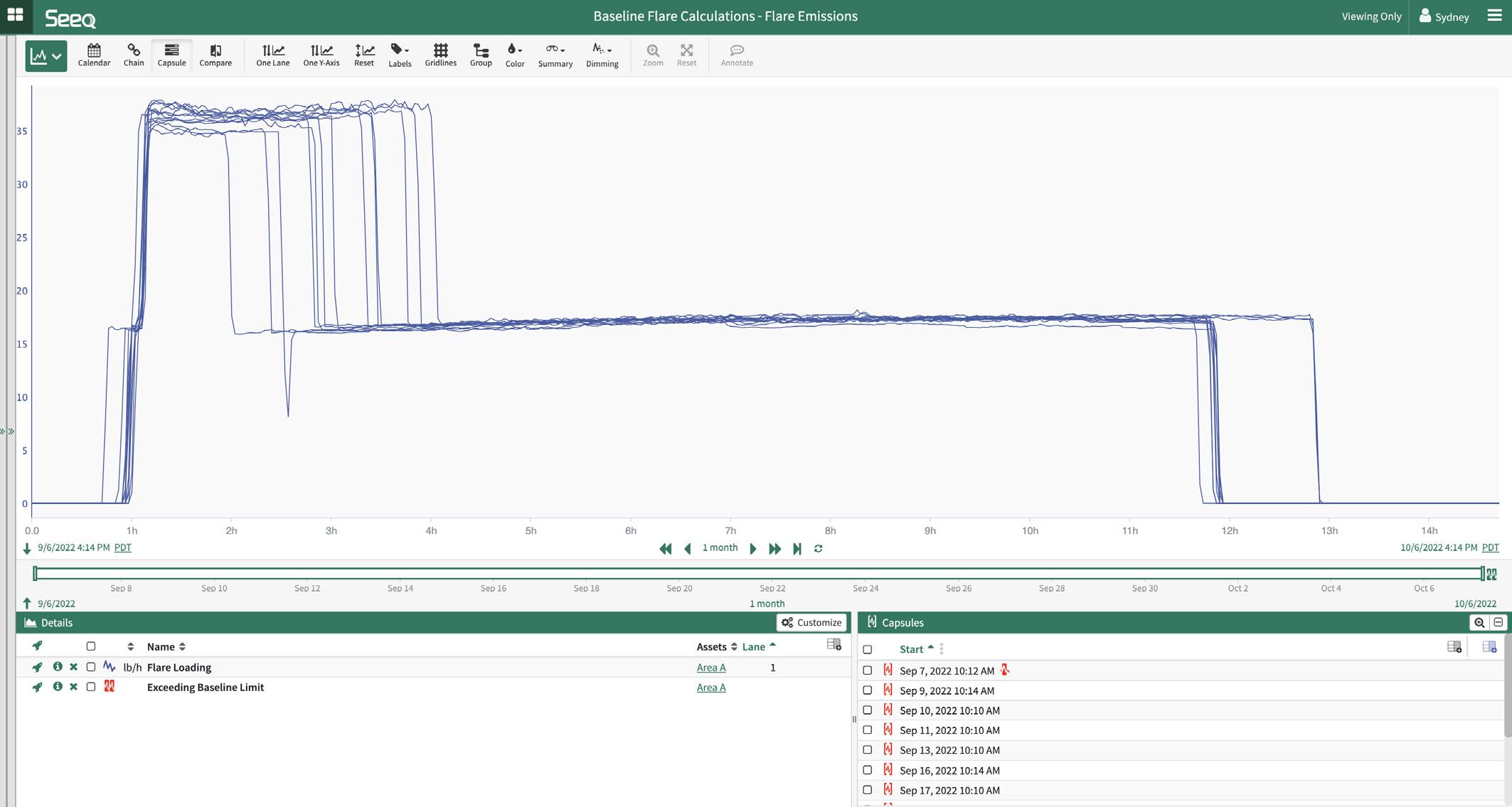

48. Propelling advancement Morgan Bowling, Industry Principal, Seeq, USA.

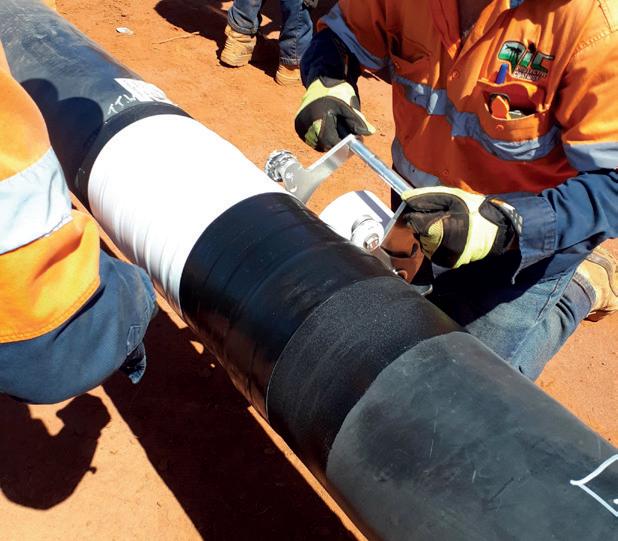

15. Simplified protection

Julie Holmquist, Cortec® Corporation, USA.


20. Corrosion control for refinery pipelines

Ali Alani, Director of Asset Integrity – Europe, Penspen, UK.

25. A low carbon emissions alternative

Antonio Caraballo, Inspection & Integrity Management Services Director, ICR, UK.

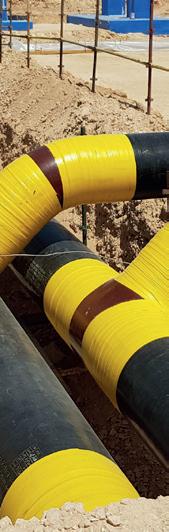

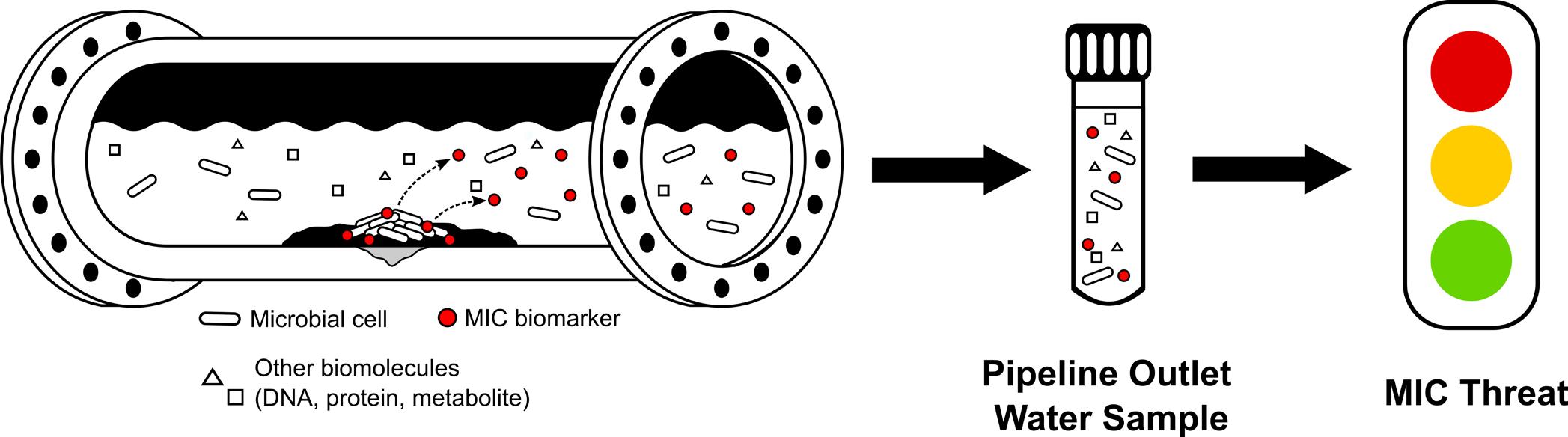

29. Bacteria busting secrets

Reza Javaherdashti, MICCOR, Netherlands.

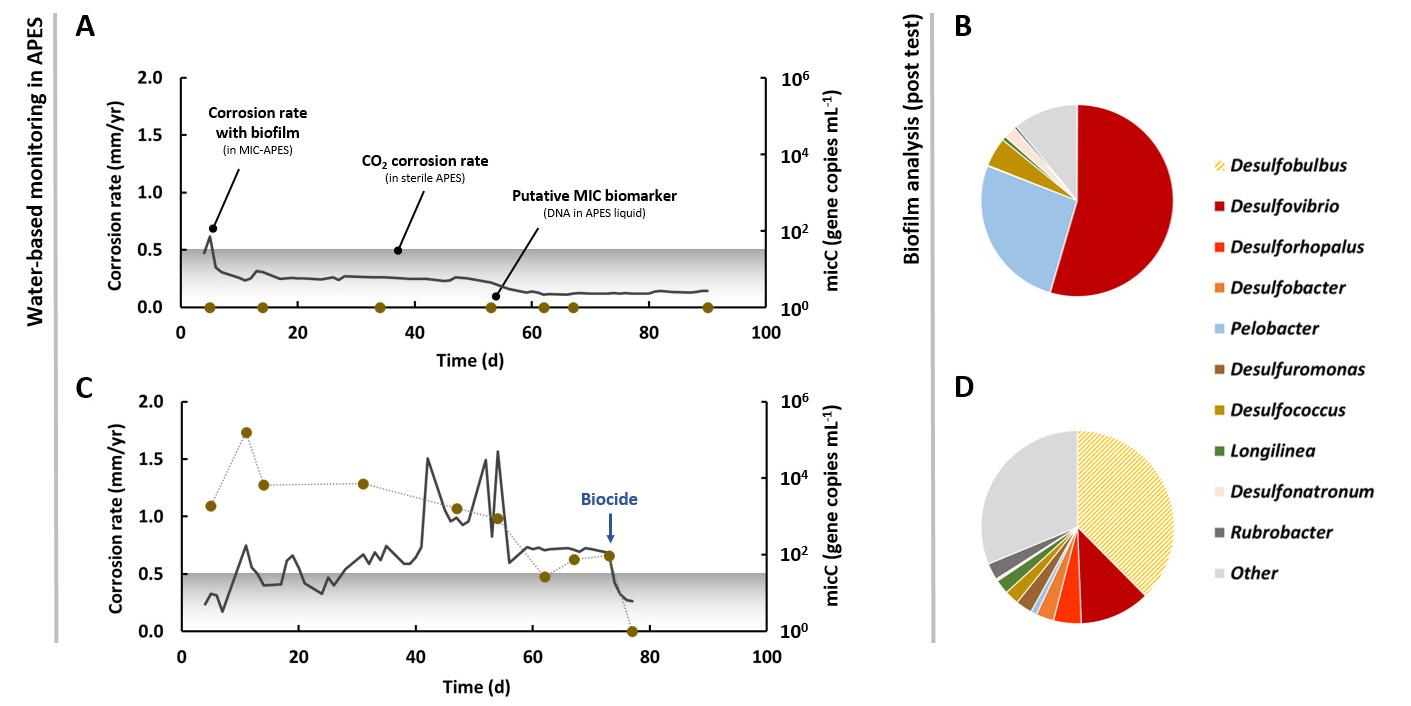

33. Monitoring oilfield pipelines

Susmitha Purnima Kotu and Jose Vera, DNV USA, Sven Lahme, ExxonMobil Corporation, and Sam Rosolina, Microbial Insights, Inc.

53. Altering offshore operations Ross Macfarlane, Fugro, UAE.

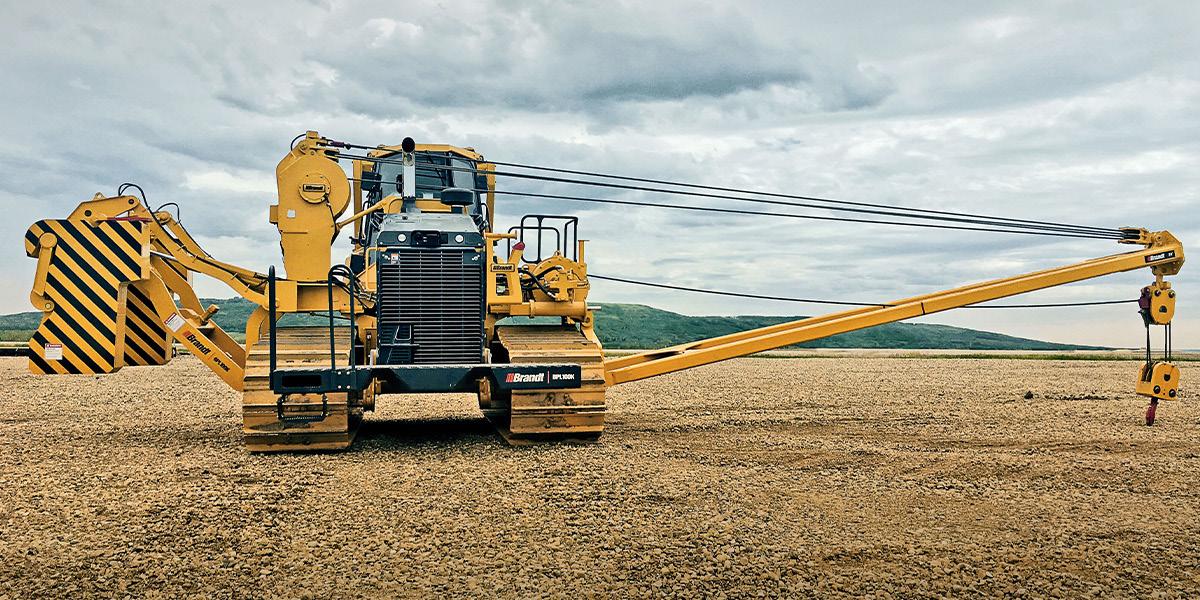

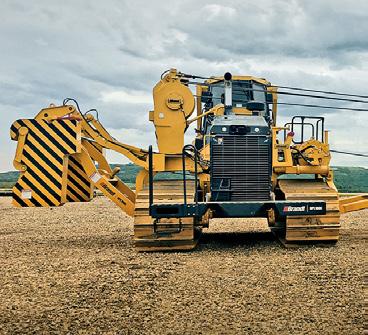

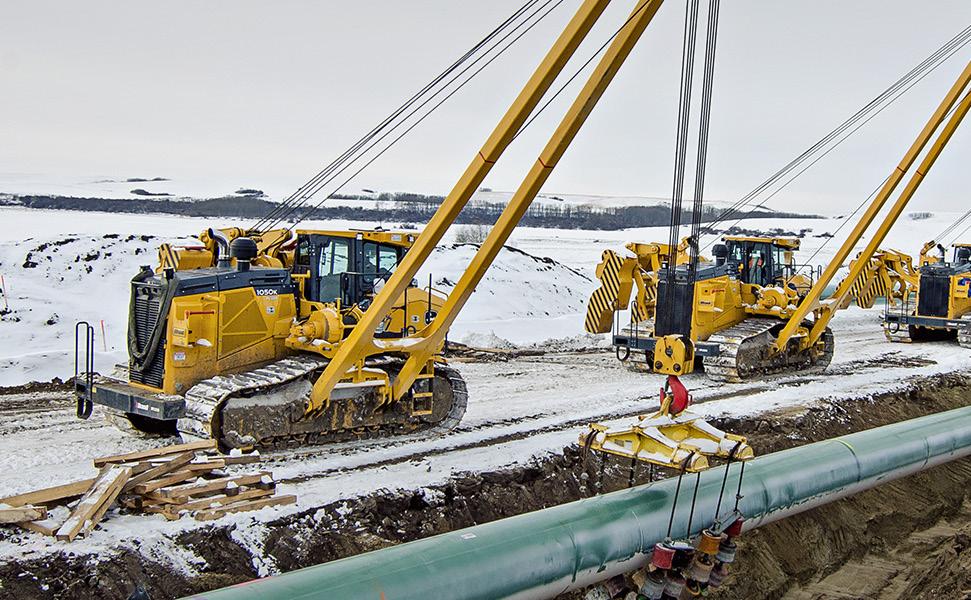

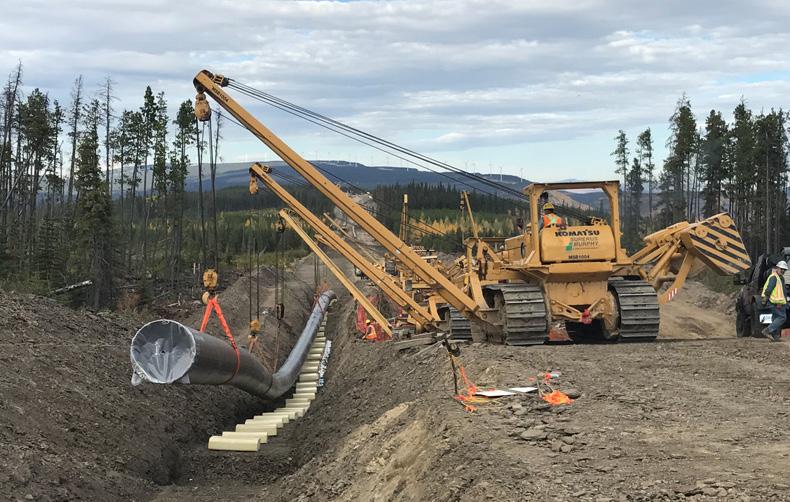

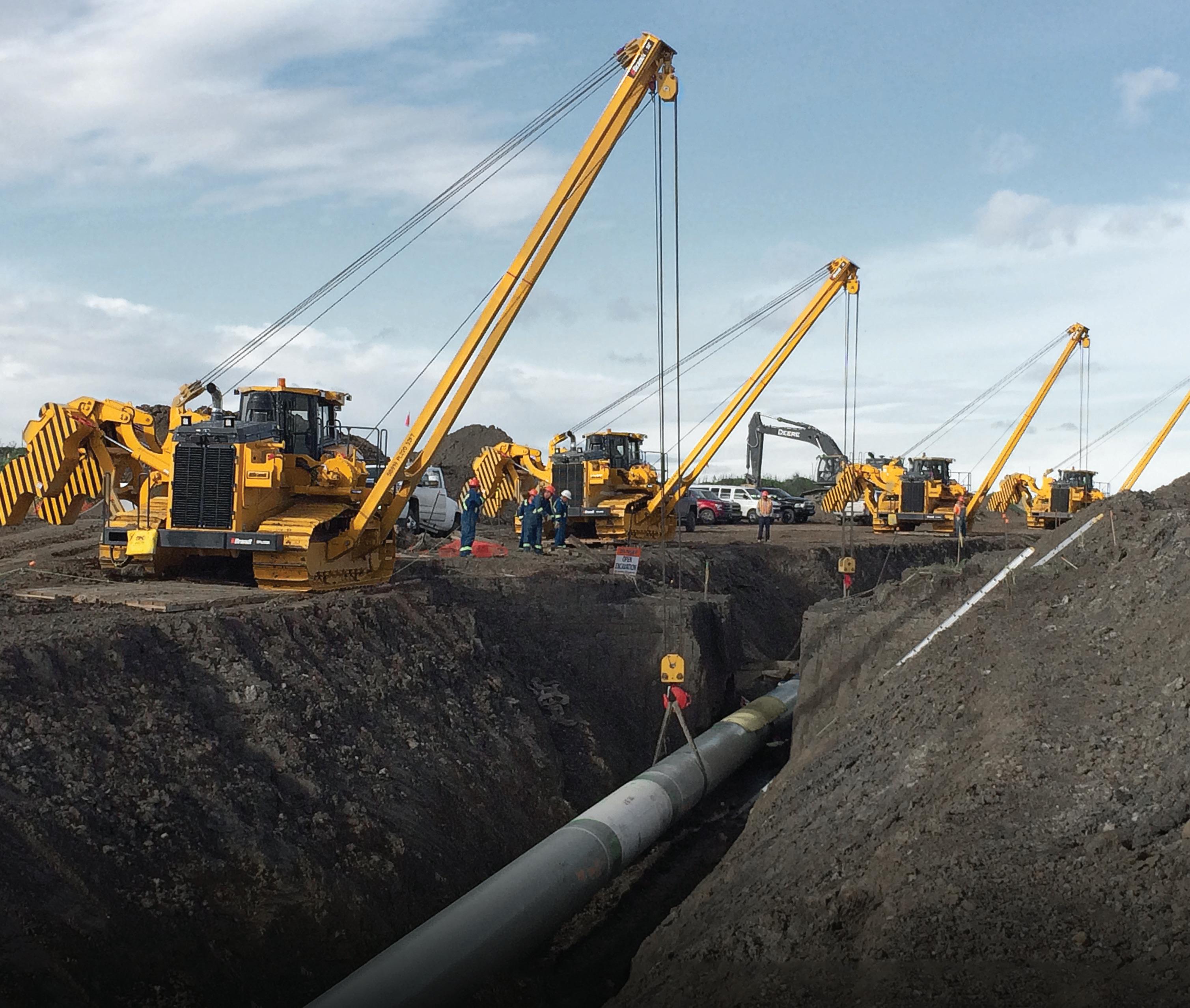

55. Pipelayers Brandt Equipment Solutions, Canada.


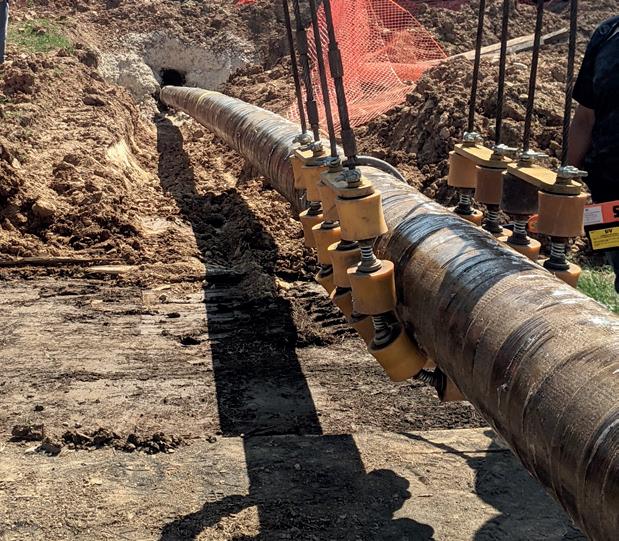

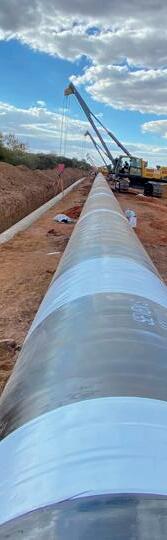

Winn & Coales International Ltd are celebrating 140 years’ service to industry in 2023. Specialising in the manufacture and supply of corrosion prevention and sealing products for over 90 years, the well-known brands of DensoTM and PremierTM offer a cost-effective and long-term solution to corrosion on buried or exposed steel or concrete, pipes, tanks, and structures. Their Denso Bore-WrapTM system, featured on the front cover, was recently selected to protect HDD sections on a natural gas pipeline in Texas, USA.

ISSN 14727390 Member of ABC Audit Bureau of Circulations ON THIS MONTH'S COVER Reader enquiries []
Copyright© Palladian Publications Ltd 2023. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission of the copyright owner. All views expressed in this journal are those of the respective contributors and are not necessarily the opinions of the publisher, neither do the publishers endorse any of the claims made in the articles or the advertisements. Printed in the UK.
Over the last several years, North America’s COVID-19, gyrating demand, the consequences of the Ukraine war, and the move toward net-zero. All the kerfuffle has had knock-on effect in the of constantly changing needs of producers, consumers, governments and NGOs. Two significant pipeline projects are underway on the west coast of Canada; the Coastal GasLink pipeline construction Coastal GasLink 670 km line from the prolific Montney unconventional shale play north eastern British Columbia (BC) to the Pacific port of Kitimat, where will supply up to under construction). The pipeline, which scheduled to come online 2023, has been plagued by sometimes-violent protests ancestral lands. Cost overruns due to labour shortages and logistics related to COVID-19 have also caused the budget to grow from an original CAN$6.6 billion to over CAN$11 billion. Trans Mountain line from 300 000 bpd to 890 bpd) will be major export line delivering crude from Alberta to tidewater in Burnaby, BC. In addition to COVID-related issues, the project and inclement weather; the original price tag of CAN$12.6 billion has increased to an estimated CAN$21.4 billion by the time The Montney shale, which contains an estimated of gas, has enough proposed processing capacity and pipeline expansions to eventually double current levels pipeline systems are being expanded to meet the expected increase. Enbridge has earmarked CAN$1.9 billion to expand its November 2022, announced an open season to its T-North segment, which runs from Fort Nelson in northern BC to southern and eastern consumers. Sufficient consumer interest In December 2022, TC Energy received federal approval to expand its NGTL network by 40 km of new gas pipeline. While the number may be insignificant to the 25 000 km of existing allowing for increased exports to Washington, Oregon, and California states. The West Path Delivery project, expected to new, south-bound capacity. USA on capacity expansions and eliminating bottlenecks. In mid2022, Energy Transfer completed the Ted Collins pipeline, bpd crude line that connects the Nederland terminal Coast. Energy Transfer also commissioned the Cushing South Phase II, 55 000 bpd expansion of the Cushing South project Several major natural gas pipelines were recently completed. Kinder Morgan’s Permian Highway Pipeline (PHP), New pipeline systems for CO sequestration and green hydrogen products offer significant opportunities to midstream companies in the coming decade, suggests Gordon Cope. 10 11 A MEMBER OF WINN & COALES INTERNATIONAL WCD WP Cover_Feb 2023.indd 17/01/2023 09:18 WORLD PIPELINES FEBRUARY 2023 ® Volume 23 Number 1 - February 2023 OFC_WP_February_2023.indd
ith assets distributed across vast and frequently increasingly implementing remote operations centres (ROCs) to monitor their production from afar. But making sense of dispersed operations requires As companies increasingly adopt Software as Service connectivity to data continues to increase. And these technologies play significant role helping organisations connect all of their data, create insights, and improve along with lessons learned from distributed working environments during the pandemic, companies are continuing to progress toward remote operations. many organisations, remote operations powered by digital solutions are key steppingstone toward success. Companies advanced analytics solutions, to drive cultural change across the industry by enabling remote ROCs to perform crucial monitoring activities, for example, exception-based surveillance Barriers to remote operations journey, the first steps toward remote operations are making asset data available throughout the enterprise in near-realengineers and operators become familiar with typical processes and establish operational baselines, centred around the most critical instrumentation and equipment. But even after this Traditionally, engineers reviewed most historical process data using manual tools like spreadsheets. But these are and particularly difficult to scale across more than just few assets, since keeping track of numerous variables is nearly Additionally, spreadsheets provide limited calculation capabilities, restricted sharing and collaboration functionality, and intermittent connectivity to sensors in the field. connectivity, collaboration, analysis, and scalability pain points. Advanced analytics for exception-based Many of the largest oil and gas companies the world are turning to advanced analytics analytics capabilities for subject matter experts (SMEs). These SMEs to identify unique periods of interest in their data, characterised by qualities known as conditions, to identify These conditions can be established by superimposing interest by finding rapid process value changes, specific signals, or trends that exceed static operating limits (Figure 2). This As companies prioritise remote and autonomous operations, advanced analytics applications provide the operational insights, modelling, and data-sharing capabilities to help get there, says Morgan Bowling, Industry Principal, Seeq, USA. 48 49

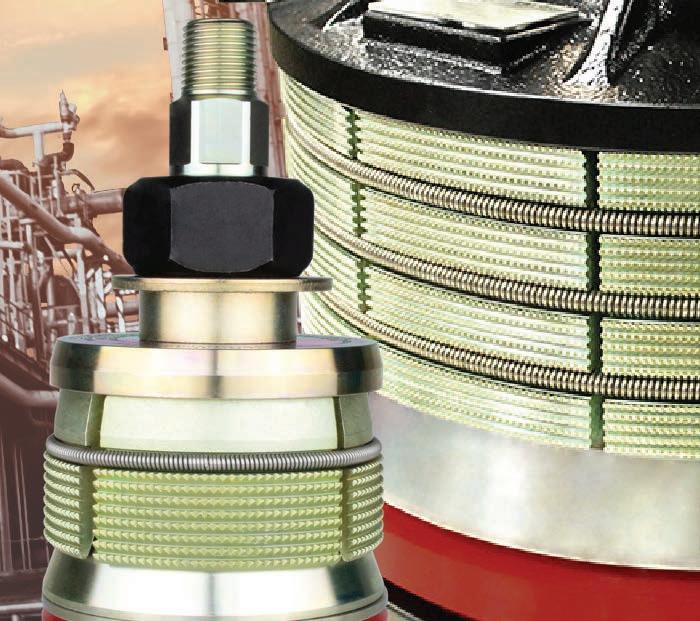

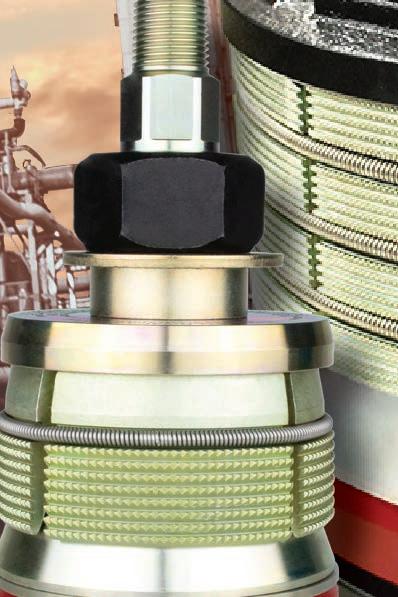

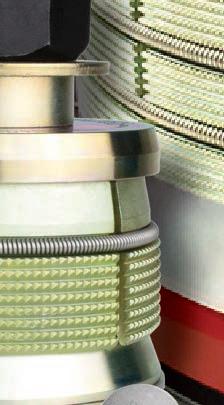

GripTight ® Test & Isolation Plugs

Confidently test open-end pipe, pipelines & pressure vessels without welding, and isolate & test flange-to-pipe weld connections with GripTight Test & Isolation plugs from Curtiss-Wright.

• Standard pressure ratings up to 15,000 PsiG (1034 BarG)

• Patented gripper design for increased safety in high-pressure applications

• Eliminate welding end caps for pressure testing pipe spools and piping systems

• Test flange-to-pipe welds without pressurizing entire systems

• Isolate & monitor upstream pressure and vapors during hot work

• ASME PCC-2 Type I, III & IV Testing Devices

877.503.0768 l l




James Little


Sara Simper



Chris Lethbridge


Daniel Farr


Calli Fabian


Louise Cameron


Stirling Viljoen


Merili Jurivete


Leah Jones


Laura White

Palladian Publications Ltd, 15 South Street, Farnham, Surrey, GU9 7QU, UK

Tel: +44 (0) 1252 718 999

Website: Email:

Annual subscription £60 UK including postage/£75 overseas (postage airmail). Special two year discounted rate: £96 UK including postage/£120 overseas (postage airmail). Claims for non receipt of issues must be made within three months of publication of the issue or they will not be honoured without charge.

Applicable only to USA & Canada:

World Pipelines (ISSN No: 1472-7390, USPS No: 020-988) is published monthly by Palladian Publications Ltd, GBR and distributed in the USA by Asendia USA, 17B S Middlesex Ave, Monroe NJ 08831. Periodicals postage paid New Brunswick, NJ and additional mailing offices. POSTMASTER: send address changes to World Pipelines, 701C Ashland Ave, Folcroft PA 19032

Featured in our news section this month (starting on p.5), is the news that Germany has joined the Mediterranean hydrogen pipeline project. Germany joins its neighbours France, Portugal and Spain in the €2.5 billion H2Med project, which will deliver green hydrogen from the Iberian Peninsula, under the Mediterranean Sea, to the rest of Europe. Expected to be in operation in 2030, the ‘BarMar’ pipeline between Barcelona and Marseille will be capable of transporting 2 million tpy of green hydrogen from Spain, becoming the first ‘green corridor’ in Europe.

H2Med opens up a way to transport renewable gas by sea. By 2050, it is estimated that 20% of all energy in Europe will be renewable hydrogen. Green hydrogen is created by water electrolysis, in a process using renewable energy.

Announced at an EU summit in October 2022, H2Med offers an alternative to the partially built, now abandoned, MidCat pipeline project, which was to have carried natural gas across the Pyrenees from Spain to France. MidCat was cancelled after significant environmental protest, and after Spanish and French regulators rejected investment requests for the project over profitability concerns, and worries about its long-term use.

The new pipeline project paves the way for “the completion of the EU energy market” and to strengthen “the energy transition in the framework of the Green Deal”, according to a statement from the Elysée ahead of a summit last year. According to the French President’s office, the pipeline should still have the capacity to transport, in a “limited” way, natural gas, which it called “a temporary and transitory energy source”.1

Next month’s issue of World Pipelines includes a special feature on green hydrogen pipeline transport. Tree Energy Solutions (TES, Germany) discusses developing a closed loop scenario for CO2 that would facilitate the hydrogen economy. The article states: “A hydrogen backbone is being planned through the EU’s Important Projects of Common European Interest (IPCEI), but until that is ready, we can start by introducing synthetic green methane into the existing natural gas grids.”

In another article next month, Strohm (Netherlands) explains how it sees CCUS as a first step in the transition to sustainable energy, with green hydrogen being the end goal: “Green hydrogen is quickly gaining traction as a scalable alternative fuel that could power a climate-neutral economy. But since it is much less dense than most other energy carriers, it poses a significant and often-overlooked logistics problem –specifically, its transportation from future production sites to points of use.” Strohm is developing pipeline solutions whereby green hydrogen generated at offshore wind turbines can be transported to shore via subsea pipe infrastructure.

Finally, we’ll be featuring a Q&A with Oxford Flow (UK) about repurposing existing gas grids for hydrogen transport, thereby future-proofing gas networks. The piece recognises that “the operational safety implications around transporting, storing and utilising hydrogen are significant.”

As for this month’s issue, our keynote article takes a look at the opportunities for North American midstream companies to diversify in this arena. Gordon Cope outlines the potential for transport of CO2 sequestration and green hydrogen products. Read the article (p.10) to find out how alternative pipeline networks could hold the key to future prosperity in the US and Canadian pipeline sectors.


SENIOR EDITOR Elizabeth Corner


Germany joins H2Med pipeline project

Germany will join a new hydrogen pipeline project between Spain, Portugal and France, according to the Franco-German declaration at the 60th anniversary of the Elysee Treaty (on 22 January).

By 2030, the H2Med project, which will link Portugal, Spain, France, and now Germany, will be able to meet 10% of the hydrogen demand in the EU. The pipeline under the Mediterranean Sea will carry green hydrogen, made from water via electrolysis using renewable energy.

The Spanish government estimates H2Med will be able to supply some 2 million tpy of hydrogen. It comes as Europe scrambles to reduce dependence on Russian energy and shift from fossil fuels to cleaner energy.

At the celebration of the treaty in Paris, German Chancellor, Olaf Scholz and French President, Emmanuel Macron said they were “stepping up our investments in the technologies of

tomorrow, particularly renewable and low carbon energies.”

A joint working group between the two countries will make “recommendations on our strategic choices regarding hydrogen development,” at the end of April 2023.

Macron said after hosting Scholz in Paris, “We started to talk about a strategy for what we want to do on an energy point of view.”

Scholz noted, “We want hydrogen to be available in large quantities and at affordable prices as the gas of the future.”

He added, “This is a technological advance that we can only achieve together. And we have also agreed closely that we want to achieve this together.”

When Madrid, Paris and Lisbon agreed in December to build the pipeline, it was expected to cost €2.5 billion (US$2.6 billion). It isn’t stated how much Germany’s inclusion would add to the costs.

Russian pipeline gas exports to Europe recorded at a post-Soviet low

Reuters reports that Russian gas exports to Europe via pipelines plummeted to a post-Soviet low in 2022.

State-controlled Gazprom, citing CEO, Alexei Miller, said its exports outside of ex-Soviet Union will reach 100.9 billion m3 this year. Russian direct gas exports to Germany, Europe’s largest economy, were halted in September following blasts at the Nord Stream pipelines in the Baltic Sea.

According to the Rosstat government body, Russia’s LNG

production rose by almost 10% in January - November to 29.7 million t. Russia has been increasing its sea-borne LNG sales, thanks mostly to Novatek-led Yamal LNG plant in the Arctic.

Before the Ukraine conflict began, Russia exported around 8 million bpd of oil and oil products. The EU, its biggest buyer, cut purchases in response to the conflict, but Moscow successfully diverted supply to Asia and total exports slipped only slightly to 7.6 million bpd.

Sonatrach to invest US$30 billion to boost pipeline natural gas output

Sonatrach, the Algerian national energy company, plans to invest more than US$30 billion in the exploration and production of hydrocarbons, notably natural gas, and to upgrade facilities to improve its position in global markets for LNG, as well as pipeline gas for Europe.

“As part of Sonatrach’s five year investment plan (2023 - 2027) the sum of US$40 billion has been set aside and more than US$30 billion will be allocated to exploration and production with the objective of increasing production in the short and medium-term, and preparing a portfolio of future projects, in particular for natural gas,” explained Sonatrach CEO, Toufik Hakkar in his 2023 policy statement. He said the company also planned, within the framework of the investment plan, to invest more than US$7 billion in refining, petrochemical, and gas liquefaction projects.

“These projects will promote the creation of added value to Algerian resources and will strengthen our export potential,” added Hakkar. “Nearly US$1 billion will be devoted to projects aimed at the company’s contribution to the energy transition. These include flared gas recovery projects at production sites and the LNG plants at Skikda and Arzew,” explained the CEO. (Arzew and Skikda are liquefaction plants located on Algeria’s Mediterranean coast.)

“Algeria’s objectives through Sonatrach is to become one of the most important sources of gas supply in the world, thanks to our substantial reserves of natural gas and to the recent increases in production,” added Hakkar. “Discoveries in certain gas fields will generate a significant increase in the volumes of gas available for export, both via gas pipelines and LNG carriers,” stated the CEO.

Hakkar said Sonatrach intended to continue developing its gas potential with several projects to be commissioned in the next two years. These include, among others, the Hassi Mouina and Hassi Ba Hamou fields in southwest Algeria, and the Isarène and TFT Sud fields in the southeast of the country.

He added that other projects are planned for 2023 and 2024, notably in Hassi R’mel, Hamra, Ohanet, and Touat, and he said that he invited European countries to commit to long-term gas purchase agreements to guarantee their security of supplies.

Algerian gas supplies are also carried to the EU on the Medgaz pipeline via Beni Saf in Algeria to Almeria in southern Spain. The Medgaz pipeline has been in operation since 2011, is 757 km (470 miles) in length, and has boosted compression to meet demand from Spain.

FEBRUARY 2023 / World Pipelines 5


Corrosion Resistant Alloys, LLC, has fully acquired PipeSearch, a digital technology company powering global tubular solutions.


Wintershall Dea intends to fully exit Russia following a principle decision of the Management Board, approved by the Supervisory Board. The company will leave the country in an orderly manner, complying with all applicable legal obligations.


Azuli International has signed an extension to its MoU with Australian Gas Infrastructure Group (AGIG), under which the two companies will work together to identify, evaluate, and progress carbon capture and storage (CCS) project opportunities in Australia.


Xage Security has unveiled its expansion to secure and transform critical infrastructure operations throughout the Middle East. To accelerate adoption across the region, Xage has also partnered with Dubai-based CyberKnight, the leading zero trust cybersecurity distributor.


A group of leading US natural gas operators have launched the Appalachian Methane Initiative (AMI), a coalition committed to further enhancing methane monitoring throughout the Appalachia Basin and facilitating additional methane emissions reductions in the region. Enhancing methane emissions monitoring in the natural gas sector will assist in positioning companies for continued greenhouse gas (GHG) reductions, and will further underscore the sustainability proposition of Appalachian natural gas in the global energy system.


Gascade and Fluxys plan North Sea hydrogen pipeline

Pipeline operators Gascade and Fluxys are moving forward with plans for a green hydrogen pipeline in the North Sea, by applying to the European Commission to qualify for fast-track approvals and funding.

According to Reuters, the two pipeline infrastructure companies said in a joint statement they are seeking to help to speed up the development of a hydrogen economy.

Germany’s Gascade and Belgium’s Fluxys are seeking project of common interest (PCI) status from the EU, under which they could benefit from accelerated

permissioning procedures and funding. Their 400 km pipeline, called AquaDuctus, could become a collecting path, or ‘backbone’, for electricity output from offshore wind power production sites that would be converted onsite into clean hydrogen via electrolysis plants.

Shipments would start in 2030 from the wind park SEN-1 in the North Sea. In subsequent years, wind farms further offshore in Germany’s exclusive economic zone in the North Sea may be linked up to transport hydrogen from plants operated by other countries, such as Norway or the UK, into Germany.

Uganda approves construction of US $3.5 billion crude pipeline project

The government of Uganda has approved the application to construct a pipeline by the East African Crude Oil Pipeline Company Ltd (EACOP).

The planned pipeline will run 1445 km from landlocked Uganda’s oilfields in the country’s west to Tanzania’s Indian Ocean

port of Tanga. It is expected to transport the country’s crude to international markets. TotalEnergies is the largest shareholder in EACOP with a 62% stake. Other investors are the Uganda National Oil Company, Tanzania Petroleum Development Corporation, and CNOOC.

Nord Stream 2 German subsidiary wound up

The German subsidiary of the consortium behind the Nord Stream 2 gas pipeline has been wound up, according to press reports citing trade registry documents. The winding up of Gas For Europe applies retroactively from 1 January, dissolving an entity set up to seek German certification to allow it to operate.

“The Bundesnetzagentur is not in

touch with Gas for Europe, a spokesperson for Germany’s energy regulator said in a written statement.

“It has no information about a dissolution of the company,” the spokesperson said, but noted a provisional debt restructuring moratorium granted to Nord Stream 2 AG, the company’s Switzerland-based parent, had been extended until 10 January.

Tallgrass completes Ruby Pipeline acquisition

Tallgrass has announced the successful completion of its acquisition of the Ruby Pipeline. The acquisition, which was previously announced in December, extends Tallgrass’ reach to west coast markets and adds 683 miles of modern 42 in. pipeline infrastructure capable of moving 1.5 billion ft3/d to the company’s extensive asset base.

“We moved quickly to close the acquisition and we are eager to bring Ruby and our new teammates into the Tallgrass family,” said Zach Rider, Vice President Commercial and Corporate Development. “This is a strategic asset which brings immediate value to our portfolio.”

Ruby also enhances the value proposition that Tallgrass can offer to its existing and future customers by providing access to nearly every major demand centre across the US, as well as supply basin optionality. It also provides an expanded platform for Tallgrass’ continued efforts to offer innovative decarbonised energy solutions.

“Ruby enables cross-continental optionality and access for our existing customer base while providing Ruby’s customers a new partner with a strong track record of performance,” says Dustin Bashford, Segment President for Natural Gas.

IN BRIEF 6 World Pipelines / FEBRUARY 2023

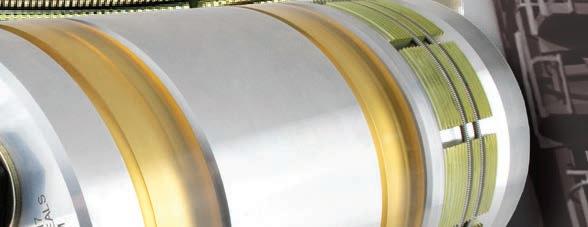

The Remote Tecno Plug® provides fail-safe double block and monitored isolation of pressurised pipelines while the system remains live and at operating pressure.

STATS GROUP Managing Pressure, Minimising Risk
® Non-intrusive
Remote Tecno Plug
ZERO-ENERGY ZONE PIPELINE PRESSURE DUAL Leak-Tight Seals double block & monitor isolation isolated pipeline taper lock grips TYPE APPROVED 10” - 56”



6 - 10 February 2023

Pipeline Pigging and Integrity Management Conference and Exhibition

Houston, USA

7 - 11 February 2023

PLCA Annual Convention

Hawaii, USA

13 - 15 February 2023

Pipeline Coating 2023

Vienna, Austria

20 - 21 February 2023

Transportation Oil and Gas Congress 2023

Istanbul, Türkiye

20 - 25 February 2023

DCA Annual Convention 2023 Miami, USA

19 - 23 March 2023

AMPP Annual Conference + Expo Denver, USA

27 - 29 March 2023

European Gas Conference 2023

Vienna, Austria european-gas-conference

1 - 4 May 2023

Offshore Technology Conference 2023

Houston, USA

Strohm wins second TCP contract with ExxonMobil Strohm has secured a second contract with ExxonMobil to supply more than 24 of its jumpers for the Uaru field development situated offshore Guyana.

This latest award, which is subject to government approval of the project and a Final Investment Decision (FID), follows closely on the heels of a similar campaign confirmed last year with the oil and gas supermajor, and marks the largest commercial agreement in Strohm’s 15 year history. Less than 12 months ago, the business won a TCP ‘Jumper on Demand’ contract for the Yellowtail development, also offshore Guyana.

The TCP bound for the Uaru field – the one of the world’s largest SURF development projects – will be produced at Strohm’s manufacturing facility at its headquarters in the Netherlands, and used for water and gas

Momentum Midstream awards Opero Energy

gas-treating contract

Opero Energy, an affiliate of Audubon Engineering Company LLC, and a leading provider of processing technology and equipment, has announced the award of a major engineering, design, and fabrication contract for Momentum Midstream’s New Generation Gas Gathering (NG3) project in the Haynesville Shale.

With 4000 miles of pipeline and seven processing plants, NG3 will have an initial treating capacity of 1.7 billion ft3/d, expandable to 2.2 billion ft3/d. The project will also include a carbon capture and sequestration (CCS) component to capture and permanently sequester the associated CO2

Perma-Pipe announces JV in Saudi Arabia

Perma-Pipe International Holdings, Inc. has entered into a Joint Venture (JV) with Gulf Insulation Group in the Kingdom of Saudi Arabia to provide pre-insulated piping systems, piping fabrication, internal and external fusion bonded epoxy, 3-layer coating services, and leak detection systems for customers in the Kingdom of Saudi Arabia, Kuwait and Bahrain. This JV will be positioned to participate in Saudi Vision 2030, a strategic framework to diversify the Saudi Arabian economy through development of the public services sectors such as health, education, infrastructure, recreation and tourism.

(WAG) injection. The technology will be supplied to ExxonMobil Guyana in a single continuous length along with associated pipe handling equipment.

This concept and delivery method allows the individual 24+ jumpers to be cut to the desired length, terminated, and tested onsite in Guyana. The jumpers, made of carbon fibre and PA12 polymer, will be installed in deepwater, at depths over 1700 m operating in the region of 10 000 psi.

Strohm’s in-country specialist field service technicians will mobilise to Guyana as the jumper termination campaigns are called off over the duration of the deployment programme.

The use of TCP manufactured by Strohm also allows clients the ability to significantly reduce the CO2 footprint of their pipeline infrastructure.


• Unmanned underwater vehicles industry projected to reach US$7.4 billion by 2027

• Vincent Dicosimo elected Chairman of Texas Pipeline Association

• OPITO names 2022 Apprentice of the Year

• Cadent and National Grid look to kickstart the hydrogen economy

• Equinor and RWE to collaborate

Follow us on LinkedIn to read more about the articles

8 World Pipelines / FEBRUARY 2023

New pipeline systems for CO2 sequestration and green hydrogen products offer significant opportunities to midstream companies in the coming decade, suggests Gordon Cope.


Over the last several years, North America’s energy industry has been struggling to deal with COVID-19, gyrating demand, the consequences of the Ukraine war, and the move toward net-zero. All the kerfuffle has had a knock-on effect in the pipeline sector, as operators scramble to meet the myriad of constantly changing needs of producers, consumers, governments and NGOs.


Two significant pipeline projects are underway on the west coast of Canada; the Coastal GasLink pipeline construction and the Trans Mountain crude pipeline expansion (TMX). The Coastal GasLink is a 670 km line from the prolific Montney unconventional shale play in north eastern British Columbia (BC) to the Pacific port of Kitimat, where it will supply up to 2.1 billion ft3/d of gas to Shell’s LNG Canada plant (currently under construction). The pipeline, which is scheduled to come online in 2023, has been plagued by sometimes-violent protests from First Nations factions opposed to the ROW crossing ancestral lands. Cost overruns due to labour shortages and logistics related to COVID-19 have also caused the budget to grow from an original CAN$6.6 billion to over CAN$11 billion.

The TMX (which will increase the capacity of the original Trans Mountain line from 300 000 bpd to 890 000 bpd) will be a major export line delivering crude from Alberta to tidewater in Burnaby, BC. In addition to COVID-related issues, the project has also been plagued by protests and inclement weather; the original price tag of CAN$12.6 billion has increased to an estimated CAN$21.4 billion by the time it is completed in late 2023.

The Montney shale, which contains an estimated 450 trillion ft3 of gas, has enough proposed

processing capacity and pipeline expansions to eventually double current levels of production of 5.8 billion ft3/d to 11.5 billion ft3/d. Several pipeline systems are being expanded to meet the expected increase. Enbridge has earmarked CAN$1.9 billion to expand its westcoast natural gas system that services BC and Alberta. In November 2022, it announced an open season to its T-North segment, which runs from Fort Nelson in northern BC to southern and eastern consumers. Sufficient consumer interest could result in an additional 500 million ft3/d of capacity.

In December 2022, TC Energy received federal approval to expand its NGTL network by 40 km of new gas pipeline. While the number may be insignificant to the 25 000 km of existing lines, the new project eliminates a bottleneck in the system, allowing for increased exports to Washington, Oregon, and California states. The West Path Delivery project, expected to be completed by late 2023, will create over 250 million ft3/d of new, south-bound capacity.


In the US, crude pipeline construction has recently focused on capacity expansions and eliminating bottlenecks. In mid-2022, Energy Transfer completed the Ted Collins pipeline, a 275 000 bpd crude line that connects the Nederland terminal to the Houston Ship Channel, both located in the Texas Gulf Coast. Energy Transfer also commissioned the Cushing South Phase II, a 55 000 bpd expansion of the Cushing South project that transports crude from Colorado to Cushing, Oklahoma, and then south to Nederland.

Several major natural gas pipelines were recently completed. Kinder Morgan’s Permian Highway Pipeline (PHP), a 430 mile pipeline that delivers 2.1 billion ft3/d from the Waha Hub in the Permian basin of west Texas to the Gulf Coast, where it has additional connections to Mexico’s interstate pipeline network. Whitewater/ MPLX’s Agua Blanca Expansion Project, located in the Delaware Basin of Texas, transports 1.8 billion ft3/d to the Waha Hub. The Whistler Pipeline moves 2.0 billion ft3/d of natural gas from the Permian Basin to the Texas Gulf Coast.

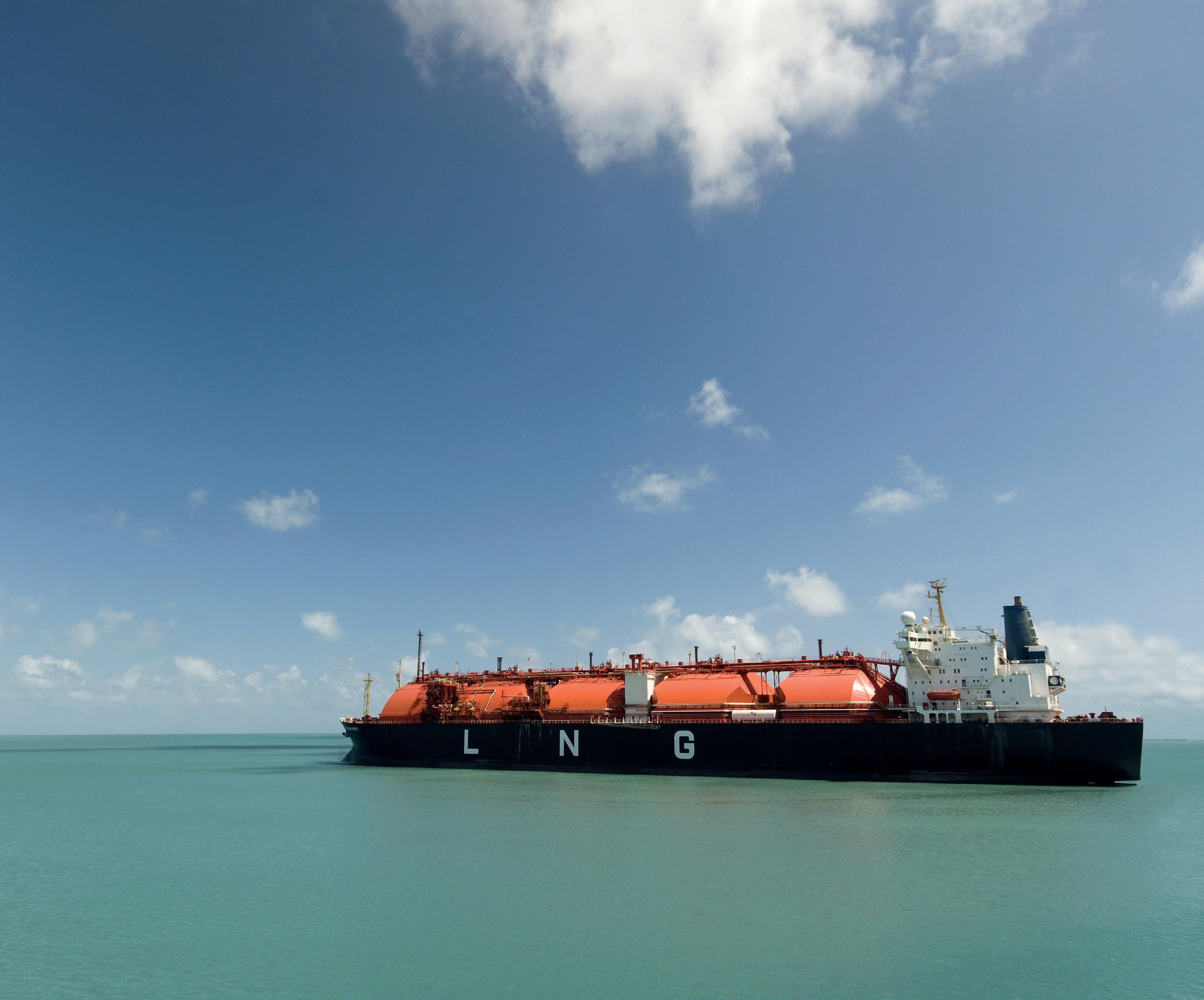

The next wave of pipeline activity is expected to ensue as LNG producers scramble to deliver product to Europe; in the wake of the Ukraine war, consumers are signing long-term deals to ensure security of supplies.

When the first tranche of LNG development occurred in the US, feedstock was in abundant supply from several basins. Pipeline reversals brought gas from the Utica/Marcellus plays south to the USGC, and new-build in the Permian supplied associated gas from unconventional oil plays.

Now, an estimated 100 million tpy of new projects, representing over 14 billion ft3/d, is on the planning boards, and the focus has shifted to where that new supply might originate. Due to pipeline-building constraints in the Eastern Seaboard, the most likely growth is expected to occur in Texas and Louisiana, where the Permian/Eagle Ford output (currently at 17 billion ft3/d), is expected to surpass 30 billion ft3/d in a decade, and the Haynesville (currently around 15 billion ft3/d), to exceed 20 billion ft3/d.

Several expansions and new pipelines are planned to enter service in the next several years. WhiteWater and partners expect the Matterhorn Express to enter service in late 2024. The 490 mile line will deliver up to 2.5 billion ft3/d from the Waha Hub in west Texas to Katy, Texas, near Houston. The company is also expanding its Whistler Pipeline by 500 million ft3/d, to 2.5 billion ft3/d.

Kinder Morgan is adding compression to its Gulf Coast Express Pipeline to increase capacity from 2 billion ft3/d to 2.55 billion ft3/d, and is expanding capacity on its PHP by 500 million ft3/d, to 2.65 billion ft3/d. Both projects are expected to be completed by late 2023.

In June 2022, Williams reached an FID to build the Louisiana Energy Gateway, a 1.8 billion ft3/d Greenfield project designed to deliver gas from the Haynesville basin to LNG projects on the Gulf Coast. The US$1.5 billion pipeline is expected to enter service in late 2024. In November 2022, TC Energy announced that it would build the Gillis Access project to connect the Haynesville basin to LNG markets. The US$400 million line, which will move up to 1.5 billion ft3/d, is expected to enter service in 2024. In December 2022, Energy Transfer received approval to begin operations on the 135 mile Gulf Run, a 1.65 billion ft3/d pipeline that links basins in Texas, Louisiana, and Arkansas to the US Gulf Coast.

Legal and regulatory problems

Due to their multi-jurisdictional nature, environmental activists intent on eliminating oil and gas usage find pipelines a tempting legal target. Enbridge’s Line 5 transports 540 000 bpd from Canada (and North Dakota) through Michigan to Ontario and Quebec. In late 2020, Michigan Governor, Gretchen Witmer ordered Line 5 to shut down operations by 13 May 2021, due to the potential for spills where it passes under the Straits of Mackinac in the Great Lakes.

As an international pipeline, Line 5 is governed by the 1977 Transit Pipelines Treaty, which contains provisions guaranteeing uninterrupted transit of light crude oil and NGLs between Canada and the US. In October 2021, Ottawa invoked Article Six of the treaty to instigate bilateral negotiations with the US federal government.

In August 2022, Canada invoked the treaty for a second time in regards to Line 5, this time in Wisconsin where it skirts the

southwestern shores of Lake Superior. The line passes through the Bad River Reservation; band members had sought a summary judgement against Enbridge that would have shut the line down without a trial. Enbridge has stated publicly that it is endeavouring to find a solution to the band’s concerns by re-routing the ROW. In November 2022, a Wisconsin judge denied the request to shut the line down and ordered the two sides to seek solutions that would mitigate the risks of a spill while continuing operations.

The Mountain Valley project, a gas pipeline that is designed to move 2 billion ft3/d from West Virginia to consumers in Virginia and the south Atlantic, languishes on. First proposed in 2018, the line was estimated to cost US$3.5 billion, but a 5 km stretch of the 488 km ROW passes through Jefferson National Forest and, in early 2021, the US Court of Appeals (4th Circuit) vacated the US Forest Service and Bureau of Land Management decisions to allow access. In August 2022, Joe Manchin, a Democrat senator from West Virginia, got the White House’s agreement to tack on an amendment to a multi-billion tax and climate bill that would streamline the completion of the pipeline. The vote failed to pass the Senate in December 2022, however, and the project remains in limbo as costs balloon past the US$6 billion mark.

Alternative pipeline networks

In 2021, the government of Canada enacted the Canadian NetZero Emissions Accountability Act that provides a legally-binding roadmap to achieve net-zero greenhouse gas (GHG) emissions by 2050. The Act also specifies that emissions are to be reduced up to 45% of 2005 levels by 2030. That same year, the Biden administration announced a target to reduce US GHG emissions by 50% of 2005 levels by 2030.

State and federal incentives, including a low-interest loan programme passed by Congress in 2021, is incentivising CO2 pipeline projects in the US. Summit Carbon Solutions is proposing an extensive CO2 pipeline network to capture the gas produced in Iowa ethanol plants and sequester it in North Dakota. The 2000 mile network is estimated to cost US$2 billion; it would capture up to 12 million tpy (the equivalent of 2.6 million cars), significantly reducing the carbon footprint of the biofuel. Continental Resources, the largest driller in North Dakota, pledged US$250 million towards construction costs.

In addition, the White House set out an ambitious target of promoting hydrogen as a clean fuel source, ear-marking billions of dollars to subsidise the cost of green hydrogen and develop infrastructure.

Hydrogen can be mixed with existing natural gas lines up to around 25% without causing undue complications. Southern California Gas (SoCalGas) and San Diego Gas & Electric (SDG&E) have announced plans to experiment with blending hydrogen and natural gas for customers in California. The US$35.3 million demonstration project would see a 5% hydrogen mix used by residential and commercial buildings. The Sierra Club has voiced its opposition to the project, stating that burning hydrogen would not significantly decarbonise buildings, while posing a hazard risk due to embrittlement.

SoCalGas is also developing Angeles Link, a dedicated, green hydrogen pipeline system that could deliver up to 25% of the

12 World Pipelines / FEBRUARY 2023


to overcome the most diffi cult obstacles, and learn from my victories and defeats. To push forward tirelessly until I succeed.

It is who I am. I am a pipeliner.

We are pipeliners too.

We share this mission and, like you, we are committed to keeping pipelines running safely and reliably. By providing end-to-end integrity solutions — from pre-in-line inspection cleaning to actionable inspection results — TDW helps you maximize the return on investment from your integrity assessments.

The world counts on you. You can count on us.

For the life of your pipeline.

©2022 T.D. Williamson

company’s current gas capacity. Potential customers include electric utilities, heavy transportation, and industry. The system has the potential to displace the equivalent of 3 million gal./d of diesel.

Details are still scarce, but the pipeline system would likely originate in the desert east of Los Angeles where contracted firms would generate hydrogen using abundant wind and solar power and electrolyzers. The pipeline would terminate within the Los Angeles basin near current utility plants or the port of Los Angeles, where approximately 20 000 heavy-duty trucks shift cargo.

SoCalGas, which has an internal commitment to decarbonise its operations by 2045, intends to spend 2023 working to further define the project scope. The company notes that the federal allocation of US$8 billion for the creation of hydrogen hubs is likely to generate wide general interest in their plans. “We see Southern California as a logical location for a hydrogen hub,” said Neil Navin, Vice President of Clean Energy Innovations at SoCalGas. “And we would certainly be looking to work with partners to pursue those funds.”1

When hydrogen content exceeds 25%, it can cause damage to conventional gas networks, and special hardened steels are required to maintain safety. The US has approximately 1600 miles of existing hydrogen pipelines, most of which are located in the refinery and petrochemical corridor along the USGC in Texas and Louisiana. Most of the hydrogen is created using traditional, carbon-intensive processes, but plans are underway to create green hydrogen.

Renewable fuels developer HIF Global has plans for a US$6 billion green hydrogen fuel plant in the Bay City area

of Texas. When completed in 2026, the plant will produce 200 million gal./yr of green fuels. Air Products and partners are building a US$4 billion plant in Wilbarger County, Texas, to produce 200 tpd of green hydrogen. Air Products and partners are building a US$4 billion plant in Wilbarger County, Texas, to produce 200 tpd of green hydrogen. OCI N.V., based in the Netherlands, is constructing a US$1 billion blue hydrogen plant in Beaumont, Texas. While output from the new hydrogen facilities will primarily flow through the dedicated lines currently servicing refineries, petrochemical and fertilizer plants, opportunities for pipeline expansion will arise as new facilities seek low-carbon feedstock and energy inputs.


In conclusion, while the turmoil due to COVID-19 has greatly receded, its effects can still be seen in elevated capital expenditures on new build in North America. Environmental opposition to oil and gas also continues to push up costs and delay projects. Growing demand for LNG in Europe is driving new gas line expansions, both in the USGC and Western Canada. New pipeline systems for CO2 sequestration and green hydrogen products also offer significant opportunities to midstream companies in the coming decade. While there is no lack of challenges, prospects for the pipeline sector look promising for the coming decade.

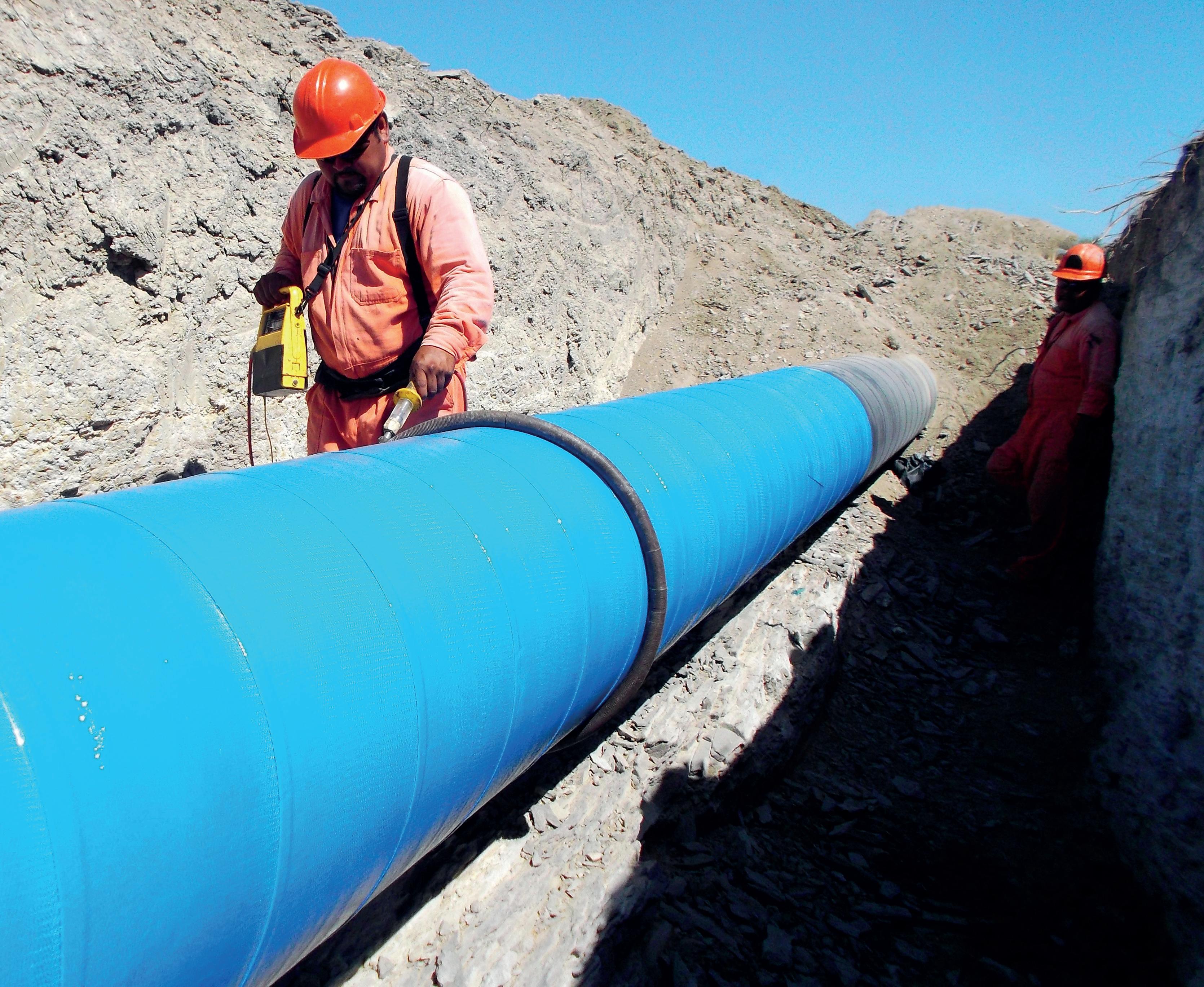

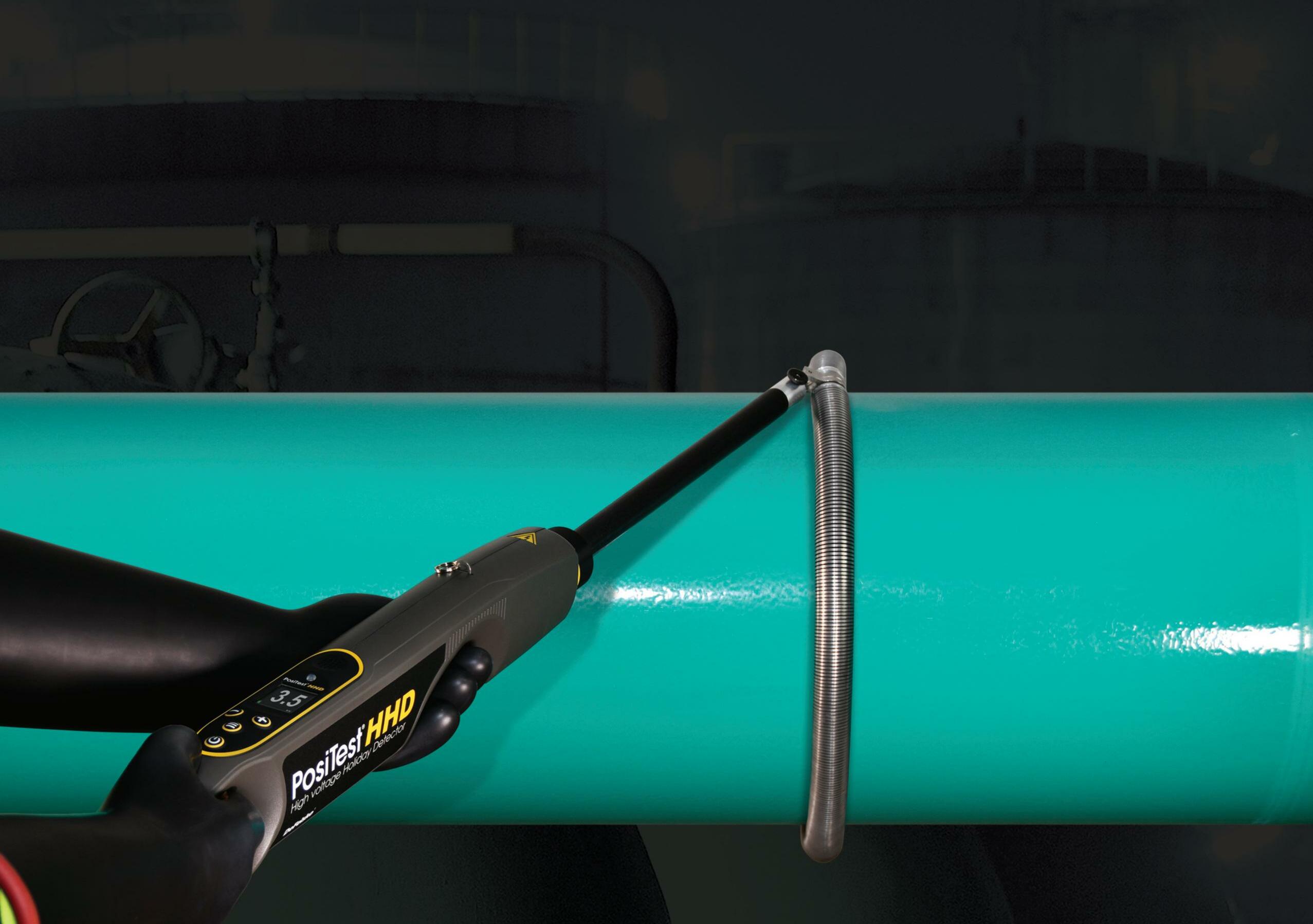

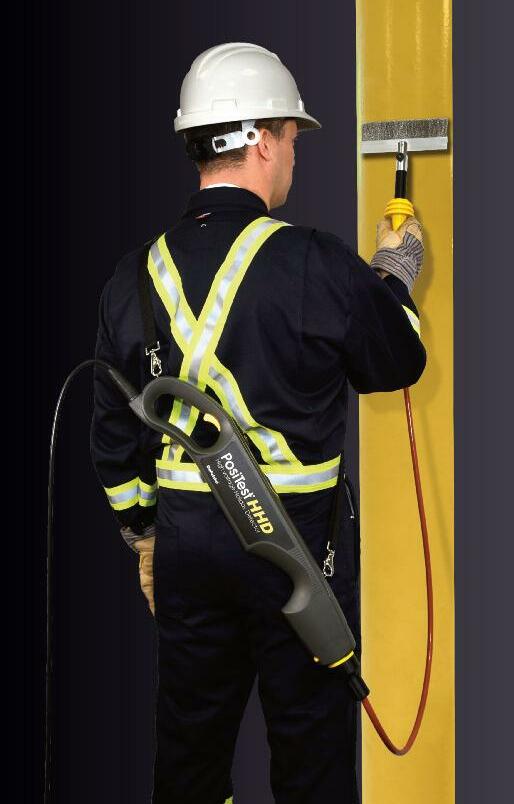

Detects holidays, pinholes and other discontinuities using pulse DC NEW High voltage Holiday Detector Choose from a wide range of rolling spring and wire brush electrodes custom sizes available n Lightweight, ergonomic design reduces operator fatigue n Regulated pulse DC voltage output ±5% accuracy n Industr y-standard connectors and adaptors for compatibility with nearly all existing electrodes n Voltage calculator feature choose one of 11 international standards, and input the coating thickness to automatically calculate the required test voltage n Removable smart lithium-ion batteries provide long-lasting power 1-800-448-3835 Ogdensburg, New York USA l Tel: +1-315-393-4450 l Email: techsale@defelsko com Optional
handheld wand accessor y converts the detector into a wand configuration ideal for testing hardto-reach

Julie Holmquist, Cortec® Corporation, USA, considers corrosion control during pipeline construction and delays.

Pipeline construction can take several years or more, especially if the project is delayed by problems with permitting, accidents, or environmental issues, to name a few. One NGL pipeline that was recently completed took five instead of three years to finish due to complications from a drilling mud fluid spill.1 The cost of any such delay is massive. For example, one pipeline development company claimed to have lost US$583 million in project value simply due to legal delays, with ROW maintenance costing close to US$20 or US$25 million per month.2 Yet another pipeline faced an increased price tag of US$1.1 billion at one point after regulatory delays and winter, environmental, and COVID-19 issues affected construction costs.3 In short, delays are both common and expensive.

One side effect of delays that can be avoided is the loss of asset value due to corrosion. Delays mean that assets sit outside for extended periods, often unprotected and exposed to the elements, at high risk of corrosion. Considering that capital costs of crude oil pipeline construction can be between

US$500 000 and US$800 000 per mile, the stakes of losing assets to corrosion are high.4 However, delays or no delays, corrosion is always a threat to asset integrity and value during the pipeline construction period and thereafter. Fortunately, protection does not have to be complicated, as Cortec® demonstrates by its vapour phase corrosion inhibitor technology and related strategies that offer corrosion inhibition through multiple stages of pipeline construction and unwelcome delays.

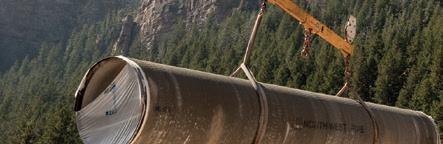

Pipeline segment protection

The most obvious place where corrosion protection is needed is inside pipeline segments. Although typically protected with a special coating on the outside, pipeline internals are often left bare and open to the environment (Figure 3). On the outside, weld ends are left uncoated and more susceptible to corrosion. Pipe segments sit outside in staging yards by the hundreds until they can be installed. Depending on how quickly the project is moving, this could mean weeks to years for thousands of pipe segments to be left exposed to the elements. Considering that line pipe and equipment could make up 23.8 - 27.2% of crude oil pipeline capital costs, the loss of these assets to corrosion could be a significant financial impairment.5

In contrast, protection is relatively simple and cost-effective with vapour phase corrosion inhibitors that can be used to protect pipe segment internals during shipping, transit, and outdoor

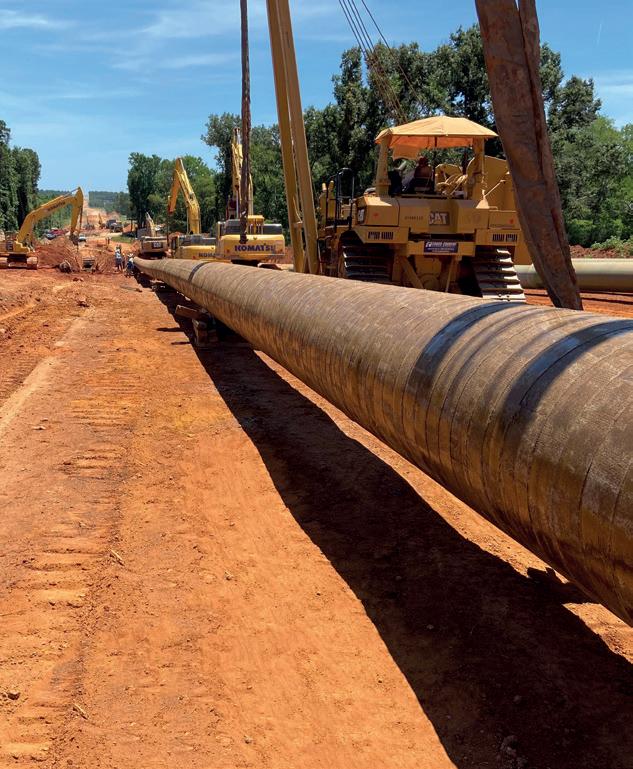

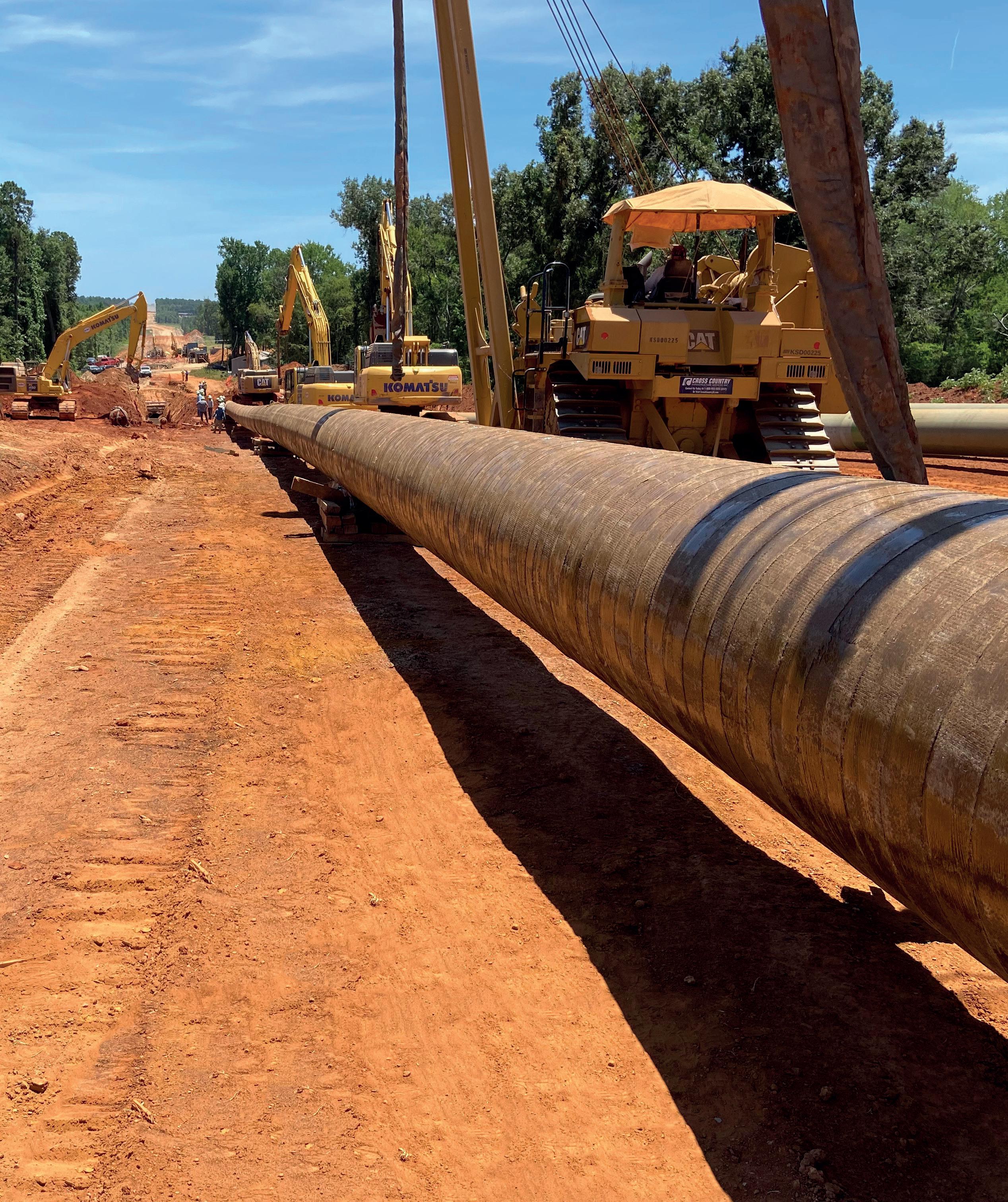

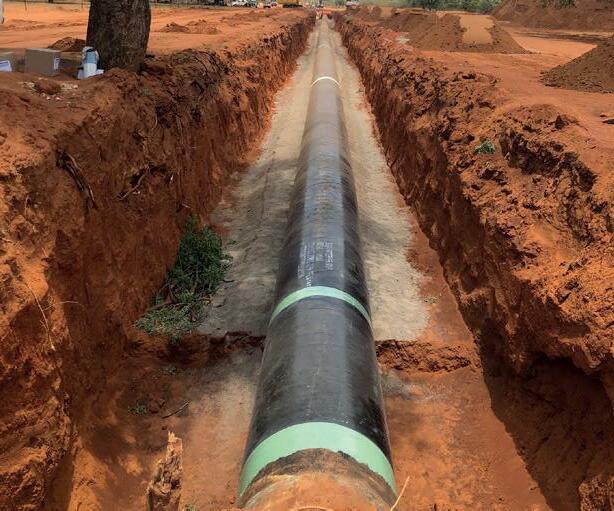

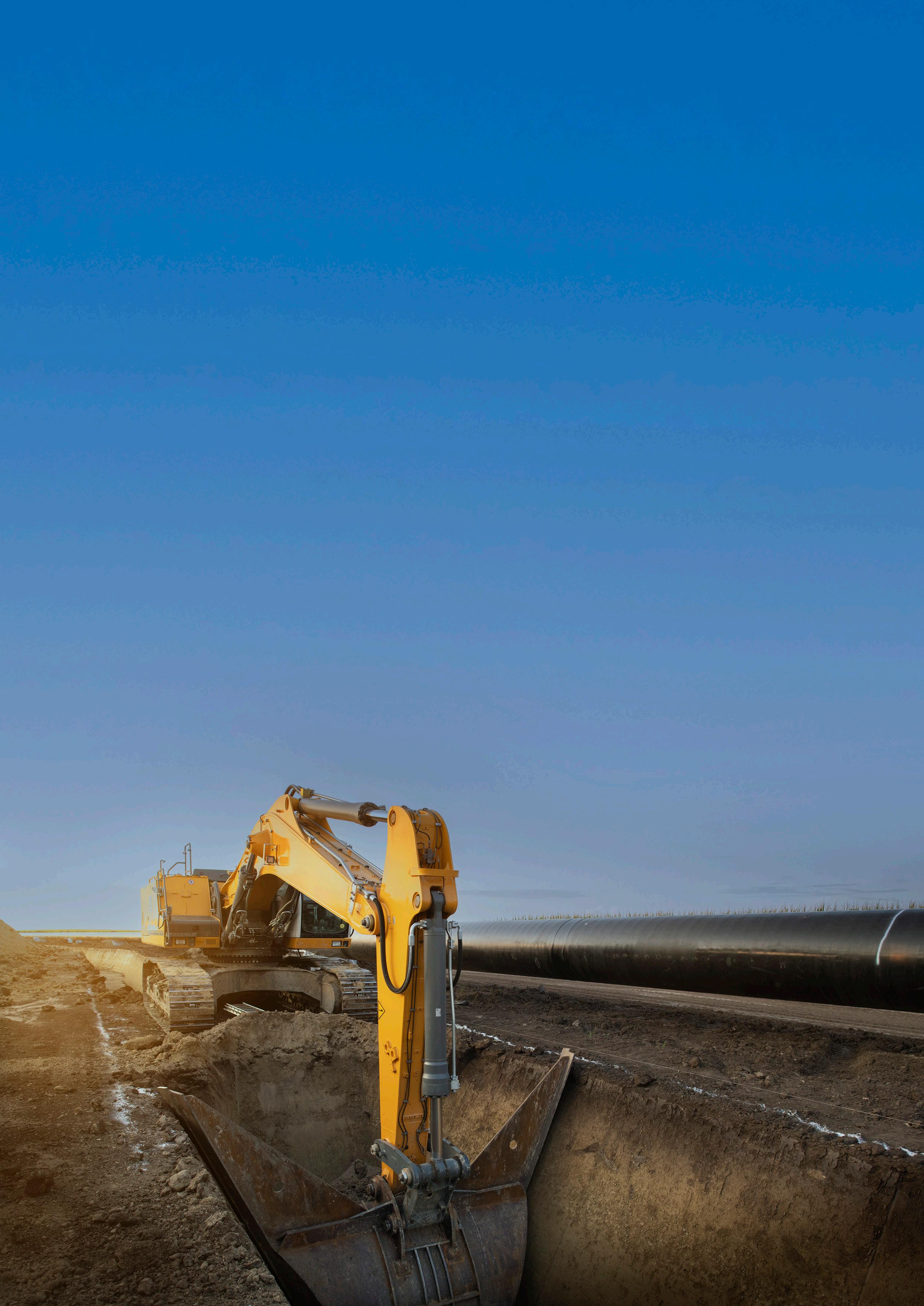

Figure 1. Heavy equipment is critical for many aspects of pipeline construction, not least of which is digging a trench for pipeline placement.

storage. Typically based on salts of amine carboxylates, vapour phase corrosion inhibitors come in many forms but work in the same basic way. These inhibitors vaporise and diffuse throughout an enclosed space until they have achieved equilibrium. When there is no more room in which to disperse, the vapour phase corrosion inhibitors give into their metal attraction and begin to adsorb onto the metal surfaces in a molecular protective layer (Figure 2). As long as the void remains closed – or even if it is briefly opened – the ambient vapour phase corrosion inhibitors continue to replenish the protective molecular layer. Removal and cleaning of the layer is typically not needed before asset commissioning, although compatibility should be verified with each specific product.

One of the newest forms of vapour phase corrosion inhibitor technology is CorroLogic® Fogging Fluid VpCI®-339. This 100% vapour-phase inhibitor product can be fogged into pipe segments and trapped inside by capping the ends for one to two years of protection. Once the caps are opened, the vapour phase

corrosion inhibitors begin to dissipate and there is typically no need for manual corrosion inhibitor removal before pipeline installation.

EcoPouch® is another form of vapour phase corrosion inhibitor application that can be added before transit or storage. This was used in Malaysia for an oil and gas project that needed 24 months of corrosion protection inside pipe spools that would be stored in a harsh environment. EcoPouch contains VpCI-609 powder in a breathable pouch that allows the vapour phase corrosion inhibitors to escape (Figure 4). Two EcoPouches were inserted into each pipe spool before the ends were capped, trapping the vapour phase corrosion inhibitors inside. This offered an easy and clean method of protection as the pouches could be taken out whenever necessary.6

In another case, a subsea LNG pipeline project needed internal protection of 1300 pipeline segments that would be stored outside for 12 - 18 months. The pipeline segments were externally covered in cement for sea floor ballasting, but pipe internals and cutbacks were exposed, and light rust had already started to form in some segments. A vapour phase corrosion inhibitor fogging fluid was applied inside the pipes. External ends were coated with VpCI-389 water-based corrosion inhibitor coating. VpCI-126 Film was then tightly secured on the ends. Upon early inspection it was found that existing corrosion had been arrested and pipes that were initially corrosion free remained so.7

The previous example brings up the important point of coating pipeline weld ends. While ends are often left uncoated to make welding easier, they are also more likely to develop corrosion that must be ground off to provide a clean weld surface when welding does take place. This extra hassle can be avoided by protecting ends with an inobtrusive Cortec VpCI coating. VpCI-391 is a clear water-based temporary coating that dries to a nontacky film. If desired, it can be cleaned off with an alkaline cleaner prior to welding. This eliminates some of the extra steps, such as grinding, that are often necessary to remove rust and ensure a clean weld surface.

Preservation of valves and other critical assets

Valves are another example of pipeline components that can be expensive and may sit outside while awaiting installation. Preservation of these critical assets can be done even before they arrive at the construction site, as seen by one pipeline valve and fitting surplus company that inventories new components acquired from oil and gas companies. Standard procedure for protecting this inventory, which sometimes includes assemblies of more than 40 000 lb (18 144 kg), is to place a source of vapour phase corrosion inhibitors inside (e.g. VpCI-111 Emitters or EcoAir® 337 fogging fluid) and cover openings with VpCI-126 bags or film. Those stored outside use custom VpCI-126 HP UV bags.8 Depending on how long the equipment has already been outside at the supplier or is expected to sit outside at the staging site, pipeline components preserved in this way may not even need reapplication of preservation materials for one to two years after they have been transported to the field.

Heavy equipment protection

Pipe segments are not the only metals in need of corrosion protection at a pipeline jobsite. The quantity of heavy equipment

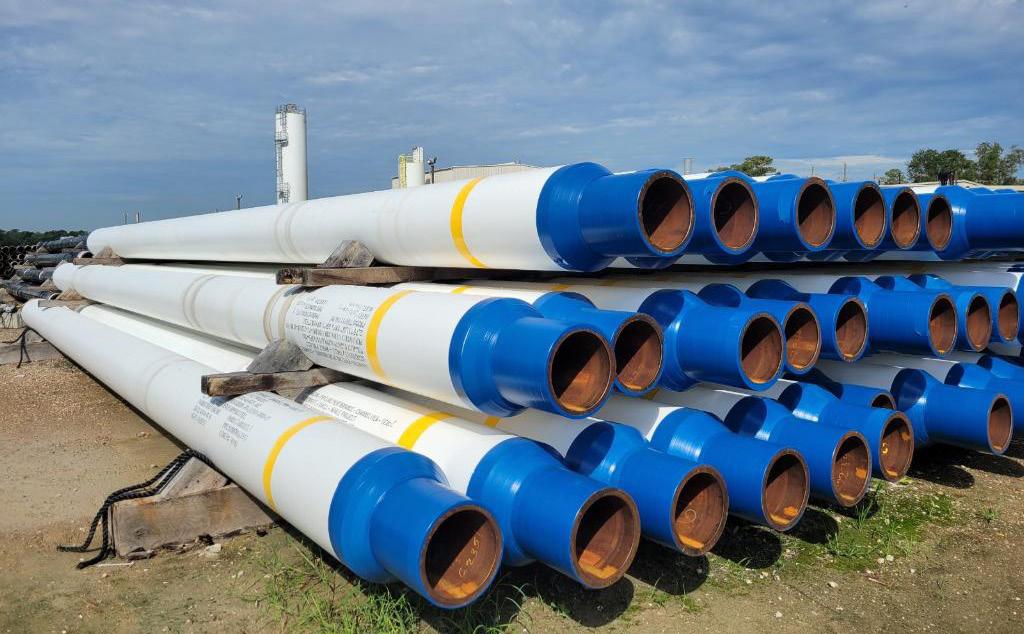

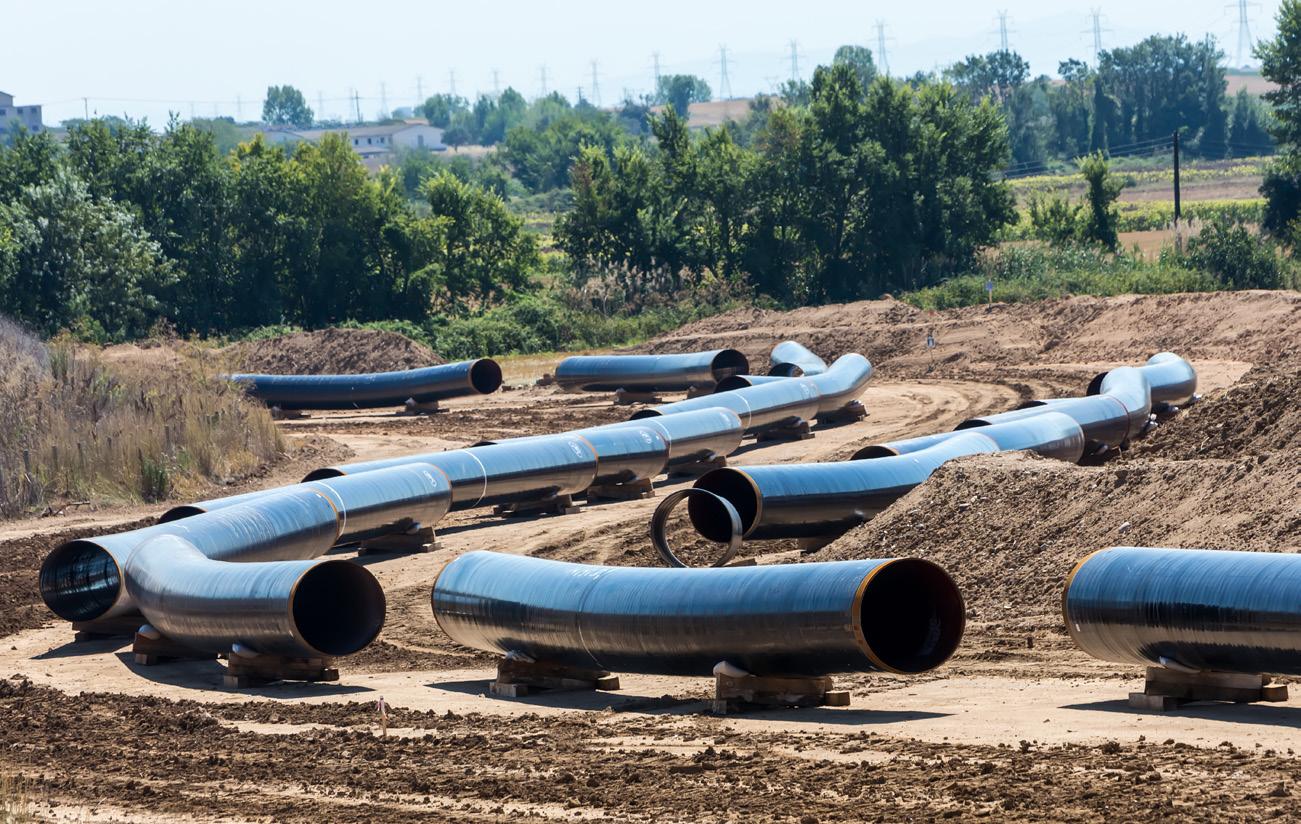

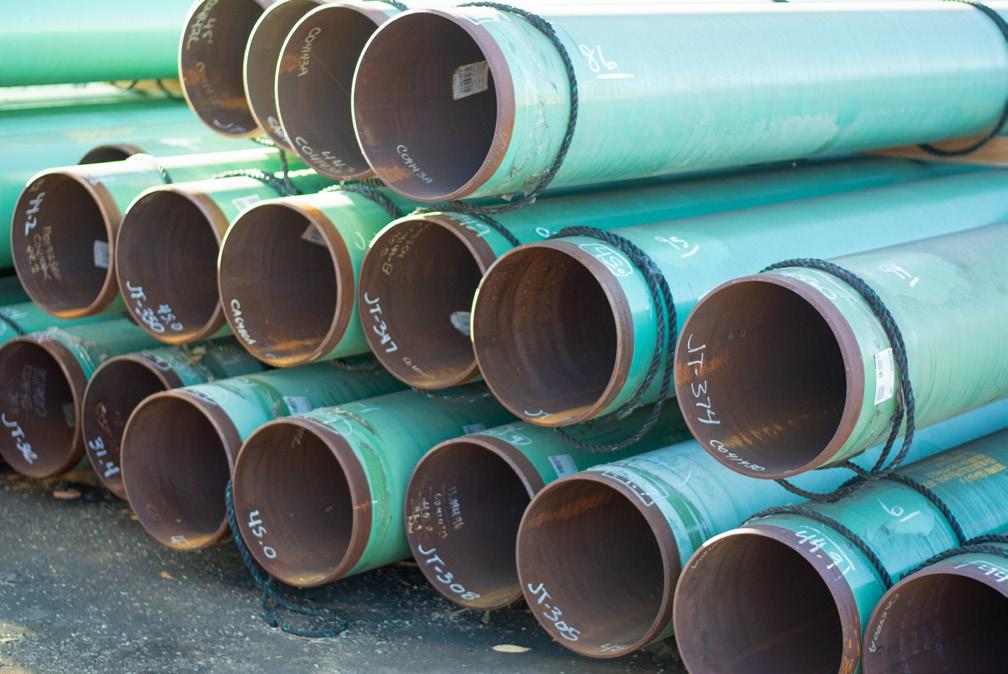

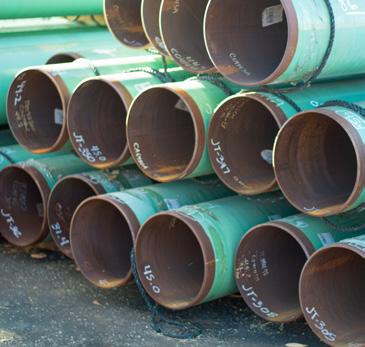

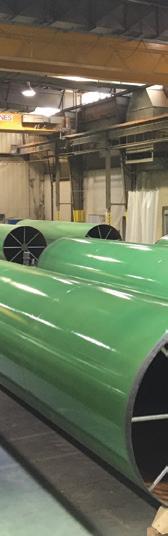

Figure 3. Pipeline segments stored outdoors are vulnerable to rust on unprotected internals and weld ends.
16 World Pipelines / FEBRUARY 2023

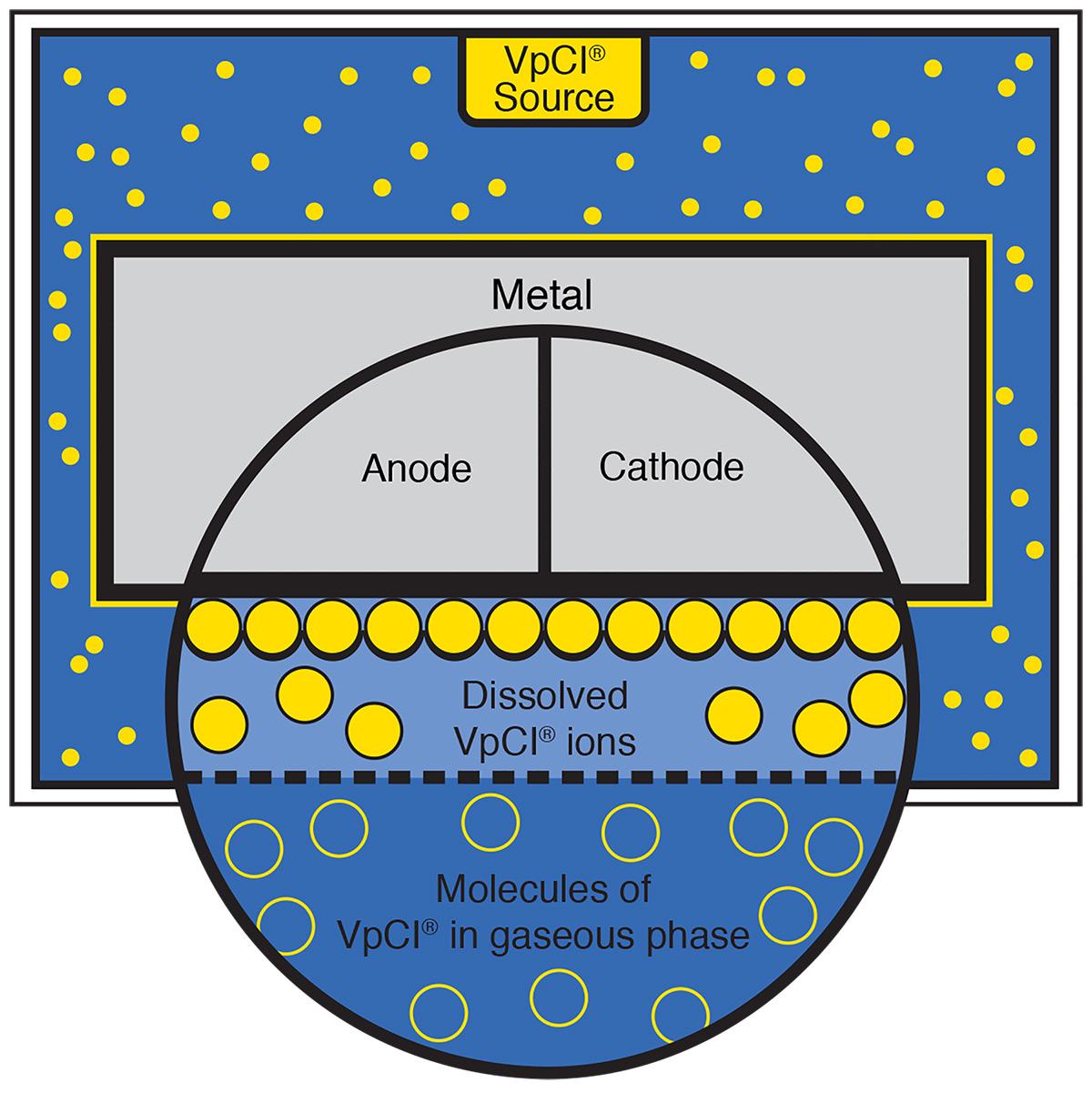

Figure 2. How vapour phase corrosion inhibitors (VpCI) protect metals in an enclosed space (image courtesy of Cortec).

needed for pipeline construction is massive. Bulldozers and stump grinders may be needed to clear ROWs; excavators and jack hammers are needed to perform a variety of earth-moving jobs (Figure 1).9 While this equipment is made for rough outdoor work, it can still face deterioration if left out in the open for extended periods of time, particularly in harsher environments such as coastal areas or the Middle East. As heavy equipment sits out in the rain, snow, sun, or sea spray, rust develops over time and the expected lifespan of the equipment drops, causing an accelerated loss of value. Some heavy equipment owners in other industries have had good results from applying EcoShield VpCI-386

or VpCI-391 right over existing coatings. These provide an extra layer of corrosion protection for the equipment bodies without affecting their appearance or usability. In the case of VpCI-391, if the temporary coating begins to wear off through normal use, it can be reapplied as part of an annual maintenance routine.

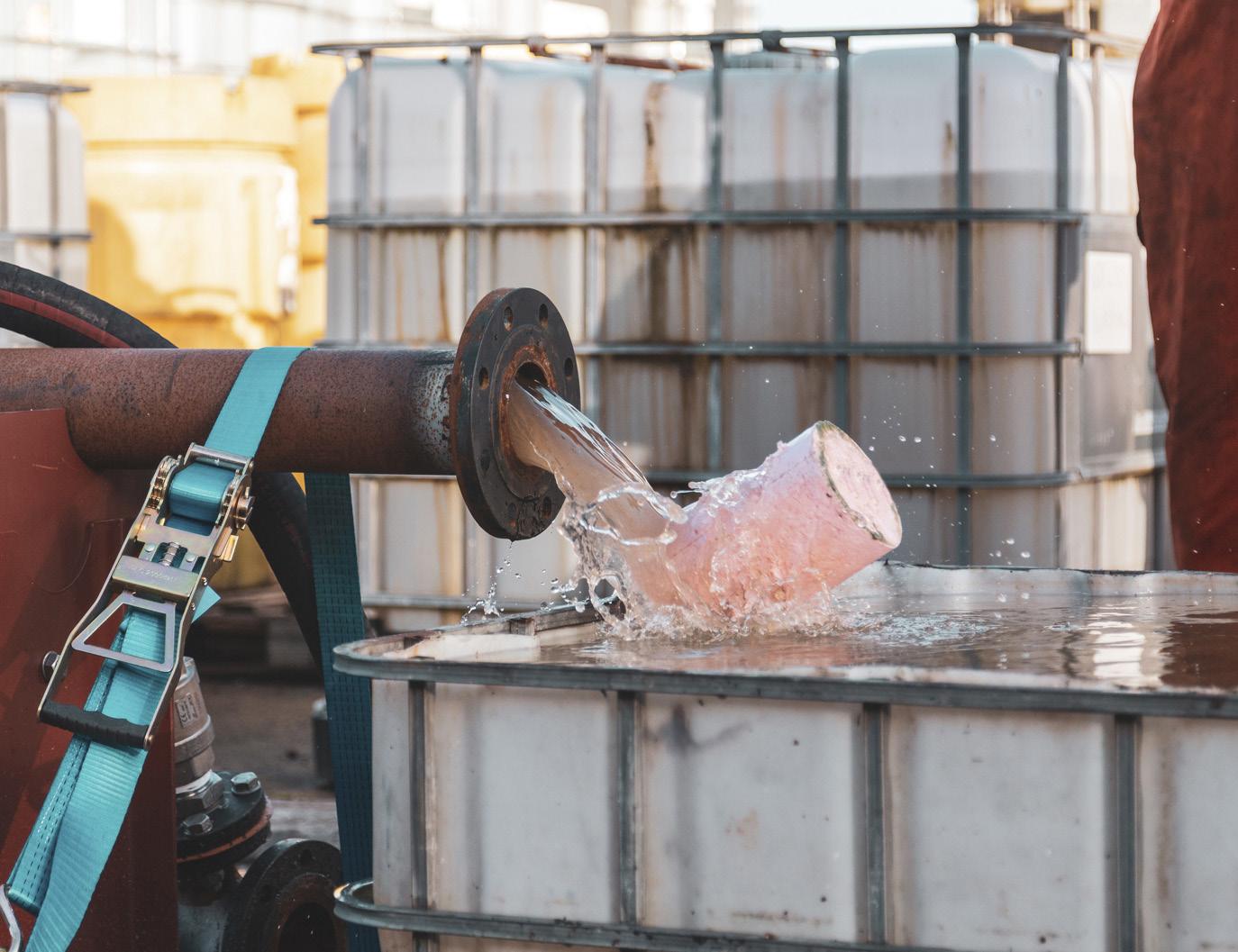

Corrosion protection during and after hydrotesting

One of the last steps of pipeline construction is hydrostatic testing to ensure pipeline integrity. Large amounts of water are flushed through the completed pipeline at high pressure. While this is critical to verifying pipeline safety, it also introduces corrosives to the internal environment. To protect against flash rusting during hydrotesting and corrosion caused by residual water thereafter, VpCI-649 can be added to the hydrotest water. VpCI-649 is a film forming corrosion inhibitor that leaves behind a protective layer inside the pipeline, with vapour phase protection for hard-to-reach areas like the very top of the pipe. It is widely used in a variety of industries and is an excellent addition to almost any hydrotesting application.


Pipeline construction delays are a fact of life, leaving equipment and construction materials exposed to the risk of corrosion for long periods of time. Even without delays, equipment and pipe segments are necessarily exposed to corrosive elements, often for extended timeframes while construction work is completed. Corrosion protection is an important step to counter the potential asset value loss from environmentally-induced metal deterioration. It also keeps equipment and components in ready-to-use, readyto-install condition and minimises concerns about future failures stemming from corrosion that happened before the pipeline was ever commissioned. By strategically using vapour phase corrosion inhibitor technology and VpCI coatings, pipeline developers can discover an excellent solution to minimise corrosion during pipeline construction and delays.


1. PHILLIPS, S. “Mariner East pipeline project is finished, after years of environmental damage, construction delays.” 17 Feb 2022 <>. Accessed 7 Nov 2022.

2. TONY, M. “MVP developer calls for Congress to force project completion amid $583M project impairment.” WV Gazette Mail . 1 Nov 2022 <www.wvgazettemail. com/news/energy_and_environment/mvp-developer-calls-for-congress-to-forceproject-completion-amid-583m-project-impairment/article_9899b10d-b9d9-5182-9120b16354a59ff7.html>. Accessed 9 Nov 2022.

3. LOVRIEN, J. “Line 3 pipeline costs increase another $1.1B.” Pioneer Press. 16 Feb 2021 <>. Accessed 8 Nov 2022.

4. O’NEIL, B., et al. “The Economic Impact of Crude Oil Pipeline Construction and Operation.” Consulting Report. IHS Economics. February 2016 <documents.nam. org/Nam.org_Web_Archive/ CrudeOilImpact_March2016.pdf> p. 5. Accessed 7 Nov 2022.

5. Ibid.

6. Cortec Corporation. “Pipe Spool Preservation.” Case History #714. Apr 2021 <www. pdf>. Accessed 8 November 2022.

7. Cortec Corporation. “VpCI-126 Film, VpCI-389 Coating, & VpCI 609 Powder.” Case History #311. April 2007 < download=access-s2member-level1/ch311.pdf>. Accessed 8 Nov 2022.

8. Cortec Corporation. “Preservation of Pipeline Valve Inventory.” Case History #762. Mar 2022 <>. Accessed 8 Nov 2022.

9. Fractracker Alliance. “Pipeline Construction: Step by Step Guide.” Copyright 2022 <>. Accessed 9 Nov 2022.

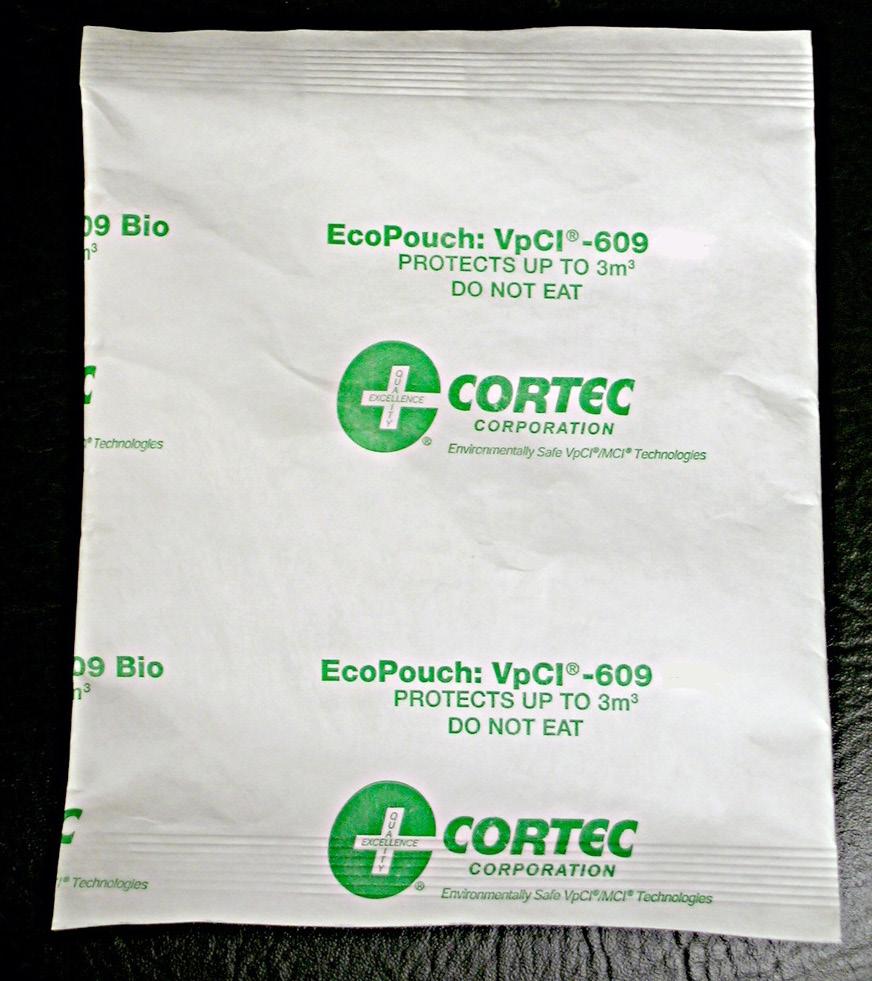

Figure 4. EcoPouch is easy to place inside new pipe spools for protection. They can be removed at any time, leaving the pipeline segment clean and protected (image courtesy of Cortec).
18 World Pipelines / FEBRUARY 2023

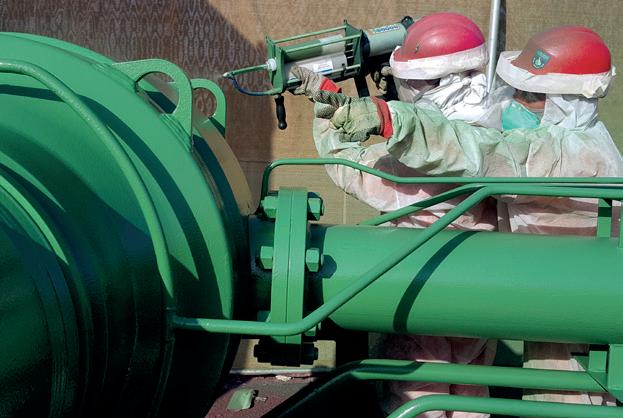

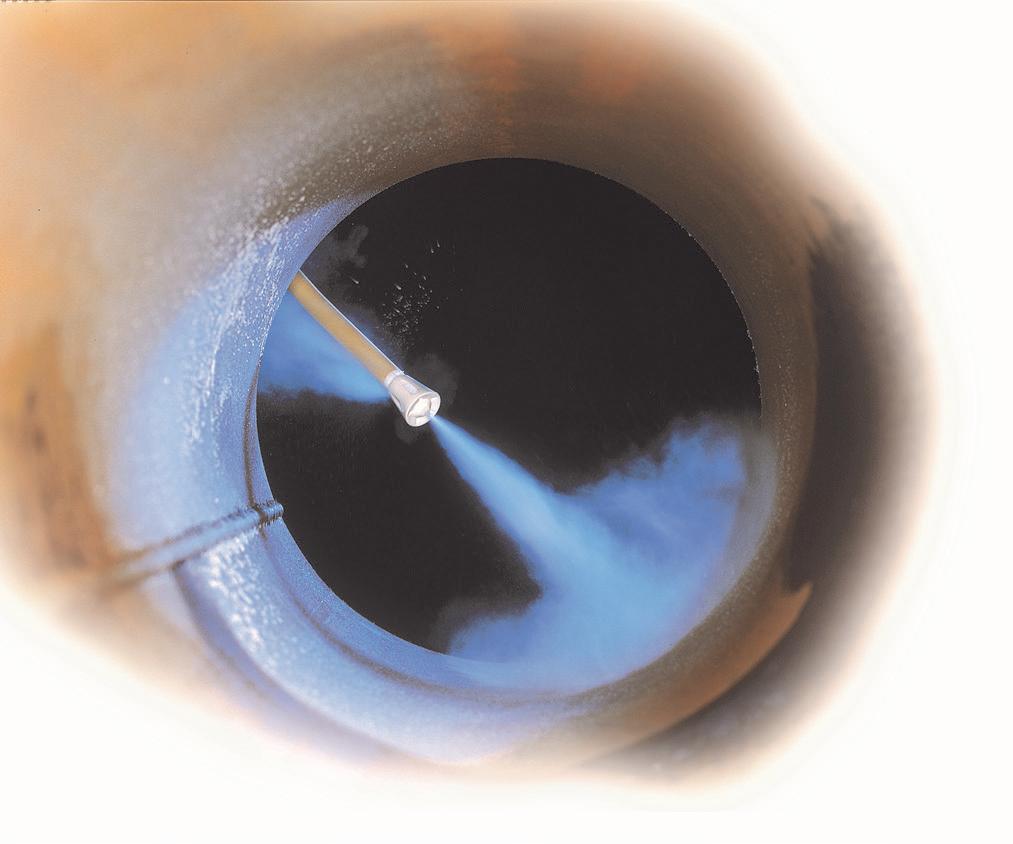

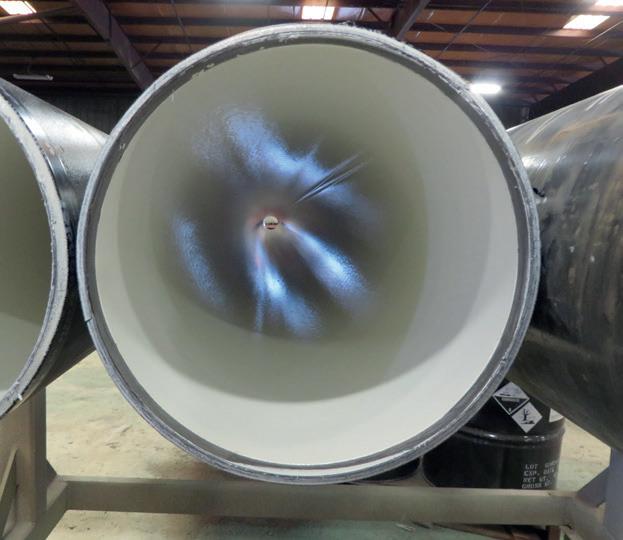

Figure 5. Fogging pipe internal with VpCI in powder form (image courtesy of Cortec).

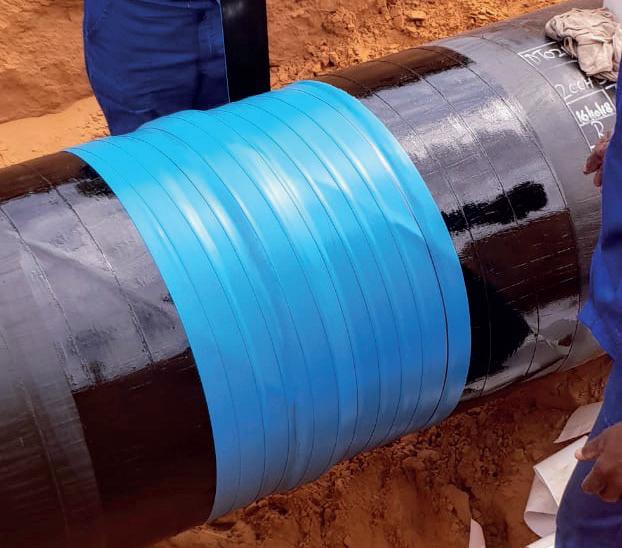

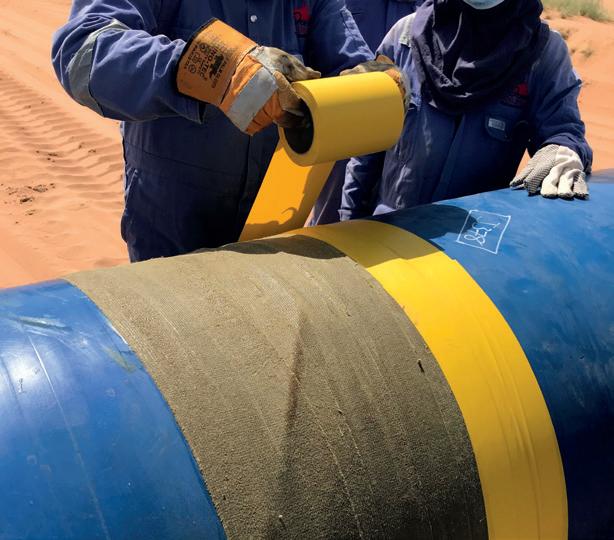

DENSO™ are leaders in corrosion prevention and sealing technology. With 140 years’ service to industry, our mainline and field joint coating solutions offer reliable and cost effective protection for buried pipelines worldwide.

United Kingdom, UAE & India

USA & Canada

Australia & New Zealand

Republic of South Africa




he increase in global economic activity following more than two years of a pandemic-induced slowdown has accelerated growth in demand for a wide range of consumer products, increasing pressures on refineries. In August 2022, the International Energy Agency (IEA) estimated refinery throughput, which rose by 1.1 million bpd in July, would increase by a further 350 000 bpd that month. This elevated refinery runs to its highest levels since January 2020. The IEA has predicted global refinery runs will rise by 2.6 million bpd in 2022 and 1.3 million bpd in 2023.1

To meet this increasing demand, refineries must operate at optimal efficiency and avoid unplanned shutdowns. Achieving this balance will be critical but challenging. Refineries are large, complex sites with many processes that

require very high pressures and temperatures. They have a vast pipeline network to transport process fluids throughout the site and externally. Refinery pipelines mainly transport raw materials (primarily crude oil) from receiving terminals for refining, as well as refined products from the refinery to the customer.

One of the key challenges facing refinery pipelines is corrosion. An EU Joint Research Centre study found that 17% of the reported incidents were related to corrosion failures in refinery pipelines, and that failures have increased since 2000.2 The costs of managing corrosion are significant and growing. Figures for corrosion management spent globally are shown in Figure 1.

For asset managers, balancing budgets for preventative maintenance today against the risk of potentially greater operational expenditure in the future is a major challenge.

Types of corrosion for refinery pipelines

Pipelines to and from refineries are generally constructed from carbon steel and experience internal and external corrosion. The level of internal corrosion in an incoming refinery pipeline depends on the quality of the crude within it. If the crude is effectively dehydrated and the concentration of acid gases such as carbon dioxide (CO2) and sour gases such as hydrogen sulphide (H2S) is low, the likelihood of internal corrosion is also considered to be low.

However, if these conditions are not met, the probability of internal corrosion can be high. The CO2 in acid gases causes general corrosion, and localised pitting corrosion can occur in the protective sulphide layer formed in presence of H2S. Depending on the partial pressure of the H2S in the acid gas, the pipeline can suffer sour environment cracking, including hydrogen-induced cracking and sulphide stress corrosion cracking. Ineffective biocide treatment in the pipeline can create microbially induced corrosion through increased acidity.

Ensuring current and future demands for refined products are met will require refineries to operate with optimal efficiency, says Ali Alani, Director of Asset Integrity – Europe, Penspen, UK.

Pipelines transporting refined products from the refinery are generally at a lower risk of corrosion because the products they carry do not contain corrodents. However, pipelines transporting fuel grade ethanol or a blend of fuel grade ethanol and gasoline can experience ethanol stress corrosion cracking (e-SCC). Dissolved oxygen and the presence of variable stresses increase the propensity for cracking. Residual stresses in welds, locally cold-worked components, and cyclic stresses (loading and unloading sections of the pipeline) can be affected by ethanol SCC.

The major threat to refinery pipelines is external corrosion, specifically atmospheric corrosion, soil corrosion, and AC/DC stray current corrosion. Atmospheric corrosion occurs due to the reaction of carbon steel with oxygen and humidity in the atmosphere. As a result, the launcher/receiver sections and the sections within the valve chambers of the pipeline can be particularly vulnerable. Soil corrosion impacts the buried sections of the pipeline where exposed bare metal surfaces can react with corrodents in the soil to cause metal degradation.

AC corrosion can occur where high voltage AC power lines run alongside refinery pipelines in the same corridor. The electromagnetic field caused by the power line creates an induced electromotive force in the buried pipeline and causes a current flow. The point where the current leaves the pipeline to enter the earth can generate severe localised corrosion. DC stray current corrosion occurs where the pipeline is crossing or close to a DC traction system. The DC current may be picked up by the pipeline where there is a coating defect, and discharged to the ground at another location. The spot where the current is discharged into the ground can experience severe corrosion.

External corrosion is mostly caused by damaged coating combined with ineffective cathodic protection (CP). As the service life of the pipeline increases, the pipeline will be more prone to coating damage. If the coating becomes unbonded and water congregates behind it, this can prevent the CP from accessing the pipe, creating CP shielding which can be difficult to detect. External conditions such as marine environments, microbial presence in the soil, and stray current sources can also accelerate coating damage and the corrosion of exposed metal surfaces.

Corrosion ‘inside and outside of the fence’

Above ground, atmospheric corrosion is a significant issue. This can be exacerbated by pollutants in the air such as sulphur dioxide (SO2) and CO2, as well as humidity. The multitude of short-length, small-diameter pipelines with multiple bends and buried sections within the refinery fence can make inspection challenging.

Outside of the fence, aside from the factors mentioned earlier, third-party damage caused by human activities is the

most significant issue. For example, a section of pipeline coating may be accidentally removed, or a dent created by an excavator. This can create corrosion damage and/or fatigue damage if not detected and repaired.

Reducing corrosion

For internal corrosion, ensuring the effectiveness of the corrosion inhibitor for the incoming pipeline can play a major part. The product should be dry (free from water) with no oxygen ingress into the pipeline. Any leaks in pump seals or storage tank seals can lead to oxygen ingress.

The most effective way to control external corrosion is through an effective corrosion protection system including anti-corrosion coating and CP. For an ageing pipeline, coating deterioration is inevitable. Effective CP should protect the exposed metal at the coating defect locations. It is important to have an effective monitoring and management plan to reduce the opportunities for corrosion.

How to avoid corrosion risks

A detailed material selection study as part of the design stage of the pipeline can determine the appropriate materials to resist the corrosive agents in the process fluid. The study should also identify other appropriate anti-corrosion enablers such as inhibitors and chemical treatments. Demulsifiers and scale inhibitors would also be considered.

Also at the design stage, a suitable anti-corrosion coating should be selected based on the operating and design parameters, particularly temperature. Generally, anti-corrosion coating will be supplemented with a CP system. As part of the design stage, a CP package should be prepared including material requirements, quantity, installation details, and necessary monitoring requirements.

In making decisions on the most appropriate solutions to prevent corrosion formation in refinery pipelines, asset owners need to seek the support of a partner with deep expertise in providing corrosion control and mitigation consultancy services across all stages of the asset’s life. Penspen has successfully undertaken corrosion control projects, and has developed corrosion control standards and systems used by refinery operators around the world.

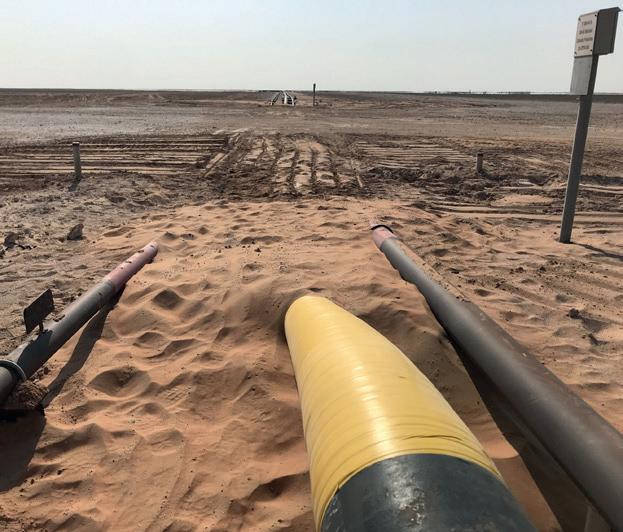

Corrosion risk assessment for refinery pipeline

An asset owner in the Middle East introduced product transportation facilities between its refineries and a storage terminal via a pipeline. The entire refined product requirements for a city are currently supplied from the terminal. A study revealed a major risk of product shortages if the terminal or existing pipelines were to experience disruption. To mitigate the risk, the company is planning to construct a backup storage terminal.

To avoid risks arising from road transportation from the refinery to the terminal, the company intends to implement a pipeline transportation facility from the refinery to a depot for transferring

22 World Pipelines / FEBRUARY 2023
Figure 1. Global Asset Integrity Management Market (million US$) by Type (2017 - 2023).

LPG. Penspen was commissioned to carry out the corrosion risk assessment study for the proposed project. The risk assessment study included:

) A detailed corrosion study to identify internal and external hazards, and corrosion rates for the pipeline and other facilities.

) A corrosion risk assessment of the pipeline and facilities for risk ranking, and a contingency plan.

) A review of the selection of the material for carbon steel pipelines, and associated infrastructure in the design phase, and update if required.

) Review and update material selection diagrams following the corrosion risk assessment.

) Provide recommendations for corrosion monitoring and mitigation for pipelines and other facilities.

The major potential internal corrosion factors were identified as microbial-induced corrosion, oxygen corrosion, and galvanic corrosion. The most likely sources of external corrosion were identified as atmospheric corrosion and soil corrosion. The corrosion rates study revealed the calculated internal corrosion rates would only be applicable in cases of oxygen and water ingress during storage, and would be for very short periods. It also identified that external corrosion rates would only be

applicable in cases of coating damage for above-ground facilities and inappropriate CP for buried pipelines.

The corrosion risk study determined the underground sumps, sump vessels, and slop systems should be ranked as medium risk due to the higher environmental consequences in case of leaks or cracks being undetected, except for the portable water ones. It also recommended that pipelines, underground piping, sumps, sump vessels and storage tanks should be ranked as medium risk, while all other equipment was found to be low risk. The assessment study gave the company a clear picture of the corrosion risk levels associated with the project, enabling them to plan with confidence.


Product refineries are of increasingly critical importance to the global economy. Ensuring current and future demands for refined products are met will require refineries to operate with optimal efficiency. The corrosion of pipelines represents one of the biggest threats to achieving optimal refinery efficiency, and must be a major consideration at the earliest stages of a project. Investing time in detailed anti-corrosion planning at the design stage of a refinery pipe can save asset owners significant operational expenditure down the line.




3. Global Asset Integrity Management Market (million US$) by Type (2017 - 2023).

he repair and maintenance of assets has always been an important element in the oil and gas industry, and is essential to ensuring the reliability and safety of operations. Continuing to be a priority in today’s energy industry, throughout the transition to explore greener energy alternatives, the importance of corrosion control remains at the forefront of operator’s minds. Inadequate or infrequent inspection and management of assets can lead to a range of risks including production failure and loss of containment, potentially leading to catastrophic impacts on the personnel, plant, and environment. As a vital factor in optimising the productivity, production, and downtime of operations whilst mitigating potential risks, corrosion control is essential to minimising operational and repair costs, and extending asset life.

With the risk of health and safety issues and disruption to operations, corrosion can also compromise the appearance, performance, strength, and load-bearing ability of assets. Corrosion management will allow the operator to mitigate any safety and environmental hazards, as well as prevent any production and financial losses. As a key challenge facing the industry today, corrosion can lead to production delays, equipment failure, operational expenditure, and safety hazards.

ICR Integrity is an industry-leading, technology-enabled provider of specialist repair, inspection, and integrity management solutions to a diverse range of industries. The company’s well-established repair and maintenance division offers clients world class repair solutions providing greater asset uptime and reliability while saving time and cost compared to traditional repairs. The newly formed specialist inspection and integrity division reflects the company’s focus on innovation and technology advancements in support of its global clients’ integrity management requirements.

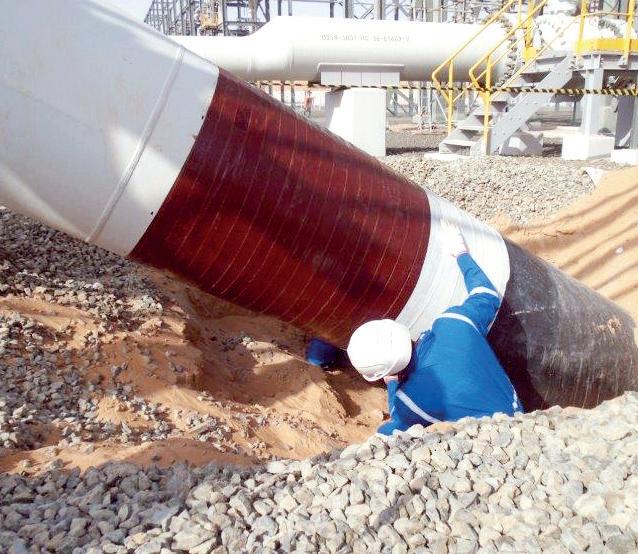

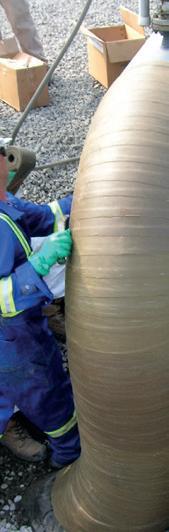

Composite repairs

The traditional oil and gas industry, which ICR has a strong presence in, requires solutions that provide validation and assurance on the condition of their assets, as well as any repairs that have been undertaken. With a strong focus on the environment when carrying out testing, avoiding carbon

This integrated approach to implementing composite repair solutions can reduce carbon emissions by 66% compared to traditional methods, says Antonio Caraballo, Inspection & Integrity Management Services Director, ICR, UK.

intensive techniques is essential to the sector. Many ageing assets have composite repairs reaching the end of their design life, meaning there is an increased requirement to revalidate or extend the life of the repairs, allowing operators to avoid costly replacement options that may require a full shutdown of the asset. Regulatory bodies have a strong focus on the integrity management and condition monitoring of repairs. Being able to inspect the defined life of the repairs is therefore a key enabler in ensuring safe and reliable operations for extended time periods.

Based on the principles of acoustic inspection methods with pitch and catch, ICR Integrity’s innovative new nondestructive testing (NDT) technique, called INSONO. It provides resonance and mechanical impedance analysis to detect and size any flaws in the inspection of engineered composite repairs. The technology has been validated by The Welding Institute (TWI) and has patent and UKAS accreditation pending. A hand-held scanner creates 3D models and visual representation of the composite repair, allowing for precise dimensions to be used in the assessment. Any defects in three main areas of concern can then be detected – in the bond line, the interlaminar and the steel substrate.

With over 30 years’ experience, ICR is internationally recognised as a service-leader and a key-player in the ongoing development and adoption of composite technology. INSONO complements its industry renowned TechnowrapTM range of engineered composite repairs and assures operators that their composite repairs are fit for purpose, satisfying regulatory body guidelines regarding inspection criteria. It also allows for the extension of defined life repairs, thus reducing waste whilst avoiding high-carbon emissions from traditional steel replacement alternatives.

Cost-effective solutions

Inspection techniques currently available are not practical to deploy in the field, and many are unable to access complex geometries with a single technique or product. INSONO is hand-carried and requires only one technician, meaning inspections can be carried out in higher risk areas where they may not have been previously considered.

ICR is internationally recognised as a service-leader and key player in the ongoing development and adoption of composite technology. The versatile product range offers practical and cost-effective rehabilitation of pressure systems and structural components with minimal disruption to operations, typically delivering valuable cost savings. The repair systems can not only be applied to live systems with no impact on production, but also offer a low greenhouse gas (GHG) emissions alternative to steel replacement. Replacing large steel equipment is energy intensive and requires the production of a new part. By repairing their equipment, ICR’s clients avoid the emissions associated with steel production and transportation as well as the energy required to perform the replacement.

Technowrap repair solutions can be engineered for anywhere between 2 and 20 years, which can be equal to the lifetime of a traditional replacement and as such are directly comparable to a replacement solution, depending on the anomaly type. ICR compared the carbon impact of using its repair system technology for the repair of a 2 m section of 8 in. carbon steel pipework (85.1 kg) located 225 miles offshore from Aberdeen. The findings established that the repair system reduced emissions by 66% compared to the traditional replacement method.

On a recent project in the northern North Sea, an operator client asked ICR to review various sections of pipework that had sustained severe corrosion resulting

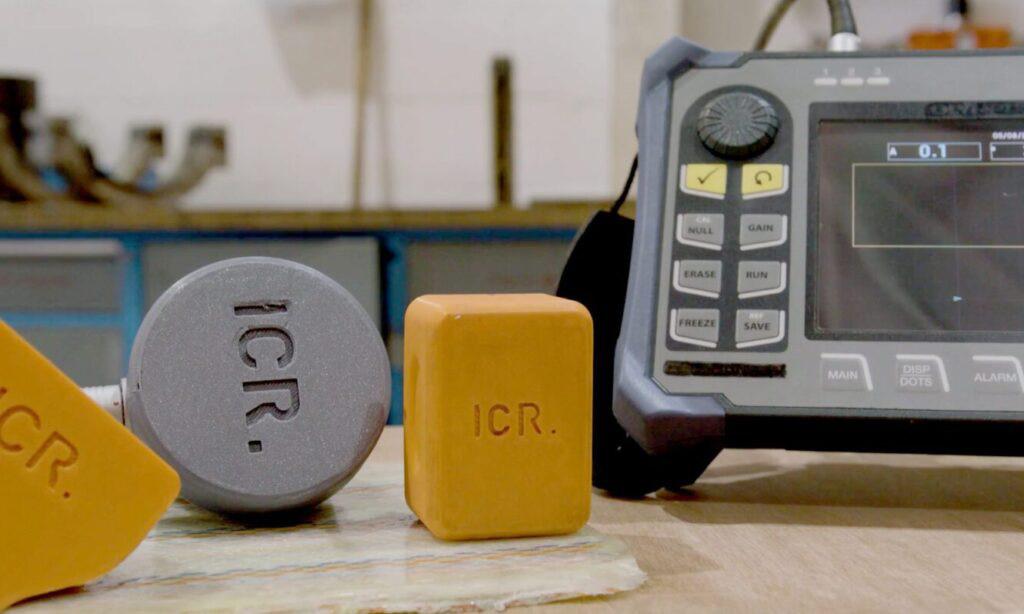

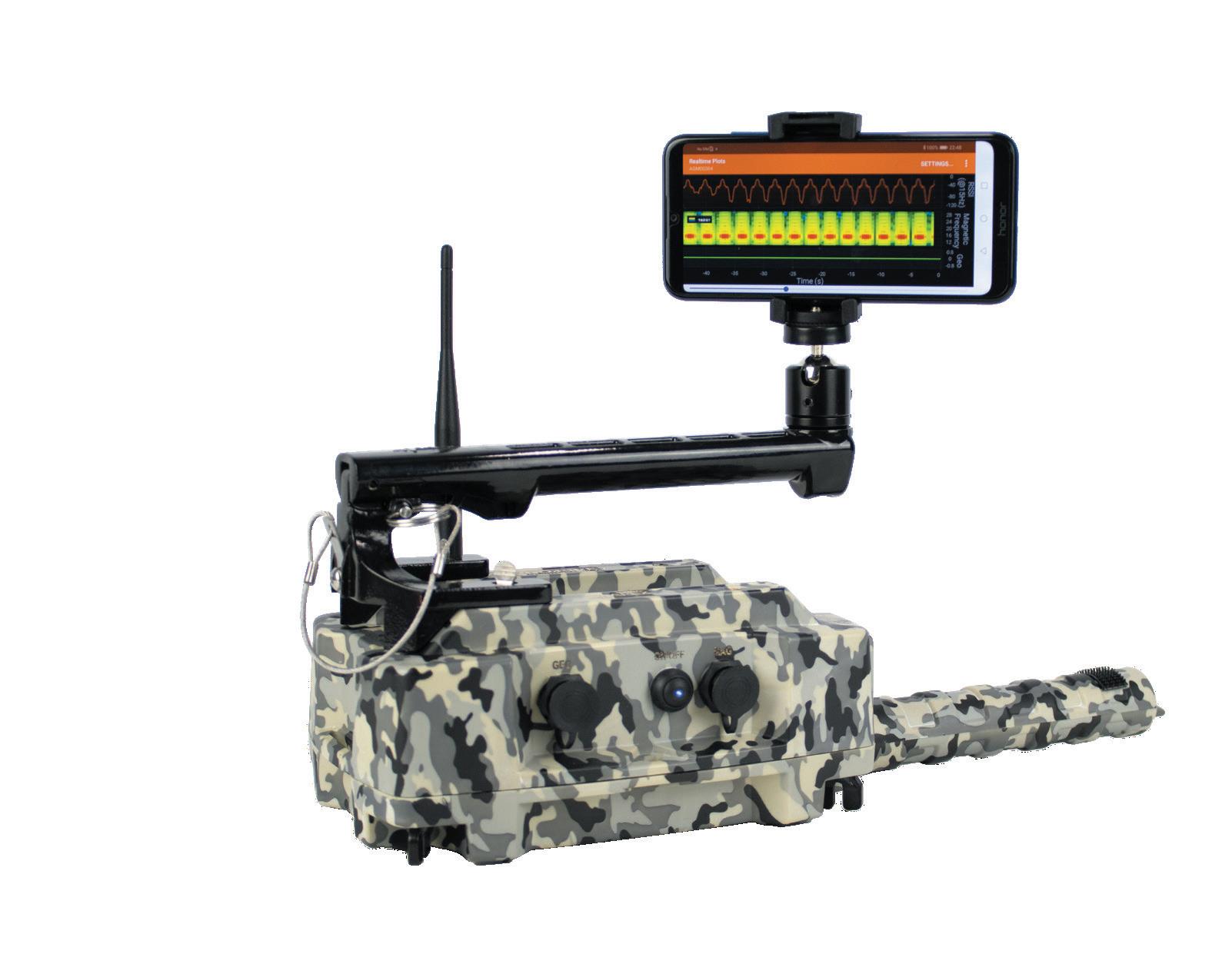

Figure 2. An INSONO probe inspecting a composite repair applied to a metallic component. Figure 1. The portable hand-held equipment and specifically designed probes.
26 World Pipelines / FEBRUARY 2023

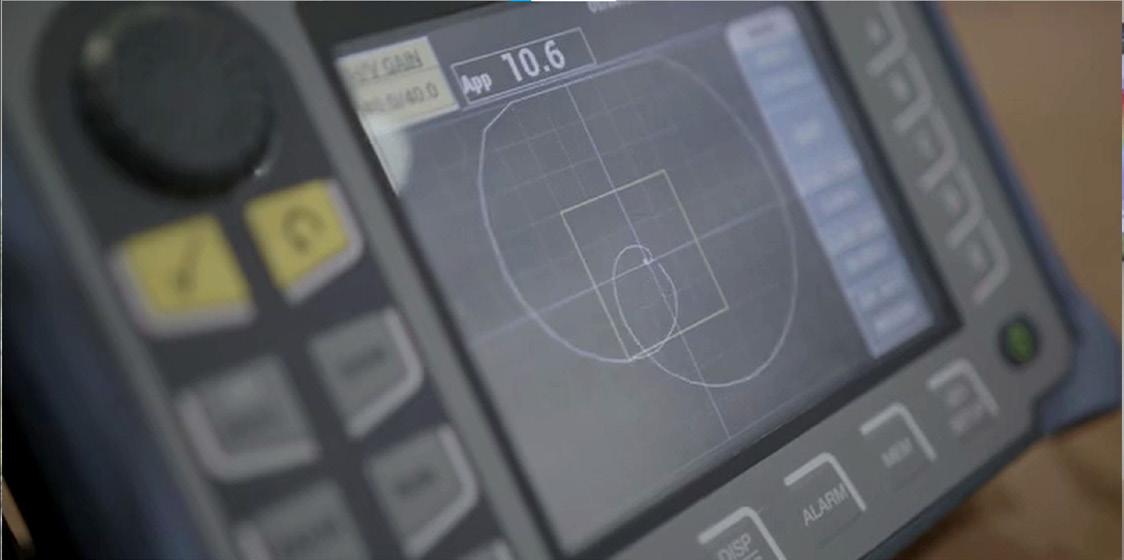

Figure 3. The response signal from the portable hand-held INSONO equipment
