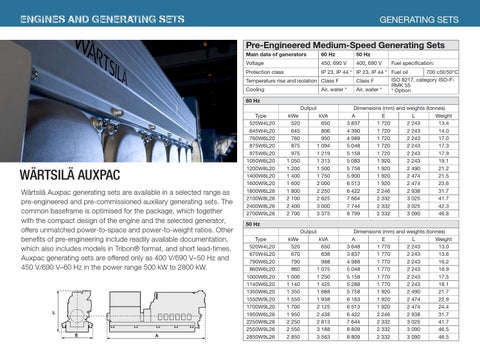

ENGINES AND GENERATING SETS
GENERATING SETS Pre-Engineered Medium-Speed Generating Sets Main data of generators
60 Hz
50 Hz
Voltage
450, 690 V
400, 690 V
Fuel specification:
Protection class
IP 23, IP 44 * IP 23, IP 44 * Fuel oil 700 cSt/50°C ISO 8217, category ISO-FTemperature rise and isolation Class F Class F RMK 55 Cooling Air, water * Air, water * * Option 60 Hz Output
WÄRTSILÄ AUXPAC Wärtsilä Auxpac generating sets are available in a selected range as pre-engineered and pre-commissioned auxiliary generating sets. The common baseframe is optimised for the package, which together with the compact design of the engine and the selected generator, offers unmatched power-to-space and power-to-weight ratios. Other benefits of pre-engineering include readily available documentation, which also includes models in Tribon® format, and short lead-times. Auxpac generating sets are offered only as 400 V/690 V–50 Hz and 450 V/690 V–60 Hz in the power range 500 kW to 2800 kW.
Type 520W4L20 645W4L20 760W6L20 875W6L20 975W6L20 1050W6L20 1200W8L20 1400W8L20 1600W9L20 1800W6L26 2100W8L26 2400W8L26 2700W9L26
kWe 520 645 760 875 975 1 050 1 200 1 400 1 600 1 800 2 100 2 400 2 700
kVA 650 806 950 1 094 1 219 1 313 1 500 1 750 2 000 2 250 2 625 3 000 3 375
Dimensions (mm) and weights (tonnes) A E L Weight 3 837 1 720 2 243 13.4 4 390 1 720 2 243 14.0 4 988 1 720 2 243 17.0 5 048 1 720 2 243 17.3 5 158 1 720 2 243 17.9 5 083 1 920 2 243 19.1 5 758 1 920 2 490 21.2 5 900 1 920 2 474 21.5 6 513 1 920 2 474 23.6 6 422 2 246 2 938 31.7 7 664 2 332 3 025 41.7 7 744 2 332 3 025 42.3 8 799 2 332 3 090 46.8
kVA 650 838 988 1 075 1 250 1 425 1 688 1 938 2 125 2 438 2 813 3 188 3 563
Dimensions (mm) and weights (tonnes) A E L Weight 3 648 1 770 2 243 13.0 3 837 1 770 2 243 13.6 4 988 1 770 2 243 16.2 5 048 1 770 2 243 16.9 5 158 1 770 2 243 17.5 5 288 1 770 2 243 18.1 5 758 1 920 2 490 21.7 6 163 1 920 2 474 22.9 6 513 1 920 2 474 24.4 6 422 2 246 2 938 31.7 7 644 2 332 3 025 41.7 8 809 2 332 3 090 46.5 8 809 2 332 3 090 46.5
50 Hz Output Type 520W4L20 670W4L20 790W6L20 860W6L20 1000W6L20 1140W6L20 1350W8L20 1550W9L20 1700W9L20 1950W6L26 2250W8L26 2550W9L26 2850W9L26
kWe 520 670 790 860 1 000 1 140 1 350 1 550 1 700 1 950 2 250 2 550 2 850
