Interior Design Portfolio - Educational Work

PLATEAU ESTATES

RESIDENTIAL DESIGN CHIEF ARCHITECT and BUILDING INFORMATION MODELING

The key objective of this project was to explore the capabilities of Chief Architect while designing using NKBA guidelines and residential code. In addition, other design considerations were made in regards to space planning, energy management, and life safety.

KEY PROJECT INFORMATION:

Location

Glen Ellyn, IL

Sq. Footage

7,983 sq. ft.

Family Members

2 parents / 2 young children

BUILDING INFORMATION MODELING (BIM)

• BIM is software that allows interior designers to better produce digital representations of their project

• 2-D plans, elevations and sections simultaneously generate dynamic 3-D building models -- changes made in 2-D are directly made in 3-D and vice versa

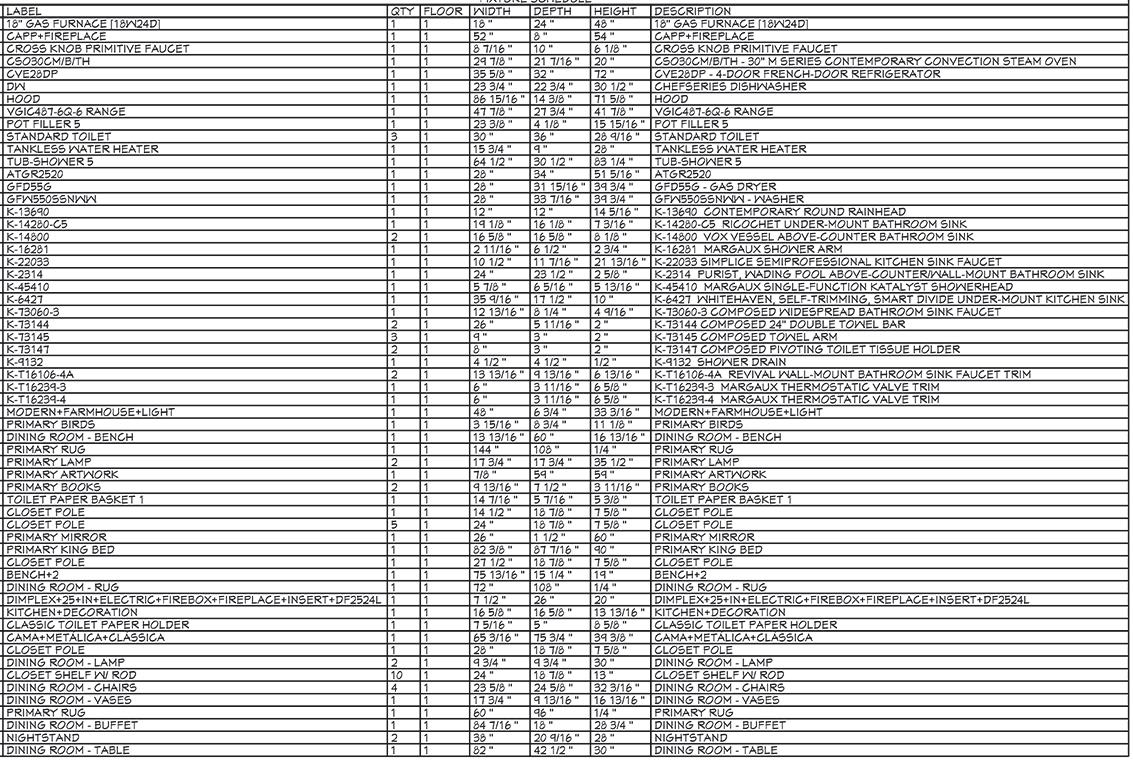

• Ability to measure and report areas, volumes, material quantities, and object attributes

• Uses data to quickly create schedules for fixtures and finishes

EXTERIOR TWO-POINT PERSPECTIVE

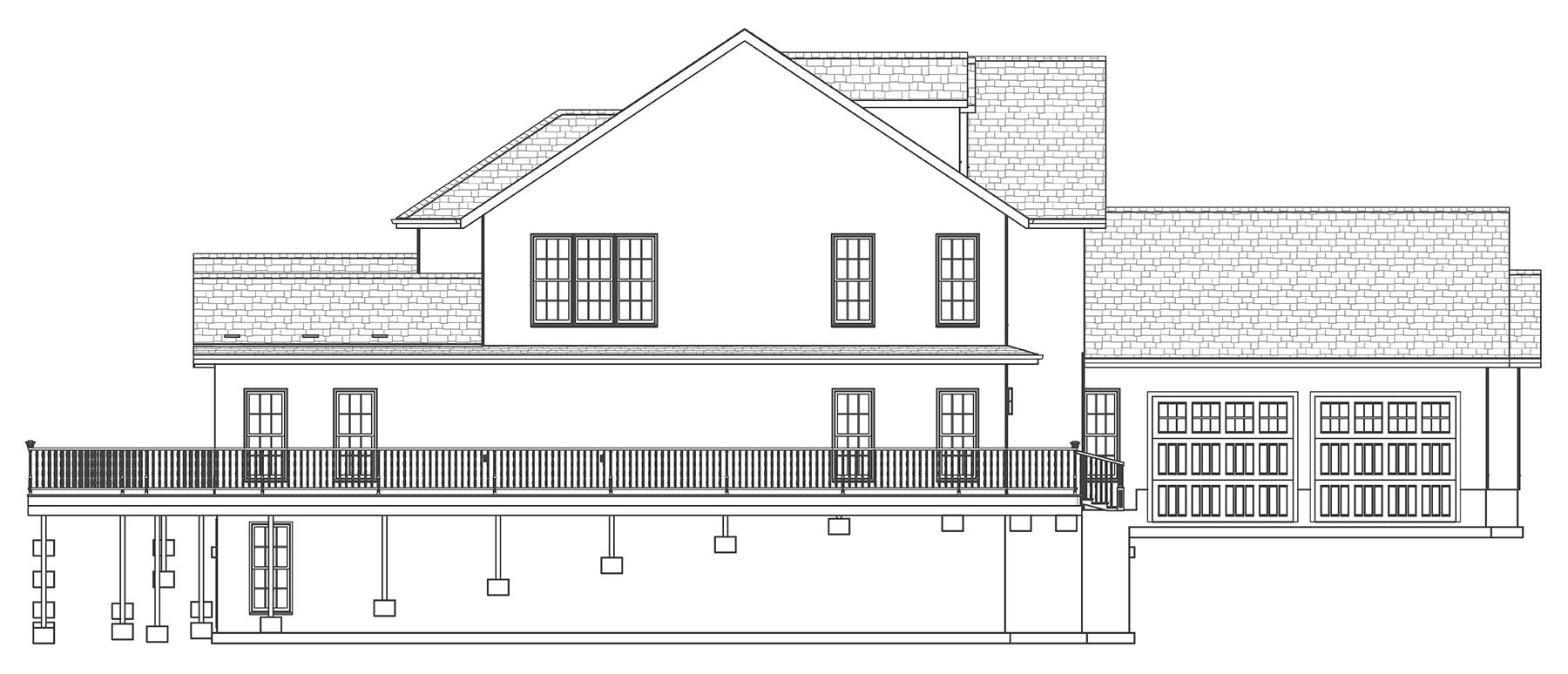

EXTERIOR ELEVATION - LEFT

SCALE: 1/8” = 1’ - 0”

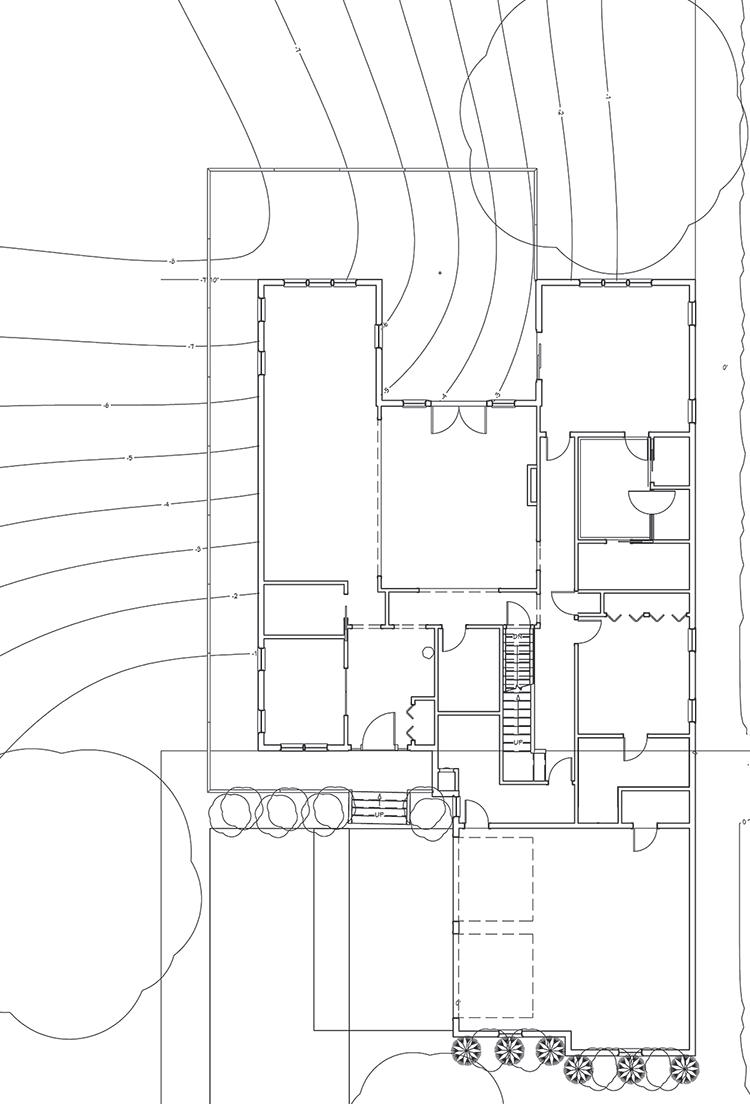

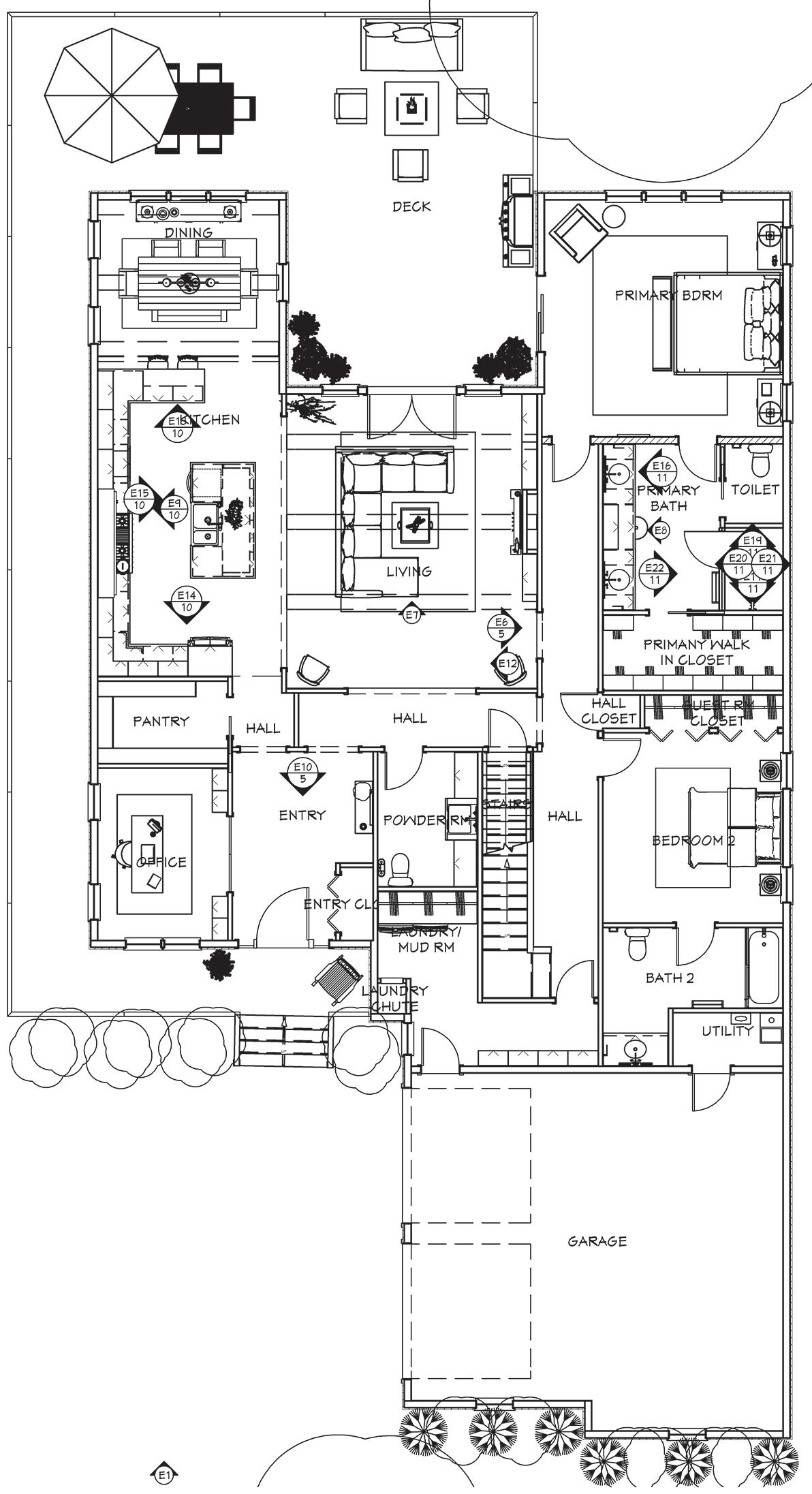

1ST FLOOR PLAN

SCALE: 1/8” = 1’ - 0” N

PLATEAU ESTATES

NKBA STANDARDS:

The NKBA Kitchen and Bathroom Planning Guidelines with Access Standards are a set of planning suggestions defined by the National Kitchen and Bath Association.

These guidelines were developed with the intention of ensuring building code compliance, consumer health, safety, and welfare, and sound kitchen and bath design practices.

NKBA Kitchen Guidelines:

• The width of a work aisle should be at least 42” for one cook and at least 48” for multiple cooks

• The width of a walkway should be at least 36”

• Include at least a 24” wide landing area to one side of the sink and at least an 18” wide landing area on the other side

• Locate nearest edge of the primary dishwasher within 36” of the nearest edge of a cleanup/prep sink

• Include a minimum of 12” of landing area on one side of a cooking surface and 15” (381 mm) on the other side

N

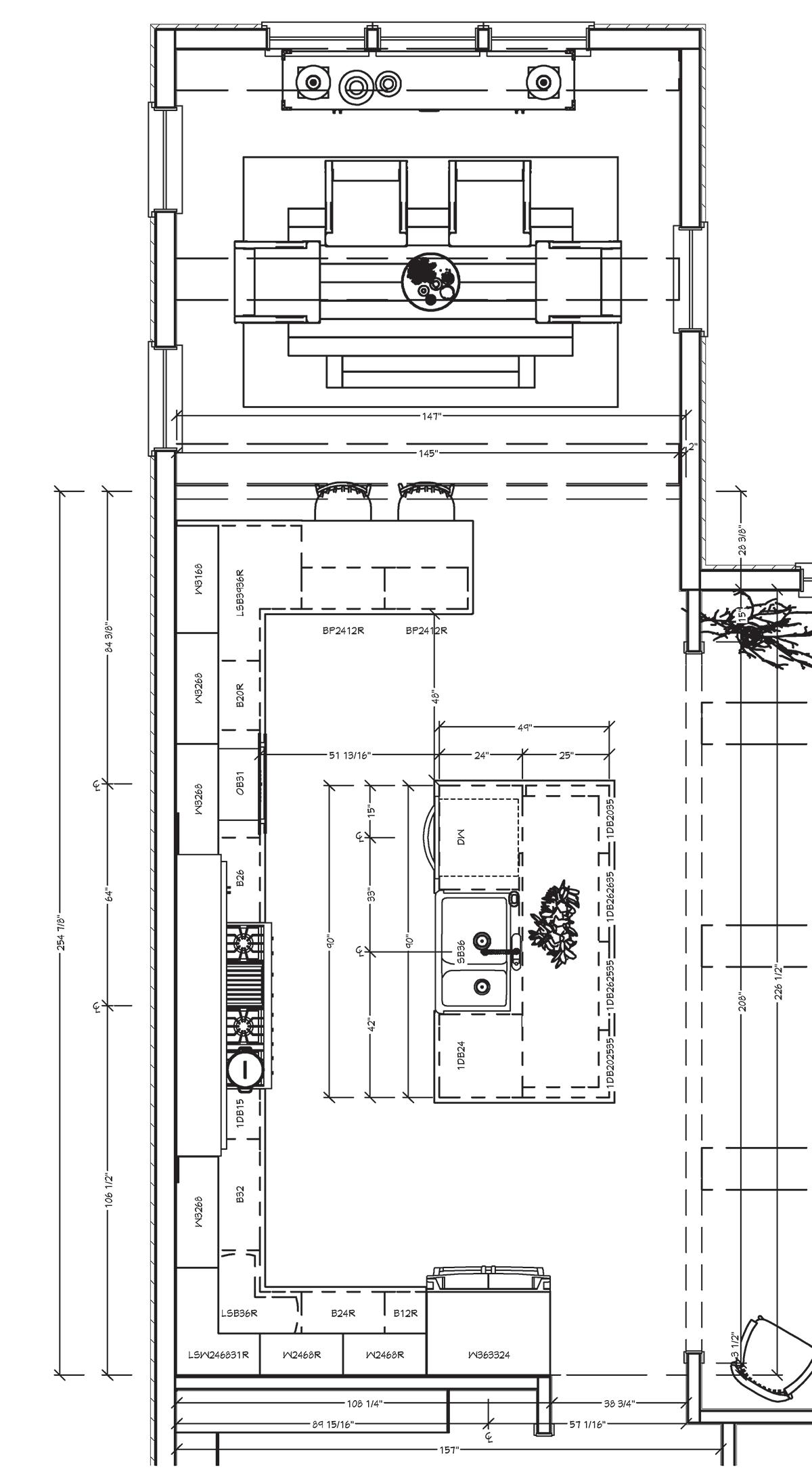

KITCHEN - CABINETRY PLAN

SCALE: 1/2” = 1’ - 0”

KITCHEN - STOVE WALL ELEVATION

SCALE: 1/2” = 1’ - 0”

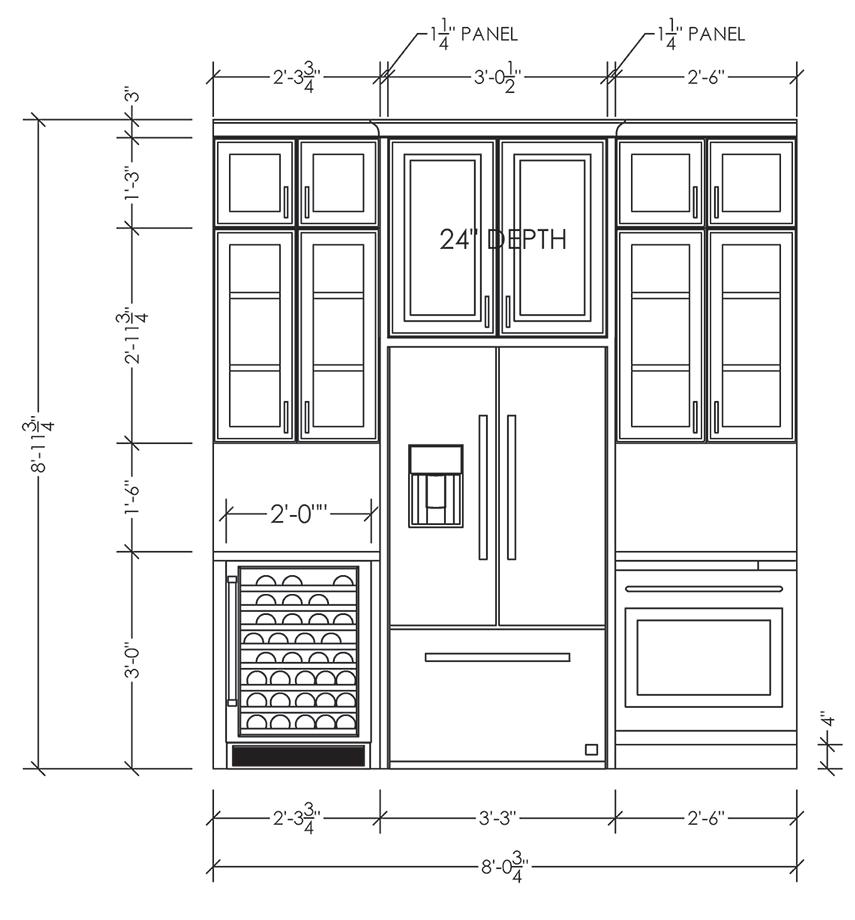

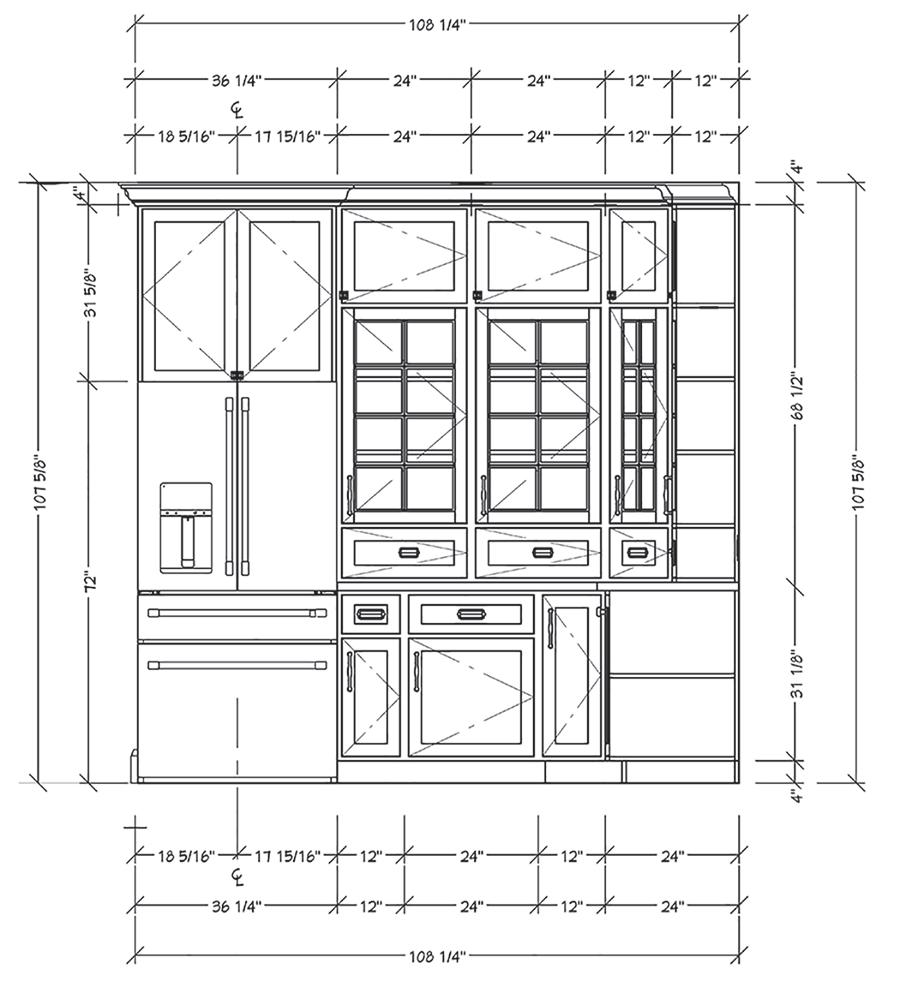

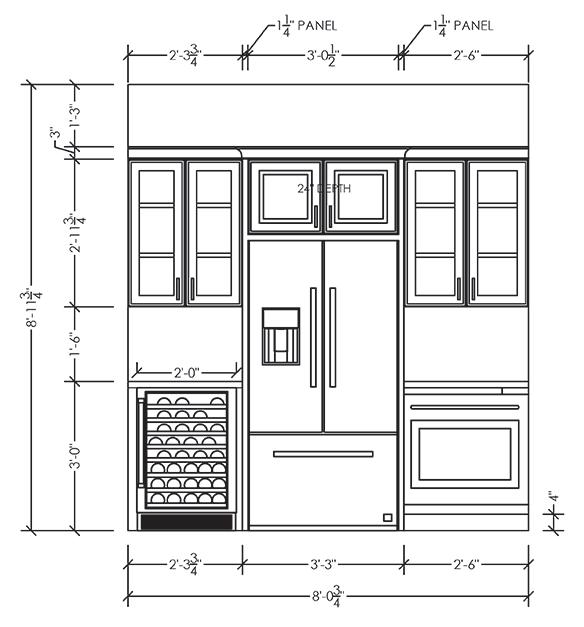

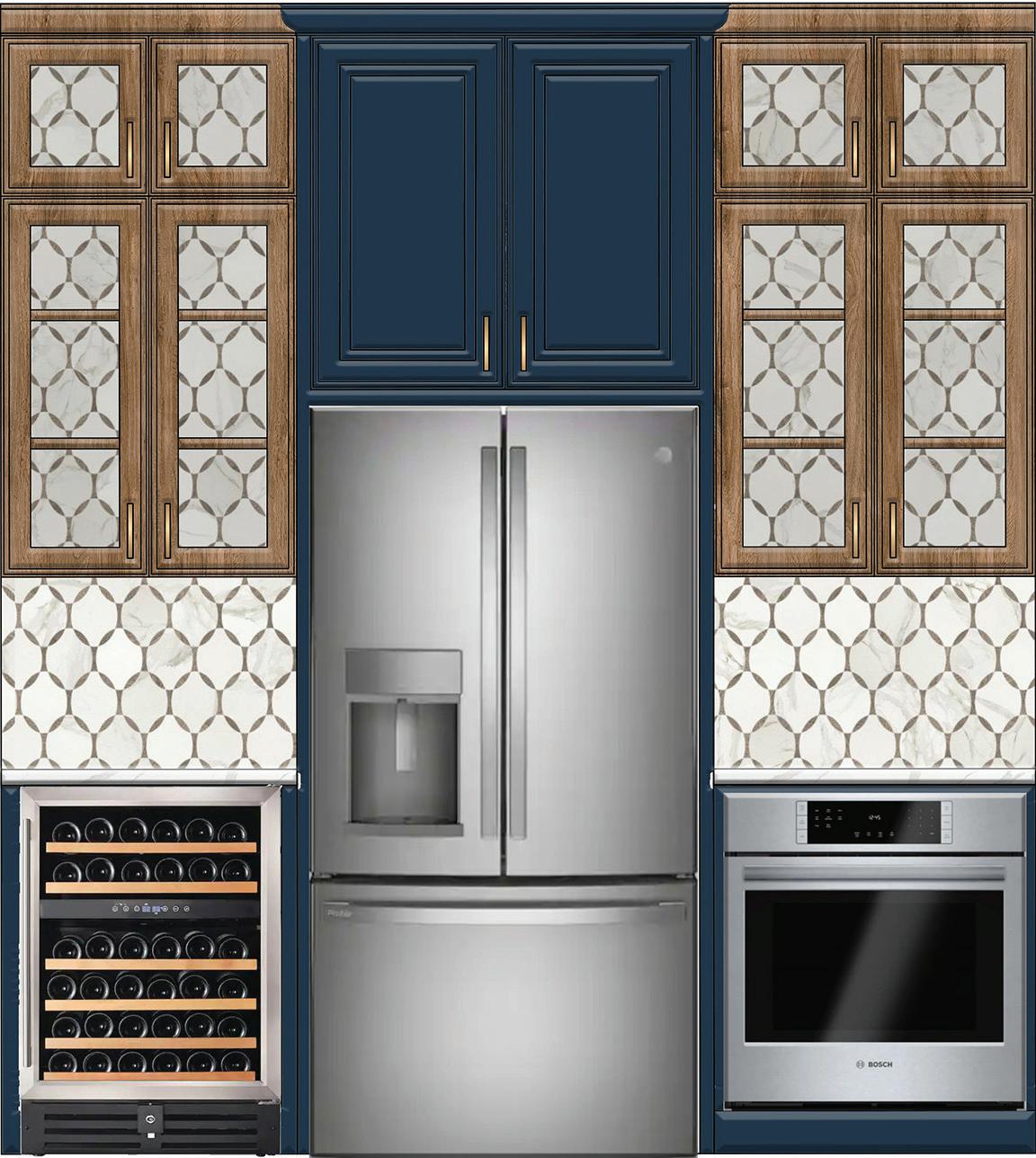

KITCHEN - FRIDGE WALL ELEVATION

SCALE: 1/2” = 1’ - 0”

KITCHEN - BREAKFAST BAR ELEVATION

SCALE: 1/2” = 1’ - 0”

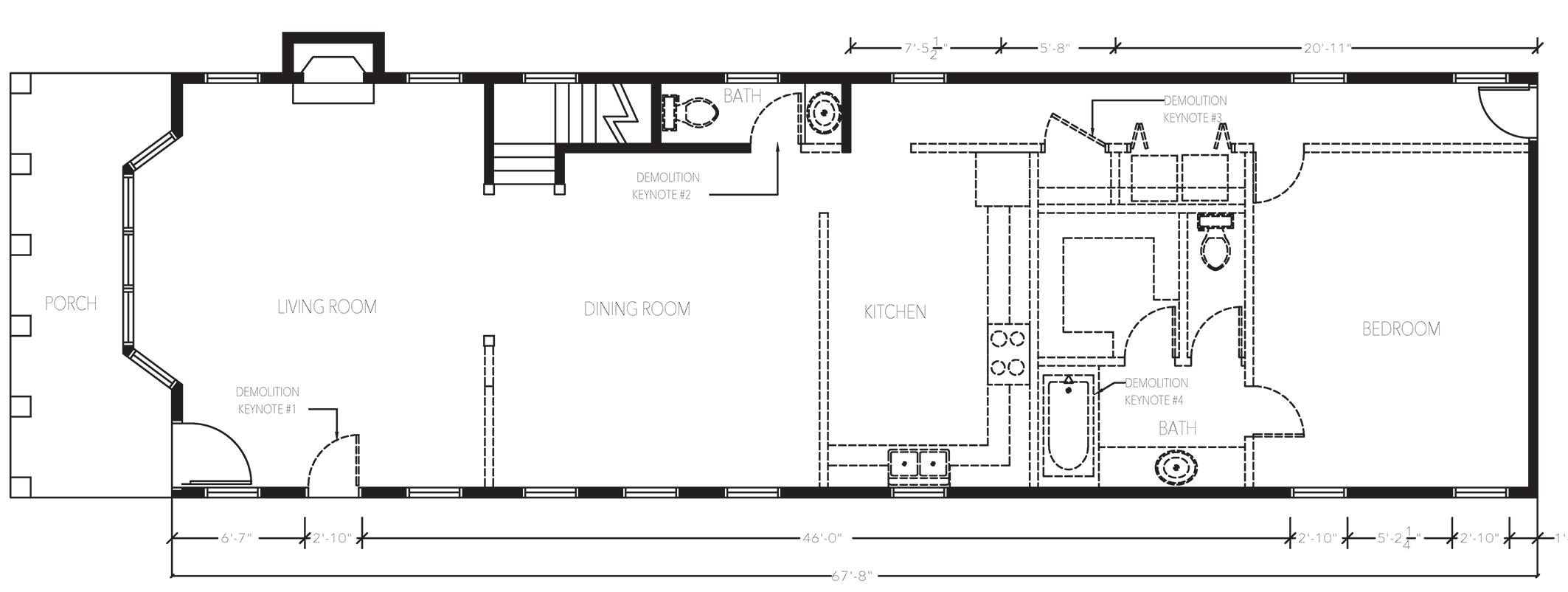

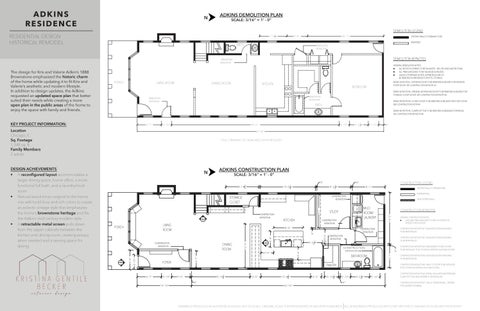

ADKINS RESIDENCE

RESIDENTIAL DESIGN HISTORICAL REMODEL

The design for Kris and Valerie Adkin’s 1888 Brownstone emphasized the historic charm of the home while updating it to fit Kris and Valerie’s aesthetic and modern lifestyle. In addition to design updates, the Adkins requested an updated space plan that better suited their needs while creating a more open plan in the public areas of the home to enjoy the space with family and friends.

KEY PROJECT INFORMATION:

Location

Chicago, IL

Sq. Footage

1,348 sq. ft.

Family Members

2 adults

DESIGN ACHIEVEMENTS

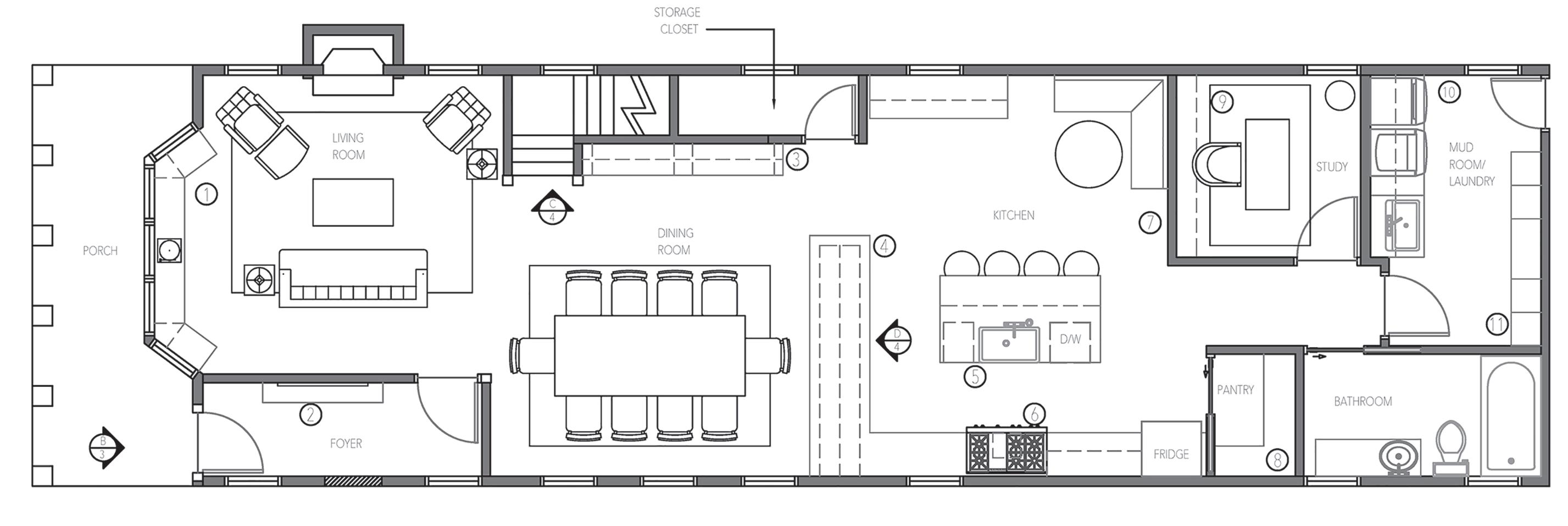

• A reconfigured layout accommodates a larger dining space, home office, a more functional full bath, and a laundry/mud room

• Natural wood tones original to the home mix with bold lines and rich colors to create an eclectic vintage style that emphasizes the home’s brownstone heritage and fits the Adkin’s mid-century modern style

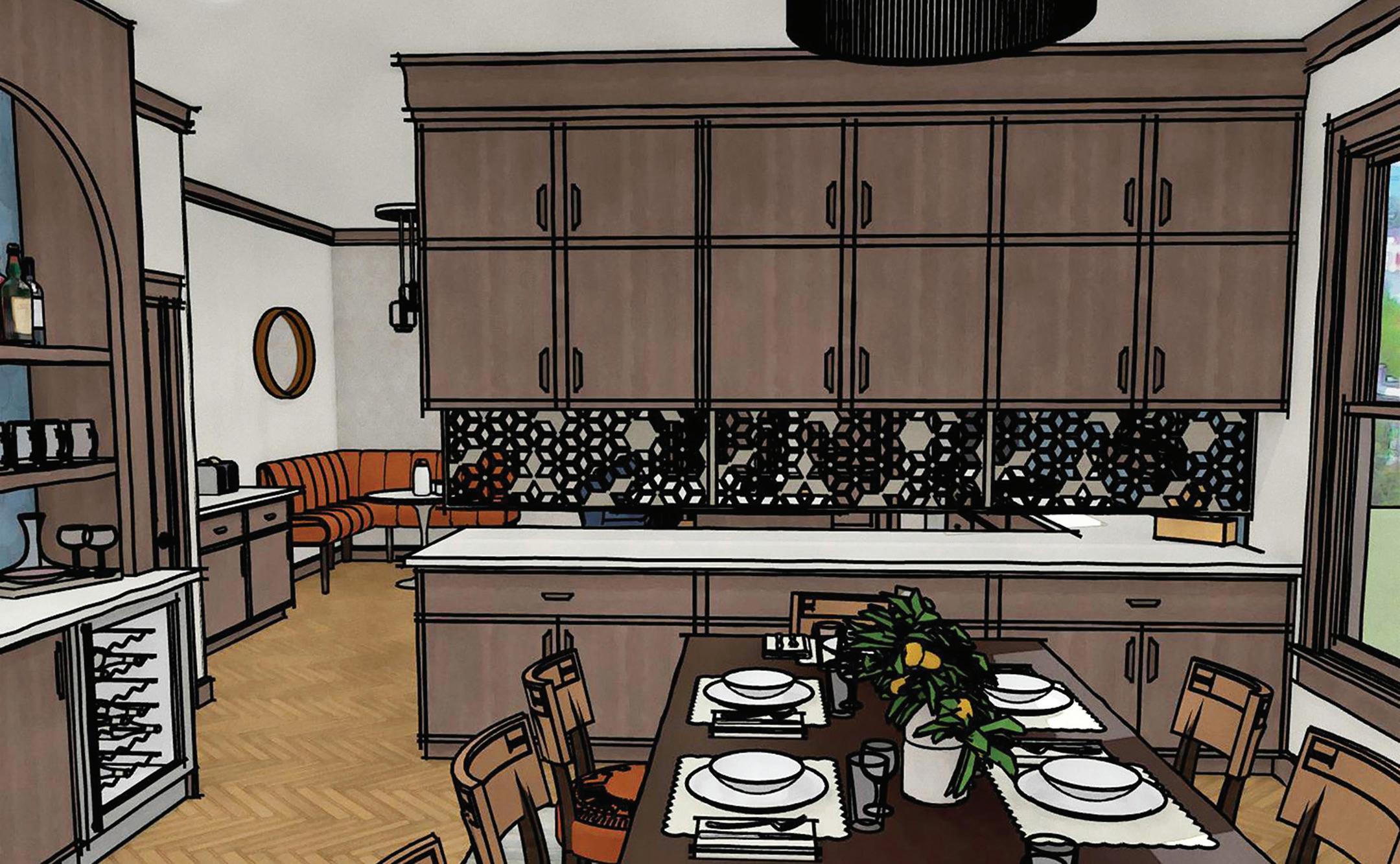

• A retractable metal screen pulls down from the upper cabinets between the kitchen and dining room, creating privacy when needed and a serving space for dining

ADKINS RESIDENCE

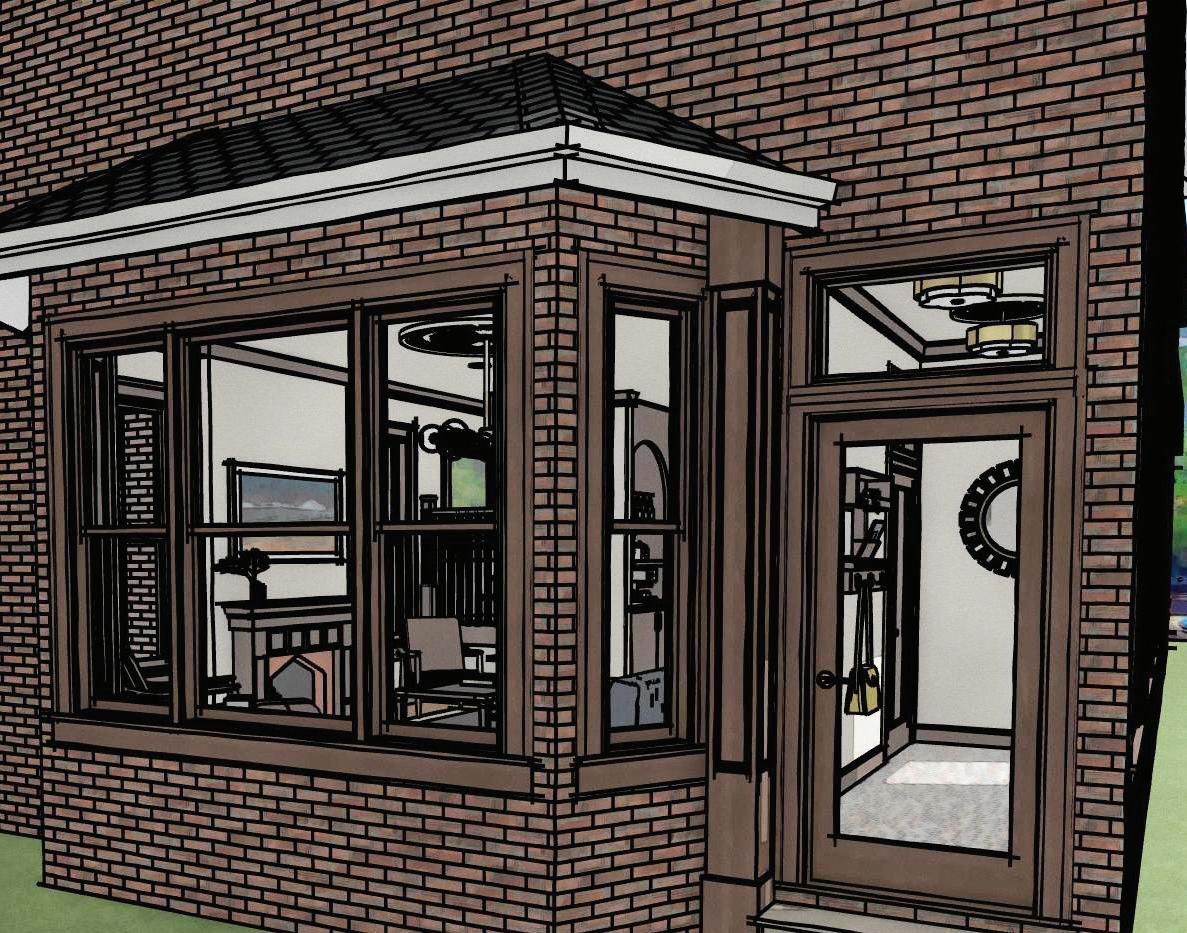

ADKINS FRONT DOOR DETAIL

SCALE: 1/2” = 1’ - 0”

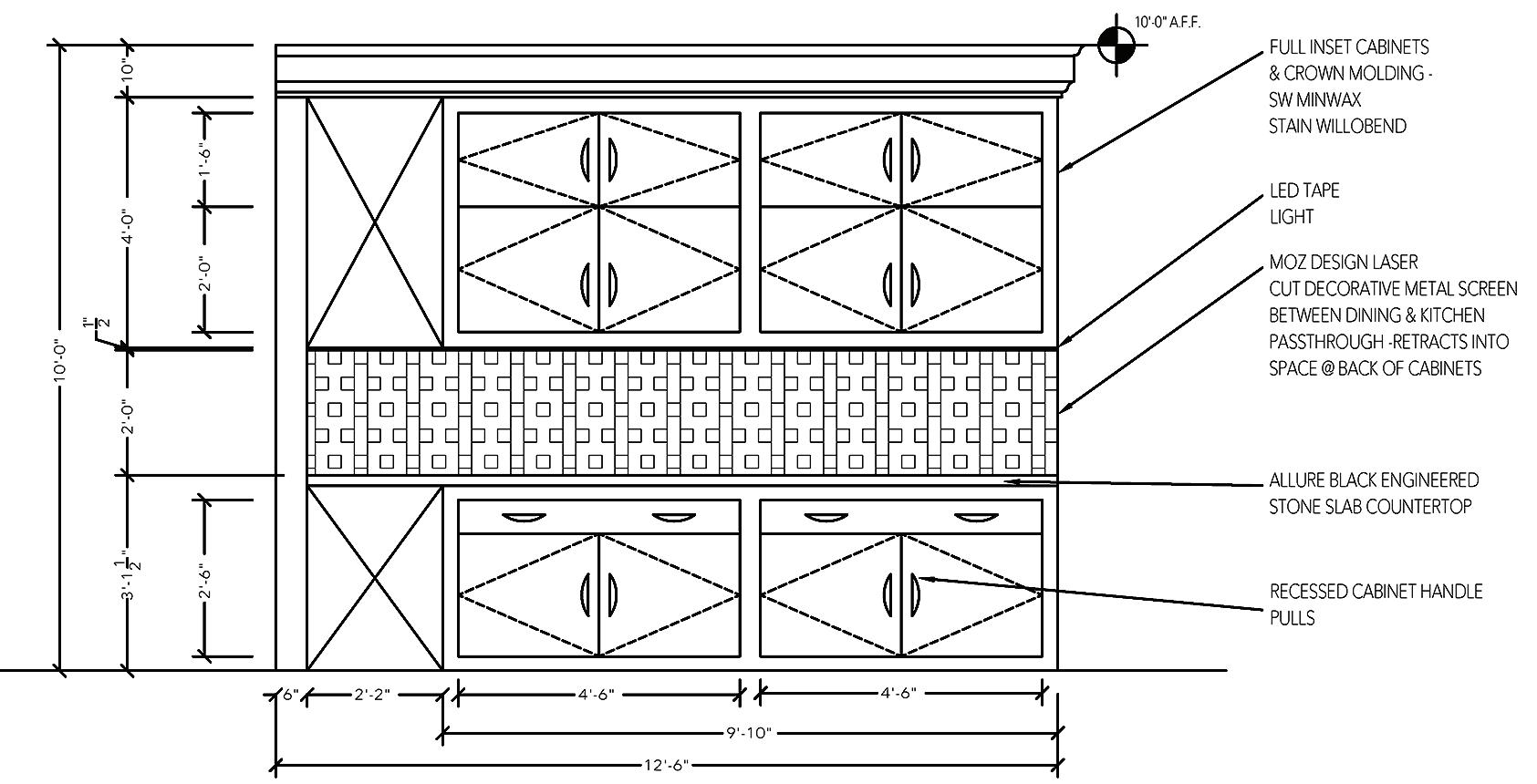

ADKINS DINING ROOM PASSTHROUGH ELEVATION

SCALE: 1/2” = 1’ - 0”

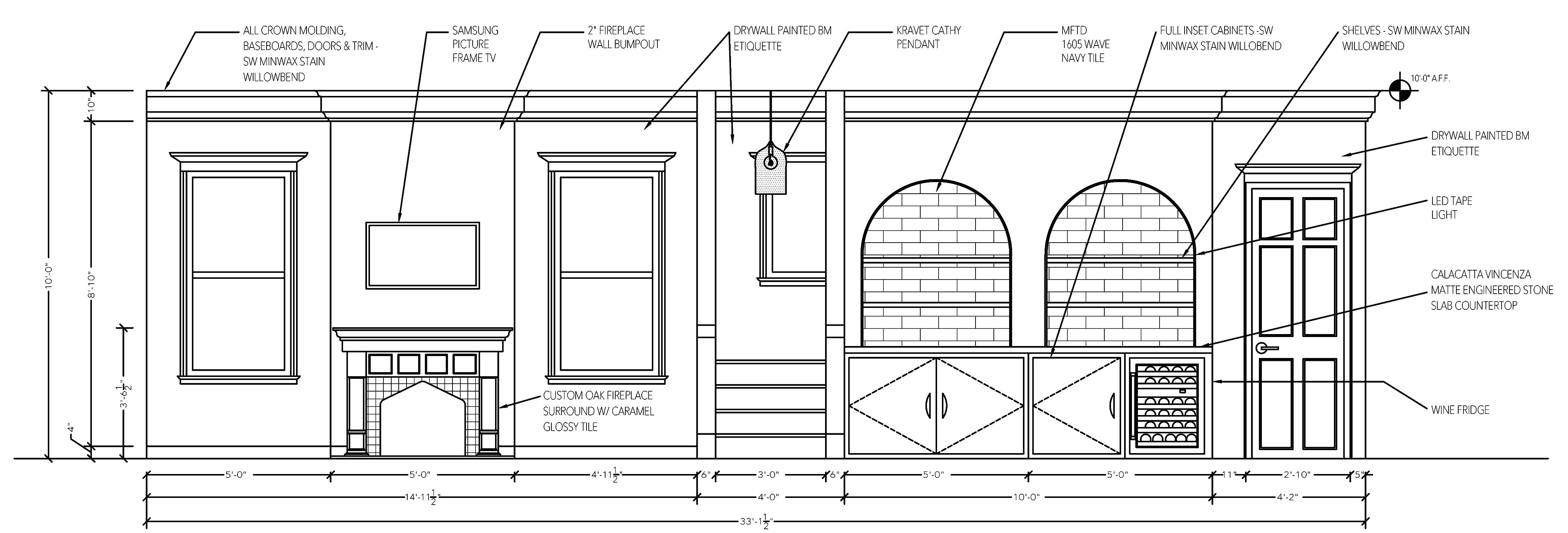

ADKINS WEST WALL ELEVATION SCALE: 1/2” = 1’ - 0”

SAWYER RESIDENCE

RESIDENTIAL DESIGN FAMILY ROOM REDESIGN

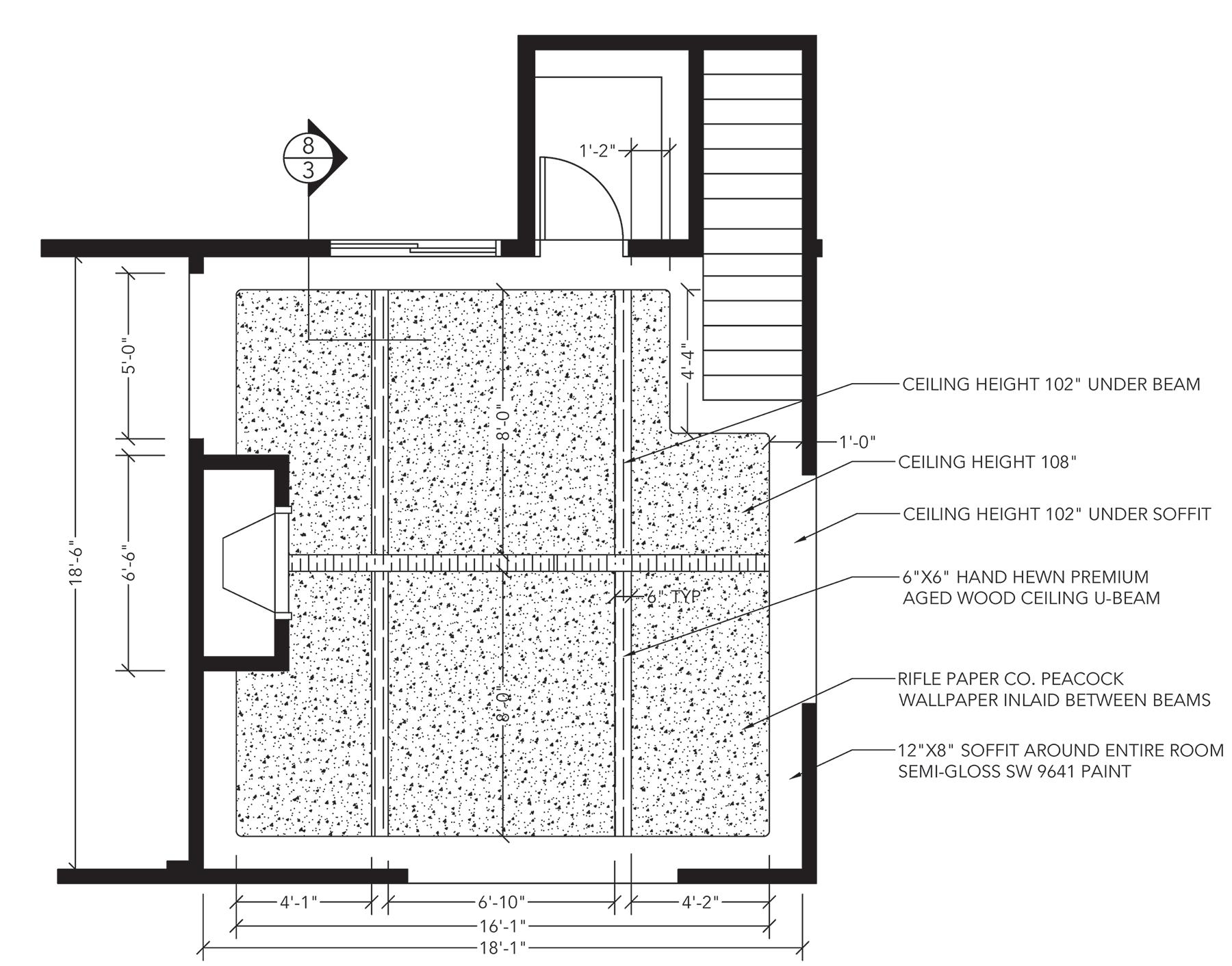

GREAT ROOM - REFLECTED CEILING PLAN

SCALE: 1/4” = 1’ - 0”

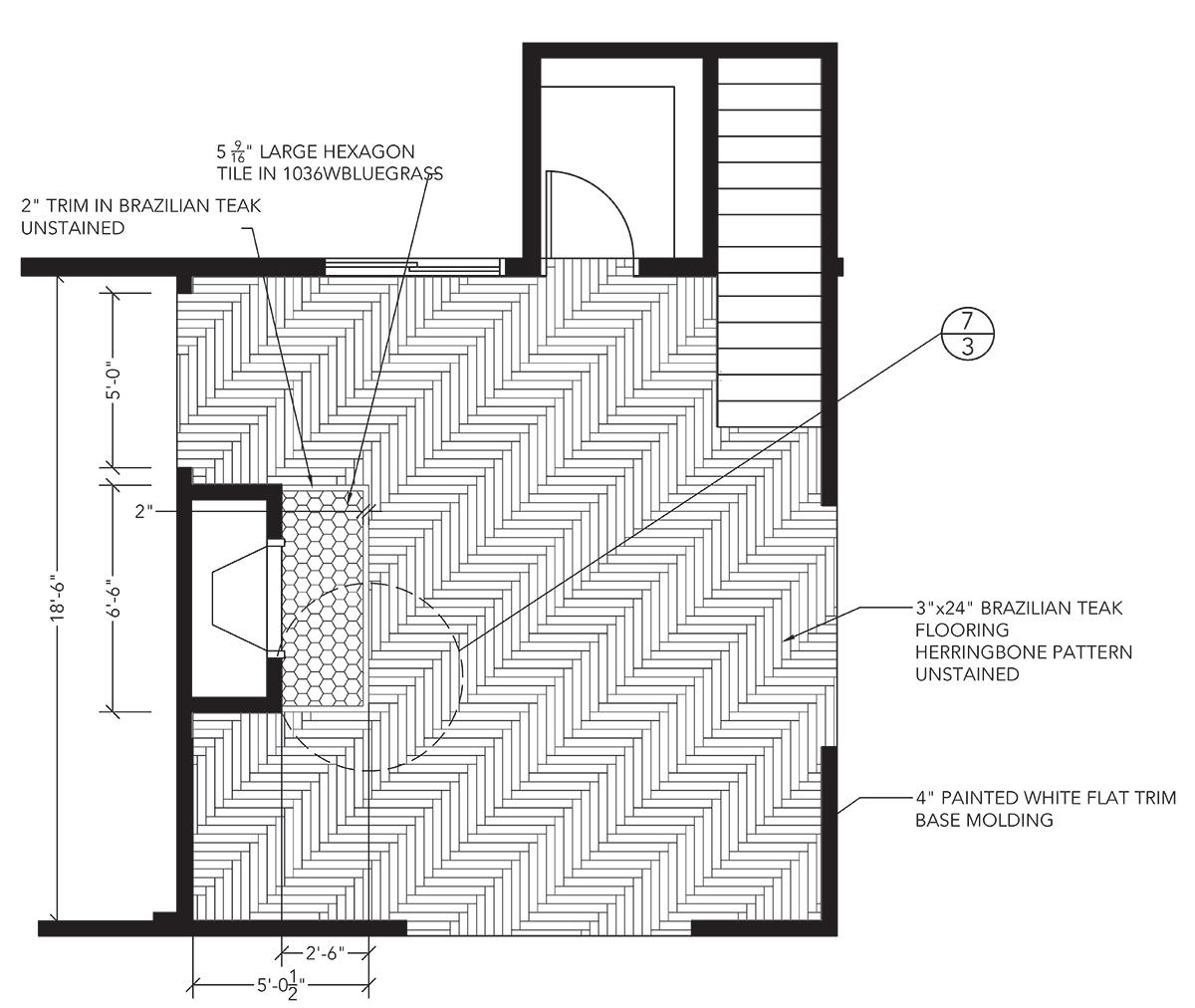

GREAT ROOM - FLOORING PLAN

SCALE: 1/4” = 1’ - 0”

The Sawyer family requested assistance with designing the interiors of their 1930’s home in historic Oak Park, IL.

The first phase of the project focused on the great room. The design showcases the Sawyer’s quirky style with bold colors and patterns while custom built-in shelving offers additional storage for their many books and video games.

KEY PROJECT INFORMATION:

Location

Oak Park, IL

Sq. Footage

338 sq. ft.

Family members

2 parents / 1 teenage child

DESIGN ACHIEVEMENTS

• Unique design customized to client’s style and storage requirements

• Use of sustainable materials with attributes including low VOCs, low emitting materials, locally sourced materials, and Greenguard certifications

• Detailed drawings that communicate the design intent to the clients as well as the contractor

Project included in Spring 2022

“Design Your Future: Make an Impact”

Student Exhibit

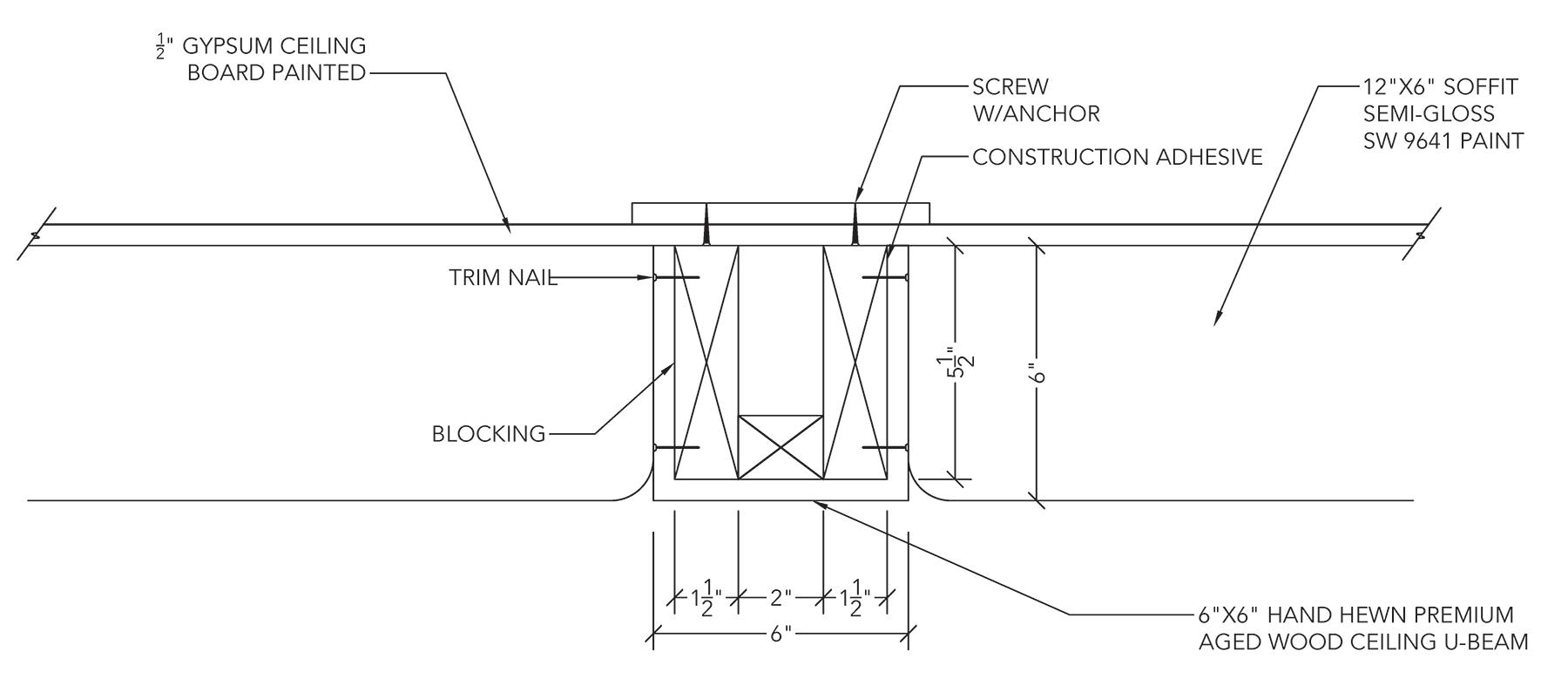

CEILING DETAIL ENLARGEMENT

SCALE: 1/4” = 1’ - 0”

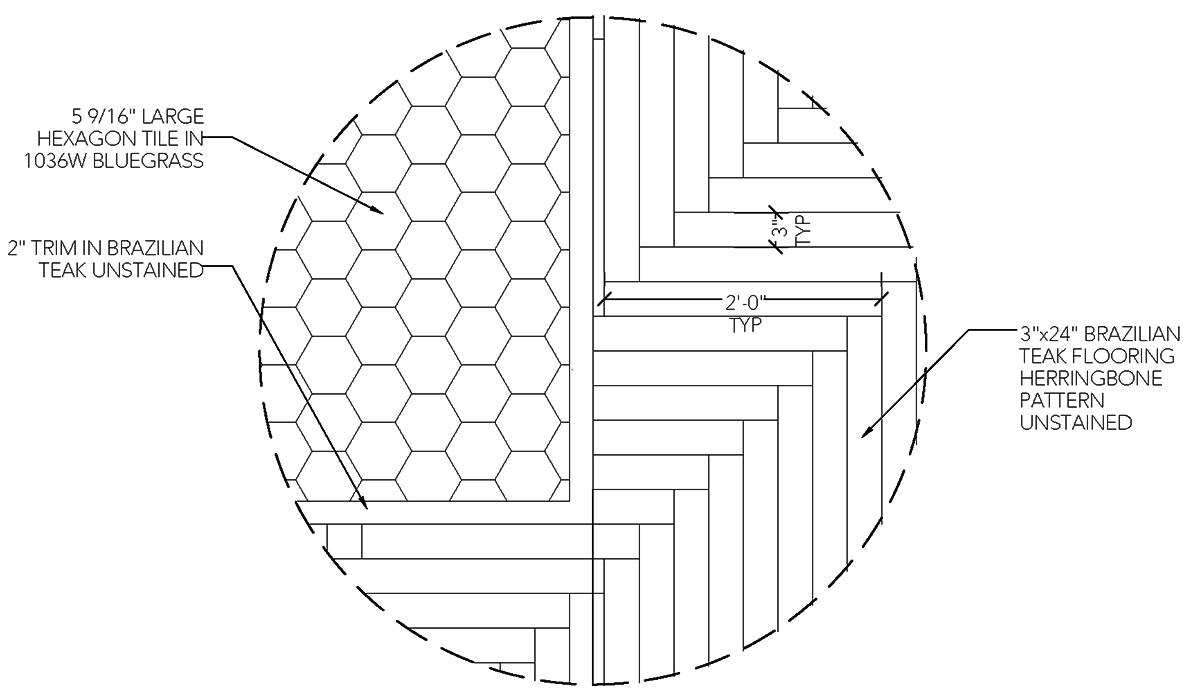

FLOORING DETAIL ENLARGEMENT

SCALE: 1/4” = 1’ - 0”

2.

4.

1.

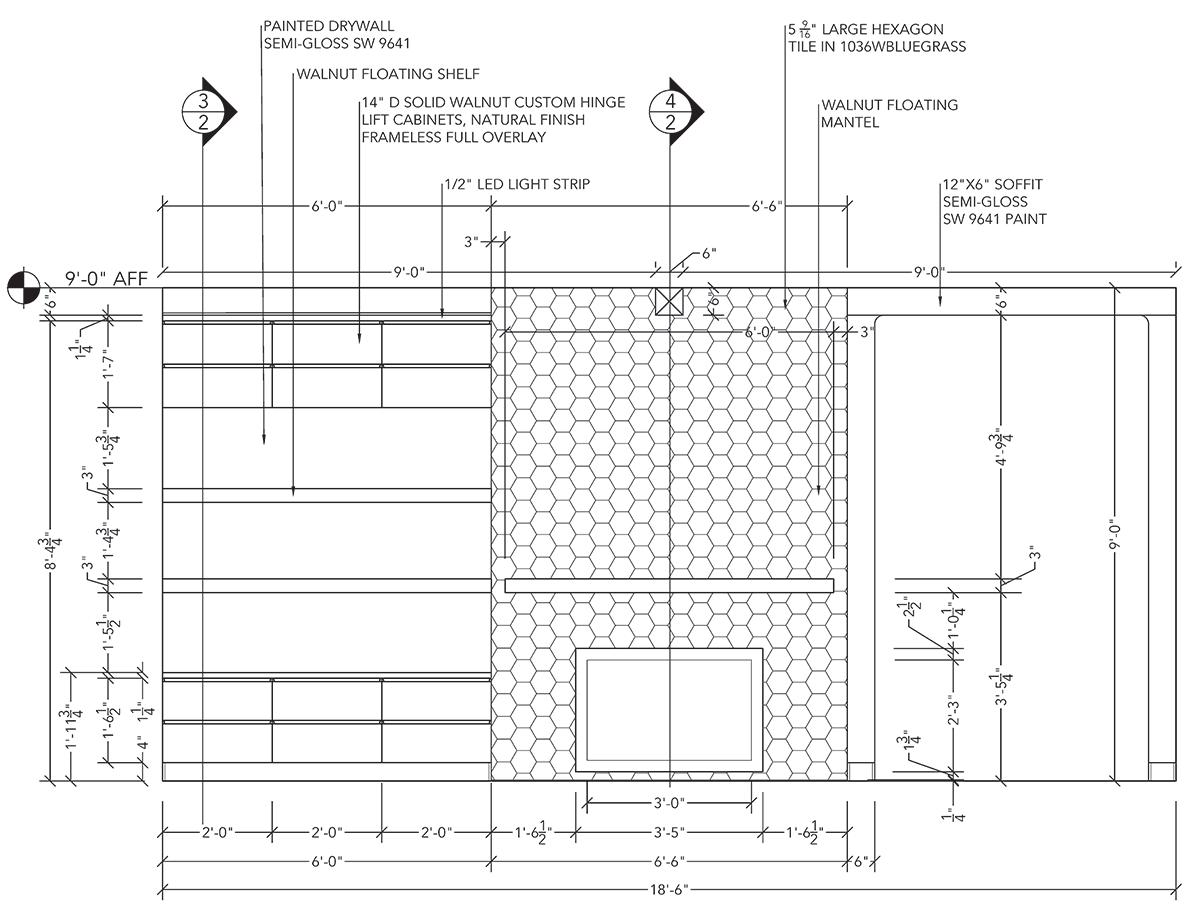

GREAT ROOM - WEST ELEVATION

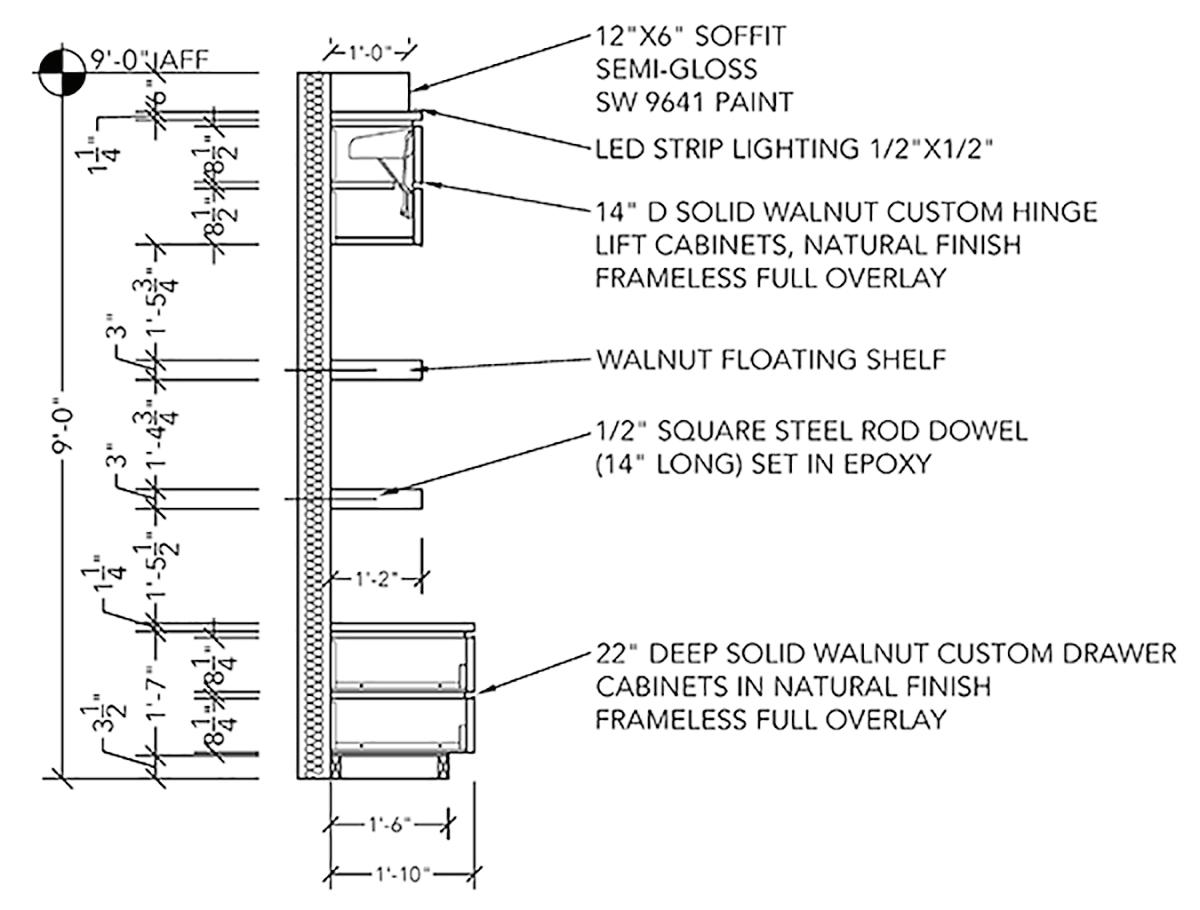

GREAT ROOM - CABINET SECTION SCALE: 3/8” = 1’ - 0”

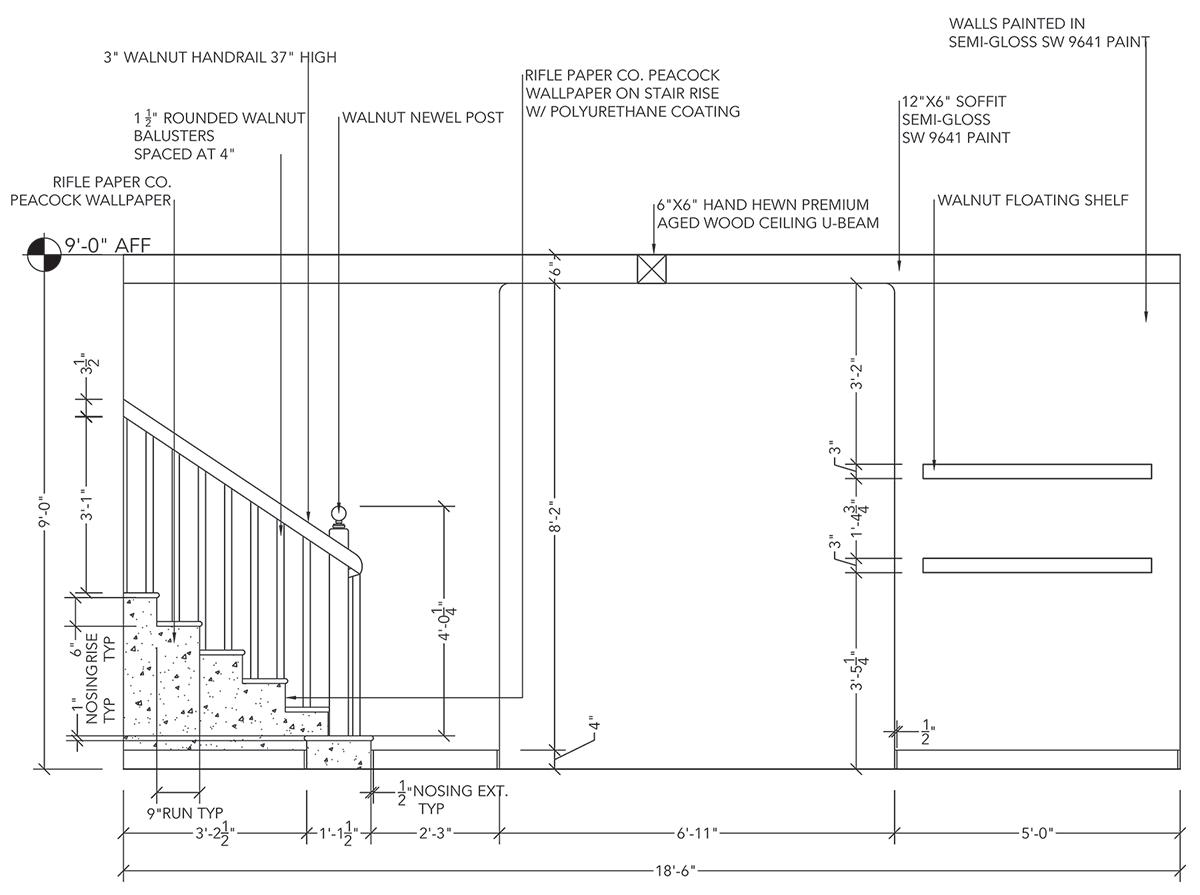

GREAT ROOM - STAIR ELEVATION

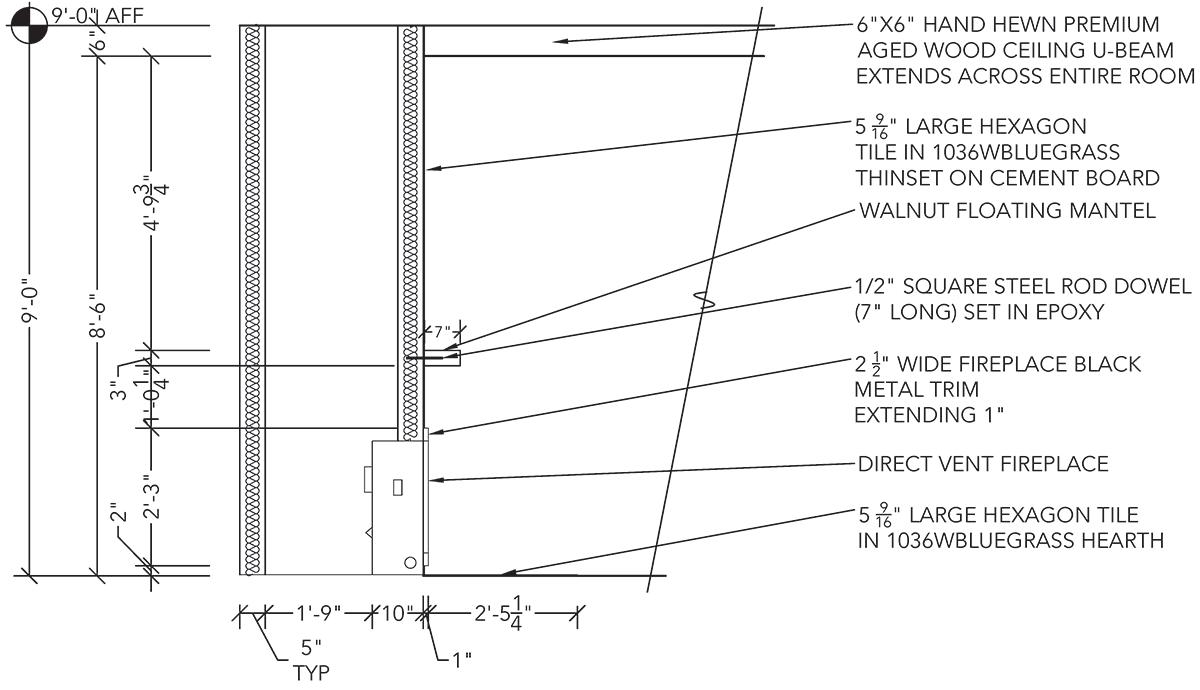

GREAT ROOM - FIREPLACE SECTION SCALE: 3/8” = 1’ - 0”

1.

2.

3.

4.

3.

1.

1.

1.

1.

1.

2.

2.

2.

IANTONI RESIDENCE

RESIDENTIAL DESIGN COLLABORATIVE PROJECT

The Iantoni’s recently purchased a home in Geneva, IL originally built in the 1990’s. Updates were required to the property as it had not been renovated since being built. They wanted to bring a more transitional style to the home, focusing on the kitchen and fireplace. This design was completed while employed with Lifestyle Design, a residential design firm in Geneva, IL.

KEY PROJECT INFORMATION:

Location

Geneva, IL

Sq. Footage

4,264 sq. ft.

Family Members

Guy & Sara Iantoni

DESIGN ACHIEVEMENTS

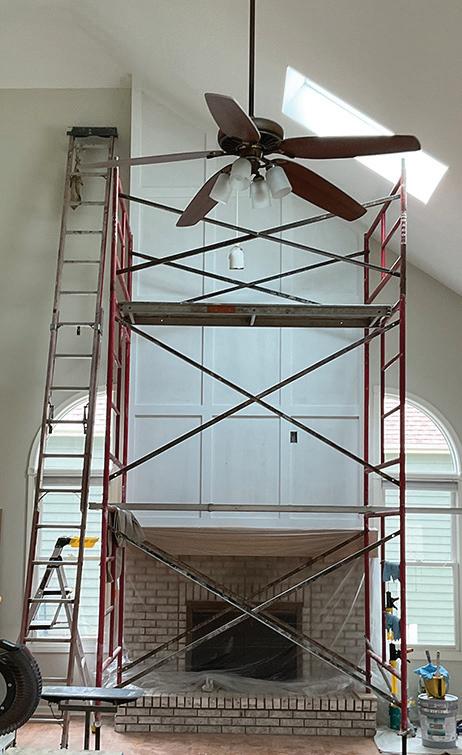

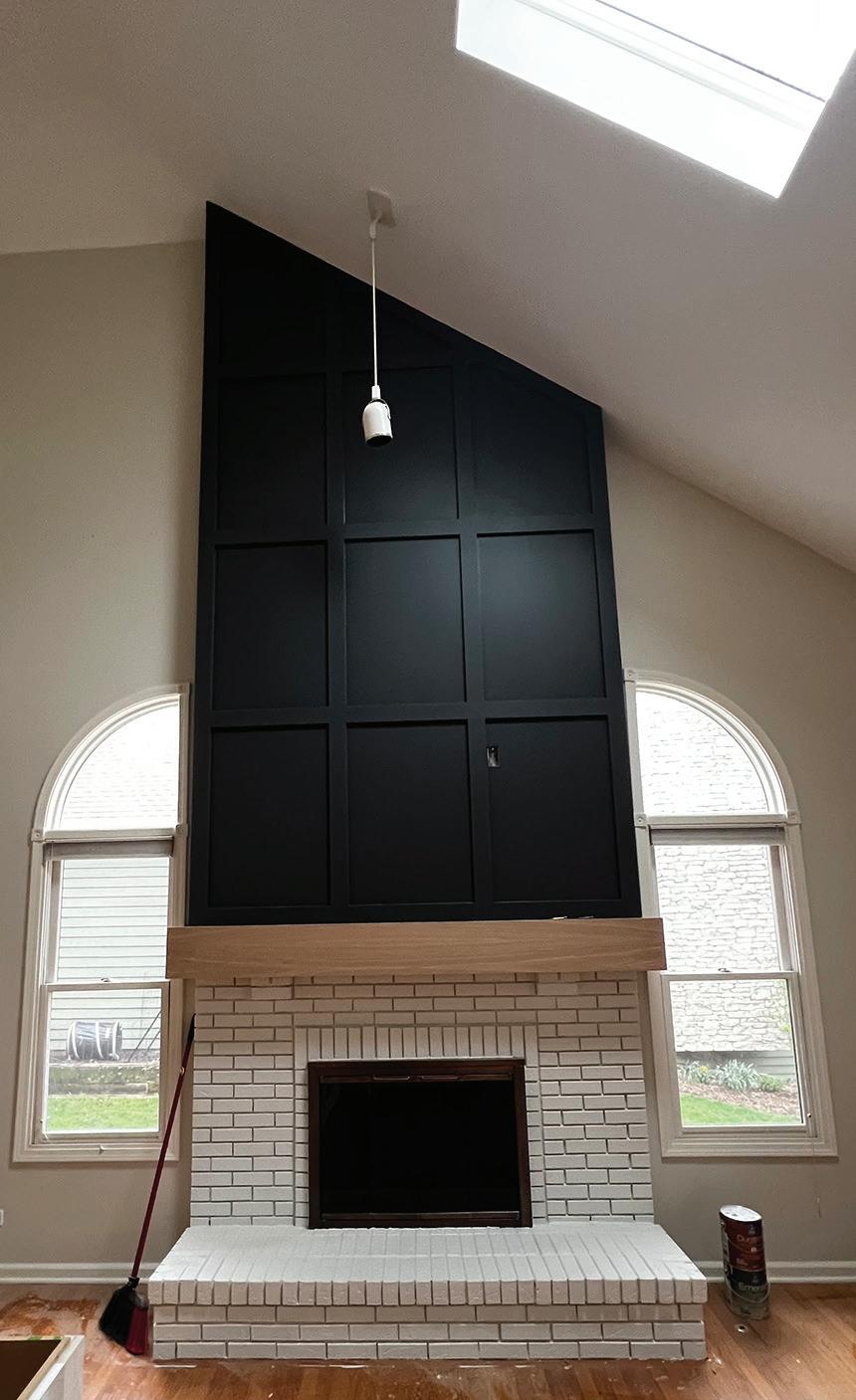

• Provided various solutions to updating the fireplace at different budget levels

• Redesigned key details that shifted the feel of the space to a more transitional style

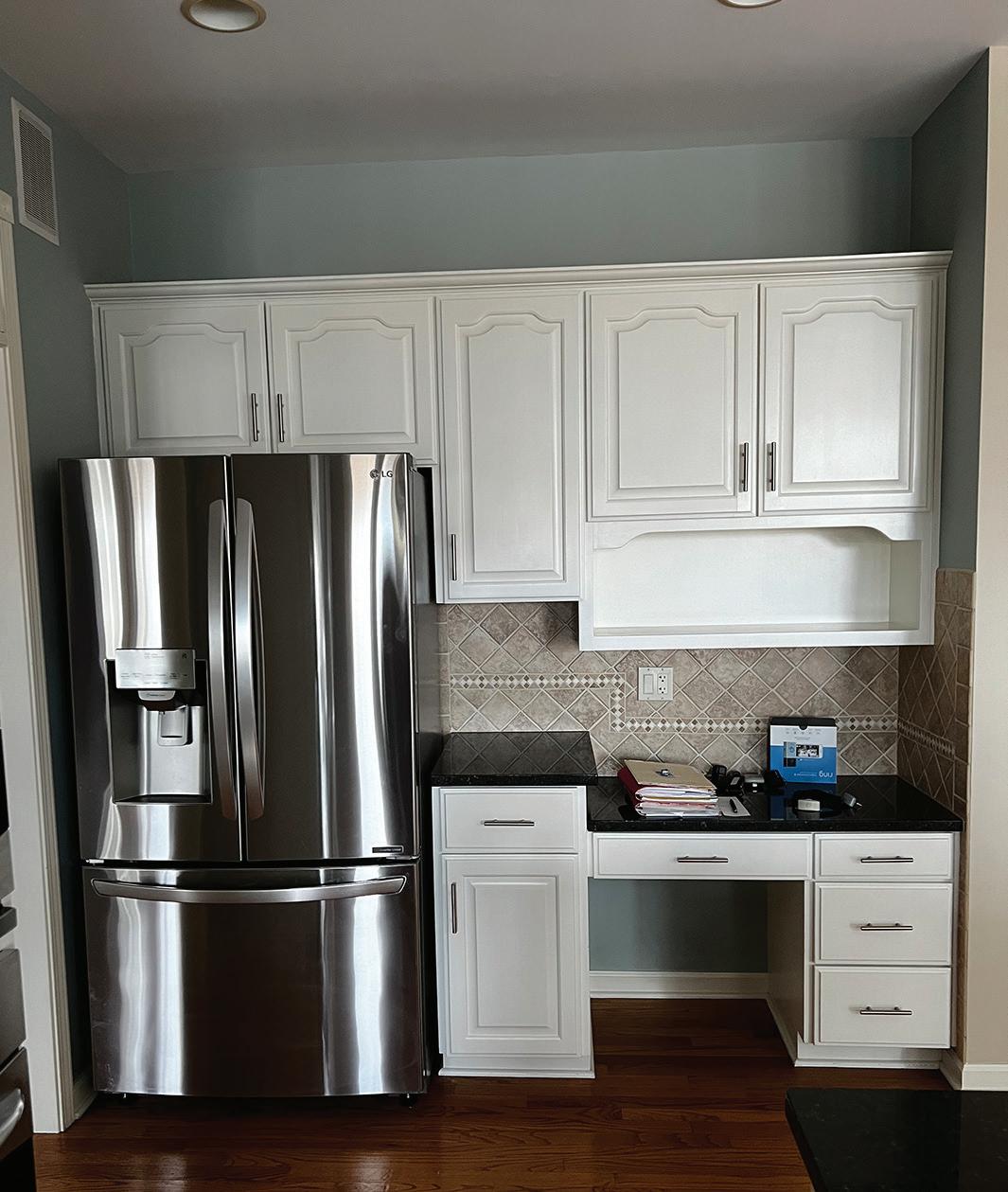

• Removed outdated built-in-desk in the kitchen and provided a more functional space for the client

• Communicated with the client by providing Adobe Photoshop renders that allowed the client to better visualize the space with Lifestyle Design

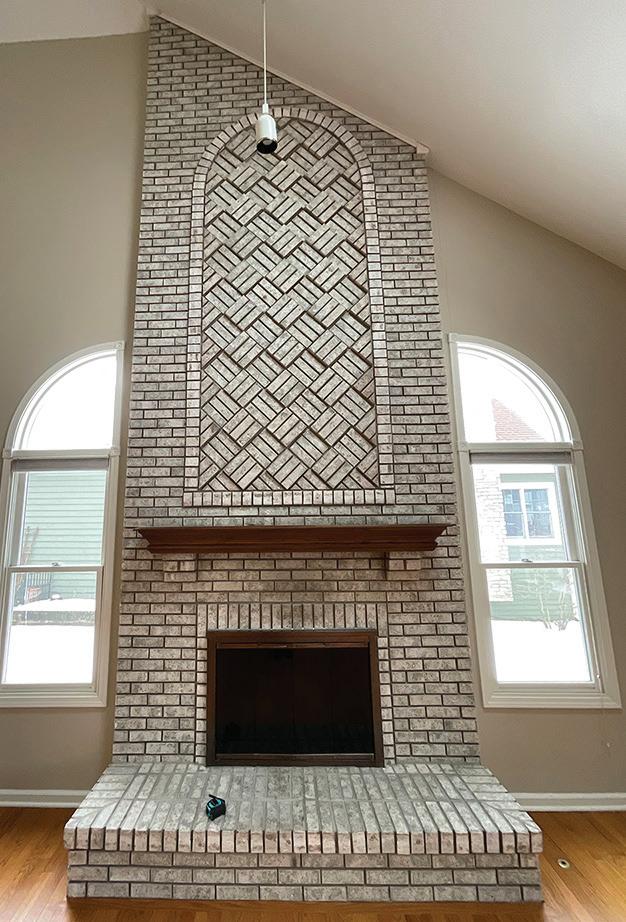

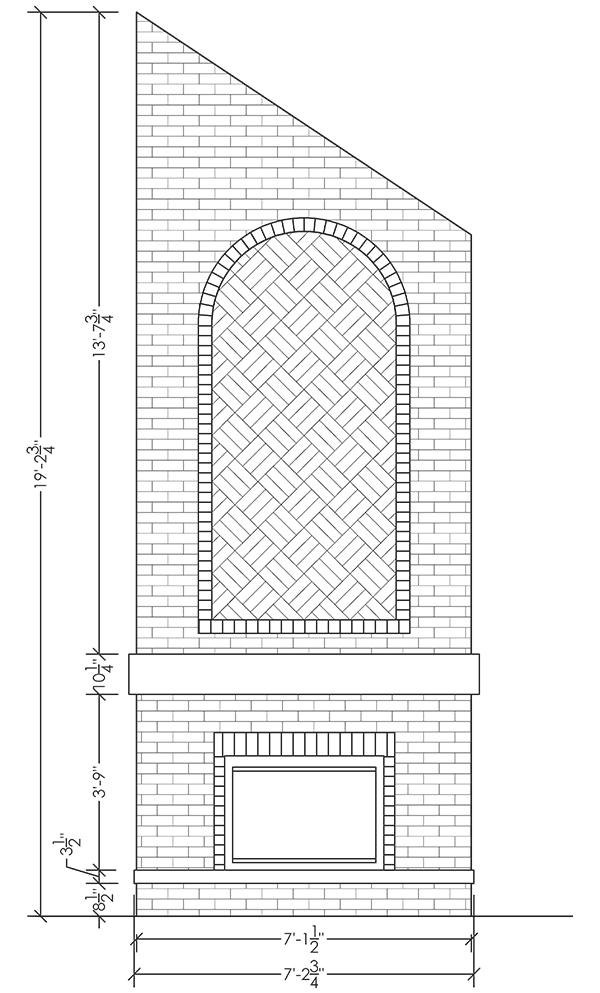

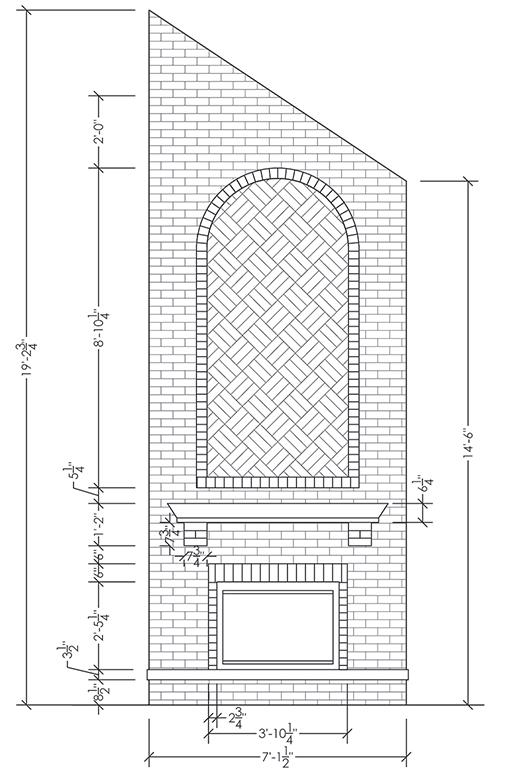

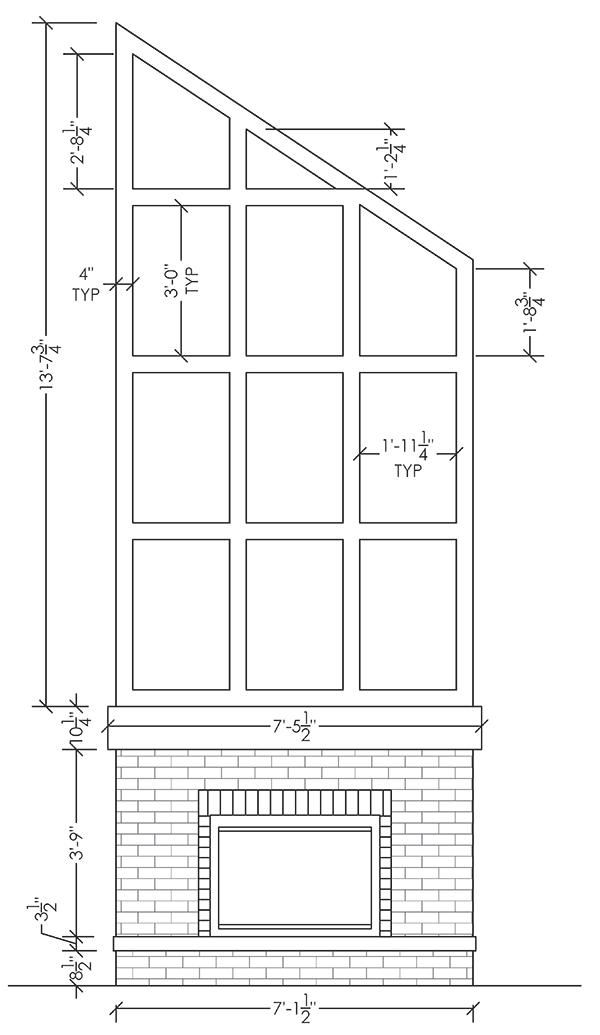

FIREPLACE AS BUILT SCALE: 3/8” = 1’ - 0”

PROPOSED FIREPLACE DESIGNS SCALE: 3/8” = 1’ - 0”

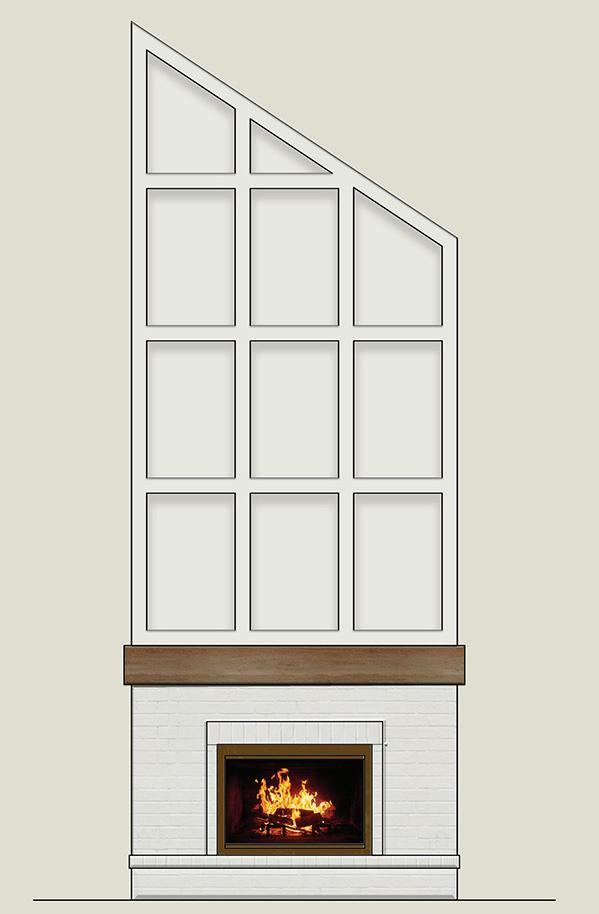

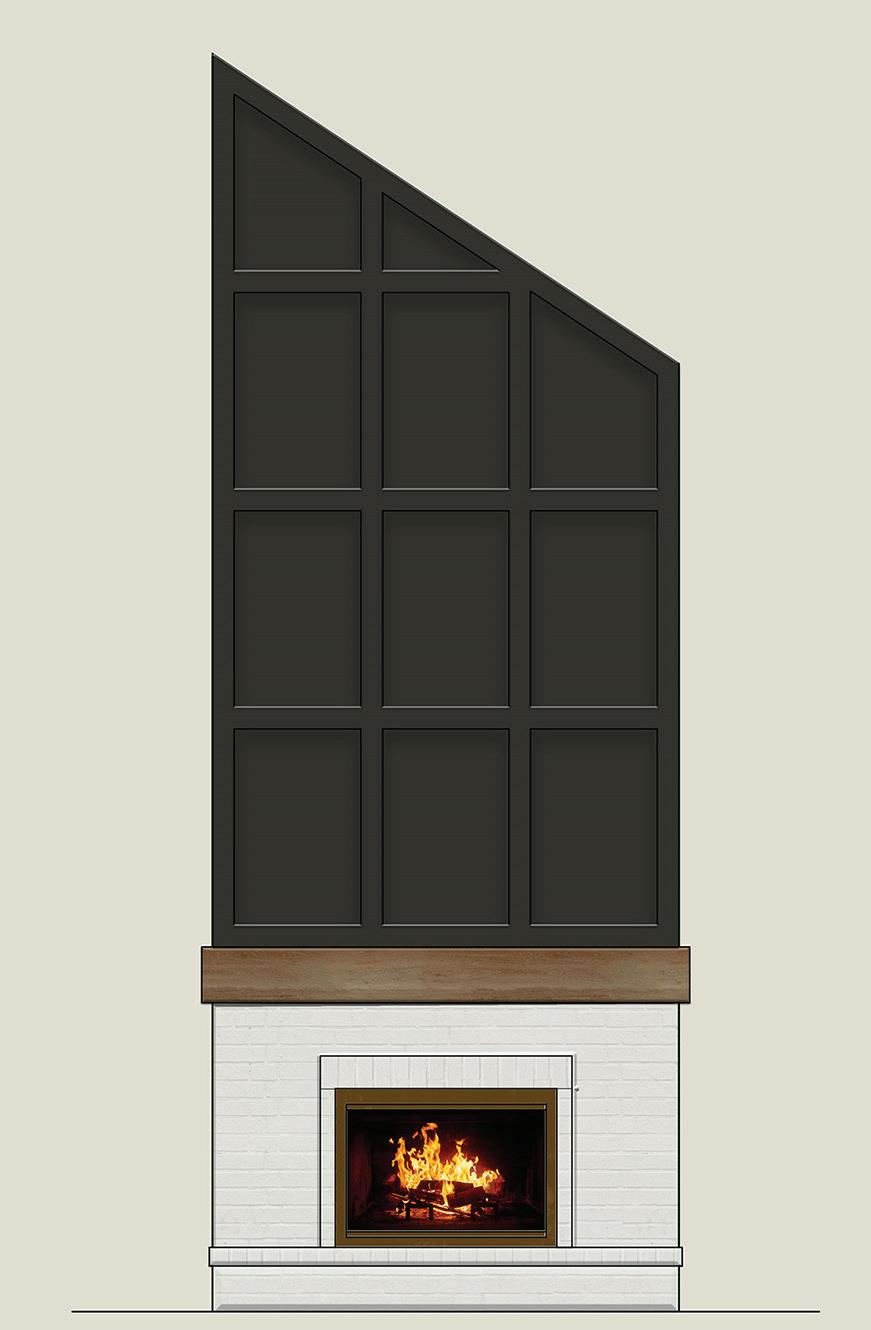

RENDERED FIREPLACE ELEVATIONS

PROPOSED KITCHEN DESIGNS SCALE: 3/8” = 1’ - 0”

MATERIAL SELECTIONS

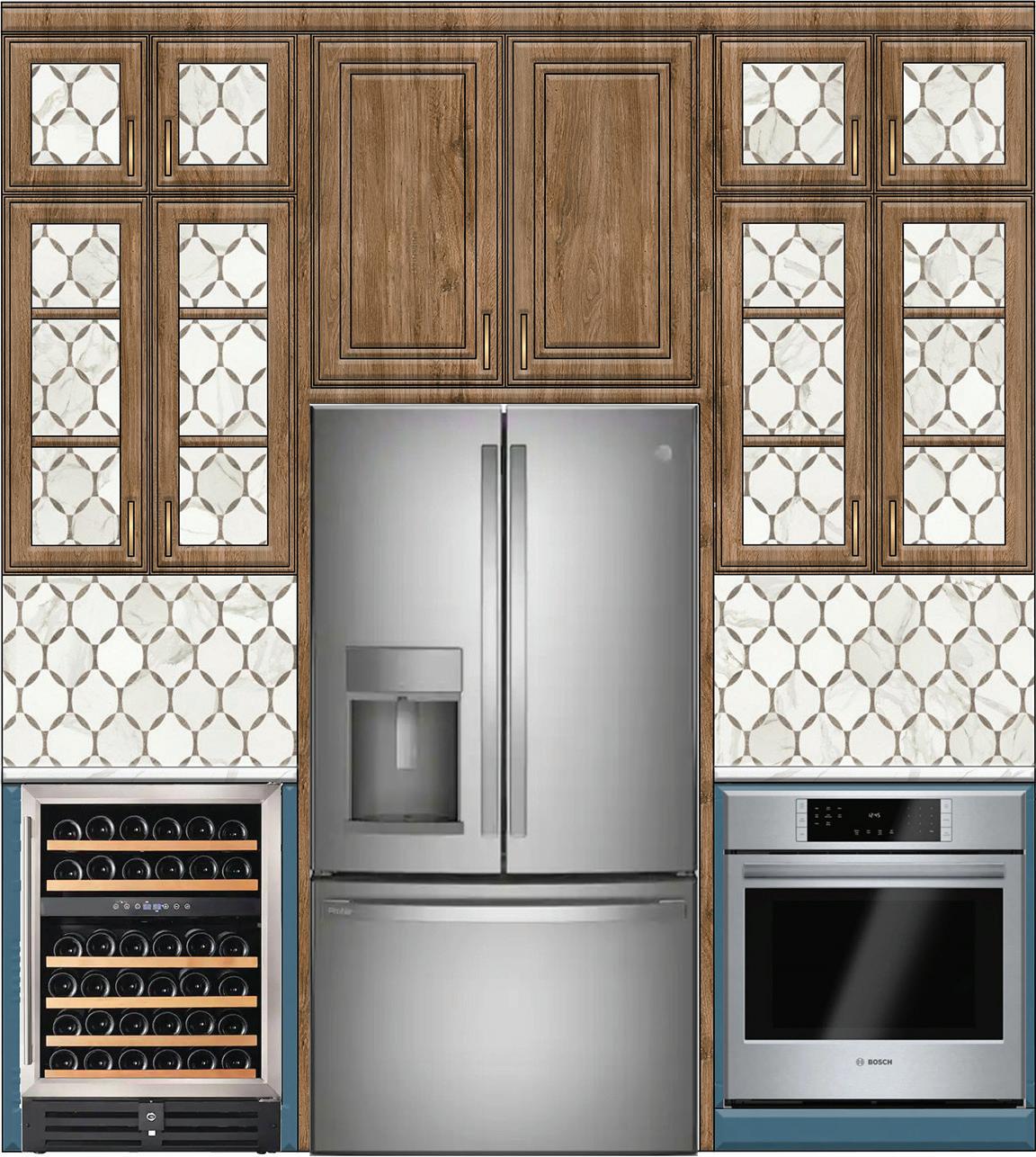

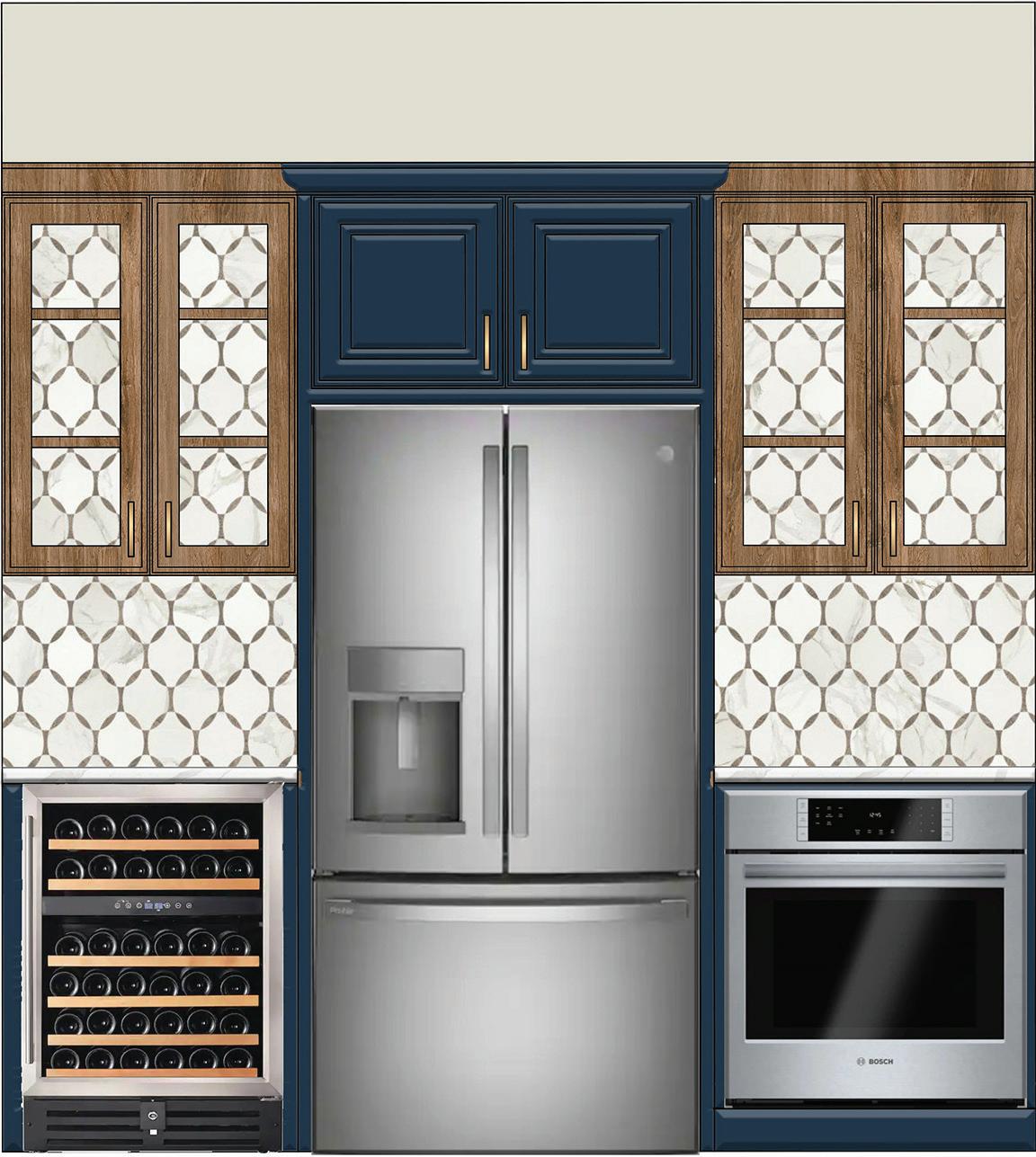

RENDERED KITCHEN ELEVATIONS

1. 2.

3.

4.

1. Audrey Lane Waterjet Key to My Heart custom tile in Statuario matte and Blaze Wood matte 2. Benjamin Moore Hale Navy HC-154

3. Minwax Wood Interior Stain - Cooper Brown MW1204 4. Benjamin Moore Halo OC-46

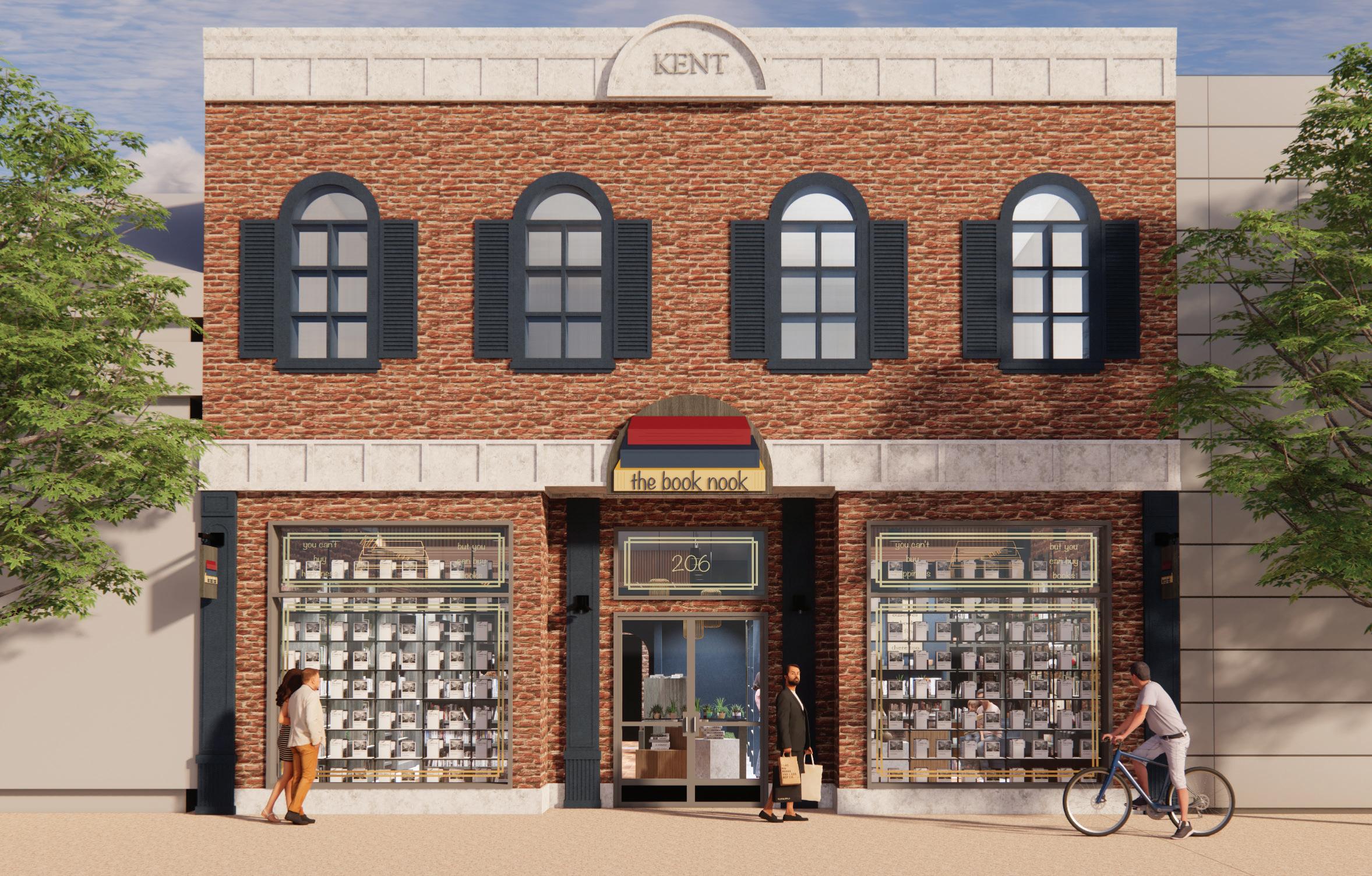

THE BOOK NOOK

COMMERCIAL DESIGN RETAIL PROJECT

The Book Nook is a small, independently owned bookstore cultivated for booklovers.

The relaxed bohemian design invites customers to shop, read, and stay to enjoy the offered specialty services such as book readings, writing workshops, and book clubs.

KEY PROJECT INFORMATION:

Location

Wheaton, IL

Sq. Footage

2,456 sq. ft.

Target Market

Young Adults – Millennials/Gen Z Avid readers of all levels

DESIGN ACHIEVEMENTS:

• Logo colors and book themed quotes used throughout design to emphasize branding

• Use of sustainable fabrics and finishes with attributes such as FSC certification, recycled content, antimicrobial, and phthalate free

• ADA Accessible with 44” wide circulation paths, 60” wheelchair turning points, a public ADA compliant bathroom, and acessible cash wrap

• Use of open shelving fixtures to divide the space, but keep sightlines open for security

MATERIAL PALETTE FIXTURE

SELECTIONS

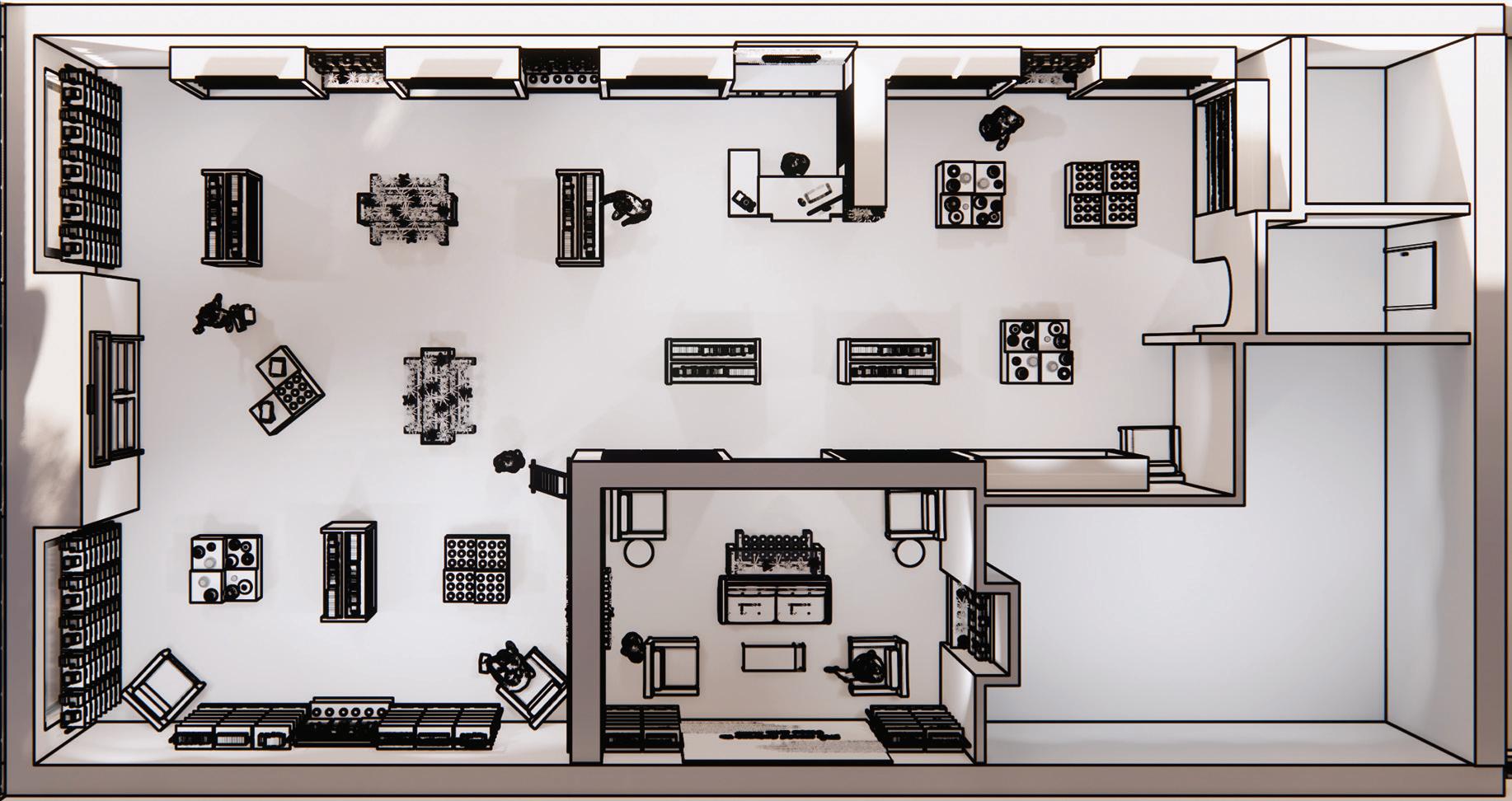

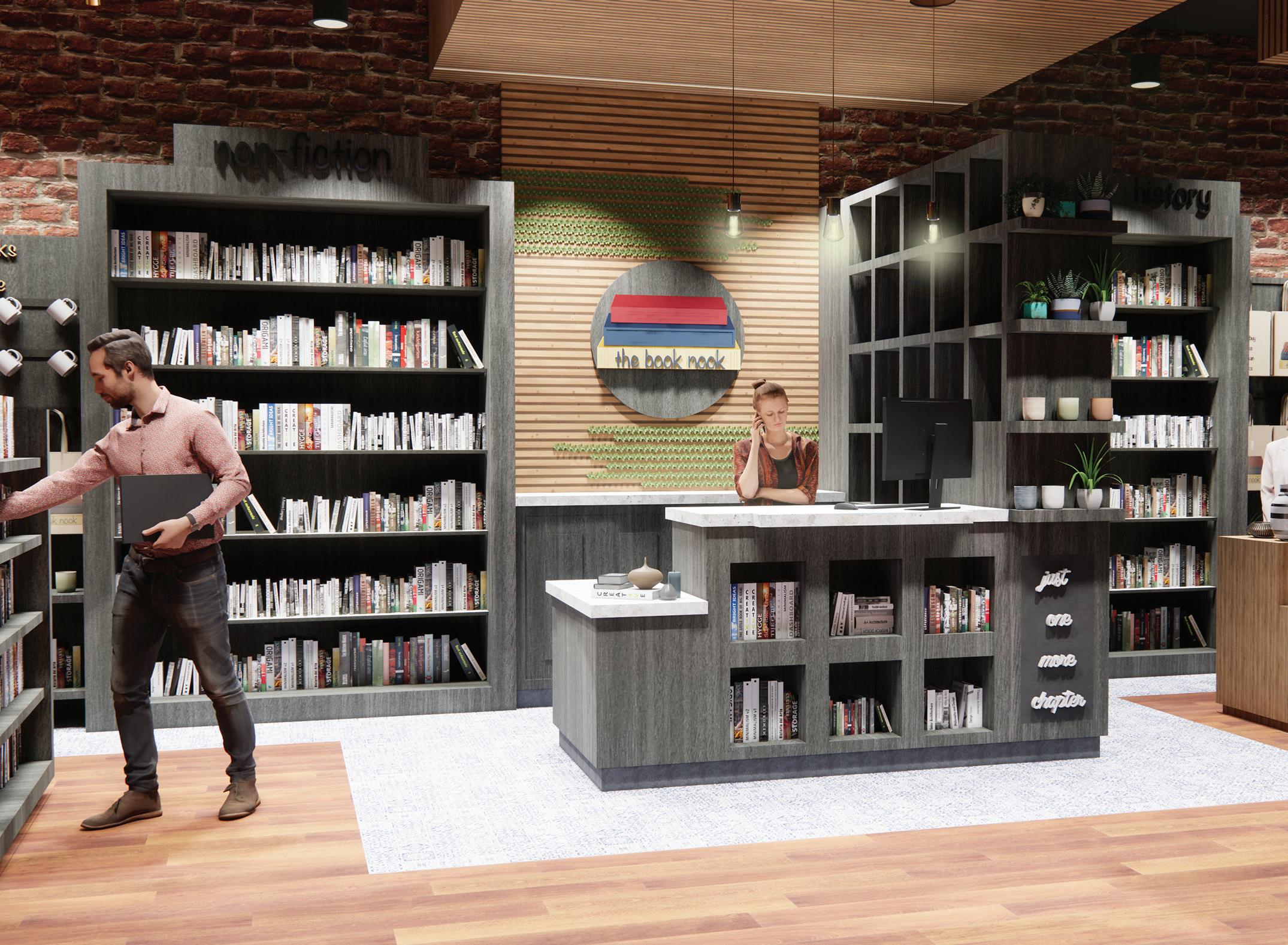

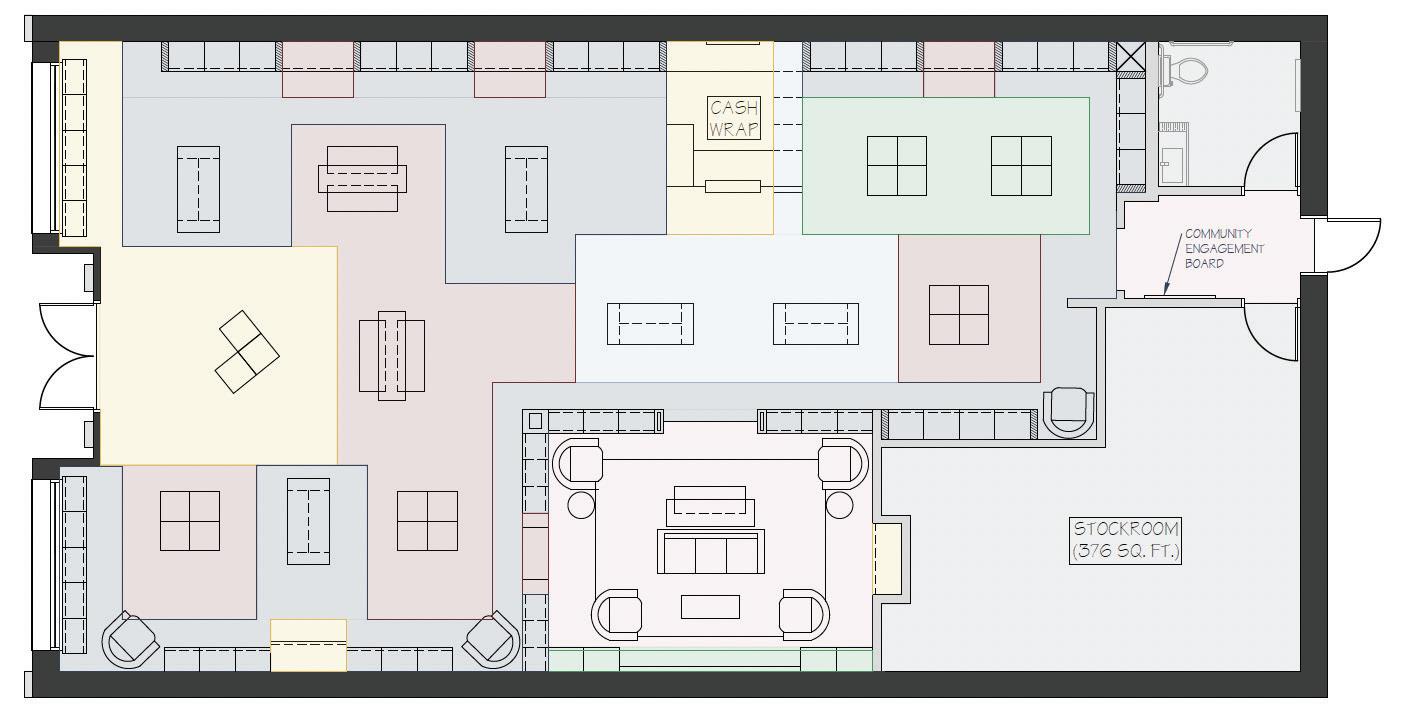

ONE POINT BIRDS EYE PERSPECTIVE

ArcCom - Journey - Amber #6

Belden Brick Co - Garnet Blend

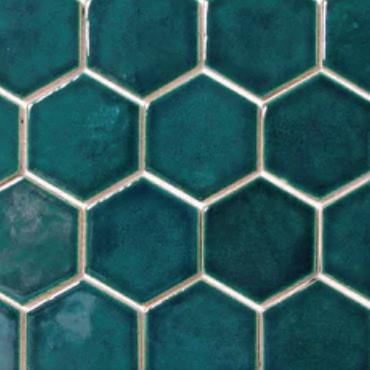

Somer Tile - Faenza Azul

TerraMai Acoustic Ceiling

Panel

Loloi Rugs - LF04 MH Rust/Ivory

Primary products - Line perimeter & guide customers throughout entire store

Secondary products - Interspersed between primary products to create interest

Seasonal products - Can be easily seen from exterior to draw customers in

N

Opto Reveal WallMounted Shadowbox

Customizable to allow for many shelves for primary products - books

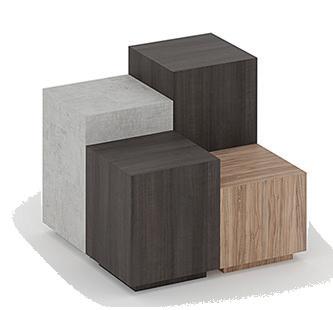

Opto Reveal Display

Cube Set

Can be broken into different groupings - adjustable as merchandise fluxuates

Opto Edge Rectangular Table Grouping

Passes NFPA 701 / 100,000 double rubs / ACT certified

Opto Evolve 2-Module

Low Gondola

Low height shelves in the middle of the space - clear visuals for security

Opto Reveal Wall

Focal Panel

Adaptable shelving for ever changing secondary products - hooks for branded canvas bags

B+N Industries

Sorbetti 2.0

Avoiding walls of books - open shelving keeps sightlines open

Impulse products - Placed near the cash wrap to easily grab before checking out

Sale products - Located in the back & in book nook area to bring customers further into the store

ALL RENDERINGS PRODUCED WITH SKETCHUP / RENDERED WITH ENSCAPE / ENHANCED IN ADOBE PHOTOSHOP DRAWINGS PRODUCED IN AUTODESK AUTOCAD, NOT TO SCALE. ORIGINAL SCALE IS REPRESENTATIVE OF INDUSTRY STANDARD 5. 5. 5. 5. 5. 1. 1. 1. 1. 1. 1. 1. 2. 2. 2. 2. 2. 2. 3. 3. 3. 4. 4. 4. 4. 4. 6 6 6 6 6 6 6 6

Passes NFPA 701 / 100,000 double rubs / ACT certified

Heavy duty / low emitting / may contribute to LEED credits

Made from natural materials / free from allergens, VOCs, formaldehyde & PVC

& Wall

Low VOC / contains recycled content / HPD certified / 0.85 NRC

HEPBURN’S COCKTAIL LOUNGE

COMMERCIAL DESIGN RESTAURANT PROJECT

Hepburn’s Cocktail Lounge is a vintageinspired jazz bar that serves a large array of upscale cocktails paired perfectly with small plates and charcuterie. The intent of the design was to blend vintage style with modern and unexpected materials to modernize the space.

KEY PROJECT INFORMATION:

Location

New York, NY

Sq. Footage

4,500 sq. ft.

Target Market

Millennials and generation Xers who are middle to upper-class

DESIGN ACHIEVEMENTS

• Incorporated materials that may contribute towards earning LEED credits and have sustainable qualities such as recycled content and low/zero VOCs

• Use of luxurious, high-quality, and durable materials that are easily cleaned with antibacterial soap and water

• Controlled acoustics by dividing the space into zones as well as utilizing acoustical ceiling panels and fabric finishes

• Addressed ADA standards throughout resulting in wide pathways, compliant bathrooms, and more than enough accessible seating

• Seamless transitions between flooring materials specified throughout to allow for easy movement through the space for those with low vision

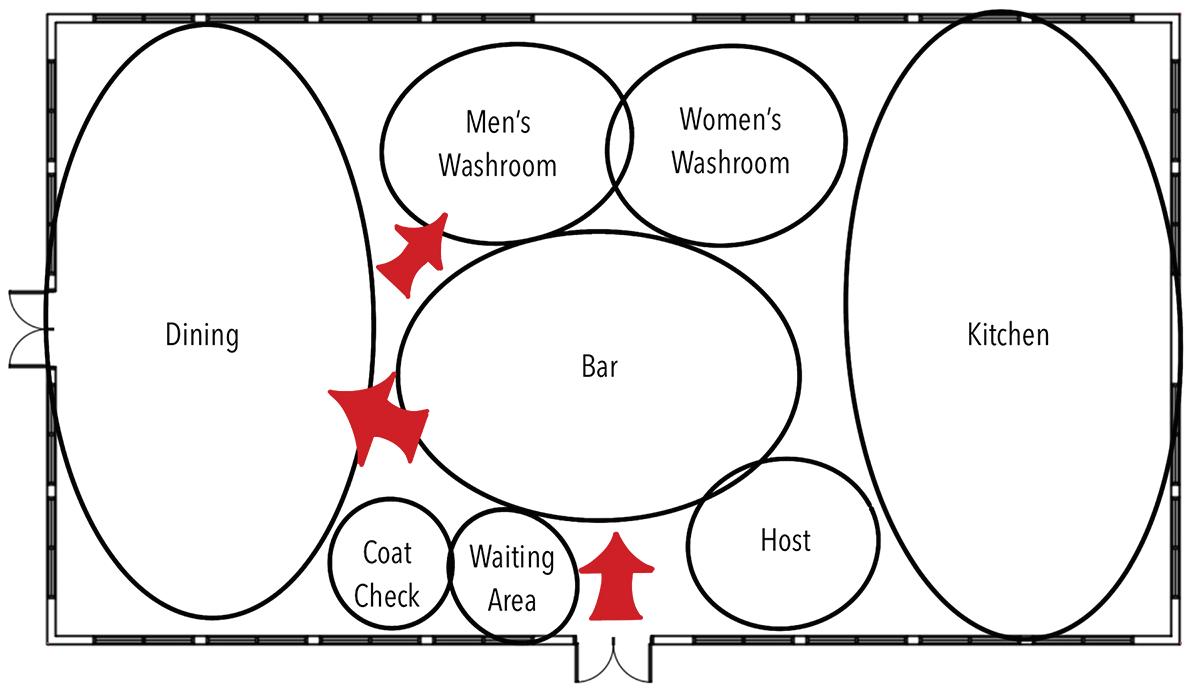

BUBBLE PLANNING

HEPBURN’S

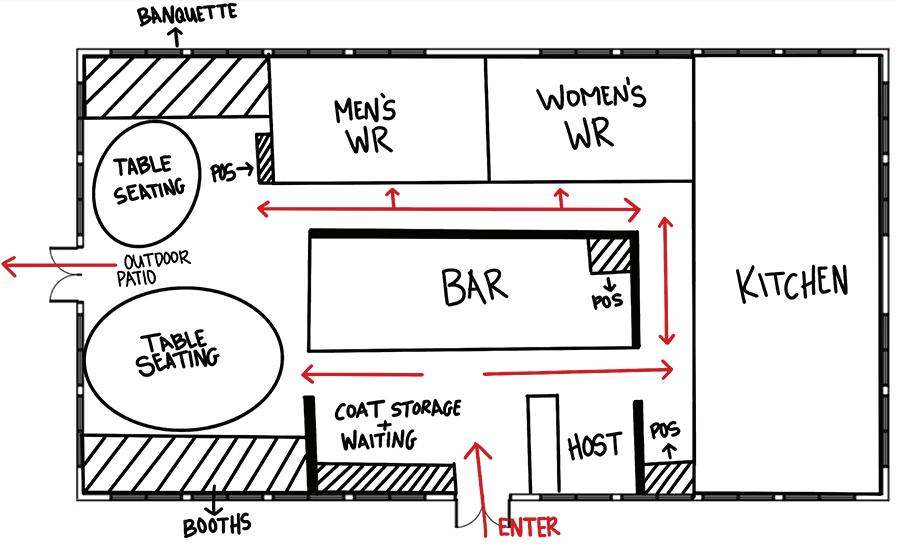

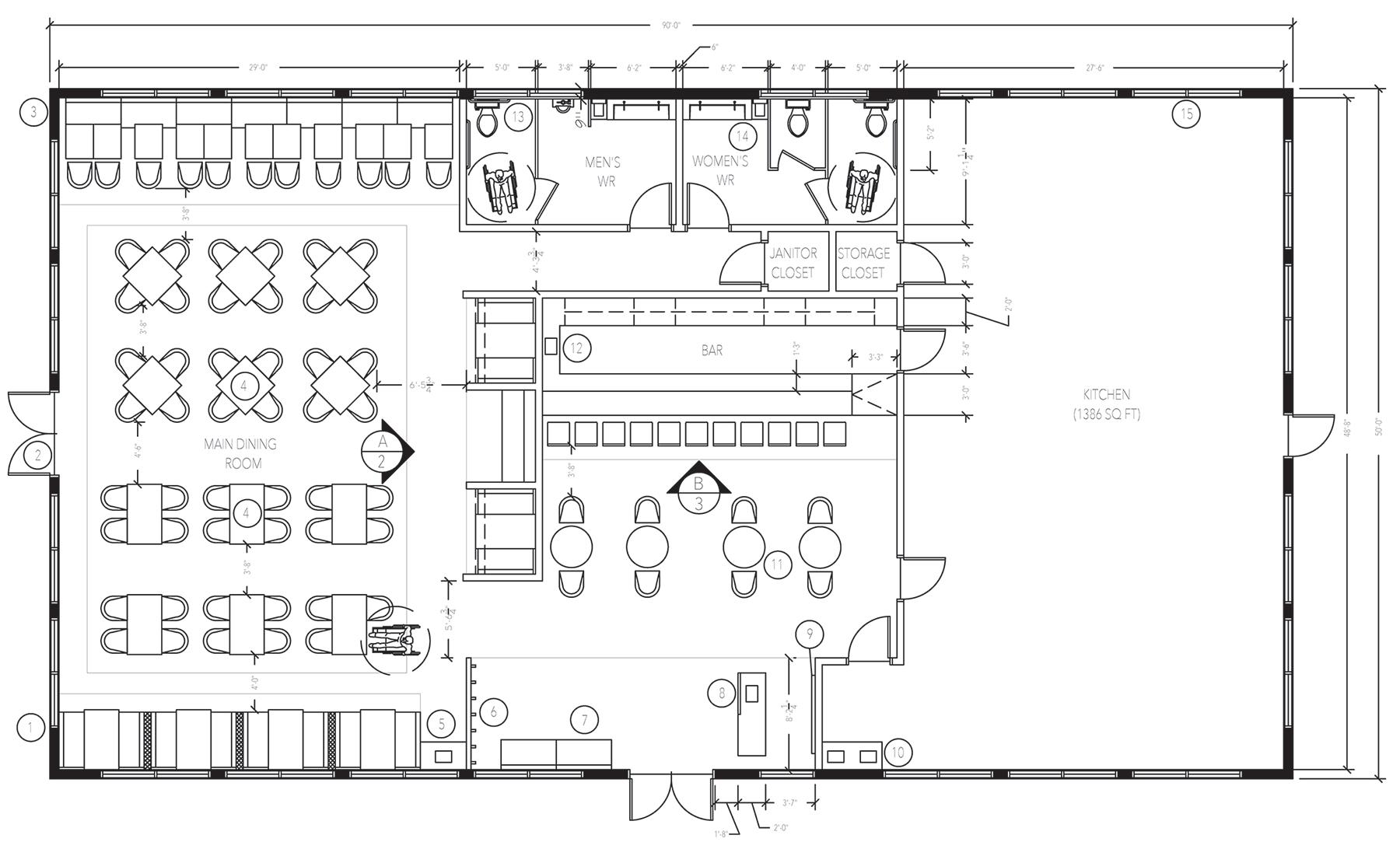

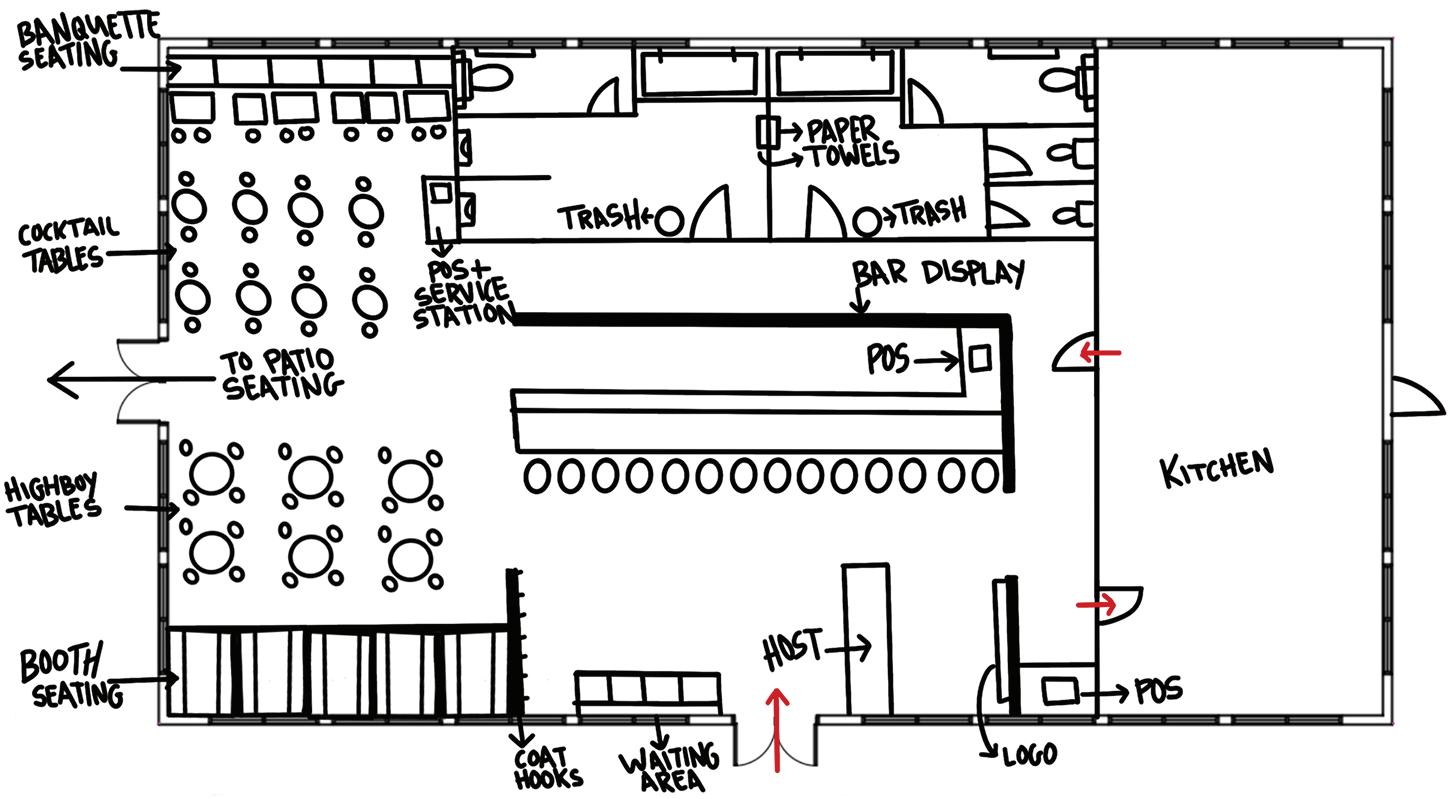

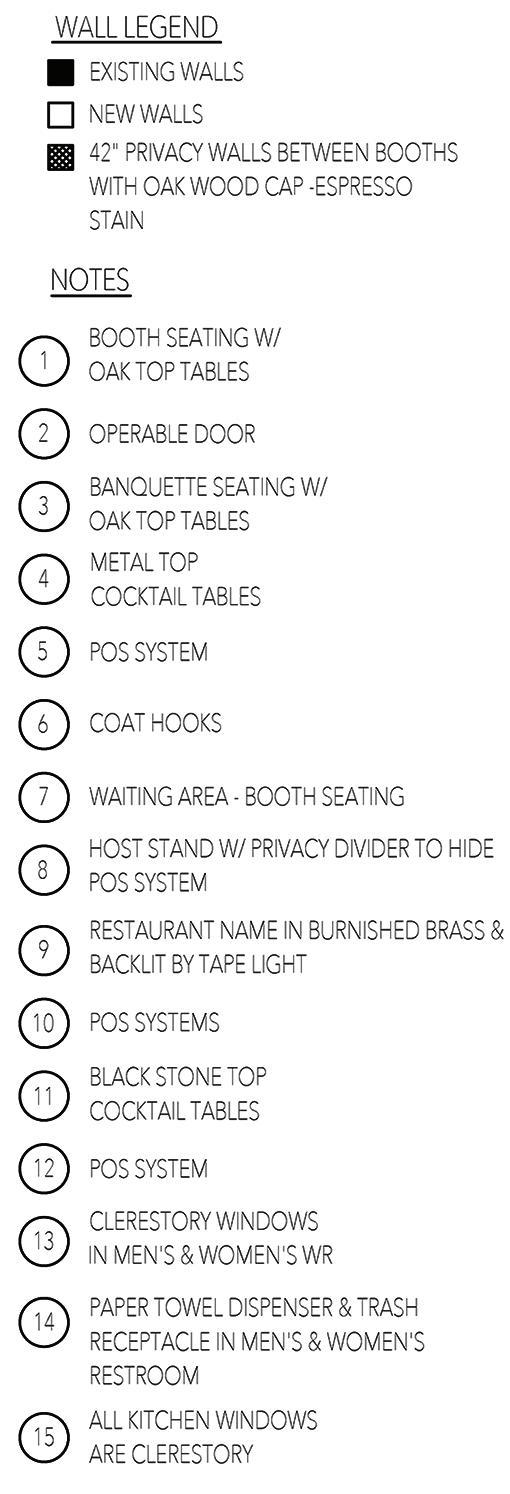

PRELIMINARY SPACE PLANNING

HEPBURN’S BLOCK PLANNING

1.

2.

4.

5.

3.

6.

7.

FURNITURE VIGNETTE

Modern Line Furniture

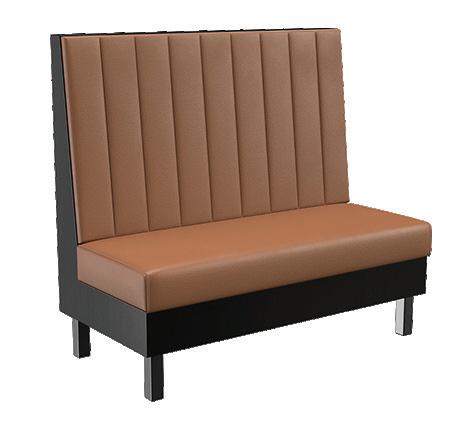

Horten Restaurant Booth

Single Seat British Tan

Phthalate and Lead Free

HEPBURN’S PRELIMINARY FEATURE WALL DRAWING

HEPBURN’S PRELIMINARY BAR DRAWING

CopperSmith Polished

Brass Hand Hammered

Rectangular Tabletop

Lead-free solid copper

Hanstone Polished Quartz

Tranquility RU613

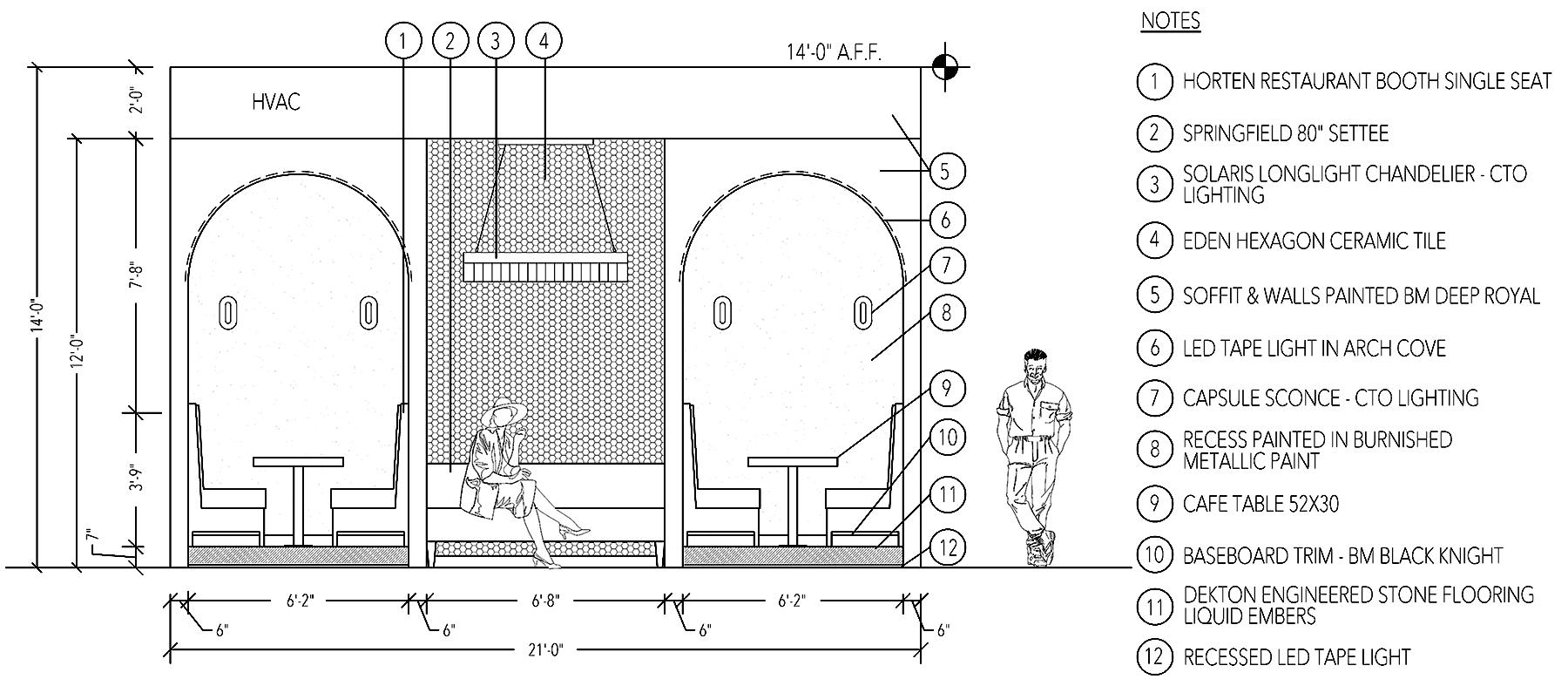

HEPBURN’S FEATURE WALL ELEVATION

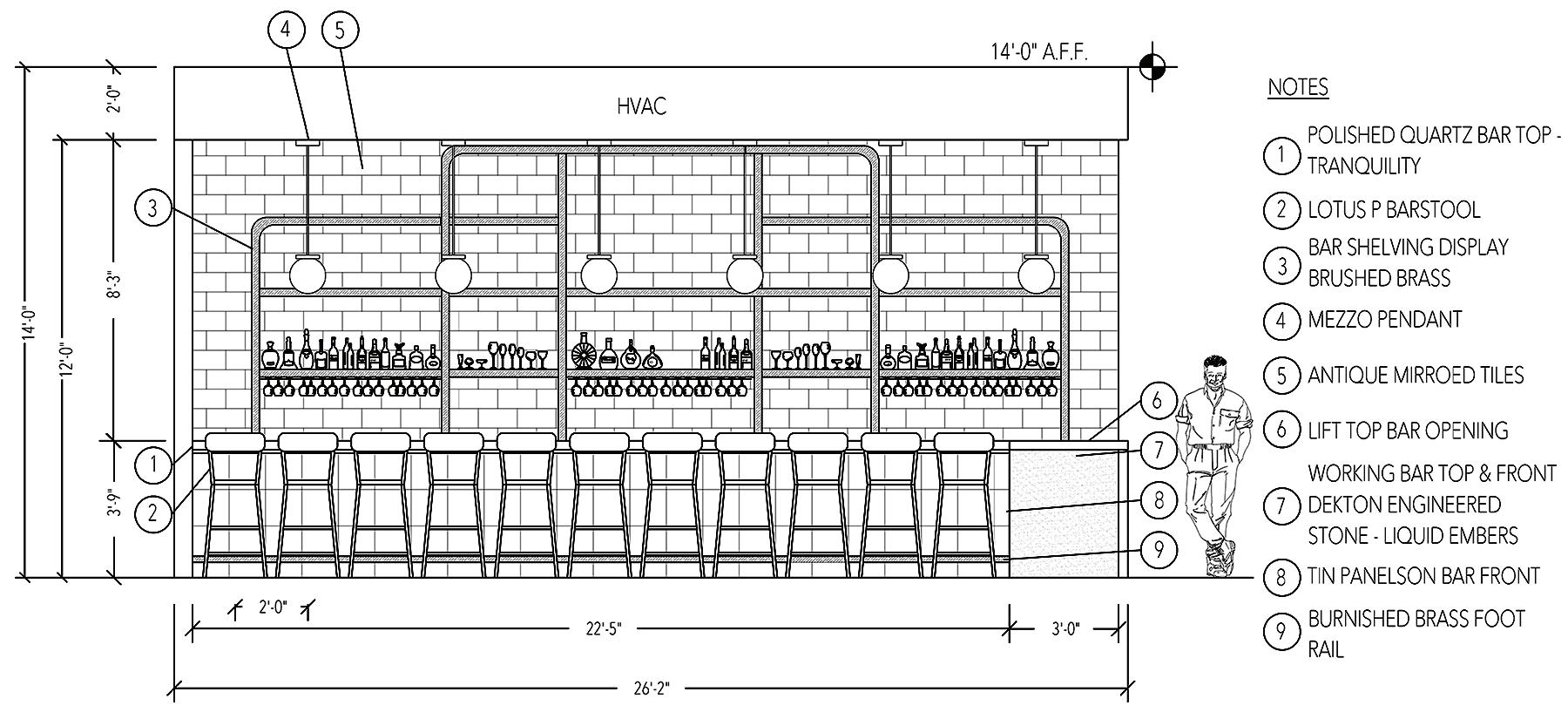

HEPBURN’S BAR ELEVATION

East Coast Chair & Barstool

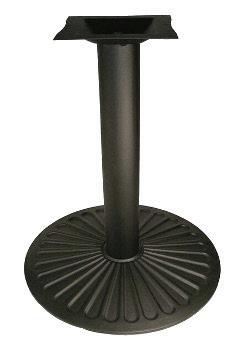

Cast Iron Scalloped Disc

Cafe Table Base in Table

Height

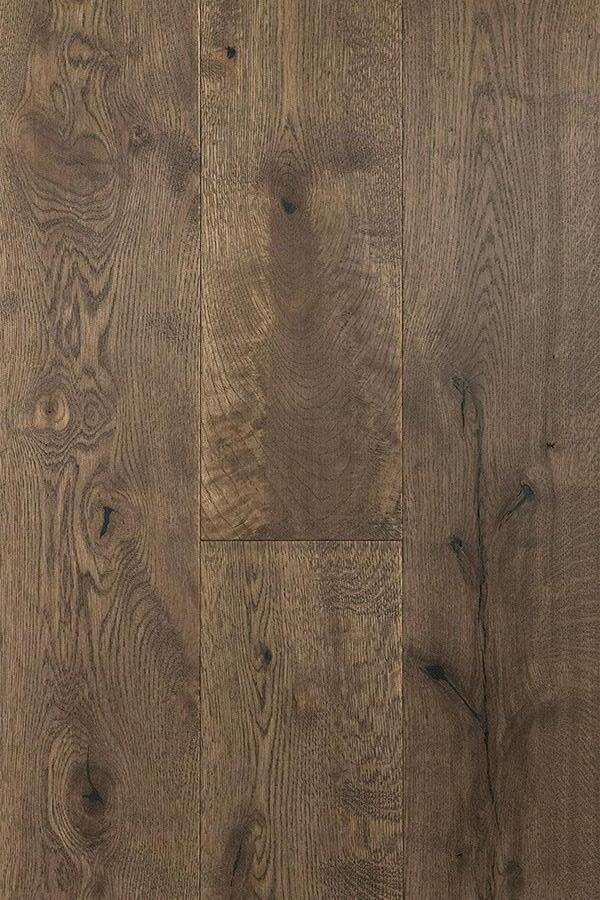

Northern Wide Plank

7” Muskoka White Oak

Engineered Hardwood

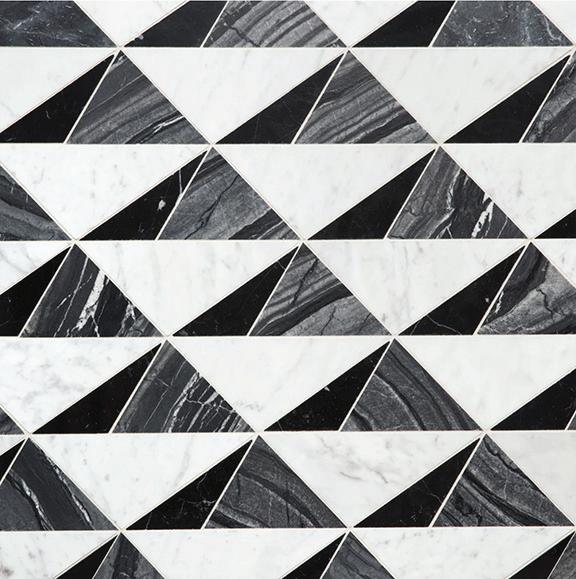

Artistic Tile Sail Black

Mosaic Polished Stone

Sustainably manufactured

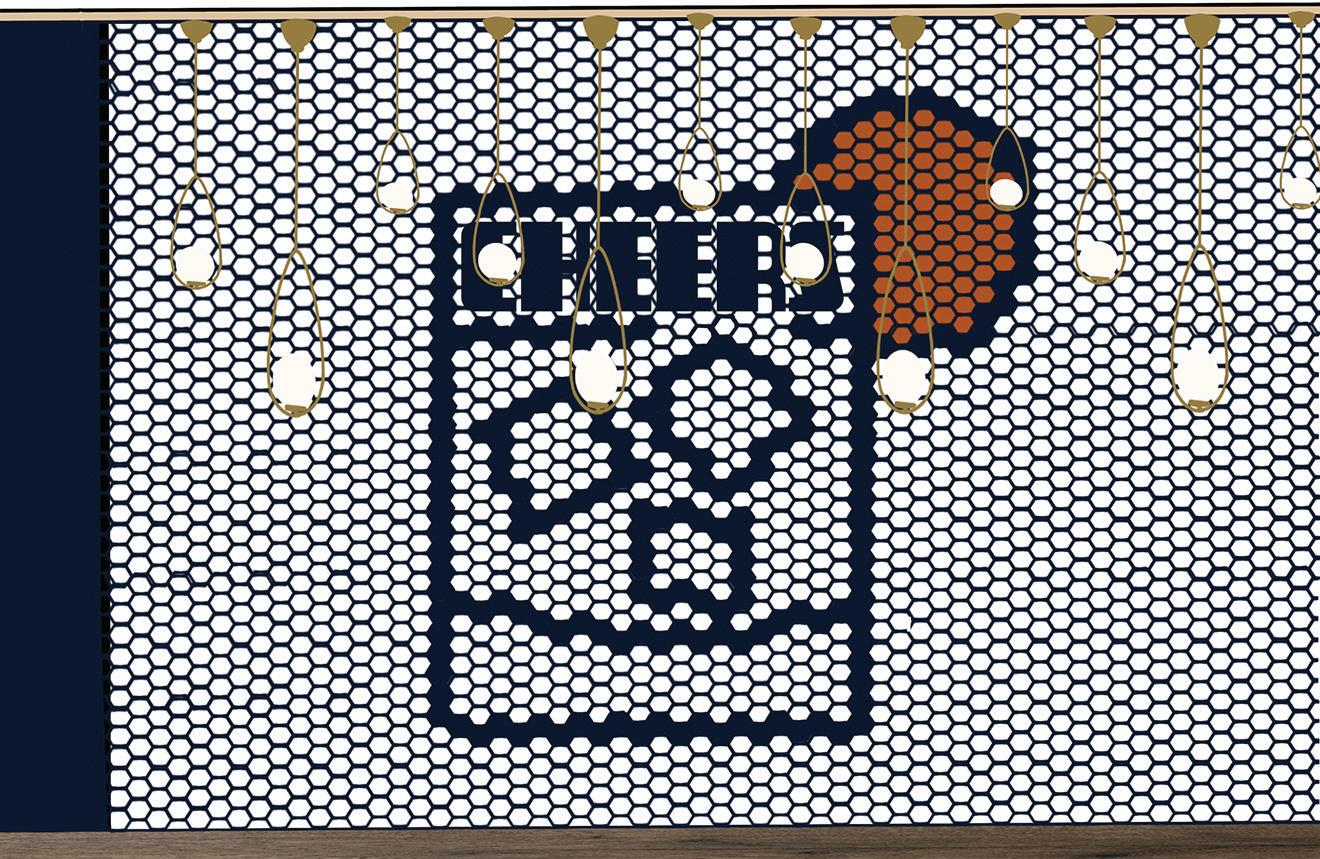

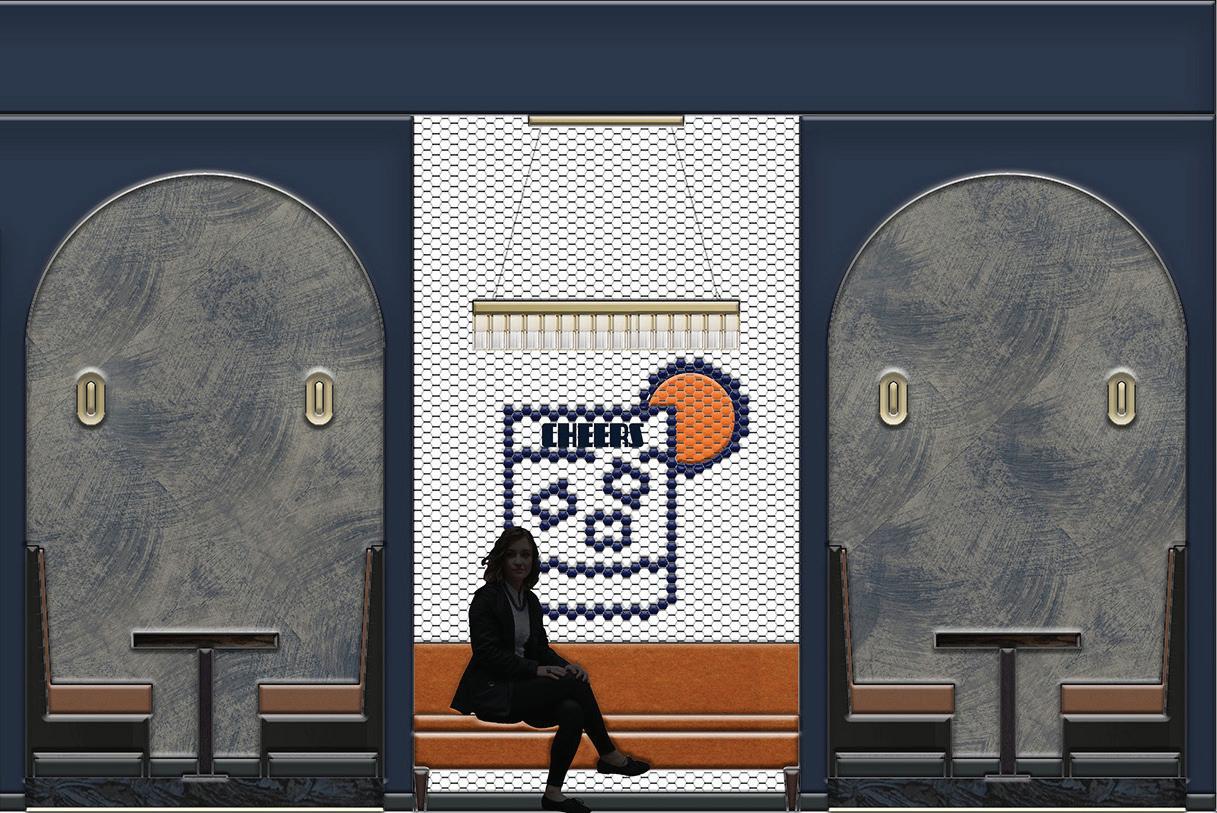

HEPBURN’S FEATURE WALL RENDERED ELEVATION

Benjamin Moore

Eco Spec - Aztec Brick

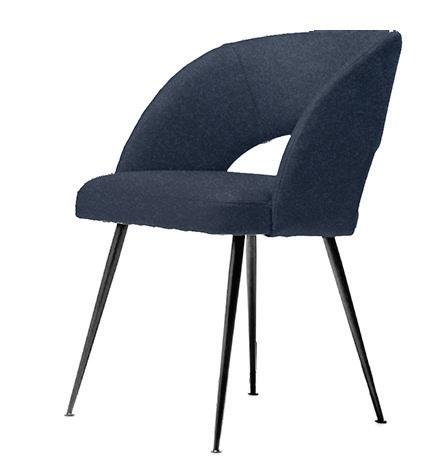

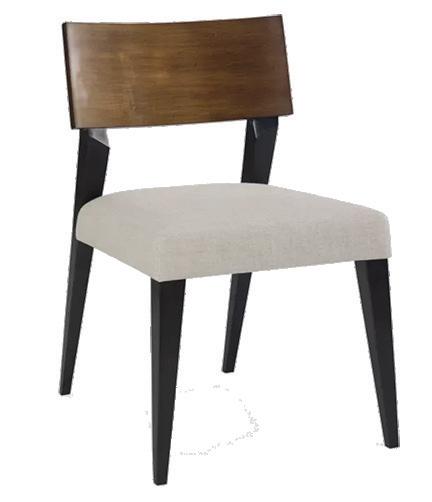

Clara Dining Chair by Industry West - Fabric: Wolf

Gordon Canyon Suede

Midnight

1.

2.

3.

4.

5.

6.

7.

8.

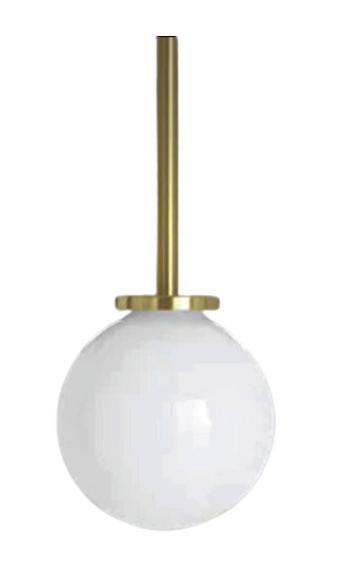

Mezzo Pendant in Satin Brass Finish with Opal Glass Shade CTO Lighting

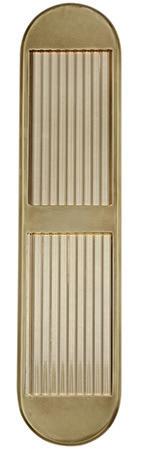

Capsule Wall Sconce – Gold Lacquered Finish CTO Lighting

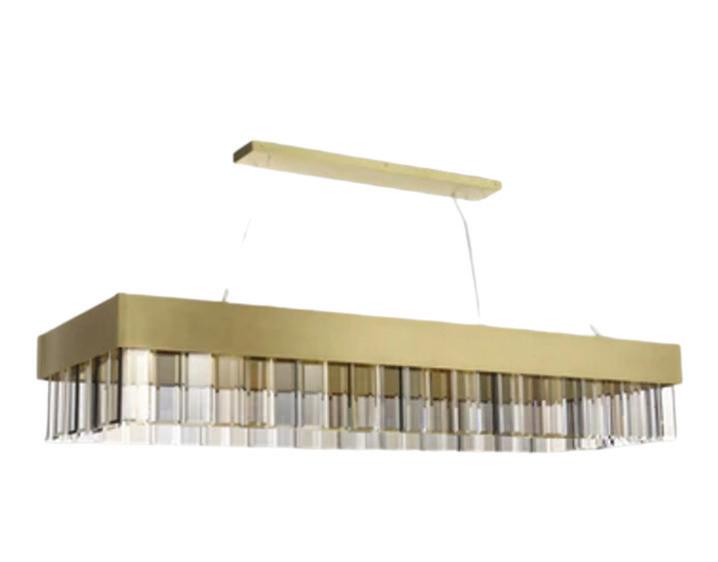

Solaris Longlight Chandelier Satin Brass Finish with Cut Glass Drops CTO Lighting

CREATIVE CLOUD MARKETING

OFFICE DESIGN MARKETING OFFICES

Creative Cloud Chicago Direct Marketing is a small direct mail company that recently moved into a new space, which they were looking to customize to their needs and brand.

The main target of this design was to divide the open shell into private offices and workspaces while retaining the feeling of openness.

KEY PROJECT INFORMATION:

Location

Wheaton, IL

Sq. Footage

2,000 sq. ft.

Building Occupancy

16 persons maximum

DESIGN ACHIEVEMENTS

• Color-tinted glass walls allow daylighting to all spaces in the office as, well as lending to the branding colors

• Custom signage as well as furniture and finishes work together to emphasize branding

• Sustainable materials used throughout design with many contributing to earning LEED credits

• Office furniture specifications based on client needs and limited space

• Glass walls that break up the space and acoustic materials work together to

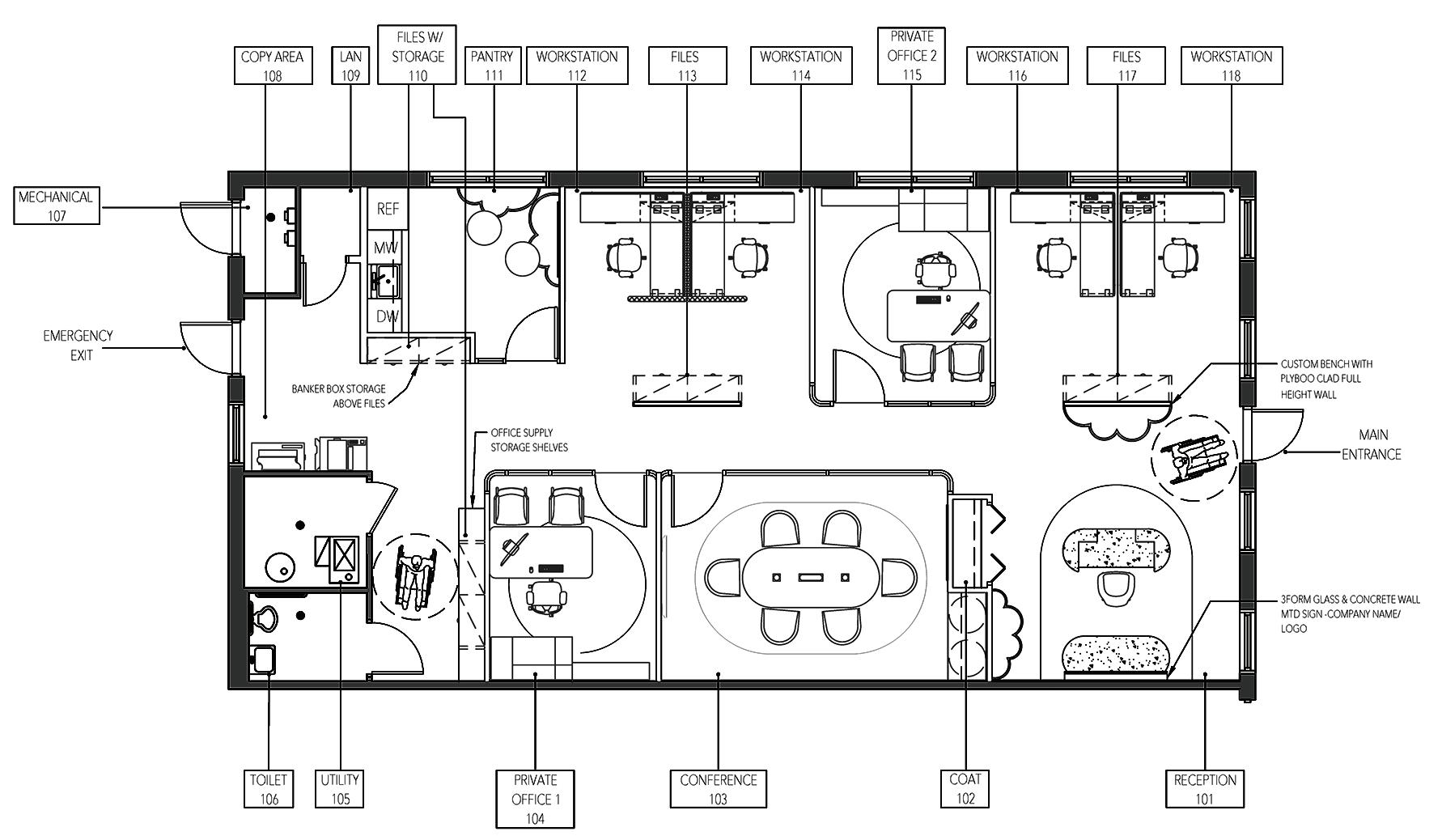

CREATIVE CLOUD - SPACE PLAN

3form laminated glass

Umbra

LEED v4 living building challenge / WELL building certification / Greenguard Gold

3Form Laminated Glass

Eggplant

LEED v4 living building challenge / WELL building certification / Greenguard Gold

3Form Laminated Glass

Sable

LEED v4 living building challenge / WELL building certification / Greenguard Gold

Concrete Collaborative Pacifica Solana Slab - Beige Low VOC / Increased durability throughout lifecycle / Recyclable / Red list free

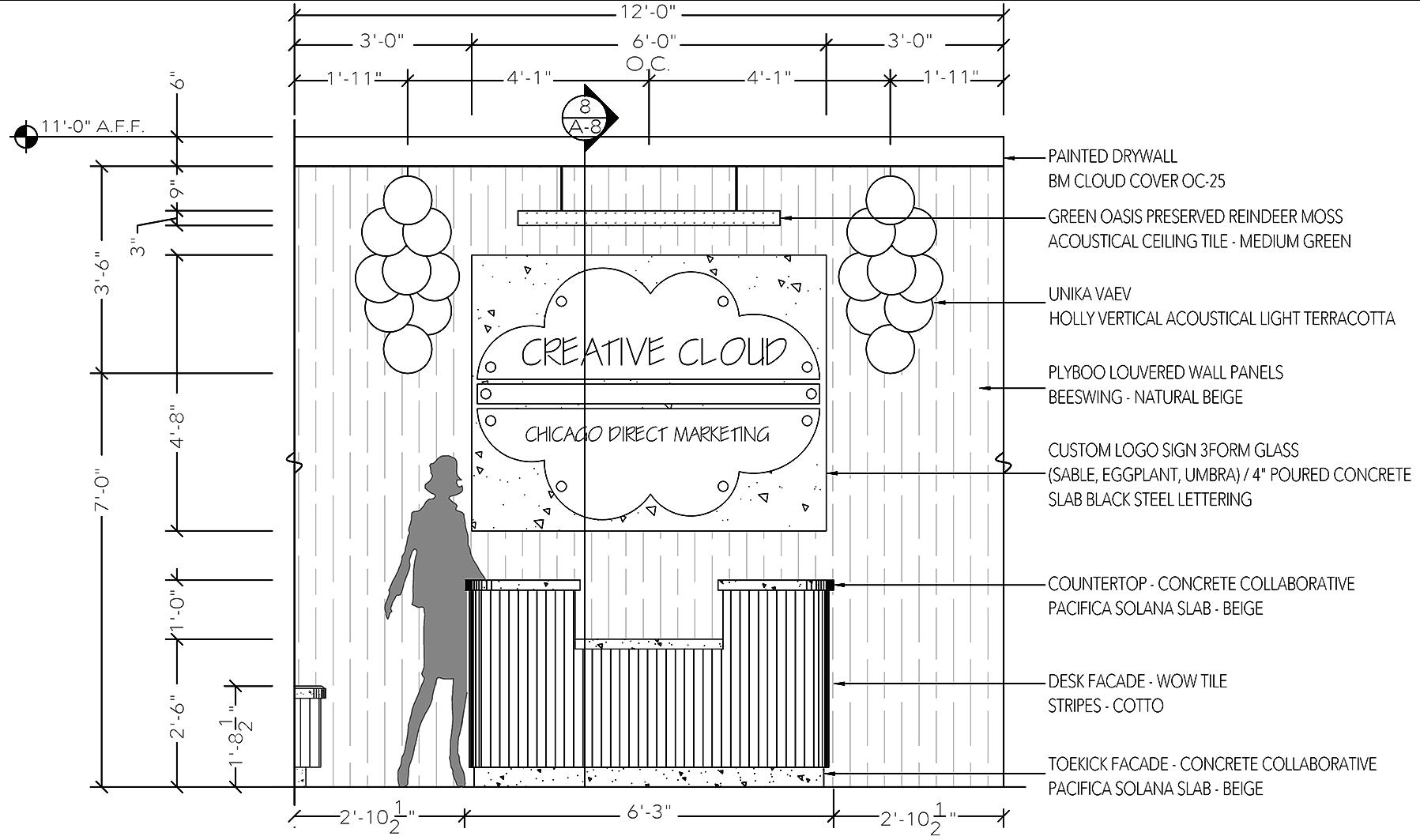

CREATIVE CLOUD - RECEPTION ELEVATION

SCALE: 1/2” = 1’ - 0”

Custom signage behind the reception desk, made from a concrete terrazzo aggregate and 3Form glass, enforces the company brand immediately upon entering the office space.

Wow Tile Stripes - Sky Sustainable manufacturing practices

Wow Tile Stripes - Cotto Sustainable manufacturing practices

Romo - Katori Quintero Sorbet Fire retardant velvet / 40,000 Martindale severe contract rating / Reach compliant

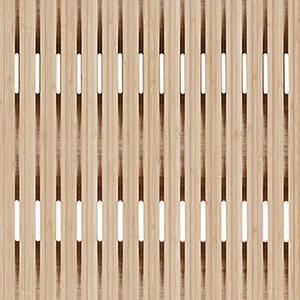

Plyboo - Louver Wall Panels Beeswing - Natural Beige

Velvet

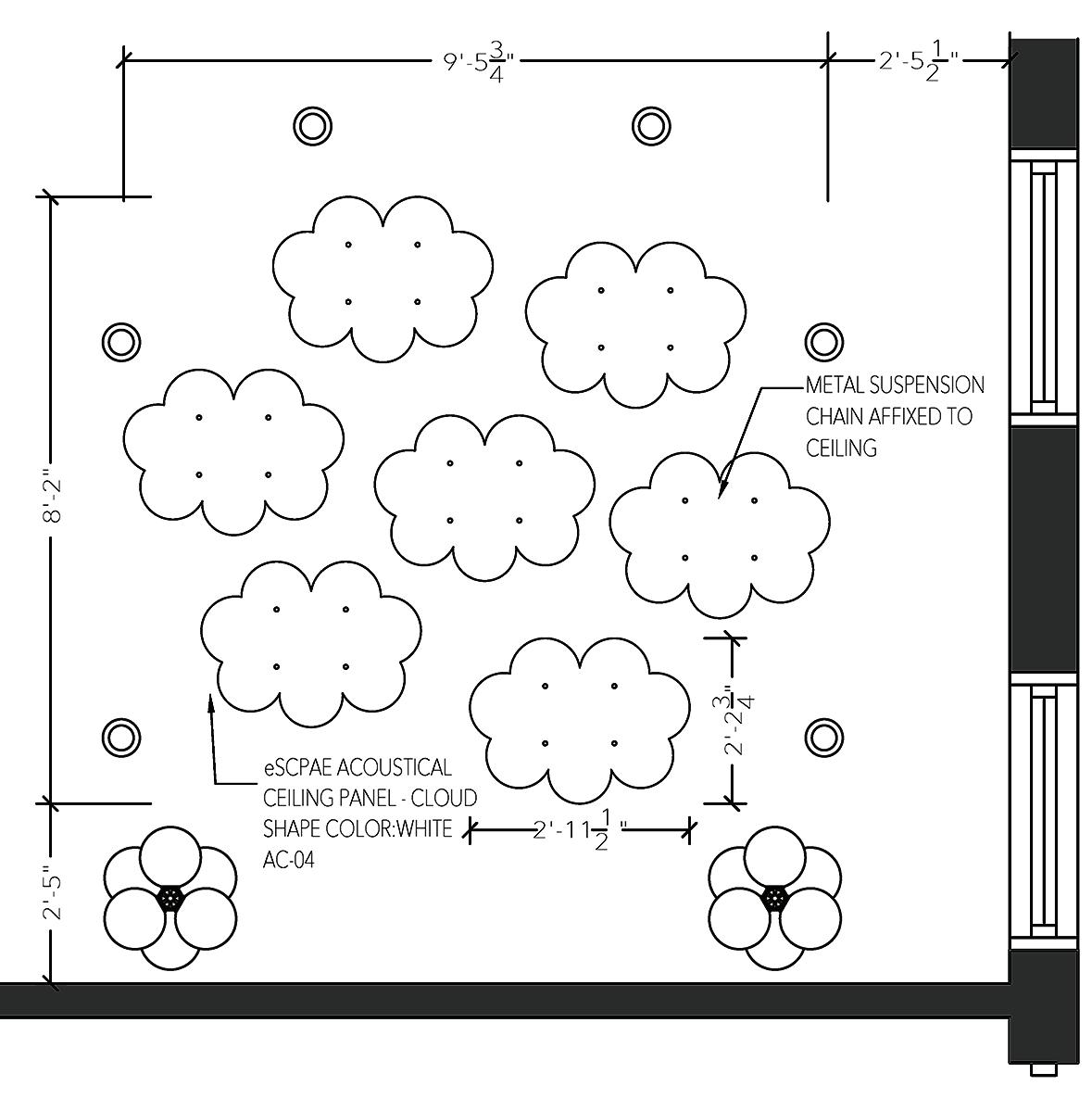

CREATIVE CLOUD - RECEPTION CEILING ENLARGEMENT

SCALE: 3/8” = 1’ - 0”

MATERIAL PALETTE

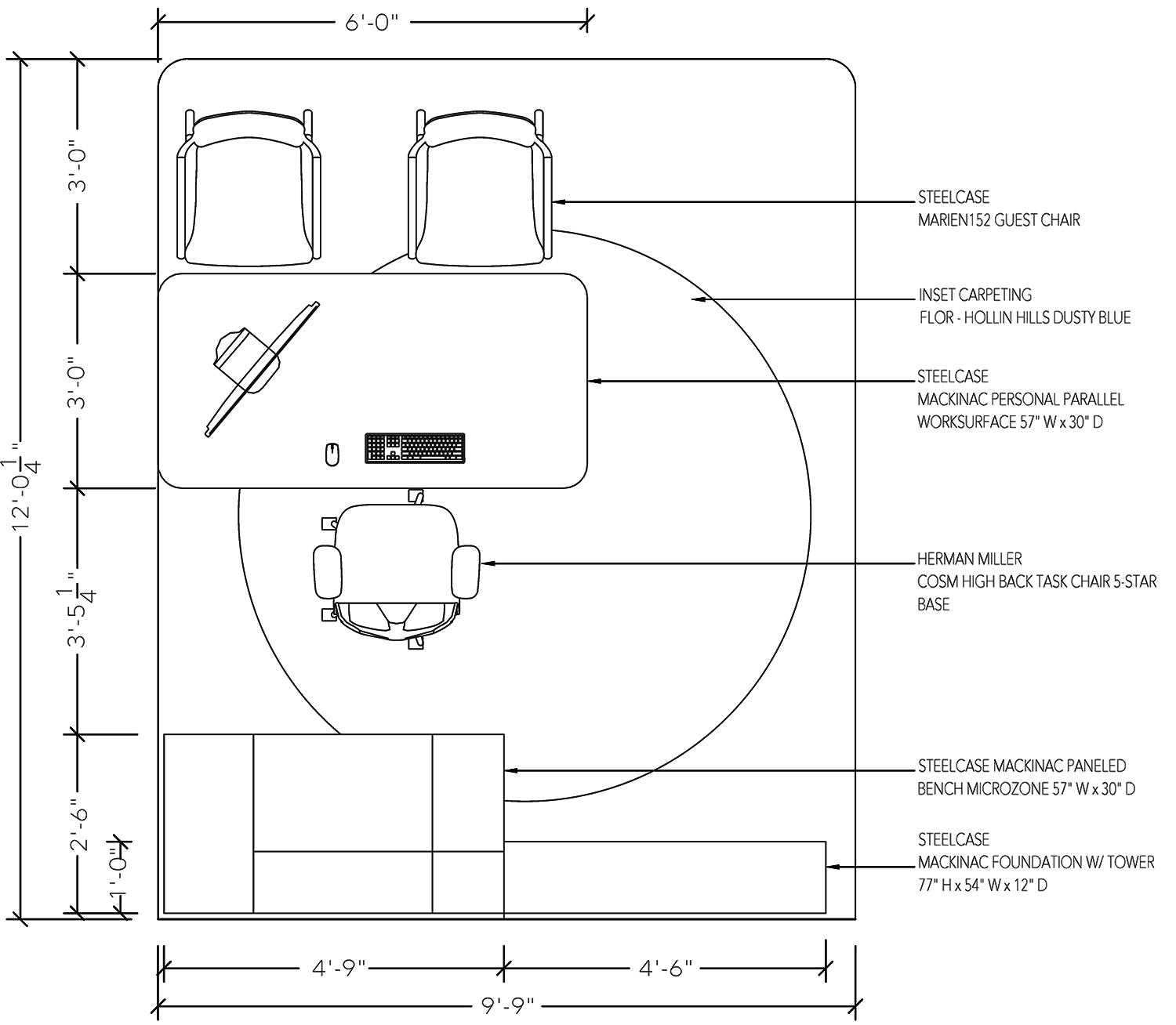

CREATIVE CLOUD - PRIVATE OFFICE ENLARGEMENT

SCALE: 1/2” = 1’ - 0”

Unika Vaev

Holly Vertical Acoustica

Light - Terracotta

Made with rapidly renewable content / 100% recycled fabric / 0.70 - 1.0

NRC rating

ACOUSTICAL SOLUTIONS

Steelcase Laminate Rose

Steelcase has committed overall as a company to a multitude of sustainable practices

FLOR - Hollin Hills

Dusty Blue

61% Post-industrial content / 25% Post-consumer content / Green Label Plus certified

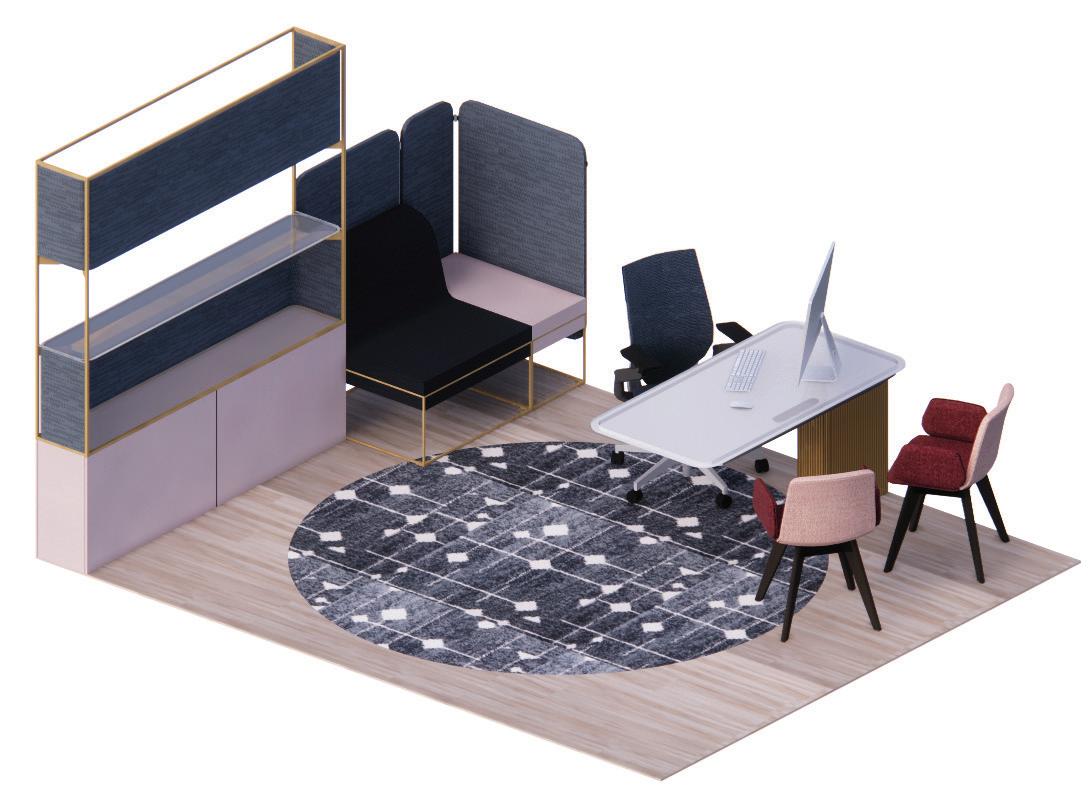

CREATIVE CLOUD - PRIVATE OFFICE ISOMETRIC

Evoke Resilient Flooring

Pillar - Shailee Greenguard Gold Certified / May contribute to LEED credits / Lowemitting / WELL compliant

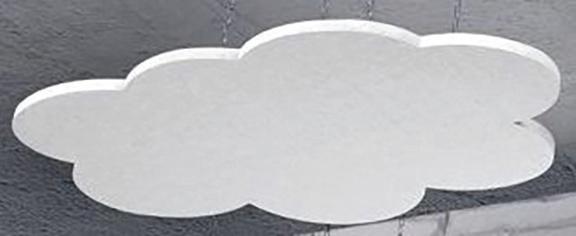

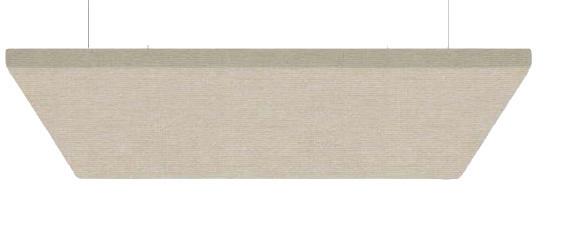

Cloud Shaped - White AC-04

Made with 100% recycled plastics / 0.75

NRC rating / E-84 CLASS A fireproof rating

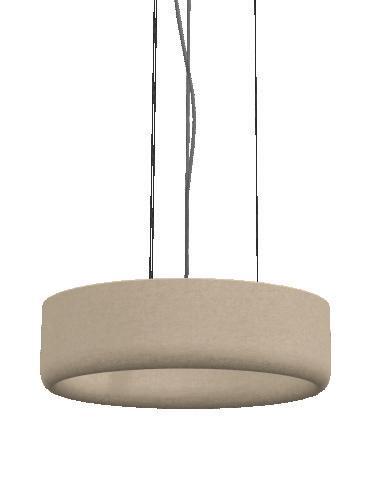

Buzzispace

Buzzijet - Small Pendant

Color: Beige

Made with high density of acoustic material / 70% Recycled Wool, 25% Recycled Polyacryl, 5% Recycled Other Fabrics

Steelcase Panel Fabric

Playground - Huckleberry

UL Listed / Post-consumer recycled content / E-84 CLASS A fireproof rating / Ships carbon neutral

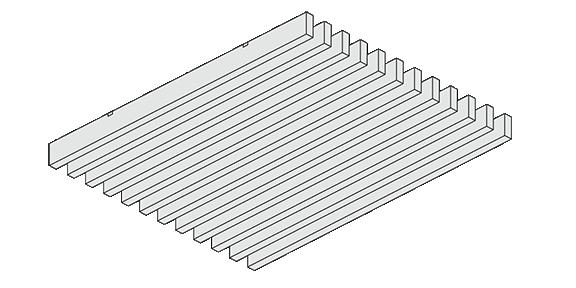

eScape Acoustical Ceiling Panel

1.

2.

3.

4.

1.

1.

2.

3.

4.

4.

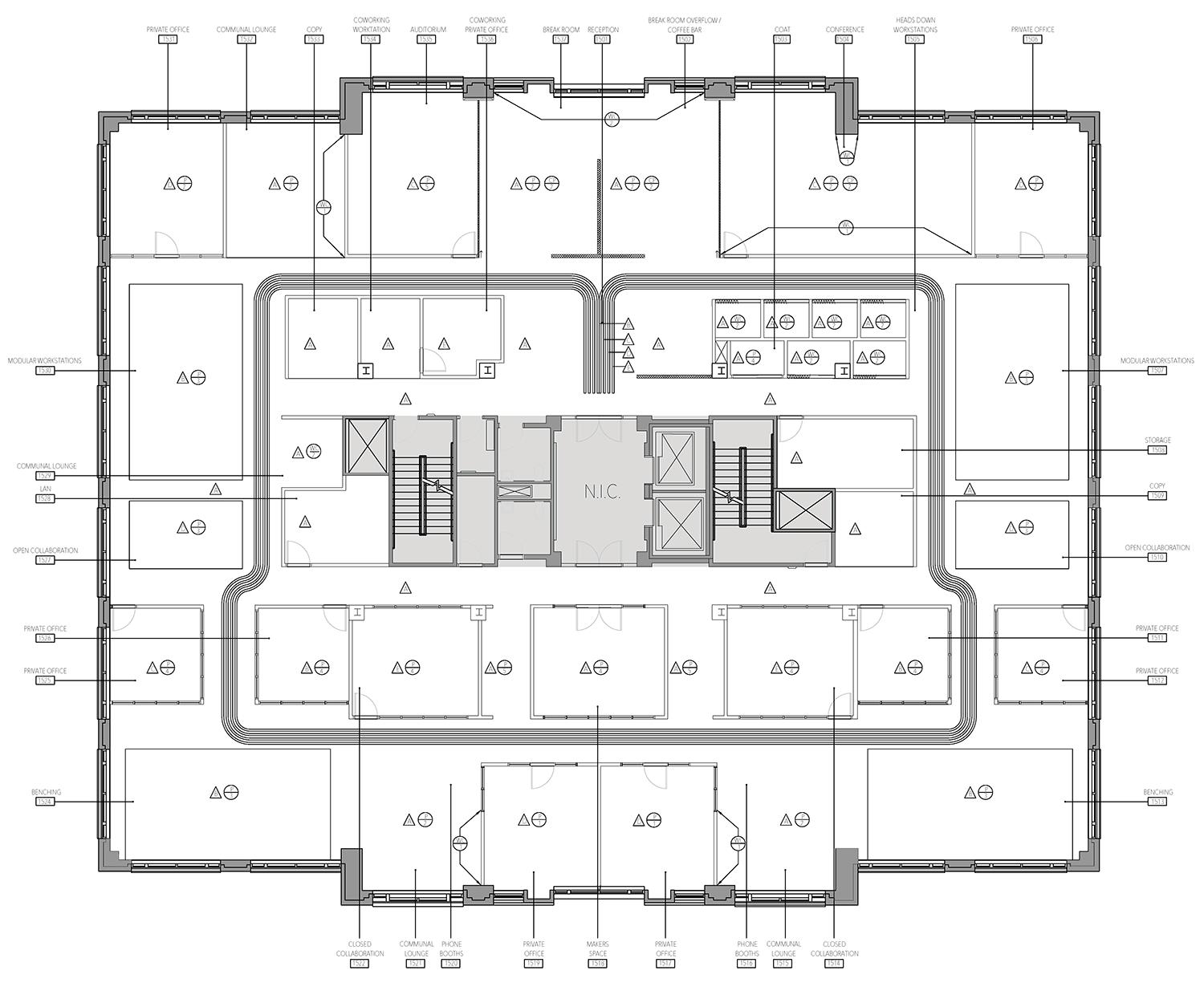

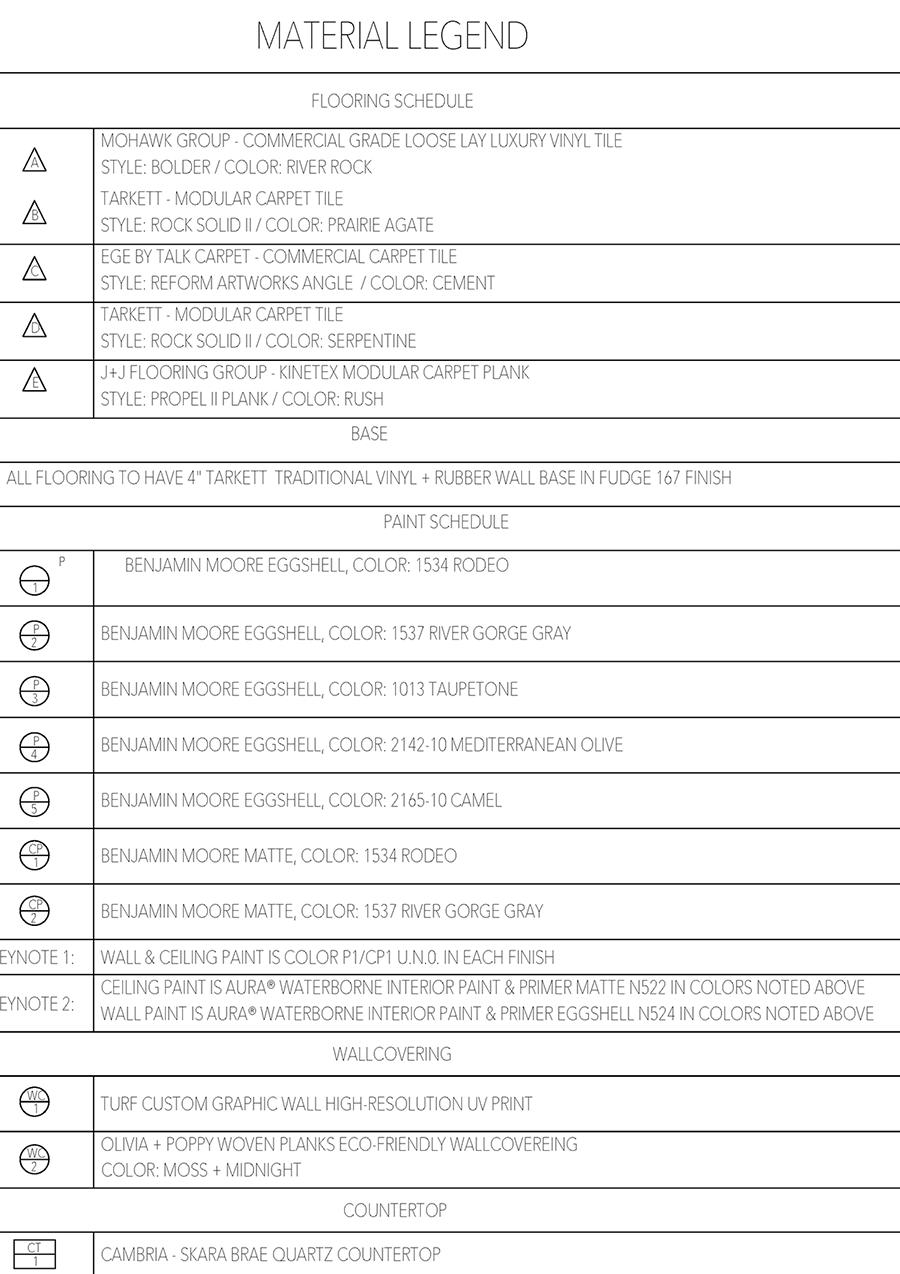

CLUSTER COWORKING - FINISH PLAN

CLUSTER COWORKING

OFFICE DESIGN COWORKING SPACE

Cluster coworking spaces is a dynamic environment that can adapt to many users needs. The space provides rentable private offices, grouped workstations, lounge areas, open and enclosed meeting areas for groups of various sizes, a makers space, and an auditorium.

KEY PROJECT INFORMATION:

Location

Chicago, IL

Sq. Footage

11,947.25

Building Occupancy

120 persons maximum

DESIGN ACHIEVEMENTS

• The use of stack-back walls (Freespace) allow the lounge/coffee bar area to expand into the auditorium and large conference room, allowing for plenty of adaptable space to entertain from day to night

• The design incorporates the branding colors in the striped flooring tiles and ceiling baffles (Turf) to guide users throughout the space

• Ceiling baffles, ceiling clouds, insulated walls, and sound absorbing workstations all work to minimize noise in a busy workspace

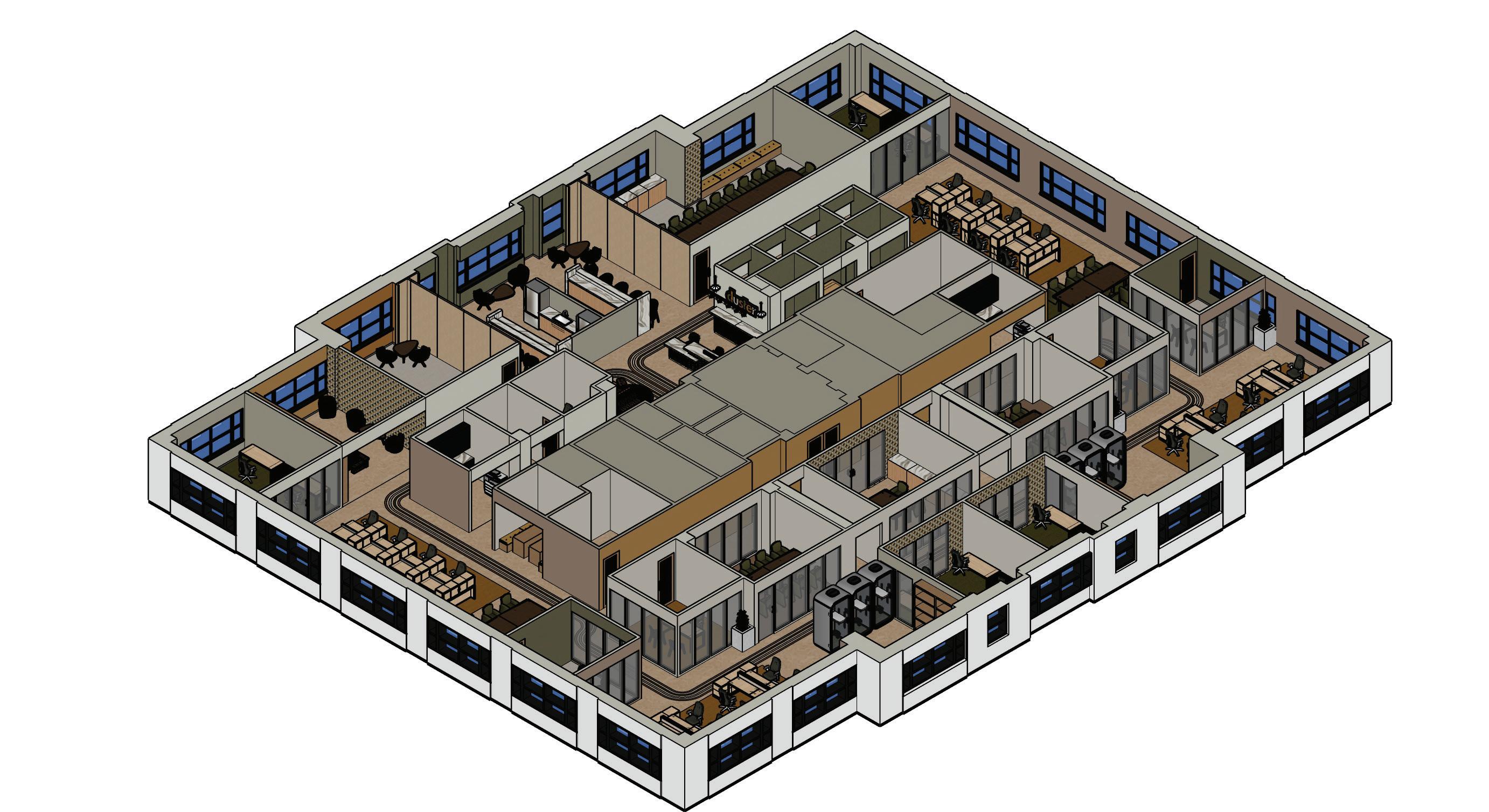

CLUSTER COWORKING - ISOMETRIC BIRDS EYE PERSPECTIVE

1. Wallcovering Turf Custom Graphic Wall 2. Flooring Tarkett Carpet Tile Rock Solid II - Serpintine 3. Countertops Cambria - Skara Brae 4. Flooring Tarkett Carpet Tile Rock Solid II - Prairie Agate 5. Desk and Cabinet Facade Surfacing Solution Solid Red Oak Flexible Wood Tambour 6. Flooring J+J Flooring Carpet Tile Propel II Plank - Rush

7. Flooring Ege by Talk Carpet ReForm Artworks Angle - Cement 8. Wallcovering Olivia + Poppy Woven Planks Moss + Midnight

Alora lighting Palais sconce - gold finish

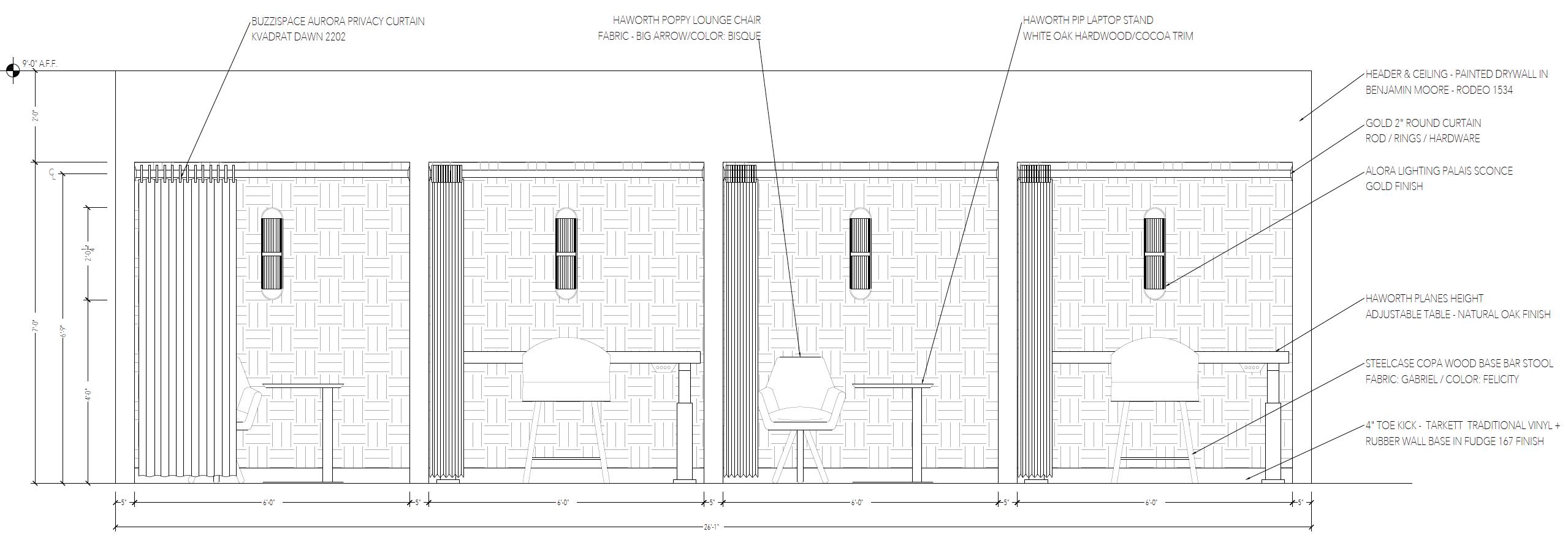

CLUSTER COWORKING - HEADS DOWN WORKSTATIONS ELEVATION SCALE: 1/2” = 1’ - 0”

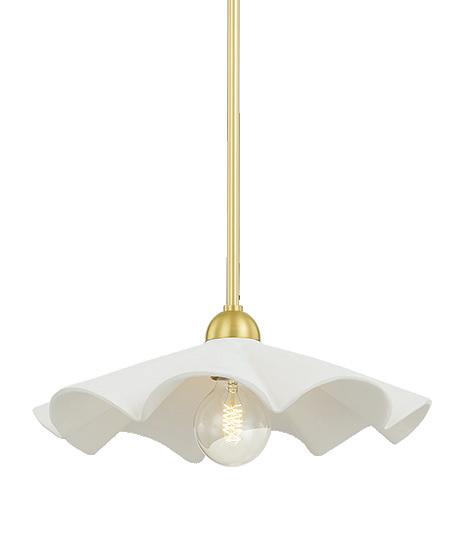

Mitzi lighting Maisie 1 light pendant

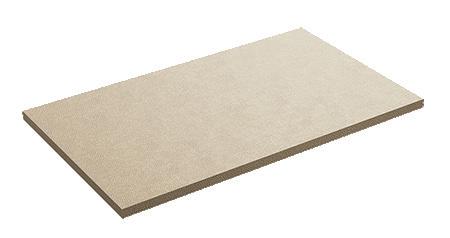

AlphaSorb® FR701

Acoustic Ceiling Cloud Class 1 fire rating per ASTM E84 / 1.10 NRC rating

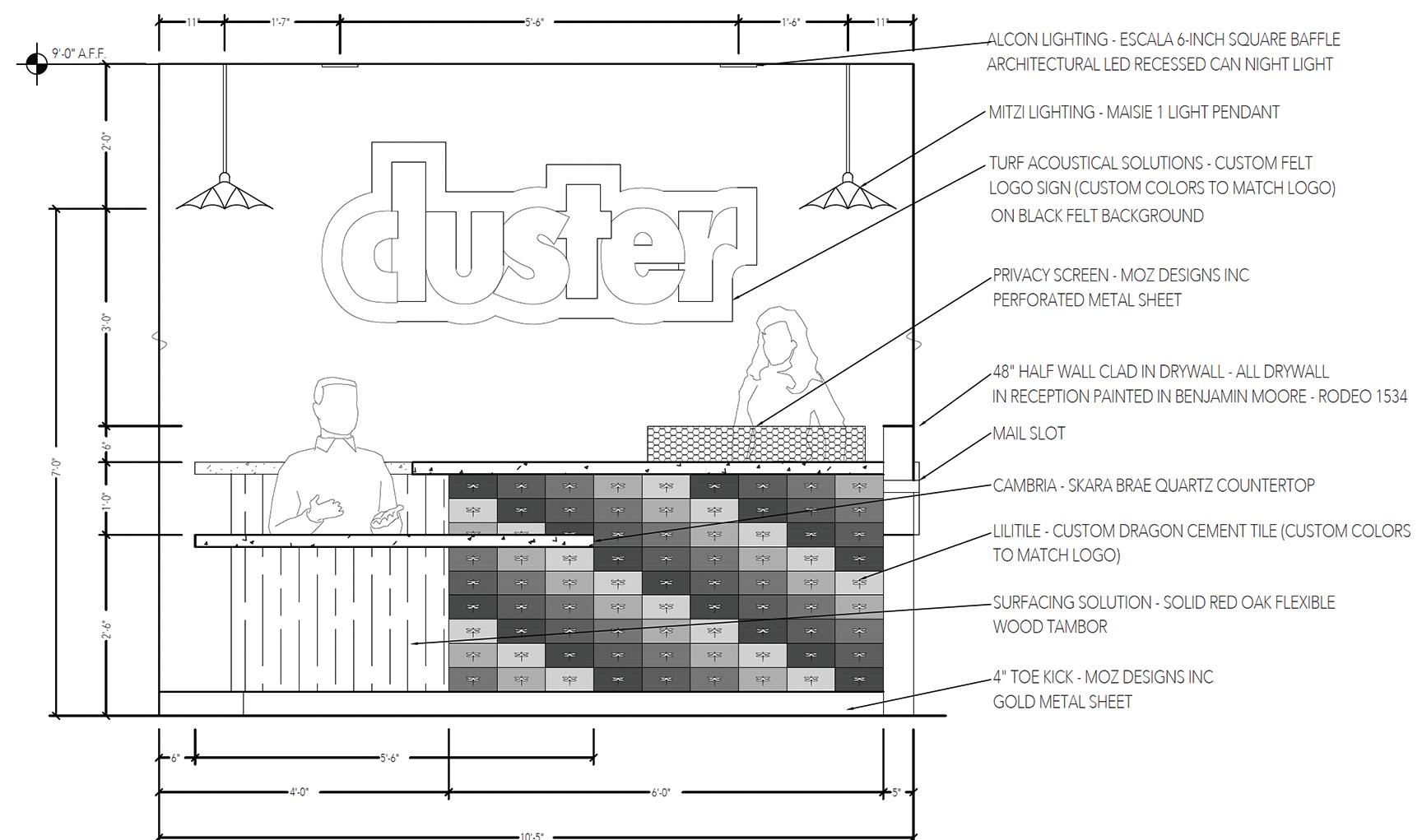

CLUSTER COWORKING - RECEPTION DESK ELEVATION SCALE: 1/2” = 1’ - 0”

ACOUSTICAL SOLUTIONS

Turf - Beam Acoustic Ceiling Baffle Polyester (PET) felt / 60% pre-consumer recycled / May contribute to LEED credits / 1.50 NRC rating

Privacy Curtain BuzziSpace Aurora Curtain Kvadrat Dawn Greenguard Gold / HPD / EPD

KRISTINA GENTILE BECKER

INTERIOR DESIGN PORTFOLIO COLLEGE OF DUPAGE SPRING 2023

CONTACT: KGENTILEBECKER@GMAIL.COM 630.485.0431

After obtaining a Bachelor of Science degree in hospitality management and working in the field for seven years, Kristina desired a career that was more creatively stimulating. She discovered a love of interior design that led her to the College of DuPage, from which she obtained an Associate Degree in Interior Design.

While focused mostly on residential design, Kristina enjoys designing all types of projects and has a specific passion for universal design. She is detail-oriented, organized, and possesses skills in space planning, 3D modeling and rendering, and material/furniture selection.

At the beginning of her second year of education, Kristina obtained an internship at a small residential design firm. This lead into a Junior Interior Designer position, allowing her to continue to grow and learn from hands on experiences and close mentorship.

Skills:

• Autodesk AutoCAD

• 3D Modeling & Rendering

• Space Planning

• Teamwork

• Customer Service

• Public Speaking

• Microsoft Office

• Problem-Solving

• Adobe Photoshop

• Chief Architect Operator
