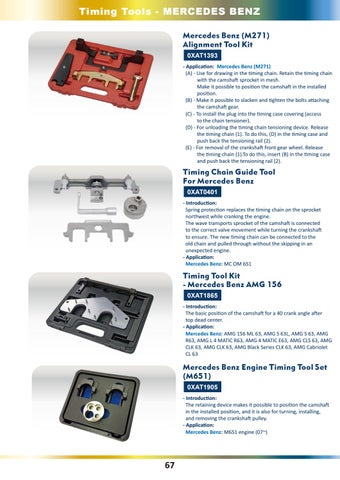

Timing Tools - MERCEDES BENZ Mercedes Benz (M271) Alignment Tool Kit 0XAT1393 - Application: Mercedes Benz (M271) (A) - Use for drawing in the timing chain. Retain the timing chain with the camshaft sprocket in mesh. Make it possible to position the camshaft in the installed position. (B) - Make it possible to slacken and tighten the bolts attaching the camshaft gear. (C) - To install the plug into the timing case covering (access to the chain tensioner). (D) - For unloading the timing chain tensioning device. Release the timing chain (1). To do this, (D) in the timing case and push back the tensioning rail (2). (E) - For removal of the crankshaft front gear wheel. Release the timing chain (1).To do this, insert (B) in the timing case and push back the tensioning rail (2).
Timing Chain Guide Tool For Mercedes Benz 0XAT0401 - Introduction: Spring protection replaces the timing chain on the sprocket northwest while cranking the engine. The wave transports sprocket of the camshaft is connected to the correct valve movement while turning the crankshaft to ensure. The new timing chain can be connected to the old chain and pulled through without the skipping in an unexpected engine. - Application: Mercedes Benz: MC OM 651
Timing Tool Kit - Mercedes Benz AMG 156 0XAT1865 - Introduction: The basic position of the camshaft for a 40 crank angle after top dead center. - Application: Mercedes Benz: AMG 156 ML 63, AMG S 63L, AMG S 63, AMG R63, AMG L 4 MATIC R63, AMG 4 MATIC E63, AMG CLS 63, AMG CLK 63, AMG CLK 63, AMG Black Series CLK 63, AMG Cabriolet CL 63
Mercedes Benz Engine Timing Tool Set (M651) 0XAT1905 - Introduction: The retaining device makes it possible to position the camshaft in the installed position, and it is also for turning, installing, and removing the crankshaft pulley. - Application: Mercedes Benz: M651 engine (07~)
