Profitool 2017 Catalogue

Page 339

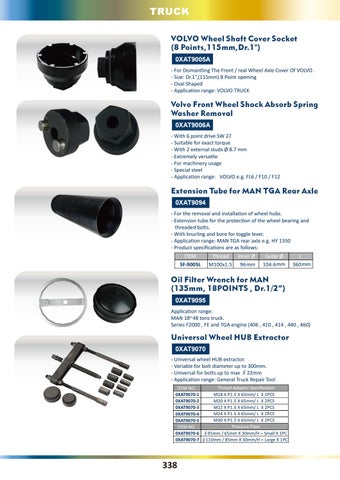

TRUCK VOLVO Wheel Shaft Cover Socket (8 Points,115mm,Dr.1") 0XAT9005A - For Dismantling The Front / real Wheel Axle Cover Of VOLVO . - Size: Dr.1”,(115mm) 8 Point opening - Oval Shaped - Application range: VOLVO TRUCK

Volvo Front Wheel Shock Absorb Spring Washer Removal 0XAT9006A - With 6 point drive SW 27 - Suitable for exact torque - With 2 external studs Ø 8.7 mm - Extremely versatile - For machinery usage - Special steel - Application range: VOLVO e.g. FL6 / F10 / F12

Extension Tube for MAN TGA Rear Axle 0XAT9094 - For the removal and installation of wheel hubs. - Extension tube for the protection of the wheel bearing and threaded bolts. - With knurling and bore for toggle lever. - Application range: MAN TGA rear axle e.g. HY 1350 - Product specifications are as follows: ITEM SF-9005L

Thread M100x1.5

inner Ø 96 mm

outer Ø 104.6 mm

L 360 mm

Oil Filter Wrench for MAN (135mm, 18POINTS , Dr.1/2”) 0XAT9095 Application range: MAN 18~48 tons truck. Series F2000 , FE and TGA engine (406 , 410 , 414 , 440 , 460)

Universal Wheel HUB Extractor 0XAT9070 - Universal wheel HUB extractor. - Variable for bolt diameter up to 300mm. - Universal for bolts up to max ∮22mm - Application range: General Truck Repair Tool Thread Adaptor Specification ITEM NO. M18 X P1.5 X 65mm/ L X 2PCS 0XAT9070-1 M20 X P1.5 X 65mm/ L X 2PCS 0XAT9070-2 M22 X P1.5 X 65mm/ L X 2PCS 0XAT9070-3 M24 X P1.5 X 65mm/ L X 2PCS 0XAT9070-4 M30 X P1.5 X 65mm/ L X 2PCS 0XAT9070-5 Pressure Plate ITEM NO. 0XAT9070-6 ∮95mm / 65mm X 30mm/H – Small X 1PC 0XAT9070-7 ∮110mm / 85mm X 30mm/H – Large X 1PC

338
