Assembly Adjustment (Traveling Device)

Y - 7 Assembly Adjustment (Traveling Device)

1. Service brake adjustment

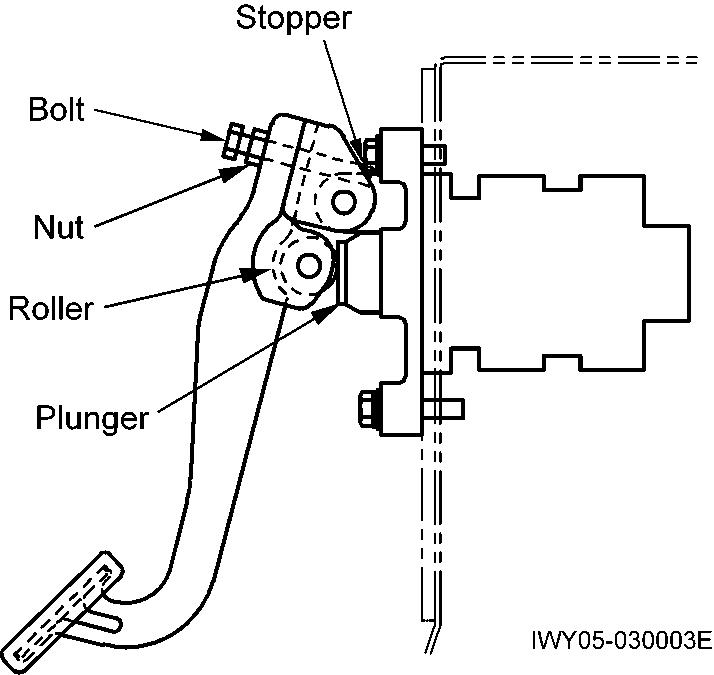

1.1 Adjusting the brake pedal

With the pedal weight causing the roller to contact the plunger, adjust the bolt until it contacts the stopper, then use the nut to lock it in place.

1.3 Check after replacing brake hose

After you replace the brake hoses and so on, make sure that any contact does not occur between the hoses and the structures in any situation. Check it with moving suspension (up and down) and steering (right and left.) In addition, make sure that any hose is not twisted forcibly.

1.2 Tightening the cap of reserve tank of service brake fluid

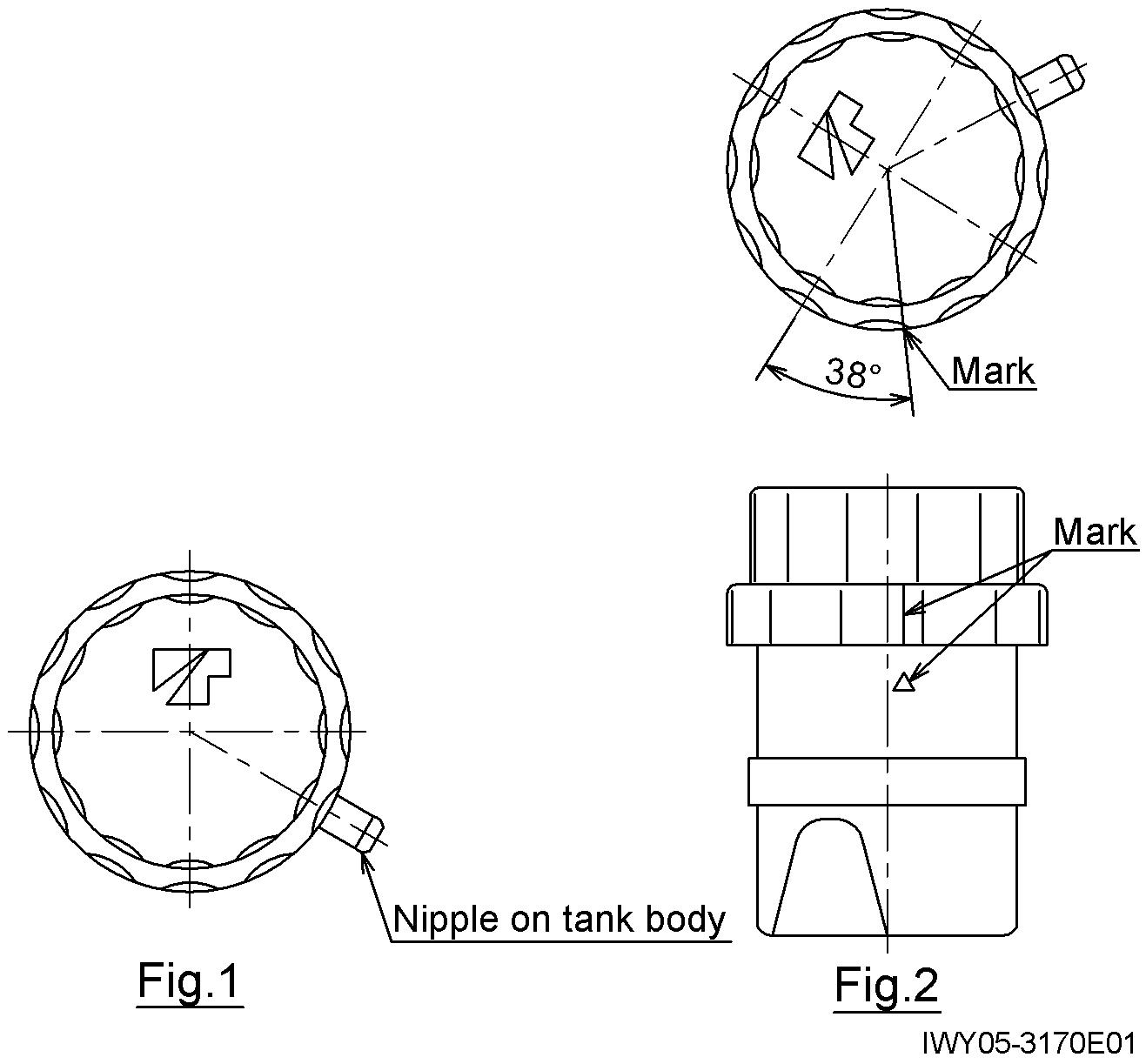

After bleeding air, pour the brake fluid up to a required level, and tighten the cap until it stops at the stopper. At this time, the position of tank body and cap should be as shown in Fig.1. In addition, tighten the cap until the mark is aligned with the mark on tank as shown in Fig.2. The stopper might be broken when the cap is tightened too much.
