The Truck

Truck characteristics must be understood in order to develop the best route for your application.

Dimensional Characteristics

The truck’s dimensional characteristics [truck width, fork length, cart size, load width, number of carts], incl uding the Light Curtain Module’s and Obstruction Sensor’s dimensional charac teristics, must be understood to determine the best routes for the truck.

NOTE: Subtract 6 in. (152 mm) when 17.25 in. (438 mm) for Model 3010 or 15.8 in. (401 mm) for Model 3020 operator compartment is used.

Slow Field (when traveling straight)

Field B D C

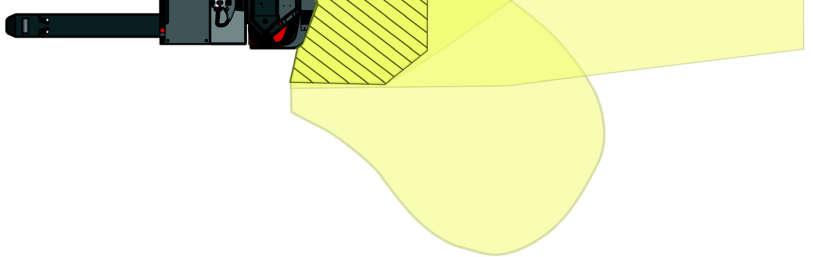

Field (when turning right) F E

Point Field Dimension

AStop Field44 inches (1117 mm) (from front of Bumper)

BSlow Field - Left Turn114 inches (2895 mm) (from front of Bumper)

CSlow Field - Right Turn114 inches (2895 mm) (from front of Bumper)

DSlow Field - Straight193 inches (4902 mm) (from front of Bumper)

EStop Field14 inches (355 mm) (from side of Bumper)

Total field width = 64 in. (1625 mm)

FSlow Field16 inches (406 mm) (from side of Bumper)

NOTE: Consideration must be taken for variance in size between the standard fields shown and custom fields for alternative sized loads.
