Route Management Manual
from Raymond 3010 Center Rider Pallet Truck & 3020 Tow Tractor Route Management Manual 1134254B - PDF DOW

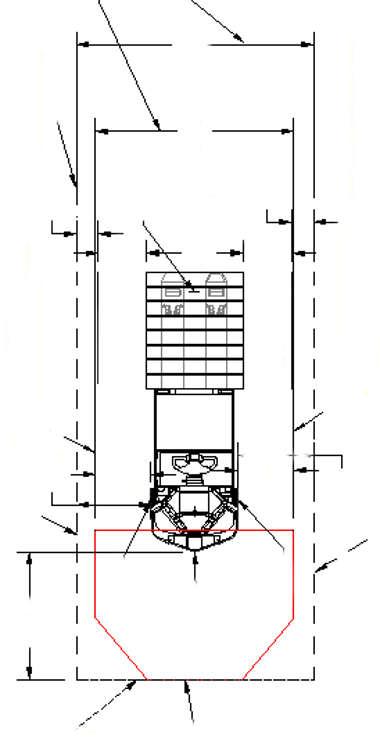

Side Alignment Laser Beam = Stop Field + 23” from bumper
Side Alignment Laser Beam = Hazard Zone + 31” from bumper
To Use the Training Tool
Minimum Aisle Width with no Hazard Zones and +/- 3”
Side Alignment Laser Beam = Stop Field + 23” from bumper
Side Alignment Laser Beam = Hazard Zone + 31” from bumper
Front Alignment Laser Beam = 53” from bumper
Stop Field + 9”
NOTE: If the load is wider than 40”, the Side Alignment Laser for the hazard zone should be set to: 29" + 1/2 max load width - 18" (1/2 width of truck).
1134254B, Revised: 30 Sep 2016

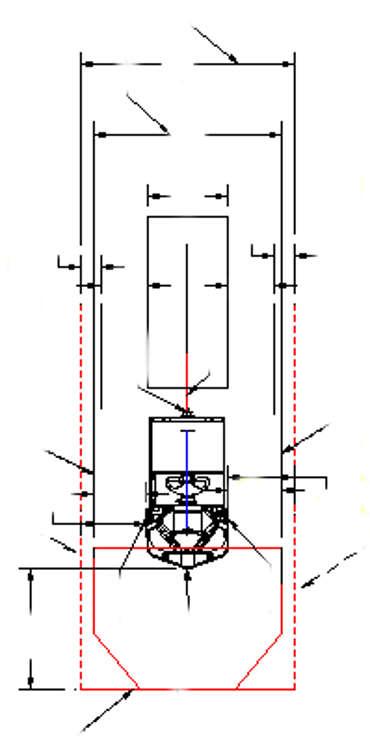

To Use the Training Tool
Side Alignment Laser Beam = Stop Field + 23” from bumper
Route Management Manual
Front Alignment Laser Beam = 53” from bumper
Hitch Coupler Stop Field + 9”
Side Alignment Laser Beam = Stop Field + 23” from bumper
NOTE: If the load is wider than 36”, the Side Alignment Laser for the hazard zone should be set to: 29" + 1/2 max load width - 18" (1/2 width of truck).
