A-26Installation of fuel quick charge piping (if equipped

Assembly process No.

A-26 Installation of fuel quick charge piping (if equipped) (1/2)

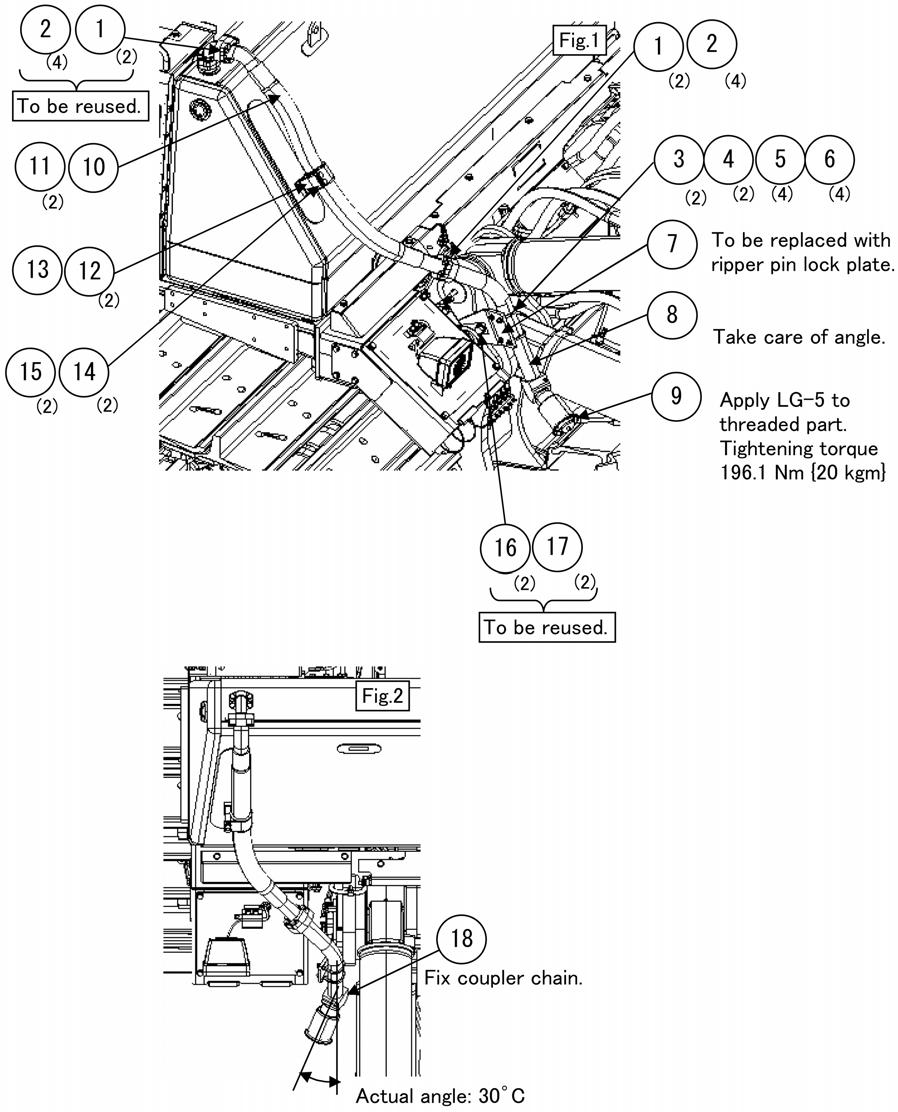

(1) Remove the blind plug from the left top of the fuel tank and connect the hose. (Fig. 1) (2) Remove the left ripper pin lock plate and install the brackets and tubes. (Fig. 1) (3) Connect the hoses to the tubes. (Fig. 1) (4) Fix the hoses to the fuel tank with the clamps. (Fig. 1) (5) Tighten the U-bolts permanently so that the tubes will be set in the specified directions. (Fig. 2)

A (8), (9) is assembled already.

Assembly process No.

A-26 Installation of fuel quick charge piping (if equipped) (2/2)

(6)Fix the breather hose to the side of the right fender by using clamps (19), (20), and (21). (Fig. 3) Fig. 3

A A No.Part namePart No.Q'ty 1 Flange07371-320764 2 Sems bolt07375-212408 3 Clip07283-361632 4 Seat07283-561702 5 Washer01643-310324 6 Nut01597-010094 7 Plate195-04-426801 8 Tube195-04-426701 9 Receiver198-04-661701 10 Hose195-04-426601 11 O-ring07000-120602 12 Clamp42C-16-115102 13 Cusion07095-020621 14 Bolt01011-812102 15 Washer01643-312322 16 Bolt01010-620402 17 Washer01643-320602 18 Screw01023-106101 19Clamp198-61-442202 20Bolt198-61-441301 21Washer01024-812901
