A-6Installation of high-mount head lamp (if equipped

Assembly process No.

A-6 Installation of high-mount head lamp (if equipped)

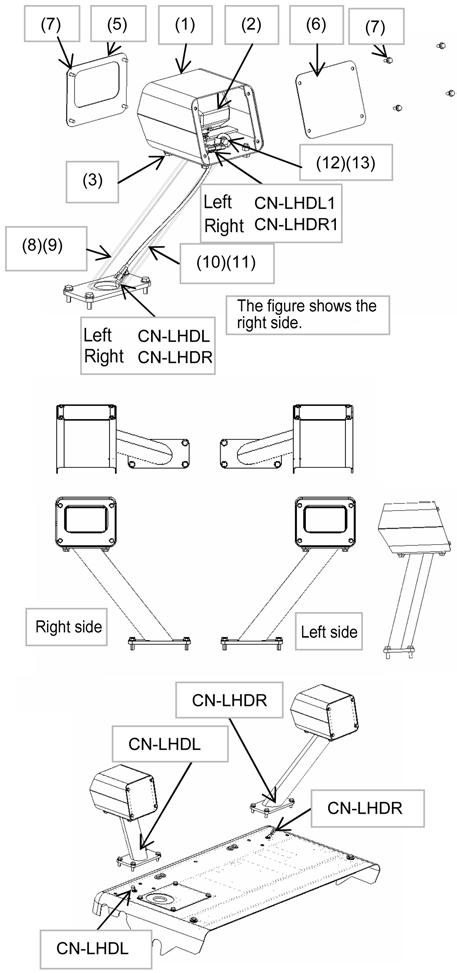

1.Head lamp sub-assembly (1)Install covers (1) to left (8) and right (9) supports by using bolts (3). (Perform this work on both sides.) Take care of the installed directions.

(2)Install lamp (2) to cover (1).

Fix lamp wiring connectors (CN-LHDL1 and CN-LHDR1) by using the clips inside covers (1). (Perform this work on both sides.)

(3)Insert left (10) and right (11) wirings into left (8) and right (9) supports respectively and fix connectors (CNLHDL and CN-

LHDR) by using the clips inside left (8) and right (9) supports. (Perform this work on both sides.)

(4)Install left (10) and right (11) wirings in covers (1) by using clamps (12) and (13). (Perform this work on both sides.)

(5)Connect connectors (CN-LHDL1 and CN-

LHDR1) of left (10) and right (11) wirings to the lamp wiring connectors. (Perform this work on both sides.)

(6)Install front (5) and rear (6) covers to covers (1) by using bolts (7). (Perform this work on both sides.)

No.Part namePart No. Q’ty RemarksNo.Part namePart No. Q’ty 1 Cover195-54-8351118 Support (LH) 195-54-834811 2Lamp17A-06-179312 9 Support (RH)

195-54-834911

21T-06-339802

10Wiring harness (LH)195-54-544711 3 Bolt01024-D1230811 Wiring harness (RH) 195-54-544811 5 Cover (Front)195-54-83461412Clamp04434-514122 6Cover (Rear)195-54-83471413Bolt01024-812202 7Bolt01024-D0820814Bolt01024-D12408 Remarks
