A-21Installation of platform (if equipped

Assembly process No.

A-21 Installation of platform (if equipped) (1/4)

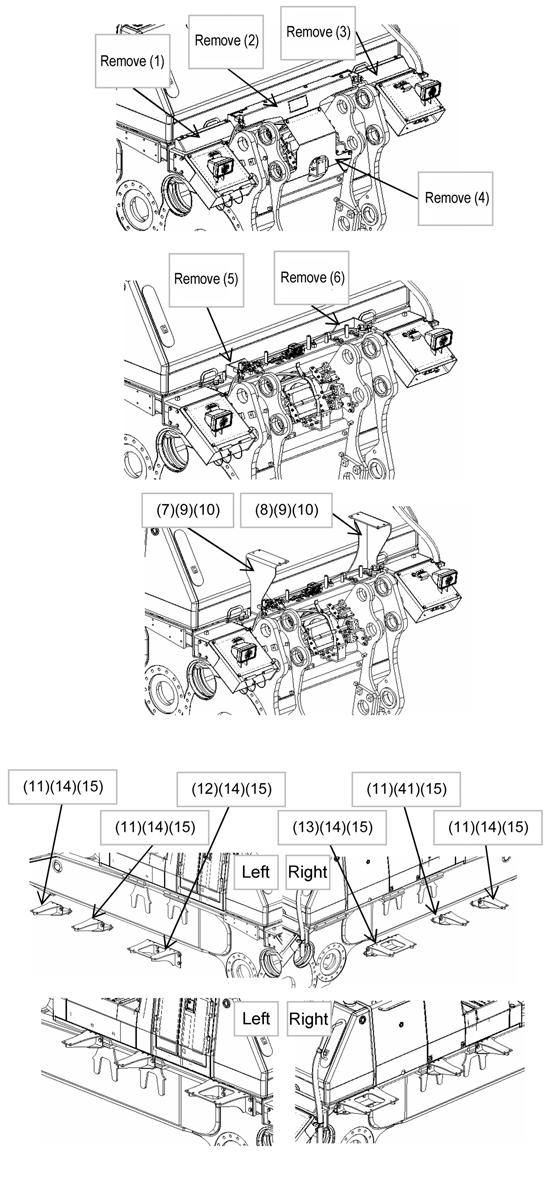

1.Replacement of rear support upper bracket

(1)Remove rear covers (1), (2), (3), and (4).

(2)Remove brackets (5) and (6) and install brackets (7) and (8).

(3)Install rear covers (1), (2), (3), and (4).

2.Installation of platform

(4)Install brackets (11), (12), and (13) by using bolts (14) and (15).

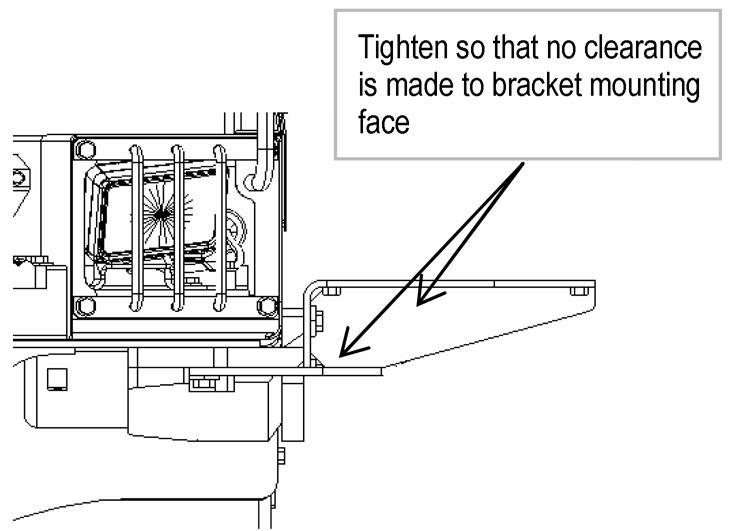

When installing brackets (12) and (13), tighten the bolts so that no clearance is made between the brackets and fender mounting seats.

For details of each part, see (4/4).

Assembly process No.

A-21 Installation of platform (if equipped) (2/4)

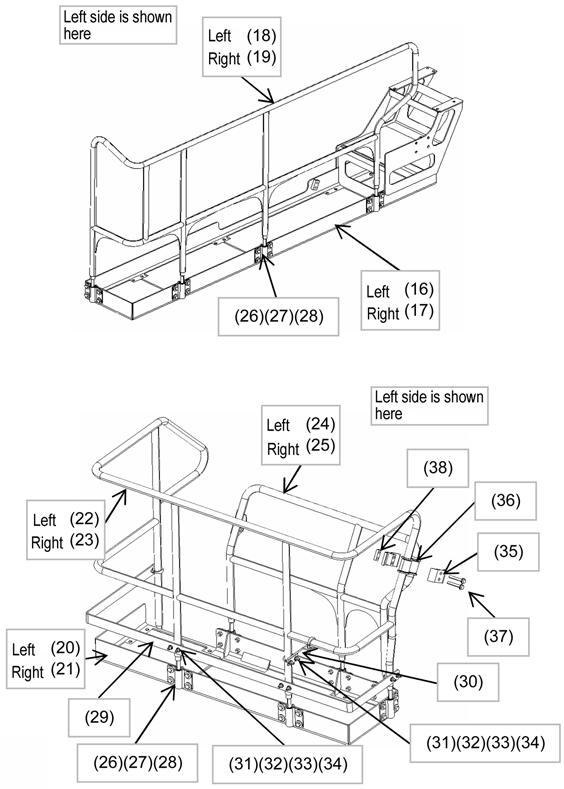

3.Assembly of platforms

Right and left platforms (1)Install handrails (18) and (19) to steps (16) and (17) by using bracket (26) and bolts (27) and (28).

Rear platform (1)Install handrails (22), (23), (24), and (25) to steps (20) and (21) by using bracket (26) and bolts (27) and (28).

(2)Fix handrails (22) and (24), and (23) and (25) respectively by using clamps (35), (36), (37), and (38).

(3)Install plate (29) to handrails (22) and (23) by using bolts (31), (32), (33), and (34).

(4)Install plate (30) to handrails (22) and (23) by using bolts (31), (32), (33), and (34).

For details of each part, see (4/4).

Assembly process No.

A-21 Installation of platform (if equipped) (3/4)

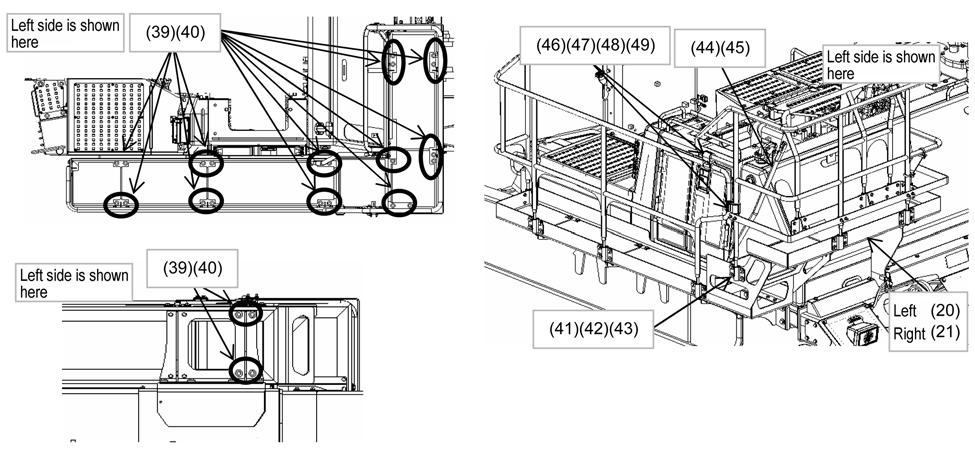

4. Installation of platform

(1) Mount left and right steps (16) and (17) on the machine and tighten them lightly by using bolts (39) and (40).

(2) Mount rear left and right steps (20) and (21) on the machine and tighten them lightly by using bolts (39) and (40).

(3) Tighten stay (44) lightly by using bolts (34).

(4) Fix handrails (18) and (22), and (19) and (23) respectively by using clamps (46), (47), (48), and (49).

(5) Permanently tighten bolts (39) and (40) of steps (16), (17), (20), and (21) which were tightened lightly.

For details of each part, see (4/4).

Assembly process No.

A-21 Installation of platform (if equipped) (4/4)

No. Part name Part No. Q’ty 1 Cover (LH)195-54-791401Reuse 2Cover (RH)195-54-791511 Reuse 3Cover (Upper)195-54-791601 Reuse 4Cover (Under)195-54-861301Reuse 5Bracket (LH)195-54-893701 6Bracket (RH)195-54-893801 7Bracket (LH)195-54-896711For left 8Bracket (RH)195-54-896811For right 9Bolt01010-816408 10Washer21T-54-161508 11Bracket195-54-892814For right and left 12Bracket195-54-892611For left 13Bracket195-54-892711For right 14Bolt01010-8164032 15Washer21T-54-1615032 16Step (LH)195-54-891111For left side 17Step (RH)195-54-891211For right side 18Handrail (LH)195-54-891311For left side 19Handrail (RH)195-54-891411For right side 20Step (LH)195-54-891501For left rear 21Step (RH)195-54-891611For right rear 22Handrail (LH)195-54-891711For left rear 23Handrail (RH)195-54-891811For right rear 24Handrail (LH)195-54-892111For left rear 25Handrail (RH)195-54-892211For right rear 26Bracket198-54-7916120 27Bolt01010-8123080 28Washer175-54-3417080 29Plate195-54-892402For rear 30Plate195-54-892502For rear 31Clip07283-3345012 32Seat07283-5344412 33Washer01643-3103224 34Nut01597-0100924 35Clamp07094-310244 36Cushion07095-010344 37Sems bolt01024-812754 38Seat04089-012302 39Bolt01010-8123550 40Washer175-54-3417050 41Bracket198-54-791612 42Bolt01010-812308 43Washer175-54-341708 44Handrail195-54-891912For right and left 45Sems bolt01024-812408 46Clamp07094-310248 47Cushion07095-010348 48Sems bolt01024-812758 49Seat04089-012304 Remarks
