50 DISASSEMBLY AND ASSEMBLY

DISASSEMBLE AND ASSEMBLE ENGINE GENERALLY

Turbocharger assembly

26. Remove the bolts (1a) and (2b), and remove the hose (1).

27. Remove the bolts (2a), (2b), (2c), and (2d), and remove the hose (2).

28. Remove the bolts (3a) (2 pieces), and remove the bracket (3).

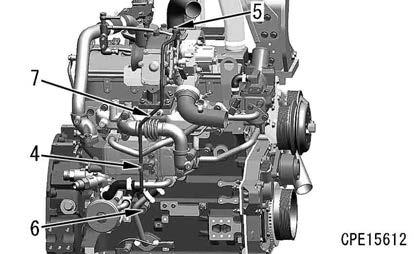

29. Disconnect the tube clamp (4).

30. Remove the bolts (5) and (6), and remove the tube (7).

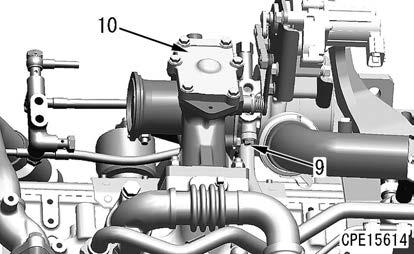

31. Remove the bolts (9) (2 pieces) of the lubricating oil drain tube on the turbocharger side.

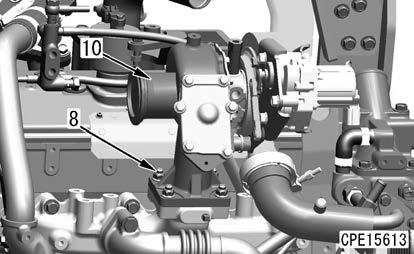

32. Remove the nuts (8) (4 pieces).

33. Remove the turbocharger assembly (10).

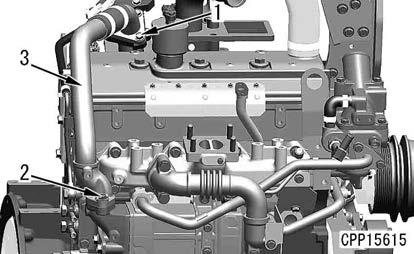

34. Remove the bolts (1) (3 pieces) and bolts (2) (2 pieces), and remove the tube (3).
