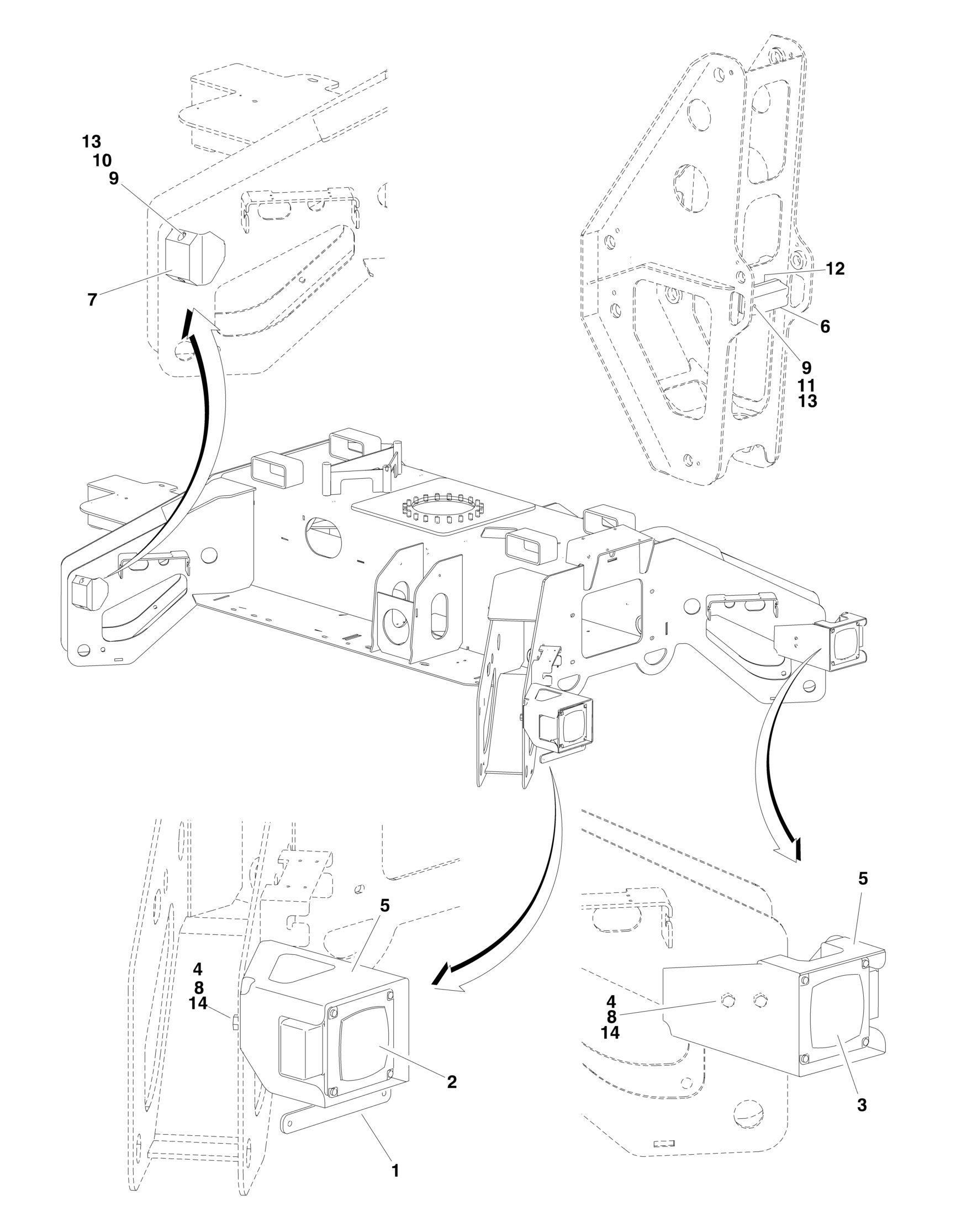

FIGURE 1 28. DELTA Q AND PRO CHARGING BATTERY CHARGER ASSEMBLIES (ELECTRIC POWERED MACHINES
FIGURE 1-28. DELTA-Q AND PRO CHARGING BATTERY CHARGER ASSEMBLIES (ELECTRIC POWERED MACHINES)
ITEM PART NUMBER QTY DESCRIPTION REV
Ref BATTERY CHARGER INSTALLATION 0274380 Ref ANSI and CSA Specs without Optional Generator B 1001131393 Ref ANSI, ANSI Export and CSA Specs with Optional Generator A 0274380 Ref ANSI Export Specs B 0274731 Ref CE, Australian and South Africa Specs B 1 Ref Battery Charger Assembly Options (No Serviceable Parts Available): 1A 0400236 1 Charger - All Specs Except ANSI Spec (Delta-Q) 1A 0400236 1 Charger - ANSI Spec without Optional Generator (Delta-Q) 1B 1001133506 1 Charger - ANSI Spec with Optional Generator (Pro-Charging Systems) (Use p/n 1001134313) 2 0641406 4 Bolt 1/4in-20NC x 3/4in 3 Ref AC Extension Cord 3 1060688 1 ANSI and ANSI Export Specs (With Standard 110V ANSI Plug) 3 1060689 1 CE, Australian and South Africa Specs (With Locally Supplied Plug) 4 3311405 4 Locknut 1/4in-20NC 5 4711400 8 Flatwasher 1/4in Thin 101 1600466 1 BATTERY CHARGER REPROGRAM CONTROLLER (USE P/N
