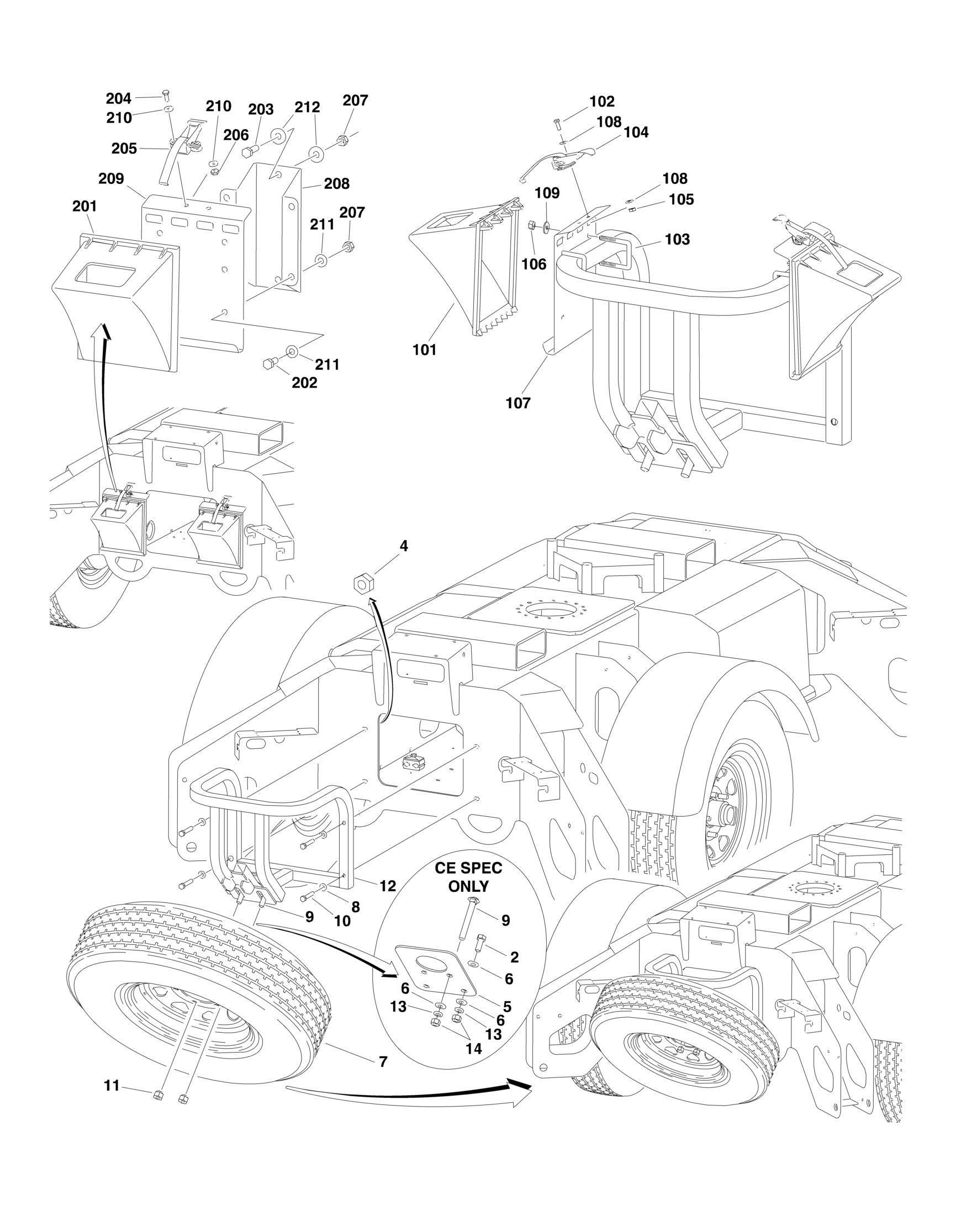

FIGURE 1 30. TAILLIGHTS AND MARKERS INSTALLATION (AUSTRALIAN, CE AND SOUTH AFRICA SPECS
FIGURE 1-30. TAILLIGHTS AND MARKERS INSTALLATION (AUSTRALIAN, CE AND SOUTH AFRICA SPECS)
ITEM PART NUMBER QTY
DESCRIPTION
Ref TAILLIGHTS AND MARKERS INSTALLATION 0274739 Ref Taillights and Markers Installation T350 Australian and South
Africa Spec
0273666 Ref Taillights and Markers Installation T350 CE Spec 0274740 Ref Taillights and Markers Installation T500J Australian and South
Africa Spec
0274430 Ref Taillights and Markers Installation T500J CE Spec 1 Ref Rear Light Bracket Assembly Options (See Items 101-115 for Breakdown): 1 0274741 1 Australian and South Africa Spec 1 0274538 1 CE Spec 2 0274539 2 Side Marker Light Assembly 2 2920182 2 Lamp Only (1 Per Assembly) (Prior to SN 0030009190) 2 1001228138 2 Lamp Only (1 Per Assembly) (SN 0030009190 through
0030012032)
2 70000095 2 Bulb (1 Per Assembly) 3 0641406 4 Bolt 1/4in-20NC x 3/4in 4 0641407 2 Bolt 1/4in-20NC x 7/8in 5 0641608 4 Bolt 3/8in-16NC x 1in 6 3311005 4 Locknut #10-24NC (T500J Only) 7 3311405 6 Locknut 1/4in-20NC 8 3311605 4 Locknut 3/8in-16NC 9 Ref Reflector (White) Options: 9 Not Required 0 Reflector (White) T350 9 3700014 2 Reflector (White) T500J 10 3911010 2 Screw #10-24NC x 5/8in (T500J Only) 11 4711400 8 Flatwasher 1/4in Narrow 12 4751000 2 Flatwasher #10 Wide (T500J Only) 13 4751600 6 Flatwasher 3/8in Wide 14 Ref Light Assembly, Rear Options: 14 0274638 1 Light Assembly, Rear T350 Australian and South Africa Spec 14 Not Required 0 Light Assembly, Rear T350 CE Spec 14 0274638 1 Light Assembly, Rear T500J Australian and South Africa Spec 14 0274638 1 Light Assembly, Rear T500J CE Spec 14 2920189 1 Lamp Only (1 Per Assembly) (Prior to SN 0030009190) 14 1001228139 1 Lamp Only (1 Per Assembly) (SN 0030009190 through
0030012032)
14 70000098 1 Bulb (1 Per Assembly) Ref REAR LIGHT BRACKET ASSEMBLY 0274741 Ref Australian and South Africa Spec 0274538 Ref CE Spec 101 0700408 8 Bolt 4mm x 16mm 102 0700410 4 Bolt 4mm x 20mm 103 0721006 4 Screw, Machine #10-24NC x 3/4in 104 0903177 2 Plate, Reflector Mounting 105 0940136 1 Bar, Light 106 2920180 2 Taillight 106 70000092 2 Bulb (Double Contact) (1 Per Assembly) 106 70000093 2 Bulb (Single Contact) (1 Per Assembly) 107 Ref Foglight, Rear Options:
REV
B
A B
A
C A
ITEM PART NUMBER QTY
DESCRIPTION
107 Not Required 0 Australian and South Africa Spec 107 2920181 1 CE Spec 107 70000093 1 Bulb 108 2920183 1 License Plate Light 108 70000096 1 Bulb (1 Per Assembly) 109 2920184 2 Side Marker Light 109 70000097 2 Bulb (1 Per Assembly) 110 3290405 12 Locknut 4mm 111 3311005 8 Locknut #10-24NC 112 3700012 2 Reflector, Red Triangle 113 3911010 4 Screw #10-24NC x 5/8in 114 4751000 12 Flatwasher #10 Wide 115 4811400 16 Flatwasher 4mm
