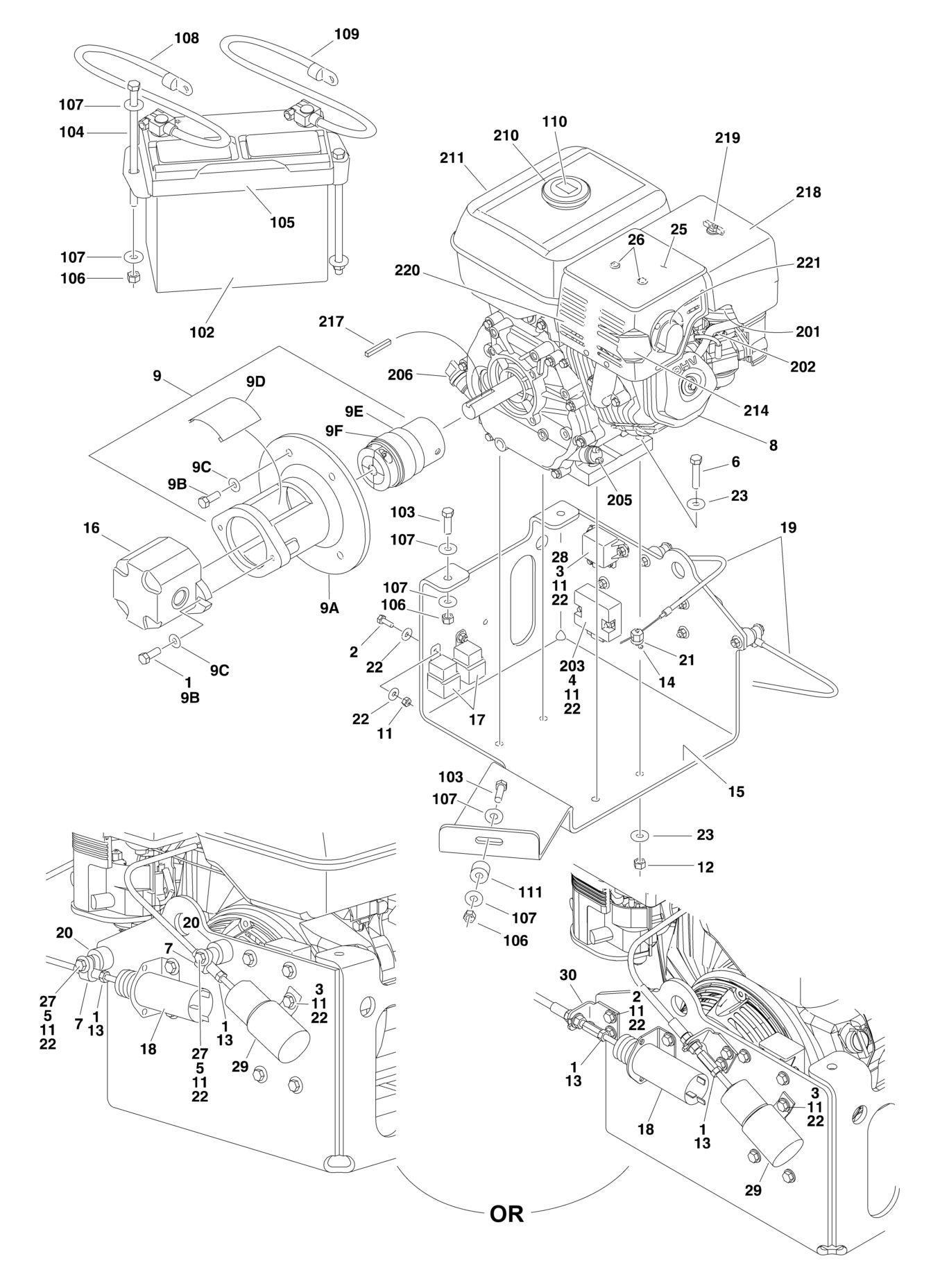

FIGURE 1 23. CONTROL VALVE ASSEMBLY (GAS POWERED MACHINES
ITEM PART NUMBER QTY
DESCRIPTION
Ref CONTROL VALVE ASSEMBLY 4641327See Note Ref Control Valve Assembly T350 Gas Powered Machines (Note:
When replacing complete unit order p/n 1001228194 instead of p/n 4641327)
4641328See Note Ref Control Valve Assembly T500J Gas Powered Machines (Note:
When replacing complete unit order p/n 1001228195 instead of p/n 4641328)
3 See Note 1 Block, Valve (Note: Not Available - Purchase Complete Valve Assembly) 4 7027620 1 Cartridge, Relief Valve 4 See Note 1 Seal Kit (Note: Not Available - Purchase Relief Valve Cartridge p/n 7027620) 4A 7027621 1 Cartridge, Relief Valve 4A See Note 1 Seal Kit (Note: Not Available - Purchase Relief Valve Cartridge p/n 7027621) 5 7027622 1 Cartridge, Valve 5 See Note 1 Seal Kit (Note: Not Available - Purchase Cartridge Valve p/n 7027622) 6 7027623 7 Cartridge, Valve 6 See Note 7 Seal Kit (Note: Not Available - Purchase Cartridge Valve p/n 7027623) 7 7027624 2 Cartridge, Solenoid Less Coil (Swing and Leveling Jacks) 7 70002227 2 Nut, Coil 7 70000100 2 Seal Kit 8 7027625 1 Cartridge, Solenoid Less Coil (Level) 8 70002227 1 Nut, Coil 8 70000100 1 Seal Kit 9 7027626 1 Cartridge, Solenoid Less Coil (Tele) 9 70002228 1 Nut, Coil 9 70000100 1 Seal Kit 10 7024500 1 Cartridge, Solenoid Less Coil (Lift Up) 10 70002230 1 Nut, Coil 10 7024505 1 Seal Kit 11 7027627 1 Cartridge (Manual Descent) 11 70002229 1 Nut, Coil 11 7024505 1 Seal Kit 12 7027628 9 Coil 13 7027629 3 Cartridge, Valve 13 7024505 3 Seal Kit 14 7027630 1 Cartridge, Manual Hand Pump Valve (Manual Descent) 14 See Note 1 Seal Kit (Note: Not Available - Purchase Manual Pump Valve Cartridge p/n 7027630) 15 Ref Tank Options: 15 7027631 1 Tank T350 15 7027639 1 Tank T500J 24 2915194 1 Element, Filter (Includes p/n 70000065 O-Ring) (Was p/n 7027634) 24 See Note 1 Adapter (Note: Not Available - Purchase Filter Element p/n 2915194) 24 70003615 1 Retainer, Filter Element Contamination 25 7027635 1 O-Ring 30 7027690 1 Valve Block Assembly (Jib) (T500J Only)
REV
E
E
ITEM PART NUMBER QTY DESCRIPTION REV
30A 7024500 1 Cartridge, Solenoid Less Coil 30A 70002230 1 Nut, Coil 30A 7024505 1 Seal Kit 30A 7027628 1 Coil 30B See Note 1 Cartridge, Valve (Note: Not Available - Purchase Complete Valve Block Assembly p/n 7027690) 30B See Note 1 Seal Kit (Note: Not Available - Purchase Complete Valve Block Assembly p/n 7027690) 31 7027691 1 Valve Block Assembly (Proportional) 31A 70000025 1 Cartridge, Solenoid Less Coil 31A 7026623 1 Seal Kit 31A 70000026 1 Coil 31B 70000028 1 Cartridge, Valve (Check) 31B See Note 1 Seal Kit (Note: Not Available - Purchase Cartridge Valve p/n 70000028) 31C 70000027 1 Compensator 37 70000894 4 Nut 37 70000895 4 Stud 38 7027636 2 Orifice 95 7027638 1 Breather 96 70000378 1 Dipstick Ref VALVE AND FITTINGS SUBASSEMBLY 4641344 Ref Valve and Fittings Subassembly T350 Gas Powered Machines H 4641345 Ref Valve and Fittings Subassembly T500J Gas Powered H
Machines
101 2110404 Ref Fitting, Straight 101 2110404 4 Fitting, Straight T350 101 2110404 6 Fitting, Straight T500J 102 2110604 1 Fitting, Straight 103 2130404 1 Fitting, Elbow 109 2221086 3 Fitting, Test Port 110 Ref Valve Assembly Less Fittings (Includes Items 1-95) 110 4641327 NLA Valve Assembly Less Fittings T350 (Use p/n 1001228194)
(Prior to SN 0030009078)
110 1001228194 Ref Valve Assembly Less Fittings T350 (SN 0030009078 through
0030012032)
110 4641328 NLA Valve Assembly Less Fittings T500J (Use p/n 1001228195)
(Prior to SN 0030009078)
110 1001228195 Ref Valve Assembly Less Fittings T350 (SN 0030009078 through
0030012032)
111 2130606 2 Fitting, Elbow 112 2170206 1 Fitting, Long Elbow 113 2110606 3 Fitting, Straight (Prior to SN 0030009078) 113 2110606 2 Fitting, Straight (SN 0030009078 through 0030012032) 114 2111610 1 Fitting, Straight 115 2110806 1 Fitting, Straight (SN 0030009078 through 0030012032)
