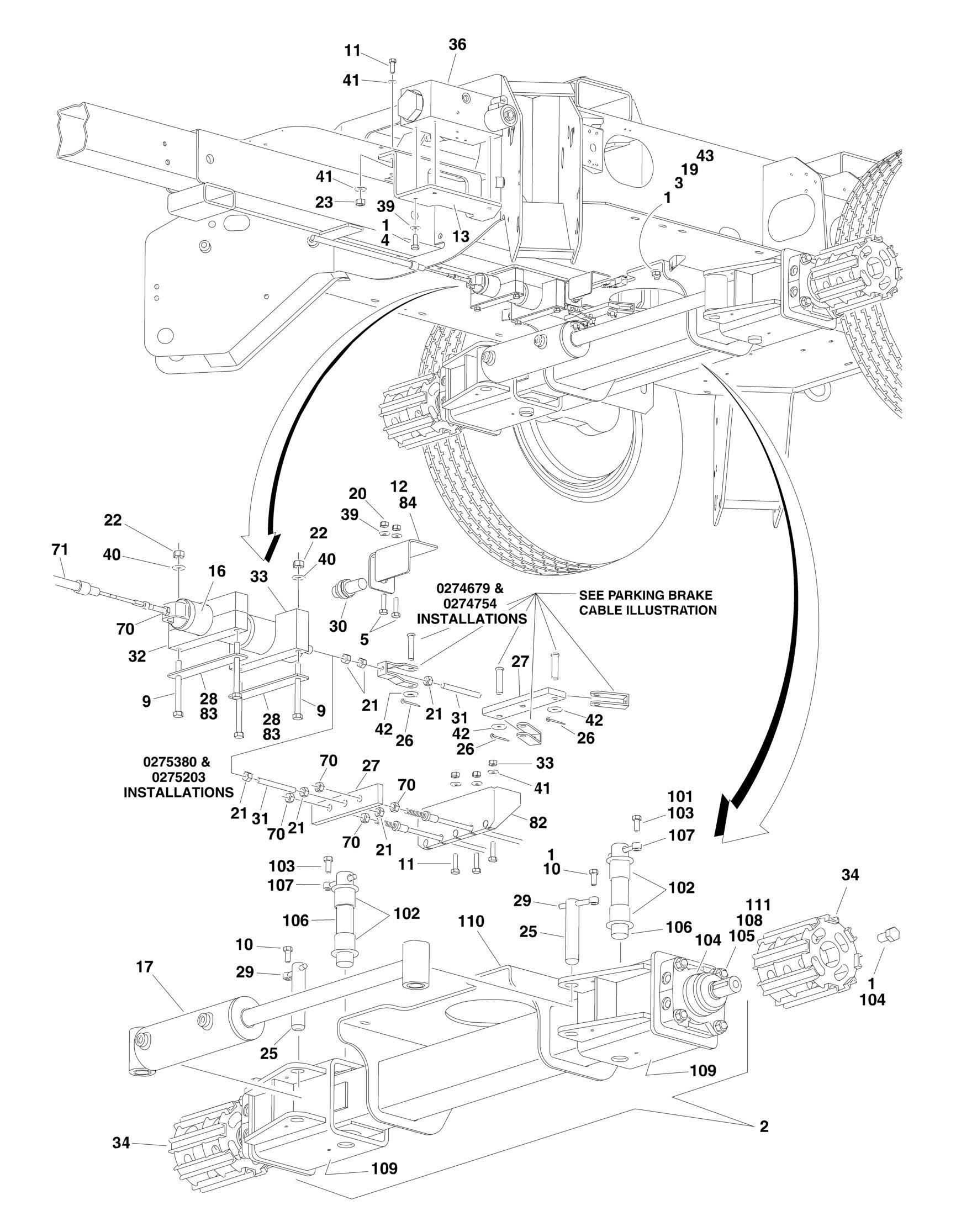

FIGURE 1 16. MECHANICAL BRAKE ASSEMBLY (CE SPEC MACHINES
FIGURE 1-16. MECHANICAL BRAKE ASSEMBLY (CE SPEC MACHINES)
ITEM PART NUMBER QTY DESCRIPTION
Ref AXLE ASSEMBLY 0280186 Ref Axle Assembly T350 0280187 Ref Axle Assembly T500J Ref Note: Front/Rear and Left/Right are determined by facing the
Tow Vehicle.
1 See Note 1 Axle (Not Shown) (Note: Not Available - Purchase Complete Assembly) 2 Ref Mechanical Brake Assembly Options: 2A 7027885 1 Mechanical Brake Assembly T350 Right Side (Includes Item 101-136) 2A 0277886 1 Mechanical Brake Assembly T350 Left Side (Includes Item 101136) 2B 7027883 1 Mechanical Brake Assembly T500J Right Side (Includes Item 201-236) 2B 7027884 1 Mechanical Brake Assembly T500J Left Side (Includes Item 201-236) Ref MECHANICAL BRAKE ASSEMBLY (T350) 7027885 1 Mechanical Brake Assembly T350 Right Side 7027886 1 Mechanical Brake Assembly T350 Left Side Ref Note: Front/Rear and Left/Right are determined by facing the
Tow Vehicle.
101 7027801 5 Screw, Spherical Flanged 102 7027802 5 Screw, Conical Flanged 103 7027821 1 Hub/Drum Assembly 106 7027805 1 Bearing 113 7027806 2 Circle Clip 114 7027803 1 Cap, Dust 115 70005478 1 Nut, Flanged 117 7027807 1 Shoe, Brake (Smaller of the 2 Shoes) 118 7027808 1 Shoe, Brake (Larger of the 2 Shoes) 119 7027809 1 Spring, Tension (Top) 120 7027810 1 Spring, Tension (Bottom) 121 7027811 1 Spring, Compression (Center) 123 7027812 1 Spreader, Compression Spring 124 7027813 2 Key, Adjusting 129 7027814 1 Bolt, Adjusting 130 7027815 1 Bolt 132 7027816 2 Plug, Adjustment Hole 133 7027817 1 Shield, Protective 134 7027818 1 Drawbar Eye 135 7027819 1 Sleeve, Protective 136 7027820 1 Cable, Brake Ref MECHANICAL BRAKE ASSEMBLY (T350) 7027883 1 Mechanical Brake Assembly T500J Right Side 7027884 1 Mechanical Brake Assembly T500J Left Side Ref Note: Front/Rear and Left/Right are determined by facing the
Tow Vehicle.
201 7027822 6 Nut, Flanged 202 7027823 6 Lockwasher 203 7027826 1 Hub/Drum Assembly 205 7027824 1 Pin, Cotter
REV
D C
ITEM PART NUMBER QTY DESCRIPTION
206 7027825 1 Cap, Dust 210 7027827 1 Washer 213 7027828 1 Nut, Castle 214 7027829 1 Bearing (Inner) 215 7027830 1 Bearing (Outer) 216 7027831 1 Washer 217 70003038 1 Shoe, Brake (Larger of the 2 Shoes) (was p/n 7027832) 218 70003038 1 Shoe, Brake (Smaller of the 2 Shoes) (was p/n 7027833) 219 7027834 1 Spring, Tension (Bottom) 220 7027835 1 Spring, Tension (Top) 221 7027836 1 Spring, Compression (Center) 222 7027837 1 Clip, Spring 223 7027838 1 Spreader, Compression Spring 224 7027839 2 Key, Adjusting 229 7027840 1 Bolt, Adjusting 230 7027841 1 Bolt 232 7027842 2 Plug, Adjustment Hole 233 7027843 1 Shield, Protective 234 7027844 1 Drawbar Eye 235 7027845 1 Sleeve, Protective 236 7027846 1 Cable, Brake
