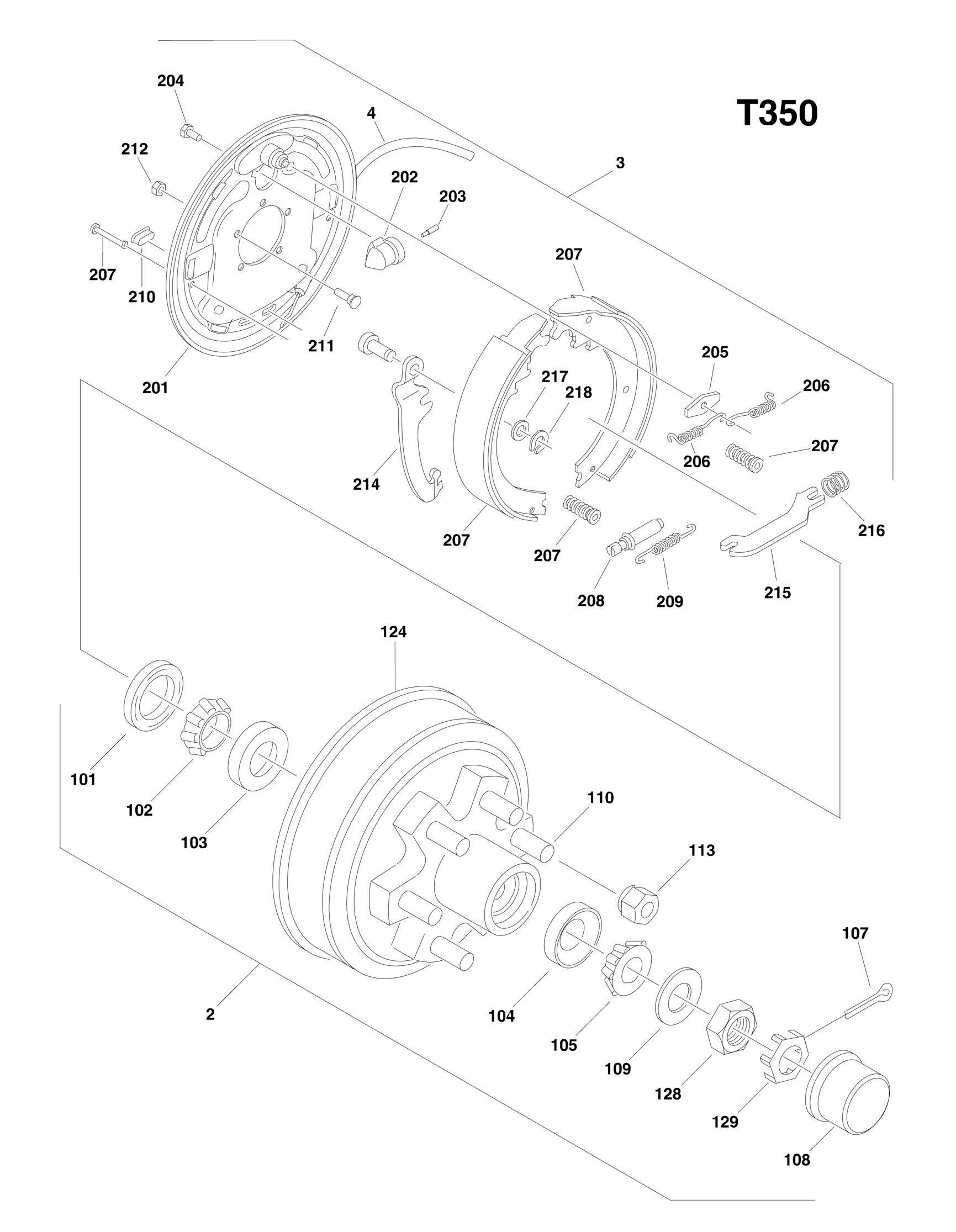

FIGURE 1 14. ELECTRIC BRAKE AND AXLE ASSEMBLY
FIGURE 1-14. ELECTRIC BRAKE AND AXLE ASSEMBLY
ITEM PART NUMBER QTY DESCRIPTION
Ref AXLE ASSEMBLY 0280158 Ref Axle Assembly T350 0280159 Ref Axle Assembly T500J Ref Note: Front/Rear and Left/Right are determined by facing the
Tow Vehicle.
1 See Note 1 Axle (Not Shown) (Note: Not Available - Purchase Complete Axle Assembly) 2 Ref Drum Assembly (Includes Item 101-129) 2 70001003 2 Drum Assembly T350 2 See Note 2 Drum Assembly T500J (Note: Not Available - Purchase individual parts) 3 Ref Electric Brake Assembly (Includes Item 201-229) 3 7027665 1 Electric Brake Assembly T350 Left Side 3 7027666 1 Electric Brake Assembly T350 Right Side 3 7027675 1 Electric Brake Assembly T500J Left Side 3 7027676 1 Electric Brake Assembly T500J Right Side Ref DRUM ASSEMBLY 101 Ref Seal Options (1 Per Assembly): 101 7027647 1 Seal T350 101 7027654 1 Seal T500J 102 Ref Cone, Inner Options (1 Per Assembly): 102 7027648 1 Cone, Inner T350 102 7026384 1 Cone, Inner T5000J 103 Ref Cup, Inner Options (1 Per Assembly): 103 7027649 1 Cup, Inner T350 103 7026385 1 Cup, Inner T500J 104 Ref Cup, Outer Options (1 Per Assembly): 104 7027650 1 Cup, Outer T350 104 7027655 1 Cup, Outer T500J 105 Ref Cone, Outer Options (1 Per Assembly): 105 7027651 1 Cone, Outer T350 105 7027656 1 Cone, Outer T500J 107 80317 2 Pin, Cotter (1 Per Assembly) 108 Ref Cap Options (1Per Assembly): 108 7027652 1 Cap T350 108 7027511 1 Cap T500J 109 See Note 2 Washer, Spindle (1 Per Assembly) (Note: Not available for purchase) 110 Ref Stud, Wheel Options: Ref Note: Please verify the length of your original stud before
ordering.
110 7026390 AR 2in Stud 110 70003756 Ref 2-58in Stud 110 70003756 10 2-58in Stud T350 (5 Per Assembly) 110 70003756 12 2-58in Stud T500J (6 Per Assembly) 113 7026313 Ref Lugnut 113 7026313 10 Lugnut T350 (5 Per Assembly) 113 7026313 12 Lugnut T500J (6 Per Assembly) Ref Note: See SPECIAL OPTIONS SECTION for Security Wheel
Locks. REV
C B
ITEM PART NUMBER QTY DESCRIPTION
124 7027653 1 Hub and Drum T350 124 7027657 1 Hub and Drum T500J 128 7027692 2 Nut, Spindle (1 Per Assembly) 129 7027693 2 Retainer, Nut Spindle (1 Per Assembly) Ref ELECTRIC BRAKE ASSEMBLIES 7027665 1 Electric Brake Assemblies T350 Left Side 7027666 1 Electric Brake Assemblies T350 Right Side 7027675 1 Electric Brake Assemblies T500J Left Side 7027676 1 Electric Brake Assemblies T500J Right Side Ref Note: Front/Rear and Left/Right are determined by facing the
Tow Vehicle.
202 Ref Lever, Actuating Options: 202 7027667 1 Lever, Actuating T350 Left Side 202 7027668 1 Lever, Actuating T350 Right Side 202 7026391 1 Lever, Actuating T500J Left Side 202 7026392 1 Lever, Actuating T500J Right Side 204 7026393 2 Clip, Wire 206 Ref Brake Shoe Assembly Options (Includes 1 Primary & 1 Secondary Brake Shoe with Lining, 2 Pins, 2 Springs & 2 Cups): 206 7027669 1 Brake Shoe Assembly T350 206 70132 1 Brake Shoe Assembly T500J 207 7026395 1 Adjuster Assembly 208 7026396 1 Spring, Adjuster 209 Ref Magnet Assembly (Includes 1 each of Magnet, Spring and Clip) 209 7027671 1 Magnet Assembly T350 209 7027677 1 Magnet Assembly T500J 210 See Note 1 Plug, Adjuster Slot (Note: Not Available - Purchase Locally) 211 See Note 1 Grommet (Note: Not Available - Purchase Locally) 212 See Note 4 Bolt, Mounting (Note: Not Available - Purchase Locally) 213 See Note 4 Nut 221 See Note 1 Plate, Backing (Note: Not Available - Purchase Complete Assy) 222 Ref Actuating Cam and Pin Options: 222 7027672 1 Left Side 222 7027673 1 Right Side 224 See Note 1 Anchor Post and Nut (Note: Not Available - Purchase Complete Assy) 226 See Note 1 Washer, Anchor (Note: Not Available - Purchase Locally) 227 See Note 1 Locknut (Note: Not Available - Purchase Locally) 228 7027678 1 Lever, Parking Brake 229 Ref Spring, Retractor Options: 229 7027674 2 Spring, Retractor T350 229 7027679 2 Spring, Retractor T500J
