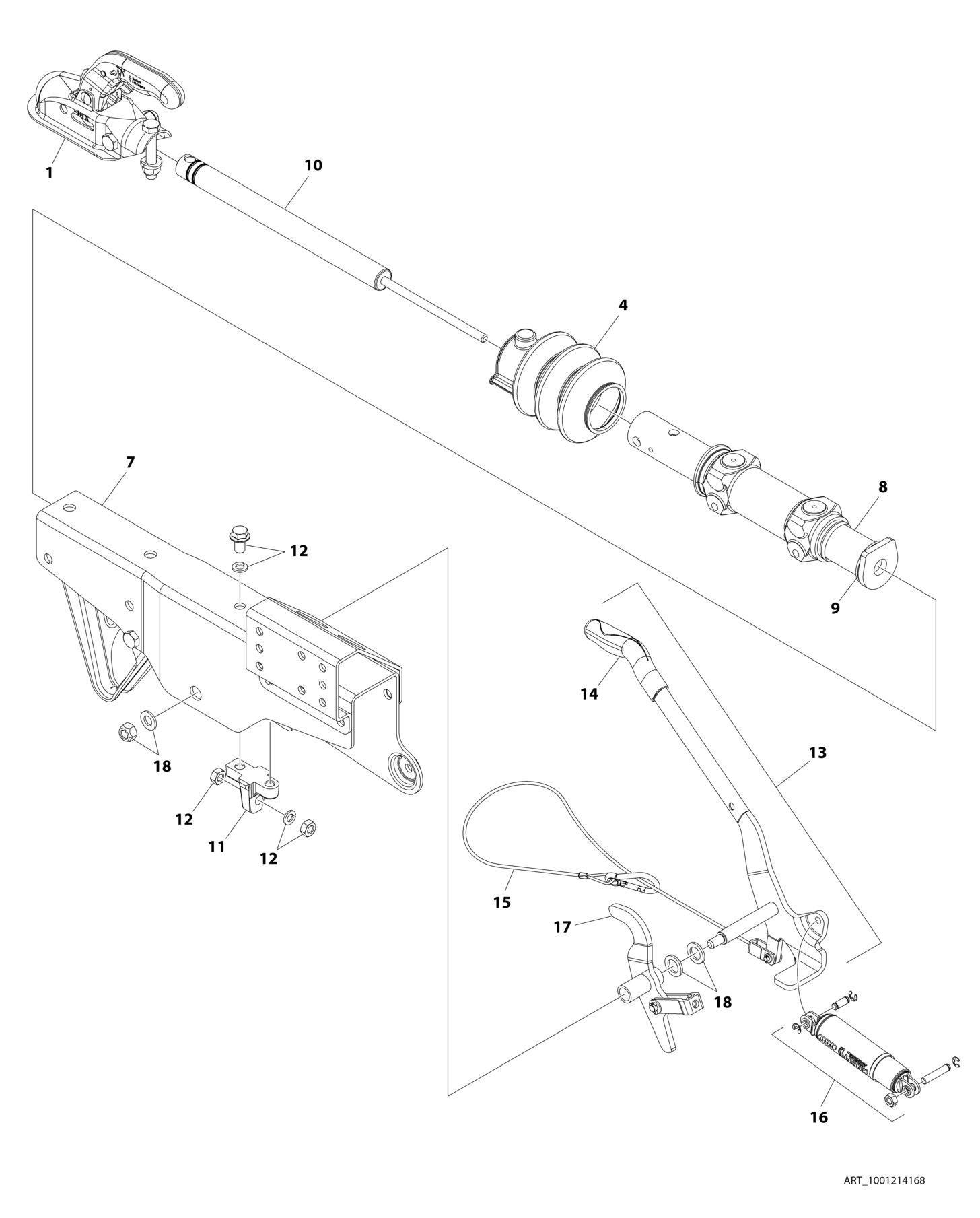

FIGURE 1 11. HYDRAULIC BRAKE COUPLER WITH 50MM BALL ASSEMBLY (CE SPEC MACHINES
ITEM PART NUMBER QTY
DESCRIPTION
Ref COUPLER ASSEMBLY - HYDRAULIC BRAKE 1660282 Ref Coupler Assembly T350 (Use p/n 1001161223) 1660283 Ref Coupler Assembly T500J 1 Ref Spring, Gas Options: 1 70000029 1 Spring, Gas T350 1 70000037 1 Spring, Gas T500J 2 70000030 1 Boot 3 70000031 1 Cable, Breakaway 4 70000032 1 Brake Lever Assembly 5 Ref Brake Cylinder Assembly Options: 5 70000033 1 Brake Cylinder Assembly T350 5 70000038 1 Brake Cylinder Assembly T500J 6 Ref Tube, Draw Option (Includes Item 7): 6 70000034 1 Tube, Draw T350 6 70000039 1 Tube, Draw T500J 7 70000035 1 Stop-Ring (Use p/n 70004697) 8 Ref Coupling Head Options: 8 70000036 1 Coupling Head T350 8 70000040 1 Coupling Head T500J 9 70004698 1 Pin, Cylinder T350 10 70004700 1 Kit, Spring Sleeve T350 11 70004701 1 Transmission Lever T350 12 70004705 1 Spring, Gas Mounting T350 13 70004706 2 Grease Fitting T350 14 70004707 2 Grease Fitting Cap T350 15 70004708 1 Bolt T350 16 70004709 2 Nut, M10-8 T350 17 70004710 1 Spring Ring T350 18 70004711 1 Spring Ring T350 19 70004712 1 Flatwasher T350 20 70004713 1 Nut, M12-8 T350 21 70004714 1 Flatwasher T350 22 70004696 1 Kit, Bearing T350
