FIGURE 1 12. HYDRAULIC BRAKE COUPLER WITH 50MM BALL ASSEMBLY T350 (CSA SPEC MACHINES

FIGURE 1-12. HYDRAULIC BRAKE COUPLER WITH 50MM BALL ASSEMBLY - T350 (CSA SPEC MACHINES)

ITEM PART NUMBER QTY

DESCRIPTION

1001214168 Ref HYDRAULIC BRAKE COUPLER WITH 50MM BALL ASSEMBLY (T350) (CSA SPEC MACHINES) 1 70005987 1 Coupling Head 2 70005988 2 Bolt (Not Shown) 2 70005989 1 Caliper (Not Shown) 2 70004713 2 Locknut (Not Shown) 2 70005990 1 Protective Cap (Not Shown) 3 70005991 1 Support (Not Shown) 4 70000030 1 Bellow 5 See Note NSS Ribbon Cable (Not Shown) (Note: Not Available for Purchase) 6 70005992 1 Guide Bearing (Not Shown) 7 See Note NSS Housing (Note: Not Available for Purchase) 8 70000034 1 Tube, Draw 9 70000035 1 Stop-Ring 10 70004703 1 Spring, Gas 11 70004705 1 Spring, Gas Mounting 12 70004708 1 Bolt 12 70004711 1 Spring, Ring 12 70004709 2 Nut 12 70004710 1 Spring, Ring 13 70005993 1 Lever, Handbrake 14 70005994 1 Handle 15 70000031 1 Cable 16 70005995 1 Sleeve, Spring 17 70004701 1 Lever, Transmission 18 70005996 1 Washer 18 70005997 1 Washer 18 70005998 1 Washer 18 70004713 1 Locknut

REV

A

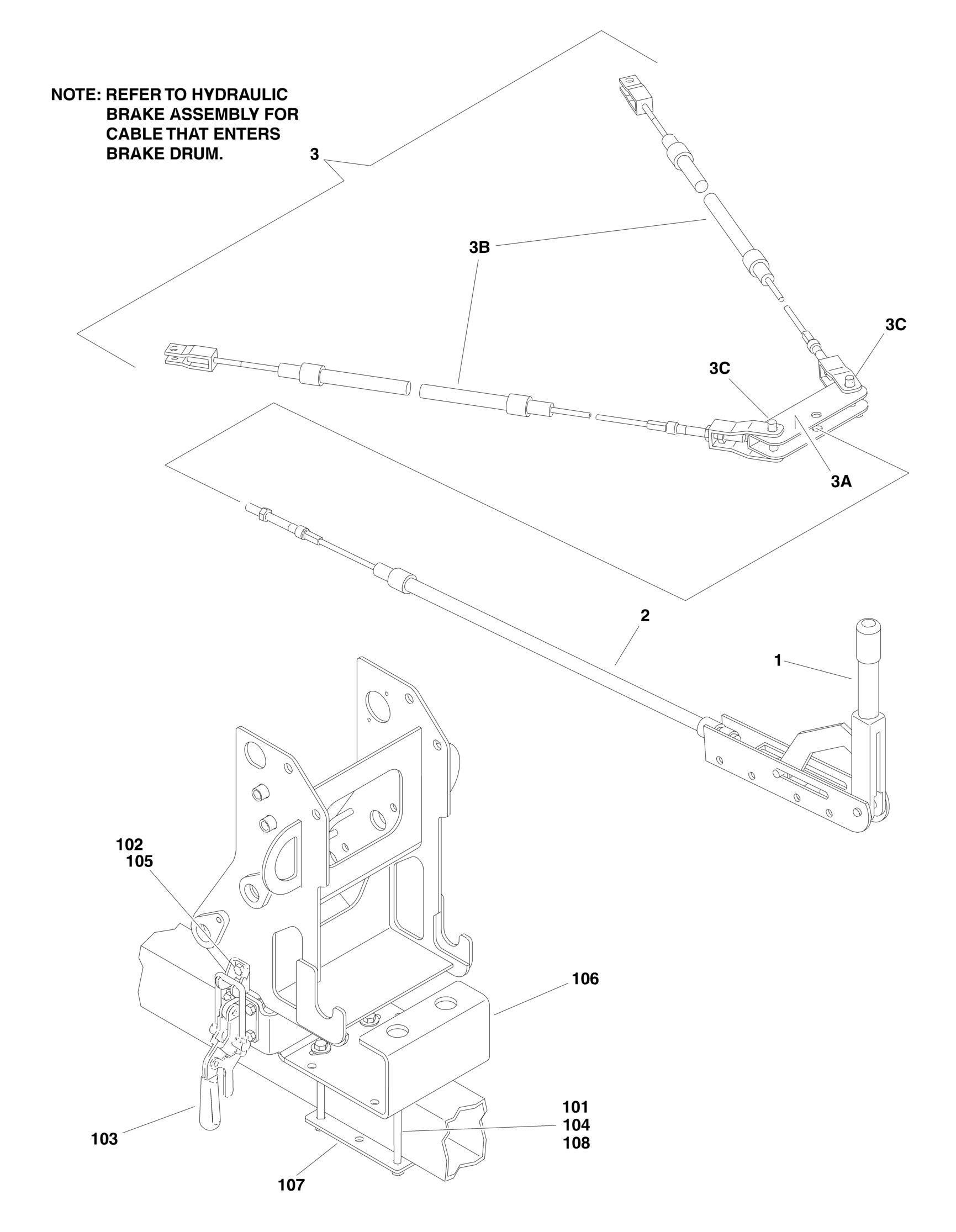

FIGURE 1-13. PARKING BRAKE CABLE (ANSI, ANSI EXPORT AND AUSTRALIAN SPEC MACHINES ONLY) AND TRANSPORT LOCK ASSEMBLIES
