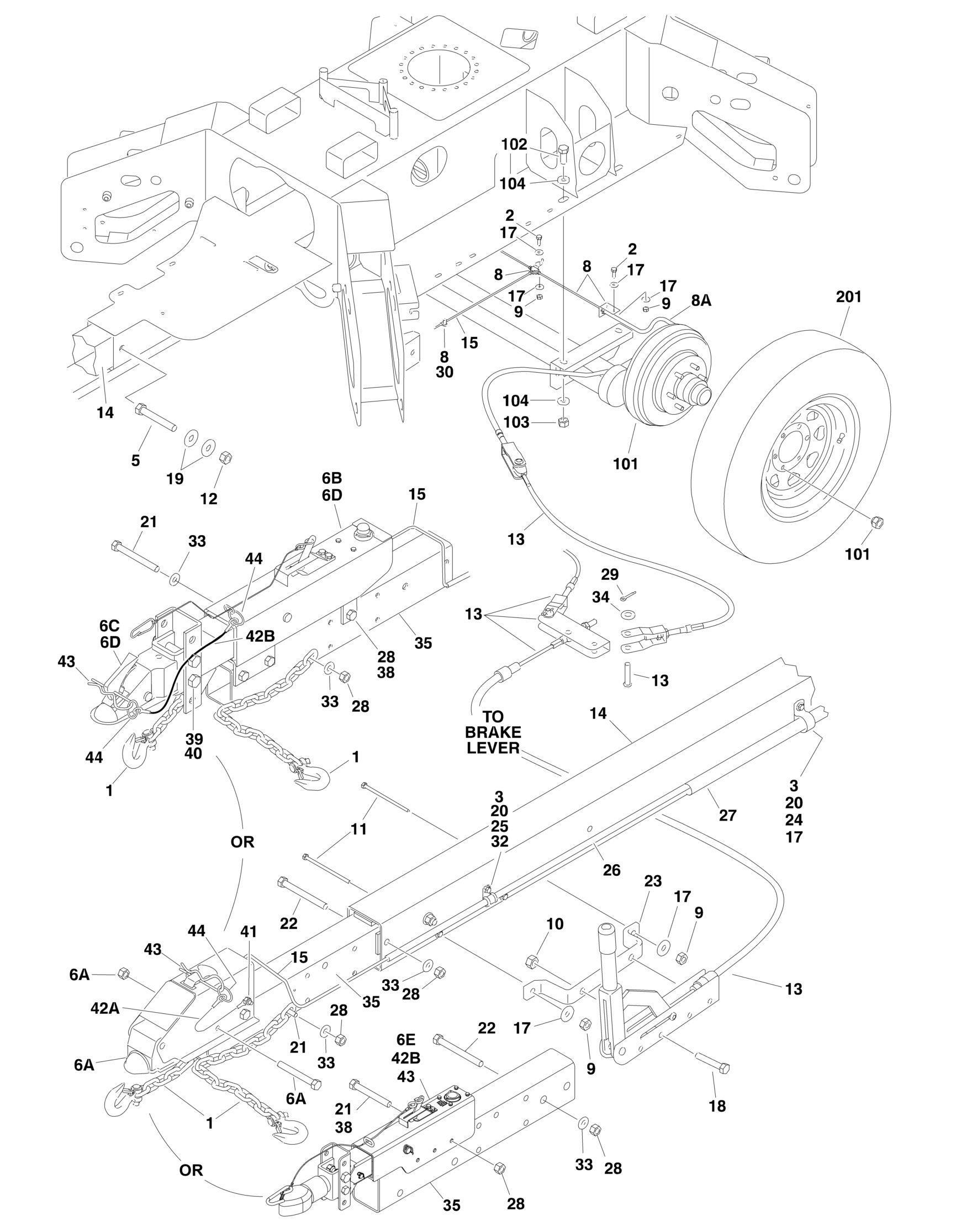

FIGURE 1 3. AXLE AND TONGUE INSTALLATION WITH ELECTRIC BRAKES (ANSI, ANSI EXPORT, AUSTRALIAN AND SOUTH AFRICA SPECS
FIGURE 1-3. AXLE AND TONGUE INSTALLATION WITH ELECTRIC BRAKES (ANSI, ANSI EXPORT, AUSTRALIAN AND SOUTH AFRICA SPECS)
ITEM PART NUMBER QTY
DESCRIPTION
Ref ELECTRIC BRAKE AND TONGUE INSTALLATION 0273648 Ref Electric Brake and Tongue Installation T350 with 2in Ball
(ANSI and ANSI Export Specs)
0273654 Ref Electric Brake and Tongue Installation T500J with 2in Ball
(ANSI and ANSI Export Specs)
0274767 Ref Electric Brake and Tongue Installation T500J with 50mm Ball
(ANSI Export and Australian Specs)
0275626 Ref Electric Brake and Tongue Installation T500J with 50mm Ball
(South Africa Specs)
1 Ref Chain, Safety with Hook Options: 1 70212 2 2in Ball (ANSI and ANSI Export Specs) 1 Not Required 0 50mm Ball (ANSI Export, Australian and South Africa Specs) 2 0641422 4 Bolt 1/4in-20NC x 2-3/4in 3 0641412 AR Bolt 1/4in-20NC x 1-1/2in 5 Ref Bolt Options: 5 0641832 2 Bolt 1/2in-13NC x 4in (2in Ball - ANSI and ANSI Export Specs) 5 0711234 4 Bolt (Metric) 12mm x 170mm (50mm Ball - ANSI Export, Australian and South Africa Specs) 6 Ref Bolt Options: 6 0642240 2 Bolt 3/4in-10NC x 5in (2in Ball - ANSI and ANSI Export Specs) 6 0642246 2 Bolt 3/4in-10NC x 5-3/4in (50mm Ball - ANSI Export, Australian and South Africa Specs) 7 Ref Coupler Assembly - Electric Brake Options (No Repair Parts Available): 7 1660273 1 2in Ball (ANSI and ANSI Export Specs) 7 1660297 1 50mm Ball (ANSI Export, Australian and South Africa Specs) 9 3311405 6 Locknut 1/4in-20NC 10 3311505 2 Locknut 5/16in-18NC 11 Ref Bolt Options: 11 0641430 2 Bolt 1/4in-20NC x 3-3/4in (2in Ball - ANSI and ANSI Export Specs) 11 0641438 2 Bolt 1/4in-20NC x 4-3/4in (50mm Ball - ANSI Export, Australian and South Africa Specs) 11 0641440 2 Bolt 1/4in-20NC x 5in (50mm Ball - ANSI Export, Australian and South Africa Specs) 13 3312205 2 Locknut 3/4in-10NC 14 Ref Parking Brake Cable Assembly Options (See PARKING BRAKE CABLE (ANSI, ANSI EXPORT and AUSTRALIAN SPEC MACHINES ONLY) and TRANSPORT LOCK ASSEMBLIES for Breakdown): 14 3890043 1 Parking Brake Cable Assembly T350 14 3890044 1 Parking Brake Cable Assembly T500J 15 4191706 1 Screw, Rolling Thread 6mm x 12mm 16 4360570 1 Breakaway Switch Kit 16A 71820 1 Switch, Replacement Breakaway 16B 71820-1 1 Replacement Switch Pin and Cable 16C See Note 1 Charger, Replacement Battery (Note: Not Available - Purchase Complete Kit p/n 4360570) 17 Ref Tongue Options: 17 4568985 1 Tongue (Use p/n 4569512) T350 (Prior to SN 0030002199) 17 4569512 1 Tongue T350 (SN 0030002199 through 0030012032) 17 4568986 1 Tongue T500J (2in Ball - ANSI and ANSI Export Specs)
REV
I
I
E
C
ITEM PART NUMBER QTY
DESCRIPTION
17 4569445 1 Tongue T500J (50mm Ball - ANSI Export, Australian) 17 4569470 1 Tongue T500J (50mm Ball - South Africa Spec) 18 0641514 2 Bolt 5/16in-18NC x 1-3/4in 19 4751400 15 Flatwasher 1/4in Regular 20 Ref Bolt Options: 20 0641836 2 Bolt 1/2in-13NC x 4-1/2in (2in Ball - ANSI and ANSI Export Specs) 20 Not Required 0 50mm Ball - ANSI Export, Australian and South Africa Specs 21 4752200 4 Flatwasher 3/4in Regular 23 8580420 AR Wellnut 24 Ref Bolt Options: 24 0641838 2 Bolt 1/2in-13NC x 4-3/4in (T500J Only) (2in Ball - ANSI and ANSI Export Specs) 24 Not Required 0 50mm Ball - ANSI Export, Australian and South Africa Specs 25 0903108 1 Bracket, Parking Brake 26 1320060 AR Clamp 27 1320061 1 Clamp 28 1560016 1 Conduit 29 1560017 2 Conduit 30 Ref Nut Options: 30 3311805 3 Locknut 1/2in-13NC (2in Ball - ANSI and ANSI Export Specs) 30 3331211 4 Nut M12 x 1.75 (50mm Ball - ANSI Export, Australian and South Africa Specs) 31 3450304 4 Pin, Cotter 32 4240032 AR Tiestrap 4in/10cm (Not Shown) 33 4240033 AR Tiestrap 7in/18cm (Not Shown) 34 4711400 1 Flatwasher 1/4in Thin 35 Ref Flatwasher Options: 35 4711800 4 Flatwasher 1/2in Thin (2in Ball - ANSI and ANSI Export Specs) 35 Not Required 0 50mm Ball - ANSI Export, Australian and South Africa Specs 36 4751500 4 Flatwasher 5/16in Regular 37 Ref Adapter, Tongue Options: 37 Not Required 0 Adapter, Tongue T350 37 0080265 1 Adapter, Tongue T500J (All Specs except South Africa Spec Use p/n 0080291) (Prior to SN 0030002199) 37 0080291 1 Adapter, Tongue T500J (All Specs except South Africa Spec)
(SN 0030002199 through 0030012032)
37 Not Required 0 Adapter, Tongue T500J (South Africa Spec) 38 Ref Trailer Plug Harness Options (Not Shown - See ELECTRICAL SECTION for Breakdown): 38 4923203 1 2in Ball - ANSI and ANSI Export Specs 38 4923318 1 50mm Ball - ANSI Export, Australian and South Africa Specs 39 3430506 2 Pin, Clevis 40 4711500 2 Flatwasher 5/16inThin 41 3450302 2 Pin, Cotter 42 4569438 4 Spacer (50mm Ball - ANSI Export, Australian and South Africa Specs Only) 43 4891800 8 Flatwasher 1/2in Hardened (50mm Ball - ANSI Export, Australian and South Africa Specs Only) Ref ELECTRIC BRAKE AND AXLE INSTALLATION 0273699 Ref Electric Brake and Axle Installation T350 B
0273700 Ref Electric Brake and Axle Installation T500J Ref Axle Assembly with Electric Brakes Options (See ELECTRICAL
REV
B
ITEM PART NUMBER QTY DESCRIPTION REV
BRAKE AND AXLE ASSEMBLY for Breakdown): 101 0280158 1 Axle Assembly with Electric Brakes T350 101 0280159 1 Axle Assembly with Electric Brakes T500J 102 0642012 4 Bolt 5/8in-11NC x 1-1/2in 103 3312005 4 Locknut 5/8in-11NC 104 4892000 8 Flatwasher 5/8in Hardened Ref TIRE AND WHEEL INSTALLATION Ref Tire and Wheel Installation T350 0273610 Ref ANSI and ANSI Export Specs (Prior to SN 0030002529) B 0275210 Ref ANSI and ANSI Export Specs (SN 0030002529 through C
0030012032)
0275210 Ref Australian and South Africa Specs C Ref Tire and Wheel Installation T500J 0273611 Ref ANSI and ANSI Export Specs (Prior to SN 0030002529) B 0275211 Ref ANSI and ANSI Export Specs (SN 0030002529 through B
0030012032)
0275211 Ref Australian and South Africa Specs B 201 Ref Tire and Wheel Assembly 201 4520323 2 Tire and Wheel Assembly T350 (205-75-R14) (ANSI and ANSI Export Specs) (Serviced as an Assembly Only) (Use p/n 1001109586) (Prior to SN 0030002529) 201 4520613 2 Tire and Wheel Assembly T350 (205-75-R14) (ANSI and ANSI Export Specs) (Serviced as an Assembly Only) (Use p/n 1001109586) (Prior to SN 0030002529) 201 4520613 2 Tire and Wheel Assembly T350 (205-75-R14) (ANSI and ANSI Export Specs and Australian and South Africa Specs) (Serviced as an Assembly Only) (Use p/n 1001109586) (SN
0030002529 through 0030003104, Prior to SN 0030003105)
201 1001109586 2 Tire and Wheel Assembly T350 (215-75-R14) (ANSI and ANSI Export Specs and Australian and South Africa Specs)
(SN 0030003105 through 0030012032)
201 70002204 2 Tire, Replacement (215-75-R14) 201 70002205 2 Wheel, Replacement (14 x 6) 201 4520322 2 Tire and Wheel Assembly T500J (225-75-R15) (ANSI and ANSI Export Specs) (Serviced as an Assembly Only) (Use p/n 4520614) (Prior to SN 0030002529) 201 4520614 2 Tire and Wheel Assembly T500J (225-75-R15) (ANSI and ANSI Export Specs and Australian and South Africa Specs All) (Serviced as an Assembly Only) (SN 0030002529
