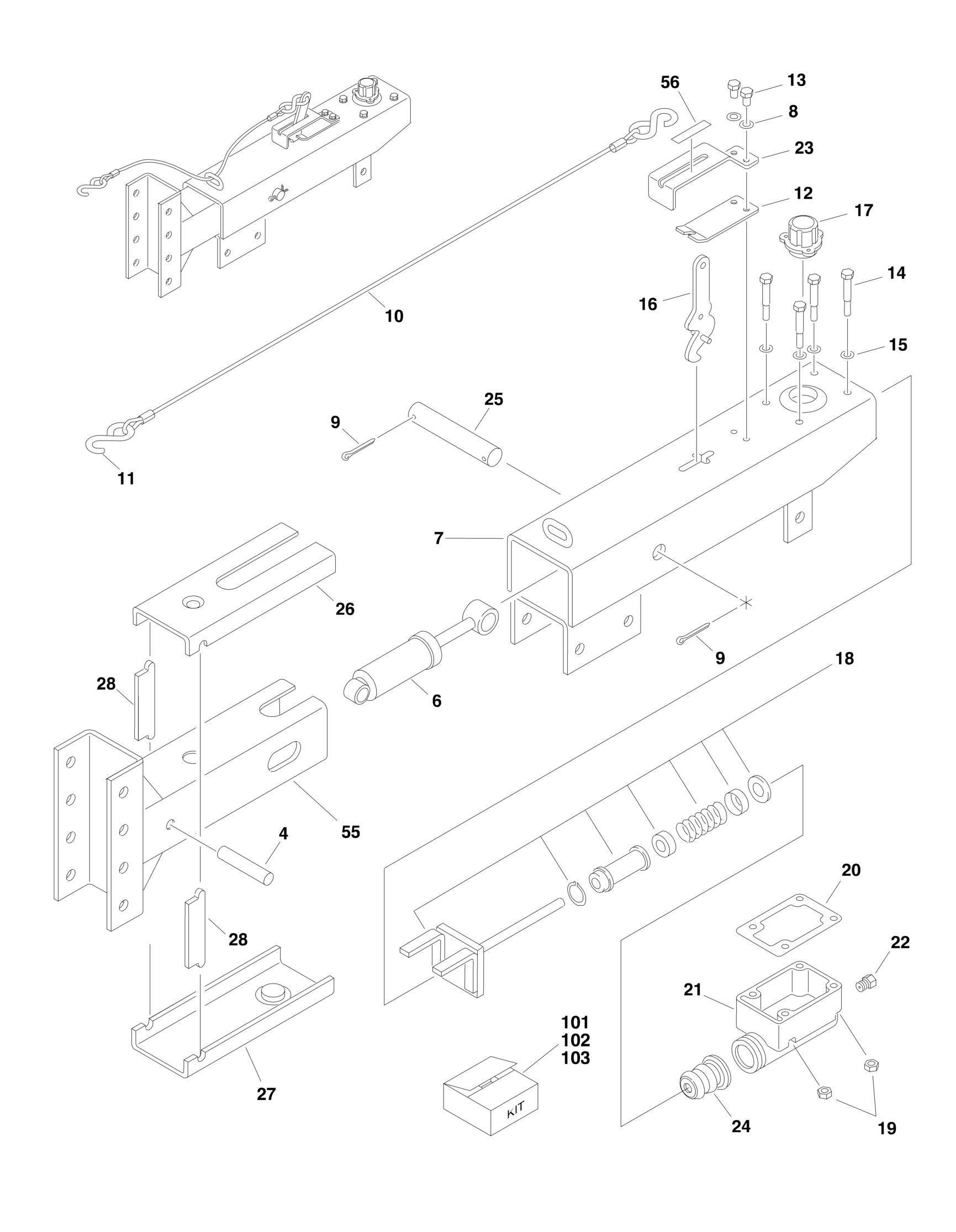

Prior to SN 0030002099) FIGURE 1 8. HYDRAULIC BRAKE COUPLER WITH COMBINATION 2 INCH BALL ASSEMBLY (ANSI AND ANSI EXPORT
ITEM PART NUMBER QTY DESCRIPTION REV
1660265 Ref HYDRAULIC BRAKE COUPLER WITH 2 INCH BALL ASSEMBLY B 3 See Note 1 Push-Rod (Note: Use Item 55 or 56) 4 7027680 1 Shock Absorber 5 7027683 1 Handle, Release 6 7027687 1 Master Cylinder 7 See Note 1 Gasket (Note: Use Item 55 or 56) 8 7027686 1 Boot 9 See Note 1 Stop (Note: Use Item 54, 55 or 56) 11 See Note 1 Locknut (Note: Use Item 54, 55 or 56) 13 7027683 1 Spring 14 See Note 5 Bolt (Note: Use Item 54, 55 or 56) 15 7027681 1 Cap 16 See Note 1 Lanyard (Note: Use Item 55 or 56) 17 See Note 1 S-Hook (Note: Use Item 55 or 56) 18 7027683 1 Bolt 20 7027682 1 Bolt 21 7027682 1 Flatwasher 22 7027683 1 Link 23 See Note 1 Flatwasher (Note: Not Available for Purchase) 24 See Note 3 Locknut (Note: Use Item 51, 52, 53, 54, 55 or 56) 25 7027682 1 Block 26 7027682 1 Bushing 27 7027682 1 Flatwasher 28 7027680 2 Flatwasher 29 7027680 2 Flatwasher 30 7027683 1 Bracket 31 70000233 1 Fitting, Elbow 34 See Note 1 Piston (Note: Use Item 55 or 56) 35 See Note 1 Housing (Note: Purchase Complete Assembly p/n 1660265) 36 See Note 1 Hitch (Note: Purchase Complete Assembly p/n 1660265) 51 7027680 1 Kit 1 - Shock Absorber Kit (Includes Qty 1 of Item 4 & Qty 2 of Items 24, 28 & 29) 52 7027682 1 Kit 2 - Hardware Kit (Includes Qty 1 of Items 20, 21, 25, 26, 27 & Qty of Item 24) 53 7027683 1 Kit 3 - Release Handle Kit (Includes Qty 1 of Items 5, 13, 18, 22, 30 & Qty 3 of Item 24) 54 7027684 1 Kit 4 - Stop and Spring Kit (Includes Qty 1 of Items 9, 11, 14 & 24 55 7027685 1 Kit 5 - Push Rod Kit (Includes Qty 1 of 3, 7, 8, 9, 11, 16, 17, 34 & Qty 2 of Item 24 & Qty 5 of Item 14) 56 7027687 1 Kit 6 - Master Cylinder & Push Rod Kit (Includes Qty 1 of Items 3, 6-9, 11, 16, 17, 34 & Qty 2 of Item 24 & Qty 5 of Item 14) 57 7027689 1 Kit 7 - Solenoid Kit (Includes Solenoid, Cylinder and Gasket)
