SPEC MACHINES) (SN 0030010384 through 0030012032

FIGURE 1-10. HYDRAULIC BRAKE COUPLER WITH 2 INCH BALL AND COLLAR ASSEMBLY (ANSI AND ANSI EXPORT SPEC MACHINES) (SN 0030010384 through 0030012032)

ITEM PART NUMBER QTY

DESCRIPTION

1001243182 Ref HYDRAULIC BRAKE COUPLER WITH 2 INCH BALL AND COLLAR ASSEMBLY 101 4761400 4 Lockwasher 1/4in 102 3311401 4 Nut 1/4in-20NC 103 0641416 4 Bolt 1/4in-20NCx 2in 104 7026372 1 Guide, Emergency Lever 105 19616 1 Cap, Master Cylinder (Includes Diaphragm and O-Ring) 106 19613 1 Cable with Hooks 107 70002632 2 Lockwasher 5/16in 108 7026355 1 Fitting with Orifice 109 70002633 1 Plate, Emergency Lever Spring 110 70002634 1 Lever, Emergency 111 0641505 2 Bolt 5/16in-18NC x 5/8in 112 70002635 1 Push Rod (Master Cylinder) 113 7026367 1 Pin 114 7026370 1 Gasket (Master Cylinder) 115 19611 1 Reservoir (Master Cylinder) 116 7026358 1 Slider, Upper 117 7026359 1 Slider, Lower 118 7026360 2 Spacer, Side 119 70002636 1 Slider, Channel Centered 120 70002637 1 Ring Lock, Cotter 121 70002638 1 Ring Lock, Cotter 122 70002639 1 Cover (Master Cylinder) 123 70002631 1 Case, Outer 124 70002640 1 Lever, Lock Out 125 70002641 1 Pin 126 7026353 1 Shock, Damper 127 70002628 4 Locknut 5/8in-11NC 128 70002629 4 Bolt 5/8in-11NC x 1-1/2in 129 70006984 1 2in Coupler

REV

B

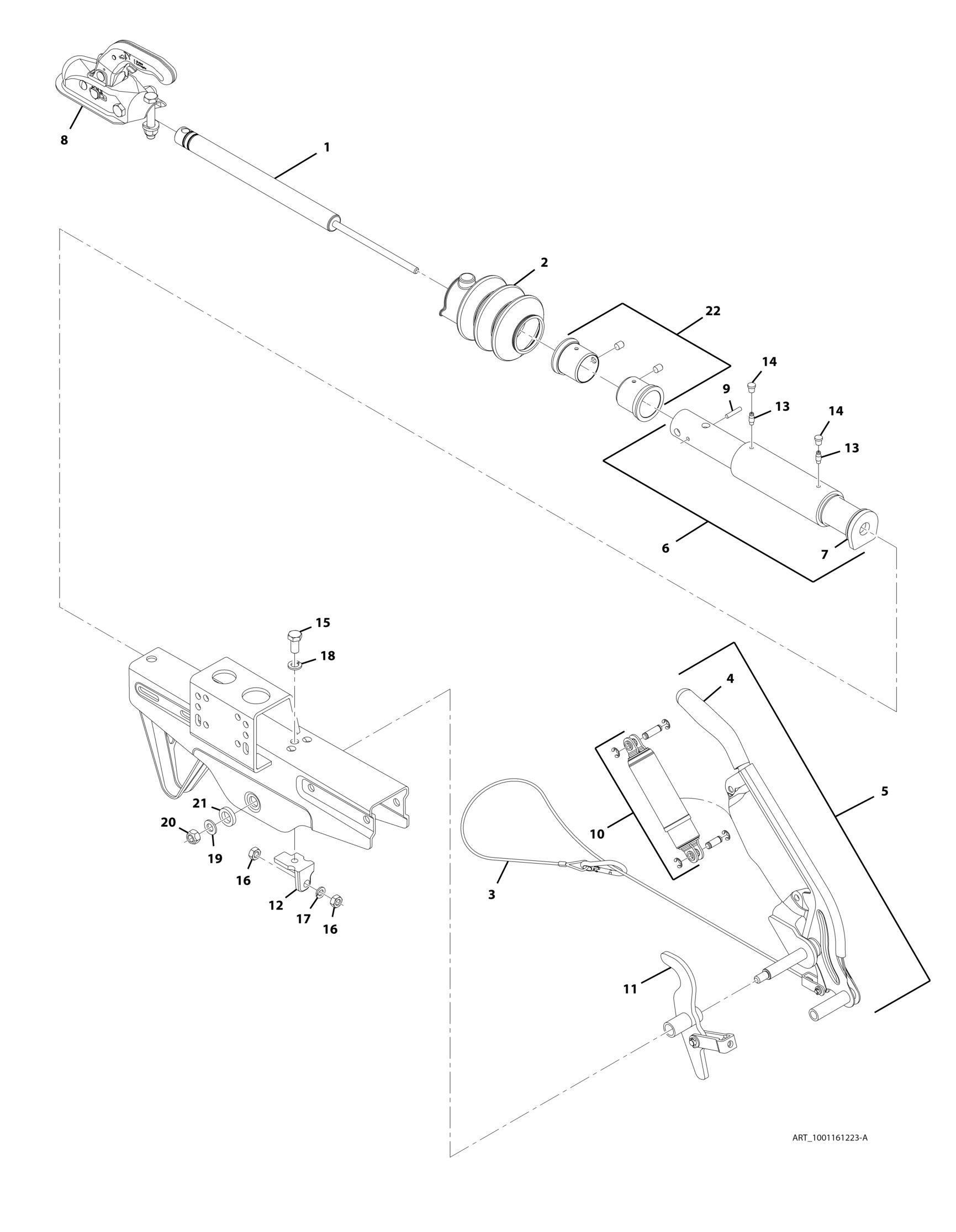

FIGURE 1-11. HYDRAULIC BRAKE COUPLER WITH 50MM BALL ASSEMBLY (CE SPEC MACHINES)
