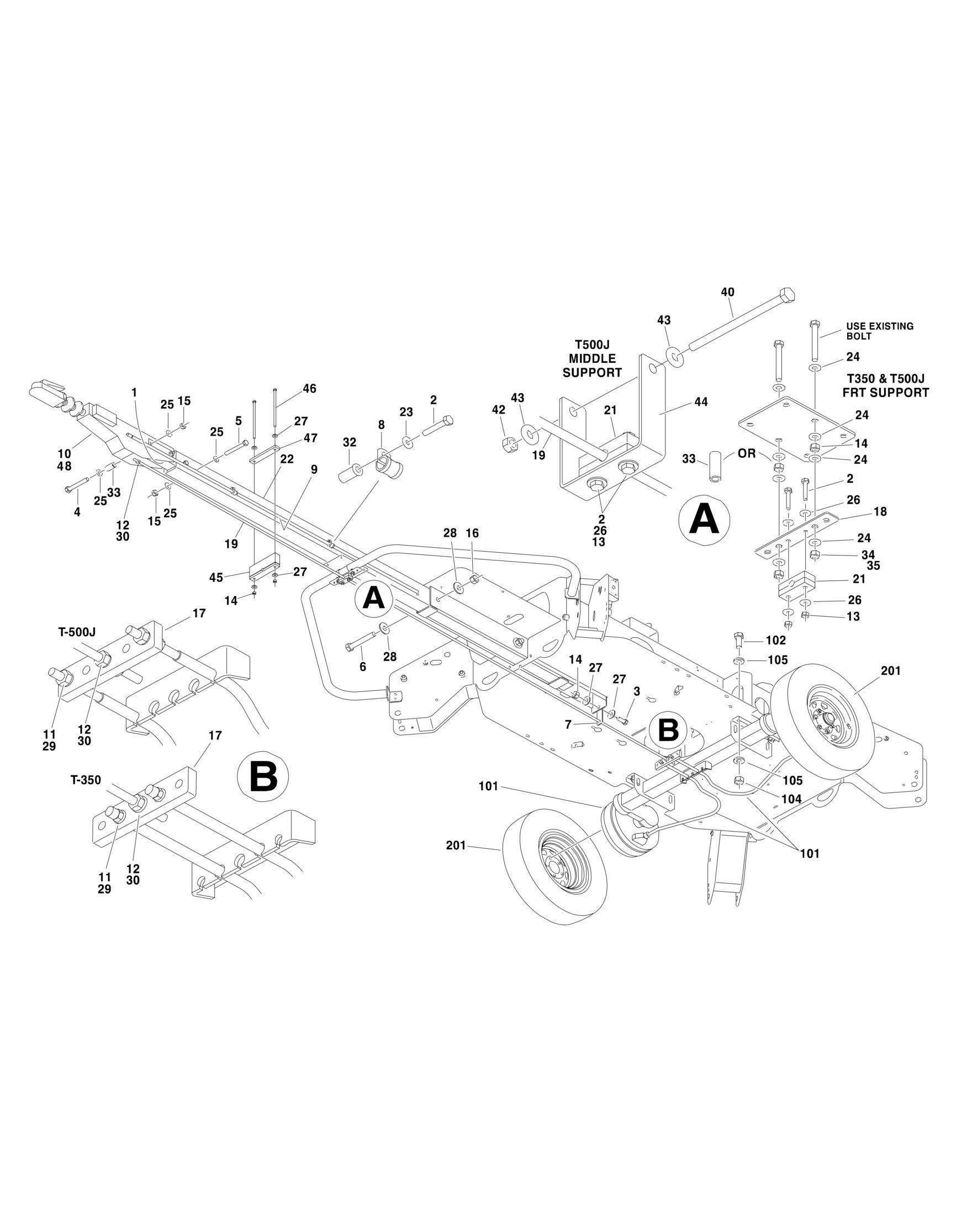

FIGURE 1 5. AXLE AND TONGUE INSTALLATION WITH HYDRAULIC BRAKES WITH 50MM BALL (ANSI EXPORT, AUSTRALIAN AND SOUTH AFRICA SPEC MACHINES
FIGURE 1-5. AXLE AND TONGUE INSTALLATION WITH HYDRAULIC BRAKES - WITH 50MM BALL (ANSI EXPORT, AUSTRALIAN AND SOUTH AFRICA SPEC MACHINES)
ITEM PART NUMBER QTY
DESCRIPTION
Ref HYDRAULIC BRAKE AND TONGUE INSTALLATIONS 0274766 Ref Hydraulic Brake and Tongue Installations T350 with 50mm
Ball (ANSI Export and Australian Specs)
0275629 Ref Hydraulic Brake and Tongue Installations T350 with 50mm
Ball (South Africa Specs)
1 Ref Adapter, Tongue Options: 1 0080282 1 Adapter, Tongue T350 (ANSI Export and Australian Spec) 1 0080286 1 Adapter, Tongue T350 (South Africa Spec) 1 See Note 1 Adapter, Tongue T500J (Note: Not Available for Purchase) 2 0641406 5 Bolt 1/4in-20NC x 3/4in 3 0641412 2 Bolt 1/4in-20NC x 1-1/2in 4 0641416 1 Bolt 1/4in-20NC x 2in 5 0641430 2 Bolt 1/4in-20NC x 3-3/4in 6 0641514 2 Bolt 5/16in-18NC x 1-3/4in 7 0642240 2 Bolt 3/4in-10NC x 5in 8 0711227 4 Bolt (Metric) 12 x 100mm 9 0711229 2 Bolt (Metric) 12 x 120mm 10 0903108 1 Bracket, Parking Brake 11 1320060 2 Clamp 12 1320061 1 Clamp 13 1321676 2 Clamp 14 1560016 1 Conduit 15 1560017 1 Conduit 16 1660298 1 Coupler, 50mm Ball (Note: No Service Parts Breakdown at Time of Printing) 17 1684524 1 Cylinder, Master Brake Assembly (Note: No Service Parts Breakdown at Time of Printing) 18 2221272 1 Fitting 19 2221273 1 Fitting 20 2300006 AR Fluid, Brake - DOT3 (Not Shown) 21 2902349 1 Brake Line Kit (Includes qty 2 of these items: 12in Steel Lines with Fittings, 18in Hoses, Mounting Angles and Clamps. Also, Includes qty 1 Tee Fitting with Mounting Bracket) 21A 7027890 2 Replacement Hose Only 22 2980130 1 Lever, Pivot 23 3311405 7 Locknut 1/4in-20NC 24 3311505 2 Locknut 5/16in-18NC 25 3312205 2 Locknut 3/4in-10NC 26 3331211 6 Nut M12 x 1.75 27 3371910 1 Pin, Roll 28 3450304 AR Pin, Cotter 29 3460557 1 Pipe, Brake Line Assembly 30 3820017 4 Rivet, Pop 31 Ref Parking Brake Cable Assembly Options (See PARKING BRAKE CABLE (ANSI, ANSI EXPORT AND AUSTRALIAN SPEC MACHINES ONLY) AND TRANSPORT LOCK ASSEMBLIES for Breakdown): 31 3890041 1 Parking Brake Cable Assembly T350 31 3890042 1 Parking Brake Cable Assembly T500J 32 4071122 1 Shim, Spacer 33 4240032 AR Tiestrap 4in/10cm (Not Shown)
REV
F
E
ITEM PART NUMBER QTY DESCRIPTION REV
34 4240033 AR Tiestrap 7in/18cm (Not Shown) 35 4460121 6 Terminal, Wire Cap (Not Shown) 36 4569096 1 Tube, Hydraulic Brake 37 Ref Tongue Options: 37 4569447 1 Tongue T350 37 See Note 1 Tongue T500J (Note: Not available for purchase) 38 4569450 2 Tube, Spacer 39 4641496 1 Valve, 10lb. Residual Pressure 40 4711400 3 Flatwasher 1/4in Thin 41 4740571 2 Flatwasher, Copper 42 4751400 16 Flatwasher 1/4in Regular 43 4751500 4 Flatwasher 5/16in Regular 44 4752200 4 Flatwasher 3/4in Regular 45 4812100 10 Flatwasher 12mm 46 Ref Trailer Plug Harness Options (Not Shown - See ELECTRICAL SECTION for Breakdown): 46 4923268 1 Trailer Plug Harness (Prior to SN 0030002169) 46 4923317 1 Trailer Plug Harness (SN 0030002169 through 0030012032) 47 8580420 3 Wellnut Ref HYDRAULIC BRAKE AND AXLE INSTALLATION 0273608 Ref Hydraulic Brake and Axle Installation T350 B
0273609 Ref Hydraulic Brake and Axle Installation T500J B
101 Ref Axle Assembly with Hydraulic Brakes Options (See HYDRAULIC BRAKE ASSEMBLY (ANSI AND ANSI EXPORT SPEC MACHINES for Breakdown): 101 0280154 1 Axle Assembly with Hydraulic Brakes T350 101 0280155 1 Axle Assembly with Hydraulic Brakes T500J 102 0642012 4 Bolt 5/8in-11NC x 1-1/2in 103 3312005 4 Locknut 5/8in-11NC 104 4892000 8 Flatwasher 5/8in Hardened Ref TIRE AND WHEEL INSTALLATION Ref Tire and Wheel Installation T350 0273610 Ref ANSI and ANSI Export Specs (Prior to SN 0030002529) B 0275210 Ref ANSI and ANSI Export Specs (SN 0030002529 through C
0030012032)
0275210 Ref Australian and South Africa Specs C Ref Tire and Wheel Installation T500J 0273611 Ref ANSI and ANSI Export Specs (Prior to SN 0030002529) B 0275211 Ref ANSI and ANSI Export Specs (SN 0030002529 through B
0030012032)
0275211 Ref Australian and South Africa Specs B 201 Ref Tire and Wheel Assembly 201 4520323 2 Tire and Wheel Assembly T350 (205-75-R14) (ANSI and ANSI Export Specs) (Serviced as an Assembly Only) (Use p/n 1001109586) (Prior to SN 0030002529) 201 4520613 2 Tire and Wheel Assembly T350 (205-75-R14) (ANSI and ANSI Export Specs) (Serviced as an Assembly Only) (Use p/n 1001109586) (Prior to SN 0030002529) 201 4520613 2 Tire and Wheel Assembly T350 (205-75-R14) (ANSI and ANSI Export Specs and Australian and South Africa Specs) (Serviced as an Assembly Only) (Use p/n 1001109586) (SN
0030002529 through 0030003105, Prior to SN 0030003105)
201 1001109586 2 Tire and Wheel Assembly T350 (215-75-R14) (ANSI and ANSI Export Specs and Australian and South Africa Specs)
ITEM PART NUMBER QTY
DESCRIPTION (SN 0030003105 through 0030012032)
201 70002204 2 Tire, Replacement (215-75-R14) 201 70002205 2 Wheel, Replacement (14 x 6) 201 4520322 2 Tire and Wheel Assembly T500J (225-75-R15) (ANSI and ANSI Export Specs) (Serviced as an Assembly Only) (Use p/n 4520614) (Prior to SN 0030002529) 201 4520614 2 Tire and Wheel Assembly T500J (225-75-R15) (ANSI and ANSI Export Specs and Australian and South Africa Specs All) (Serviced as an Assembly Only) (SN 0030002529
