FIGURE 4-6. BOOM INST ALLATION WITH SKYPOWER AND AIRLINE - 450A

Next Article
FIGURE 4-20. PLATFORM SUPPORT INSTALLATION - WITHOUT LSS FIGURE 4-21. PLATFORM SUPPORT INSTALLATION - WITH 4 CELL LSS (450AJ ONLY) (SN 0300201991 through 0300202578)...........................................................................................................................................................................................502 FIGURE 4-22. PLATFORM SUPPORT INSTALLATION WITH 4 CELL LSS (450AJ ONLY) (SN 0300202579 through 0300272317, SN E300002833 through E300007990, SN 1300007279 through 1300007373) ........................................................506 FIGURE 4-23. PLATFORM SUPPORT INSTALLATION - WITH 1 CELL LSS..................................................................................508 FIGURE 4-24. 2WD VALVES INST ALLATION - 450A BOOM MOUNTED........................................................................................512 FIGURE 4-25. 2WD VALVES INST ALLATION - 450AJ BOOM MOUNT ED......................................................................................514 FIGURE 4-26. 4WD VALVES INST ALLATION - 450A BOOM MOUNTED........................................................................................516 FIGURE 4-27. 4WD VALVES INST ALLATION - 450AJ BOOM MOUNT ED......................................................................................518 FIGURE 4-28. UPRIGHT VALVE ASSEMBLY.....................................................................................................................................520 FIGURE 4-29. BOOM VALVE ASSEMBLY - 450A..............................................................................................................................522 FIGURE 4-30. BOOM VALVE ASSEMBLY - 450AJ ............................................................................................................................524

FIGURE 4-20. PLATFORM SUPPORT INSTALLATION - WITHOUT LSS FIGURE 4-21. PLATFORM SUPPORT INSTALLATION - WITH 4 CELL LSS (450AJ ONLY) (SN 0300201991 through 0300202578)...........................................................................................................................................................................................502 FIGURE 4-22. PLATFORM SUPPORT INSTALLATION WITH 4 CELL LSS (450AJ ONLY) (SN 0300202579 through 0300272317, SN E300002833 through E300007990, SN 1300007279 through 1300007373) ........................................................506 FIGURE 4-23. PLATFORM SUPPORT INSTALLATION - WITH 1 CELL LSS..................................................................................508 FIGURE 4-24. 2WD VALVES INST ALLATION - 450A BOOM MOUNTED........................................................................................512 FIGURE 4-25. 2WD VALVES INST ALLATION - 450AJ BOOM MOUNT ED......................................................................................514 FIGURE 4-26. 4WD VALVES INST ALLATION - 450A BOOM MOUNTED........................................................................................516 FIGURE 4-27. 4WD VALVES INST ALLATION - 450AJ BOOM MOUNT ED......................................................................................518 FIGURE 4-28. UPRIGHT VALVE ASSEMBLY.....................................................................................................................................520 FIGURE 4-29. BOOM VALVE ASSEMBLY - 450A..............................................................................................................................522 FIGURE 4-30. BOOM VALVE ASSEMBLY - 450AJ ............................................................................................................................524

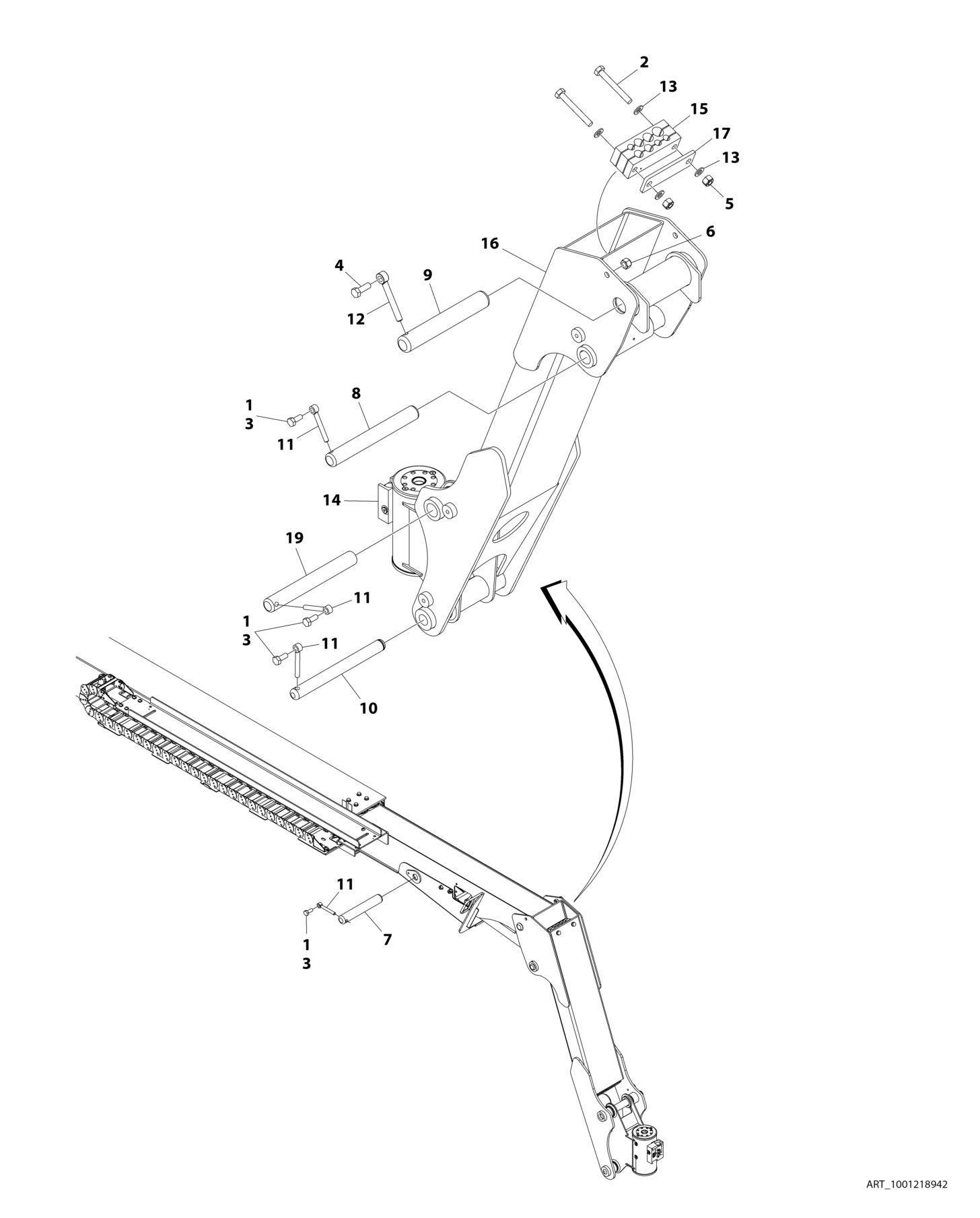

FIGURE 4-6. BOOM INSTALLATION WITH SKYPOWER AND AIRLINE - 450A

FIGURE 4-6. BOOM INSTALLATION WITH SKYPOWER AND AIRLINE - 450A

ITEM PART NUMBER QTY DESCRIPTION REV

1001218942 Ref BOOM INSTALLATION WITH SKYPOWER AND AIRLINE- 450A C 1 0100011 AR Compound, Locking 2 0761024 2 Bolt M10 x 80 3 0761012 4 Bolt M10 x 25 4 0761015 1 Bolt M10 x 35 5 3291005 2 Nut M10 x 1.5 (Grade8) 6 3291205 1 Nut M12 x 1.75 (Grade8) 7 3422755 1 Pin 8 3422792 1 Pin 9 3422793 1 Pin 10 3423105 1 Pin 11 3841143 4 Keeper, Pin 12 3841203 1 Keeper, Pin 13 4812000 4 Washer, M10 14 1001165302 NLA Rotator Assembly (Use p/n 1001217779) (See ROTATOR ASSEMBLY for Breakdown) (SN 0300201991 through

0300232742)

14 1001217779 1 Rotator Assembly (See ROTATOR ASSEMBLY for Breakdown)

(SN 0300232743 through 0300272317, Except SN 0300272185 through 0300272190)

15 1001166656 1 Block, Clamping 16 1001215058 1 Link, Fixed Jib 17 1001216639 1 Clamp 19 3422792 1 Pin (SN 0300201991 through 0300235624) 19 3422790 1 Pin (SN 0300235625 through 0300272317, Except SN

0300272185 through 0300272190)

100 1001218947 Ref BOOM INSTALLATION WITH AIRLINE (Not Shown) A 101 1001219000 1 Airline Installation Kit (Not Shown - See SPECIAL OPTIONS) 102 1001219002 1 Cables and Clamps Installation (Not Shown - See SPECIAL OPTIONS) 103 1001219003 1 Boom Installation Kit (Not Shown - See BOOM INSTALLATION (450A) for Breakdown)
