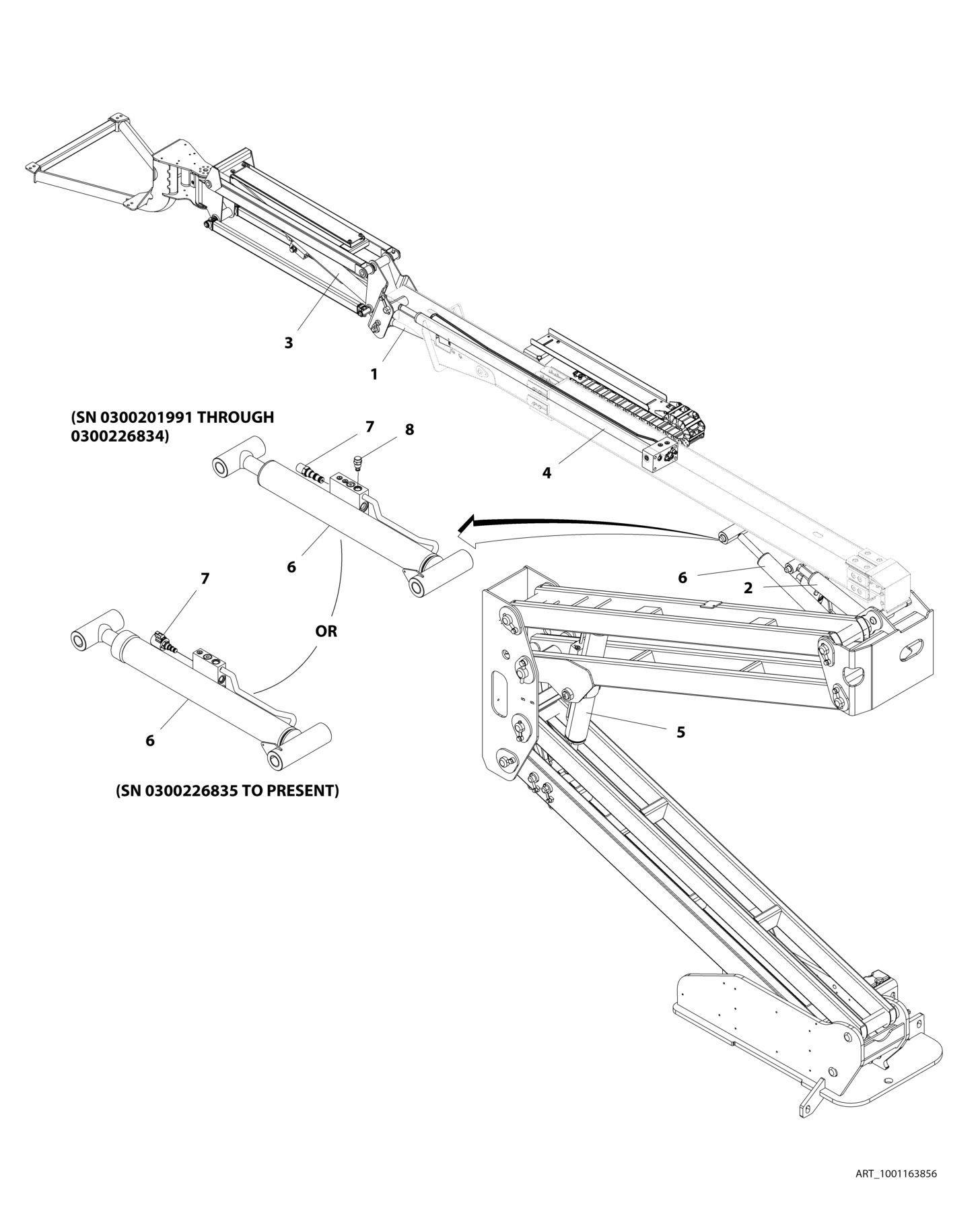

FIGURE 4-2. CYLINDERS INST ALLATION - 450AJ (USA AND CHINA BUILT MACHINES
ITEM PART NUMBER QTY
DESCRIPTION
1001163856 Ref CYLINDERS INSTALLATION - 450AJ (USA AND CHINA BUILT MACHINES) E
1 1001161716 1 Level (Platform Slave) Cylinder Assembly (See CYLINDER SECTION for Breakdown) 2 1001161717 1 Master Cylinder Assembly (See CYLINDER SECTION for Breakdown) 3 1001163767 1 Lift Cylinder Assembly - Jib (See CYLINDER SECTION for Breakdown) 4 1001164523 1 Telescope Cylinder Assembly (See CYLINDER SECTION for Breakdown) (SN 0300201991 through 0300234431) 4 1001161713 1 Telescope Cylinder Assembly (See CYLINDER SECTION for Breakdown) (SN 0300234432 through 0300272317, SN
B300003516 through B300005760, Except SN 0300272185 through 0300272190, Excluding B300005569)
5 1001161715 1 Lift Cylinder Assembly - Tower Boom (See CYLINDER SECTION for Breakdown) 6 1001181705 1 Lift Cylinder Assembly - Main Boom (See CYLINDER SECTION for Breakdown) (SN 0300201991 through 0300226834) 6 1001212069 1 Lift Cylinder Assembly - Main Boom (See CYLINDER SECTION for Breakdown) (SN 0300226835 through 0300234431) 6 1001217676 1 Lift Cylinder Assembly - Main Boom (See CYLINDER SECTION for Breakdown) (SN 0300234432 through 0300272317, SN
B300003516 through B300005760, Except SN 0300272185 through 0300272190, Excluding B300005569)
7 1001148972 1 Valve, Solenoid Cartridge with Coil (SN 0300201991 through
0300226834)
7 70002401 1 Valve, Solenoid Cartridge Less Coil 7 7017496 1 Seal Kit - 70002401 and 1001148972 Valves 7 70003788 1 Coil 7 1001206625 1 Valve, Solenoid Cartridge with Coil (SN 0300226835 through
0300234431)
7 70006104 1 Valve, Solenoid Cartridge Less Coil 7 70006105 1 Seal Kit - 70006104 and 1001206625 Valves 7 70003788 1 Coil 7 7022390 1 Nut, Coil 8 1001164709 1 Valve, Solenoid Cartridge with Coil (SN 0300226835 through
0300234431)
8 7017467 1 Valve, Solenoid Cartridge Less Coil 8 7012967 1 Seal Kit - 7017467 and 1001164709 Valves 8 70002386 1 Coil
