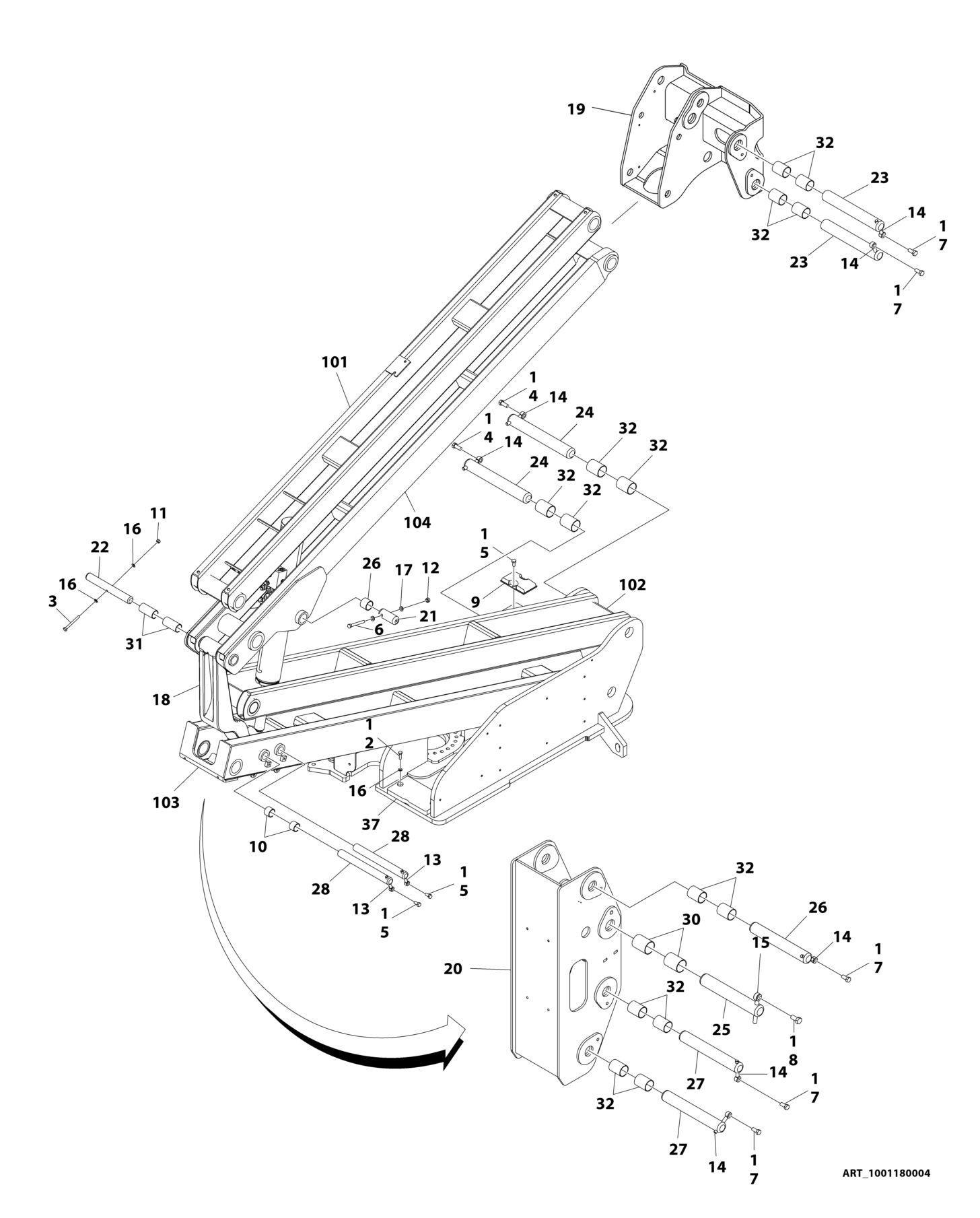

FIGURE 4-16. TOWER BOOM ASSEMBLY - 450AJ USA AND CHINA BUILT MACHINES
ITEM PART NUMBER QTY
DESCRIPTION
1001180004 Ref TOWER BOOM ASSEMBLY - 450AJ USA AND CHINA BUILT MACHINES 1 0100011 AR Compound, Locking 2 0701015 2 Bolt, M10 x 35mm 3 0701027 1 Bolt, M10 x 100mm 4 0701616 2 Bolt, M16 x 40mm 5 0761212 4 Bolt, M12 x 25mm 6 0761227 2 Bolt, M12 x 100mm 7 0761615 5 Bolt, M16 x 35mm 8 0762016 1 Bolt, M20 x 40mm 9 0940048 1 Bumper 10 0961948 2 Bearing 11 3291005 1 Nut, Lock M10 x 1.5 12 3291205 2 Nut, Lock M12 x 1.75 13 3841203 2 Keeper, Pin 14 3841258 7 Keeper, Pin 15 3841287 1 Keeper, Pin 16 4812000 4 Washer, M10 17 4812100 4 Washer, M12 18 1001166096 1 Link, Timing 19 1001166852 1 Upright, Upper 20 1001166853 1 Upright, Lower 21 1001169240 2 Pin 22 1001169241 1 Pin 23 1001169242 2 Pin 24 1001169249 2 Pin 25 1001169295 1 Pin 26 1001169296 1 Pin 27 1001169297 2 Pin 28 1001169298 2 Pin 29 1001169299 2 Bearing 30 1001169300 2 Bearing 31 1001169301 2 Bearing 32 1001169302 14 Bearing 37 1001180056 1 Pad, Wear 100 1001190633 Ref Tower Boom Kit (Not Shown - Includes Items 101-104) 101 1001174536 1 Link, Upper Tower Boom 102 1001174537 1 Link, Lower Tower Boom 103 1001178133 1 Tower Boom (Lower) 104 1001178135 1 Tower, Boom (Upper)
REV
D
