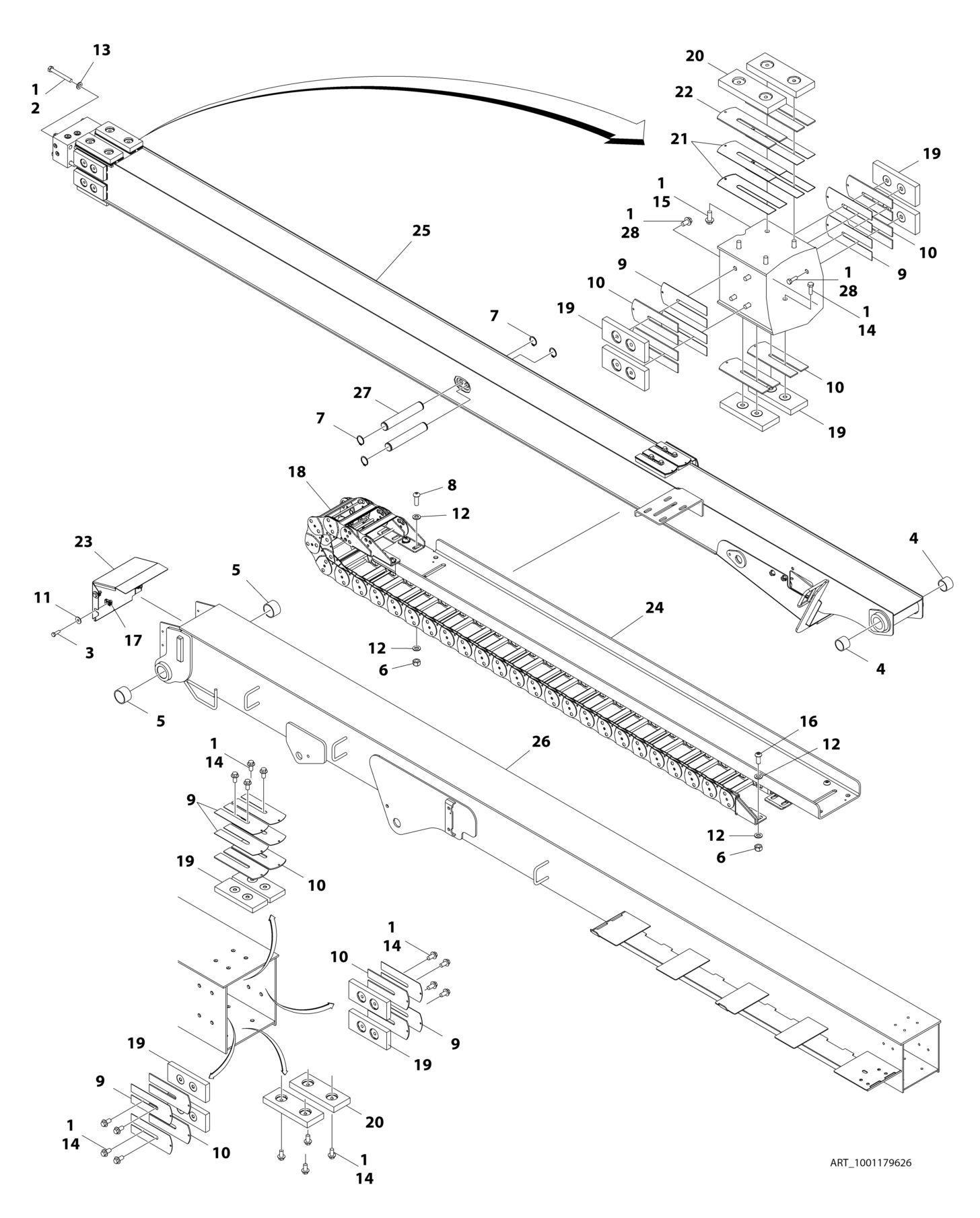

FIGURE 4-13. MAIN BOOM ASSEMBLY - 450A

FIGURE 4-13. MAIN BOOM ASSEMBLY - 450A

ITEM PART NUMBER QTY

DESCRIPTION

1001179626 Ref MAIN BOOM ASSEMBLY - 450A 1 0100011 AR Compound, Locking 2 0711227 4 Bolt, M12 x 100mm 3 0760812 4 Bolt, M8 x 25mm 4 0961948 2 Bearing 5 0961949 2 Bearing 6 3291005 10 Nut, Lock M10 x 1.5 7 3760351 4 Ring, Retaining 8 3900351 4 Screw, M10 x 1.5 x 30mm 9 4070897 12 Shim 10 4070898 12 Shim 11 4811902 4 Washer, M8 12 4812000 18 Washer, M10 13 5241200 4 Washer, M12 Hardened 14 5251010 20 Bolt, M10 x 20mm 15 5251012 4 Bolt, M10 x 25mm 16 8310668 6 Screw, M10-1.5 x 25mm Grade 10.9 17 1001118274 4 Nut, M8 x 1.25 18 1001168190 1 Powertrack Assembly (Use p/n 1001224894) (SN 0300201991

through 0300229634, SN E300002833 through E300004534)

18 70005104 1 Link, Repair 18 70005105 1 Feet, Mounting 18 1001224894 1 Powertrack Assembly (SN 0300229635 through 0300272317, SN

1300007279 through 1300007373, SN E300004535 through E300007990, Except SN 0300272185 through 0300272190, Excluding E300007814)

18 70006256 1 Link, Repair 18 70006272 1 Feet, Mounting 19 1001169304 12 Pad, Wear 20 1001169305 4 Pad, Wear 21 1001169402 4 Shim 22 1001169403 2 Shim 23 1001170226 1 Cover, Boom End 24 1001170334 1 Tube, Carrier 25 1001178554 1 Fly, Boom 26 1001178555 1 Base, Boom 27 1001180541 2 Pin 28 5251009 8 Bolt, M10 x 18mm

REV

C
