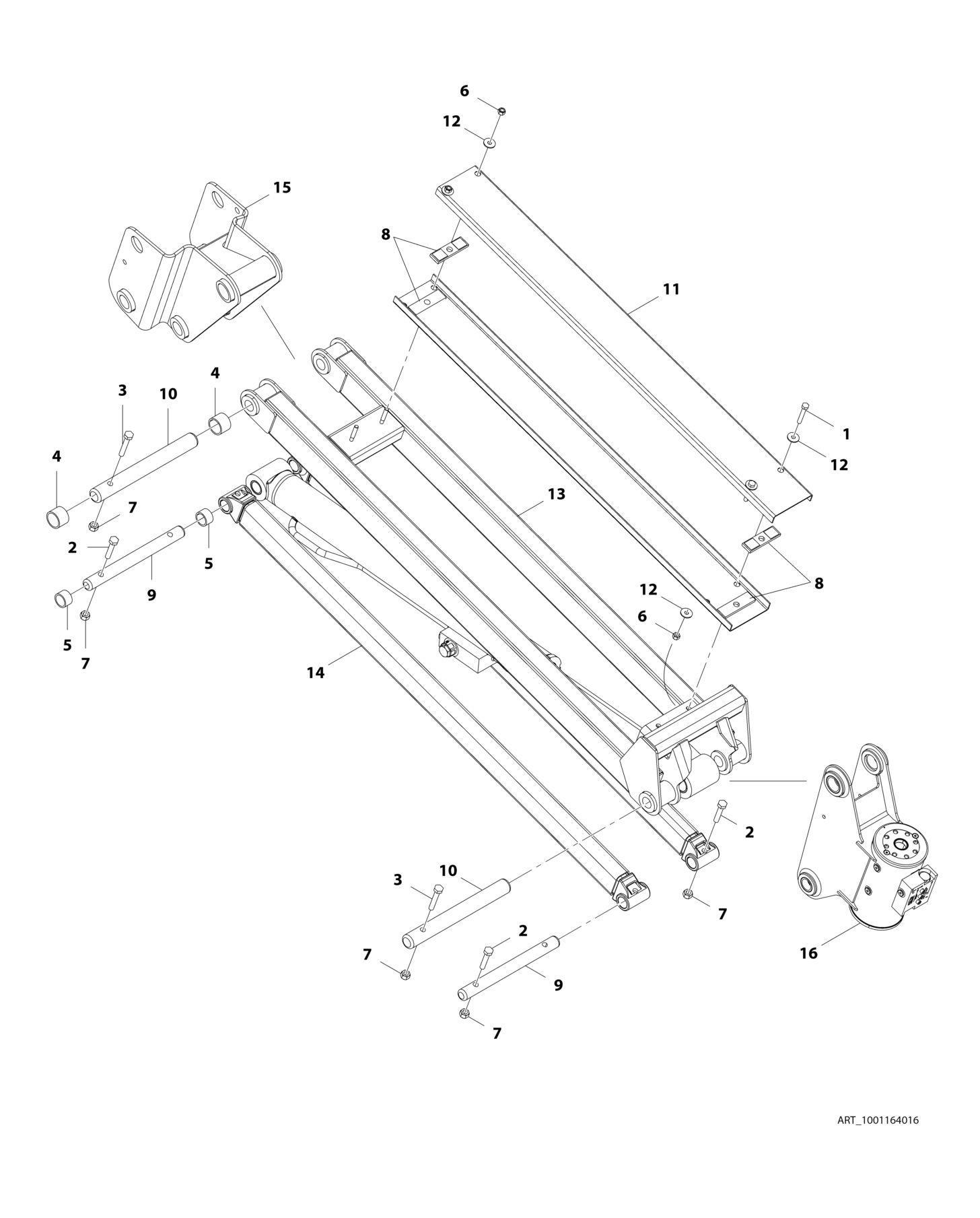

FIGURE 4-11. JIB INSTALLATION - USA AND CHINA BUILT MACHINES
ITEM PART NUMBER QTY DESCRIPTION REV
1001164016 Ref JIB INSTALLATION - USA AND CHINA BUILT MACHINES D 1 0700820 2 Bolt, M8 x 60 2 0701019 4 Bolt, M10 x 55 3 0701020 2 Bolt, M10 x 60 4 0961951 2 Bushing 5 0962292 2 Bearing 6 3290805 4 Nut, M8 7 3291005 6 Nut, M10 8 3340860 4 Pad, Rubber 9 3422791 2 Pin 10 1001116550 2 Pin 11 3572551 2 Channel 12 4811902 6 Washer, M8 13 1001118482 1 Link (Upper) 14 1001094670 2 Link (Lower) 15 1001163937 1 Pivot 16 1001165302 NLA Rotator Assembly (Use p/n 1001217779) (See ROTATOR ASSEMBLY for Breakdown) (SN 0300201991 through
0300232742)
16 1001217779 1 Rotator Assembly (See ROTATOR ASSEMBLY for Breakdown)
