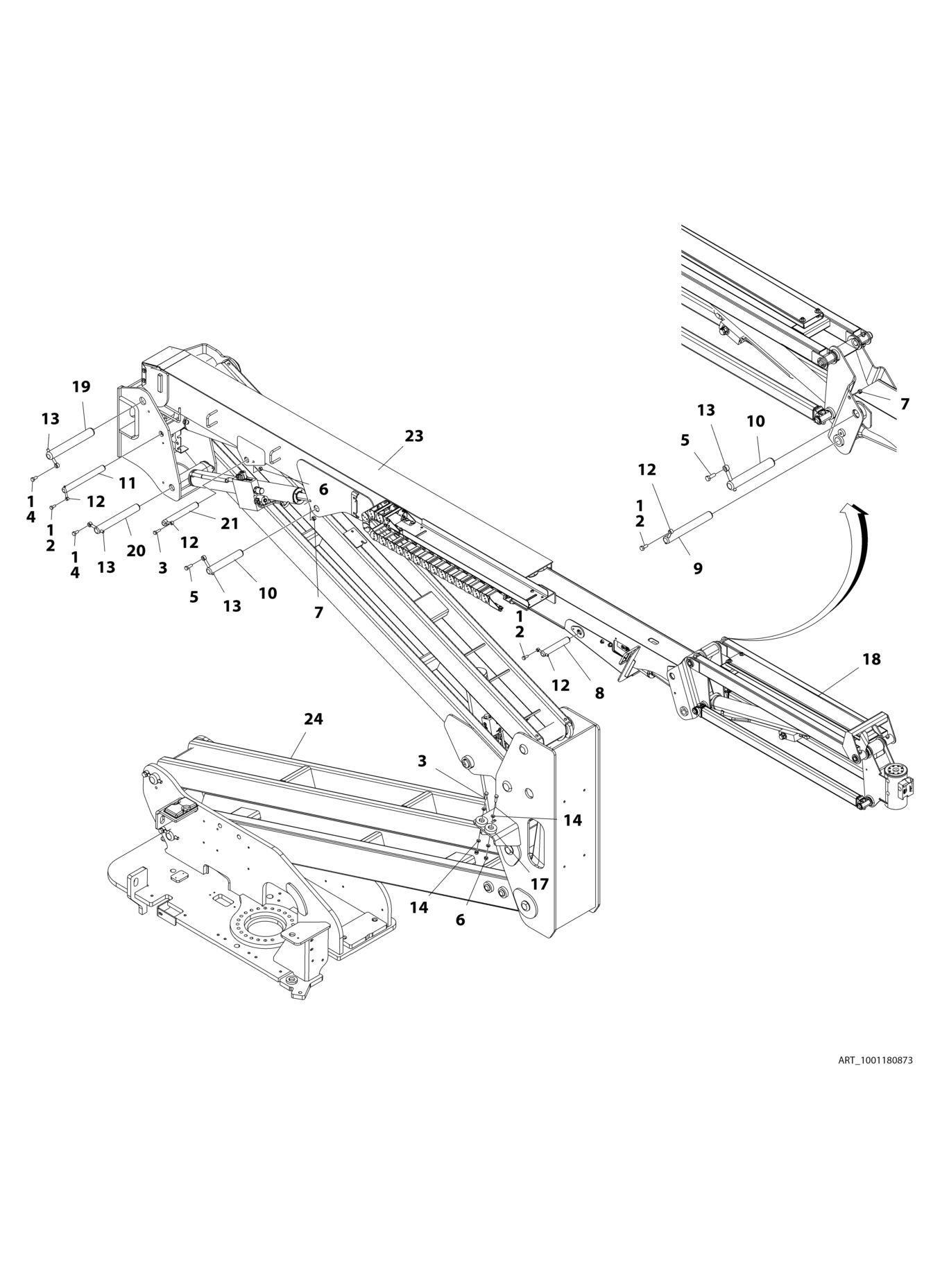

FIGURE 4-10. BOOM INSTALLATION - 450AJ ROMANIAN BUILT MACHINES
ITEM PART NUMBER QTY DESCRIPTION REV
1001180873 Ref BOOM INSTALLATION - 450AJ ROMANIAN BUILT MACHINES C 1 0100011 AR Compound, Locking 2 0761012 3 Bolt, M10 x 25mm 3 0761015 3 Bolt, M10 x 35mm 4 0761212 2 Bolt, M12 x 25mm 5 0761215 2 Bolt, M12 x 35mm 6 3291005 3 Nut, Lock M10 x 1.5 7 3291205 2 Nut, Lock M12 x 1.75 8 3422755 1 Pin 9 3422792 1 Pin 10 3422793 2 Pin 11 3422806 1 Pin 12 3841143 4 Keeper, Pin 13 3841203 4 Keeper, Pin 14 4812000 4 Washer, M10 17 1001112607 2 Block, Boom Rest 18 1001164017 1 Jib Installation (See JIB INSTALLATION - 450AJ ROMANIAN BUILT MACHINES for Breakdown) 19 1001169246 1 Pin 20 1001169247 1 Pin 21 3423038 1 Pin 23 1001178636 1 Main Boom Assembly (See MAIN BOOM ASSEMBLY - 450AJ for Breakdown) 24 1001180005 1 Tower Boom Assembly (See TOWER BOOM ASSEMBLY - 450AJ ROMANIAN BUILT MACHINES for Breakdown)
