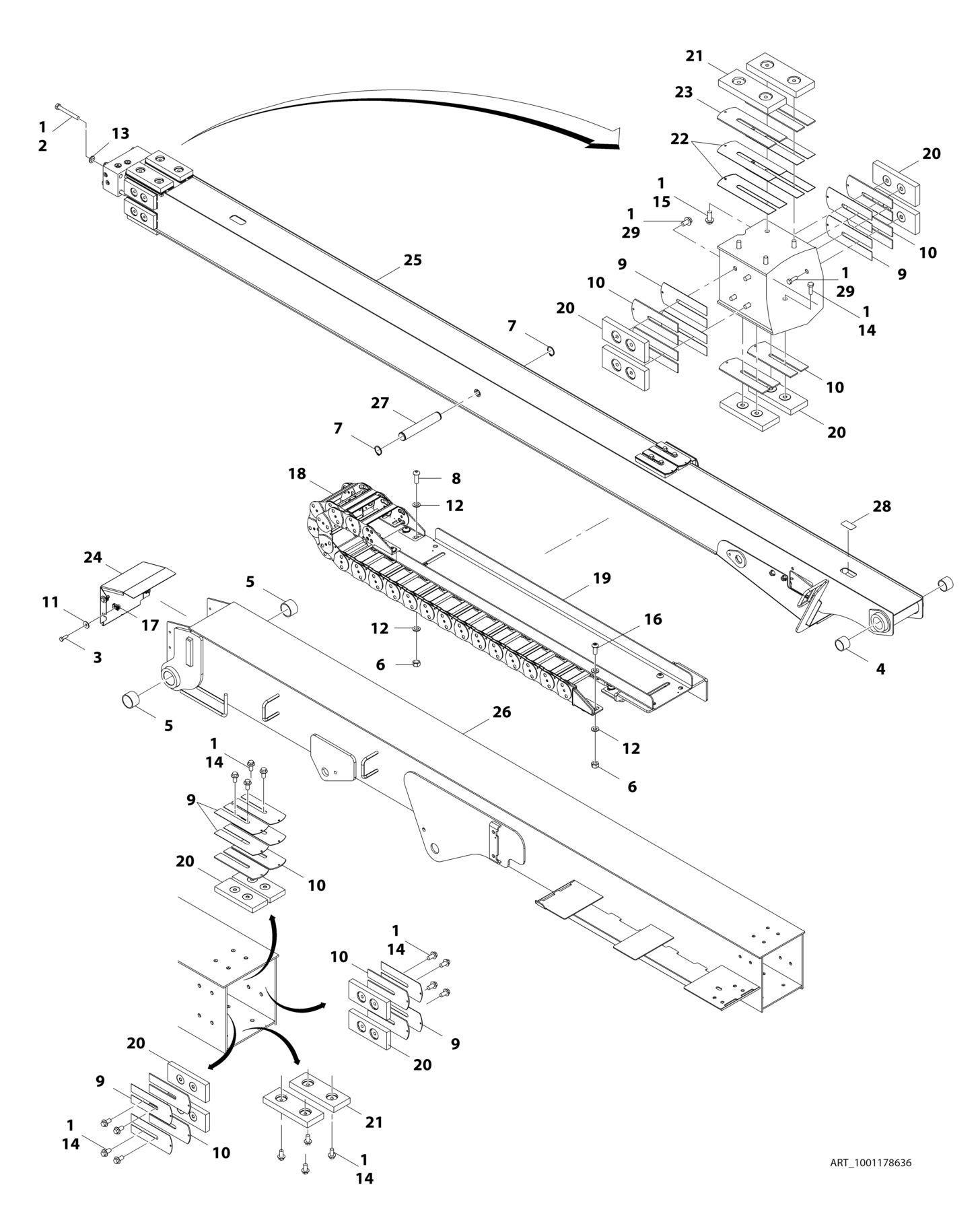

FIGURE 4-14. MAIN BOOM ASSEMBLY - 450AJ

FIGURE 4-14. MAIN BOOM ASSEMBLY - 450AJ

ITEM PART NUMBER QTY

DESCRIPTION

1001178636 Ref MAIN BOOM ASSEMBLY - 450AJ 1 0100011 AR Compound, Locking 2 0711227 4 Bolt, M12 x 100mm 3 0760812 4 Bolt, M8 x 25mm 4 0961948 2 Bearing 5 0961949 2 Bearing 6 3291005 10 Nut, Lock M10 x 1.5 7 3760115 2 Ring, Retaining 8 3900351 4 Screw, M10 x 1.5 x 30mm 9 4070897 12 Shim 10 4070898 12 Shim 11 4811902 4 Washer, M8 12 4812000 18 Washer, M10 13 5241200 4 Washer, M12 Hardened 14 5251010 20 Bolt, M10 x 20mm 15 5251012 4 Bolt, M10 x 25mm 16 8310668 6 Screw, M10-1.5 x 25mm Grade 10.9 17 1001118274 4 Nut, M8 x 1.25 18 1001166646 NLA Powertrack Assembly (Use p/n 1001224889) (SN 0300201991

through 0300229634, SN E300002833 through E300005434)

18 70005102 1 Link, Repair 18 70005103 1 Feet, Mounting 18 1001224889 1 Powertrack Assembly (SN 0300229635 through 0300272317, SN

1300007279 through 1300007373, SN B300003516 through B300005760, SN E300004535 through E300007990, Except SN 0300272185 through 0300272190, Excluding B300005569 and E300007814)

18 70006256 1 Link, Repair 18 70006271 1 Feet, Mounting 19 1001166651 1 Tube, Carrier 20 1001169304 12 Pad, Wear 21 1001169305 4 Pad, Wear 22 1001169402 4 Shim 23 1001169403 2 Shim 24 1001170226 1 Cover, Boom End 25 1001177896 1 Fly, Boom 26 1001177897 1 Base, Boom 27 1001180540 1 Pin 28 1670836 1 Cover 29 5251009 8 Bolt, M10 x 18mm

REV

C
