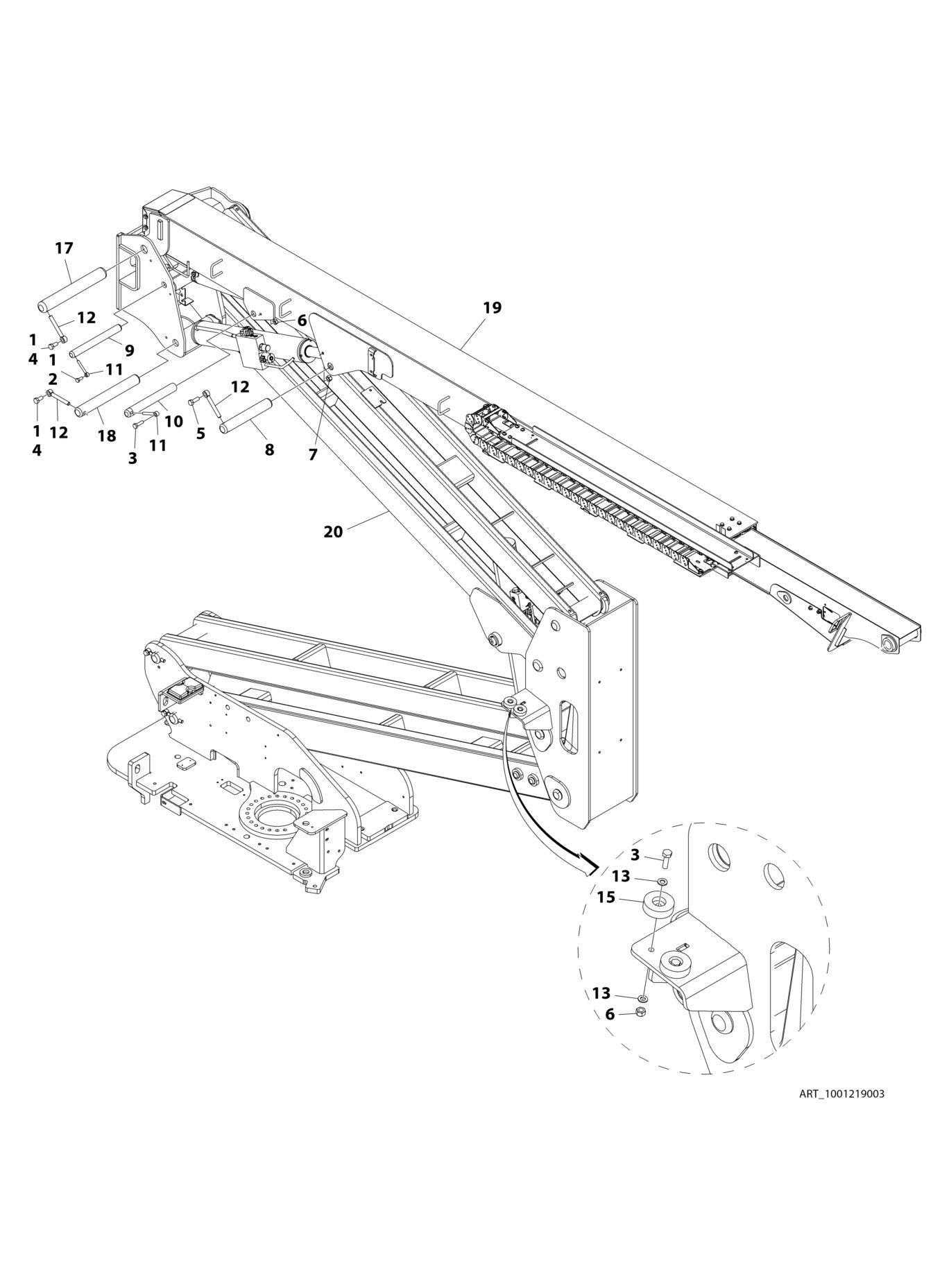

FIGURE 4-8. BOOM INSTALLATION KIT - 450A

FIGURE 4-8. BOOM INSTALLATION KIT - 450A

ITEM PART NUMBER QTY

DESCRIPTION

1001219003 Ref BOOM INSTALLATION KIT - 450A 1 0100011 AR Compound, Locking 2 0761012 1 Bolt M10 x 25 3 0761015 3 Bolt M10 x 35 4 0761212 2 Bolt M12 x 25 5 0761215 1 Bolt M12 x 35 6 3291005 3 Nut M10 x 1.5 (Grade8) 7 3291205 2 Nut M12 x 1.75 (Grade8) 8 3422793 2 Pin 9 3422806 1 Pin 10 3423038 1 Pin 11 3841143 2 Keeper, Pin 12 3841203 3 Keeper, Pin 13 4812000 4 Washer, M10 14 5251010 2 Bolt M10 x 25 15 1001112607 2 Block, Boom Rest 16 1001162535 1 Upright Valve Assembly (Not Shown - See UPRIGHT VALVE ASSEMBLY for Breakdown) 17 1001169246 1 Pin 18 1001169247 1 Pin 19 1001179626 1 Main Boom Assembly (See MAIN BOOM ASSEMBLY - 450A for Breakdown) 20 1001180006 1 Tower Boom Assembly (See TOWER BOOM ASSEMBLY - 450A USA BUILT MACHINES for Breakdown) 200 1001219004 1 Cylinder Installation (Not Shown - See CYLINDER INSTALLATION - 450A for Breakdown)
