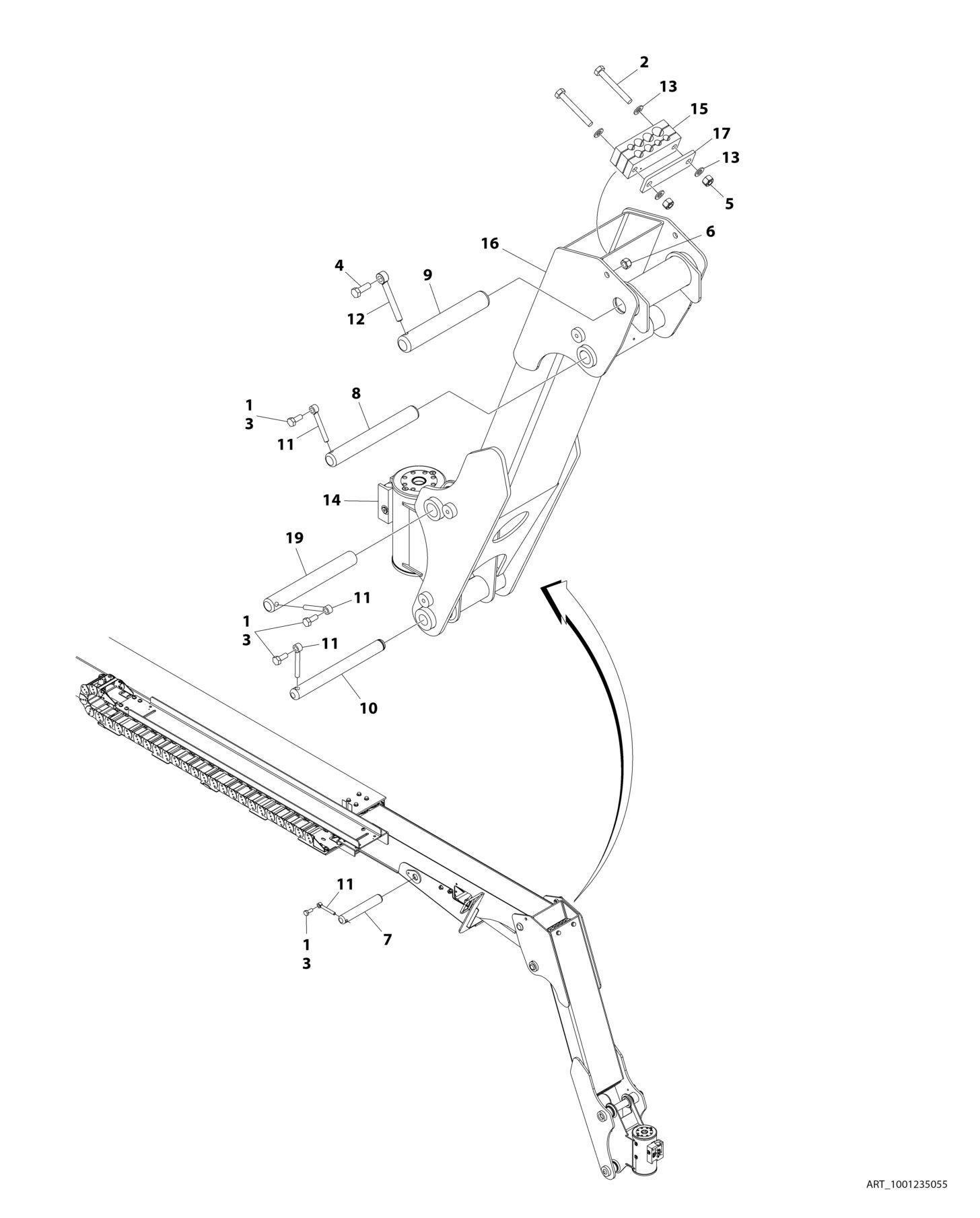

FIGURE 4-7. BOOM INSTALLATION WITH SKYPOWER - 450A

FIGURE 4-7. BOOM INSTALLATION WITH SKYPOWER - 450A

ITEM PART NUMBER QTY

DESCRIPTION

1001235055 Ref BOOM INSTALLATION WITH SKYPOWER 1 0100011 AR Compound, Locking 2 0761024 2 Bolt M10 x 80 3 0761012 4 Bolt M10 x 25 4 0761015 1 Bolt M10 x 35 5 3291005 2 Nut M10 x 1.5 (Grade8) 6 3291205 1 Nut M12 x 1.75 (Grade8) 7 3422755 1 Pin 8 3422792 1 Pin 9 3422793 1 Pin 10 3423105 1 Pin 11 3841143 4 Keeper, Pin 12 3841203 1 Keeper, Pin 13 4812000 4 Washer, M10 14 1001217779 1 Rotator Assembly (See ROTATOR ASSEMBLY for Breakdown)

(SN 0300232743 through 0300272317, Except SN 0300272185 through 0300272190)

15 1001166656 1 Block, Clamping 16 1001215058 1 Link, Fixed Jib 17 1001216639 1 Clamp 19 3422790 1 Pin (SN 0300235625 through 0300272317, Except SN

0300272185 through 0300272190)

100 1001235053 Ref BOOM INSTALLATION WITH AIRLINE (Not Shown) 101 1001219002 1 Cables and Clamps Installation (Not Shown - See SPECIAL OPTIONS) 102 1001219003 1 Boom Installation Kit (Not Shown - See BOOM INSTALLATION (450A) for Breakdown)

REV

A

A
