FIGURE 10 25. PLATFORM CAB HARNESS
from JLG 3508PS 3509PS 3512PS 3513PS 4008PS 4009PS 4012PS 4013PS 4017PS Telehandler Parts Manual - PDF DO

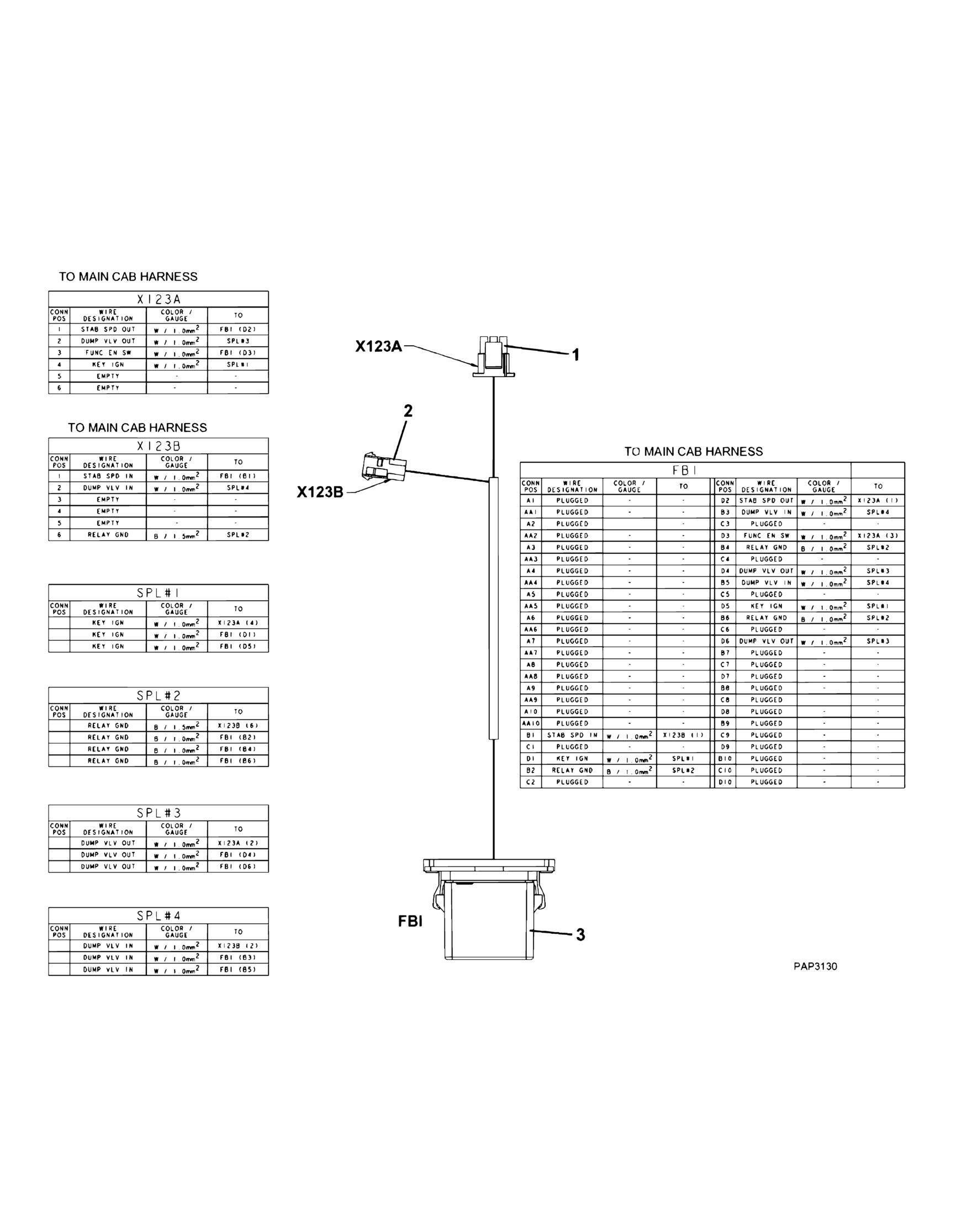

FIGURE 10-25. PLATFORM CAB HARNESS
FIGURE 10-25. PLATFORM CAB HARNESS
ITEM PART NUMBER QTY
DESCRIPTION
1001097702 1 PLATFORM CAB HARNESS, (includes all items) 1 4460225 1 CONNECTOR 1 4460267 4 TERMINAL 2 4460224 1 CONNECTOR 2 4460268 3 TERMINAL 3 1001116726 12 TERMINAL 3 8220081 12 TERMINAL SEAL 3 1001116727 38 PLUG
REV
C
