FIGURE 10 14. FRONT CHASSIS HARNESS
from JLG 3508PS 3509PS 3512PS 3513PS 4008PS 4009PS 4012PS 4013PS 4017PS Telehandler Parts Manual - PDF DO

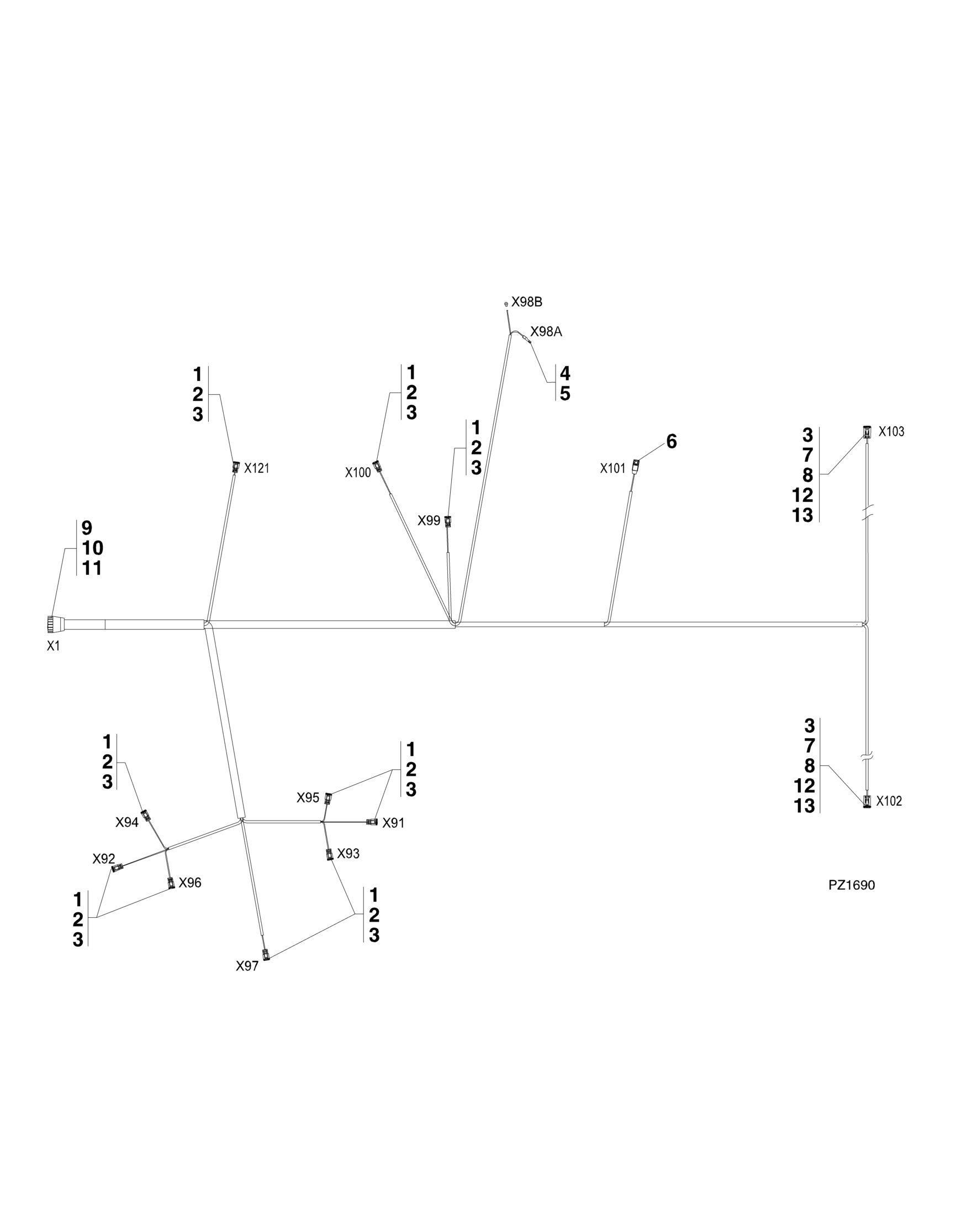

FIGURE 10-14. FRONT CHASSIS HARNESS
FIGURE 10-14. FRONT CHASSIS HARNESS
ITEM PART NUMBER QTY
DESCRIPTION
4923444 1 FRONT CHASSIS HARNESS, (includes all items) 1 7026408 10 CONNECTOR 2 80604018 10 LOCK 3 1001116692 12 TERMINAL 4 1001116995 1 CONNECTOR 5 1001118379 1 TERMINAL 6 70020897 1 CONNECTOR 7 70020801 2 BOOT 8 4460466 2 PLUG 9 1001116978 1 CONNECTOR 10 1001118381 1 TERMINAL 11 1001118391 1 PLUG 12 91504088 2 CONNECTOR 13 91504107 2 LOCK
REV
G
