FIGURE 10 12. QUICK CONNECT HARNESS
from JLG 3508PS 3509PS 3512PS 3513PS 4008PS 4009PS 4012PS 4013PS 4017PS Telehandler Parts Manual - PDF DO

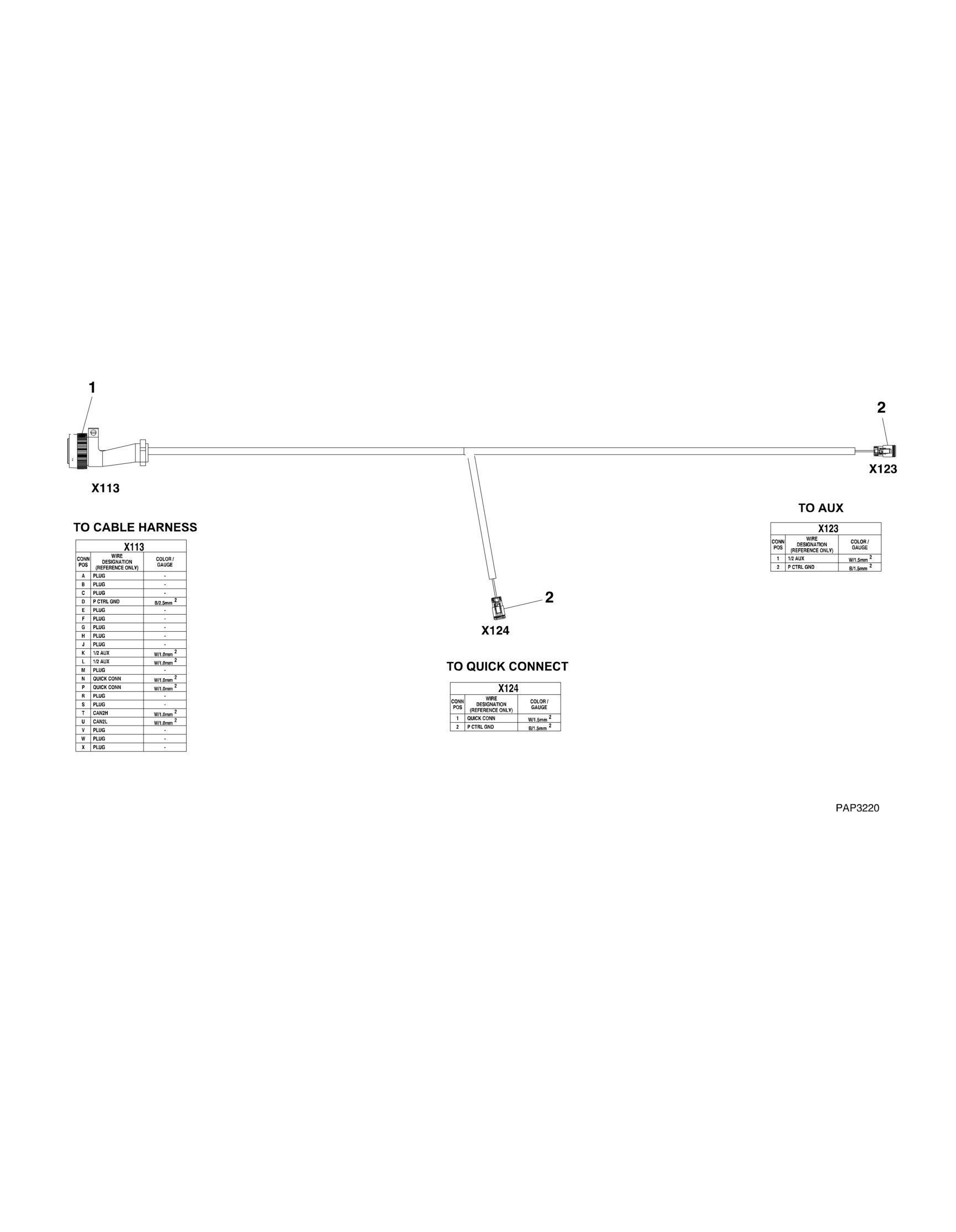

FIGURE 10-12. QUICK CONNECT HARNESS
FIGURE 10-12. QUICK CONNECT HARNESS
ITEM PART NUMBER QTY
DESCRIPTION
1001092137 1 QUICK CONNECT HARNESS, (includes all items) 1 1001116927 1 CONNECTOR 1 91474467 1 STRAIN RELIEF 1 1001116693 6 TERMINAL 1 70020887 1 TERMINAL 1 4460466 14 PLUG 2 7026408 2 CONNECTOR 2 70020888 2 TERMINAL, (qty per connector) 2 80604018 1 LOCK, (qty per connector)
REV
F
