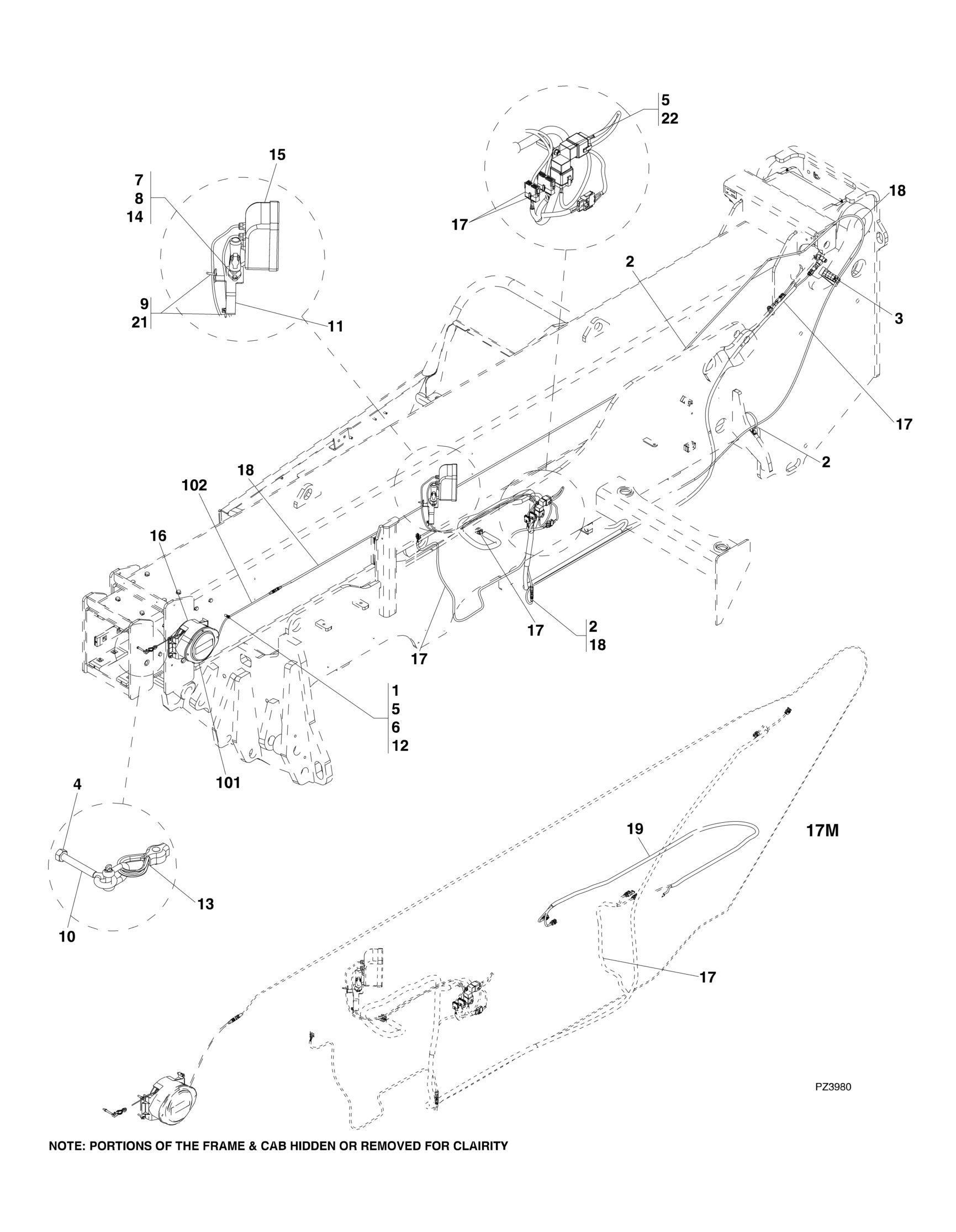

FIGURE 10 19. LMIS INSTALLATION

FIGURE 10-19. LMIS INSTALLATION

FIGURE 10-19. LMIS INSTALLATION

ITEM PART NUMBER QTY DESCRIPTION REV

1001106599 Ref LMIS INSTALLATION, (3509PS, 3513PS, 4009PS & 4013PS if equipped), (not available to order, see items 1 thru 18, 21 & 22 for service) 1001108359 Ref LMIS INSTALLATION, (17M, if equipped), (not available to order, see items 1 thru 22 for service) B

1

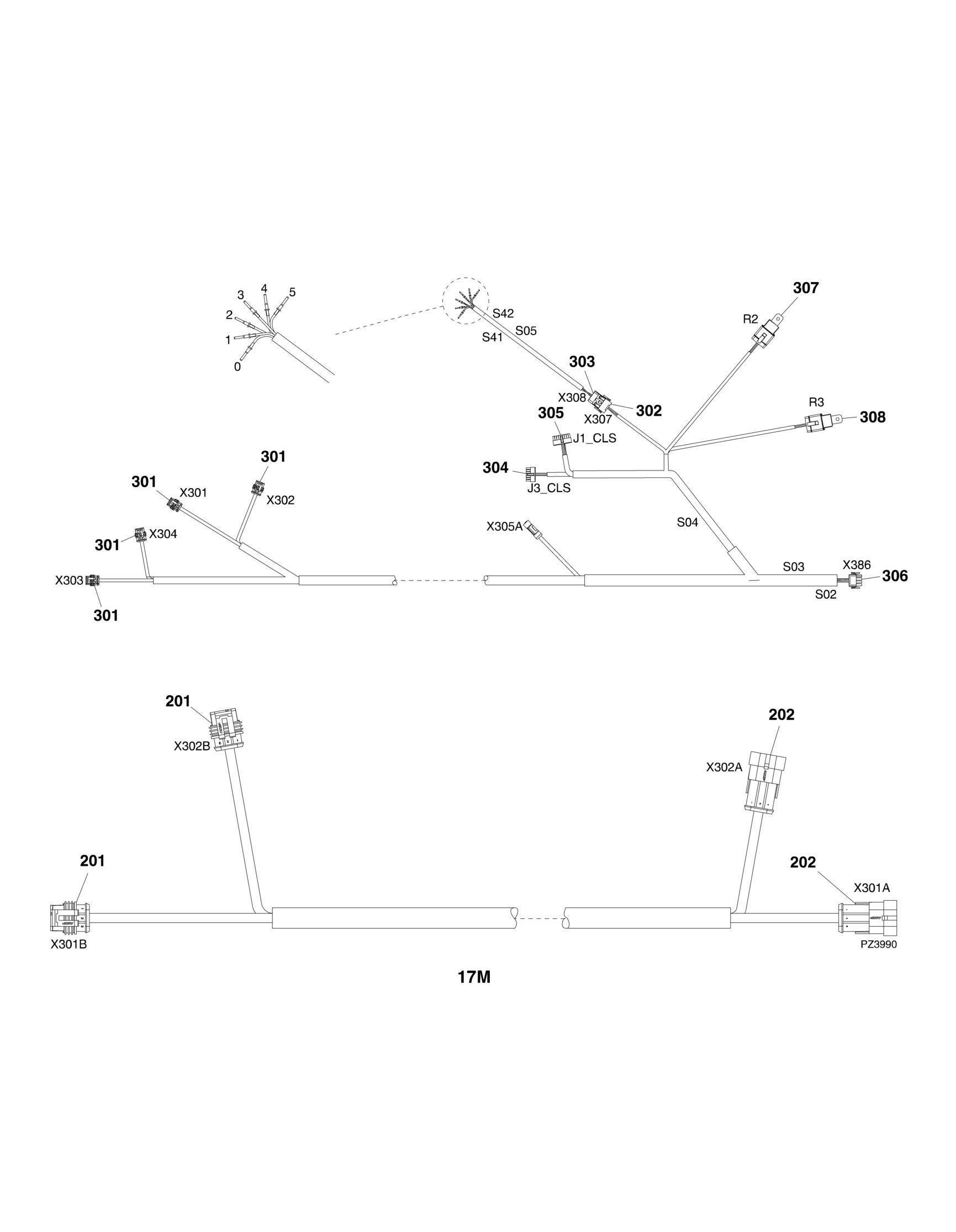

1 0760615 4 HEX HD CAPSCREW, M6X35, GR8.8 2 1062255 AR TIE STRAP 3 2966454 1 HOSE CLAMP 4 3290601 1 HEX NUT, M6X1 5 4811700 5 WASHER, 6mm 6 4831700 4 LOCKWASHER, 6mm 7 5200608 2 BOLT, M6X16 8 5220600 2 NUT, 6mm 9 1001095650 AR LOCTITE 243 10 1001102633 1 SPECIAL SCREW, M6X60 11 1001103180 1 BRACKET 12 1001103807 2 SPACER 13 1001104341 1 LMIS CABLE REEL KIT 14 1001104344 1 PIVOT ARM SUPPORT 15 1001104415 1 LMIS DISPLAY GUAGE 16 1001106385 1 LMIS CABLE REEL ASSY, (includes items 101 & 102) A 17 1001106805 1 LMIS TRANSDUCER HARNESS, (includes items 301 thru 308) D 18 1001107622 1 LMIS EXTENSION HARNESS B 19 1001107749 1 LMIS LIFT EXTENSION HARNESS, (17M), (includes items 201 & A 202) 21 1001107982 2 SCREW, 4.8X25 22 1001113432 1 STANDOFF, M6 101 1001104342 1 LMIS BOOM CABLE REEL 102 1001106386 1 LMIS REEL PIGTAIL HARNESS 201 4461262 2 CONNECTOR 202 4461119 2 CONNECTOR 202 1001104499 2 CAVITY PLUG 301 4461262 4 CONNECTOR 302 4460321 1 CONNECTOR 303 4460761 1 CONNECTOR 304 4460920 1 CONNECTOR 305 250216 1 CONNECTOR 306 4460343 1 CONNECTOR 307 1001117057 1 CONNECTOR 308 4460374 1 CONNECTOR 308 3740080 1 RELAY 401 Ref LMIS HYDRAULICS, (not shown), (See HYDRAULIC CIRCUITS SECTION for Breakdown)

402 Ref LMIS AUDIBLE TOWER BEACON, (not shown), (See LMIS AUDIBLE TOWER/BEACON INSTALLATION for Breakdown)
