FIGURE 10 24. PLATFORM HARNESS
from JLG 3508PS 3509PS 3512PS 3513PS 4008PS 4009PS 4012PS 4013PS 4017PS Telehandler Parts Manual - PDF DO

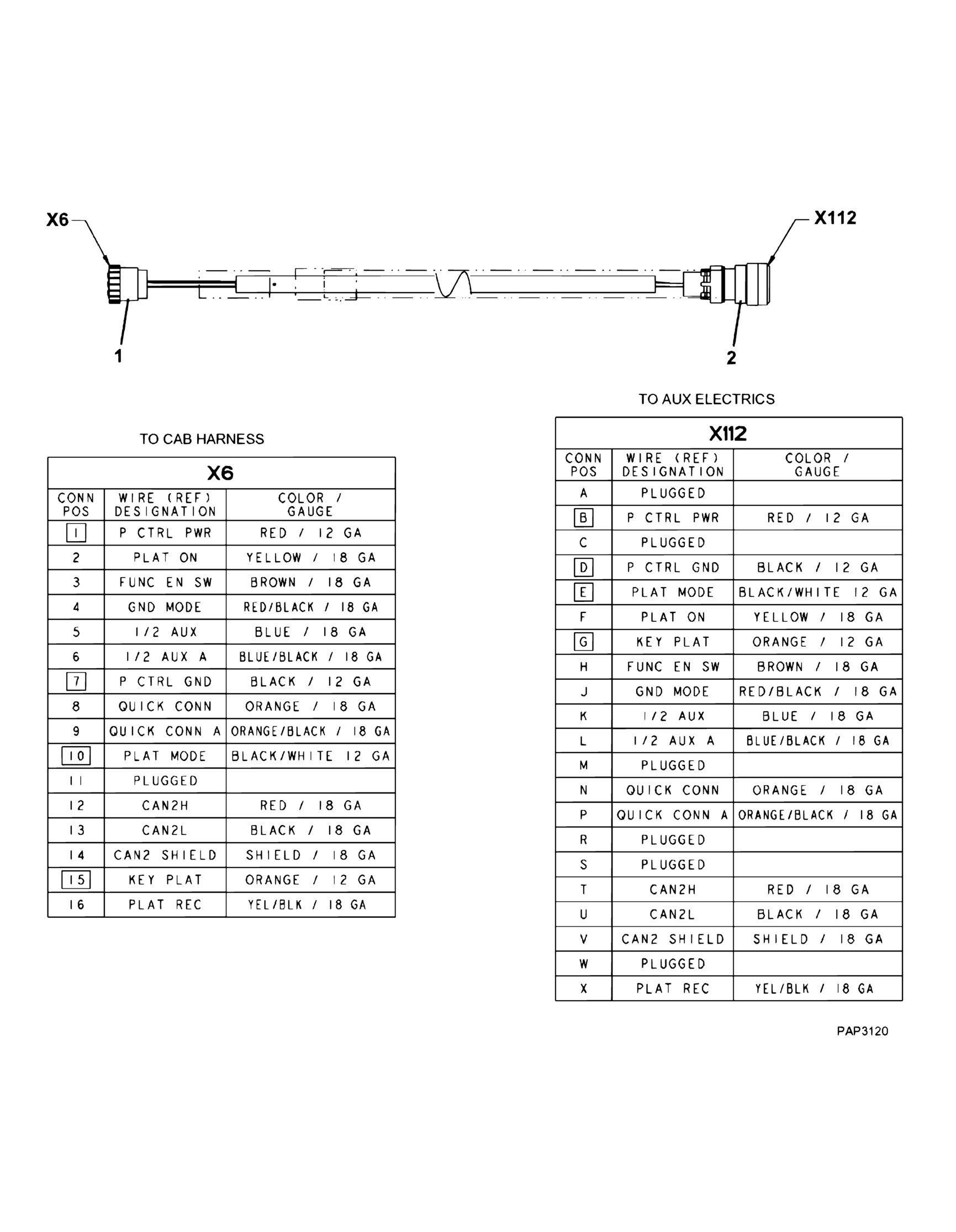

FIGURE 10-24. PLATFORM HARNESS
FIGURE 10-24. PLATFORM HARNESS
ITEM PART NUMBER QTY
DESCRIPTION
4923442 1 PLATFORM HARNESS, (includes all items) 1 1001116979 1 CONNECTOR 1 1001118381 11 TERMINAL 1 1001116718 4 TERMINAL 1 1001118391 1 PLUG 2 4461003 1 CONNECTOR 2 1001116692 11 TERMINAL 2 70020890 4 TERMINAL 2 4460446 6 PLUG 2 1321647 1 CABLE CLAMP
REV
E
