FIGURE 10 21. OUTRIGGER HARNESS
from JLG 3508PS 3509PS 3512PS 3513PS 4008PS 4009PS 4012PS 4013PS 4017PS Telehandler Parts Manual - PDF DO

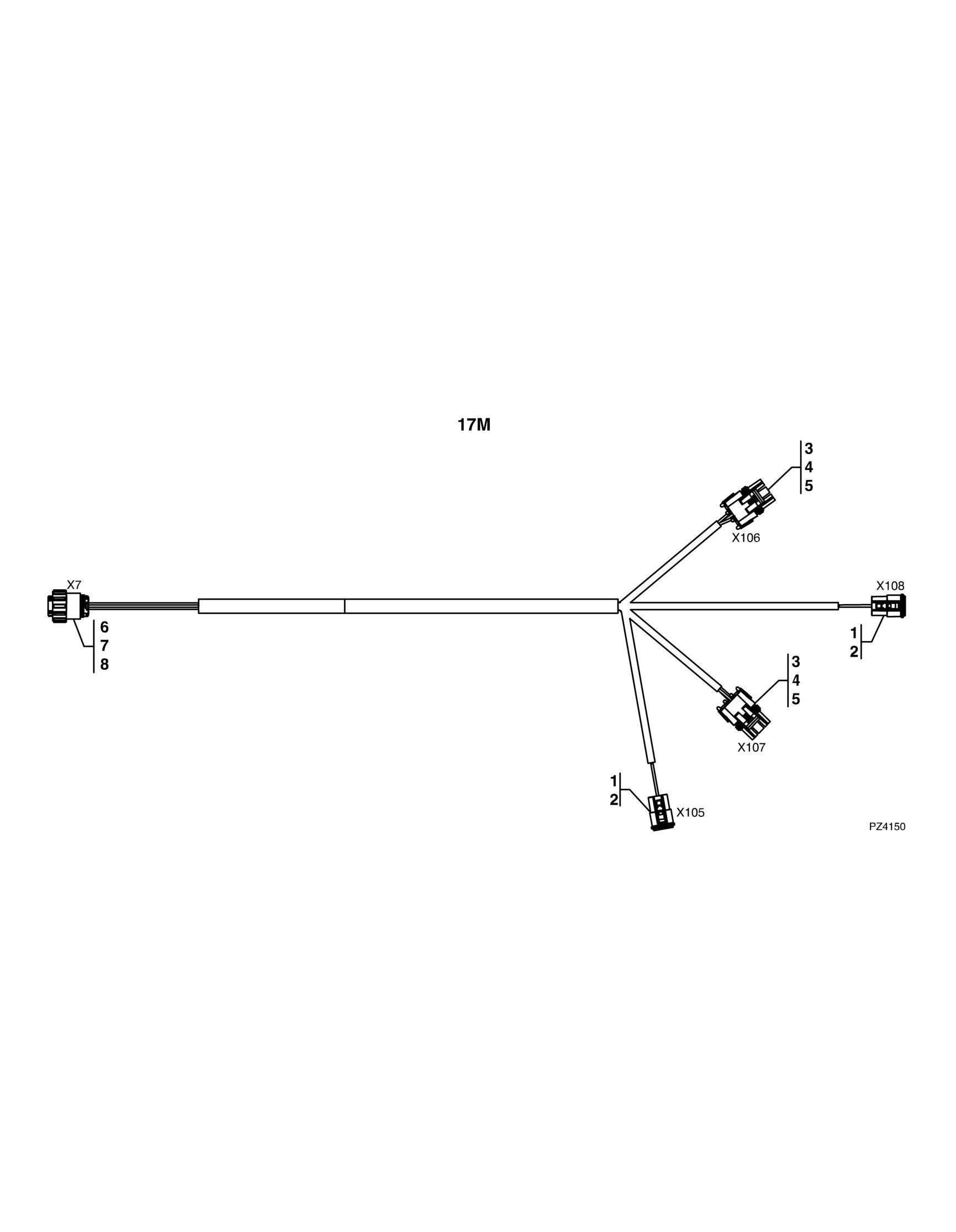

FIGURE 10-21. OUTRIGGER HARNESS
FIGURE 10-21. OUTRIGGER HARNESS
ITEM PART NUMBER QTY DESCRIPTION REV
1001098084 1 OUTRIGGER HARNESS, (17M if equipped), (includes all items) C 1 4460539 2 CONNECTOR 1 77363244 2 WEDGE LOCK 2 1001116692 2 TERMINAL 3 4461262 2 CONNECTOR 4 1001107854 2 TERMINAL 5 7029647 2 SEAL 6 1001116980 1 HOUSING 7 1001118381 1 TERMINAL 8 1001118391 1 PLUG
