FIGURE 10 22. OUTRIGGER HARNESS
from JLG 3508PS 3509PS 3512PS 3513PS 4008PS 4009PS 4012PS 4013PS 4017PS Telehandler Parts Manual - PDF DO

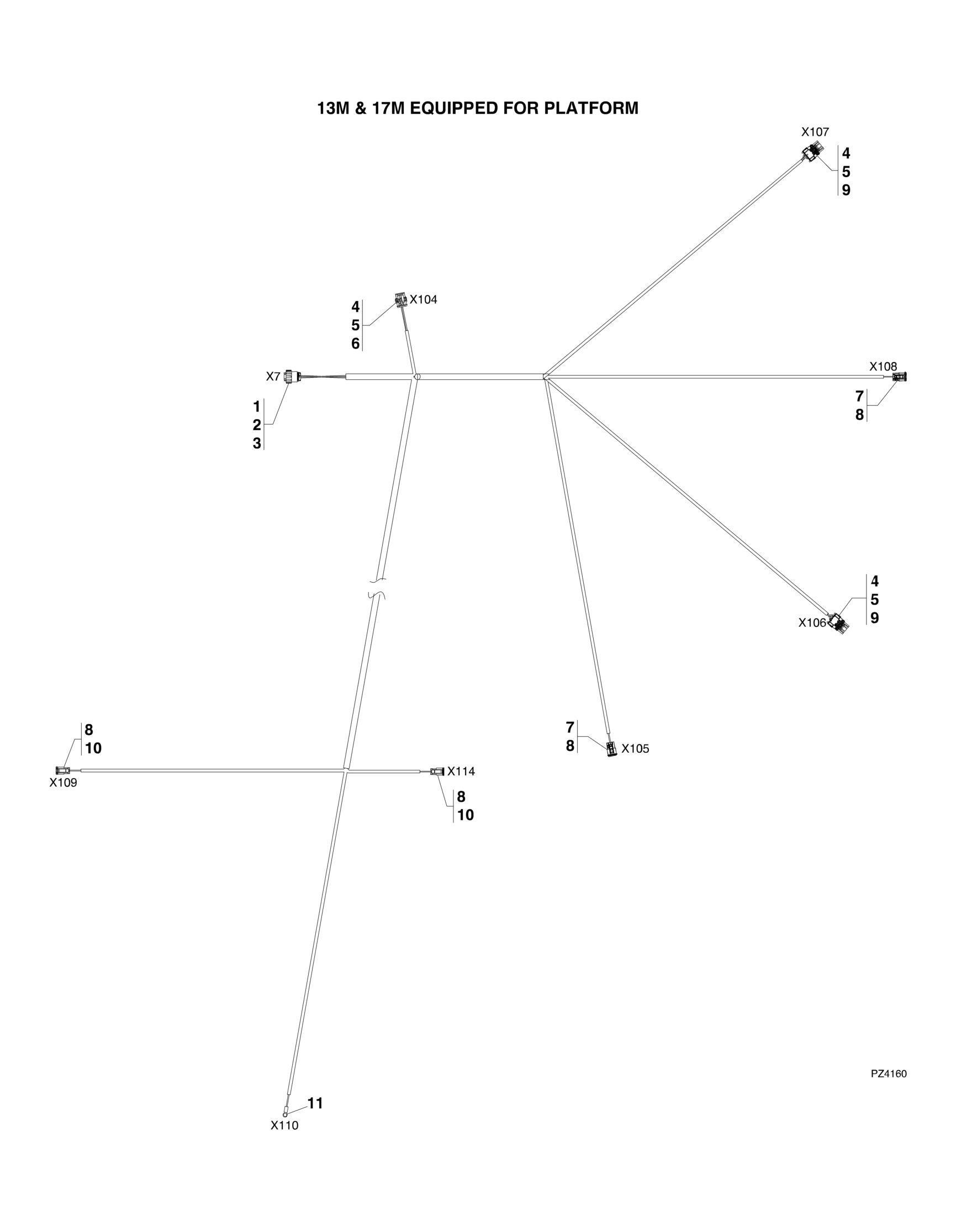

FIGURE 10-22. OUTRIGGER HARNESS
FIGURE 10-22. OUTRIGGER HARNESS
ITEM PART NUMBER QTY
DESCRIPTION
4923443 1 OUTRIGGER HARENSS, (13M & 17M), (if equipped for platform), (includes all items) 1 1001116980 1 HOUSING 2 1001118381 1 TERMINAL 3 1001118391 1 PLUG 4 4461262 3 CONNECTOR 5 1001107854 3 TERMINAL 6 1001104498 1 SEAL 7 4460539 2 CONNECTOR 7 77363244 2 WEDGE LOCK 8 1001116692 4 TERMINAL 9 7029647 2 SEAL 10 4460891 2 CONNECTOR KIT 10 7026408 2 CONNECTOR 10 80604018 2 WEDGE LOCK 11 Ref RING, 5mm
