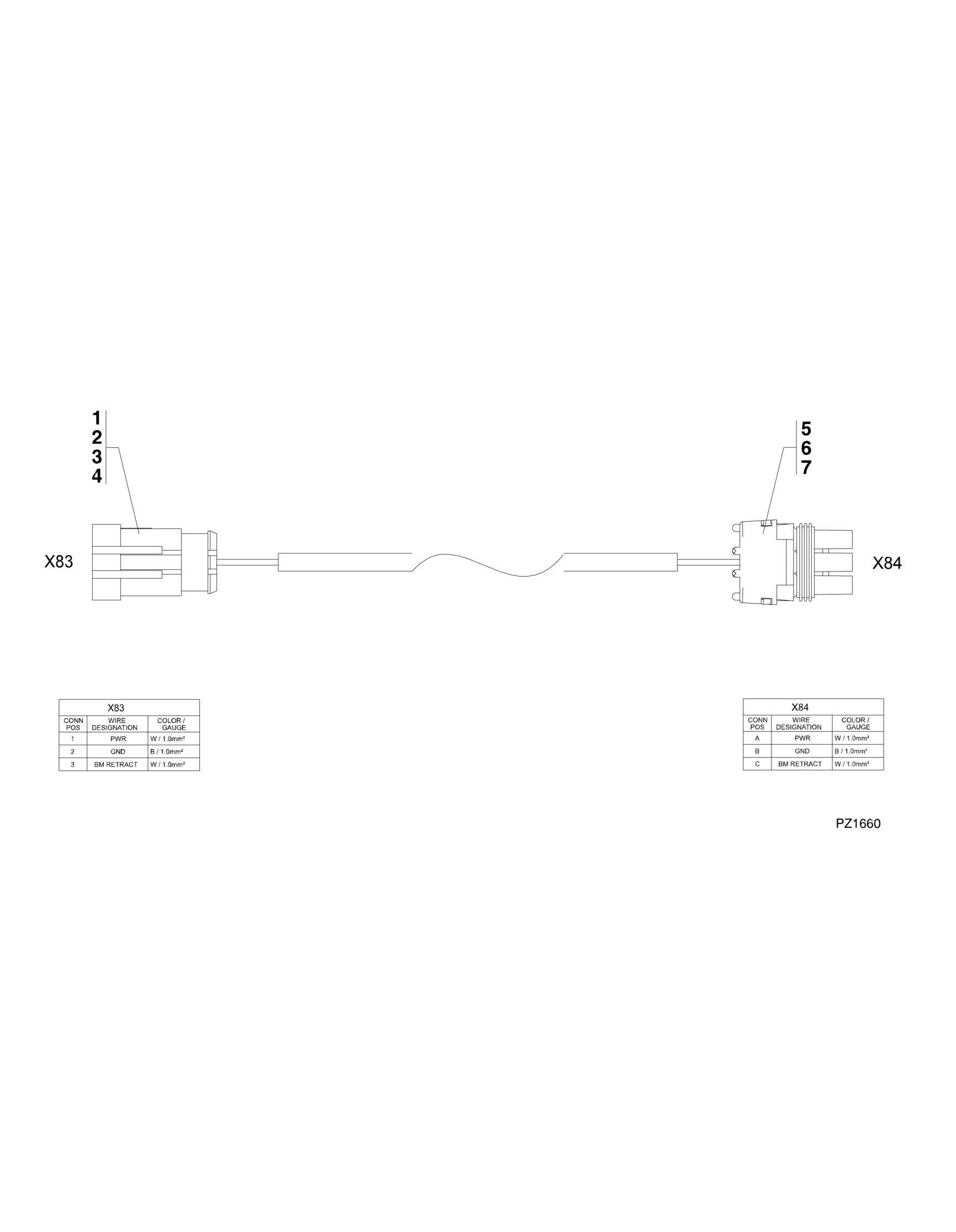

FIGURE 10 11. BOOM RETRACT HARNESS
from JLG 3508PS 3509PS 3512PS 3513PS 4008PS 4009PS 4012PS 4013PS 4017PS Telehandler Parts Manual - PDF DO
FIGURE 10-11. BOOM RETRACT HARNESS
FIGURE 10-11. BOOM RETRACT HARNESS
ITEM PART NUMBER QTY
DESCRIPTION
4923493 1 BOOM RETRACT HARNESS, (includes all items) 1 80374114 1 CONNECTOR 2 1001104497 1 TERMINAL 3 1001104498 1 SEAL 4 70020892 1 BOOT 5 4460459 1 CONNECTOR 6 4460743 1 TERMINAL 7 7029679 1 SEAL
REV
A
