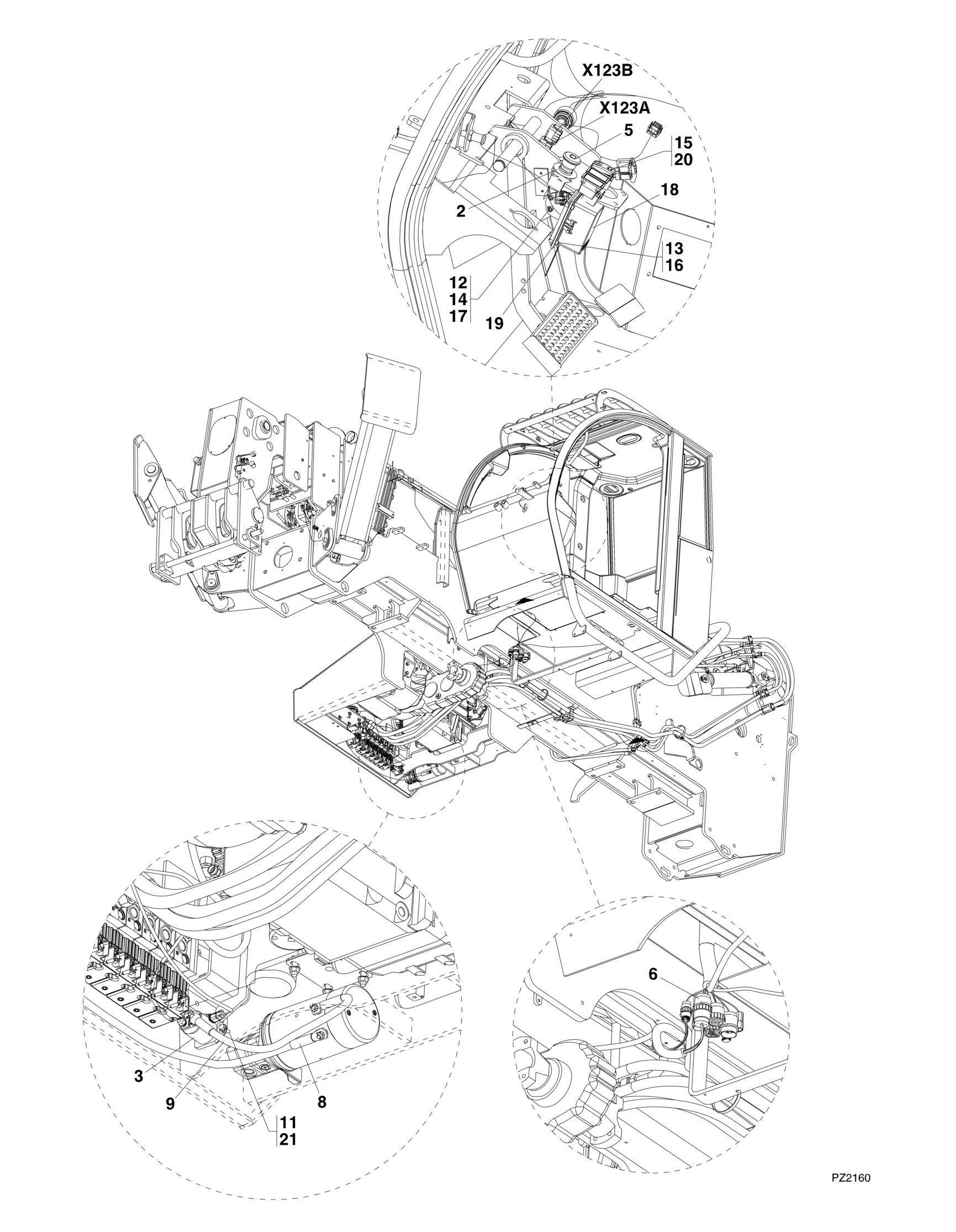

FIGURE 10 18. ELECTRICAL INSTALLATION, PLATFORM

FIGURE 10-18. ELECTRICAL INSTALLATION, PLATFORM

FIGURE 10-18. ELECTRICAL INSTALLATION, PLATFORM

ITEM PART NUMBER QTY

DESCRIPTION

0275917 Ref ELECTRICAL INSTALLATION, (if equipped for platform), (not available to order, see items 2 thru 21 for service) 2 Ref EMS DECAL, (See ELECTRICAL INSTALLATION, CAB SWITCHES for Breakdown) 3 3740067 1 RELAY 5 Ref E-STOP SWITCH, (See ELECTRICAL INSTALLATION, CAB SWITCHES for Breakdown) 6 Ref PLATFORM HARNESS, (See PLATFORM HARNESS for Breakdown) 8 4923517 1 GROUND STARTER HARNESS 9 4923519 1 HARNESS 11 5200608 2 RIPP BOLT, M6X16mm 12 3290601 2 HEX NUT, M6X1 13 4031607 4 SOCKET HD CAPSCREW, M5X16 14 4031709 2 SOCKET HD CAPSCREW, M6X25 15 Ref SWITCH BODY, QUICK DISCONNECT, (if equipped), (See ELECTRICAL INSTALLATION, CAB SWITCHES for Breakdown) 16 4831600 4 LOCKWASHER, 5mm 17 4831700 2 LOCKWASHER, 6mm 18 Ref PLATFORM CAB HARNESS, (See PLATFORM CAB HARNESS for Breakdown) 19 1001098017 1 RELAY BOX BRACKET 20 Ref SWITCH KEY, APU ENABLE, (See ELECTRICAL INSTALLATION, CAB SWITCHES for Breakdown) 21 4791400 2 WASHER, 1/4

REV

D
