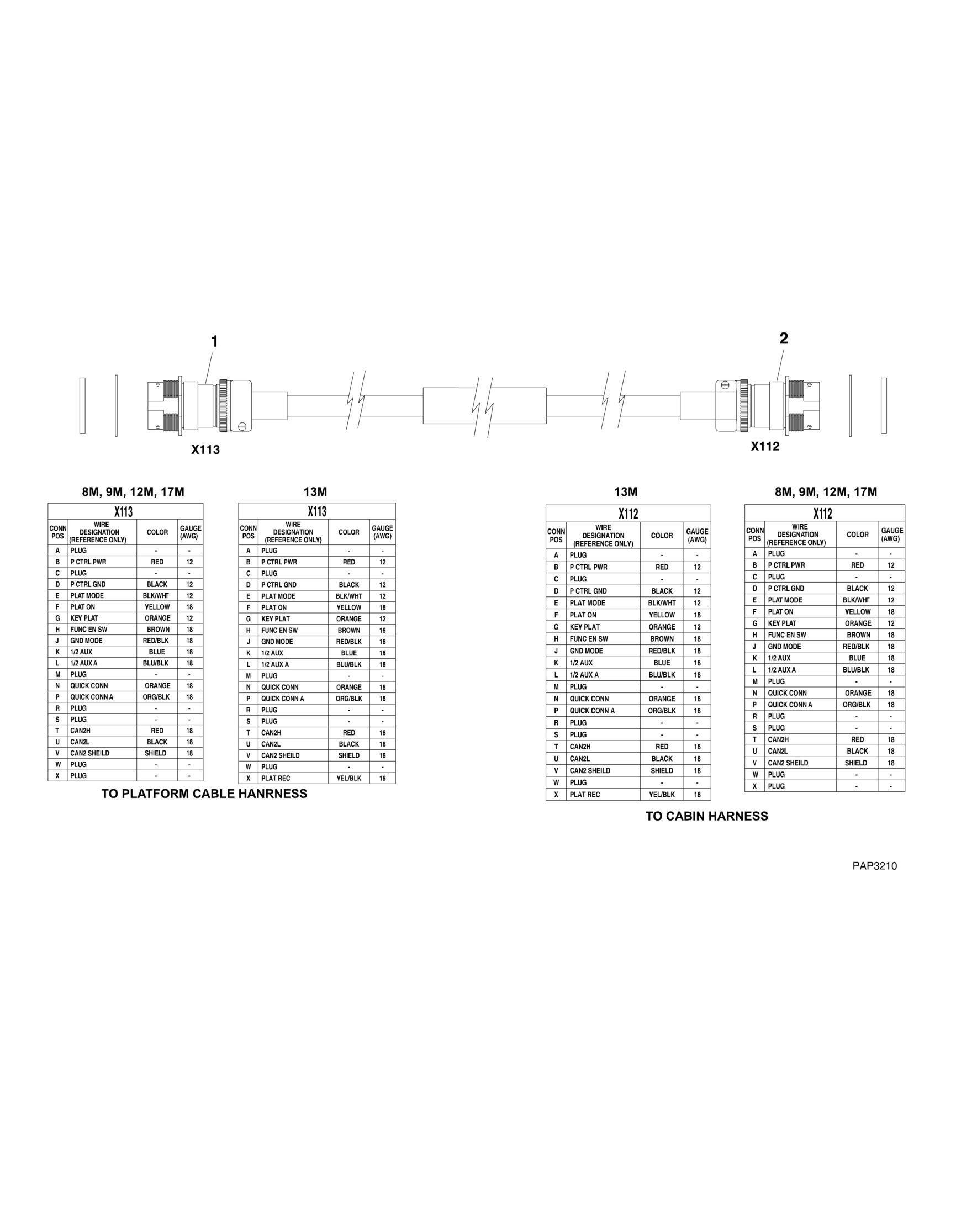

FIGURE 10 13. CABLE HARNESS

FIGURE 10-13. CABLE HARNESS

FIGURE 10-13. CABLE HARNESS

ITEM PART NUMBER QTY

DESCRIPTION

1001092013 1 CABLE HARNESS, (8M), (includes all items) 1001092014 1 CABLE HARNESS, (9M), (includes all items) 1001092015 1 CABLE HARNESS, (12M), (includes all items) 4923646 1 CABLE HARNESS, (13M), (includes all items) 4923529 1 CABLE HARNESS, (17M), (includes all items) 1 4461243 1 HOUSING 1 91504109 1 STRAIN RELIEF 1 1001116692 7 TERMINAL, (8M, 9M, 12M & 17M) 1 1001116692 8 TERMINAL, (13M) 1 70020890 4 TERMINAL SOCKET 1 70020891 3 TERMINAL 1 4460466 7 PLUG, (8M, 9M, 12M & 17M) 1 4460466 6 PLUG, (13M) 1 83481286 1 NUT, (8M, 9M, 12M & 13M) 1 83481285 1 LOCKWASHER, (8M, 9M, 12M & 13M) 2 4461242 1 HOUSING 2 91504109 1 STRAIN RELIEF 2 1001116692 7 TERMINAL, (8M, 9M, 12M & 17M) 2 1001116692 8 TERMINAL, (13M) 2 70020890 4 TERMINAL SOCKET 2 70022736 3 TERMINAL 2 4460466 7 PLUG, (8M, 9M, 12M & 17M) 2 4460466 6 PLUG, (13M) 2 83481286 1 NUT, (8M, 9M, 12M & 13M) 2 83481285 1 LOCKWASHER, (8M, 9M, 12M & 13M)

REV

C B B D E
