Countershaft

How to Remove and Disassemble Front Countershaft

Special Instructions

None

Special Tools

• Bearing Race Puller (Tool ref. ID T6) • Bearing Race Puller (Tool ref. ID T7)

3

1 2

1. Bearing — Outer Roller 2. Bearing — Inner Race 3. Welded Countershaft Assy

Procedure -

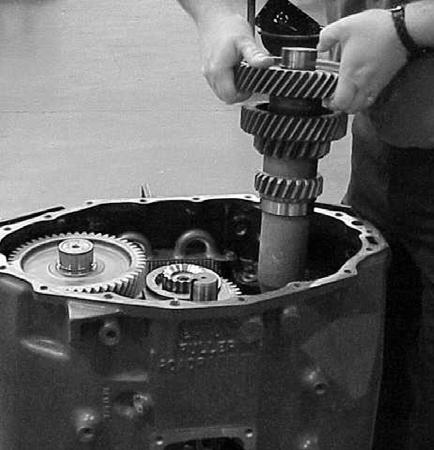

1. Remove the left and right front countershafts by lifting them directly out of the case from the front.

Note: Identify countershafts as they are removed by marking them ’left’ & ’right’ for future re-assembly.

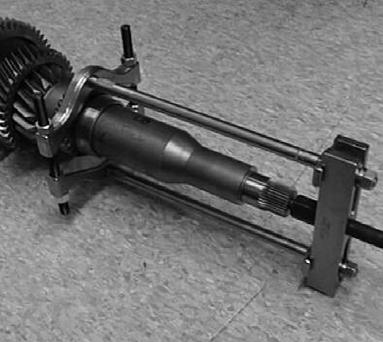

2. Use the bearing race puller (Tool ref. ID T6) to remove the countershaft front bearing races.

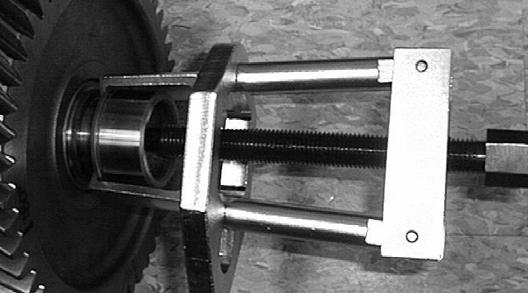

3. Use the bearing race puller (Tool ref. ID T7) to remove the auxiliary countershaft front bearing races from the front countershafts.
