How to Orient Transmission for Overhaul
Special Instructions
None
Special Tools
• Lifting Chain • Over Head Crane

Procedure -
1. Before beginning the overhaul procedure the transmission must be mounted to a fixture that will allow for disassembly and re-assembly in the vertical position.

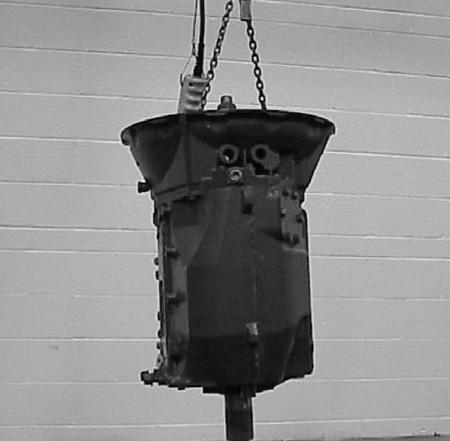

2. Lift the transmission using a chain, a lifting device, and two lifting eyelets attached to front cover capscrews inside the clutch housing/front cover. The chain and lifting device must have a minimum capacity of 1000 lbs.

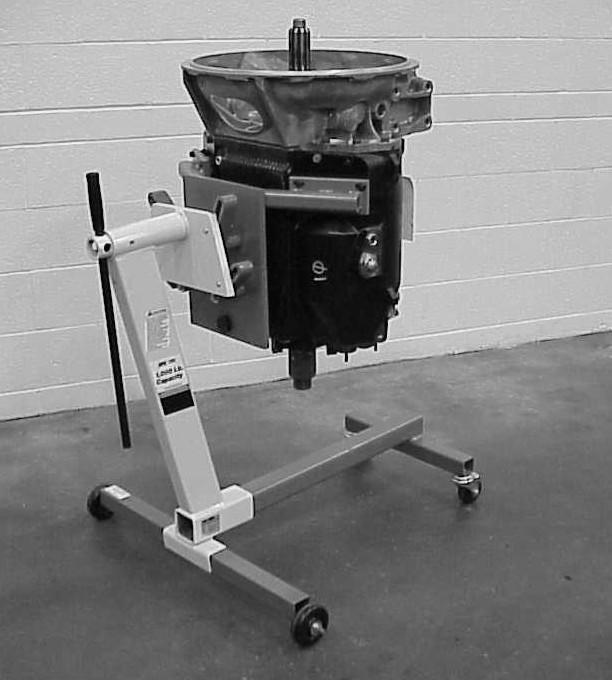

3. Mount the transmission to the stand attached to a standard 1000 lb. minimum capacity automotive engine repair stand.
A stand that allows for rotation of the transmission is helpful during tear down and assembly. (Tool ref. ID T2)
4. Do not disturb the RTV fasteners when mounting the transmission to the stand - use the extended PTO mounting studs and the drain plug threaded opening for mounting.
